PONTIAC PONTIAC 1995 Owners Manual

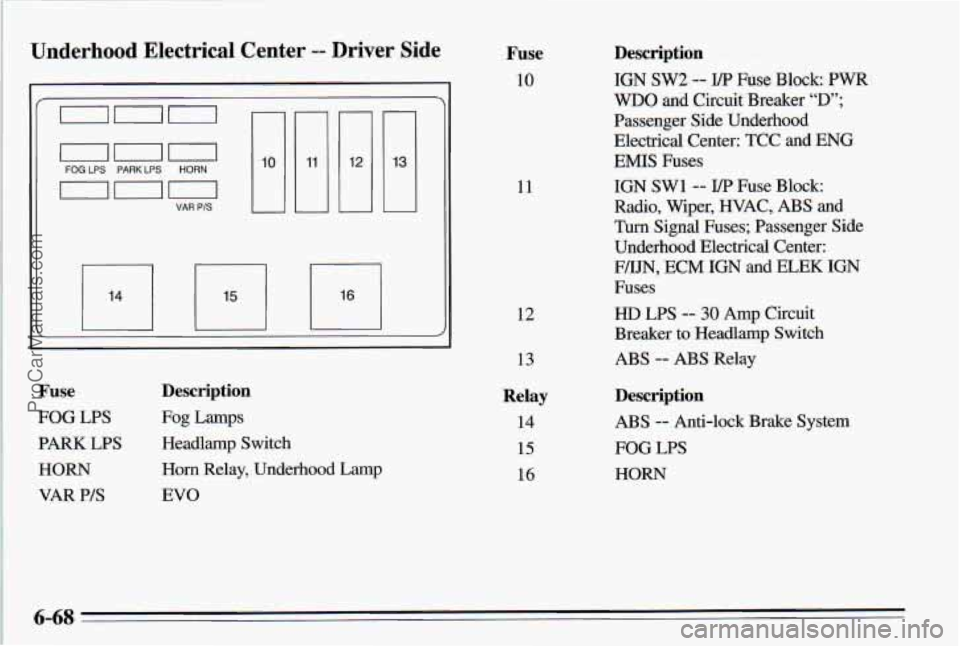

Underhood Electrical Center -- Driver Side
on0
on0
FOG LPS PARKLPS HORN
VAR PIS II
n li ’I
Fuse
10
11
12
Fuse Description
FOG LPS Fog Lamps
PARK LPS Headlamp Switch
HORN Horn Relay, Underhood Lamp
VAR PIS EVO
13
Relay
14
15
16
Description
IGN SW2 -- I/P Fuse Block PWR
WDO and Circuit Breaker “D’;
Passenger Side Underhood
Electrical Center: TCC and ENG
EMIS Fuses
IGN SWl -- I/P Fuse Block:
Radio, Wiper, WAC,
ABS and
Turn Signal Fuses; Passenger Side
Underhood Electrical Center:
F/IJN,
ECM IGN and ELEK IGN
Fuses
HD LPS -- 30 Amp Circuit
Breaker
to Headlamp Switch
ABS -- ABS Relay
Description
ABS -- Anti-lac- Brake Svstem
FOG LPS
HORN
6-68
ProCarManuals.com

Headlamp Wiring
The headlamp wiring is protected by a circuit breaker in
the underhood electrical center.
An electrical overload
will cause the lamps
to go on and off, or in some cases
to remain
off. If this happens, have your headlamp
system checked right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and a fuse.
If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools.
If
the overload is caused by some electrical problem, have
it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is fixed.
6-69 ProCarManuals.com

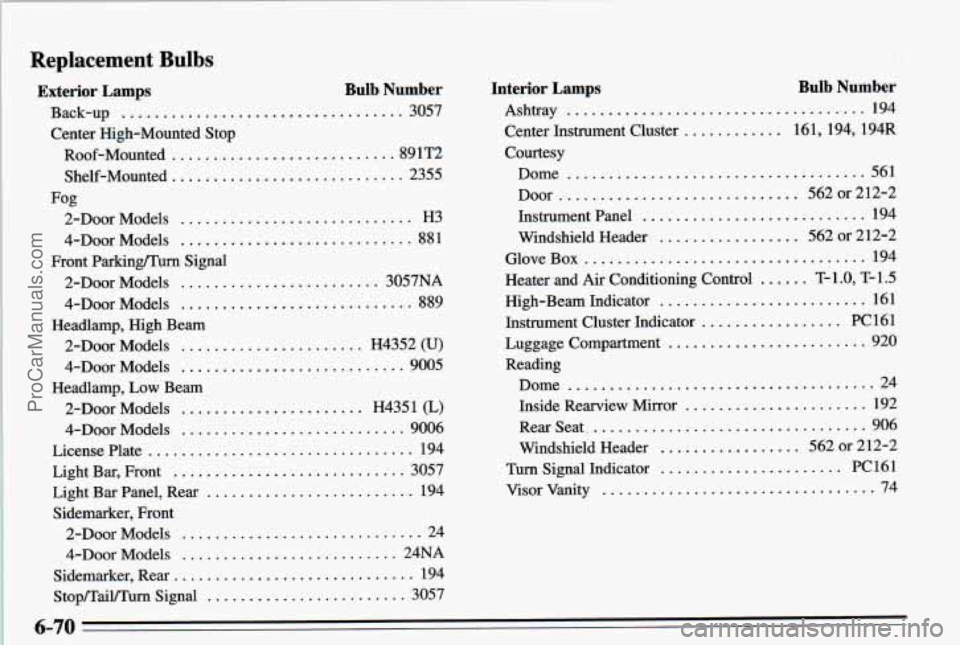

Replacement Bulbs
Exterior.Lamps Bulb- Number
Back-up .................................. 3057
Roof-Mounted
........................... 891T2
Shelf-Mounted
............................ 2355
2-Door Models
............................ H3
4-Door Models ............................ 881
2-Door Models
........................ 3057NA
4-Door Models
............................ 889
2-Door Models
...................... H4352 (U)
4-Door Models ........................... 9005
2-Door Models ...................... H435 1 (L)
4-DaorModels 9006
License Plate
................................ 194
LightBar. Front
............................ 3057
Light
Bar Panel. Rear ......................... 194
Sidemaker. Front
2-Door Models
............................. 24
4-Daor Models
.......................... 24NA
Sidemmker. Rear
............................. 194
Stop/'I'aW'hrn Signal ........................ 3057
Center High-Mounted
Stop
Fag Front Parking/Turn Signal
I Headlamp, High Beam
Headlamp. Low Beam
...........................
I
6-70 ~-
Interior Lamps Bulb Number
Ashtray .................................... 194
Center Instrument Cluster
............ 161. 194. 194R
Courtesy Dome
.................................... 561
Door
............................. 562or212-2
Instrument Panel
........................... 194
Windshield Header
................. 562 or 212-2
GloveBox
.................................. 194
Heater and Air Conditioning Control
...... T- 11.5 .O. T-
Instrument Cluster Indicator ................. PC 161
High-Beam Indicator
......................... 161
Luggage Compartment
........................ 920
Reading Dome
..................................... 24
Inside Rearview Mirror
...................... 192
RearSeat
.................................. 906
Windshield Header
.................. 562 or 212-2
Turn Signal Indicator ...................... PC161
Visor Vanity
................................. 74
ProCarManuals.com

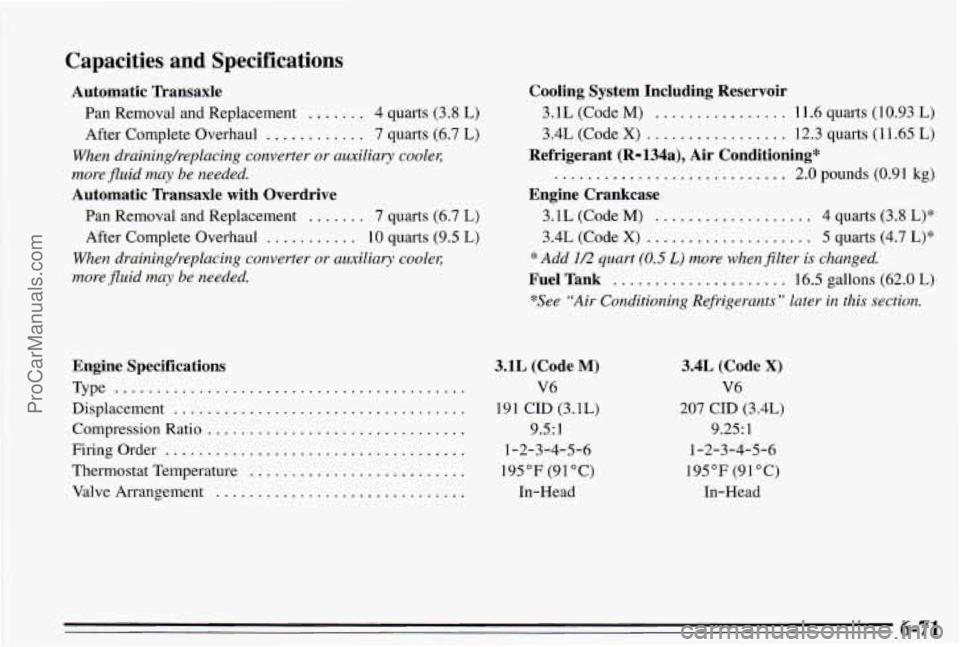

Capacities and Specifications
Automatic Transaxle
Pan Removal and Replacement ....... 4 quarts (3.8 L)
After Complete Overhaul
............ 7 quarts (6.7 L)
When drainingheplacing converter or auxiliary cooleq
more fluid may be needed.
Automatic Tkansaxle with Overdrive
Pan Removal and Replacement ....... 7 quarts (6.7 L)
After Complete Overhaul
........... 10 quarts (9.5 L)
When drainingheplacing converter or auxiliary cooler,
more fluid may be needed.
Engine Specifications
Displacement ...................................
Compression Ratio ...............................
Thermostat Temperature ..........................
Type ..........................................
Firingorder ....................................
ValveArrangement ..............................
Cooling System Including Reservoir
3.1L (Code M) ................ 11.6 quarts (10.93 L)
3.4L (Code
X) ................. 12.3 quarts (1 1.65 L)
............................ 2.0 pounds (0.91 kg)
3.1L (Code M) ................... 4 quarts (3.8 L)*
3.4L (Code
X) .................... 5 quarts (4.7 L)*
*Add 1/2 quurt (0.5 L) more when filter is changed.
Fuel Tank ..................... 16.5 gallons (62.0 L)
*See "Air Conditioning Refrigerants '' later in this section.
Refrigerant (R-l34a), Air Conditioning"
Engine Crankcase
3.1L (Code
M)
V6
191 CID (3.1L) 9.5:
1
1-2-3-4-5-6
195°F (91 "C)
In-Head
3.4L (Code X)
V6
207 CID (3.4L) 9.25:
1
1-2-3-4-5-6
195°F (91°C)
In-Head
6-71 ProCarManuals.com

Normal Maintenance Replacement Parts
Air Cleaner Filter
Battery
All Engines ............................. A1208C
3.1L (Code
M) ......................... 525 CCA
3.4L (Code
M) ......................... 690 CCA
3.1L (Code
M) ............................. PF47
3.4L (Code
X) .............................. PF5 1
3.1L (Code M)
.......................... CV892C
3.4L (Code
X) ........................... CV895C
All Engines
............................... RC27
3.1L (Code
M) ....................... oR44LTSM6
3.4L
(Code X) ......................... oR42LTSM
Engine Oil Filter
PCV
Valve
Radiator Cap
Spark Plugs
Gap: 0.060” (1 52 mm)
Gap: 0.045” (1.14 mm) I
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same. If
the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used.
If
you’re not sure, ask your Pontiac dealer. For additional
information, see your “Warranty and Owner1 Assistance
Information” booklet.
ProCarManuals.com

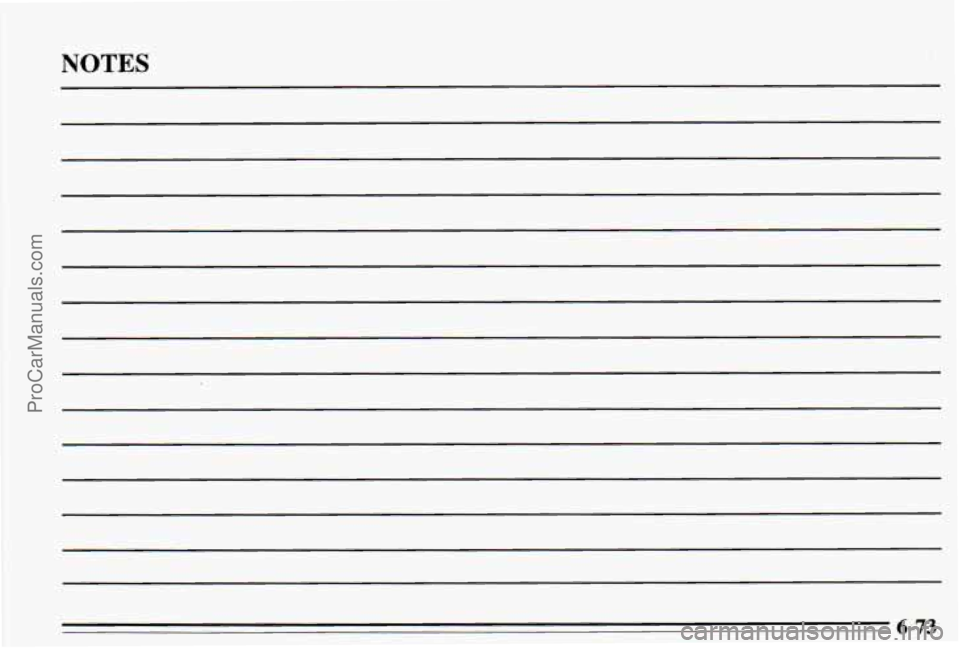

NOTES
6-73 ProCarManuals.com

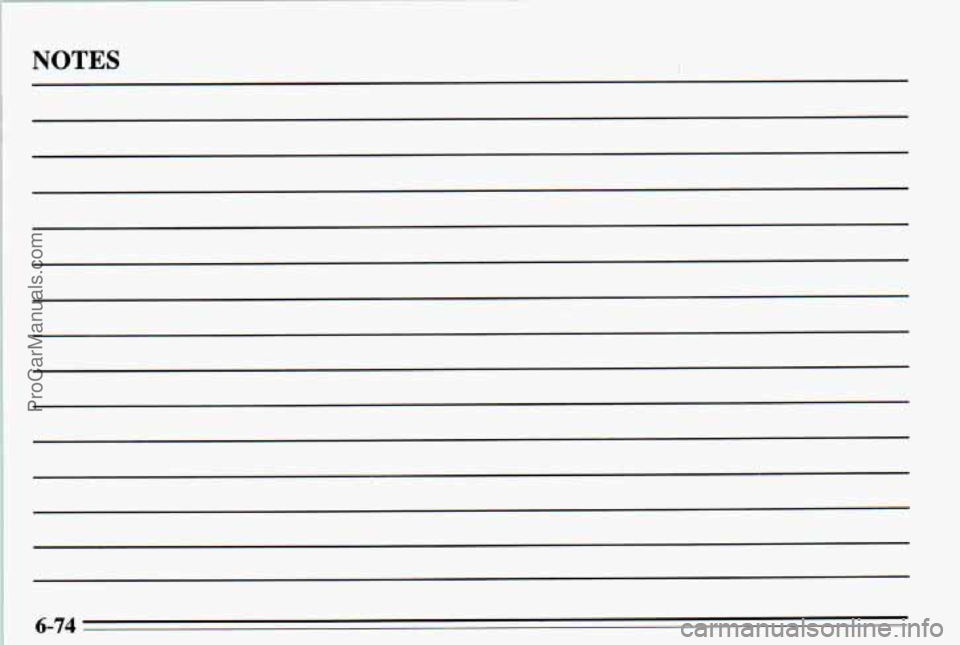

NOTES
6-74 ProCarManuals.com

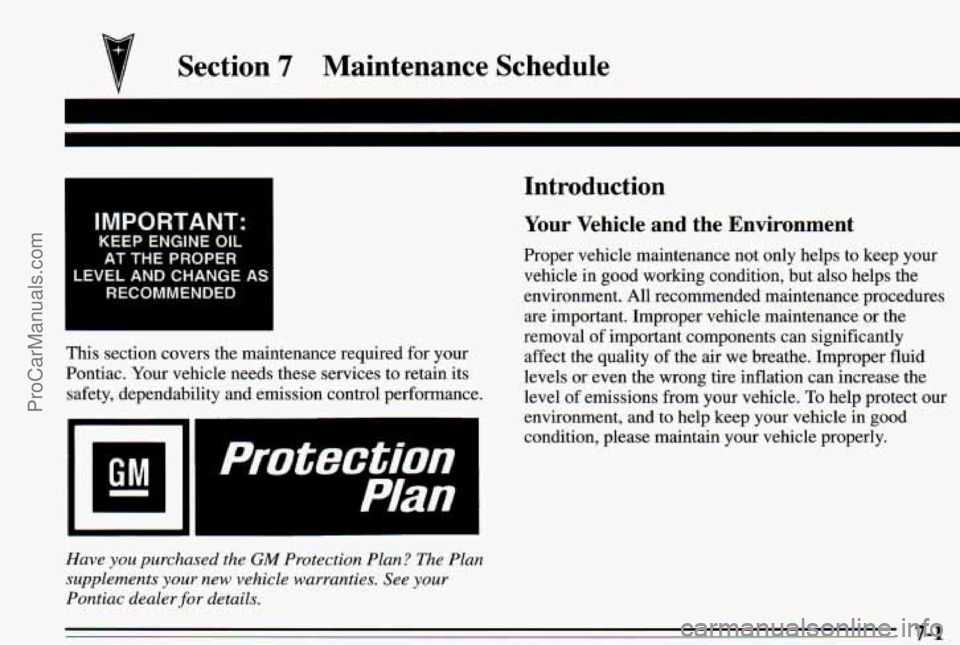

Section 7 Maintenance Schedule
IMPORTANT:
KEEP ENGINE OIL
AT THE PROPER
LEVEL AND CHANGE
AI
RECOMMENDED
This section covers the maintenance required for your
Pontiac. Your vehicle needs these services to retain its
safety, dependability and emission control performance.
GM protection I
Have you purclzased the GM Protection Plan? The Plan
supplements
your new vehicle warranties. See your
Pontiac dealer for details.
Introduction
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your
vehicle in
good working condition, but also helps the
environment. All recommended maintenance procedures are important. Improper vehicle maintenance or the
removal of important components can significantly
affect the quality
of the air we breathe. Improper fluid
levels or even the wrong tire inflation can increase the level of emissions from your vehicle.
To help protect our
environment, and to help keep
your vehicle in good
condition, please maintain your vehicle properly.
7-1 ProCarManuals.com

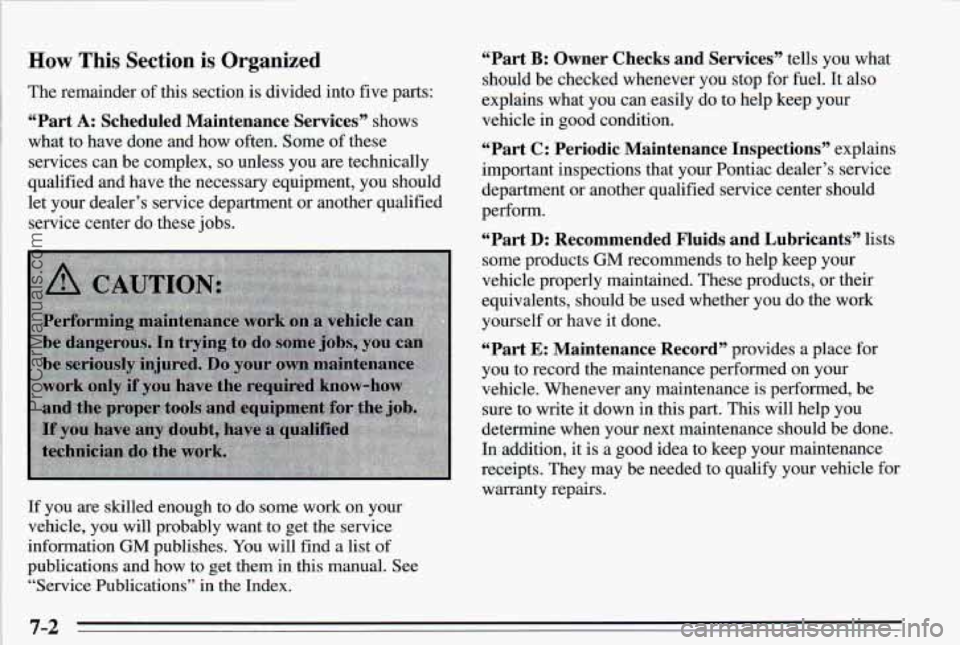

How This Section is Organized
The remainder of this section is divided into five parts:
“Part A: Scheduled Maintenance Services” shows
what to have done and how often. Some
of these
services can be complex,
so unless you are technically
qualified and have the necessary equipment, you should
let your dealer’s service department or another qualified
service center do these jobs.
If you are skilled enough to do some work on your
vehicle, you will probably want to get the service
information
GM publishes. You will find a list of
publications and how to get them in this manual. See
“Service Publications”
in the Index.
“Part B: Owner Checks and Services” tells you what
should be checked whenever you stop
for fuel. It also
explains what you
can easily do to help keep your
vehicle
in good condition.
“Part C : Periodic Maintenance Inspections” explains
important inspections that your Pontiac dealer’s service
department or another qualified service center should
perform.
“Part D: Recommended Fluids and Lubricants” lists
some products
GM recommends to help keep your
vehicle properly maintained. These products, or their
equivalents, should be used whether you do the work
yourself or have it done.
“Part E: Maintenance Record” provides a place for
you to record the maintenance performed on your
vehicle. Whenever any maintenance is performed, be
sure to write it down in this part. This will help you
determine when your next maintenance should be done.
In addition,
it is a good idea to keep your maintenance
receipts. They may be needed to qualify your vehicle for
warranty repairs.
7-2 ProCarManuals.com

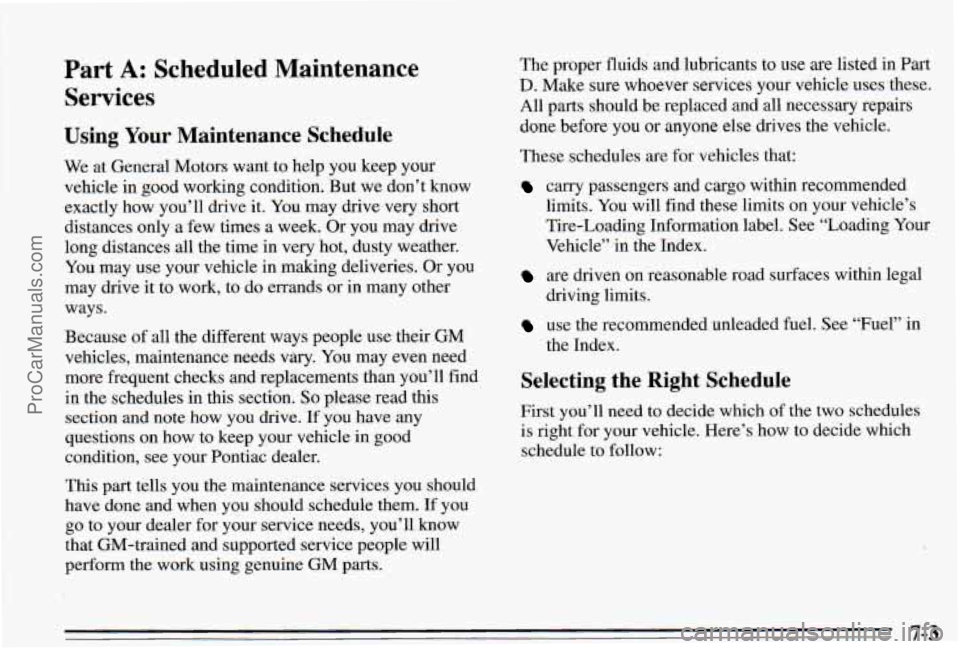

Part A: Scheduled Maintenance
Services
Using Your Maintenance Schedule
we at Gen ~ ~11 Motors want to help you keep your
vehicle in good workmg condition. But we don’t know
exactly how you’ll drive
it. You may drive very short
distances only a few times a week. Or you may drive
long distances all the time in very hot, dusty weather.
You may use your vehicle in making deliveries. Or you
may drive it to work, to do errands or in many other
ways.
Because of all the different ways people use their
GM
vehicles, maintenance needs vary. You may even need
more frequent checks and replacements than you’ll find
in the schedules in this section.
So please read tlvs
section and note how you drive. If you have any
questions on how to keep your vehicle in good
condition, see your Pontiac dealer.
This
part tells you the maintenance services you should
have done and when you should schedule them. If you
go to your dealer for your service needs, you’ll know
that GM-trained and supported service people will
perform the work using genuine
GM parts. The proper fluids
and lubricants to
use are listed in Part
D. Make sure whoever services your vehicle uses these.
All parts should be replaced and all necessary repairs
done before
you or anyone eke drives the vehicle.
These schedules are for vehicles that:
cany passengers and cargo within recommended
limits. You will find these limits on your vehicle’s
Tire-Loading Information label. See “Loading Your
Vehicle”
in the Index.
are driven on reasonable road surfaces within legal
use the recommended unleaded fuel. See “Fuel” in
driving
limits.
the Index.
Selecting the Right Schedule
First you’ll need to decide which of the two schedules
is right for your vehicle. Here’s how to decide which
schedule to follow:
