PONTIAC VIBE 2007 Owners Manual

Flash-to-Pass
With the lever in the low-beam position, pull the
lever toward you to momentarily switch to
high beams (to signal that you are going to pass).
If you have the headlamps on when you release
the lever, they will return to the low beams.
Windshield Wipers
The lever on the right side of the steering column
controls the windshield wipers and washer.Move the lever to one of the following positions:
MIST:Move the lever to MIST, for a single wiping
cycle. Hold it there until the wipers start, then
let go. The wipers will stop after one wipe.
OFF:Move the lever to this position to turn the
wipers off.
INT (Intermittent):Move the lever to INT to
choose a delayed wiping cycle. The time between
wipes can be changed by turning the INT band.
Turn the band forward or rearward for a longer or
shorter delay interval. This position is useful in
light rain or snow, rather than continuous wiping.
LO (Low):Move the lever to LO for steady
wiping at low speed.
HI (High):Move the lever to HI for steady wiping
at high speed.
REAR:Turn the end of the lever upward to LO or
HI, to turn on the rear window wiper. The wiper
does not work with the rear liftglass open.
141

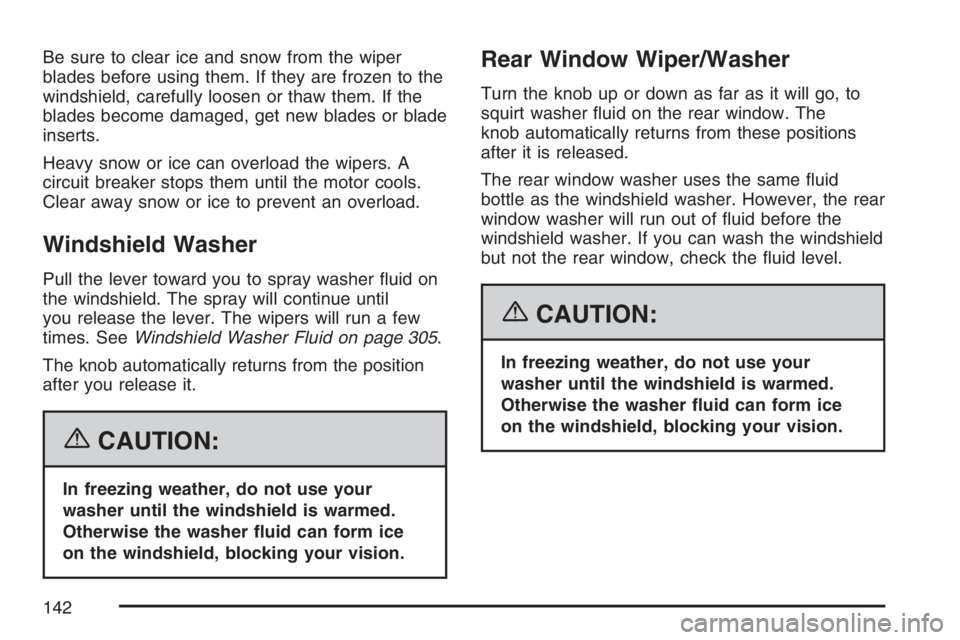

Be sure to clear ice and snow from the wiper
blades before using them. If they are frozen to the
windshield, carefully loosen or thaw them. If the
blades become damaged, get new blades or blade
inserts.
Heavy snow or ice can overload the wipers. A
circuit breaker stops them until the motor cools.
Clear away snow or ice to prevent an overload.
Windshield Washer
Pull the lever toward you to spray washer uid on
the windshield. The spray will continue until
you release the lever. The wipers will run a few
times. SeeWindshield Washer Fluid on page 305.
The knob automatically returns from the position
after you release it.
{CAUTION:
In freezing weather, do not use your
washer until the windshield is warmed.
Otherwise the washer uid can form ice
on the windshield, blocking your vision.
Rear Window Wiper/Washer
Turn the knob up or down as far as it will go, to
squirt washer uid on the rear window. The
knob automatically returns from these positions
after it is released.
The rear window washer uses the same uid
bottle as the windshield washer. However, the rear
window washer will run out of uid before the
windshield washer. If you can wash the windshield
but not the rear window, check the uid level.
{CAUTION:
In freezing weather, do not use your
washer until the windshield is warmed.
Otherwise the washer uid can form ice
on the windshield, blocking your vision.
142

Cruise Control
If your vehicle has
cruise control, the lever
is located on the
right side of the steering
wheel.
Cruise control, lets you maintain a speed of
25 mph (40 km/h) or more without keeping your
foot on the accelerator. This can really help
on long trips. Cruise control does not work at
speeds below 25 mph (40 km/h).{CAUTION:
Cruise control can be dangerous where
you cannot drive safely at a steady speed.
So, do not use your cruise control on
winding roads or in heavy traffic.
Cruise control can be dangerous on
slippery roads. On such roads, fast
changes in tire traction can cause
excessive wheel slip, and you could lose
control. Do not use cruise control on
slippery roads.
143

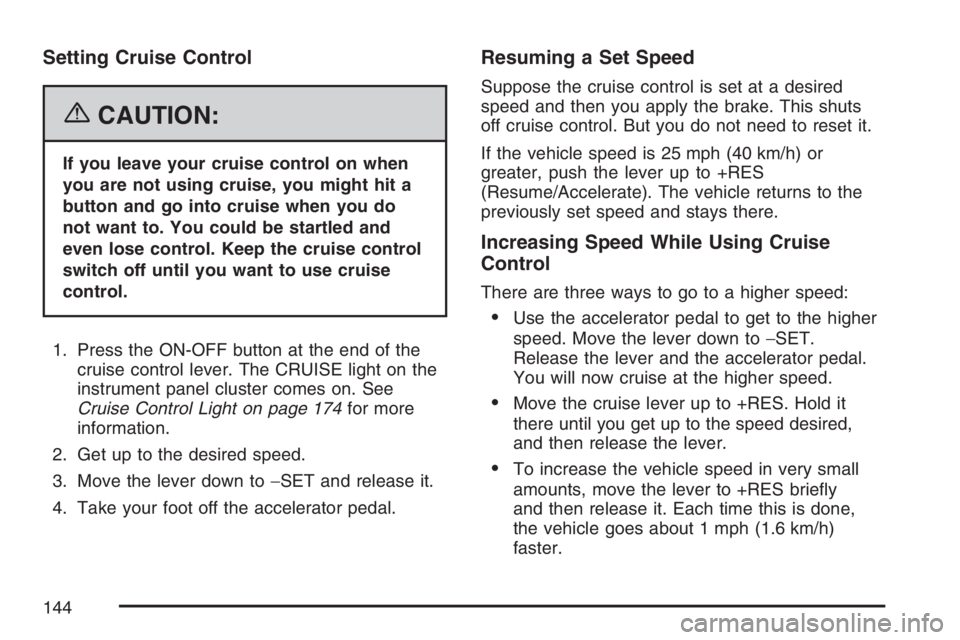

Setting Cruise Control
{CAUTION:
If you leave your cruise control on when
you are not using cruise, you might hit a
button and go into cruise when you do
not want to. You could be startled and
even lose control. Keep the cruise control
switch off until you want to use cruise
control.
1. Press the ON-OFF button at the end of the
cruise control lever. The CRUISE light on the
instrument panel cluster comes on. See
Cruise Control Light on page 174for more
information.
2. Get up to the desired speed.
3. Move the lever down to−SET and release it.
4. Take your foot off the accelerator pedal.
Resuming a Set Speed
Suppose the cruise control is set at a desired
speed and then you apply the brake. This shuts
off cruise control. But you do not need to reset it.
If the vehicle speed is 25 mph (40 km/h) or
greater, push the lever up to +RES
(Resume/Accelerate). The vehicle returns to the
previously set speed and stays there.
Increasing Speed While Using Cruise
Control
There are three ways to go to a higher speed:
Use the accelerator pedal to get to the higher
speed. Move the lever down to−SET.
Release the lever and the accelerator pedal.
You will now cruise at the higher speed.
Move the cruise lever up to +RES. Hold it
there until you get up to the speed desired,
and then release the lever.
To increase the vehicle speed in very small
amounts, move the lever to +RES briey
and then release it. Each time this is done,
the vehicle goes about 1 mph (1.6 km/h)
faster.
144

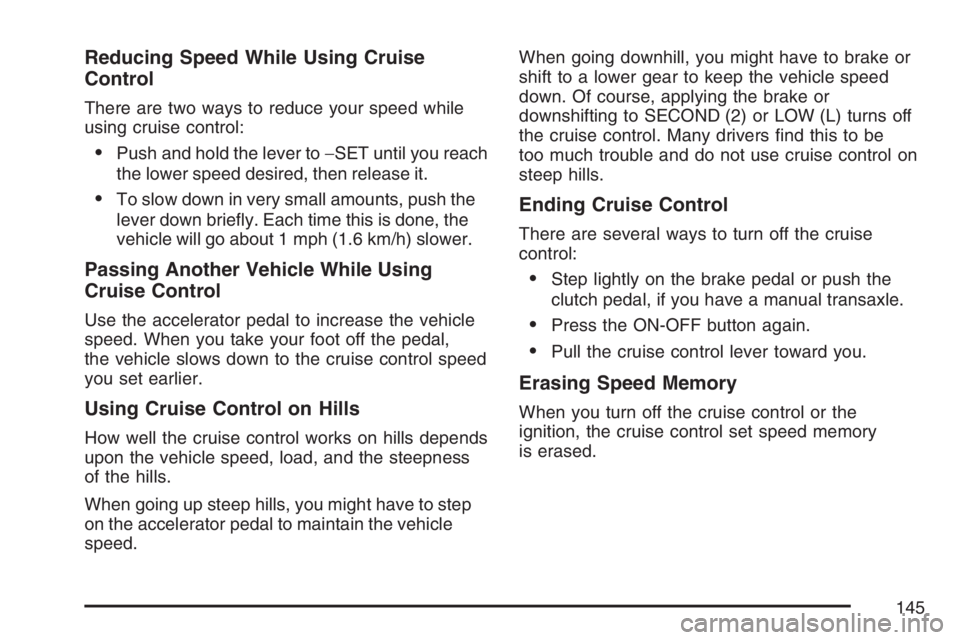

Reducing Speed While Using Cruise
Control
There are two ways to reduce your speed while
using cruise control:
Push and hold the lever to−SET until you reach
the lower speed desired, then release it.
To slow down in very small amounts, push the
lever down briey. Each time this is done, the
vehicle will go about 1 mph (1.6 km/h) slower.
Passing Another Vehicle While Using
Cruise Control
Use the accelerator pedal to increase the vehicle
speed. When you take your foot off the pedal,
the vehicle slows down to the cruise control speed
you set earlier.
Using Cruise Control on Hills
How well the cruise control works on hills depends
upon the vehicle speed, load, and the steepness
of the hills.
When going up steep hills, you might have to step
on the accelerator pedal to maintain the vehicle
speed.When going downhill, you might have to brake or
shift to a lower gear to keep the vehicle speed
down. Of course, applying the brake or
downshifting to SECOND (2) or LOW (L) turns off
the cruise control. Many drivers nd this to be
too much trouble and do not use cruise control on
steep hills.
Ending Cruise Control
There are several ways to turn off the cruise
control:
Step lightly on the brake pedal or push the
clutch pedal, if you have a manual transaxle.
Press the ON-OFF button again.
Pull the cruise control lever toward you.
Erasing Speed Memory
When you turn off the cruise control or the
ignition, the cruise control set speed memory
is erased.
145

Exterior Lamps
The lever on the left side of the steering column
operates the exterior lamps.
O(Exterior Lamps):Turn the outside part of the
lever with the symbol on it, to operate the lamps.
For vehicles sold in the U. S., this symbol will
appear on the instrument panel cluster when your
exterior lamps are on.
The exterior lamp switch has three positions:
OFF:Turning the switch to this position turns off
all lamps, except the Daytime Running
Lamps (DRL).
O(Parking Lamps):Turning the switch to this
position turns on the parking lamps together
with the following:
Sidemarker Lamps
Taillamps
License Plate Lamp
Instrument Panel Lights
A symbol will appear on the instrument panel
cluster when your parking lamps are on.
SeeLights On Reminder on page 174and
Taillamp Indicator Light on page 174for additional
information.
3(Headlamps):Turning the switch to this
position turns on the headlamps, together with the
previously listed lamps and lights.
Headlamps on Reminder
If you turn the ignition to LOCK or ACC and leave
the lamps on, you will hear a tone when you
open the driver’s door.
146

Daytime Running Lamps (DRL)
Daytime Running Lamps (DRL) can make it easier
for others to see the front of your vehicle during
the day. DRL can be helpful in many different
driving conditions, but they can be especially
helpful in the short periods after dawn and before
sunset. Fully functional daytime running lamps
are required on all vehicles rst sold in Canada.
The DRL system will make the headlamps
come on at a reduced brightness when the
following conditions are met:
The ignition is on with the engine running.
The exterior lamps switch is off.
The parking brake is released.
When the DRL are on, only the headlamps will be
on at a reduced brightness. The taillamps,
sidemarker and other lamps will not be on. The
instrument panel will not be lit up either.
When you turn the exterior lamp switch to the
headlamp position, the DRL will go off and
the headlamps will come on. The other lamps that
come on with the headlamps will also come on.When it begins to get dark, the headlamps will
automatically switch from DRL to the regular
headlamps. See “Automatic Headlamp System”
following.
When you turn the exterior lamp switch off, the
regular lamps will go off and the headlamps
will change to the reduced brightness of DRL
provided it is not dark outside. DRL also comes on
if only the parking lamps are being used.
Automatic Headlamp System
Your vehicle has an automatic light sensor on the
top left corner of the instrument panel, so be
sure it is not covered or the headlamps will be on
continuously.
When it is dark enough outside, the automatic
headlamp system will turn on the low-beam
headlamps at the normal brightness along with
other lamps such as the taillamps, sidemarker,
parking lamps and instrument panel lights. This is
indicated by the headlamp symbol on your
instrument panel cluster. SeeInstrument Panel
Cluster on page 159.
147

If you are driving through a parking garage,
overcast weather, or a tunnel, the automatic
headlamp system may turn on the low-beam
headlamps at a normal brightness along with the
taillamps, sidemarker, parking lamps and the
instrument panel lights. The radio lights will be
dimmer, and the instrument panel cluster
lights may dim. There will be a delay before the
lights will turn on when starting the car at night.
Fog Lamps
-(Fog Lamps):Turn the band on the turn
signal/multifunction lever to the fog lamp symbol to
turn the fog lamps on. They will come on only
when the headlamps are on low beam.
Some localities have laws that require the
headlamps to be on along with the fog lamps.
Instrument Panel Brightness
The instrument panel
brightness control is
located to the left of the
steering wheel on the
instrument panel.
Turn the wheel on the
left of the control
up or down to increase
or decrease brightness.
Turn the wheel all the way up for the maximum
setting. It is recommended that the brightness level
be kept at the maximum setting for all daytime
driving to ensure proper visibility.
The brightness of the instrument panel lights will
decrease when the headlamps are on.
148

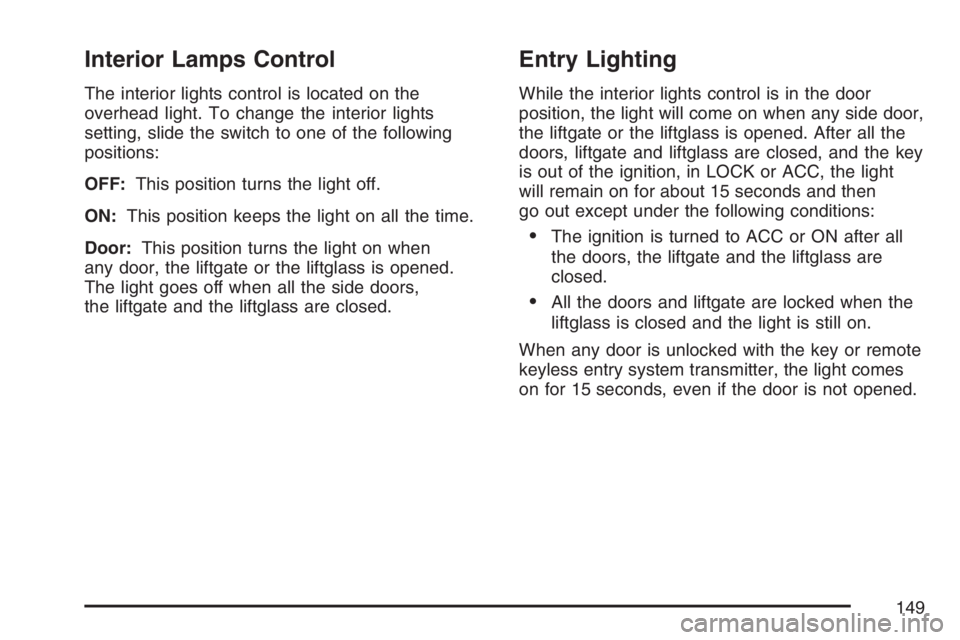

Interior Lamps Control
The interior lights control is located on the
overhead light. To change the interior lights
setting, slide the switch to one of the following
positions:
OFF:This position turns the light off.
ON:This position keeps the light on all the time.
Door:This position turns the light on when
any door, the liftgate or the liftglass is opened.
The light goes off when all the side doors,
the liftgate and the liftglass are closed.
Entry Lighting
While the interior lights control is in the door
position, the light will come on when any side door,
the liftgate or the liftglass is opened. After all the
doors, liftgate and liftglass are closed, and the key
is out of the ignition, in LOCK or ACC, the light
will remain on for about 15 seconds and then
go out except under the following conditions:
The ignition is turned to ACC or ON after all
the doors, the liftgate and the liftglass are
closed.
All the doors and liftgate are locked when the
liftglass is closed and the light is still on.
When any door is unlocked with the key or remote
keyless entry system transmitter, the light comes
on for 15 seconds, even if the door is not opened.
149

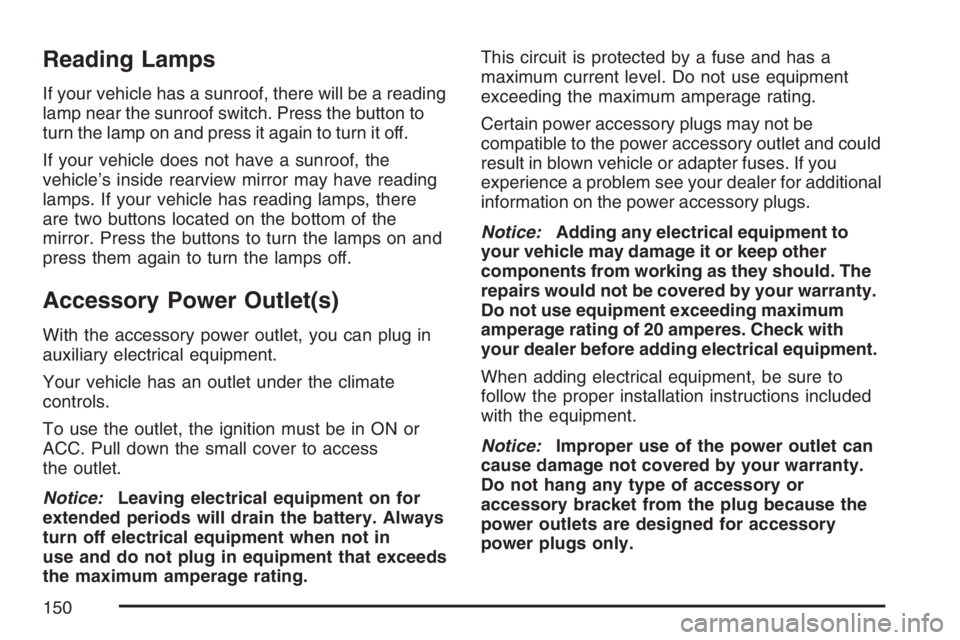

Reading Lamps
If your vehicle has a sunroof, there will be a reading
lamp near the sunroof switch. Press the button to
turn the lamp on and press it again to turn it off.
If your vehicle does not have a sunroof, the
vehicle’s inside rearview mirror may have reading
lamps. If your vehicle has reading lamps, there
are two buttons located on the bottom of the
mirror. Press the buttons to turn the lamps on and
press them again to turn the lamps off.
Accessory Power Outlet(s)
With the accessory power outlet, you can plug in
auxiliary electrical equipment.
Your vehicle has an outlet under the climate
controls.
To use the outlet, the ignition must be in ON or
ACC. Pull down the small cover to access
the outlet.
Notice:Leaving electrical equipment on for
extended periods will drain the battery. Always
turn off electrical equipment when not in
use and do not plug in equipment that exceeds
the maximum amperage rating.This circuit is protected by a fuse and has a
maximum current level. Do not use equipment
exceeding the maximum amperage rating.
Certain power accessory plugs may not be
compatible to the power accessory outlet and could
result in blown vehicle or adapter fuses. If you
experience a problem see your dealer for additional
information on the power accessory plugs.
Notice:Adding any electrical equipment to
your vehicle may damage it or keep other
components from working as they should. The
repairs would not be covered by your warranty.
Do not use equipment exceeding maximum
amperage rating of 20 amperes. Check with
your dealer before adding electrical equipment.
When adding electrical equipment, be sure to
follow the proper installation instructions included
with the equipment.
Notice:Improper use of the power outlet can
cause damage not covered by your warranty.
Do not hang any type of accessory or
accessory bracket from the plug because the
power outlets are designed for accessory
power plugs only.
150
