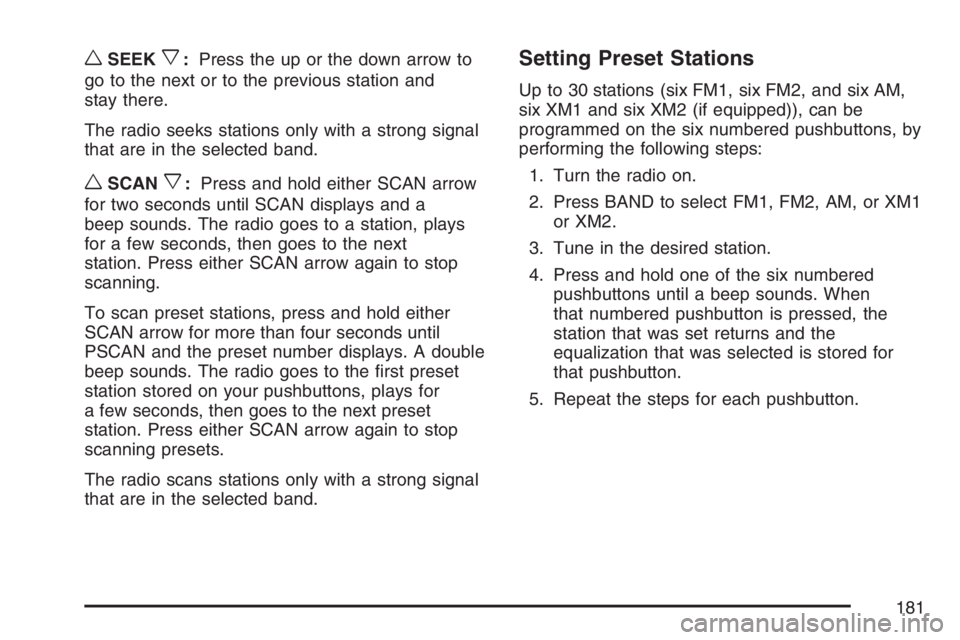

wSEEKx:Press the up or the down arrow to
go to the next or to the previous station and
stay there.
The radio seeks stations only with a strong signal
that are in the selected band.
wSCANx:Press and hold either SCAN arrow
for two seconds until SCAN displays and a
beep sounds. The radio goes to a station, plays
for a few seconds, then goes to the next
station. Press either SCAN arrow again to stop
scanning.
To scan preset stations, press and hold either
SCAN arrow for more than four seconds until
PSCAN and the preset number displays. A double
beep sounds. The radio goes to the rst preset
station stored on your pushbuttons, plays for
a few seconds, then goes to the next preset
station. Press either SCAN arrow again to stop
scanning presets.
The radio scans stations only with a strong signal
that are in the selected band.
Setting Preset Stations
Up to 30 stations (six FM1, six FM2, and six AM,
six XM1 and six XM2 (if equipped)), can be
programmed on the six numbered pushbuttons, by
performing the following steps:
1. Turn the radio on.
2. Press BAND to select FM1, FM2, AM, or XM1
or XM2.
3. Tune in the desired station.
4. Press and hold one of the six numbered
pushbuttons until a beep sounds. When
that numbered pushbutton is pressed, the
station that was set returns and the
equalization that was selected is stored for
that pushbutton.
5. Repeat the steps for each pushbutton.
181

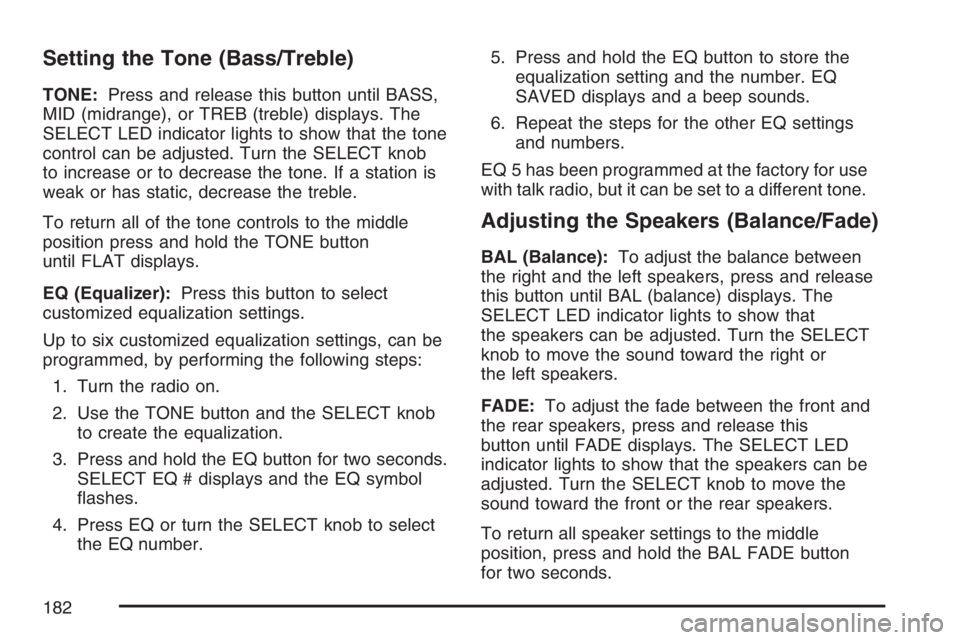

Setting the Tone (Bass/Treble)
TONE:Press and release this button until BASS,
MID (midrange), or TREB (treble) displays. The
SELECT LED indicator lights to show that the tone
control can be adjusted. Turn the SELECT knob
to increase or to decrease the tone. If a station is
weak or has static, decrease the treble.
To return all of the tone controls to the middle
position press and hold the TONE button
until FLAT displays.
EQ (Equalizer):Press this button to select
customized equalization settings.
Up to six customized equalization settings, can be
programmed, by performing the following steps:
1. Turn the radio on.
2. Use the TONE button and the SELECT knob
to create the equalization.
3. Press and hold the EQ button for two seconds.
SELECT EQ # displays and the EQ symbol
ashes.
4. Press EQ or turn the SELECT knob to select
the EQ number.5. Press and hold the EQ button to store the
equalization setting and the number. EQ
SAVED displays and a beep sounds.
6. Repeat the steps for the other EQ settings
and numbers.
EQ 5 has been programmed at the factory for use
with talk radio, but it can be set to a different tone.
Adjusting the Speakers (Balance/Fade)
BAL (Balance):To adjust the balance between
the right and the left speakers, press and release
this button until BAL (balance) displays. The
SELECT LED indicator lights to show that
the speakers can be adjusted. Turn the SELECT
knob to move the sound toward the right or
the left speakers.
FADE:To adjust the fade between the front and
the rear speakers, press and release this
button until FADE displays. The SELECT LED
indicator lights to show that the speakers can be
adjusted. Turn the SELECT knob to move the
sound toward the front or the rear speakers.
To return all speaker settings to the middle
position, press and hold the BAL FADE button
for two seconds.
182

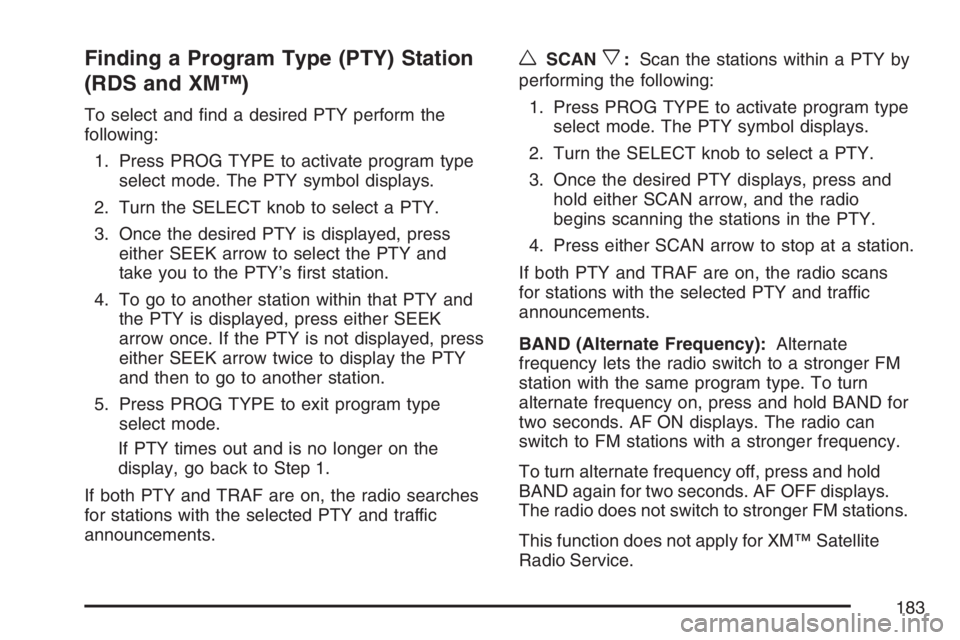

Finding a Program Type (PTY) Station
(RDS and XM™)
To select and nd a desired PTY perform the
following:
1. Press PROG TYPE to activate program type
select mode. The PTY symbol displays.
2. Turn the SELECT knob to select a PTY.
3. Once the desired PTY is displayed, press
either SEEK arrow to select the PTY and
take you to the PTY’s rst station.
4. To go to another station within that PTY and
the PTY is displayed, press either SEEK
arrow once. If the PTY is not displayed, press
either SEEK arrow twice to display the PTY
and then to go to another station.
5. Press PROG TYPE to exit program type
select mode.
If PTY times out and is no longer on the
display, go back to Step 1.
If both PTY and TRAF are on, the radio searches
for stations with the selected PTY and traffic
announcements.
wSCANx:Scan the stations within a PTY by
performing the following:
1. Press PROG TYPE to activate program type
select mode. The PTY symbol displays.
2. Turn the SELECT knob to select a PTY.
3. Once the desired PTY displays, press and
hold either SCAN arrow, and the radio
begins scanning the stations in the PTY.
4. Press either SCAN arrow to stop at a station.
If both PTY and TRAF are on, the radio scans
for stations with the selected PTY and traffic
announcements.
BAND (Alternate Frequency):Alternate
frequency lets the radio switch to a stronger FM
station with the same program type. To turn
alternate frequency on, press and hold BAND for
two seconds. AF ON displays. The radio can
switch to FM stations with a stronger frequency.
To turn alternate frequency off, press and hold
BAND again for two seconds. AF OFF displays.
The radio does not switch to stronger FM stations.
This function does not apply for XM™ Satellite
Radio Service.
183

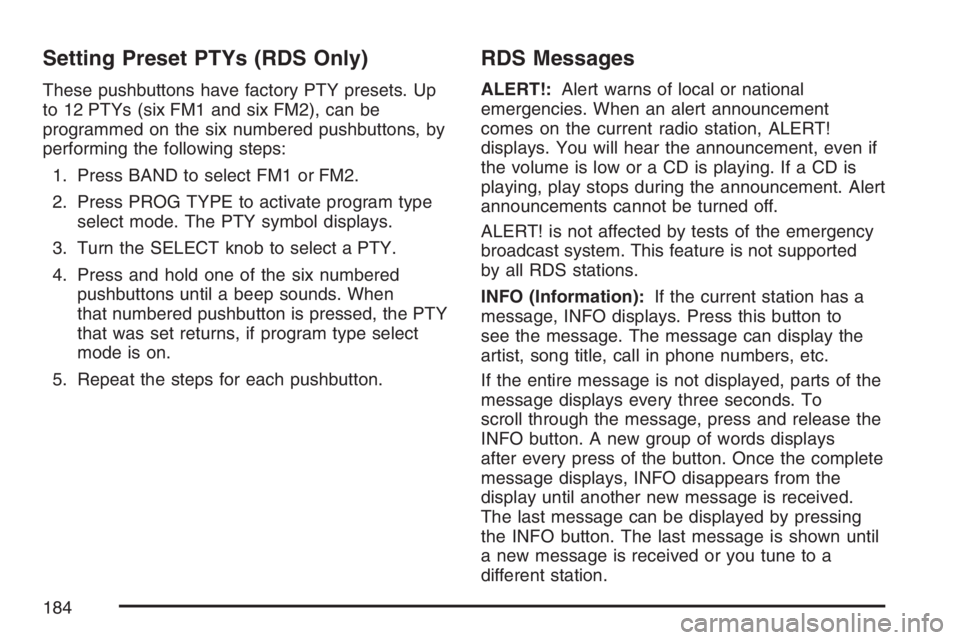

Setting Preset PTYs (RDS Only)
These pushbuttons have factory PTY presets. Up
to 12 PTYs (six FM1 and six FM2), can be
programmed on the six numbered pushbuttons, by
performing the following steps:
1. Press BAND to select FM1 or FM2.
2. Press PROG TYPE to activate program type
select mode. The PTY symbol displays.
3. Turn the SELECT knob to select a PTY.
4. Press and hold one of the six numbered
pushbuttons until a beep sounds. When
that numbered pushbutton is pressed, the PTY
that was set returns, if program type select
mode is on.
5. Repeat the steps for each pushbutton.
RDS Messages
ALERT!:Alert warns of local or national
emergencies. When an alert announcement
comes on the current radio station, ALERT!
displays. You will hear the announcement, even if
the volume is low or a CD is playing. If a CD is
playing, play stops during the announcement. Alert
announcements cannot be turned off.
ALERT! is not affected by tests of the emergency
broadcast system. This feature is not supported
by all RDS stations.
INFO (Information):If the current station has a
message, INFO displays. Press this button to
see the message. The message can display the
artist, song title, call in phone numbers, etc.
If the entire message is not displayed, parts of the
message displays every three seconds. To
scroll through the message, press and release the
INFO button. A new group of words displays
after every press of the button. Once the complete
message displays, INFO disappears from the
display until another new message is received.
The last message can be displayed by pressing
the INFO button. The last message is shown until
a new message is received or you tune to a
different station.
184

TRAF (Traffic):If TRAF displays, the tuned
station broadcasts traffic announcements. Press
this button to receive the traffic announcement
from the station. TRAF inside brackets displays.
When a traffic announcement broadcasts on
the tuned radio station, you will hear it.
If the station does not broadcast traffic
announcements, press the TRAF button and the
radio seeks to a station that does. When a station
that broadcasts traffic announcements is found,
the radio stops seeking and TRAF inside brackets
displays. If no station is found that broadcasts
traffic announcements, NO TRAFFIC displays.
If the brackets are on the display and TRAF is not,
press the TRAF button to remove the brackets
or use the TUNE knob or the SEEK arrows to go
to a station that broadcasts traffic announcements.
If no station is found that broadcasts traffic
announcements, NO TRAFFIC displays.
The radio plays the traffic announcement if the
volume is low. The radio interrupts the play
of a CD if the last tuned station broadcasts traffic
announcements and the brackets are displayed.
This function does not apply to XM™ Satellite
Radio Service.Radio Messages
If any error occurs repeatedly or if an error cannot
be corrected, contact your dealer.
Radio Messages for XM™ Only
SeeXM Radio Messages on page 216later in this
section for further detail.
Playing a CD
Insert a CD partway into the slot, label side up.
The player pulls it in and the CD should begin
playing. If you insert a CD with the radio off and
the ignition on, it starts to play.
If the ignition or radio is turned off with a CD in
the player, it stays in the player. When the ignition
or radio is turned on, the CD starts playing
where it stopped, if it was the last selected audio
source.
When the CD is inserted, the CD symbol displays
on the CD. As each new track starts to play,
the track number displays.
The CD player can play the smaller 3 inch (8 cm)
single CDs with an adapter ring. Full-size CDs
and the smaller CDs are loaded in the same
manner.
185

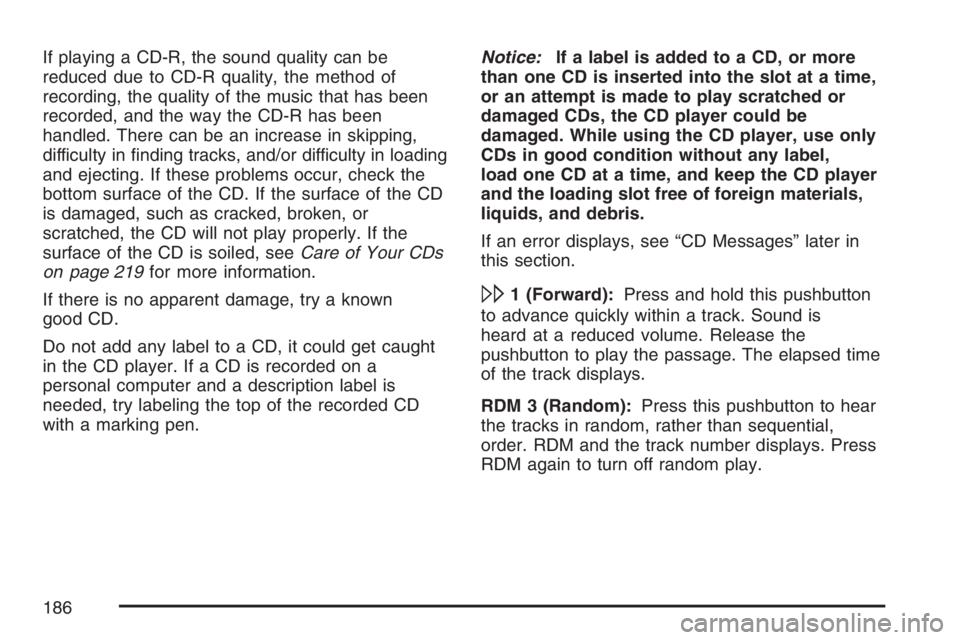

If playing a CD-R, the sound quality can be
reduced due to CD-R quality, the method of
recording, the quality of the music that has been
recorded, and the way the CD-R has been
handled. There can be an increase in skipping,
difficulty in nding tracks, and/or difficulty in loading
and ejecting. If these problems occur, check the
bottom surface of the CD. If the surface of the CD
is damaged, such as cracked, broken, or
scratched, the CD will not play properly. If the
surface of the CD is soiled, seeCare of Your CDs
on page 219for more information.
If there is no apparent damage, try a known
good CD.
Do not add any label to a CD, it could get caught
in the CD player. If a CD is recorded on a
personal computer and a description label is
needed, try labeling the top of the recorded CD
with a marking pen.Notice:If a label is added to a CD, or more
than one CD is inserted into the slot at a time,
or an attempt is made to play scratched or
damaged CDs, the CD player could be
damaged. While using the CD player, use only
CDs in good condition without any label,
load one CD at a time, and keep the CD player
and the loading slot free of foreign materials,
liquids, and debris.
If an error displays, see “CD Messages” later in
this section.
\1 (Forward):Press and hold this pushbutton
to advance quickly within a track. Sound is
heard at a reduced volume. Release the
pushbutton to play the passage. The elapsed time
of the track displays.
RDM 3 (Random):Press this pushbutton to hear
the tracks in random, rather than sequential,
order. RDM and the track number displays. Press
RDM again to turn off random play.
186

4s(Reverse):Press and hold this pushbutton
to reverse quickly within a track. Sound is heard at
a reduced volume. Release the pushbutton to
play the passage. The elapsed time of the track
displays.
EQ (Equalizer):Press EQ to select an
equalization setting while playing a CD. The
equalization is set when a CD is played. See “EQ”
listed previously for more information. If you
select an EQ setting for your CD, it is activated
each time a CD is played.
wSEEKx:Press the down arrow to go to the
start of the current track if more than eight seconds
have played. Press the up arrow to go to the
next track. If either arrow is held or pressed more
than once, the player continues moving backward
or forward through the CD.
wSCANx:Press and hold either arrow for
more than two seconds until SCAN and the track
number displays and a beep sounds. The CD
goes to the next track, plays for a few seconds,
then goes to the next track. Press either arrow
again to stop scanning.RCL (Recall):Push this button to see how long
the current track has been playing. To change the
default on the display, track, and elapsed time,
push the button until the desired option displays,
then hold the button until the display ashes.
The selected display becomes the default. While
elapsed time is showing, CD TIME displays.
BAND:Press this button to listen to the radio
when a CD is playing. The inactive CD remains
inside the radio for future listening.
CD AUX (Auxiliary):Press this button to play a
CD when listening to the radio. The CD symbol
displays when a CD is loaded.
Z(Eject):Press this button to eject a CD. Eject
can be activated with either the ignition or radio
off. CDs can be loaded with the ignition and radio
off if this button is pressed rst.
187

CD Messages
CHECK CD:If this message displays and/or the
CD comes out, it could be for one of the
following reasons:
It is very hot. When the temperature returns to
normal, the CD should play.
You are driving on a very rough road. When
the road becomes smoother, the CD
should play.
The CD is dirty, scratched, wet, or
upside down.
The air is very humid. If so, wait about an hour
and try again.
There could have been a problem while burning
the CD.
The label could be caught in the CD player.
If the CD is not playing correctly, for any other
reason, try a known good CD.
If any error occurs repeatedly or if an error cannot
be corrected, contact your dealer. If the radio
displays an error message, write it down
and provide it to your dealer when reporting the
problem.
Radio with CD (MP3)
The radio has a theft-deterrent feature. A red light
blinks while the engine is off to indicate the
radio is protected. It will not operate if it is installed
in a different vehicle.
188

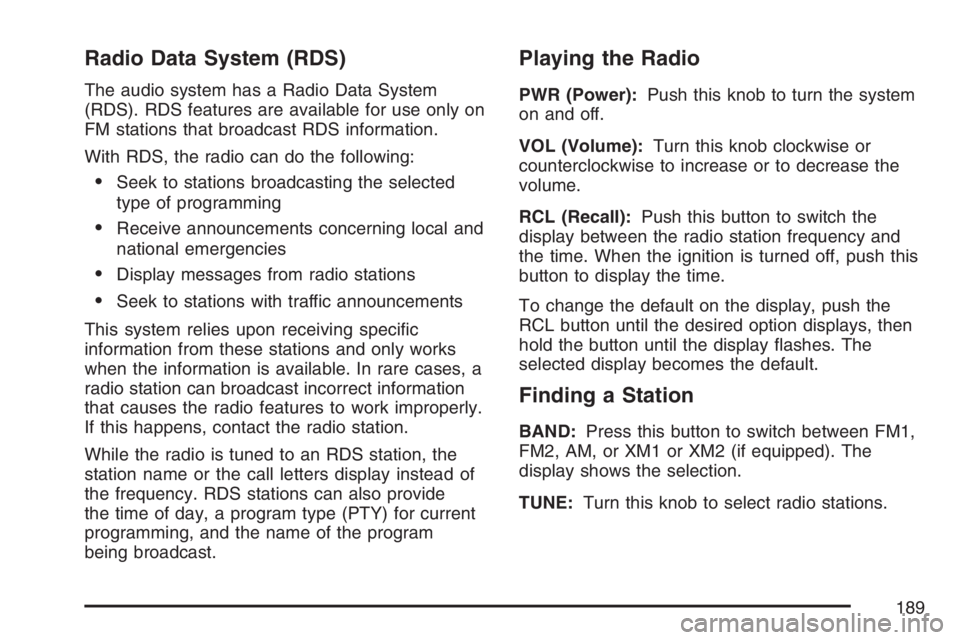

Radio Data System (RDS)
The audio system has a Radio Data System
(RDS). RDS features are available for use only on
FM stations that broadcast RDS information.
With RDS, the radio can do the following:
Seek to stations broadcasting the selected
type of programming
Receive announcements concerning local and
national emergencies
Display messages from radio stations
Seek to stations with traffic announcements
This system relies upon receiving specic
information from these stations and only works
when the information is available. In rare cases, a
radio station can broadcast incorrect information
that causes the radio features to work improperly.
If this happens, contact the radio station.
While the radio is tuned to an RDS station, the
station name or the call letters display instead of
the frequency. RDS stations can also provide
the time of day, a program type (PTY) for current
programming, and the name of the program
being broadcast.
Playing the Radio
PWR (Power):Push this knob to turn the system
on and off.
VOL (Volume):Turn this knob clockwise or
counterclockwise to increase or to decrease the
volume.
RCL (Recall):Push this button to switch the
display between the radio station frequency and
the time. When the ignition is turned off, push this
button to display the time.
To change the default on the display, push the
RCL button until the desired option displays, then
hold the button until the display ashes. The
selected display becomes the default.
Finding a Station
BAND:Press this button to switch between FM1,
FM2, AM, or XM1 or XM2 (if equipped). The
display shows the selection.
TUNE:Turn this knob to select radio stations.
189

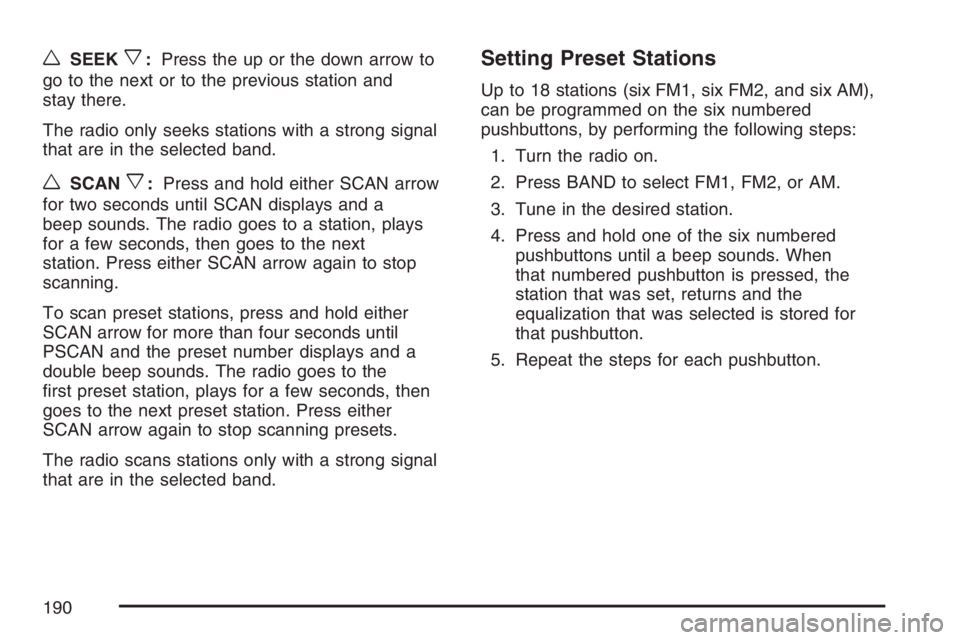

wSEEKx:Press the up or the down arrow to
go to the next or to the previous station and
stay there.
The radio only seeks stations with a strong signal
that are in the selected band.
wSCANx:Press and hold either SCAN arrow
for two seconds until SCAN displays and a
beep sounds. The radio goes to a station, plays
for a few seconds, then goes to the next
station. Press either SCAN arrow again to stop
scanning.
To scan preset stations, press and hold either
SCAN arrow for more than four seconds until
PSCAN and the preset number displays and a
double beep sounds. The radio goes to the
rst preset station, plays for a few seconds, then
goes to the next preset station. Press either
SCAN arrow again to stop scanning presets.
The radio scans stations only with a strong signal
that are in the selected band.
Setting Preset Stations
Up to 18 stations (six FM1, six FM2, and six AM),
can be programmed on the six numbered
pushbuttons, by performing the following steps:
1. Turn the radio on.
2. Press BAND to select FM1, FM2, or AM.
3. Tune in the desired station.
4. Press and hold one of the six numbered
pushbuttons until a beep sounds. When
that numbered pushbutton is pressed, the
station that was set, returns and the
equalization that was selected is stored for
that pushbutton.
5. Repeat the steps for each pushbutton.
190
