PONTIAC VIBE 2007 Owners Manual

Tachometer
The tachometer shows
engine speed in
thousands of revolutions
per minute (rpm).
Notice:If you operate the engine with the
tachometer in the shaded warning area, your
vehicle could be damaged, and the damages
would not be covered by your warranty. Do not
operate the engine with the tachometer in
the shaded warning area.
Temperature Display
The outside air temperature is displayed on the
center of the instrument panel, within the
speedometer. The display will show the outside air
temperature in Fahrenheit with a range from
−22°F to 122°F (−30°C to 50°C).
Safety Belt Reminder Light
When the key is turned to ON or START, a chime
will come on for several seconds to remind
people to fasten their safety belts, unless the
driver’s safety belt is already buckled.
The safety belt light will
also ash until the
driver’s belt is buckled.
If the driver’s belt is
already buckled, neither
the chime nor the
light will come on.
161

Your vehicle also has a safety belt reminder light
for the right front passenger position.
This light is located on
the center of the
instrument panel, above
the audio system.
When the key is turned to ON or START, this light
will come on as a reminder for the right front
passenger to fasten their safety belt. This light will
ash until the right front passenger’s safety belt
is buckled. The passenger’s safety belt reminder
light will not come on if the right front passenger’s
belt is already buckled or if a sensor does not
detect the weight of a passenger in that seat.
If something is placed on the right front passenger
seat, the sensors in the seat may detect that
object and cause the right front passenger safety
belt reminder light to come on. If this happens,
remove the object.Airbag Readiness Light
There is an airbag readiness light on the instrument
panel cluster, which shows the airbag symbol. The
system checks the airbag’s electrical system for
malfunctions. The light tells you if there is an
electrical problem. The system monitors the airbag
sensor assembly, front airbag sensors,
seat-mounted side impact and roof-mounted airbag
sensors, driver’s seat position sensor, driver’s seat
belt buckle switch, right front occupant sensing
system and indicator light, front passenger’s seat
belt buckle switch, seat belt pretensioner
assemblies, inators, interconnecting wiring and
power sources. For more information on the airbag
system, seeAirbag System on page 63.
This light will come on
briey when you start
your vehicle, then
it should go out. This
means the system
is ready.
162

If the airbag readiness light stays on after you
start the vehicle or comes on when you are driving,
your airbag system may not work properly.
Have your vehicle serviced right away.
{CAUTION:
If the airbag readiness light stays on or
keeps ashing after you start your
vehicle, it means the airbag system and
safety belt pretension system may not be
working properly. The airbags in your
vehicle may not inate in a crash, or they
could even inate without a crash. To help
avoid injury to yourself or others, have
your vehicle serviced right away if the
airbag readiness light stays on after you
start your vehicle.
Passenger Airbag Status Indicator
Your vehicle has a passenger airbag status
indicator in the instrument panel.
The indicator next to the
passenger airbag status
indicator lights is the
passenger safety
belt reminder light.
SeeSafety Belt Reminder Light on page 161for
more information on that indicator.
When the ignition key is turned to ON, the
passenger airbag status indicator will light ON and
OFF as a system check.
Then, after several more seconds, the status
indicator will light either ON or OFF if there is weight
on the seat or if the safety belt is buckled, to let you
know the status of the right front passenger’s frontal
and seat-mounted side impact airbag (if equipped).
163

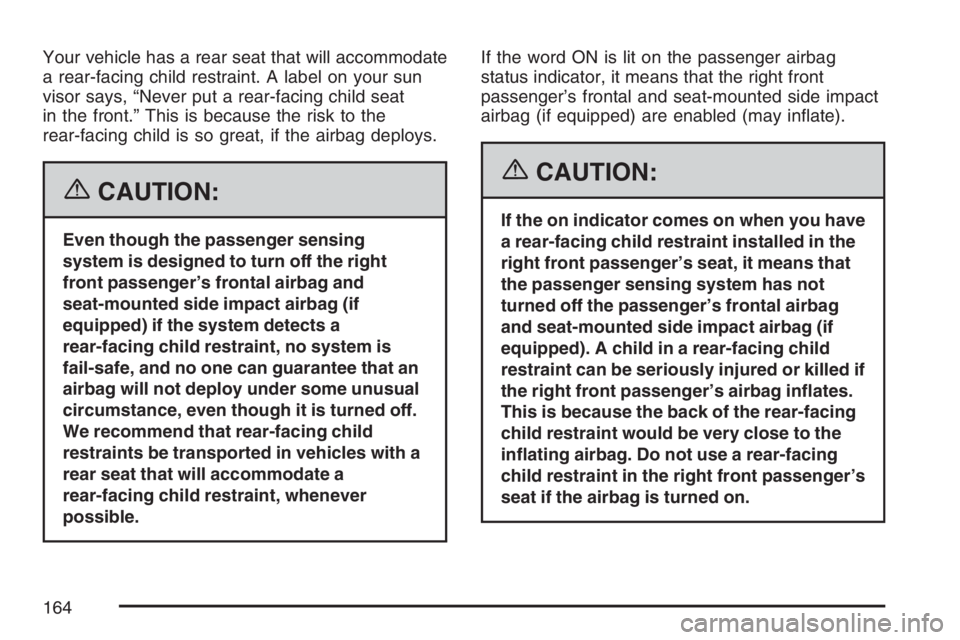

Your vehicle has a rear seat that will accommodate
a rear-facing child restraint. A label on your sun
visor says, “Never put a rear-facing child seat
in the front.” This is because the risk to the
rear-facing child is so great, if the airbag deploys.
{CAUTION:
Even though the passenger sensing
system is designed to turn off the right
front passenger’s frontal airbag and
seat-mounted side impact airbag (if
equipped) if the system detects a
rear-facing child restraint, no system is
fail-safe, and no one can guarantee that an
airbag will not deploy under some unusual
circumstance, even though it is turned off.
We recommend that rear-facing child
restraints be transported in vehicles with a
rear seat that will accommodate a
rear-facing child restraint, whenever
possible.If the word ON is lit on the passenger airbag
status indicator, it means that the right front
passenger’s frontal and seat-mounted side impact
airbag (if equipped) are enabled (may inate).
{CAUTION:
If the on indicator comes on when you have
a rear-facing child restraint installed in the
right front passenger’s seat, it means that
the passenger sensing system has not
turned off the passenger’s frontal airbag
and seat-mounted side impact airbag (if
equipped). A child in a rear-facing child
restraint can be seriously injured or killed if
the right front passenger’s airbag inates.
This is because the back of the rear-facing
child restraint would be very close to the
inating airbag. Do not use a rear-facing
child restraint in the right front passenger’s
seat if the airbag is turned on.
164

If the word OFF is lit on the passenger airbag status
indicator, it means that the passenger sensing
system has turned off the right front passenger’s
frontal airbag and seat-mounted side impact airbag
(if equipped). SeePassenger Sensing System on
page 74for information about the conditions that
may affect the airbag system and also important
safety information.
If, after several seconds, all status indicator lights
remain on, or if there are no lights at all, there
may be a problem with the lights or the passenger
sensing system. See your dealer for service.
{CAUTION:
If the off indicator and the airbag readiness
light ever come on together, it means that
something may be wrong with the airbag
system. If this ever happens, have the
vehicle serviced promptly, because an
adult-size person sitting in the right front
passenger seat may not have the
protection of an airbag. SeeAirbag
Readiness Light on page 162.
Charging System Light
This light comes on
briey when you turn on
the ignition, with the
engine not running, as a
check to show you it
is working.
It should go out when the engine starts. If it stays
on, or comes on while you are driving, you
may have a problem with the electrical charging
system. It could indicate that you have a loose
generator drive belt or another electrical problem.
Have it checked right away. Driving while this
light is on could drain your battery.
If you must drive a short distance with the
charging system light on, be certain to turn
off all your accessories, such as the radio and
air conditioner.
165

Brake System Warning Light
Your vehicle’s hydraulic brake system is divided
into two parts. If one part is not working, the other
part can still work and stop you. For good
braking, though, you need both parts working well.
If the warning light comes on, there is a brake
problem. Have your brake system inspected
right away.
If your vehicle has anti-lock brakes, this light
should come on when you turn the key to START.
If it does not come on then, have it xed so it
will be ready to warn you if there is a problem.When the ignition is on, the brake system warning
light will also come on when you set your
parking brake. The light will stay on if your parking
brake does not release fully. If it stays on after
your parking brake is fully released, it means you
have a brake problem.
If the light comes on while you are driving, pull off
the road and stop carefully. You may notice
that the pedal is harder to push or the pedal may
go closer to the oor. It may take longer to
stop. If the light is still on, have the vehicle towed
for service. SeeAnti-Lock Brake System
Warning Light on page 167andTowing Your
Vehicle on page 259.
{CAUTION:
Your brake system may not be working
properly if the brake system warning light
is on. Driving with the brake system
warning light on can lead to an accident.
If the light is still on after you have pulled
off the road and stopped carefully, have
the vehicle towed for service.
United StatesCanada
166

Anti-Lock Brake System
Warning Light
With the Anti-Lock Brake System (ABS), this light
comes on when the engine is started and can
stay on for several seconds. This is normal.
If the light stays on, turn the ignition to LOCK. If
the light comes on while you are driving, stop
as soon as possible and turn the ignition off. Then
start the engine again to reset the system. If
the light still stays on, or comes on again while
you are driving, your vehicle needs service. If the
regular brake system warning light is not on,
you still have brakes, but you do not have anti-lock
brakes. If the regular brake system warning light
is also on, you do not have anti-lock brakes
and there is a problem with the regular brakes.
SeeBrake System Warning Light on page 166.The ABS warning light comes on briey when you
turn the ignition key to ON. This is normal. If
the light does not come on then, have it xed so it
will be ready to warn you if there is a problem.
Low Tire Pressure Warning Light
This light should come
on briey as you start
the engine.
It will then come on only when a low tire pressure
condition exists.
SeeTire Pressure Monitor System on page 330
for more information.
United StatesCanada
167

Traction Control System (TCS)
Warning Light
This light should come
on briey when you
start the engine.
If it stays on or comes on while you are driving,
there is a problem with your Traction Control
System (TCS).
The TCS warning light comes on briey when the
ignition is turned to ON. It will come on again
when you press the TRAC OFF button to turn off
the TCS. SeeTraction Control System (TCS)
on page 230for more information.
In the following cases, contact your dealer:
The indicator light does not come on when the
ignition is turned to ON.
The indicator light remains on after the ignition
is turned ON.
The indicator light comes on with the normal
driving mode while driving.
StabiliTrak®Indicator Light
This light warns that
there is a problem with
the Traction Control
System (TCS) or
the Vehicle Stability
Control (VSC) system.
The light will come on when the ignition is turned
to ON and will go off after a few seconds.
If the light comes on while driving, the system
does not work. However, as conventional braking
operates when applied, there is no problem to
continue driving.
168

In the following cases, contact your dealer:
The warning light does not come on after the
ignition is turned to ON.
The warning light remains on after the ignition
is turned to ON.
The warning light comes on while driving.
The TCS light will come on when the VSC system
warning light comes on, even if the TRAC OFF
button is not pressed.
SeeStabiliTrak
®System on page 231for more
information on Vehicle Stability Control System.
SeeTraction Control System (TCS) on page 230
for more information.
Engine Coolant Temperature Gage
This gage shows the engine coolant temperature.
If the gage pointer moves into the red area,
the engine is too hot. It means that the engine has
overheated. Pull off the road, stop your vehicle,
and turn off the engine as soon as possible.
SeeEngine Overheating on page 297.
United StatesCanada
169

Malfunction Indicator Lamp
Check Engine Light
Your vehicle has a computer which monitors
operation of the fuel, ignition, and emission control
systems.
This system is called OBD II (On-Board
Diagnostics-Second Generation) and is intended to
assure that emissions are at acceptable levels for
the life of the vehicle, helping to produce a cleaner
environment. The CHECK ENGINE light comes on
to indicate that there is a problem and service is
required. Malfunctions often will be indicated by the
system before any problem is apparent. This may
prevent more serious damage to your vehicle. This
system is also designed to assist your service
technician in correctly diagnosing any malfunction.Notice:If you keep driving your vehicle with
this light on, after awhile, the emission controls
might not work as well, your vehicle’s fuel
economy might not be as good, and the engine
might not run as smoothly. This could lead
to costly repairs that might not be covered by
your warranty.
Notice:Modications made to the engine,
transaxle, exhaust, intake, or fuel system
of your vehicle or replacement tires that do not
match your vehicle’s original tires can affect
your vehicle’s emission controls and may
cause this light to come on. Modications to
these systems could lead to costly repairs not
covered by your warranty. This may also
result in a failure to pass a required Emission
Inspection/Maintenance test. SeeAccessories
and Modifications on page 272.
This light should come on, as a check to show
you it is working, when the ignition is on and the
engine is not running. If the light does not
come on, have it repaired.
United StatesCanada
170
