PONTIAC VIBE 2010 Owners Manual

SeeTraction Control System (TCS)
on page 8-33 for more information.
Contact your dealer/retailer, if
the light does not come on or if it
stays on.
Traction Control System
(TCS) Warning Light
This warning light comes on briefly
when the ignition is turned to
ON/RUN.
It also comes on when the Traction
Control System is turned off by
pressing the TRAC OFF button.
See Traction Control System (TCS)
on page 8-33 for more information. If it stays on or comes on while
driving, there is a problem with the
Traction Control System (TCS),
contact your dealer/retailer.
Tire Pressure Light
This light should come on briefly as
the engine is started.
If there is a tire with low tire
pressure, the light will stay on
or come back on.
See
Tire Pressure Monitor
Operation on page 9-52 for more
information.
Engine Oil Pressure
Light
{CAUTION
Do not keep driving if the oil
pressure is low. The engine can
become so hot that it catches fire.
Someone could be burned. Check
the oil as soon as possible and
have the vehicle serviced.
Notice: Lack of proper engine
oil maintenance can damage
the engine. The repairs would
not be covered by the vehicle
warranty. Always follow the
maintenance schedule in this
manual for changing engine oil.
The oil pressure light should come
on briefly as the engine is started. If it
does not come on have the vehicle
serviced by your dealer/retailer.
Instruments and Controls 4-19

If the light comes on and stays on, it
means that oil is not flowing through
the engine properly. The vehicle
could be low on oil and might have
some other system problem.
Low Fuel Warning Light
This light, on the fuel gage, comes
on when the fuel tank is low on
fuel. To turn if off, add fuel to the
fuel tank.
Security Light
For information regarding this light
and the vehicle’s security system,
seeVehicle Security on page 1-7 .
High-Beam on Light
The highbeam on light comes on
when the high-beam headlamps are
in use.
SeeHeadlamp High/Low-Beam
Changer on page 5-2 for more
information.
Fog Lamp Light
The fog lamp light comes on when
the fog lamps are in use.
The light goes out when the fog
lamps are turned off. See Fog
Lamps on page 5-4 for more
information.
Lamps on Reminder
This light comes on whenever the
headlights are on.
See Exterior Lamp Controls on
page 5-1 for more information.
United States
Canada
4-20 Instruments and Controls

Taillamp Indicator Light
This light comes on when the
taillamps are on.
SeeExterior Lamp Controls on
page 5-1 for more information.
Low Washer Fluid
Warning Light
This light comes on when the
windshield washer fluid is low.
SeeWasher Fluid on page 9-24
for more information.
Cruise Control Light
The CRUISE light comes on when
the cruise control is on.
See Cruise Control on page 8-36 for
more information.
Door Ajar Light
This light comes on if any door, the
rear liftgate, or the rear liftglass
are not completely closed.
Vehicle
Personalization
Your vehicle may have lighting
and door lock features that can be
programmed to your preference.
You will need to schedule an
appointment with your dealer/
retailer if you would like to change
the way these features are currently
programmed. The following is a
list of the features that can be
programmed. See your dealer/
retailer to change the programming
of these features:
Driver Door Key Unlock Switch:
If this feature is programmed on, all
of the doors will unlock when the key
is turned twice in the driver’s door
lock cylinder. When the vehicle
left the factory this feature was
programmed on.
Canada Only
Canada Only
Instruments and Controls 4-21

Courtesy Lamp Timer:This
feature allows for changing how
long the courtesy lamps stay
on when all the doors and liftgate
are closed and the key is out of
the ignition, in LOCK/OFF, or
in ACC/ACCESSORY. When the
vehicle left the factory the courtesy
lamps were programmed to stay
on for 15 seconds. This can
be changed to 7.5 seconds
or 30 seconds.
Interior Lamps when Ignition off:
If this feature is programmed on,
the interior lamps will come on when
the ignition is turned off when it is
dark outside. When the vehicle
left the factory this feature was
programmed on.
Interior Lamps on with Door
Key Unlock: If this feature is
programmed on, the interior lamps
will come on when the doors are
unlocked when it is dark outside.
When the vehicle left the factory
this feature was programmed on. Key Fob Signal:
If this feature
is programmed on, the Remote
Keyless Entry (RKE) transmitter
can be used to lock and unlock
the vehicle. When the vehicle left
the factory this feature was
programmed on.
RFA Visual Feedback: If this
feature is programmed on, the
hazard lights will flash when you
lock and unlock the vehicle with the
RKE transmitter. When the vehicle
left the factory this feature was
programmed on.
RFA All Unlock Enable: If this
feature is programmed on, pressing
the RKE unlock button twice
within three second will unlock
all of the doors. When the vehicle
left the factory this feature was
programmed on.
Remote Panic Command: If this
feature is programmed on, pressing
and holding the RKE panic button
will cause the horn to sound and the
lights to flash. When the vehicle
left the factory this feature was
programmed on. Automatic Door Locking:
If this
feature is programmed on, the doors
will automatically lock when the
vehicle is shifted out of P (Park) or
when the vehicle speed is greater
than 8 mph (13 km/h).
Automatic Door Unlocking: If this
feature is programmed on, the doors
will automatically unlock when the
vehicle is shifted into P (Park) or
when the ignition is turned off.
All Door Unlock Command: If this
feature is programmed on, the doors
will all unlock when the driver’s door
is opened.
Lock-out Timer: This feature
allows for changing how long of a
delay there is before all of the doors
lock when pressing the lock button
on the RKE transmitter. When the
vehicle left the factory the delay
was set for 1 minute. This can be
changed to 30 seconds or 2 minutes.
4-22 Instruments and Controls

OnStar System
OnStar®System
OnStar uses several innovative
technologies and live advisors to
provide a wide range of safety,
security, information, and
convenience services. If the airbags
deploy, the system is designed to
make an automatic call to OnStar
Emergency advisors who can
request emergency services be
sent to your location. If the keys
are locked in the vehicle, call OnStar
at 1-888-4-ONSTAR to have asignal sent to unlock the doors.
OnStar Hands-Free Calling,
including 30 trial minutes good
for 60 days, is available on most
vehicles. Press the OnStar button to
have an OnStar advisor contact
Roadside Service.
OnStar service is provided subject
to the OnStar Terms and Conditions
included in the OnStar Subscriber
glove box literature.
Some services such as Remote
Door Unlock or Stolen Vehicle
Location Assistance may not be
available until the owner of the
vehicle registers with OnStar.
After the first prepaid year,
contact OnStar to select a monthly
or annual subscription payment plan.
If a payment plan is not selected,
the OnStar system and all services,
including airbag notification and
emergency services, may be
deactivated and no longer
available. For more information
visit www.onstar.com (U.S.) or
www.onstar.ca (Canada), or press
the OnStar button to speak with an
advisor.
Not all OnStar services are
available on all vehicles. To check
if this vehicle is able to provide the
services described below, or for
a full description of OnStar services
and system limitations, see the
OnStar Owner’s Guide in the glove
box or visit www.onstar.com (U.S.)
or www.onstar.ca (Canada), contact
OnStar at 1-888-4-ONSTAR
(1-888-466-7827) or TTY
1-877-248-2080, or press the
OnStar button to speak with an
OnStar advisor 24 hours a day,
7 days a week.
Instruments and Controls 4-23

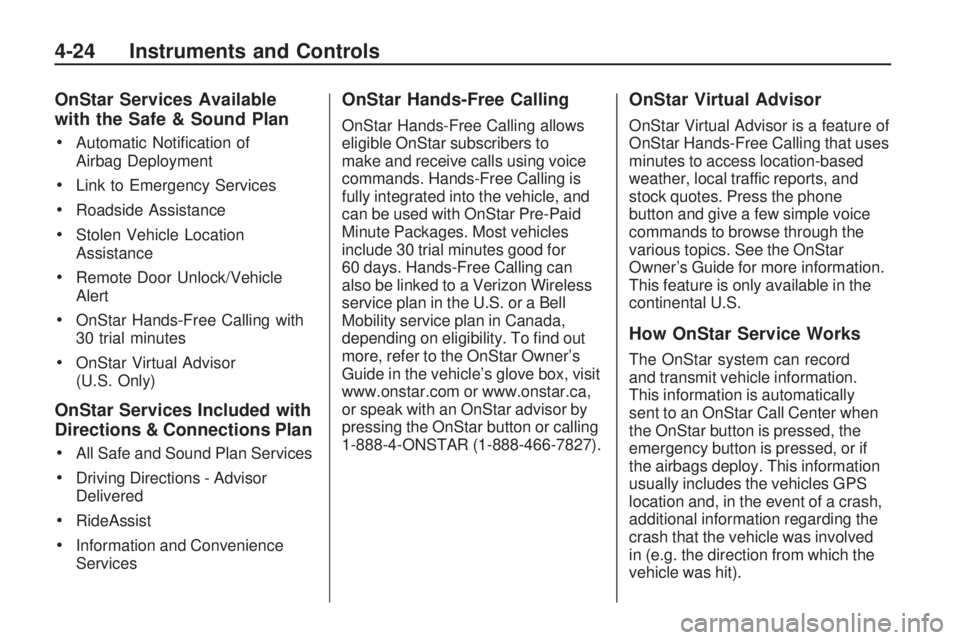

OnStar Services Available
with the Safe & Sound Plan•
Automatic Notification of
Airbag Deployment
•Link to Emergency Services
•Roadside Assistance
•Stolen Vehicle Location
Assistance
•Remote Door Unlock/Vehicle
Alert
•OnStar Hands-Free Calling with
30 trial minutes
•OnStar Virtual Advisor
(U.S. Only)
OnStar Services Included with
Directions & Connections Plan•
All Safe and Sound Plan Services
•Driving Directions - Advisor
Delivered
•RideAssist
•Information and Convenience
Services
OnStar Hands-Free Calling
OnStar Hands-Free Calling allows
eligible OnStar subscribers to
make and receive calls using voice
commands. Hands-Free Calling is
fully integrated into the vehicle, and
can be used with OnStar Pre-Paid
Minute Packages. Most vehicles
include 30 trial minutes good for
60 days. Hands-Free Calling can
also be linked to a Verizon Wireless
service plan in the U.S. or a Bell
Mobility service plan in Canada,
depending on eligibility. To find out
more, refer to the OnStar Owner’s
Guide in the vehicle’s glove box, visit
www.onstar.com or www.onstar.ca,
or speak with an OnStar advisor by
pressing the OnStar button or calling
1-888-4-ONSTAR (1-888-466-7827).
OnStar Virtual Advisor
OnStar Virtual Advisor is a feature of
OnStar Hands-Free Calling that uses
minutes to access location-based
weather, local traffic reports, and
stock quotes. Press the phone
button and give a few simple voice
commands to browse through the
various topics. See the OnStar
Owner’s Guide for more information.
This feature is only available in the
continental U.S.
How OnStar Service Works
The OnStar system can record
and transmit vehicle information.
This information is automatically
sent to an OnStar Call Center when
the OnStar button is pressed, the
emergency button is pressed, or if
the airbags deploy. This information
usually includes the vehicles GPS
location and, in the event of a crash,
additional information regarding the
crash that the vehicle was involved
in (e.g. the direction from which the
vehicle was hit).
4-24 Instruments and Controls

When the Virtual Advisor feature of
OnStar Hands-Free Calling is used,
the vehicle also sends OnStar the
vehicles GPS location so they can
provide services where it is located.
OnStar service cannot work unless
the vehicle is in a place where
OnStar has an agreement with a
wireless service provider for service
in that area. OnStar service also
cannot work unless the vehicle is in
a place where the wireless service
provider OnStar has hired for that
area has coverage, network capacity
and reception when the service is
needed, and technology that is
compatible with the OnStar service.
Not all services are available
everywhere, particularly in remote
or enclosed areas, or at all times.
Location information about the
vehicle is only available if the GPS
satellite signals are unobstructed
and available.The vehicle must have a working
electrical system, including adequate
battery power, for the OnStar
equipment to operate. There are
other problems OnStar cannot
control that may prevent OnStar
from providing OnStar service at
any particular time or place. Some
examples are damage to important
parts of the vehicle in a crash, hills,
tall buildings, tunnels, weather or
wireless phone network congestion.
Your Responsibility
Increase the volume of the radio if
the OnStar advisor cannot be heard.
If the light next to the OnStar buttons
is red, the system may not be
functioning properly. If the light
appears clear (no light is appearing),
your OnStar subscription has
expired and all services have been
deactivated. Press the OnStar button
to confirm that the OnStar equipment
is active.
Instruments and Controls 4-25

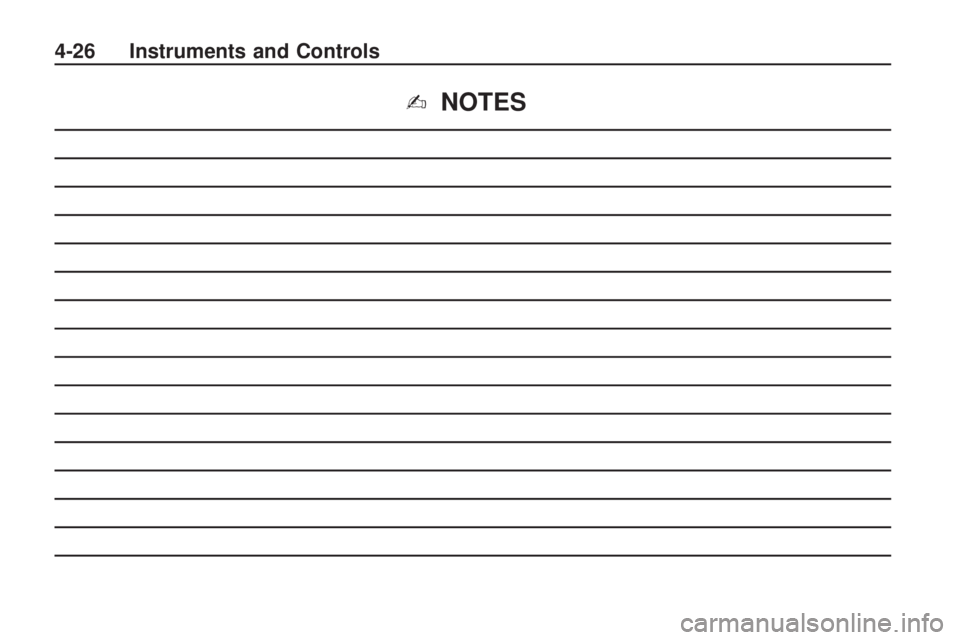

✍NOTES
4-26 Instruments and Controls

Lighting
Exterior LightingExterior Lamp Controls...........5-1
Headlamp High/Low-Beam Changer ............................
.5-2
Flash-to-Pass .......................
.5-2
Daytime Running Lamps (DRL) .....................
.5-2
Automatic Headlamp System .............................
.5-3
Hazard Warning Flashers .......5-3
Turn and Lane-Change Signals ..............................
.5-3
Fog Lamps ..........................
.5-4
Interior LightingInstrument Panel Illumination
Control ..............................
.5-4
Dome Lamps .......................
.5-4
Reading Lamps ....................
.5-5
Lighting FeaturesEntry Lighting ......................
.5-5
Battery Power Protection ........5-5
Exterior Lighting
Exterior Lamp Controls
The lever on the left side of the
steering column operates the
exterior lamps.
P/;(Exterior Lamps):
Turn the
outside band of the lever to operate
the lamps. For vehicles sold in the
U.S.,
Pappears on the instrument panel cluster when the exterior
lamps are on. For vehicles first
sold in Canada,
;appears in the
instrument panel cluster. See Lamps
on Reminder on page 4-20 .
The exterior lamp switch has three
positions:
((Off): Turns off all lamps, except
the Daytime Running Lamps (DRL).
;(Parking Lamps): Turns on the
parking lamps together with the
following:
•Sidemarker Lamps
•Taillamps
•License Plate Lamp
•Instrument Panel Lights
5(Headlamps): Turns on the
headlamps, together with the
previously listed lamps and lights.
Lighting 5-1

Headlamps on Reminder
A tone sounds when the ignition is
turned to LOCK/OFF, the driver door
is opened and the key is removed
from the ignition while the lamps
are on.
Headlamp High/
Low-Beam Changer
The headlamps must be on for this
feature to work.
Push the turn signal lever away
from you to turn the high beams on.
This instrument panel cluster
light
3comes on while the high
beam headlamps are on.
Pull the lever towards you to return
to low beams.
Flash-to-Pass
This feature is used to signal to the
vehicle ahead that you want to pass.
With the lever in the low-beam
position, pull the lever toward you to
momentarily switch to high-beams.
If the headlamps are on when the
lever is released, the high-beams
will return to low-beam.
Daytime Running
Lamps (DRL)
Daytime Running Lamps (DRL) can
make it easier for others to see the
front of your vehicle during the day.
Fully functional DRL are required
on all vehicles first sold in Canada. The DRL system makes the
headlamps come on at a reduced
brightness when the following
conditions are met:
•The ignition is on with the engine
running.
•The exterior lamps switch is off.
•The parking brake is released.
When the exterior lamp switch is
turned to the headlamp position, the
DRL go off and the headlamps come
on. The other lamps that come on
with the headlamps also come on.
The headlamps automatically switch
from DRL to the regular headlamps
depending on the darkness of
the surroundings. See Automatic
Headlamp System on page 5-3 .
DRL also comes on if only the
parking lamps are being used.
5-2 Lighting
