fSet the fitted wheel set with tire type and tire
size.
Please see the chapter “SETTING THE TIRE
TYPE AND SIZE” on Page 134.
Note on operation

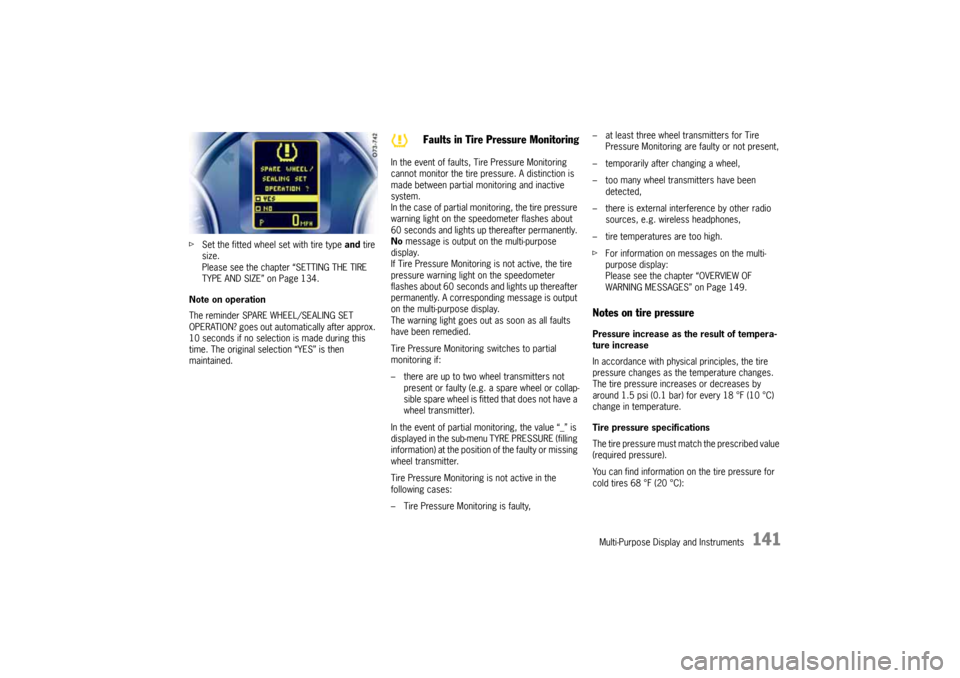

The reminder SPARE WHEEL/SEALING SET
OPERATION? goes out automatically after approx.
10 seconds if no selection is made during this
time. The original selection “YES” is then
maintained.In the event of faults, Tire Pressure Monitoring
cannot monitor the tire pressure. A distinction is
made between partial monitoring and inactive
system.
In the case of partial monitoring, the tire pressure
warning light on the speedometer flashes about
60 seconds and lights up thereafter permanently.
No message is output on the multi-purpose
display.
If Tire Pressure Monitoring is not active, the tire
pressure warning light on the speedometer
flashes about 60 seconds and lights up thereafter
permanently. A corresponding message is output
on the multi-purpose display.
The warning light goes out as soon as all faults
have been remedied.
Tire Pressure Monitoring switches to partial
monitoring if:
– there are up to two wheel transmitters not
present or faulty (e.g. a spare wheel or collap-
sible spare wheel is fitted that does not have a
wheel transmitter).
In the event of partial monitoring, the value “_” is
displayed in the sub-menu TYRE PRESSURE (filling
information) at the position of the faulty or missing
wheel transmitter.
Tire Pressure Monitoring is not active in the
following cases:
– Tire Pressure Monitoring is faulty,– at least three wheel transmitters for Tire
Pressure Monitoring are faulty or not present,
– temporarily after changing a wheel,
– too many wheel transmitters have been
detected,
– there is external interference by other radio
sources, e.g. wireless headphones,
– tire temperatures are too high.
fFor information on messages on the multi-
purpose display:
Please see the chapter “OVERVIEW OF
WARNING MESSAGES” on Page 149.
Notes on tire pressurePressure increase as the result of tempera-
ture increase
In accordance with physical principles, the tire
pressure changes as the temperature changes.
The tire pressure increases or decreases by
around 1.5 psi (0.1 bar) for every 18 °F (10 °C)
change in temperature.
Tire pressure specifications
The tire pressure must match the prescribed value
(required pressure).
You can find information on the tire pressure for
cold tires 68 °F (20 °C):
Faults in Tire Pressure Monitoring
10_Cayenne_21_KW17.book Seite 141 Donnerstag, 9. April 2009 3:33 15

142
Multi-Purpose Display and Instruments – in the sub-menu TYRE PRESSURE (filling infor-
mation):
as a required pressure for each axle if Tire
Pressure Monitoring has not yet been taught
the corresponding values,
– in the front left door aperture for each wheel,
– in the Technical Data chapter in this Owner’s
Manual: Please see the chapter “TIRE
PRESSURES, COLD (68 °F/20 °C)” on
Page 354.
If Tire Pressure Monitoring has been taught the
corresponding values, the deviations from the
required pressure are shown in the sub-menu
TYRE PRESSURE (filling information) indepen-
dently of the tire temperature. The correct tire
pressure adjustment can be made for a wheel on
the basis of this display information even if the
tires are warm.
Insufficient tire filling pressure can cause tires to
overheat when driving and thus be damaged –
even invisibly.
Hidden tire damage is not eliminated by subse-
quently correcting the tire pressure.
fFor this reason, always make sure that the tire
pressure is correct.
fFor further information on maintenance and
care of tires and wheels:
Please see the chapter “TIRES/WHEELS” on
Page 281.
Switching off passenger compart-
ment monitoring on the multi-
purpose displayThe passenger compartment monitoring system
can be temporarily deactivated in the ALARM sub-
menu.
When the doors are locked again, the ultrasound
passenger compartment monitoring system is
activated once more.
Further important information concerning this
topic can be found in a separate chapter:
fPlease see the chapter “TEMPORARILY
DEACTIVATING PASSENGER COMPARTMENT
MONITORING SYSTEM” on Page 246.
Notes on operation
fComfort settings can be made only when the
vehicle is stationary.
fFor information on the operating principle of
the multi-purpose display:
Please see the chapter “OPERATING
PRINCIPLE” on Page 124.
Switching passenger compartment
monitoring on/offThe alarm is triggered if motion is detected in the
interior with the doors closed (e.g. if a window is
broken in a theft).1.MAIN MENU
>SETTINGS
> COMFORT
> ALARM
Select and confirm.
2.Select INTERIOR.
3.Confirm selection.
Monitoring is activated.
Monitoring is deactivated.
10_Cayenne_21_KW17.book Seite 142 Donnerstag, 9. April 2009 3:33 15

Multi-Purpose Display and Instruments
143

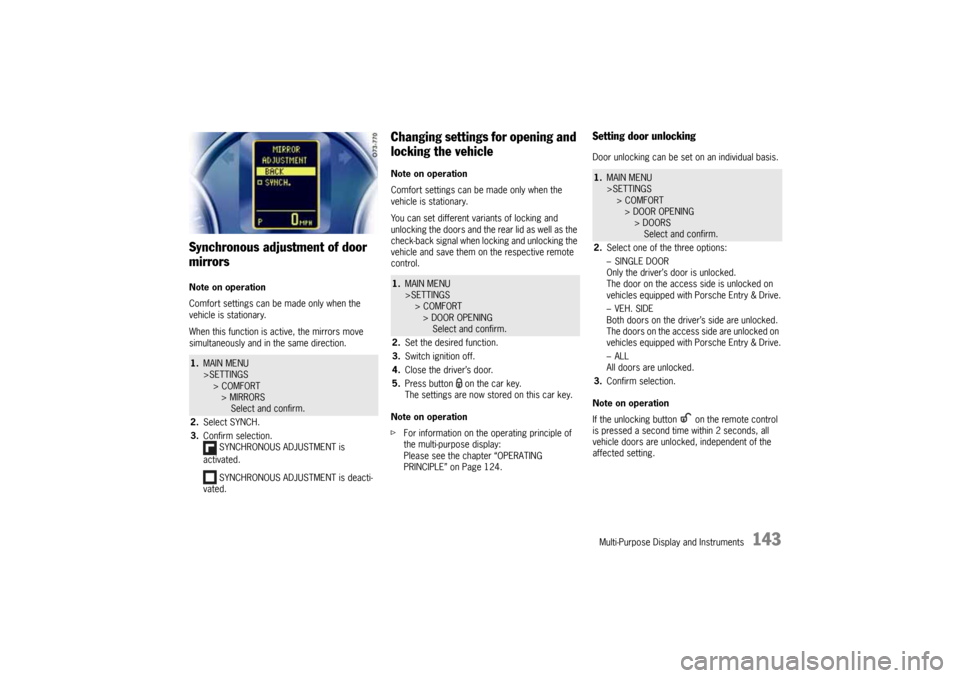

Synchronous adjustment of door
mirrorsNote on operation
Comfort settings can be made only when the
vehicle is stationary.
When this function is active, the mirrors move
simultaneously and in the same direction.
Changing settings for opening and
locking the vehicleNote on operation
Comfort settings can be made only when the
vehicle is stationary.
You can set different variants of locking and
unlocking the doors and the rear lid as well as the
check-back signal when locking and unlocking the
vehicle and save them on the respective remote
control.
Note on operation
fFor information on the operating principle of
the multi-purpose display:
Please see the chapter “OPERATING
PRINCIPLE” on Page 124.
Setting door unlockingDoor unlocking can be set on an individual basis.
Note on operation
If the unlocking button on the remote control
is pressed a second time within 2 seconds, all
vehicle doors are unlocked, independent of the
affected setting.
1.MAIN MENU
>SETTINGS
> COMFORT
> MIRRORS
Select and confirm.
2.Select SYNCH.
3.Confirm selection.
SYNCHRONOUS ADJUSTMENT is
activated.
SYNCHRONOUS ADJUSTMENT is deacti-
vated.
1.MAIN MENU
>SETTINGS
> COMFORT
> DOOR OPENING
Select and confirm.
2.Set the desired function.
3.Switch ignition off.
4.Close the driver’s door.
5.Press button on the car key.
The settings are now stored on this car key.
1.MAIN MENU
>SETTINGS
> COMFORT
> DOOR OPENING
> DOORS
Select and confirm.
2.Select one of the three options:
–SINGLE DOOR
Only the driver’s door is unlocked.
The door on the access side is unlocked on
vehicles equipped with Porsche Entry & Drive.
–VEH. SIDE
Both doors on the driver’s side are unlocked.
The doors on the access side are unlocked on
vehicles equipped with Porsche Entry & Drive.
–ALL
All doors are unlocked.
3.Confirm selection.
10_Cayenne_21_KW17.book Seite 143 Donnerstag, 9. April 2009 3:33 15

144
Multi-Purpose Display and Instruments

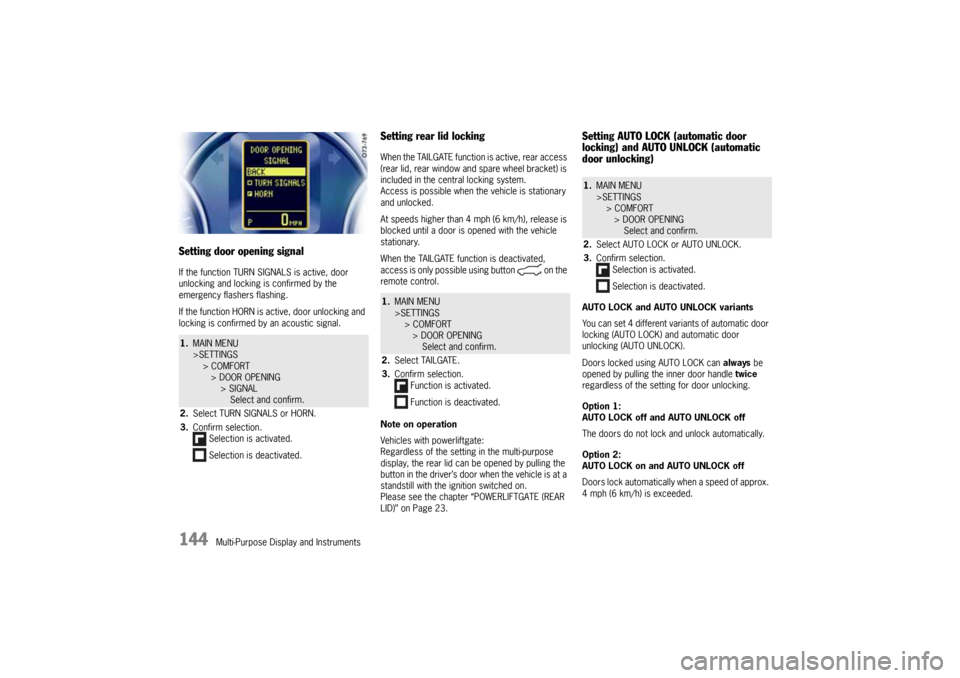

Setting door opening signalIf the function TURN SIGNALS is active, door
unlocking and locking is confirmed by the
emergency flashers flashing.
If the function HORN is active, door unlocking and
locking is confirmed by an acoustic signal.
Setting rear lid lockingWhen the TAILGATE function is active, rear access
(rear lid, rear window and spare wheel bracket) is
included in the central locking system.
Access is possible when the vehicle is stationary
and unlocked.
At speeds higher than 4 mph (6 km/h), release is
blocked until a door is opened with the vehicle
stationary.
When the TAILGATE function is deactivated,
access is only possible using button on the
remote control.
Note on operation
Vehicles with powerliftgate:
Regardless of the setting in the multi-purpose
display, the rear lid can be opened by pulling the
button in the driver’s door when the vehicle is at a
standstill with the ignition switched on.
Please see the chapter “POWERLIFTGATE (REAR
LID)” on Page 23.
Setting AUTO LOCK (automatic door
locking) and AUTO UNLOCK (automatic
door unlocking)AUTO LOCK and AUTO UNLOCK variants
You can set 4 different variants of automatic door
locking (AUTO LOCK) and automatic door
unlocking (AUTO UNLOCK).
Doors locked using AUTO LOCK can always be
opened by pulling the inner door handle twice
regardless of the setting for door unlocking.
Option 1:
AUTO LOCK off and AUTO UNLOCK off
The doors do not lock and unlock automatically.
Option 2:
AUTO LOCK on and AUTO UNLOCK off
Doors lock automatically when a speed of approx.
4 mph (6 km/h) is exceeded.
1.MAIN MENU
>SETTINGS
> COMFORT
> DOOR OPENING
> SIGNAL
Select and confirm.
2.Select TURN SIGNALS or HORN.
3.Confirm selection.
Selection is activated.
Selection is deactivated.
1.MAIN MENU
>SETTINGS
> COMFORT
> DOOR OPENING
Select and confirm.
2.Select TAILGATE.
3.Confirm selection.
Function is activated.
Function is deactivated.
1.MAIN MENU
>SETTINGS
> COMFORT
> DOOR OPENING
Select and confirm.
2.Select AUTO LOCK or AUTO UNLOCK.
3.Confirm selection.
Selection is activated.
Selection is deactivated.
10_Cayenne_21_KW17.book Seite 144 Donnerstag, 9. April 2009 3:33 15

Multi-Purpose Display and Instruments
145
Option 3:
AUTO LOCK on and AUTO UNLOCK on
Doors lock automatically when a speed of approx.
4 mph (6 km/h) is exceeded.
On vehicles without Porsche Entry & Drive, the
doors are unlocked automatically when the
ignition key is withdrawn.
On vehicles equipped with Porsche Entry & Drive,
the doors are unlocked when the ignition is
switched off twice.
Option 4:
AUTO LOCK off and AUTO UNLOCK on
The doors do not lock automatically.
If the doors are locked with the central locking
system button:
On vehicles without Porsche Entry & Drive, the
doors are unlocked automatically when the
ignition key is withdrawn.
On vehicles equipped with Porsche Entry & Drive,
the doors are unlocked when the ignition is
switched off twice.
Switching daytime driving lights
on/offNote on operation

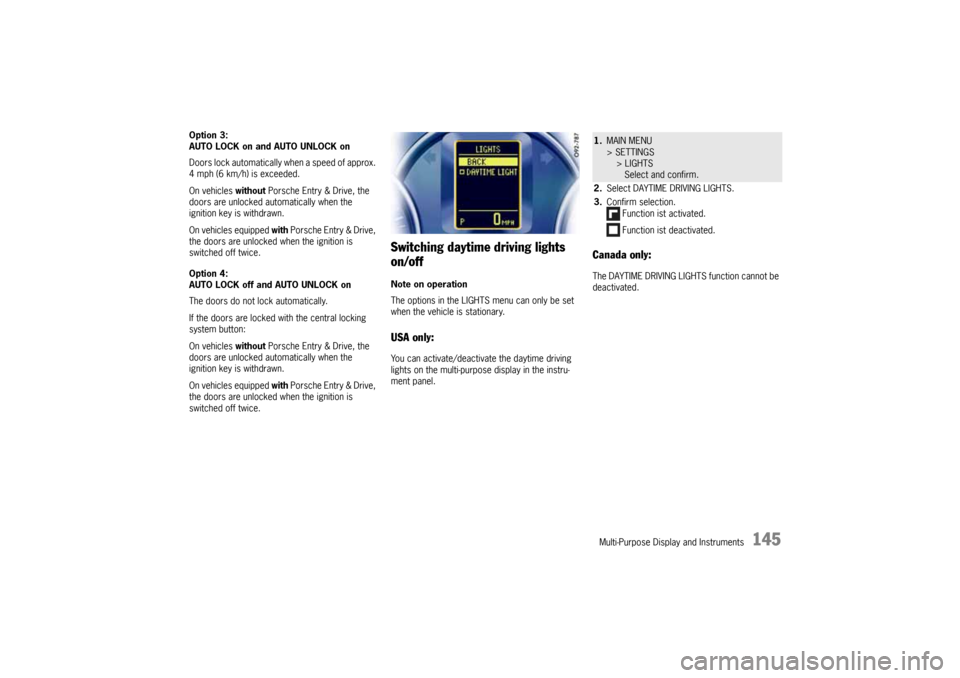

The options in the LIGHTS menu can only be set
when the vehicle is stationary.USA only:You can activate/deactivate the daytime driving
lights on the multi-purpose display in the instru-
ment panel.
Canada only:The DAYTIME DRIVING LIGHTS function cannot be
deactivated.1.MAIN MENU
> SETTINGS
> LIGHTS
Select and confirm.
2.Select DAYTIME DRIVING LIGHTS.
3.Confirm selection.
Function ist activated.
Function ist deactivated.
10_Cayenne_21_KW17.book Seite 145 Donnerstag, 9. April 2009 3:33 15

146
Multi-Purpose Display and Instruments

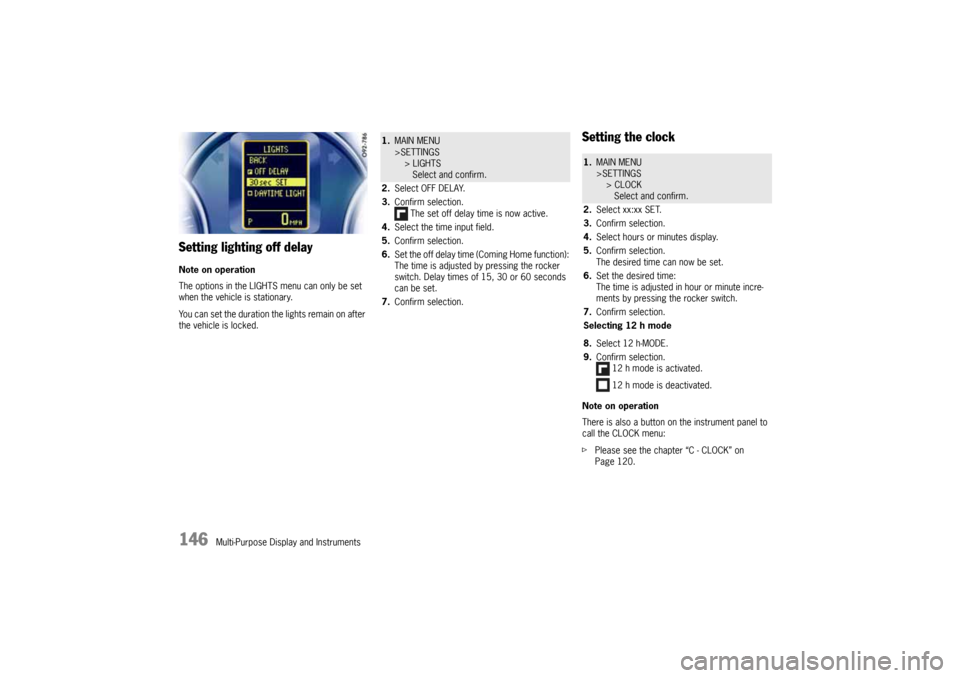

Setting lighting off delayNote on operation
The options in the LIGHTS menu can only be set
when the vehicle is stationary.
You can set the duration the lig hts re ma in on afte r
the vehicle is locked.
Setting the clockNote on operation
There is also a button on the instrument panel to
call the CLOCK menu:
fPlease see the chapter “C - CLOCK” on
Page 120.
1.MAIN MENU
>SETTINGS
> LIGHTS
Select and confirm.
2.Select OFF DELAY.
3.Confirm selection.
The set off delay time is now active.
4.Select the time input field.
5.Confirm selection.
6.Set the off delay time (Coming Home function):
The time is adjusted by pressing the rocker
switch. Delay times of 15, 30 or 60 seconds
can be set.
7.Confirm selection.
1.MAIN MENU
>SETTINGS
> CLOCK
Select and confirm.
2.Select xx:xx SET.
3.Confirm selection.
4.Select hours or minutes display.
5.Confirm selection.
The desired time can now be set.
6.Set the desired time:
The time is adjusted in hour or minute incre-
ments by pressing the rocker switch.
7.Confirm selection.
Selecting 12 h mode
8.Select 12 h-MODE.
9.Confirm selection.
12 h mode is activated.
12 h mode is deactivated.
10_Cayenne_21_KW17.book Seite 146 Donnerstag, 9. April 2009 3:33 15

Multi-Purpose Display and Instruments
147
Setting compassThe display is available only for vehicles equipped
with Porsche Radio CDR-23 and magnetic field
sensor.

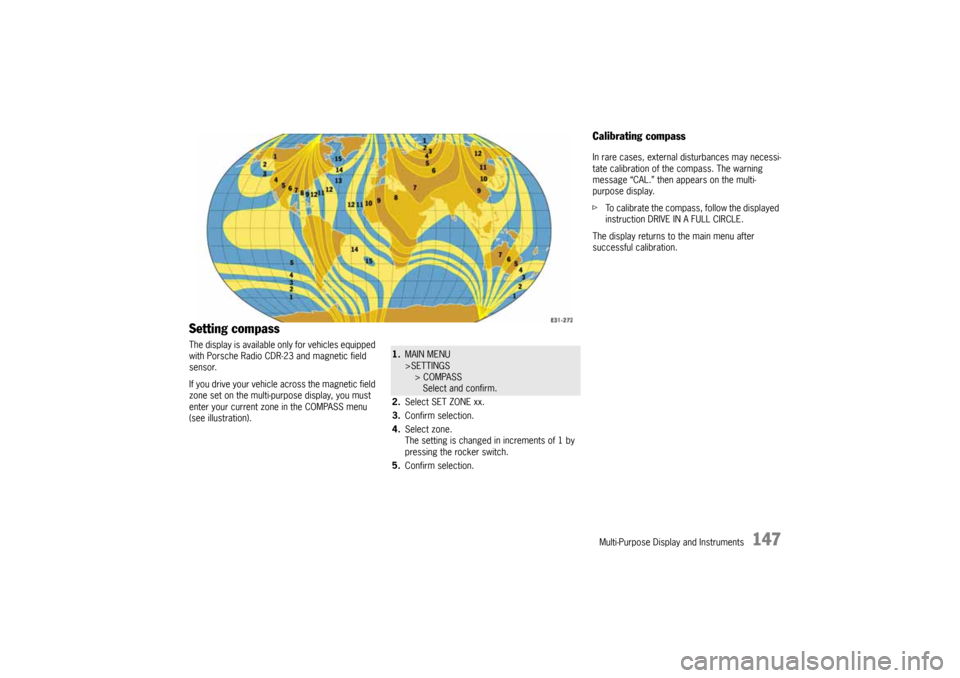

If you drive your vehicle across the magnetic field
zone set on the multi-purpose display, you must
enter your current zone in the COMPASS menu
(see illustration).
1.MAIN MENU
>SETTINGS
> COMPASS
Select and confirm.
2.Select SET ZONE xx.
3.Confirm selection.
4.Select zone.
The setting is changed in increments of 1 by
pressing the rocker switch.
5.Confirm selection.
Calibrating compassIn rare cases, external disturbances may necessi-
tate calibration of the compass. The warning
message “CAL.” then appears on the multi-
purpose display.
fTo calibrate the compass, follow the displayed
instruction DRIVE IN A FULL CIRCLE.
The display returns to the main menu after
successful calibration.
10_Cayenne_21_KW17.book Seite 147 Donnerstag, 9. April 2009 3:33 15

148
Multi-Purpose Display and Instruments

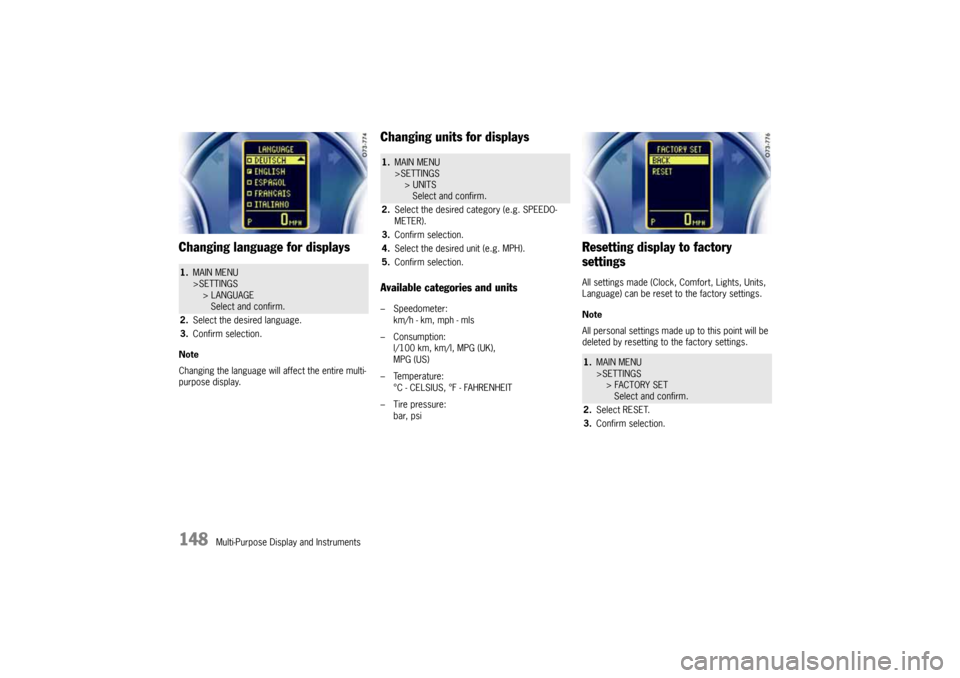

Changing language for displaysNote
Changing the language will affect the entire multi-
purpose display.
Changing units for displaysAvailable categories and units– Speedometer:
km/h - km, mph - mls
– Consumption:
l/100 km, km/l, MPG (UK),
MPG (US)
– Temperature:
°C - CELSIUS, °F - FAHRENHEIT
– Tire pressure:
bar, psi
Resetting display to factory
settingsAll settings made (Clock, Comfort, Lights, Units,
Language) can be reset to the factory settings.
Note
All personal settings made up to this point will be
deleted by resetting to the factory settings.
1.MAIN MENU
>SETTINGS
> LANGUAGE
Select and confirm.
2.Select the desired language.
3.Confirm selection.
1.MAIN MENU
>SETTINGS
> UNITS
Select and confirm.
2.Select the desired category (e.g. SPEEDO-
METER).
3.Confirm selection.
4.Select the desired unit (e.g. MPH).
5.Confirm selection.
1.MAIN MENU
>SETTINGS
> FACTORY SET
Select and confirm.
2.Select RESET.
3.Confirm selection.
10_Cayenne_21_KW17.book Seite 148 Donnerstag, 9. April 2009 3:33 15

Multi-Purpose Display and Instruments
149
Overview of warning messagesIf a warning message appears, always refer to the corresponding chapters in this Owner’s Manual.
Warning messages are issued only if all measurement preconditions are met.
Therefore, check all fluid levels regularly – in particular, always check the engine oil level after refueling.
Light on
instrument
panel
Warning message on the multi-purpose
displayMeaning/measures
Steering faulty Steering lock engaged.
Have the fault remedied at an authorized Porsche dealer.Ignition lock faulty Do not continue driving.
Have the fault remedied at an authorized Porsche dealer.System fault Have the fault remedied at an authorized Porsche dealer.Key not recognised in vehicle Make sure that you have the remote control with you.Turn ignition key to the left for 2
secondsTo lock the steering, turn the ignition key to the left and hold for 2 seconds.Key: replace battery Replace the remote-control battery.Move steering wheel Turn the steering wheel so that the steering wheel lock can engage/disengage.Key not found Make sure that you have the remote control with you.Move selector lever to position P Tiptronic S: The vehicle could roll away.
The ignition key can be withdrawn only in Tiptronic selector lever position P.Press brake pedal Apply the brake when starting.Move selector lever to position
P or NTiptronic S: The vehicle can be started only in position P or N.Depress clutch Manual transmission: Depress clutch pedal when starting.
10_Cayenne_21_KW17.book Seite 149 Donnerstag, 9. April 2009 3:33 15

150
Multi-Purpose Display and Instruments
Immobilizer active Have the fault remedied at an authorized Porsche dealer.Check left static cornering
lightCheck bulb.Check right static cornering
lightCheck bulb.Check dynamic cornering light Have the fault remedied at an authorized Porsche dealer.
If the warning message appears, the high beam indicator light on the speedometer flashes additionally.Check dipped beam Check bulb.Check trailer lights Check bulb.Check direction indicators Check bulb.Check high beam Check bulb.Check licence plate light Check bulb.Check fog lights Check bulb.Check reversing lights Check bulb.Check front side lights Check bulb.Check headlight beam adjustment Have the fault remedied at an authorized Porsche dealer.Daytime driving lights off Daytime driving lights switch off when the ignition is switched-off.
Switch on lights by light switch if necessary.System fault headlamp Have the fault remedied at an authorized Porsche dealer.
Light on
instrument
panel
Warning message on the multi-purpose
displayMeaning/measures
10_Cayenne_21_KW17.book Seite 150 Donnerstag, 9. April 2009 3:33 15
