PORSCHE CAYNNE 2004 1.G Owners Manual

Multi-Purpose Display and Instruments
151

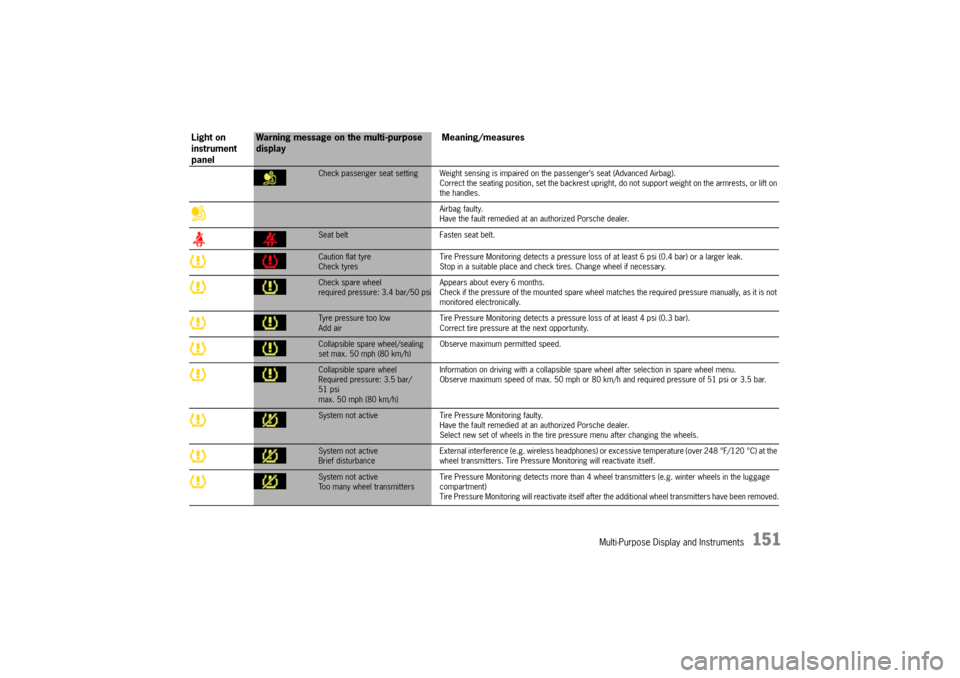

Check passenger seat setting Weight sensing is impaired on the passenger’s seat (Advanced Airbag).
Correct the seating position, set the backrest upright, do not support weight on the armrests, or lift on
the handles.
Airbag faulty.
Have the fault remedied at an authorized Porsche dealer.
Seat belt Fasten seat belt.Caution flat tyre
Check tyresTire Pressure Monitoring detects a pressure loss of at least 6 psi (0.4 bar) or a larger leak.
Stop in a suitable place and check tires. Change wheel if necessary.Check spare wheel
required pressure: 3.4 bar/50 psiAppears about every 6 months.
Check if the pressure of the mounted spare wheel matches the required pressure manually, as it is not
monitored electronically.Tyre pressure too low
Add airTire Pressure Monitoring detects a pressure loss of at least 4 psi (0.3 bar).
Correct tire pressure at the next opportunity.Collapsible spare wheel/sealing
set max. 50 mph (80 km/h)Observe maximum permitted speed.Collapsible spare wheel
Required pressure: 3.5 bar/
51 psi
max. 50 mph (80 km/h)Information on driving with a collapsible spare wheel after selection in spare wheel menu.
Observe maximum speed of max. 50 mph or 80 km/h and required pressure of 51 psi or 3.5 bar.System not active Tire Pressure Monitoring faulty.
Have the fault remedied at an authorized Porsche dealer.
Select new set of wheels in the tire pressure menu after changing the wheels.System not active
Brief disturbanceExternal interference (e.g. wireless headphones) or excessive temperature (over 248 °F/120 °C) at the
wheel transmitters. Tire Pressure Monitoring will reactivate itself.System not active
Too many wheel transmittersTire Pressure Monitoring detects more than 4 wheel transmitters (e.g. winter wheels in the luggage
compartment)
Tire Pressure Monitoring will reactivate itself after the additional wheel transmitters have been removed.
Light on
instrument
panel
Warning message on the multi-purpose
displayMeaning/measures
10_Cayenne_21_KW17.book Seite 151 Donnerstag, 9. April 2009 3:33 15

152
Multi-Purpose Display and Instruments
No monitoring

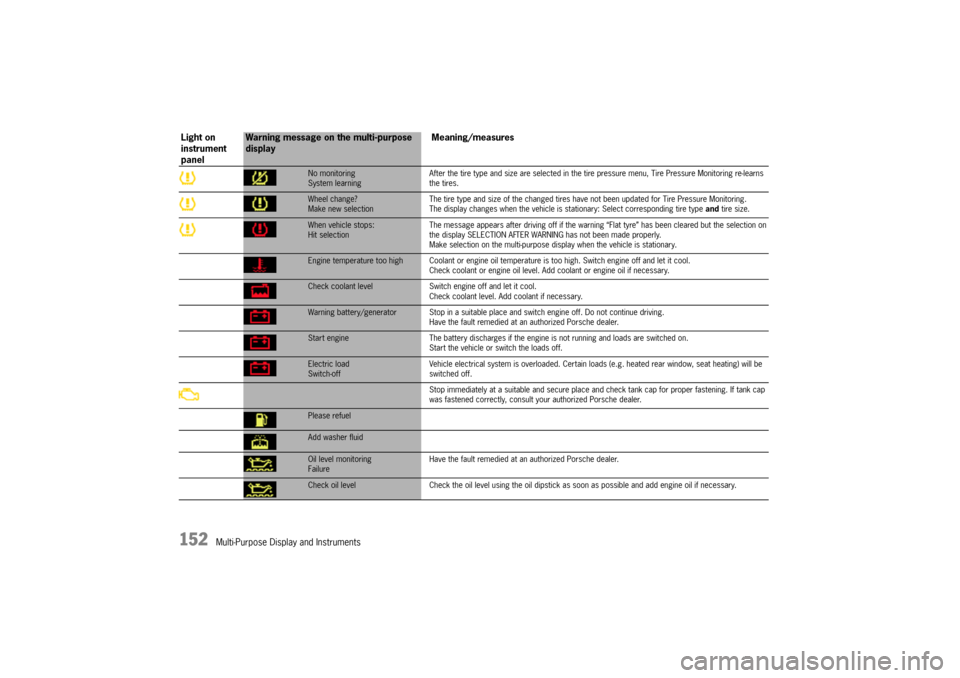

System learningAfter the tire type and size are selected in the tire pressure menu, Tire Pressure Monitoring re-learns
the tires.Wheel change?
Make new selectionThe tire type and size of the changed tires have not been updated for Tire Pressure Monitoring.
The display changes when the vehicle is stationary: Select corresponding tire type and tire size.When vehicle stops:
Hit selectionThe message appears after driving off if the warning “Flat tyre” has been cleared but the selection on
the display SELECTION AFTER WARNING has not been made properly.
Make selection on the multi-purpose display when the vehicle is stationary.Engine temperature too high Coolant or engine oil temperature is too high. Switch engine off and let it cool.
Check coolant or engine oil level. Add coolant or engine oil if necessary.Check coolant level Switch engine off and let it cool.
Check coolant level. Add coolant if necessary.Warning battery/generator Stop in a suitable place and switch engine off. Do not continue driving.
Have the fault remedied at an authorized Porsche dealer.Start engine The battery discharges if the engine is not running and loads are switched on.
Start the vehicle or switch the loads off.Electric load
Switch-offVehicle electrical system is overloaded. Certain loads (e.g. heated rear window, seat heating) will be
switched off.
Stop immediately at a suitable and secure place and check tank cap for proper fastening. If tank cap
was fastened correctly, consult your authorized Porsche dealer.
Please refuelAdd washer fluidOil level monitoring
FailureHave the fault remedied at an authorized Porsche dealer.Check oil level Check the oil level using the oil dipstick as soon as possible and add engine oil if necessary.
Light on
instrument
panel
Warning message on the multi-purpose
displayMeaning/measures
10_Cayenne_21_KW17.book Seite 152 Donnerstag, 9. April 2009 3:33 15

Multi-Purpose Display and Instruments
153
Oil pressure too low Immediately stop in a suitable place and switch engine off. Do not continue driving.
Check engine oil level. Add oil if necessary.
Do not continue driving if the warning light comes on even when the oil level is correct. Have the fault
remedied at an authorized Porsche dealer.Oil pressure monitoring
FailureHave the fault remedied at an authorized Porsche dealer.Service in 1864 mls (3000 km) Service indicator
Bring the vehicle in for service no later than after the distance shown has been covered. Please see the
additional information in the “Maintenance
” booklet.
Service now Service indicator
Have your vehicle serviced at an authorized Porsche dealer.Brake pads Have the brake pads replaced at an authorized Porsche dealer.Warning
Brake proportioningStop immediately in a suitable place. Do not continue driving.
Have the fault remedied at an authorized Porsche dealer.ABS failure Drive carefully. Have the fault remedied at an authorized Porsche dealer.PSM failure Drive carefully. Have the fault remedied at an authorized Porsche dealer.Warning
Brake fluid levelStop immediately in a suitable place. Do not continue driving.
Have the fault remedied at an authorized Porsche dealer.Parking brake Parking brake not released.PSM on Porsche Stability Management was switched on.
Light on
instrument
panel
Warning message on the multi-purpose
displayMeaning/measures
10_Cayenne_21_KW17.book Seite 153 Donnerstag, 9. April 2009 3:33 15

154
Multi-Purpose Display and Instruments

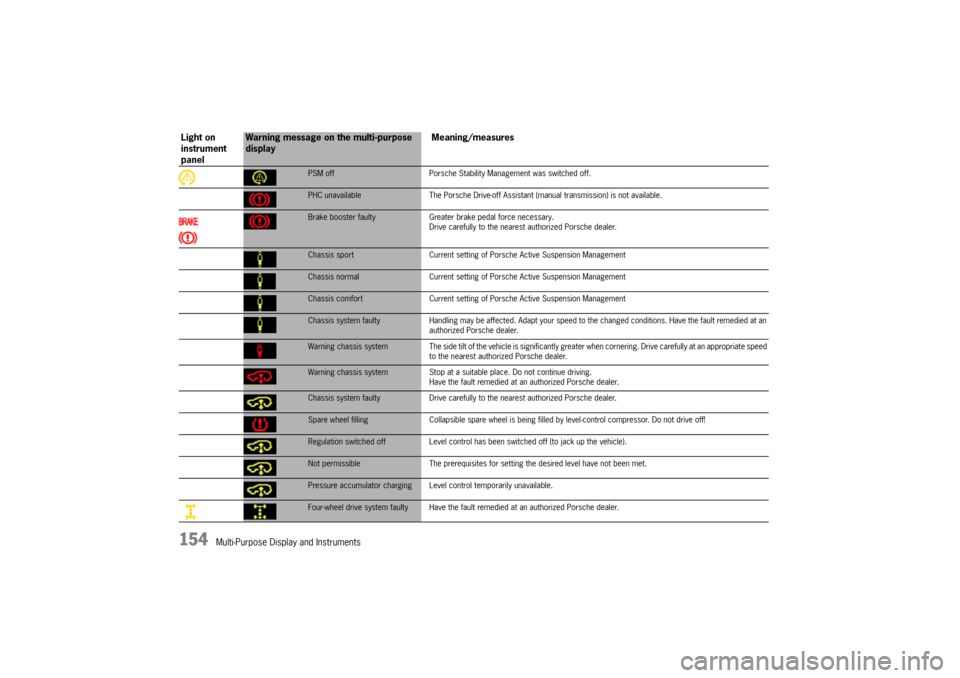

PSM off Porsche Stability Management was switched off.PHC unavailable The Porsche Drive-off Assistant (manual transmission) is not available.Brake booster faulty Greater brake pedal force necessary.
Drive carefully to the nearest authorized Porsche dealer.Chassis sport Current setting of Porsche Active Suspension ManagementChassis normal Current setting of Porsche Active Suspension ManagementChassis comfort Current setting of Porsche Active Suspension ManagementChassis system faulty Handling may be affected. Adapt your speed to the changed conditions. Have the fault remedied at an
authorized Porsche dealer.Warning chassis system The side tilt of the vehicle is significantly greater when cornering. Drive carefully at an appropriate speed
to the nearest authorized Porsche dealer.Warning chassis system Stop at a suitable place. Do not continue driving.
Have the fault remedied at an authorized Porsche dealer.Chassis system faulty Drive carefully to the nearest authorized Porsche dealer.Spare wheel filling Collapsible spare wheel is being filled by level-control compressor. Do not drive off!Regulation switched off Level control has been switched off (to jack up the vehicle).Not permissible The prerequisites for setting the desired level have not been met.Pressure accumulator charging Level control temporarily unavailable.Four-wheel drive system faulty Have the fault remedied at an authorized Porsche dealer.
Light on
instrument
panel
Warning message on the multi-purpose
displayMeaning/measures
10_Cayenne_21_KW17.book Seite 154 Donnerstag, 9. April 2009 3:33 15

Multi-Purpose Display and Instruments
155
Shift not possible;
Speed too highTiptronic S: When changing between Low Range and High Range, the limit speed (Low Range program)
must not be exceeded.Shift only possible in neutral Tiptronic S: The Tiptronic selector lever must be in position N when changing between Low Range and
High Range.Possible only when stopped in
neutral with brakeManual transmission: The vehicle must be stationary, the brakes must be applied and the gearshift lever
must be in the neutral position when changing between Low Range and High Range.Warning parking lock!
Apply parking brake!Do not continue driving. Apply the parking brake.
Have the fault remedied at an authorized Porsche dealer.Failure sport mode Have the fault remedied at an authorized Porsche dealer.Sport mode only usable
without reductionSport mode cannot be selected when the off-road driving program (Low Range) is engaged.Limit exceeded. The set speed limit has been exceeded.
Spare wheel is not locked.
Danger of injury and damage. Before driving off always lock the spare wheel correctly.Driver’s door open
All unlocked doors and lids are displayed when the vehicle exceeds 2 mph (3 km/h).Passenger’s door open
All unlocked doors and lids are displayed when the vehicle exceeds 2 mph (3 km/h).Rear left door open
All unlocked doors and lids are displayed when the vehicle exceeds 2 mph (3 km/h).
Light on
instrument
panel
Warning message on the multi-purpose
displayMeaning/measures
10_Cayenne_21_KW17.book Seite 155 Donnerstag, 9. April 2009 3:33 15

156
Multi-Purpose Display and Instruments

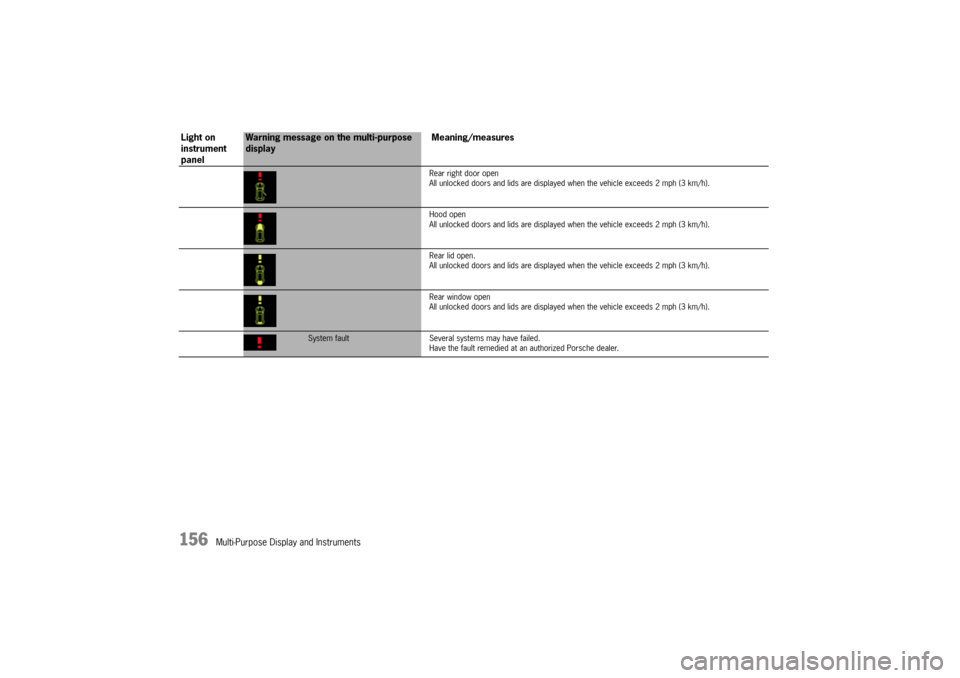

Rear right door open
All unlocked doors and lids are displayed when the vehicle exceeds 2 mph (3 km/h).Hood open
All unlocked doors and lids are displayed when the vehicle exceeds 2 mph (3 km/h).Rear lid open.
All unlocked doors and lids are displayed when the vehicle exceeds 2 mph (3 km/h).Rear window open
All unlocked doors and lids are displayed when the vehicle exceeds 2 mph (3 km/h).
System fault Several systems may have failed.
Have the fault remedied at an authorized Porsche dealer.
Light on
instrument
panel
Warning message on the multi-purpose
displayMeaning/measures
10_Cayenne_21_KW17.book Seite 156 Donnerstag, 9. April 2009 3:33 15

Driving and Driving Safety
157 Driving and Driving Safety
Ignition Lock/Steering Lock ........................ 158
Starting and Stopping the Engine ................ 160
Parking Brake ............................................ 162
Brakes ...................................................... 163
Cruise Control............................................ 167
Manual transmission, clutch ........................ 169
Tiptronic S ................................................. 170
Selector Lever Positions ............................. 171
Driving Programs for On-Road and
Off-Road Driving ......................................... 177
Power-Transmission and
Running-Gear Control Systems .................... 181
Air Suspension with Level Control and
Height Adjustment ...................................... 190
Porsche Active Suspension
Management (PASM) .................................. 193
Porsche Dynamic Chassis Control (PDCC) .... 194
Off-Road Driving ......................................... 195
10_Cayenne_21_KW17.book Seite 157 Donnerstag, 9. April 2009 3:33 15

158
Driving and Driving Safety

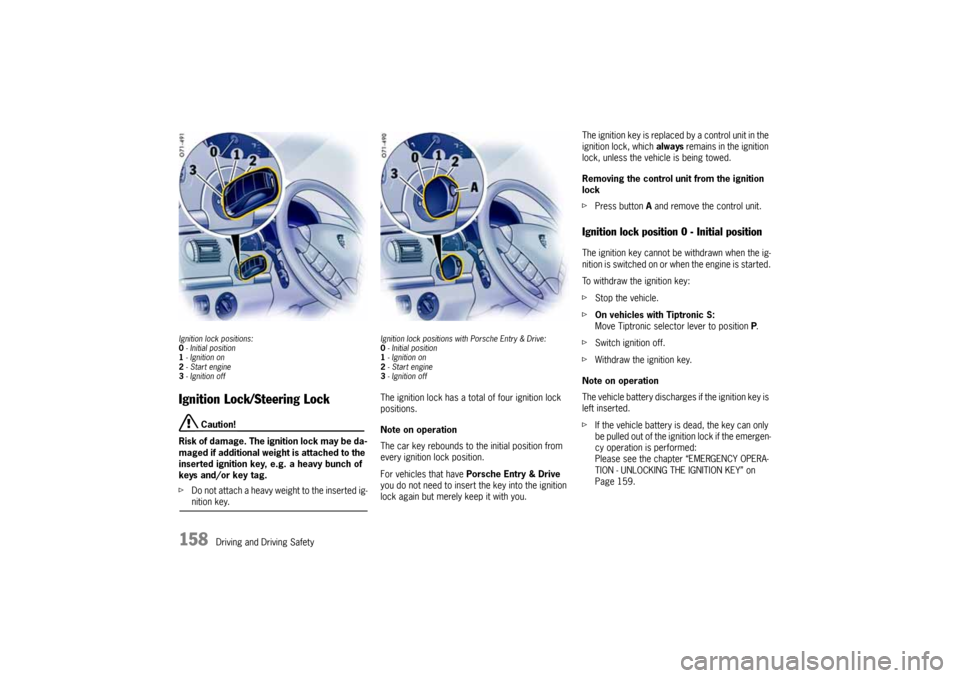

Ignition lock positions:
0- Initial position
1- Ignition on
2-Start engine
3- Ignition offIgnition Lock/Steering Lock
Caution!
Risk of damage. The ignition lock may be da-
maged if additional weight is attached to the
inserted ignition key, e.g. a heavy bunch of
keys and/or key tag.
fDo not attach a heavy weight to the inserted ig-nition key.
Ignition lock positions with Porsche Entry & Drive:
0- Initial position
1- Ignition on
2-Start engine
3- Ignition offThe ignition lock has a total of four ignition lock
positions.
Note on operation
The car key rebounds to the initial position from
every ignition lock position.
For vehicles that have Porsche Entry & Drive
you do not need to insert the key into the ignition
lock again but merely keep it with you. The ignition key is replaced by a control unit in the
ignition lock, which always remains in the ignition
lock, unless the vehicle is being towed.
Removing the control unit from the ignition
lock
fPress button A and remove the control unit.
Ignition lock position 0 - Initial positionThe ignition key cannot be withdrawn when the ig-
nition is switched on or when the engine is started.
To withdraw the ignition key:
fStop the vehicle.
fOn vehicles with Tiptronic S:
Move Tiptronic selector lever to position P.
fSwitch ignition off.
fWithdraw the ignition key.
Note on operation
The vehicle battery discharges if the ignition key is
left inserted.
fIf the vehicle battery is dead, the key can only
be pulled out of the ignition lock if the emergen-
cy operation is performed:
Please see the chapter “EMERGENCY OPERA-
TION - UNLOCKING THE IGNITION KEY” on
Page 159.
10_Cayenne_21_KW17.book Seite 158 Donnerstag, 9. April 2009 3:33 15

Driving and Driving Safety
159
Ignition lock position 1 - Ignition onfTurn ignition key to position 1.
Note on operation
All electrical equipment can be switched on.
The warning lights light up for a lamp check.
fPlease see the chapter “INSTRUMENT PANEL
USA MODELS” on Page 117.
If a load is not switched on for 10 minutes after
switching on the ignition, the ignition must be
switched on again.
Turn the ignition key to ignition lock position 3
(ignition off) first.Ignition lock position 2 - Starting enginefTurn ignition key to ignition lock position 2.Ignition lock position 3 - Ignition offfTurn ignition key to ignition lock position 3.
fFor further information on starting and stop-
ping the engine:
Please see the chapter “STARTING AND STOP-
PING THE ENGINE” on Page 160.
Locking the steering column Vehicles without Porsche Entry & Drive
The steering column is automatically locked
when the ignition key is withdrawn from the
ignition lock and is automatically unlocked
when the ignition key is inserted into the ignition
lock.
Vehicles with Porsche Entry & Drive
The steering column is automatically locked
when the ignition is switched off and the vehicle is
locked.
Manually locking the steering column on
vehicles with Porsche Entry & Drive
fDepress the clutch on vehicles with manual
transmission.
fOnce the ignition is switched off, turn the
control unit again to ignition lock position 3
and hold it there for 2seconds.
The steering column is automatically unlocked
by turning the control unit from ignition lock
position 0.

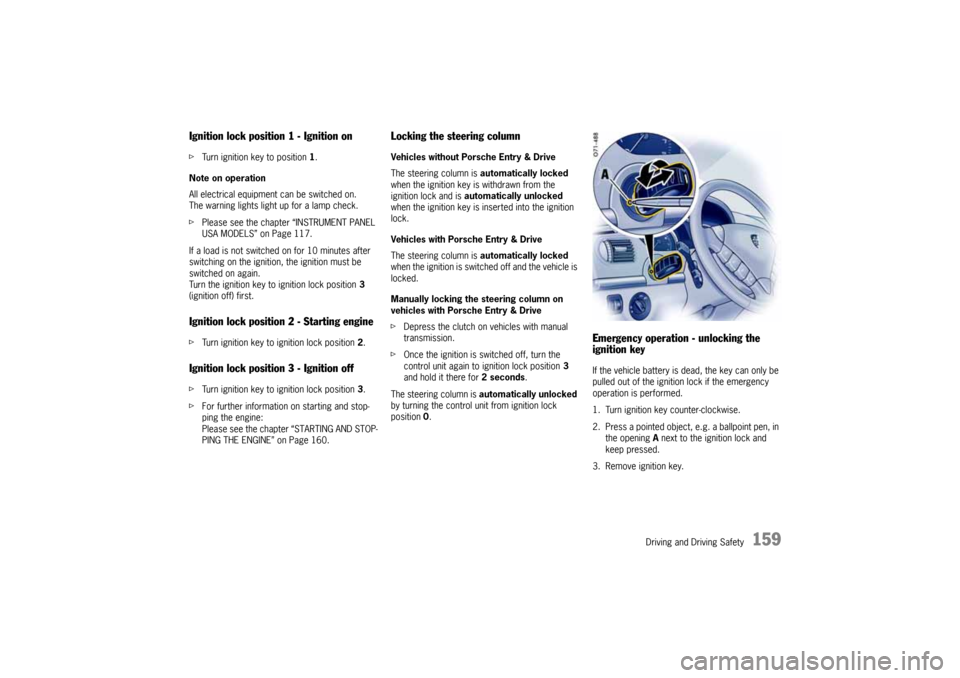

Emergency operation - unlocking the
ignition keyIf the vehicle battery is dead, the key can only be
pulled out of the ignition lock if the emergency
operation is performed.
1. Turn ignition key counter-clockwise.
2. Press a pointed object, e.g. a ballpoint pen, in
the opening A next to the ignition lock and
keep pressed.
3. Remove ignition key.
10_Cayenne_21_KW17.book Seite 159 Donnerstag, 9. April 2009 3:33 15

160
Driving and Driving Safety
Starting and Stopping the EnginefPlease see the chapter “IMMOBILIZER” on
Page 248.
fPlease see the chapter “EMISSION CONTROL
SYSTEM” on Page 263.
Danger!
Risk of poisoning. Exhaust gas contains
colorless and odorless carbon monoxide
(CO), which is toxic even in low concentra-
tion. Carbon monoxide can cause uncon-
sciousness and even death if inhaled.
fNever start or let the engine run in an en-
closed, unventilated area. It is not recommen-
ded to sit in your car for prolonged periods
with the engine on and the car not moving.
An unattended vehicle with a running engine
is potentially hazardous. If warning lights
should come on to indicate improper opera-
tion, they would go unnoticed.
fNever leave the engine idling unattended.
Danger of fire.
fDo not drive or park your car where combus-
tible materials, such as dry grass or leaves,
can come into contact with the hot exhaust
system.
fIf your car catches on fire for any reason, call
the fire department. Do not endanger your life by attempting to put out the fire.
Starting vehiclefOperate footbrake.
fFully depress and hold the clutch pedal. Put the
gearshift lever in neutral or on vehicles with
Tiptronic S:
move the Tiptronic selector lever to position P
or N.
fDo not press the accelerator pedal. The engine
control module will provide the correct starting
mixture.
fTurn ignition key to ignition lock position 2.
fDo not operate the starter longer than approx.
10 seconds. If necessary, repeat the starting
procedure after a pause of approx.
10 seconds. Turn the ignition key back to
ignition lock position 3 first.
Notes on operation
The first operation of the starter is ended auto-
matically when the engine starts.
If the engine does not start, subsequent starter
operations will not be ended automatically.
When the engine ist started, the warning lights
must go out.fDo not warm up the engine when stationary.
Drive off immediately.
Avoid high revolutions and full throttle until the
engine has reached operating temperature.
fIf battery output is insufficient, jump leads can
be used to start the engine.
Please see the chapter “EMERGENCY
STARTING WITH JUMPER CABLES” on
Page 323.
Note on operation
To ensure a good charge condition for the battery
and thus its ability to start the engine, all electrical
accessories which are not required should be
switched off when the ignition is switched on and
when engine revolutions are low (in stop and go
traffic).
10_Cayenne_21_KW17.book Seite 160 Donnerstag, 9. April 2009 3:33 15
