PORSCHE CAYNNE 2004 1.G Owners Manual

Driving and Driving Safety
171
Selector lever positionIndicator for selector lever position and
engaged gearWhen the engine is running, the selector lever
position and engaged gear are indicated.
Selector Lever PositionsP – Parking lockIn selector lever position P, the driven wheels are
mechanically locked.
fEngage parking lock only when vehicle is
stationary.
fEngage parking lock after applying the
parking brake and release it before releasing
the parking brake.
fAlways apply the parking brake before leaving
the vehicle.
The ignition key can be withdrawn only in selector
lever position P.R – ReversefSelect reverse only if car is stationary and the
brake is applied.N – NeutralSelector lever position N must be selected for
towing or in car washes, for example.
fSelect the desired position for moving off
(D, M or R) only when the engine is idling and
when depressing the brake pedal.
D - Automatic selection mode (in the road
driving program)fUse selector lever position D for “normal”
driving.
The gears are shifted automatically according
to the accelerator position and speed.
Depending on the way the vehicle is driven and on
the resistance (e.g. uphill), the gear-changing
points are shifted towards higher or lower engine-
speed ranges. Movement of the accelerator,
driving speed, longitudinal and lateral acceleration
and the road profile all have an influence on the
gear-changing characteristic.
When PSM is switched off, transmission gear
changes are done at higher engine speeds.
Unwanted upward shifts, e.g. before corners, are
prevented by swiftly releasing the accelerator
pedal.
Depending on lateral acceleration, upward
changes on corners are not made until the engine-
speed limit is reached.
During braking, and depending on the amount of
deceleration, the Tiptronic changes down earlier.
For subsequent cornering, the right gear is
engaged when pressure is applied to the brakes
before the corner.
10_Cayenne_21_KW17.book Seite 171 Donnerstag, 9. April 2009 3:33 15

172
Driving and Driving Safety The corner is taken in the right gear, and when you
accelerate out of the corner you do not have to
change down.
Shifting gear on the steering wheel
By shifting gear with the rocker switches on the
steering wheel, you can temporarily change from
automatic selection mode D to manual selection
mode M.
Advantages:
– Shifting down before corners and on entering
congested areas, on downward slopes (engine
braking) or for brief spurts of acceleration.
– Selecting 1st or 2nd gear for moving off.
The manual selection mode remains engaged:
– For cornering (depending on the lateral
acceleration) and passing,
– When the vehicle is stationary (e.g. at a
junction).
The system leaves manual selection mode:
– automatically after around 8 seconds
(unless car is cornering, passing or
stationary),
– if you depress the accelerator to kickdown.Temporary change-down
Precondition:
– Speed is higher than approx. 33 mph
(54 km/h).
fDepress accelerator quickly.
The Tiptronic changes temporarily to the
sportiest gear-changing map, i.e. to the
highest possible gear-changing points.
Correspondingly, the transmission shifts down
immediately by one, two or three gears.
Ending the function
fRelease the accelerator markedly (by approx.
25%).
Kickdown
The kickdown function is active in selector lever
position D.
fFor optimum acceleration, e.g. when over-
taking, depress the accelerator pedal beyond
the full-throttle point (kickdown).
The transmission shifts down depending on the
speed of travel and engine speed.
Upward shifts occur at the highest possible engine
speeds.
These gear-changing speeds remain active until
the accelerator is released to approx. 80% of the
full-throttle position.
D - Automatic selection mode (in the off-
road driving program)fUse selector lever position D for “normal”
driving.
The gears are shifted automatically according
to the accelerator position and speed.
The gear-changing points have been adjusted to
achieve the best possible vehicle control on diffi-
cult terrain.
Depending on the route profile, the gear-changing
points are shifted towards higher or lower engine-
speed ranges. On steep downhill stretches,
upward shifts are prevented until medium engine
speeds are reached (at least 2,500 rpm).
When the car is passing, an automatic upshift
does not occur when the engine speed limit is
reached.
Shifting gear on the steering wheel
By shifting gear with the rocker switches on the
steering wheel, you can temporarily change from
automatic selection mode D to manual selection
mode M.
Advantages:
– Shifting down on downward slopes (engine
braking) or for brief spurts of acceleration.
– Selecting 1st/2nd or 3rd gear for moving off.
10_Cayenne_21_KW17.book Seite 172 Donnerstag, 9. April 2009 3:33 15

Driving and Driving Safety
173
The manual selection mode remains engaged:
– For passing
– Depending on lateral acceleration
– When the vehicle is stationary (e.g. at a
junction).
The system leaves manual selection mode:
– Automatically after around 8 seconds
(unless car is subject to high lateral accelera-
tion, is passing or stationary),
– if you depress the accelerator to kickdown.
Kickdown
The kickdown function is active in selector lever
position D.
fFor optimum acceleration, e.g. when overta-
king, depress the accelerator pedal beyond
the full-throttle point (kickdown).
The transmission shifts down depending on the
speed of travel and engine speed.
Upward shifts occur at the highest possible engine
speeds.
These gear-changing speeds remain active until
the accelerator is released to approx. 80% of the
full-throttle position.
Tip on driving
Unlike in the on-road driving program, an automa-
tic upshift is not performed in manual selection
mode M when the engine-speed limit is reached.
M - Manual selection mode (in the on-
road driving program)
Warning!
The kickdown function is not active in manual
selection mode “M”.
The kickdown function cannot be used to
downshift in manual selection mode “M”.
fTherefore shift down manually when accelera-ting (e.g. to overtake).Shifting up

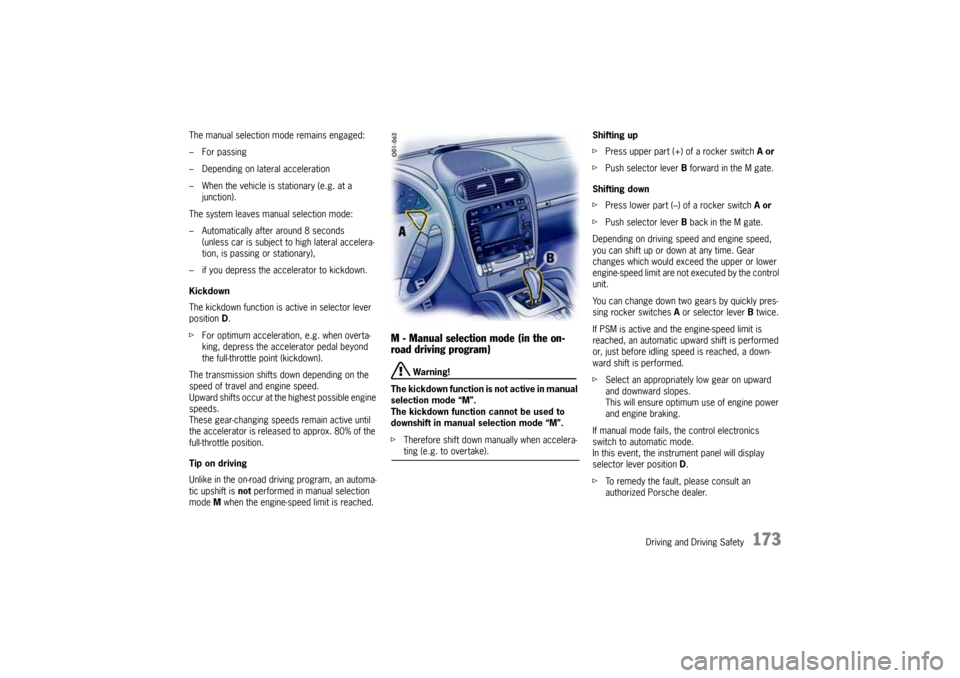

fPress upper part (+) of a rocker switch A or
fPush selector lever B forward in the M gate.
Shifting down
fPress lower part (–) of a rocker switch A or
fPush selector lever B back in the M gate.
Depending on driving speed and engine speed,
you can shift up or down at any time. Gear
changes which would exceed the upper or lower
engine-speed limit are not executed by the control
unit.
You can change down two gears by quickly pres-
sing rocker switches A or selector lever B twice.
If PSM is active and the engine-speed limit is
reached, an automatic upward shift is performed
or, just before idling speed is reached, a down-
ward shift is performed.
fSelect an appropriately low gear on upward
and downward slopes.
This will ensure optimum use of engine power
and engine braking.
If manual mode fails, the control electronics
switch to automatic mode.
In this event, the instrument panel will display
selector lever position D.
fTo remedy the fault, please consult an
authorized Porsche dealer.
10_Cayenne_21_KW17.book Seite 173 Donnerstag, 9. April 2009 3:33 15

174
Driving and Driving Safety
M - Manual selection mode (in the off-
road driving program)
Warning!
The kickdown function is not active in manual
selection mode “M”.
The kickdown function cannot be used to
downshift in manual selection mode “M”.
fTherefore shift down manually when accelera-ting (e.g. to overtake).
Tip on driving
The kickdown function is not active in selector
lever position M.
Unlike in the road driving program, an automatic
upshift is not performed when the engine-speed
limit is reached.Shifting up
fPress upper part (+) of a rocker switch A or
fPush selector lever B forward in the M gate.
Shifting down
fPress lower part (–) of a rocker switch A or
fPush selector lever B back in the M gate.
Depending on driving speed and engine speed,
you can shift up or down at any time. Gear
changes which would exceed the upper or lower
engine-speed limit are not executed by the control
unit.
You can change down two gears by quickly pres-
sing rocker switches A or selector lever B twice.
The gear is changed down automatically just
before idle speed is reached.
fSelect an appropriately low gear on upward
and downward slopes.
This will ensure optimum use of engine power
and engine braking.
If manual mode fails, the control electronics
switch to automatic mode. In this event, the instru-
ment panel will display selector lever position D.
fTo remedy the fault, please consult an
authorized Porsche dealer.
StoppingfFor a brief stop (e.g. at a traffic light), leave the
selector lever in drive position and hold the
vehicle with the brake pedal.
fDo not hold the car on a slope using the acce-
lerator. Use the brake pedal or the parking
brake instead.
fBefore leaving the vehicle, always apply the
handbrake and move the selector lever to
position P.
Tip on driving
In selector lever positions D and M, the hillholder
function makes it easier to move off from a stand-
still on an upward slope when the engine is run-
ning. The driver does not have to apply the brake.
fPlease see the chapter “HILLHOLDER -
MOVING-OFF ASSISTANT ON VEHICLES WITH
TIPTRONIC S” on Page 187.
10_Cayenne_21_KW17.book Seite 174 Donnerstag, 9. April 2009 3:33 15

Driving and Driving Safety
175
ParkingfGo easy on the accelerator.
fWhen parking or maneuvring in a small space,
control the speed by careful use of the foot-
brake.Driving in winterIn wintry road conditions it is advisable to take
steep inclines in manual mode M. This prevents
the occurrence of gear changes that could cause
wheelspin.
Limp-home modeIf there is a fault in the transmission:
–An X appears instead of the current gear
indicator on the multi-purpose display of the
instrument panel.
The transmission no longer shifts.
fTo remedy the fault, immediately consult an
authorized Porsche dealer.
Warning!
Reverse gear lock monitoring is disabled in
the emergency running program.
Damage to the vehicle may result as well as
loss of control, if the vehicle is moving for-
ward fast enough to cause rear wheel lockup.
fDo not shift into R while the vehicle is moving forward.
Tip on driving
3rd or 5th gear in selector position D and reverse
gear R are now available and will allow you to
reach the nearest authorized Porsche dealer.
fPlease go to your authorized Porsche dealer
as soon as possible.
Selector lever emergency releaseIn the event of an electrical fault, the selector lever
lock in position P can be manually released (for
towing the vehicle, for example).

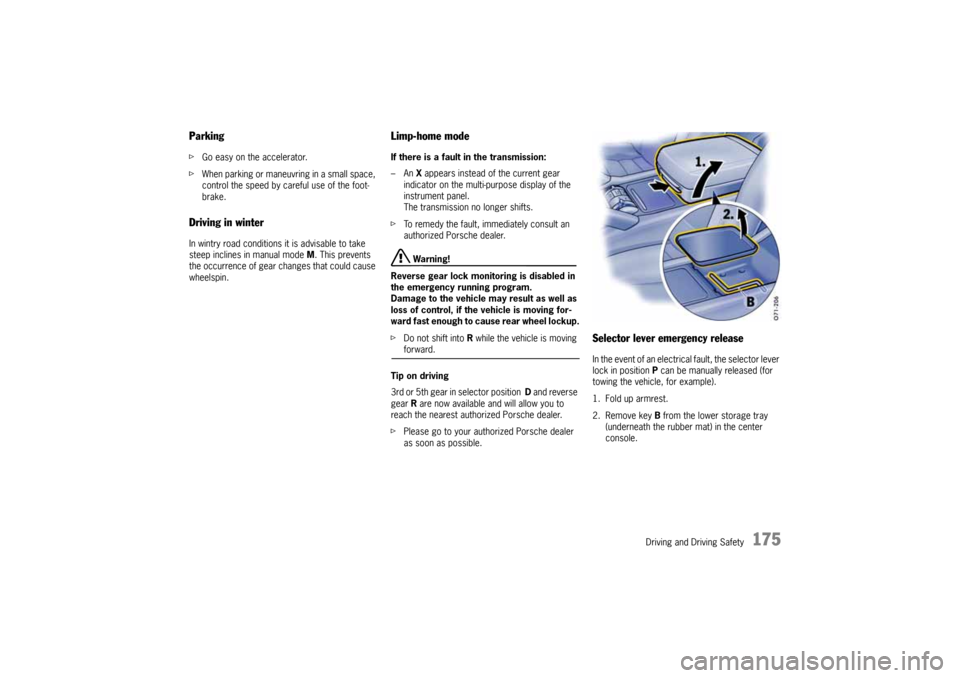

1. Fold up armrest.
2. Remove key B from the lower storage tray
(underneath the rubber mat) in the center
console.
10_Cayenne_21_KW17.book Seite 175 Donnerstag, 9. April 2009 3:33 15

176

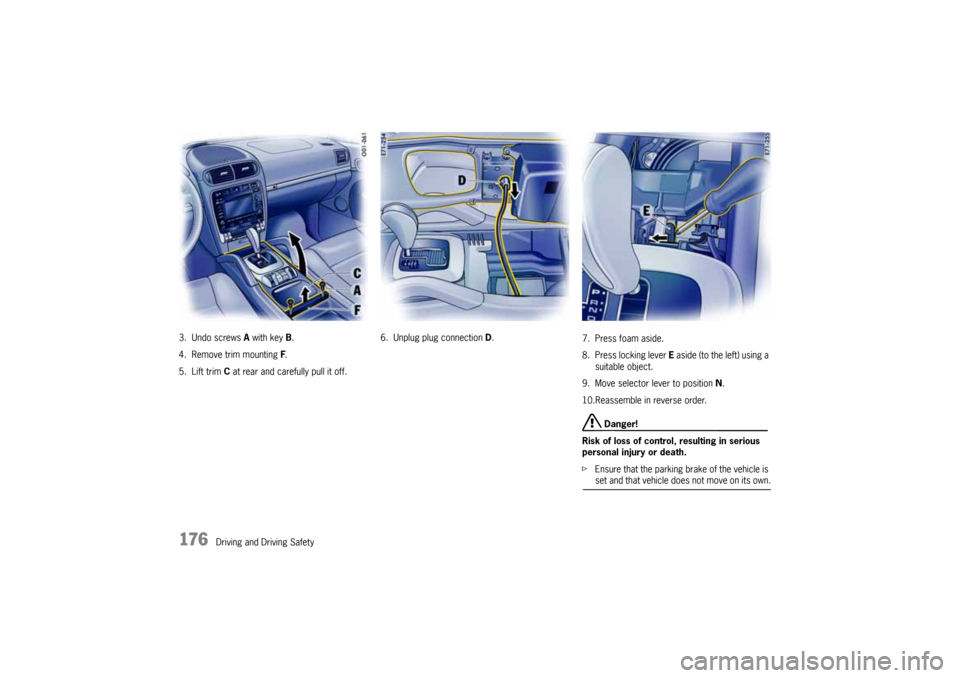

Driving and Driving Safety 3. Undo screws A with key B.
4. Remove trim mounting F.
5. Lift trim C at rear and carefully pull it off.6. Unplug plug connection D.
7. Press foam aside.
8. Press locking lever E aside (to the left) using a
suitable object.
9. Move selector lever to position N.
10.Reassemble in reverse order.
Danger!
Risk of loss of control, resulting in serious
personal injury or death.
fEnsure that the parking brake of the vehicle is set and that vehicle does not move on its own.
10_Cayenne_21_KW17.book Seite 176 Donnerstag, 9. April 2009 3:33 15

Driving and Driving Safety
177
Driving Programs for On-Road and
Off-Road DrivingTwo different driving programs with special power-
transmission and running-gear control systems
(such as ABS, off-road ABS and PSM, etc.) are pro-
vided in your Porsche for realising the best possib-
le driving dynamics combined with maximum safe-
ty.
– Low Range off-road driving program
(with reduction)
– High Range on-road driving program
(without reduction)When the driving program is active, the power
transmission and running-gear control systems
are automatically adapted to the requirements for
off-road or on-road driving.

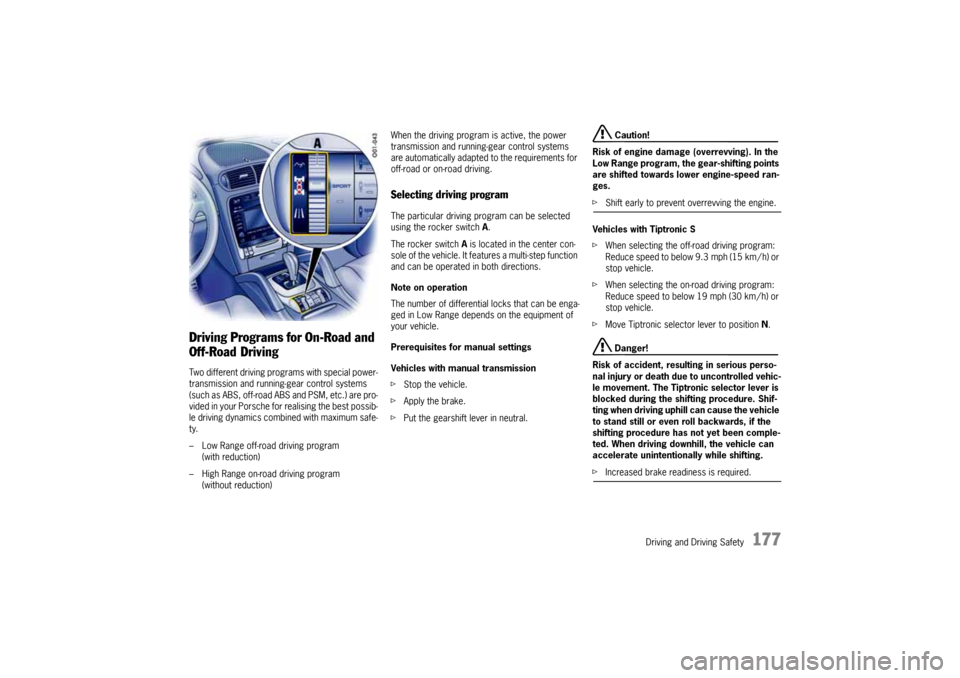

Selecting driving programThe particular driving program can be selected
using the rocker switch A.
The rocker switch A is located in the center con-
sole of the vehicle. It features a multi-step function
and can be operated in both directions.
Note on operation
The number of differential locks that can be enga-
ged in Low Range depends on the equipment of
your vehicle.
Prerequisites for manual settings
Vehicles with manual transmission
fStop the vehicle.
fApply the brake.
fPut the gearshift lever in neutral.
Caution!
Risk of engine damage (overrevving). In the
Low Range program, the gear-shifting points
are shifted towards lower engine-speed ran-
ges.
fShift early to prevent overrevving the engine.
Vehicles with Tiptronic S
fWhen selecting the off-road driving program:
Reduce speed to below 9.3 mph (15 km / h) or
stop vehicle.
fWhen selecting the on-road driving program:
Reduce speed to below 19 mph (30 km / h) or
stop vehicle.
fMove Tiptronic selector lever to position N.
Danger!
Risk of accident, resulting in serious perso-
nal injury or death due to uncontrolled vehic-
le movement. The Tiptronic selector lever is
blocked during the shifting procedure. Shif-
ting when driving uphill can cause the vehicle
to stand still or even roll backwards, if the
shifting procedure has not yet been comple-
ted. When driving downhill, the vehicle can
accelerate unintentionally while shifting.
fIncreased brake readiness is required.
10_Cayenne_21_KW17.book Seite 177 Donnerstag, 9. April 2009 3:33 15

178

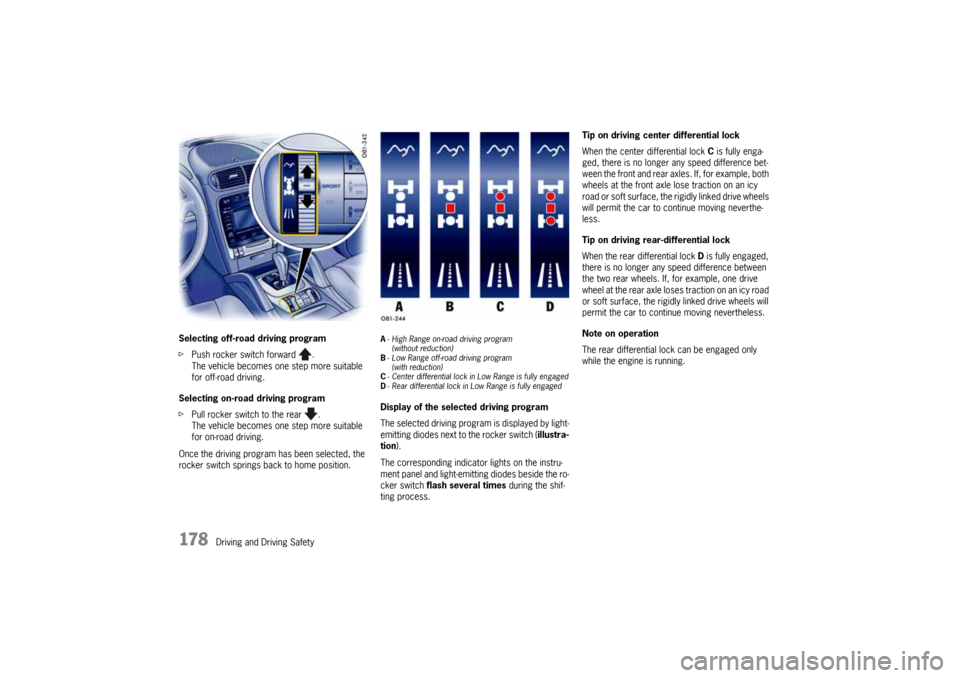

Driving and Driving Safety Selecting off-road driving program
fPush rocker switch forward .
The vehicle becomes one step more suitable
for off-road driving.
Selecting on-road driving program
fPull rocker switch to the rear .
The vehicle becomes one step more suitable
for on-road driving.
Once the driving program has been selected, the
rocker switch springs back to home position.
A-High Range on-road driving program
(without reduction)
B-Low Range off-road driving program
(with reduction)
C-Center differential lock in Low Range is fully engaged
D-Rear differential lock in Low Range is fully engagedDisplay of the selected driving program
The selected driving program is displayed by light-
emitting diodes next to the rocker switch (illustra-
tion).
The corresponding indicator lights on the instru-
ment panel and light-emitting diodes beside the ro-
cker switch flash several times during the shif-
ting process.Tip on driving center differential lock
When the center differential lock C is fully enga-
ged, there is no longer any speed difference bet-
ween the front and rear axles. If, for example, both
wheels at the front axle lose traction on an icy
road or soft surface, the rigidly linked drive wheels
will permit the car to continue moving neverthe-
less.
Tip on driving rear-differential lock
When the rear differential lock D is fully engaged,
there is no longer any speed difference between
the two rear wheels. If, for example, one drive
wheel at the rear axle loses traction on an icy road
or soft surface, the rigidly linked drive wheels will
permit the car to continue moving nevertheless.
Note on operation
The rear differential lock can be engaged only
while the engine is running.
10_Cayenne_21_KW17.book Seite 178 Donnerstag, 9. April 2009 3:33 15

Driving and Driving Safety
179
Note on operation
If the Low Range indicator light next to the rocker
switch flashes rapidly after the ignition is swit-
ched on, there is a fault in the shifting system.
fHave the vehicle checked immediately.
Please consult an authorized Porsche dealer.
If the Low Range indicator light next to the rocker
switch flashes when you attempt to operate
rocker switch, then at least one condition for shif-
ting has not been met:
Vehicles with manual transmission
– Vehicle is not stationary.
– Brake is not pressed.
– Gearshift lever in not in neutral.
Vehicles with Tiptronic S
– Vehicle has exceeded or gone below the limit
speed.
– Tiptronic selector lever is not in position N.
Sport ModeFunction
The sports exhaust system is switched on and a
sportier car set-up is obtained when Sport mode
is switched on.
Interventions by the Porsche control systems are
intentionally shifted towards greater agility and
driving performance.
– PASM (Porsche Active Suspension Manage-
ment) is automatically changed to Sport mode,
resulting in a stiffer suspension setup.– PDCC (Porsche Dynamic Chassis Control) is
automatically set to Sport mode, and this
further reduces the roll tendency of the
vehicle.
– The air suspension automatically changes to
the low level setting.
– The Tiptronic S transmission changes to a
sportier shift strategy.
The gear-changing points are shifted to higher
speed ranges. Upward shifts are initiated later,
and deceleration shifts are performed earlier.
The vehicle moves off in 1st gear.
– The electronic accelerator pedal reacts
sooner, and the engine is more responsive to
throttle inputs.
– Sporty engine tuning is activated.
fFor further information:
Please see the chapter “PORSCHE ACTIVE
SUSPENSION MANAGEMENT (PASM)” on
Page 193.
fPlease see the chapter “PORSCHE DYNAMIC
CHASSIS CONTROL (PDCC)” on Page 194.
Low Range indicator light
10_Cayenne_21_KW17.book Seite 179 Donnerstag, 9. April 2009 3:33 15

180

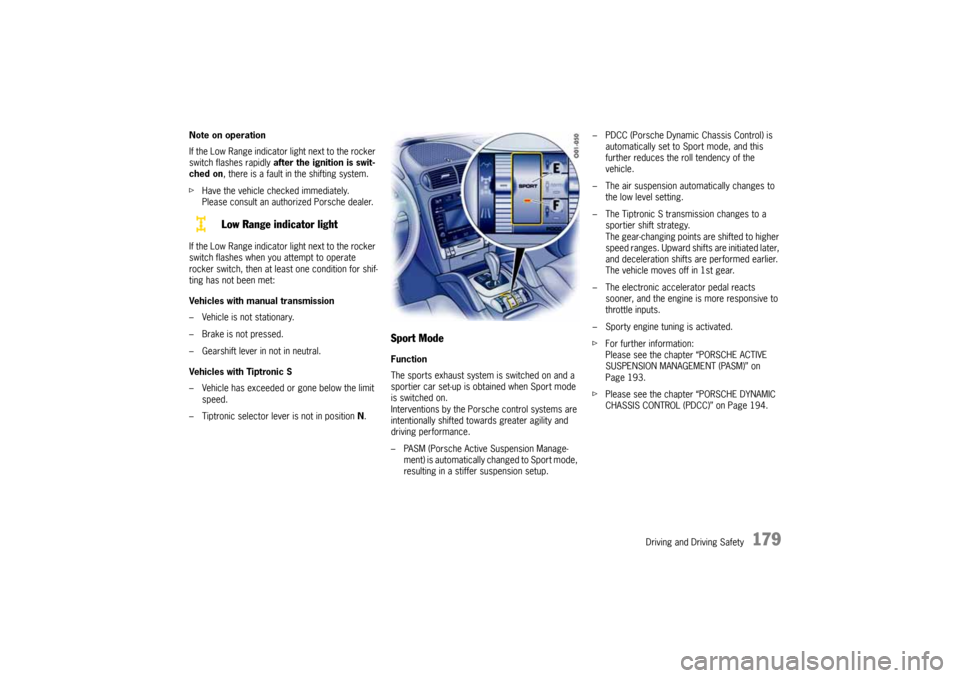

Driving and Driving Safety Switching Sport mode on and off
Sport mode can be activated when the ignition is
switched on and when the on-road driving program
High Range (without reduction) is selected.
fPress SPORT button E in the center console.
When Sport mode is switched on, the light-
emitting diode F in the SPORT button is lit.
When Sport mode is switched on, the logo SPORT
appears on the multi-purpose display.
After the ignition is switched off, Sport mode is
automatically reset to Normal mode.
Warning messages
A warning appears on the multi-purpose display of
the instrument panel in the event of a fault.
fFor information on warning messages on the
multi-purpose display:
Please see the chapter “OVERVIEW OF
WARNING MESSAGES” on Page 149.Vehicles with air suspension
If you wish to use the characteristics of Sport
mode and the sports exhaust system, but would
like a more comfortable running-gear setup, you
can:
– switch PASM and PDCC separately to Normal
or Comfort mode and/or
– raise the ride height of the vehicle.
fPress the corresponding PASM button in the
center console. The light-emitting diode in the
button of the selected running-gear setup
lights up.
In addition, the selected running-gear setup is
shown on the multi-purpose display of the
instrument panel for approx. 12 seconds.
Please see the chapter “PORSCHE ACTIVE
SUSPENSION MANAGEMENT (PASM)” on
Page 193.
Please see the chapter “PORSCHE DYNAMIC
CHASSIS CONTROL (PDCC)” on Page 194.
Press the rocker switch in the center console for-
ward. The corresponding light-emitting diode next
to the rocker switch lights up continuously after
the adjustment process. The level change is also
indicated on the multi-purpose display of the in-
strument panel.
Please see the chapter “AIR SUSPENSION WITH
LEVEL CONTROL AND HEIGHT ADJUSTMENT” on
Page 190.
10_Cayenne_21_KW17.book Seite 180 Donnerstag, 9. April 2009 3:33 15
