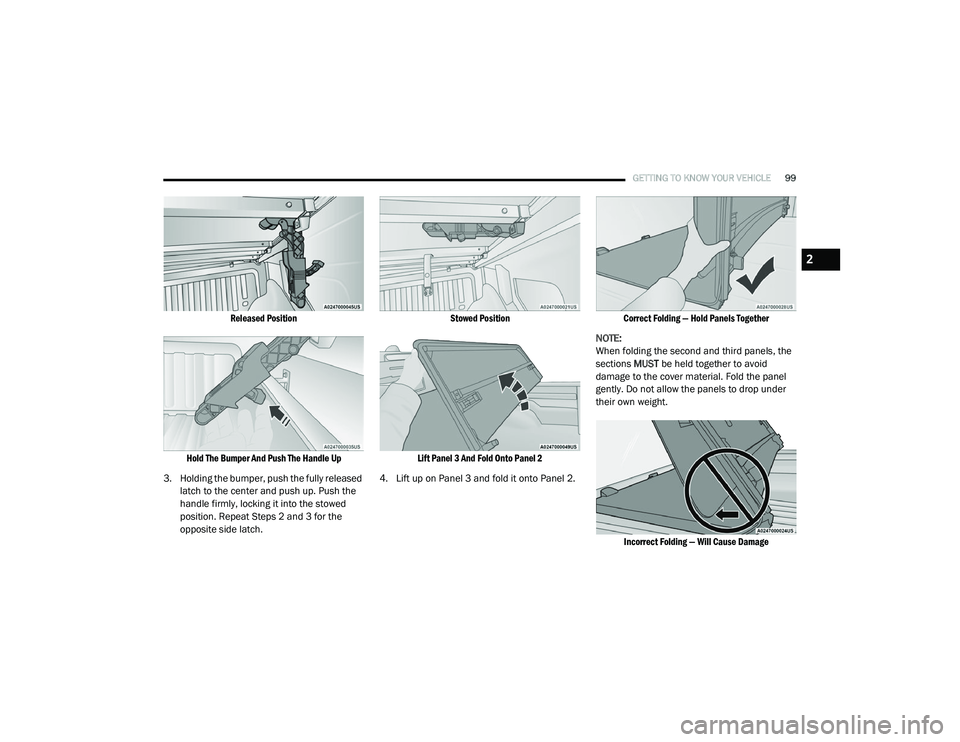

GETTING TO KNOW YOUR VEHICLE99

Released Position
Hold The Bumper And Push The Handle Up

3. Holding the bumper, push the fully released latch to the center and push up. Push the
handle firmly, locking it into the stowed
position. Repeat Steps 2 and 3 for the
opposite side latch.
Stowed Position
Lift Panel 3 And Fold Onto Panel 2

4. Lift up on Panel 3 and fold it onto Panel 2.
Correct Folding — Hold Panels Together

NOTE:
When folding the second and third panels, the
sections MUST be held together to avoid
damage to the cover material. Fold the panel
gently. Do not allow the panels to drop under
their own weight.

Incorrect Folding — Will Cause Damage

2

21_DT_OM_EN_USC_t.book Page 99

100GETTING TO KNOW YOUR VEHICLE

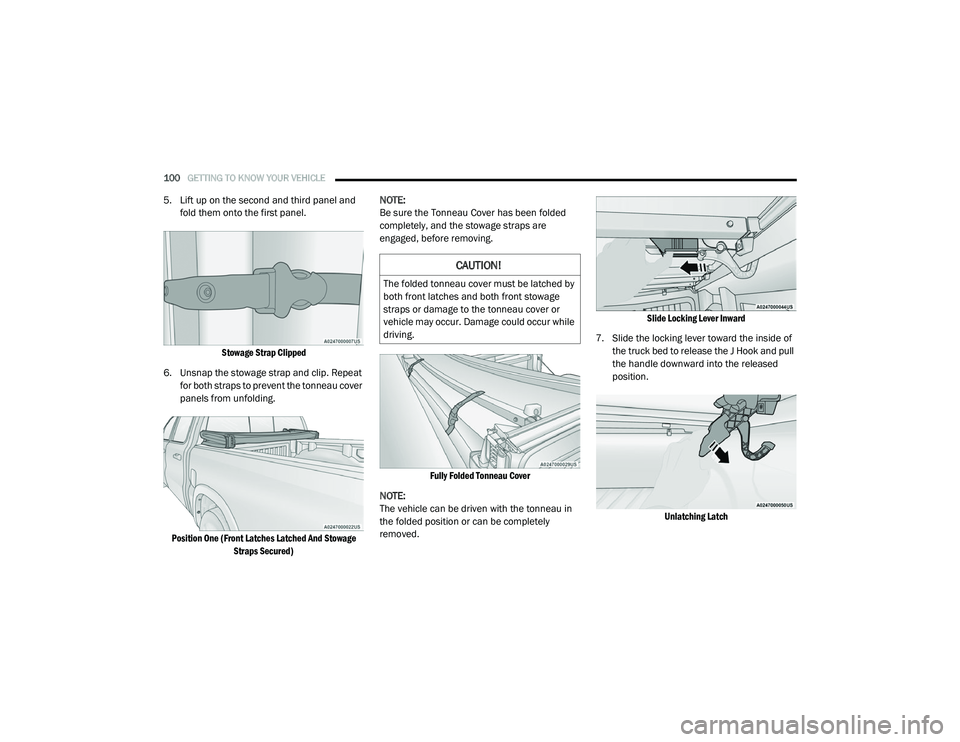

5. Lift up on the second and third panel and
fold them onto the first panel.

Stowage Strap Clipped

6. Unsnap the stowage strap and clip. Repeat for both straps to prevent the tonneau cover
panels from unfolding.

Position One (Front Latches Latched And Stowage Straps Secured)
NOTE:
Be sure the Tonneau Cover has been folded
completely, and the stowage straps are
engaged, before removing.

Fully Folded Tonneau Cover

NOTE:
The vehicle can be driven with the tonneau in
the folded position or can be completely
removed.
Slide Locking Lever Inward

7. Slide the locking lever toward the inside of the truck bed to release the J Hook and pull
the handle downward into the released
position.

Unlatching Latch

CAUTION!
The folded tonneau cover must be latched by
both front latches and both front stowage
straps or damage to the tonneau cover or
vehicle may occur. Damage could occur while
driving.

21_DT_OM_EN_USC_t.book Page 100

GETTING TO KNOW YOUR VEHICLE101

Released Position
Hold The Bumper And Push The Handle Up

8. Holding the bumper, push the fully released latch to the center and push up. Push the
handle firmly, locking it into the stowed
position. Repeat Steps 2 & 3 for the
opposite side latch.
9. With two people, remove the cover.

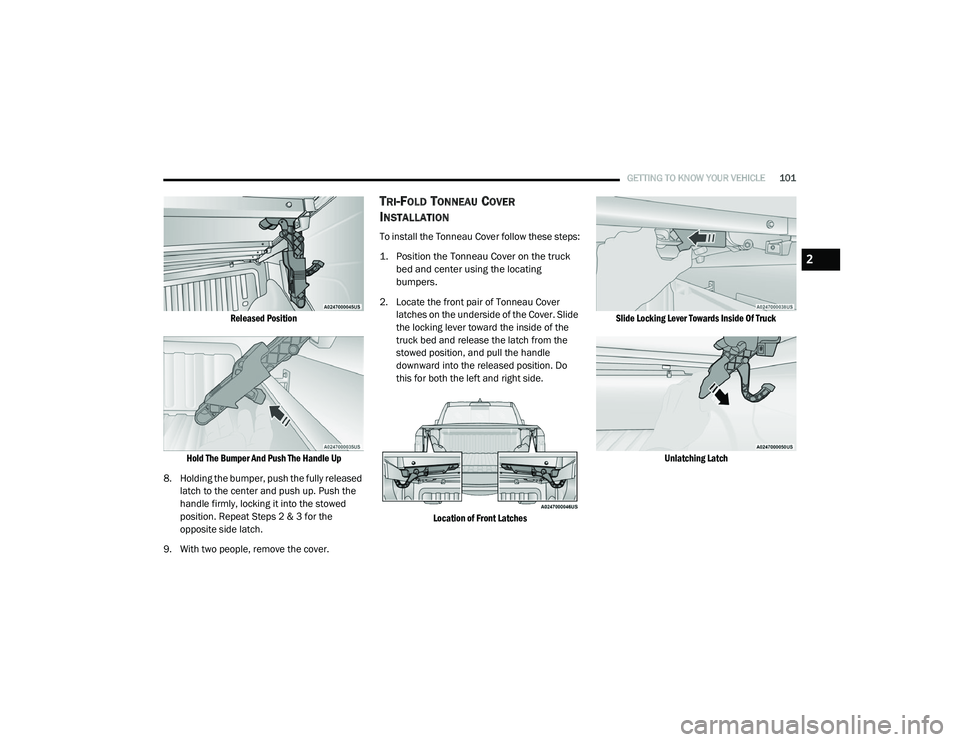

TRI-FOLD TONNEAU COVER
I
NSTALLATION
To install the Tonneau Cover follow these steps:

1. Position the Tonneau Cover on the truck
bed and center using the locating
bumpers.

2. Locate the front pair of Tonneau Cover latches on the underside of the Cover. Slide
the locking lever toward the inside of the
truck bed and release the latch from the
stowed position, and pull the handle
downward into the released position. Do
this for both the left and right side.

Location of Front Latches Slide Locking Lever Towards Inside Of Truck
Unlatching Latch

2

21_DT_OM_EN_USC_t.book Page 101

102GETTING TO KNOW YOUR VEHICLE

Released Position

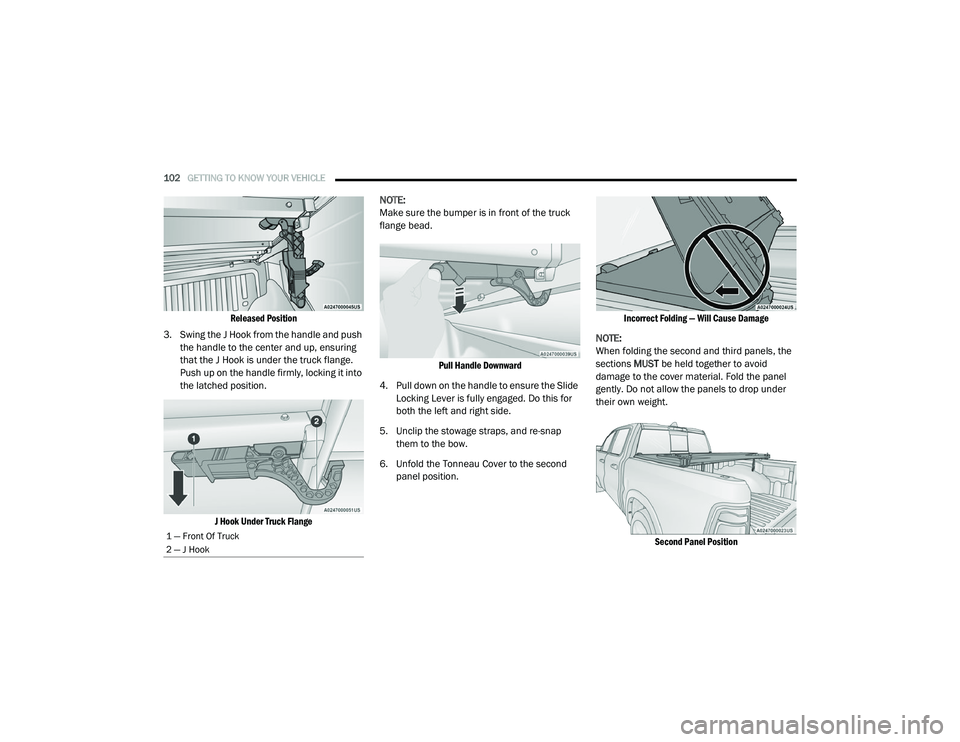

3. Swing the J Hook from the handle and push the handle to the center and up, ensuring
that the J Hook is under the truck flange.
Push up on the handle firmly, locking it into
the latched position.

J Hook Under Truck Flange
NOTE:
Make sure the bumper is in front of the truck
flange bead.

Pull Handle Downward

4. Pull down on the handle to ensure the Slide Locking Lever is fully engaged. Do this for
both the left and right side.
5. Unclip the stowage straps, and re-snap them to the bow.
6. Unfold the Tonneau Cover to the second panel position.
Incorrect Folding — Will Cause Damage

NOTE:
When folding the second and third panels, the
sections MUST be held together to avoid
damage to the cover material. Fold the panel
gently. Do not allow the panels to drop under
their own weight.

Second Panel Position

1 — Front Of Truck
2 — J Hook

21_DT_OM_EN_USC_t.book Page 102

GETTING TO KNOW YOUR VEHICLE103
NOTE:
Unfold the panel gently, and do not allow the
panels to drop under their own weight.
7. Completely unfold the Tonneau Cover.

Position Two (Fully Unfolded)

8. Repeat steps 2 through 3 for the rear pair of latches. 9. Pull down on the handle to ensure the Slide
Locking Lever is fully engaged. Do this for
both the left and right side.
NOTE:
Also check to ensure the bumper is forward of
the bead on the underside of the truck flange.
Make sure that the Tonneau Cover is positioned
fully forward, so that the bumper clears the
bead.

Pull Up On Tonneau Cover Corners
10. Gently pull up on all four corners of the
Tonneau Cover to ensure that it is properly
latched.
TRI-FOLD TONNEAU COVER CLEANING
For proper cleaning of the Tonneau Cover, use
Mopar Whitewall & Vinyl Top Cleaner and Mopar
Leather & Vinyl Conditioner/Protectant.
CAUTION!
The vehicle cannot be driven when the Ton -
neau Cover is in the second panel position.
CAUTION!
It is the driver’s responsibility to ensure the
Tonneau Cover is properly installed on the
vehicle. Failure to follow this procedure can
result in detachment of the Tonneau Cover
from the vehicle and/or damage to the vehi -
cle/Tonneau Cover.
2

21_DT_OM_EN_USC_t.book Page 103

104
GETTING TO KNOW YOUR INSTRUMENT PANEL
BASE / MIDLINE INSTRUMENT CLUSTER — GASOLINE
Gasoline Base / Midline Instrument Cluster

21_DT_OM_EN_USC_t.book Page 104

GETTING TO KNOW YOUR INSTRUMENT PANEL105
BASE / MIDLINE INSTRUMENT CLUSTER
D
ESCRIPTIONS — GASOLINE

1. Tachometer

Indicates the engine speed in revolutions
per minute (RPM x 1000).
2. Voltmeter
When the vehicle is in the RUN state, the
gauge indicates the electrical system
voltage. The pointer should stay within
the normal range if the battery is
charged. If the pointer moves to either
extreme left or right and remains there
during normal driving, the electrical
system should be serviced.
NOTE:
In vehicles equipped with Stop/Start, a reduced
voltage may be present during an Autostop.
3. Instrument Cluster Display
When the appropriate conditions exist,
this display shows the instrument cluster
display messages Ú page 114.
Instrument Cluster Display/Controls Location

The display always show one of the main
menu item after ignition on.
4. Oil Pressure Gauge
The pointer should always indicate the oil
pressure when the engine is running. A
continuous high or low reading under
normal driving conditions may indicate a
lubrication system malfunction. Imme -
diate service should be obtained from an
authorized dealer.
NOTE:
In vehicles equipped with Stop/Start, an oil
pressure indication of zero is normal during an
Autostop. 5. Speedometer
Indicates vehicle speed.
6. Fuel Gauge
The pointer shows the level of fuel in the
fuel tank when the ignition is in the ON/
RUN position.
 The fuel pump symbol points to the
side of the vehicle where the fuel door
is located.
7. Temperature Gauge
The pointer shows engine coolant
temperature. The pointer positioned
within the normal range indicates that
the engine cooling system is operating
satisfactorily.
The pointer will likely indicate a higher
temperature when driving in hot weather,
up mountain grades, or when towing a
trailer. It should not be allowed to exceed
the upper limits of the normal operating
range.
1 – Instrument Cluster Display Controls
2 – Instrument Cluster Display Screen
3

21_DT_OM_EN_USC_t.book Page 105

106GETTING TO KNOW YOUR INSTRUMENT PANEL
WARNING!
A hot engine cooling system is dangerous.
You or others could be badly burned by steam
or boiling coolant. You may want to call an
authorized dealer for service if your vehicle
overheats Úpage 423.
CAUTION!
Driving with a hot engine cooling system
could damage your vehicle. If the
temperature gauge reads “H,” pull over and
stop the vehicle. Idle the vehicle with the air
conditioner turned off until the pointer drops
back into the normal range. If the pointer
remains on the “H,” turn the engine off
immediately and call an authorized dealer for
service.

21_DT_OM_EN_USC_t.book Page 106

GETTING TO KNOW YOUR INSTRUMENT PANEL107
PREMIUM INSTRUMENT CLUSTER — GASOLINE
Gasoline Premium Instrument Cluster Display
3

21_DT_OM_EN_USC_t.book Page 107

108GETTING TO KNOW YOUR INSTRUMENT PANEL
PREMIUM INSTRUMENT CLUSTER
D
ESCRIPTIONS — GASOLINE

1. Tachometer

Indicates the engine speed in revolutions
per minute (RPM x 1000).
2. Instrument Cluster Display
When the appropriate conditions exist,
this display shows the instrument cluster
display messages Ú page 114.

Instrument Cluster Display/Controls Location

The display always show one of the main
menu item after ignition on. 3. Speedometer
Indicates vehicle speed.
4. Fuel Gauge
The pointer shows the level of fuel in the
fuel tank when the ignition is in the ON/
RUN position.
 The fuel pump symbol points to the
side of the vehicle where the fuel door
is located.
5. Temperature Gauge
The pointer shows engine coolant
temperature. The pointer positioned
within the normal range indicates that
the engine cooling system is operating
satisfactorily.
The pointer will likely indicate a higher
temperature when driving in hot weather,
up mountain grades, or when towing a
trailer. It should not be allowed to exceed
the upper limits of the normal operating
range.
1 – Instrument Cluster Display Controls
2 – Instrument Cluster Display Screen
WARNING!
A hot engine cooling system is dangerous.
You or others could be badly burned by steam
or boiling coolant. You may want to call an
authorized dealer for service if your vehicle
overheats Ú page 423.
CAUTION!
Driving with a hot engine cooling system
could damage your vehicle. If the
temperature gauge reads “H,” pull over and
stop the vehicle. Idle the vehicle with the air
conditioner turned off until the pointer drops
back into the normal range. If the pointer
remains on the “H,” turn the engine off
immediately and call an authorized dealer for
service.

21_DT_OM_EN_USC_t.book Page 108
