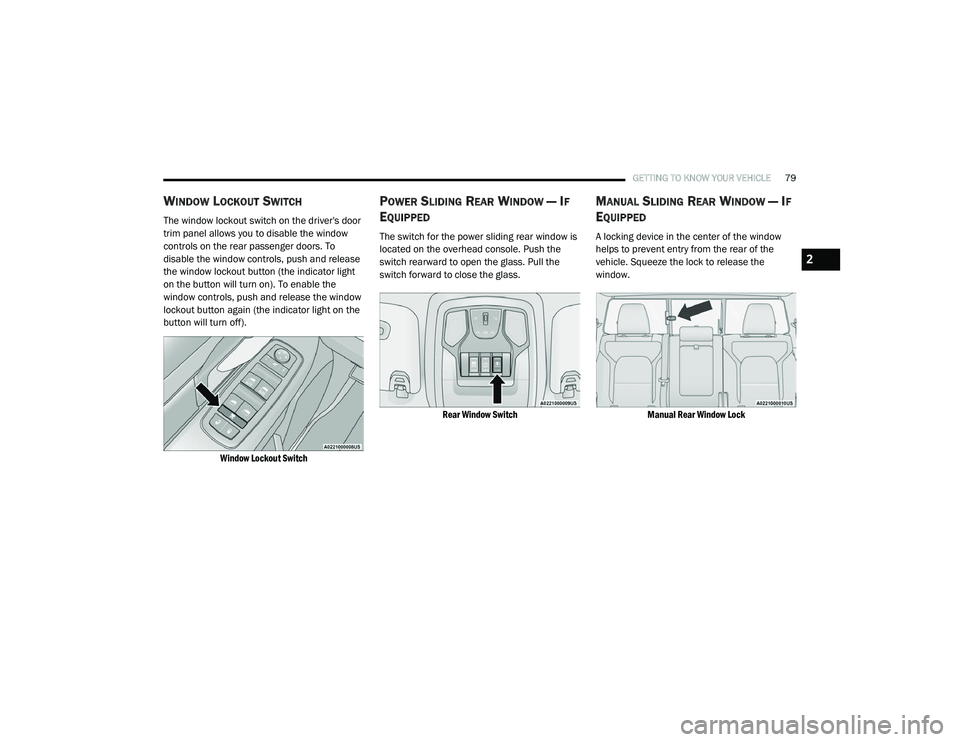

GETTING TO KNOW YOUR VEHICLE79
WINDOW LOCKOUT SWITCH
The window lockout switch on the driver's door
trim panel allows you to disable the window
controls on the rear passenger doors. To
disable the window controls, push and release
the window lockout button (the indicator light
on the button will turn on). To enable the
window controls, push and release the window
lockout button again (the indicator light on the
button will turn off).

Window Lockout Switch

POWER SLIDING REAR WINDOW — IF
E
QUIPPED
The switch for the power sliding rear window is
located on the overhead console. Push the
switch rearward to open the glass. Pull the
switch forward to close the glass.

Rear Window Switch

MANUAL SLIDING REAR WINDOW — IF
E
QUIPPED
A locking device in the center of the window
helps to prevent entry from the rear of the
vehicle. Squeeze the lock to release the
window.

Manual Rear Window Lock

2

21_DT_OM_EN_USC_t.book Page 79

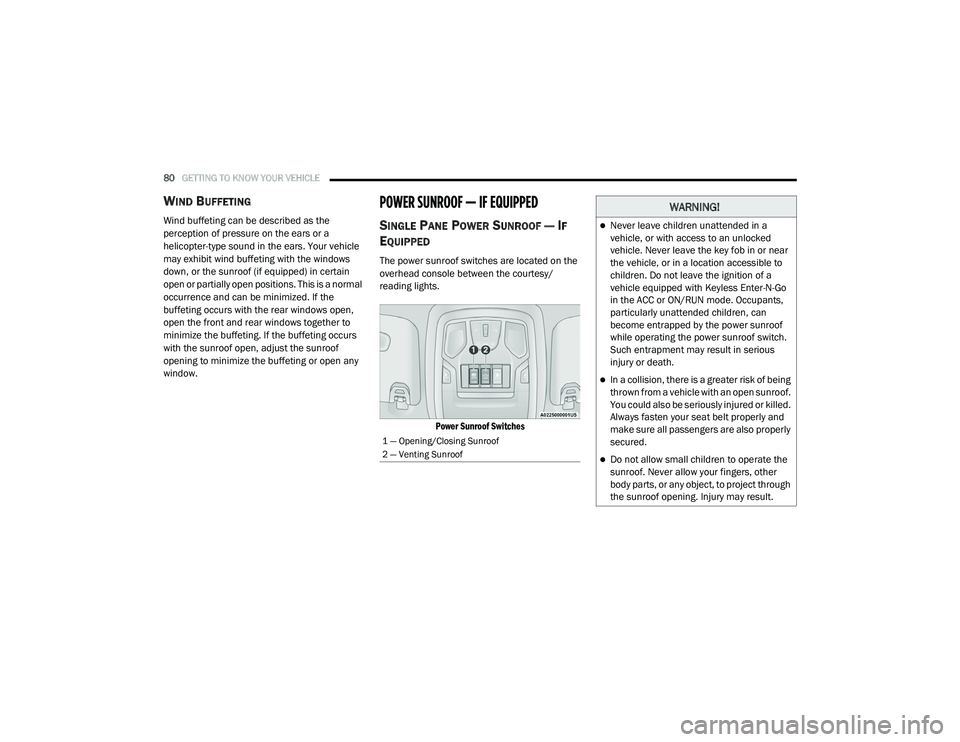

80GETTING TO KNOW YOUR VEHICLE
WIND BUFFETING
Wind buffeting can be described as the
perception of pressure on the ears or a
helicopter-type sound in the ears. Your vehicle
may exhibit wind buffeting with the windows
down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal
occurrence and can be minimized. If the
buffeting occurs with the rear windows open,
open the front and rear windows together to
minimize the buffeting. If the buffeting occurs
with the sunroof open, adjust the sunroof
opening to minimize the buffeting or open any
window.
POWER SUNROOF — IF EQUIPPED
SINGLE PANE POWER SUNROOF — IF
E
QUIPPED
The power sunroof switches are located on the
overhead console between the courtesy/
reading lights.

Power Sunroof Switches

1 — Opening/Closing Sunroof
2 — Venting Sunroof
WARNING!
Never leave children unattended in a
vehicle, or with access to an unlocked
vehicle. Never leave the key fob in or near
the vehicle, or in a location accessible to
children. Do not leave the ignition of a
vehicle equipped with Keyless Enter-N-Go
in the ACC or ON/RUN mode. Occupants,
particularly unattended children, can
become entrapped by the power sunroof
while operating the power sunroof switch.
Such entrapment may result in serious
injury or death.
In a collision, there is a greater risk of being
thrown from a vehicle with an open sunroof.
You could also be seriously injured or killed.
Always fasten your seat belt properly and
make sure all passengers are also properly
secured.
Do not allow small children to operate the
sunroof. Never allow your fingers, other
body parts, or any object, to project through
the sunroof opening. Injury may result.

21_DT_OM_EN_USC_t.book Page 80

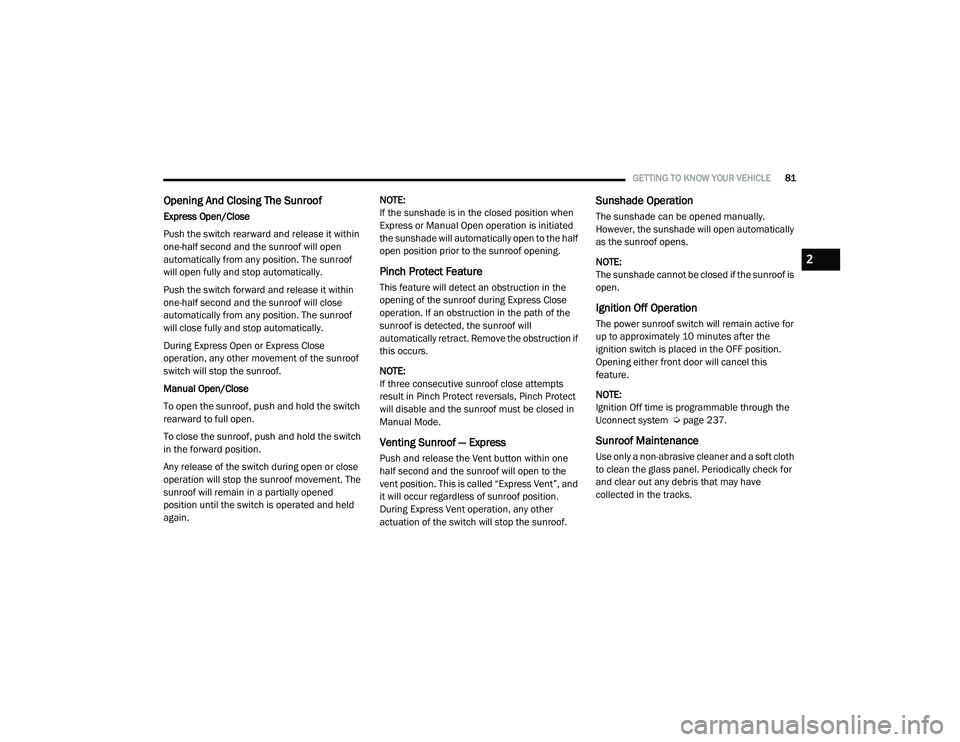

GETTING TO KNOW YOUR VEHICLE81
Opening And Closing The Sunroof
Express Open/Close
Push the switch rearward and release it within
one-half second and the sunroof will open
automatically from any position. The sunroof
will open fully and stop automatically.
Push the switch forward and release it within
one-half second and the sunroof will close
automatically from any position. The sunroof
will close fully and stop automatically.
During Express Open or Express Close
operation, any other movement of the sunroof
switch will stop the sunroof.
Manual Open/Close
To open the sunroof, push and hold the switch
rearward to full open.
To close the sunroof, push and hold the switch
in the forward position.
Any release of the switch during open or close
operation will stop the sunroof movement. The
sunroof will remain in a partially opened
position until the switch is operated and held
again. NOTE:
If the sunshade is in the closed position when
Express or Manual Open operation is initiated
the sunshade will automatically open to the half
open position prior to the sunroof opening.
Pinch Protect Feature
This feature will detect an obstruction in the
opening of the sunroof during Express Close
operation. If an obstruction in the path of the
sunroof is detected, the sunroof will
automatically retract. Remove the obstruction if
this occurs.
NOTE:
If three consecutive sunroof close attempts
result in Pinch Protect reversals, Pinch Protect
will disable and the sunroof must be closed in
Manual Mode.
Venting Sunroof — Express
Push and release the Vent button within one
half second and the sunroof will open to the
vent position. This is called “Express Vent”, and
it will occur regardless of sunroof position.
During Express Vent operation, any other
actuation of the switch will stop the sunroof.
Sunshade Operation
The sunshade can be opened manually.
However, the sunshade will open automatically
as the sunroof opens.
NOTE:
The sunshade cannot be closed if the sunroof is
open.
Ignition Off Operation
The power sunroof switch will remain active for
up to approximately 10 minutes after the
ignition switch is placed in the OFF position.
Opening either front door will cancel this
feature.
NOTE:
Ignition Off time is programmable through the
Uconnect system Ú
page 237.
Sunroof Maintenance
Use only a non-abrasive cleaner and a soft cloth
to clean the glass panel. Periodically check for
and clear out any debris that may have
collected in the tracks.
2

21_DT_OM_EN_USC_t.book Page 81

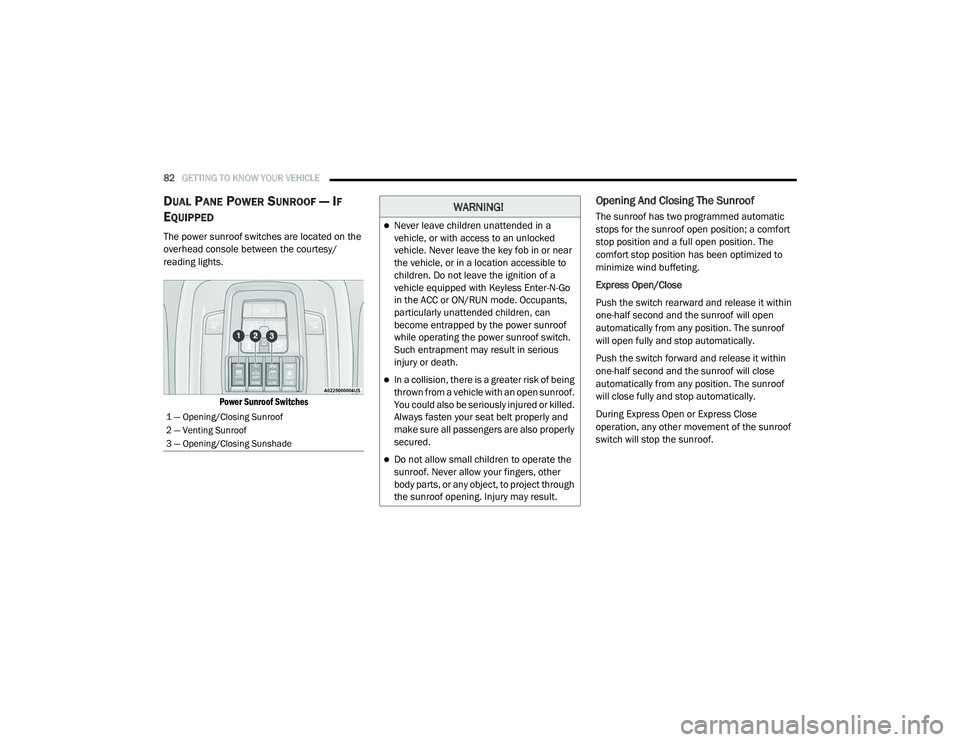

82GETTING TO KNOW YOUR VEHICLE
DUAL PANE POWER SUNROOF — IF
E
QUIPPED
The power sunroof switches are located on the
overhead console between the courtesy/
reading lights.

Power Sunroof Switches

Opening And Closing The Sunroof
The sunroof has two programmed automatic
stops for the sunroof open position; a comfort
stop position and a full open position. The
comfort stop position has been optimized to
minimize wind buffeting.
Express Open/Close
Push the switch rearward and release it within
one-half second and the sunroof will open
automatically from any position. The sunroof
will open fully and stop automatically.
Push the switch forward and release it within
one-half second and the sunroof will close
automatically from any position. The sunroof
will close fully and stop automatically.
During Express Open or Express Close
operation, any other movement of the sunroof
switch will stop the sunroof.
1 — Opening/Closing Sunroof
2 — Venting Sunroof
3 — Opening/Closing Sunshade
WARNING!
Never leave children unattended in a
vehicle, or with access to an unlocked
vehicle. Never leave the key fob in or near
the vehicle, or in a location accessible to
children. Do not leave the ignition of a
vehicle equipped with Keyless Enter-N-Go
in the ACC or ON/RUN mode. Occupants,
particularly unattended children, can
become entrapped by the power sunroof
while operating the power sunroof switch.
Such entrapment may result in serious
injury or death.
In a collision, there is a greater risk of being
thrown from a vehicle with an open sunroof.
You could also be seriously injured or killed.
Always fasten your seat belt properly and
make sure all passengers are also properly
secured.
Do not allow small children to operate the
sunroof. Never allow your fingers, other
body parts, or any object, to project through
the sunroof opening. Injury may result.

21_DT_OM_EN_USC_t.book Page 82

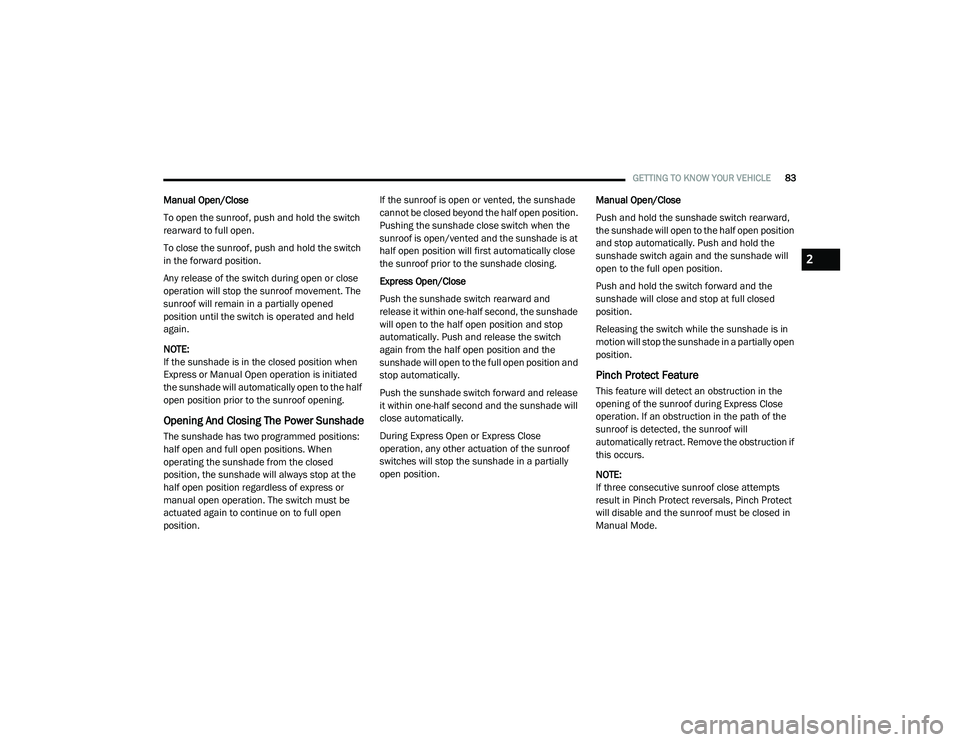

GETTING TO KNOW YOUR VEHICLE83
Manual Open/Close
To open the sunroof, push and hold the switch
rearward to full open.
To close the sunroof, push and hold the switch
in the forward position.
Any release of the switch during open or close
operation will stop the sunroof movement. The
sunroof will remain in a partially opened
position until the switch is operated and held
again.
NOTE:
If the sunshade is in the closed position when
Express or Manual Open operation is initiated
the sunshade will automatically open to the half
open position prior to the sunroof opening.
Opening And Closing The Power Sunshade
The sunshade has two programmed positions:
half open and full open positions. When
operating the sunshade from the closed
position, the sunshade will always stop at the
half open position regardless of express or
manual open operation. The switch must be
actuated again to continue on to full open
position. If the sunroof is open or vented, the sunshade
cannot be closed beyond the half open position.
Pushing the sunshade close switch when the
sunroof is open/vented and the sunshade is at
half open position will first automatically close
the sunroof prior to the sunshade closing.
Express Open/Close
Push the sunshade switch rearward and
release it within one-half second, the sunshade
will open to the half open position and stop
automatically. Push and release the switch
again from the half open position and the
sunshade will open to the full open position and
stop automatically.
Push the sunshade switch forward and release
it within one-half second and the sunshade will
close automatically.
During Express Open or Express Close
operation, any other actuation of the sunroof
switches will stop the sunshade in a partially
open position.
Manual Open/Close
Push and hold the sunshade switch rearward,
the sunshade will open to the half open position
and stop automatically. Push and hold the
sunshade switch again and the sunshade will
open to the full open position.
Push and hold the switch forward and the
sunshade will close and stop at full closed
position.
Releasing the switch while the sunshade is in
motion will stop the sunshade in a partially open
position.
Pinch Protect Feature
This feature will detect an obstruction in the
opening of the sunroof during Express Close
operation. If an obstruction in the path of the
sunroof is detected, the sunroof will
automatically retract. Remove the obstruction if
this occurs.
NOTE:
If three consecutive sunroof close attempts
result in Pinch Protect reversals, Pinch Protect
will disable and the sunroof must be closed in
Manual Mode.
2

21_DT_OM_EN_USC_t.book Page 83

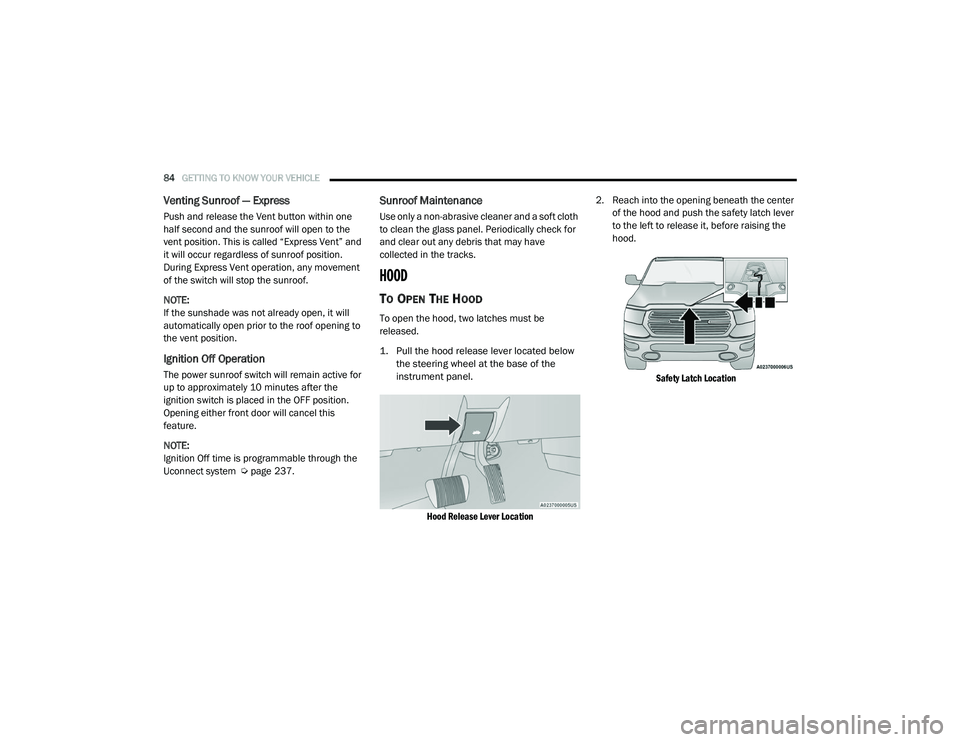

84GETTING TO KNOW YOUR VEHICLE
Venting Sunroof — Express
Push and release the Vent button within one
half second and the sunroof will open to the
vent position. This is called “Express Vent” and
it will occur regardless of sunroof position.
During Express Vent operation, any movement
of the switch will stop the sunroof.
NOTE:
If the sunshade was not already open, it will
automatically open prior to the roof opening to
the vent position.
Ignition Off Operation
The power sunroof switch will remain active for
up to approximately 10 minutes after the
ignition switch is placed in the OFF position.
Opening either front door will cancel this
feature.
NOTE:
Ignition Off time is programmable through the
Uconnect system Úpage 237.
Sunroof Maintenance
Use only a non-abrasive cleaner and a soft cloth
to clean the glass panel. Periodically check for
and clear out any debris that may have
collected in the tracks.
HOOD
TO OPEN THE HOOD
To open the hood, two latches must be
released.

1. Pull the hood release lever located below
the steering wheel at the base of the
instrument panel.

Hood Release Lever Location
2. Reach into the opening beneath the center
of the hood and push the safety latch lever
to the left to release it, before raising the
hood.

Safety Latch Location

21_DT_OM_EN_USC_t.book Page 84

GETTING TO KNOW YOUR VEHICLE85

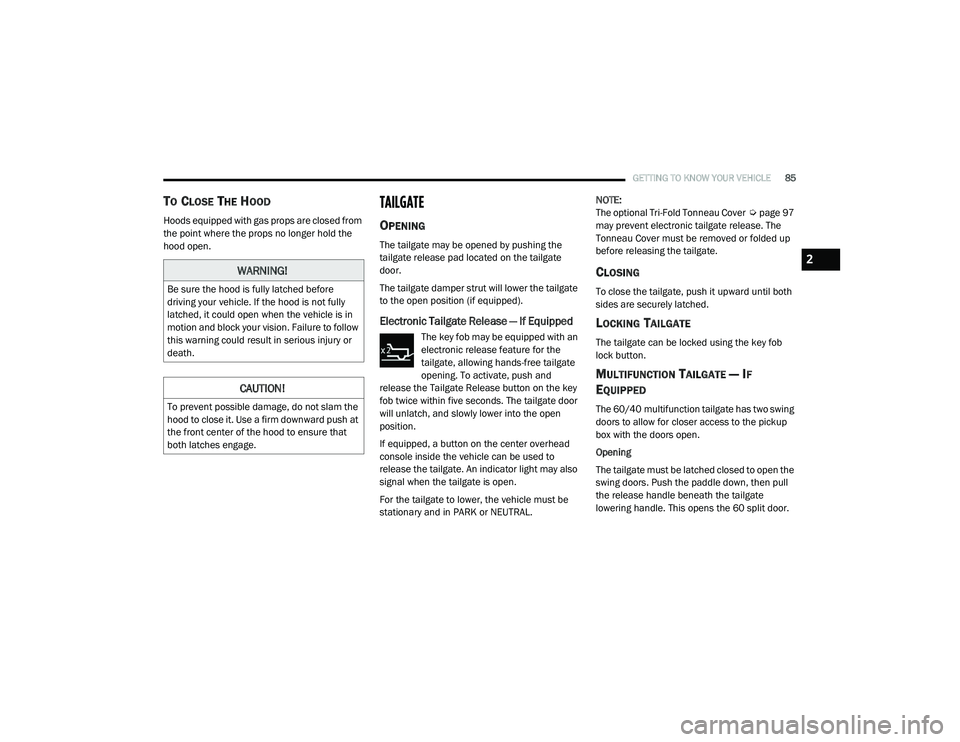

TO CLOSE THE HOOD
Hoods equipped with gas props are closed from
the point where the props no longer hold the
hood open.
TAILGATE
OPENING
The tailgate may be opened by pushing the
tailgate release pad located on the tailgate
door.
The tailgate damper strut will lower the tailgate
to the open position (if equipped).
Electronic Tailgate Release — If Equipped
The key fob may be equipped with an
electronic release feature for the
tailgate, allowing hands-free tailgate
opening. To activate, push and
release the Tailgate Release button on the key
fob twice within five seconds. The tailgate door
will unlatch, and slowly lower into the open
position.
If equipped, a button on the center overhead
console inside the vehicle can be used to
release the tailgate. An indicator light may also
signal when the tailgate is open.
For the tailgate to lower, the vehicle must be
stationary and in PARK or NEUTRAL. NOTE:
The optional Tri-Fold Tonneau Cover
Úpage 97
may prevent electronic tailgate release. The
Tonneau Cover must be removed or folded up
before releasing the tailgate.
CLOSING
To close the tailgate, push it upward until both
sides are securely latched.
LOCKING TAILGATE
The tailgate can be locked using the key fob
lock button.
MULTIFUNCTION TAILGATE — IF
E
QUIPPED
The 60/40 multifunction tailgate has two swing
doors to allow for closer access to the pickup
box with the doors open.
Opening
The tailgate must be latched closed to open the
swing doors. Push the paddle down, then pull
the release handle beneath the tailgate
lowering handle. This opens the 60 split door.
WARNING!
Be sure the hood is fully latched before
driving your vehicle. If the hood is not fully
latched, it could open when the vehicle is in
motion and block your vision. Failure to follow
this warning could result in serious injury or
death.
CAUTION!
To prevent possible damage, do not slam the
hood to close it. Use a firm downward push at
the front center of the hood to ensure that
both latches engage.
2

21_DT_OM_EN_USC_t.book Page 85

86GETTING TO KNOW YOUR VEHICLE

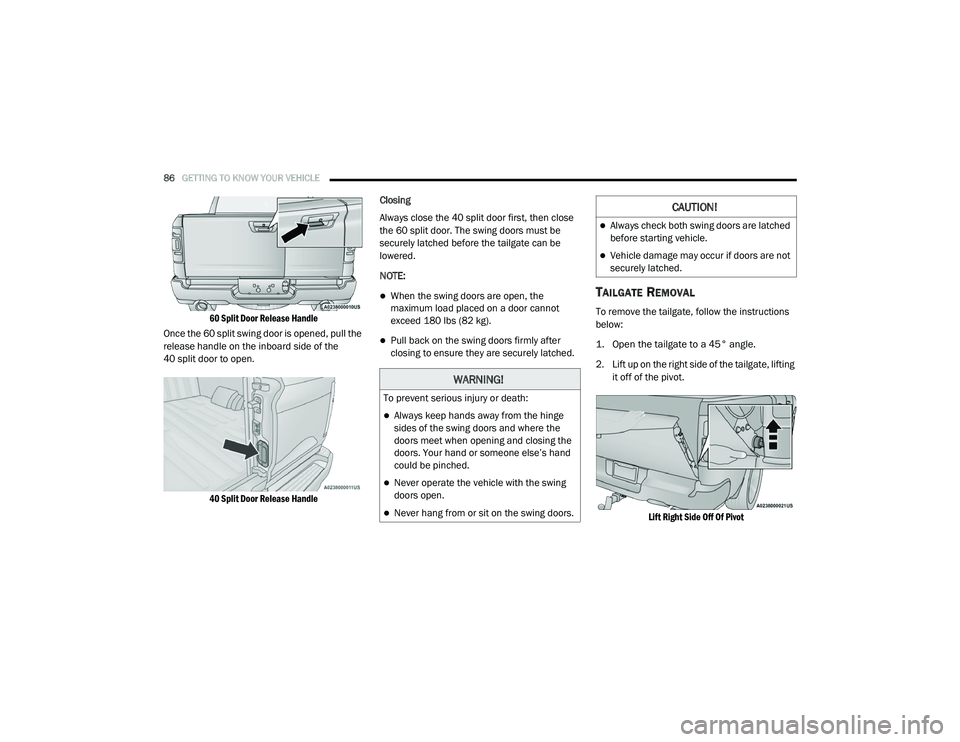

60 Split Door Release Handle

Once the 60 split swing door is opened, pull the
release handle on the inboard side of the
40 split door to open.

40 Split Door Release Handle
Closing
Always close the 40 split door first, then close
the 60 split door. The swing doors must be
securely latched before the tailgate can be
lowered.
NOTE:
When the swing doors are open, the
maximum load placed on a door cannot
exceed 180 lbs (82 kg).
Pull back on the swing doors firmly after
closing to ensure they are securely latched.
TAILGATE REMOVAL
To remove the tailgate, follow the instructions
below:

1. Open the tailgate to a 45° angle.

2. Lift up on the right side of the tailgate, lifting
it off of the pivot.

Lift Right Side Off Of Pivot

WARNING!
To prevent serious injury or death:
Always keep hands away from the hinge
sides of the swing doors and where the
doors meet when opening and closing the
doors. Your hand or someone else’s hand
could be pinched.
Never operate the vehicle with the swing
doors open.
Never hang from or sit on the swing doors.
CAUTION!
Always check both swing doors are latched
before starting vehicle.
Vehicle damage may occur if doors are not
securely latched.

21_DT_OM_EN_USC_t.book Page 86

GETTING TO KNOW YOUR VEHICLE87

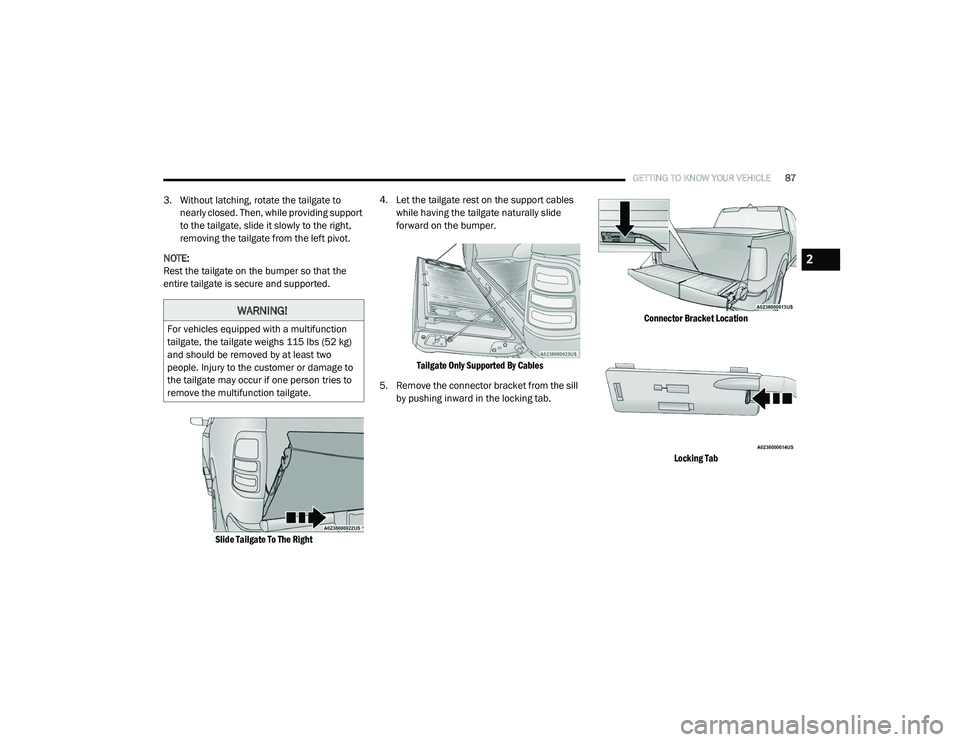

3. Without latching, rotate the tailgate to
nearly closed. Then, while providing support
to the tailgate, slide it slowly to the right,
removing the tailgate from the left pivot.
NOTE:
Rest the tailgate on the bumper so that the
entire tailgate is secure and supported.

Slide Tailgate To The Right
4. Let the tailgate rest on the support cables
while having the tailgate naturally slide
forward on the bumper.

Tailgate Only Supported By Cables

5. Remove the connector bracket from the sill by pushing inward in the locking tab.
Connector Bracket Location
Locking Tab

WARNING!
For vehicles equipped with a multifunction
tailgate, the tailgate weighs 115 lbs (52 kg)
and should be removed by at least two
people. Injury to the customer or damage to
the tailgate may occur if one person tries to
remove the multifunction tailgate.
2

21_DT_OM_EN_USC_t.book Page 87

88GETTING TO KNOW YOUR VEHICLE

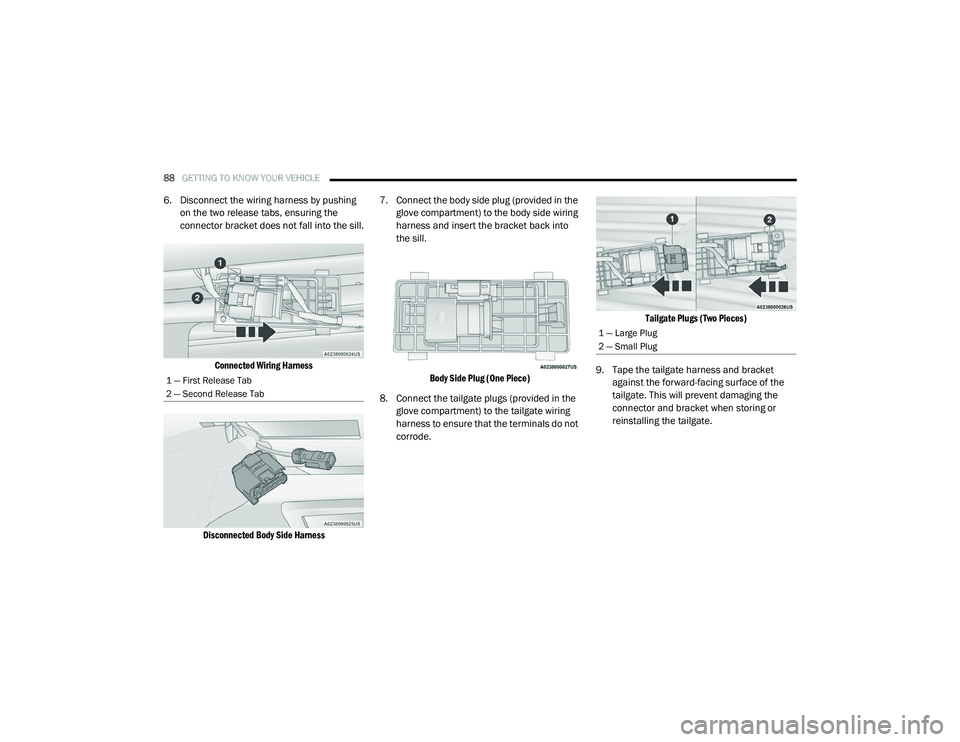

6. Disconnect the wiring harness by pushing
on the two release tabs, ensuring the
connector bracket does not fall into the sill.

Connected Wiring Harness
Disconnected Body Side Harness
7. Connect the body side plug (provided in the
glove compartment) to the body side wiring
harness and insert the bracket back into
the sill.

Body Side Plug (One Piece)

8. Connect the tailgate plugs (provided in the glove compartment) to the tailgate wiring
harness to ensure that the terminals do not
corrode.
Tailgate Plugs (Two Pieces)

9. Tape the tailgate harness and bracket against the forward-facing surface of the
tailgate. This will prevent damaging the
connector and bracket when storing or
reinstalling the tailgate.
1 — First Release Tab
2 — Second Release Tab
1 — Large Plug
2 — Small Plug

21_DT_OM_EN_USC_t.book Page 88
