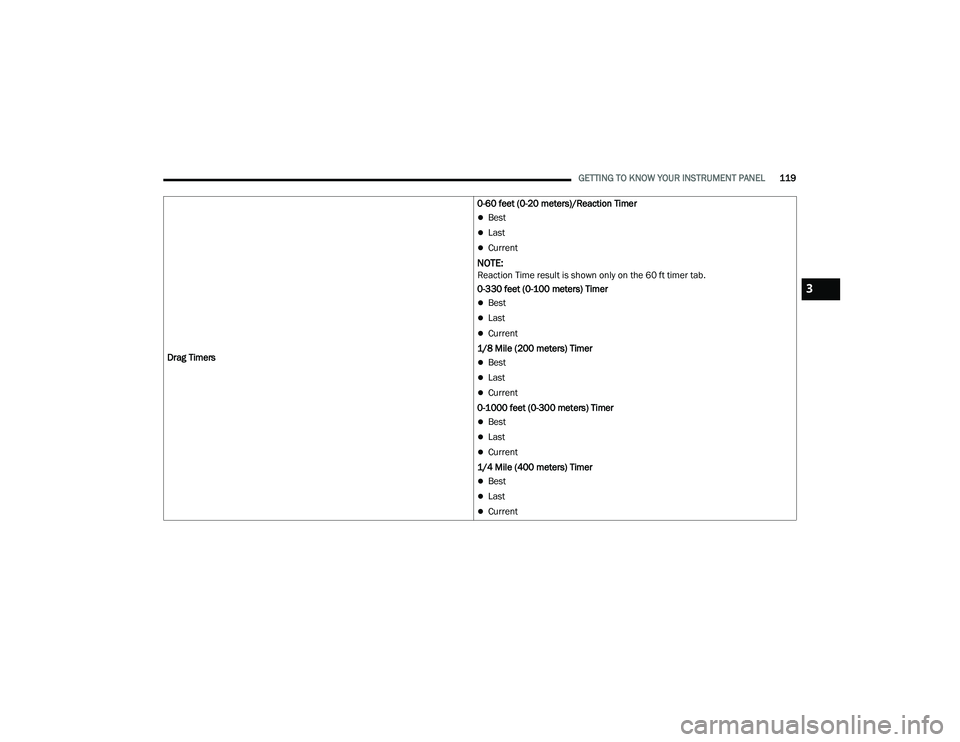

GETTING TO KNOW YOUR INSTRUMENT PANEL119
Drag Timers 0-60 feet (0-20 meters)/Reaction Timer

Best
Last
Current
NOTE:Reaction Time result is shown only on the 60 ft timer tab.
0-330 feet (0-100 meters) Timer
Best
Last
Current
1/8 Mile (200 meters) Timer
Best
Last
Current
0-1000 feet (0-300 meters) Timer
Best
Last
Current
1/4 Mile (400 meters) Timer
Best
Last
Current
3

22_DT_OM_EN_USC_t.book Page 119

120GETTING TO KNOW YOUR INSTRUMENT PANEL
Fuel Economy
Push and release the up or down arrow
button until the Fuel Economy menu item is
highlighted in the instrument cluster display. Push
and hold the OK button to reset Average Fuel
Economy.
Current Fuel Economy
Average Fuel Economy
Range To Empty
Trip Info
Push and release the up or down arrow
button until the Trip menu item is highlighted in the
instrument cluster display. Push and release the
right or left arrow button to enter the
submenus of Trip A and Trip B. The Trip A or Trip B
information will display the following:
Distance
Average Fuel Economy
Elapsed Time
Push and hold OK button to reset all information.
Stop/Start — If Equipped
Push and release the up or down arrow
button until the Stop/Start icon/title is highlighted
in the instrument cluster display. The screen will
display the Stop/Start status.
Braking Distance
Distance
From Speed
G-Forces
Current
Peak
Lap Timer Shows times for Last, Best, and Current laps ran.
Lap History
Will list the last four laps with the best lap highlighted in green.
Top Speed Shows the top speed of the vehicle.

22_DT_OM_EN_USC_t.book Page 120

GETTING TO KNOW YOUR INSTRUMENT PANEL121
Trailer Tow — If Equipped
Push and release the up or down arrow
button until the Trailer Tow menu item is
highlighted in the instrument cluster display. Push
and release the right or left arrow button to
cycle through the following trailer tow information:
Trip (trailer specific) Distance: Push and hold
the OK button to reset the distance.
Integrated Trailer Brake Module (ITBM):
Braking Output
Trailer Type
ITBM Gain
Trailer Light Check: Push and hold the OK
button to begin the Trailer Light Test sequence
Ú page 223.
Trailer Tire Pressure Monitoring: The Instrument
Cluster Display will display the Trailer Tire Pres -
sure for a connected trailer with sensors that
match the active trailer profile. When a low tire
is present, the low tire value will be displayed in
red, and the affected low tire will have a red
glow. “Trailer Tire Low“ will be displayed on the
center bottom of the Instrument Cluster Display
screen.
Audio
Push and release the up or down arrow
button until the Audio Menu icon/title is
highlighted in the instrument cluster display. This
menu will display the audio source information,
including the Song name, Artist name, and audio
source with an accompanying graphic.
Phone Call Status
When a call is incoming, a Phone Call Status
pop-up will display on the screen. The pop-up will
remain until the phone is answered or ignored.
NOTE:The call status will temporarily replace the
previous media source information displayed on
the screen. When the pop-up is no longer
displayed, the display will return to the last used
screen.
Stored Messages
Push and release the up or down arrow
button until the Messages Menu item is
highlighted. This feature shows the number of
stored warning messages. Push and release the
right or left arrow button to cycle through
stored messages.
Settings
Head-Up Display (HUD) – If Equipped
NOTE:The HUD feature Settings are available at any
vehicle speed Úpage 122.
Screen Setup Driver Selectable Items
Push and release the up or down arrow
button until the Settings Menu Icon/Title is
highlighted in the instrument cluster display. Push
and release the OK button to enter the submenus
and follow the prompts on the screen as needed.
The Settings feature allows you to change what
information is displayed in the instrument cluster
as well as the location that information is
displayed.
NOTE:The Settings feature is only available when the
vehicle speed is less than 5 mph.
3

22_DT_OM_EN_USC_t.book Page 121

122GETTING TO KNOW YOUR INSTRUMENT PANEL
Current Gear
Off (D)
On (D1, D2, D3,...) Odometer
No Decimal Point
Decimal Point
Defaults (Restores All Settings To Default Settings)
Cancel
Restore
HEAD-UP DISPLAY (HUD) —
I
F EQUIPPED
NOTE:The HUD feature Settings are available at any
vehicle speed.
Push and release the up or down arrow
button until the Settings Menu icon/title is
highlighted in the instrument cluster display. Push
and release the left or right arrow button
until the HUD Menu icon/title is highlighted in the
instrument cluster display. Push and release the
OK button to enter HUD. Use the up or down
arrow button to select a setting, then push and
release the OK button to adjust the setting.
Upper Left or Right
None Time Current Econ
Compass Range Trip A Distance
Outside Temp Average Econ Trip B Distance
Trailer Trip –
If Equipped Oil Pressure –
If EquippedOil
Temperature –
If Equipped
Trailer Brake –
If Equipped Coolant Temp
– If EquippedBattery
Voltage –
If Equipped
Transmission
Temperature –
If Equipped Oil Life –
If Equipped
Favorite Menus
Speedometer Vehicle Info Performance
Off Road
Driver Assist
(show/hide) –
If EquippedFuel Economy
(show/hide)
Trip Info
(show/hide) Trailer Tow –
If Equipped
(show/hide)Audio (show/
hide)
Messages
(Stored) Settings Diagnostics
Left Side and Right Side – If Equipped
NoneRange To
EmptyAverage Econ
Oil Temp Transmission
TempCoolant Temp
Oil Life Menu Icon
Lower Left and Lower Right – If Equipped
None Time Current Econ
Compass Range To
EmptyTrip A Distance
Outside Temp Average Econ Trip B Distance
Trailer Trip – If
Equipped Trailer Brake –
If Equipped
Oil Pressure
Coolant
Temperature Oil
TemperatureBattery
Voltage
Transmission
Temperature Oil Life

22_DT_OM_EN_USC_t.book Page 122

GETTING TO KNOW YOUR INSTRUMENT PANEL123
Content and Layout
When “Display On” is selected, the HUD will
display on the windshield. When it is not
selected, no display on the windshield.

HUD ON/OFF

Simple: Speed, Speed Limit
Standard : Speed, Speed Limit, Navigation When “Standard” mode is selected, the HUD
image is split into thirds with the speed limit
indicator shown to the left, vehicle speed in the
center, and turn-by-turn navigation to the right.
Advanced
: Speed, Speed Limit, Navigation,
Driver Assist (ACC/Cruise, LaneSense,
Highway Assist/Highway Assist+), Gear

Advanced Mode
When “Advanced” mode is selected, the HUD
displays the vehicle speed, turn-by-turn naviga
-
tion, speed limit, driver assist function(s), and
current gear.Custom

Custom HUD Layout

Custom 1 : Speed, Speed Limit
Custom 2: Speed, Speed Limit, Navigation
Custom 3: Speed, Speed Limit, Navigation,
Driver Assist (ACC/Cruise, LaneSense,
Highway Assist/Highway Assist+)
Custom 4 : Speed, Speed Limit, Navigation,
Driver Assist (ACC/Cruise, LaneSense,
Highway Assist/Highway Assist+), Gear
3

22_DT_OM_EN_USC_t.book Page 123

124GETTING TO KNOW YOUR INSTRUMENT PANEL
Display Height
Brightness
NOTE:
The HUD basic settings (Brightness, Display
Height and Non Custom layouts), are controlled
through the Settings Screen in the Instrument
Cluster Úpage 114.
HUD custom content layout preferences can be
selected through your touchscreen. For more
information, please refer to your Uconnect
Owner’s Manual Supplement.
DIESEL PARTICULATE FILTER (DPF)
M
ESSAGES
This engine meets all required diesel engine
emissions standards. To achieve these emissions
standards, your vehicle is equipped with a
state-of-the-art engine and exhaust system. These
systems are seamlessly integrated into your
vehicle and managed by the Powertrain Control
Module (PCM). The PCM manages engine
combustion to allow the exhaust system’s catalyst
to trap and burn Particulate Matter (PM)
pollutants, with no input or interaction on your part. Your vehicle has the ability to alert you to
additional maintenance required on your vehicle or
engine. Refer to the following messages that may
be displayed on your instrument cluster:
Exhaust Filter XX% Full Safely Drive at Highway
Speeds to Remedy
— This message will be
displayed in the instrument cluster if the
exhaust particulate filter reaches 80% of its
maximum storage capacity. Under conditions of
exclusive short duration and low speed driving
cycles, your diesel engine and exhaust
after-treatment system may never reach the
conditions required to cleanse the filter to
remove the trapped PM. If this occurs, the
“Exhaust Filter XX% Full Safely Drive at Highway
Speeds to Remedy” message will be displayed
in the instrument cluster display. If this
message is displayed, you will hear one chime
to assist in alerting you of this condition. By
simply driving your vehicle at highway speeds
for up to 20 minutes, you can remedy the condi -tion in the particulate filter system and allow
your diesel engine and exhaust after-treatment
system to cleanse the filter to remove the
trapped PM and restore the system to normal
operating condition.
Exhaust System — Regeneration In Process
Exhaust Filter XX% Full
— This message indi-
cates that the DPF is self-cleaning. Maintain
your current driving condition until regeneration
is completed.
Exhaust System — Regeneration Completed —
This message indicates that the DPF
self-cleaning is completed. If this message is
displayed, you will hear one chime to assist in
alerting you of this condition.
Exhaust Service Required — See Dealer Now —
This messages indicates regeneration has been
disabled due to a system malfunction. At this
point the engine Powertrain Control Module
(PCM) will register a fault code, the instrument
panel will display a MIL light.
WARNING!

A hot exhaust system can start a fire if you park
over materials that can burn, such as grass or
leaves, and those items that come into contact
with your exhaust system. Do not park or operate
your vehicle in areas where your exhaust system
can contact anything that can burn.

CAUTION!
See an authorized dealer, as damage to the
exhaust system could occur soon with continued
operation.

22_DT_OM_EN_USC_t.book Page 124

GETTING TO KNOW YOUR INSTRUMENT PANEL125
Exhaust Filter Full — Power Reduced See
Dealer — This message indicates the PCM has
derated the engine to limit the likelihood of
permanent damage to the after-treatment
system. If this condition is not corrected and a
dealer service is not performed, extensive
exhaust after-treatment damage can occur. To
correct this condition it will be necessary to have
your vehicle serviced by an authorized dealer.
NOTE:Failing to follow the oil change indicator, changing
your oil and resetting the oil change indicator by
0 miles remaining will prevent the diesel exhaust
filter from performing it's cleaning routine. This will
shortly result in a Malfunction Indicator Light (MIL)
and reduced engine power. Only an authorized
dealer will be able to correct this condition.
DISPLAYS
When the appropriate conditions exist, the
instrument cluster display displays the following
messages:
System Setup Unavailable – Vehicle Not in Park
System Setup Unavailable – Vehicle in Motion
Exhaust Filter Full Safely Drive at Highway
Speeds To Remedy
Exhaust Filter XX% Full – Power Reduced See
Dealer
Exhaust Service Required – See Dealer Now
Exhaust System – Filter XX% Full Service
Required See Dealer
Exhaust System – Regeneration In Process
Exhaust Filter XX% Full
Exhaust System – Regeneration Completed
Engine Will Not Restart in XXXX mi DEF Low
Refill Soon
Engine Will Not Restart in XXXX mi Refill DEF
Engine Will Not Restart Refill DEF
Service DEF System See Dealer
Incorrect DEF Detected See Dealer
Engine Will Not Restart in XXX mi Service DEF
See Dealer
Engine Will Not Restart Service DEF System See
Dealer
DIESEL EXHAUST FLUID (DEF)
W
ARNING MESSAGES
Your vehicle will begin displaying warning
messages when the DEF level reaches a driving
range of approximately 500 miles (800 km). If the
following warning message sequence is ignored,
your vehicle may not restart unless DEF is added
with in the displayed mileage shown in the cluster
message.
Engine Will Not Restart in XXXX mi DEF Low
Refill Soon — This message will display when
DEF driving range is less than 500 miles, DEF
fluid top off is required within the displayed
mileage. The message will be displayed in the
cluster during vehicle start up with the current
allowed mileage and accompanied by a single
chime. The remaining mileage can be pulled up
anytime in the “Messages” list within the instru -
ment cluster display.
Engine Will Not Restart in XXXX mi Refill DEF —
This message will display when DEF driving
range is less than 200 miles. It is also displayed
at 150 miles and 100 miles. DEF fluid top off is
required within the displayed mileage. The
message will be displayed in the instrument
cluster display during vehicle start up with an
updated distance mileage, and it will be accom -
panied by a single chime. Starting at 100 miles,
remaining range will be continuously displayed
CAUTION!
See an authorized dealer, as damage to the
exhaust system could occur soon with continued
operation.
3

22_DT_OM_EN_USC_t.book Page 125

126GETTING TO KNOW YOUR INSTRUMENT PANEL
while operating the vehicle. Chimes will also
accompany the 75, 50 and 25 mile remaining
distances. The DEF Low telltale will be on contin -
uously until DEF fluid is topped off.
Engine Will Not Restart Refill DEF — This
message will display when the DEF driving range
is less than one mile, DEF fluid top off is
required or the engine will not restart. The
message will be displayed in the instrument
cluster display during vehicle start up, and it will
be accompanied by a single chime. The DEF Low
telltale will be illuminated continuously until
DEF fluid tank is filled with a minimum of
two gallons of DEF.
DIESEL EXHAUST FLUID (DEF) FAULT
W
ARNING MESSAGES
There are different messages which are displayed
if the vehicle detects that the DEF system has been
filled with a fluid other than DEF, has experienced
component failures, or when tampering has been
detected.
When the DEF system needs to be serviced the
following warnings will display:
Service DEF System See Dealer — This message
will display when the fault is initially detected
and each time the vehicle is started. The
message will be accompanied by a single chime
and the Malfunction Indicator Light. We recom -
mend you drive to the nearest authorized dealer and have your vehicle serviced immediately. If
not corrected in 50 miles, vehicle will enter the
“Engine Will not restart in XXX mi Service DEF
See dealer” warning stage and message.
Incorrect DEF Detected See Dealer
— This
message will display if the DEF system has
detected the incorrect fluid has been introduced
to the DEF tank. The message will be accompa -
nied by a single chime. We recommend you
drive to your nearest authorized dealer and
have your vehicle serviced immediately. If not
corrected in 30 miles, vehicle will enter the
“Engine Will not restart in XXX mi Service DEF
See dealer” warning stage and message.
Engine Will Not Restart in XXX mi Service DEF
See Dealer — This message is first displayed if
the fault detected is not serviced after 50 miles
of operation. It is also displayed at 150 miles,
125 miles and 100 miles. System service is required within the displayed mileage. The
message will be displayed during vehicle start
up with an updated distance mileage, and it will
be accompanied by a single chime. Starting at
100 miles, remaining range will be continuously
displayed while operating the vehicle. Chimes
will also accompany the 75, 50 and 25 mile
remaining distances. We recommend you drive
to the nearest authorized dealer and have your
vehicle serviced immediately.
Engine Will Not Restart Service DEF System See
Dealer — This message will display if DEF
system issue detected is not serviced during the
allowed period. Your engine will not restart
unless your vehicle is serviced by an authorized
dealer. This message will be displayed when
under 1 mile until engine will not start and each
time the vehicle is started, and will be continu -
ously displayed. The message will be accompa -
nied by a single chime. Your Malfunction
Indicator Light will be continuously illumined.
We highly recommend you drive to the nearest
authorized dealer if the message appears while
engine is running.
Engine Will Not Start Service DEF System See
Dealer — This message will display when the
fault detected is not serviced after the Engine
will not restart Service DEF System See Dealer
message is displayed on the next subsequent
restart. Your engine will not start unless your
vehicle is serviced by an authorized dealer.
The message will be accompanied by a single
chime. Your Malfunction Indicator Light will be
continuously illuminated. If the message
appears and you can not start the engine, we
recommend having your vehicle towed to the
nearest authorized dealer immediately.

22_DT_OM_EN_USC_t.book Page 126

GETTING TO KNOW YOUR INSTRUMENT PANEL127
BATTERY SAVER ON/BATTERY SAVER
M
ODE MESSAGE — ELECTRICAL LOAD
R
EDUCTION ACTIONS — IF EQUIPPED
This vehicle is equipped with an Intelligent Battery
Sensor (IBS) to perform additional monitoring of
the electrical system and status of the vehicle
battery.
In cases when the IBS detects charging system
failure, or the vehicle battery conditions are
deteriorating, electrical load reduction actions will
take place to extend the driving time and distance
of the vehicle. This is done by reducing power to or
turning off non-essential electrical loads.
Load reduction is only active when the engine is
running. It will display a message if there is a risk
of battery depletion to the point where the vehicle
may stall due to lack of electrical supply, or will not
restart after the current drive cycle.
When load reduction is activated, the message
“Battery Saver On Some Systems May Have
Reduced Power” will appear in the instrument
cluster. These messages indicate the vehicle battery has a
low state of charge and continues to lose electrical
charge at a rate that the charging system cannot
sustain.NOTE:
The charging system is independent from load
reduction. The charging system performs a diag
-
nostic on the charging system continuously.
If the Battery Charge Warning Light is on it may
indicate a problem with the charging system
Ú page 129.
The electrical loads that may be switched off
(if equipped), and vehicle functions which can be
affected by load reduction:
Heated Seats / Vented Seats / Heated Wheel
Rear Defroster And Heated Mirrors
HVAC System
115 Volts AC Power Inverter System
Audio and Telematics System
Loss of the battery charge may indicate one or
more of the following conditions:
The charging system cannot deliver enough
electrical power to the vehicle system because
the electrical loads are larger than the capability
of charging system. The charging system is still
functioning properly.
Turning on all possible vehicle electrical loads
(e.g. HVAC to max settings, exterior and interior
lights, overloaded power outlets +12 Volts,
115 Volts AC, USB ports) during certain driving
conditions (city driving, towing, frequent stop -
ping).
Installing options like additional lights, upfitter
electrical accessories, audio systems, alarms
and similar devices.
Unusual driving cycles (short trips separated by
long parking periods).
The vehicle was parked for an extended period
of time (weeks, months).
The battery was recently replaced and was not
charged completely.
The battery was discharged by an electrical load
left on when the vehicle was parked.
The battery was used for an extended period
with the engine not running to supply radio,
lights, chargers, +12 Volt portable appliances
like vacuum cleaners, game consoles and
similar devices.
3

22_DT_OM_EN_USC_t.book Page 127

128GETTING TO KNOW YOUR INSTRUMENT PANEL
What to do when an electrical load reduction
action message is present (“Battery Saver On” or
“Battery Saver Mode”)
During a trip:
Reduce power to unnecessary loads if possible:
Turn off redundant lights (interior or exte -
rior).
Check what may be plugged in to power
outlets +12 Volts, 115 Volts AC, USB ports.
Check HVAC settings (blower, temperature).
Check the audio settings (volume).
After a trip:
Check if any aftermarket equipment was
installed (additional lights, upfitter electrical
accessories, audio systems, alarms) and review
specifications if any (load and Ignition Off Draw
currents).
Evaluate the latest driving cycles (distance,
driving time and parking time).
The vehicle should have service performed if
the message is still present during consecutive
trips and the evaluation of the vehicle and
driving pattern did not help to identify the cause.
WARNING LIGHTS AND MESSAGES
The warning/indicator lights will illuminate in the
instrument panel together with a dedicated
message and/or acoustic signal when applicable.
These indications are indicative and precautionary
and as such must not be considered as exhaustive
and/or alternative to the information contained in
the Owner’s Manual, which you are advised to read
carefully in all cases. Always refer to the
information in this chapter in the event of a failure
indication. All active telltales will display first if
applicable. The system check menu may appear
different based upon equipment options and
current vehicle status. Some telltales are optional
and may not appear.
RED WARNING LIGHTS
Air Bag Warning Light
This warning light will illuminate to
indicate a fault with the air bag, and will
turn on for four to eight seconds as a bulb
check when the ignition is placed in the
ON/RUN or ACC/ON/RUN position. This light will
illuminate with a single chime when a fault with the
air bag has been detected, it will stay on until the
fault is cleared. If the light is either not on during
startup, stays on, or turns on while driving, have
the system inspected at an authorized dealer as
soon as possible.
Brake Warning Light
This warning light monitors various brake
functions, including brake fluid level and
parking brake application. If the brake
light turns on it may indicate that the
parking brake is applied, that the brake fluid level
is low, or that there is a problem with the Anti-Lock
Brake System reservoir.
If the light remains on when the parking brake has
been disengaged, and the fluid level is at the full
mark on the master cylinder reservoir, it indicates
a possible brake hydraulic system malfunction or
that a problem with the Brake Booster has been
detected by the Anti-Lock Brake System (ABS) /
Electronic Stability Control (ESC) system. In this
case, the light will remain on until the condition has
been corrected. If the problem is related to the
brake booster, the ABS pump will run when
applying the brake, and a brake pedal pulsation
may be felt during each stop.
The dual brake system provides a reserve braking
capacity in the event of a failure to a portion of the
hydraulic system. A leak in either half of the dual
brake system is indicated by the Brake Warning
Light, which will turn on when the brake fluid level
in the master cylinder has dropped below a
specified level.
The light will remain on until the cause is corrected.

22_DT_OM_EN_USC_t.book Page 128
