IN CASE OF EMERGENCY319

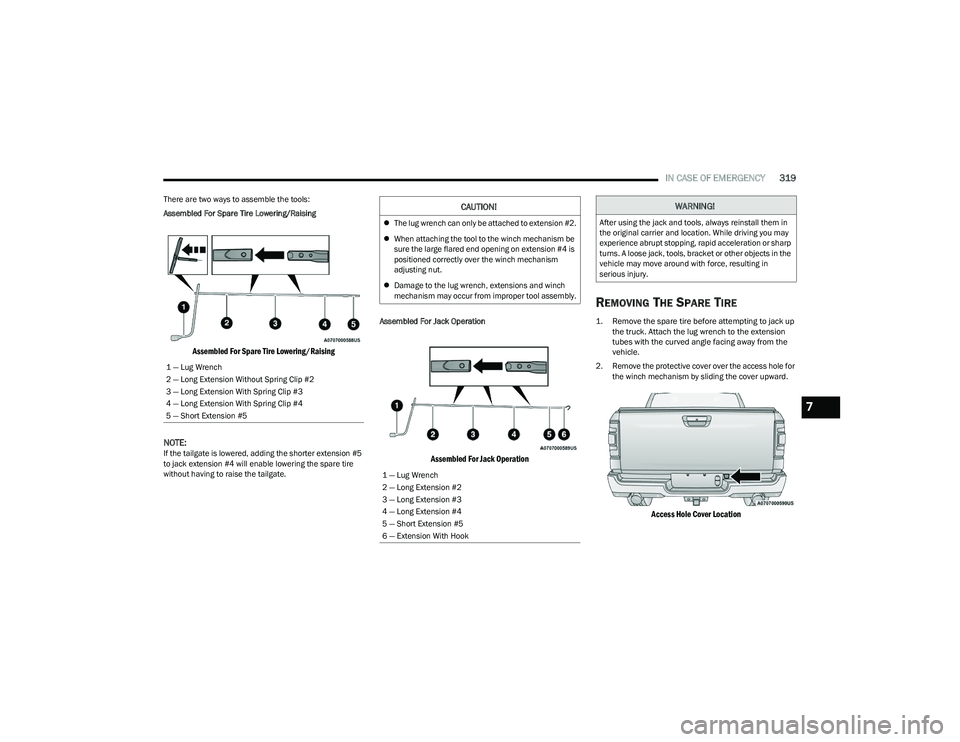

There are two ways to assemble the tools:
Assembled For Spare Tire Lowering/Raising

Assembled For Spare Tire Lowering/Raising

NOTE:
If the tailgate is lowered, adding the shorter extension #5
to jack extension #4 will enable lowering the spare tire
without having to raise the tailgate. Assembled For Jack Operation
Assembled For Jack Operation

REMOVING THE SPARE TIRE

1. Remove the spare tire before attempting to jack up
the truck. Attach the lug wrench to the extension
tubes with the curved angle facing away from the
vehicle.

2. Remove the protective cover over the access hole for the winch mechanism by sliding the cover upward.

Access Hole Cover Location

1 — Lug Wrench
2 — Long Extension Without Spring Clip #2
3 — Long Extension With Spring Clip #3
4 — Long Extension With Spring Clip #4
5 — Short Extension #5
CAUTION!
The lug wrench can only be attached to extension #2.
 When attaching the tool to the winch mechanism be
sure the large flared end opening on extension #4 is
positioned correctly over the winch mechanism
adjusting nut.
 Damage to the lug wrench, extensions and winch
mechanism may occur from improper tool assembly.
1 — Lug Wrench
2 — Long Extension #2
3 — Long Extension #3
4 — Long Extension #4
5 — Short Extension #5
6 — Extension With Hook
WARNING!
After using the jack and tools, always reinstall them in
the original carrier and location. While driving you may
experience abrupt stopping, rapid acceleration or sharp
turns. A loose jack, tools, bracket or other objects in the
vehicle may move around with force, resulting in
serious injury.
7

23_DT_OM_EN_USC_t.book Page 319

320IN CASE OF EMERGENCY

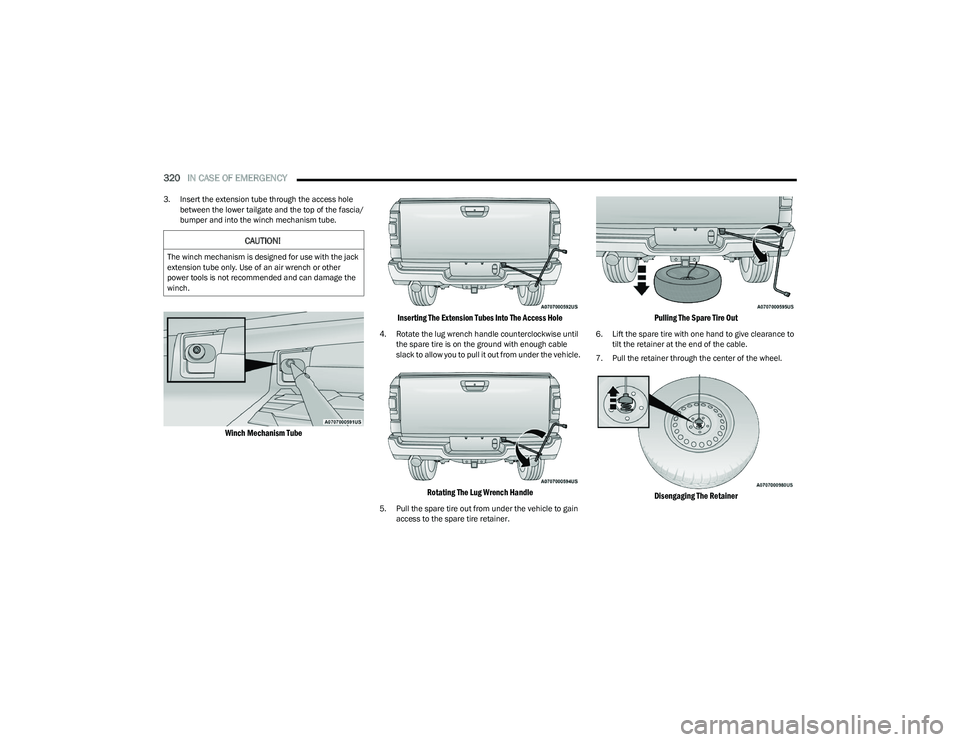

3. Insert the extension tube through the access hole
between the lower tailgate and the top of the fascia/
bumper and into the winch mechanism tube.

Winch Mechanism Tube Inserting The Extension Tubes Into The Access Hole

4. Rotate the lug wrench handle counterclockwise until
the spare tire is on the ground with enough cable
slack to allow you to pull it out from under the vehicle.

Rotating The Lug Wrench Handle

5. Pull the spare tire out from under the vehicle to gain access to the spare tire retainer.

Pulling The Spare Tire Out

6. Lift the spare tire with one hand to give clearance to tilt the retainer at the end of the cable.
7. Pull the retainer through the center of the wheel.

Disengaging The Retainer

CAUTION!
The winch mechanism is designed for use with the jack
extension tube only. Use of an air wrench or other
power tools is not recommended and can damage the
winch.

23_DT_OM_EN_USC_t.book Page 320

IN CASE OF EMERGENCY321
JACKING INSTRUCTIONS

Jack Warning Label

1. Remove the spare tire, jack, and tools from the
stored location.

2. Using the lug wrench, loosen the wheel nuts (but do not remove), by turning them counterclockwise one
turn while the wheel is still on the ground.
3. Assemble the jack and jacking tools. Connect the jack handle driver to the extension, then to the lug wrench.

Assembled Jack And Tools

4. Placement for the front and rear jacking locations are critical. See the following images for proper jacking
locations.

Jack / Extensions Placement

WARNING!
Carefully follow these tire changing warnings to help
prevent personal injury or damage to your vehicle:
Always park on a firm, level surface as far from the
edge of the roadway as possible before raising the
vehicle.
 Turn on the Hazard Warning Flashers.
 Apply the parking brake firmly and set the transmis -
sion in PARK.
 Block the wheel diagonally opposite the wheel to be
raised.
 Never start or run the engine with the vehicle on a
jack.
 Do not let anyone sit in the vehicle when it is on a
jack.
 Do not get under the vehicle when it is on a jack. If
you need to get under a raised vehicle, take it to a
service center where it can be raised on a lift.
 Only use the jack in the positions indicated and for
lifting this vehicle during a tire change.
 If working on or near a roadway, be extremely careful
of motor traffic.
 To assure that spare tires, flat or inflated, are
securely stowed, spares must be stowed with the
valve stem facing the ground.
CAUTION!
Do not attempt to raise the vehicle by jacking on
locations other than those indicated in the Jacking
Instructions for this vehicle.
7

23_DT_OM_EN_USC_t.book Page 321

322IN CASE OF EMERGENCY

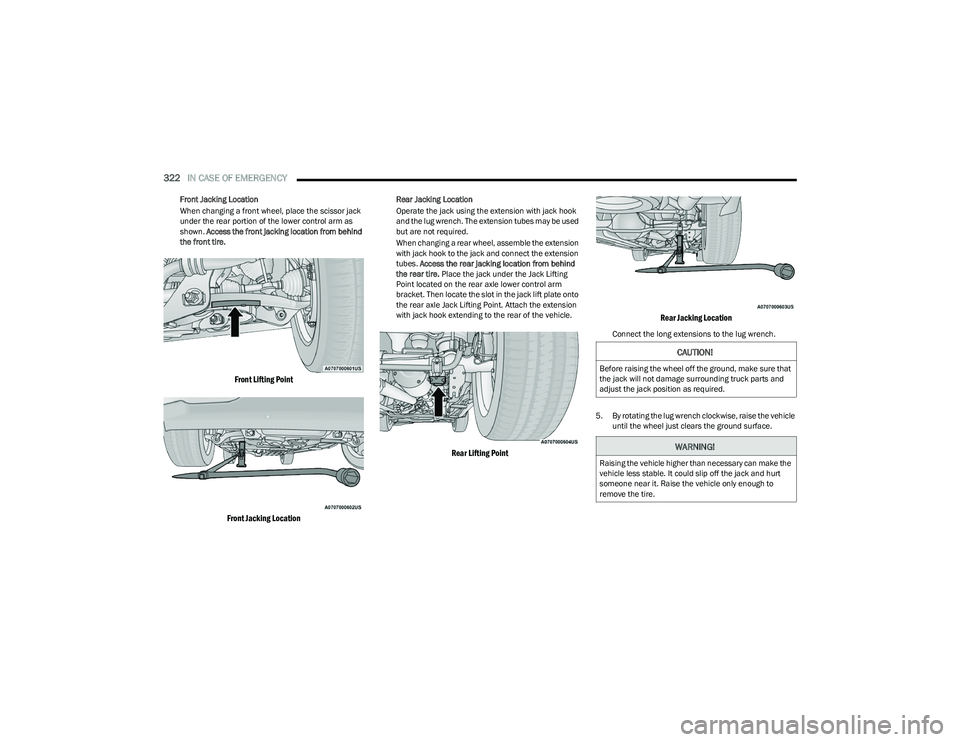

Front Jacking Location
When changing a front wheel, place the scissor jack
under the rear portion of the lower control arm as
shown. Access the front jacking location from behind
the front tire.

Front Lifting Point
Front Jacking Location

Rear Jacking Location
Operate the jack using the extension with jack hook
and the lug wrench. The extension tubes may be used
but are not required.
When changing a rear wheel, assemble the extension
with jack hook to the jack and connect the extension
tubes. Access the rear jacking location from behind
the rear tire. Place the jack under the Jack Lifting
Point located on the rear axle lower control arm
bracket. Then locate the slot in the jack lift plate onto
the rear axle Jack Lifting Point. Attach the extension
with jack hook extending to the rear of the vehicle.

Rear Lifting Point Rear Jacking Location

Connect the long extensions to the lug wrench.
5. By rotating the lug wrench clockwise, raise the vehicle until the wheel just clears the ground surface.
CAUTION!
Before raising the wheel off the ground, make sure that
the jack will not damage surrounding truck parts and
adjust the jack position as required.
WARNING!
Raising the vehicle higher than necessary can make the
vehicle less stable. It could slip off the jack and hurt
someone near it. Raise the vehicle only enough to
remove the tire.

23_DT_OM_EN_USC_t.book Page 322

IN CASE OF EMERGENCY323
6. Remove the lug nuts and pull the wheel off. Install the
spare wheel and lug nuts with the cone shaped end
of the lug nuts toward the wheel. Hand tighten the lug
nuts with the vehicle lifted. To avoid the risk of forcing
the vehicle off the jack, do not fully tighten the lug
nuts until the vehicle has been completely lowered.
7. Lower the vehicle to the ground and finish tightening the lug nuts. Push down on the wrench handle for
increased leverage. Tighten the lug nuts in a star
pattern until each lug nut has been tightened twice
Úpage 392. If in doubt about the correct tightness,
have them checked with a torque wrench by an
authorized dealer or at a service station.
8. If your vehicle is equipped with a wheel center cap, install the cap and remove the wheel blocks. Do not
install chrome or aluminum wheel center caps on the
spare wheel. This may result in cap damage.
9. Lower the jack to its fully closed position. Stow the replaced tire, and secure the jack and tools in the
proper location.
10. Adjust the tire pressure when possible.
TO STOW THE FLAT OR SPARE

1. Lift the spare tire with one hand to give clearance to tilt the retainer at the end of the cable.

2. Position the wheel behind the rear fascia/bumper facing outward. Push the end of the winch’s cable,
spring and steel sleeve through the back of the road
wheel. Making sure the valve stem is facing the
ground when the wheel is stowed.

Reinstalling The Retainer

3. Remove the extension with the hook and reattach the
short extension #5 Úpage 318. Attach the lug
wrench to the extension tubes with the curved angle
facing away from the vehicle. Insert the extension
tubes through the access hole between the lower
tailgate and the top of the fascia/bumper and into the
winch mechanism tube.

Reinstalling The Flat Or Spare Tire

WARNING!
A loose tire or jack thrown forward in a collision or hard
stop, could endanger the occupants of the vehicle.
Always stow the jack parts and the spare tire in the
places provided.
CAUTION!
The winch mechanism is designed for use with the jack
extension tube only. Use of an air wrench or other
power tools is not recommended and can damage the
winch.
7

23_DT_OM_EN_USC_t.book Page 323

324IN CASE OF EMERGENCY

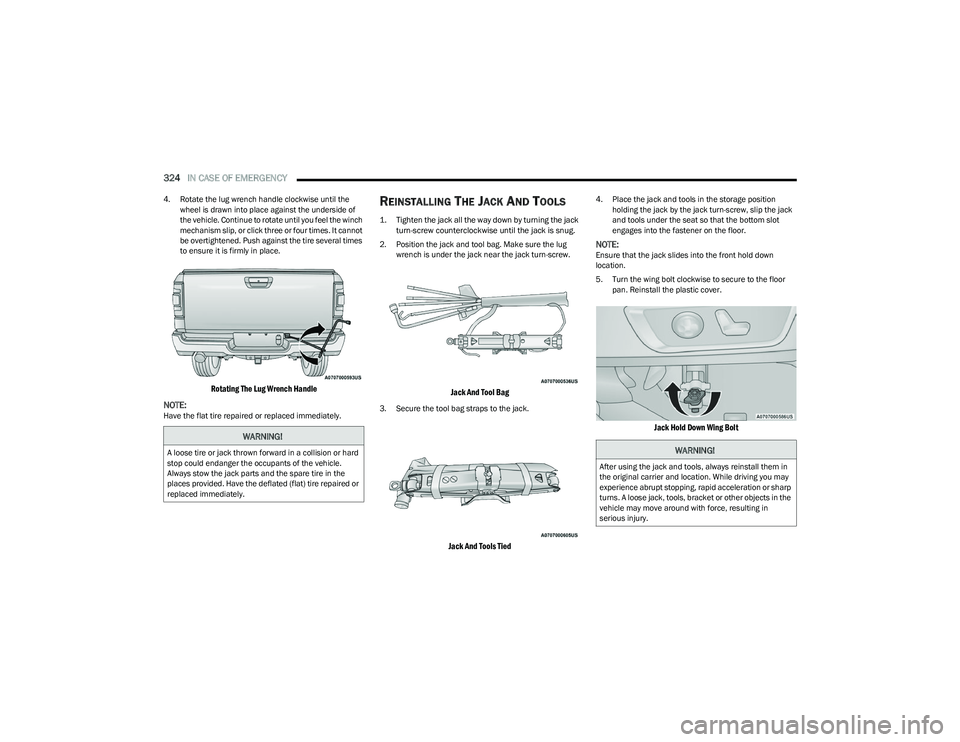

4. Rotate the lug wrench handle clockwise until the
wheel is drawn into place against the underside of
the vehicle. Continue to rotate until you feel the winch
mechanism slip, or click three or four times. It cannot
be overtightened. Push against the tire several times
to ensure it is firmly in place.

Rotating The Lug Wrench Handle

NOTE:
Have the flat tire repaired or replaced immediately.
REINSTALLING THE JACK AND TOOLS

1. Tighten the jack all the way down by turning the jack turn-screw counterclockwise until the jack is snug.

2. Position the jack and tool bag. Make sure the lug wrench is under the jack near the jack turn-screw.

Jack And Tool Bag

3. Secure the tool bag straps to the jack.

Jack And Tools Tied

4. Place the jack and tools in the storage position holding the jack by the jack turn-screw, slip the jack
and tools under the seat so that the bottom slot
engages into the fastener on the floor.
NOTE:Ensure that the jack slides into the front hold down
location.
5. Turn the wing bolt clockwise to secure to the floor pan. Reinstall the plastic cover.

Jack Hold Down Wing Bolt
WARNING!
A loose tire or jack thrown forward in a collision or hard
stop could endanger the occupants of the vehicle.
Always stow the jack parts and the spare tire in the
places provided. Have the deflated (flat) tire repaired or
replaced immediately.WARNING!
After using the jack and tools, always reinstall them in
the original carrier and location. While driving you may
experience abrupt stopping, rapid acceleration or sharp
turns. A loose jack, tools, bracket or other objects in the
vehicle may move around with force, resulting in
serious injury.

23_DT_OM_EN_USC_t.book Page 324

IN CASE OF EMERGENCY325
JUMP STARTING
If your vehicle has a discharged battery, it can be jump
started using a set of jumper cables and a battery in
another vehicle, or by using a portable battery booster
pack. Jump starting can be dangerous if done improperly,
so please follow the procedures in this section carefully.
NOTE:When using a portable battery booster pack, follow the
manufacturer's operating instructions and precautions.
PREPARATIONS FOR JUMP START
The battery in your vehicle is located in the front of the
engine compartment, behind the left headlight assembly.

Positive (+) Battery Post Location

NOTE:
The positive battery post may be covered with a protective
cap. Lift up on the cap to gain access to the positive
battery post. Do not jump off fuses. Only jump directly off
positive post which has a positive (+) symbol on or around
the post.
See the following steps to prepare for jump starting:

1. Shift the automatic transmission into PARK, apply the parking brake and turn the ignition OFF.

2. Turn off the heater, radio, and all electrical accessories.
3. If using another vehicle to jump start the battery, park the vehicle within the jumper cables’ reach, apply the
parking brake and make sure the ignition is OFF. 4. Pull upward and remove the protective cover over the
positive (+) battery post.
JUMP STARTING PROCEDURE
WARNING!
Do not attempt jump starting if the battery is frozen. It
could rupture or explode and cause personal injury.
CAUTION!
Do not use a portable battery booster pack or any other
booster source with a system voltage greater than
12 Volts or damage to the battery, starter motor,
alternator or electrical system may occur.
WARNING!
Do not allow vehicles to touch each other as this could
establish a ground connection and personal injury
could result.
WARNING!
 Take care to avoid the radiator cooling fan whenever
the hood is raised. It can start anytime the ignition
switch is ON. You can be injured by moving fan
blades.
 Remove any metal jewelry such as rings, watch
bands and bracelets that could make an inadvertent
electrical contact. You could be seriously injured.
 Batteries contain sulfuric acid that can burn your
skin or eyes and generate hydrogen gas which is
flammable and explosive. Keep open flames or
sparks away from the battery.
WARNING!
Failure to follow this jump starting procedure could
result in personal injury or property damage due to
battery explosion.
CAUTION!
Failure to follow these procedures could result in
damage to the charging system of the booster vehicle
or the discharged vehicle.
7

23_DT_OM_EN_USC_t.book Page 325

326IN CASE OF EMERGENCY
Connecting The Jumper Cables

1. Connect the positive
(+) end of the jumper cable to
the positive (+)
post of the discharged vehicle.

NOTE:Do not jump off fuses. Only jump directly off positive post.
2. Connect the opposite end of the positive (+) jumper
cable to the positive (+) post of the booster battery.
3. Connect the negative (-) end of the jumper cable to
the negative (-) post of the booster battery.
4. Connect the opposite end of the negative (-) jumper
cable to a good engine ground. A “ground” is an
exposed metallic/unpainted part of the engine, frame
or chassis, such as an accessory bracket or large bolt.
The ground must be away from the battery and the
fuel injection system.

Jump Starting Label

5. Start the engine in the vehicle that has the booster battery, let the engine idle a few minutes, and then
start the engine in the vehicle with the discharged
battery.
6. Once the engine is started, follow the disconnection procedure.
Disconnecting The Jumper Cables

1. Disconnect the negative
(-)
end of the jumper cable
from the engine ground of the vehicle with the
discharged battery.

2. Disconnect the opposite end of the negative (-)
jumper cable from the negative (-) post of the booster
battery. 3. Disconnect the positive
(+) end of the jumper cable
from the positive (+) post of the booster battery.
4. Disconnect the opposite end of the positive (+)
jumper cable from the positive (+) post of the vehicle
with the discharged battery, and reinstall the
protective cap.
If frequent jump starting is required to start your vehicle
you should have the battery and charging system
inspected at an authorized dealer.
REFUELING IN EMERGENCY
The vehicle is equipped with a refueling funnel for a
Cap-Less Fuel System. The refueling funnel is located
under the passenger’s seat along with the jack and tools.
If refueling is necessary, while using an approved gas can,
insert the refueling funnel into the filler neck opening.
Take care to open both flappers with the funnel to avoid
spills.
WARNING!
Do not connect the jumper cable to the negative (-) post
of the discharged battery. The resulting electrical spark
could cause the battery to explode and could result in
personal injury.
CAUTION!
Do not connect jumper cable to any of the fuses on the
positive battery terminal. The resulting electrical
current will blow the fuse.
CAUTION!
Accessories plugged into the vehicle power outlets draw
power from the vehicle’s battery, even when not in use
(i.e., cellular devices, etc.). Eventually, if plugged in long
enough without engine operation, the vehicle’s battery
will discharge sufficiently to degrade battery life and/or
prevent the engine from starting.

23_DT_OM_EN_USC_t.book Page 326

IN CASE OF EMERGENCY327
(Continued)

Fuel Funnel Location

NOTE:
In certain cold conditions, ice may prevent the fuel door
from opening. If this occurs, lightly push on the fuel door
to break the ice buildup and re-release the fuel door using
the inside release button. Do not pry on the door.
Emergency Gas Can Refueling:
Most gas cans will not open the flapper doors. A funnel is
provided to allow emergency refueling with a gas can.
See the following steps for refueling:

1. Retrieve funnel from under the passenger’s front seat.

2. Insert funnel into same filler pipe opening as the fuel nozzle.

Inserting Funnel

3. Ensure funnel is inserted fully to hold flapper doors open.
4. Pour fuel into funnel opening.
5. Remove funnel from filler pipe, clean off prior to putting back in the spare tire storage area.IF YOUR ENGINE OVERHEATS
If the vehicle is overheating, it will need to be serviced by
an authorized dealer.
Potential signs of vehicle overheating:
Temperature gauge is at HOT (H)
 Strong smell of coolant
 White smoke coming from engine or exhaust
 Coolant bottle coolant has bubbles present
CAUTION!
To avoid fuel spillage and overfilling, do not “top off” the
fuel tank after filling.
WARNING!
Never have any smoking materials lit in or near the
vehicle when the fuel door is open or the tank is
being filled.
Never add fuel when the engine is running. This is in
violation of most state and federal fire regulations
and may cause the Malfunction Indicator Light to
turn on.
 A fire may result if fuel is pumped into a portable
container that is inside of a vehicle. You could be
burned. Always place fuel containers on the ground
while filling.
WARNING!
You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If you
see or hear steam coming from under the hood, do not
open the hood until the radiator has had time to cool.
Never try to open a cooling system pressure cap when
the radiator or coolant bottle is hot.
WARNING!
7

23_DT_OM_EN_USC_t.book Page 327

328IN CASE OF EMERGENCY
In the event it is observed that the temperature gauge is
moving towards or close to the HOT (H) position, you can
reduce the potential for overheating by taking the
appropriate action.
On the highways — slow down.
 In city traffic — while stopped, place the transmission in
NEUTRAL (N), but do not increase the engine idle speed
while preventing vehicle motion with the brakes.
 If your Air Conditioner (A/C) is on, turn it off. The A/C
system adds heat to the engine cooling system and
turning the A/C off can help remove this heat.
 You can also turn the temperature control to maximum
heat, the mode control to floor and the blower control
to high. This allows the heater core to act as a supple -
ment to the radiator and aids in removing heat from the

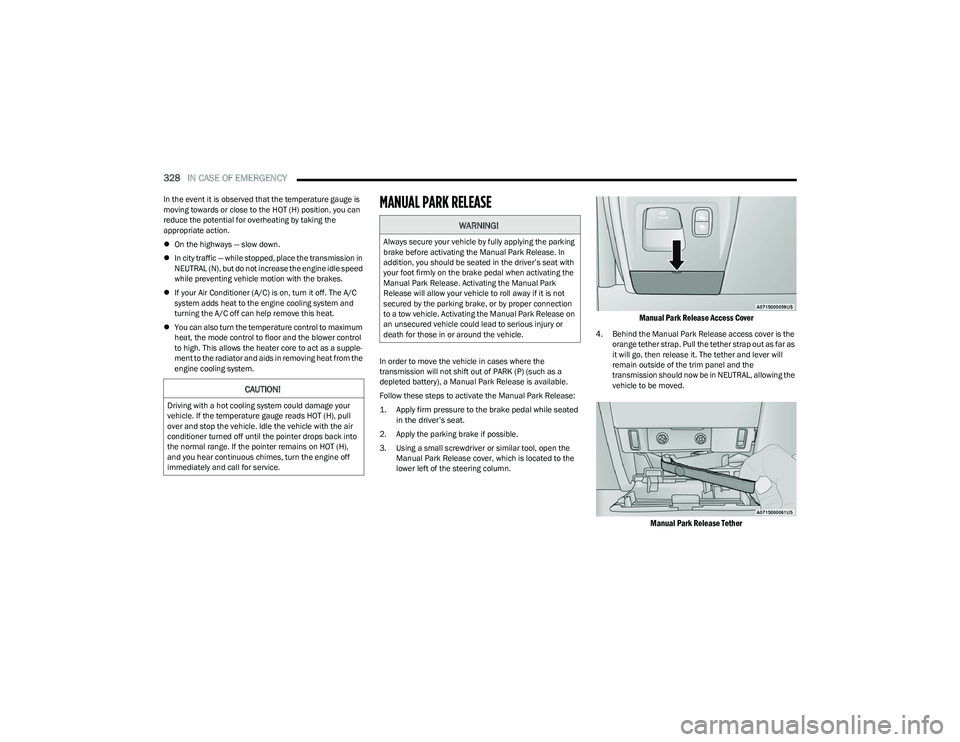

engine cooling system.MANUAL PARK RELEASE
In order to move the vehicle in cases where the
transmission will not shift out of PARK (P) (such as a
depleted battery), a Manual Park Release is available.
Follow these steps to activate the Manual Park Release:

1. Apply firm pressure to the brake pedal while seated in the driver’s seat.

2. Apply the parking brake if possible.
3. Using a small screwdriver or similar tool, open the Manual Park Release cover, which is located to the
lower left of the steering column.

Manual Park Release Access Cover

4. Behind the Manual Park Release access cover is the orange tether strap. Pull the tether strap out as far as
it will go, then release it. The tether and lever will
remain outside of the trim panel and the
transmission should now be in NEUTRAL, allowing the
vehicle to be moved.

Manual Park Release Tether

CAUTION!
Driving with a hot cooling system could damage your
vehicle. If the temperature gauge reads HOT (H), pull
over and stop the vehicle. Idle the vehicle with the air
conditioner turned off until the pointer drops back into
the normal range. If the pointer remains on HOT (H),
and you hear continuous chimes, turn the engine off
immediately and call for service.
WARNING!
Always secure your vehicle by fully applying the parking
brake before activating the Manual Park Release. In
addition, you should be seated in the driver’s seat with
your foot firmly on the brake pedal when activating the
Manual Park Release. Activating the Manual Park
Release will allow your vehicle to roll away if it is not
secured by the parking brake, or by proper connection
to a tow vehicle. Activating the Manual Park Release on
an unsecured vehicle could lead to serious injury or
death for those in or around the vehicle.

23_DT_OM_EN_USC_t.book Page 328
