Page 201 of 280

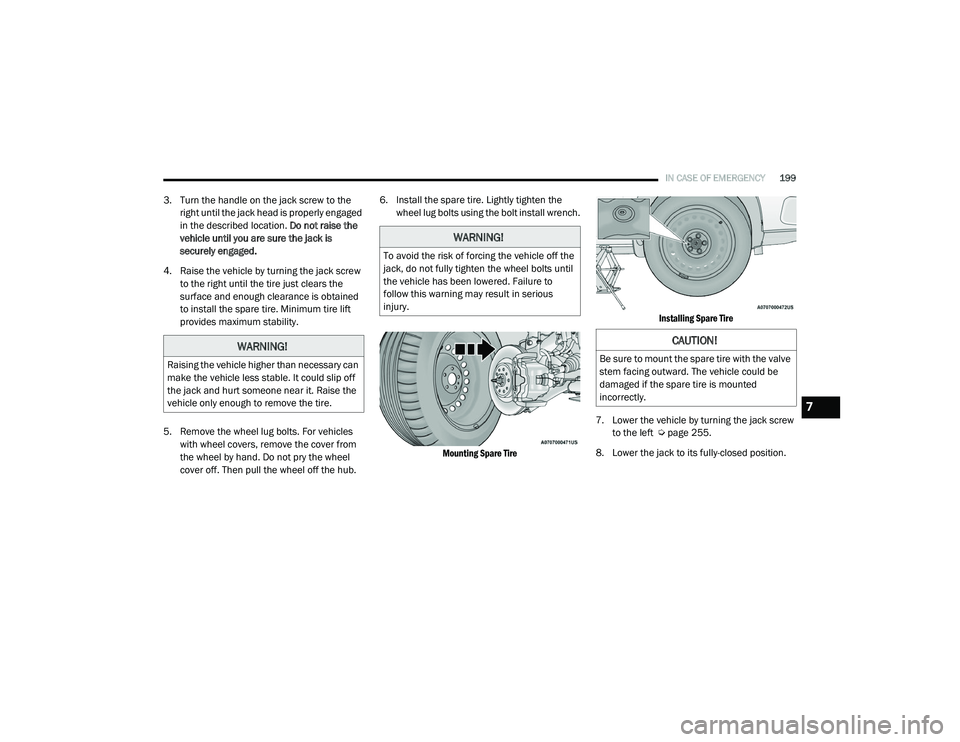

RAM PROMASTER CITY 2021  Owners Manual
IN CASE OF EMERGENCY199
3. Turn the handle on the jack screw to the
right until the jack head is properly engaged
in the described location.  Do not raise the
vehicle until you are sure the jack i

Page 202 of 280

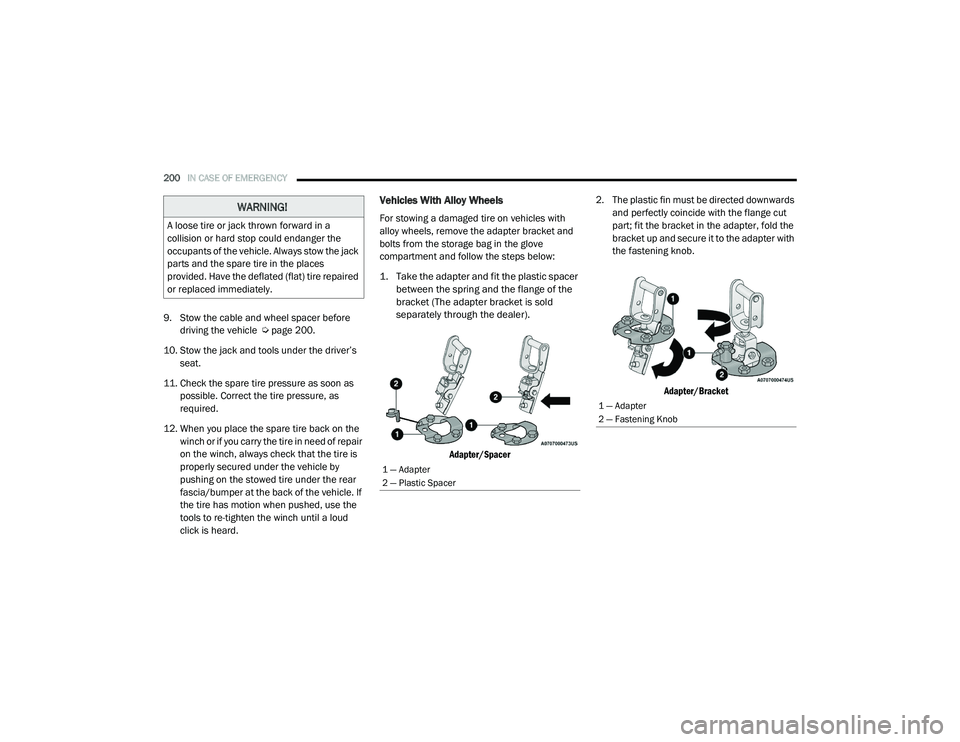

RAM PROMASTER CITY 2021  Owners Manual
200IN CASE OF EMERGENCY
9. Stow the cable and wheel spacer before
driving the vehicle  Ú page 200.
10. Stow the jack and tools under the driver’s  seat.
11. Check the spare tire pressure as soo

Page 203 of 280

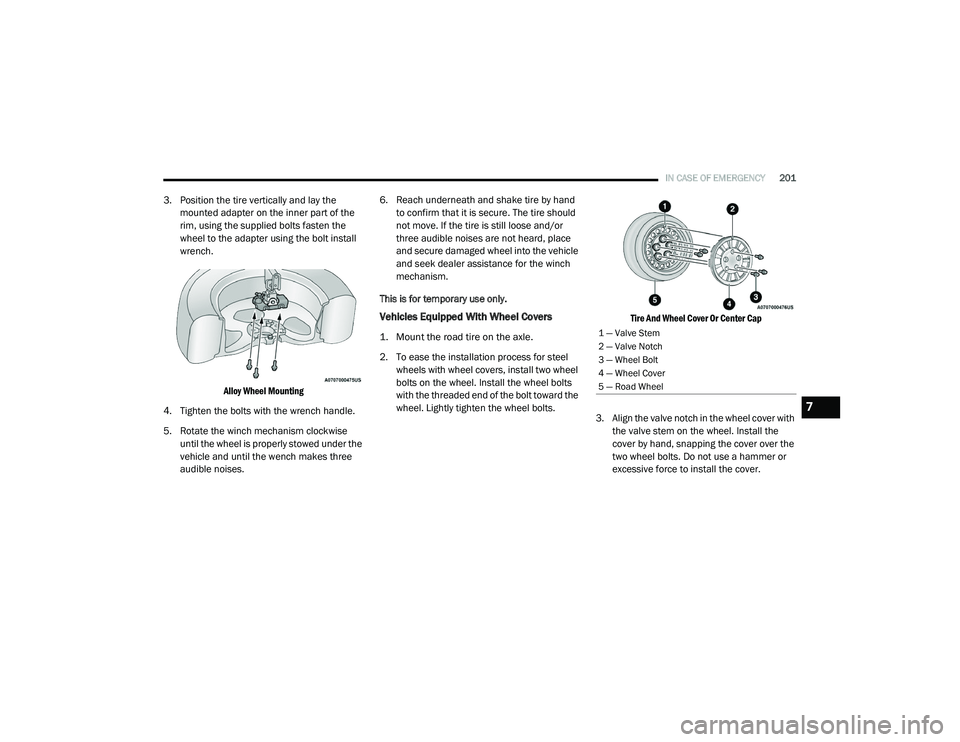

RAM PROMASTER CITY 2021  Owners Manual
IN CASE OF EMERGENCY201
3. Position the tire vertically and lay the
mounted adapter on the inner part of the
rim, using the supplied bolts fasten the
wheel to the adapter using the bolt install
w

Page 204 of 280

RAM PROMASTER CITY 2021  Owners Manual
202IN CASE OF EMERGENCY
4. Install the remaining wheel bolts with the
threaded end of the wheel bolt toward the
wheel. Lightly tighten the wheel bolts.
5. Lower the vehicle to the ground by turni

Page 205 of 280

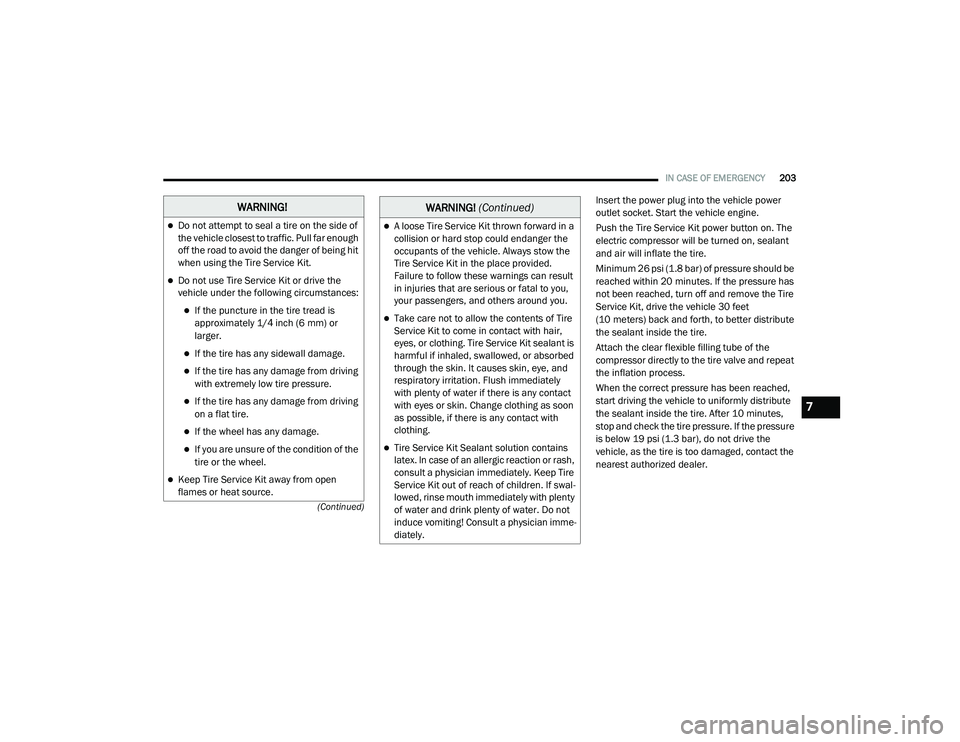

RAM PROMASTER CITY 2021  Owners Manual
IN CASE OF EMERGENCY203
(Continued)
Insert the power plug into the vehicle power
outlet socket. Start the vehicle engine.
Push the Tire Service Kit power button on. The
electric compressor will be

Page 206 of 280

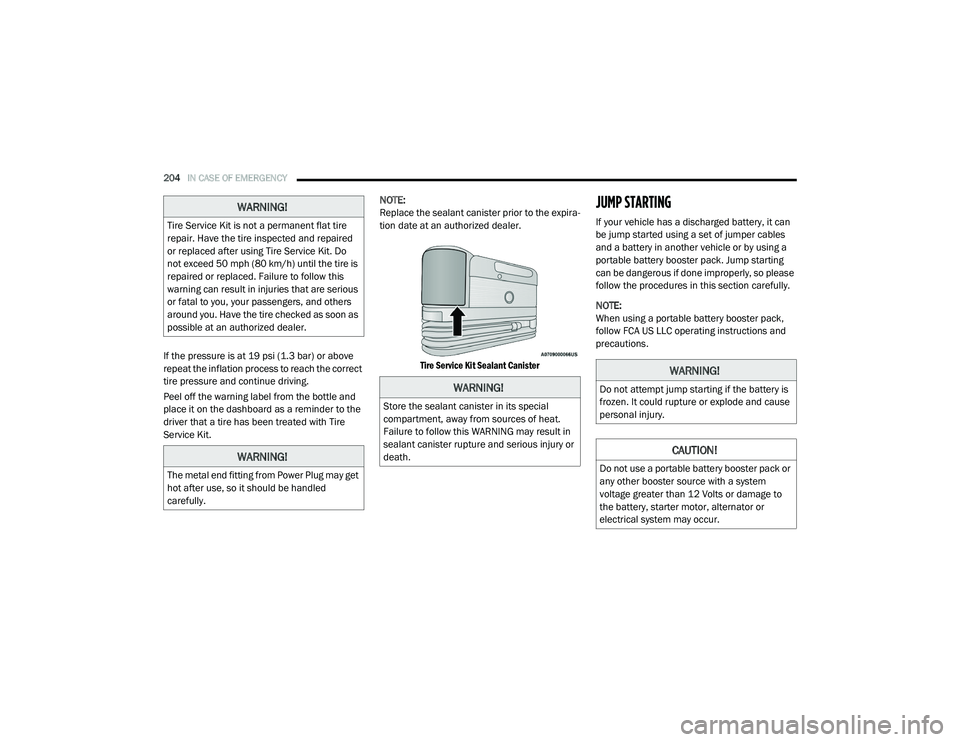

RAM PROMASTER CITY 2021  Owners Manual
204IN CASE OF EMERGENCY
If the pressure is at 19 psi (1.3 bar) or above
repeat the inflation process to reach the correct
tire pressure and continue driving.
Peel off the warning label from the b

Page 207 of 280

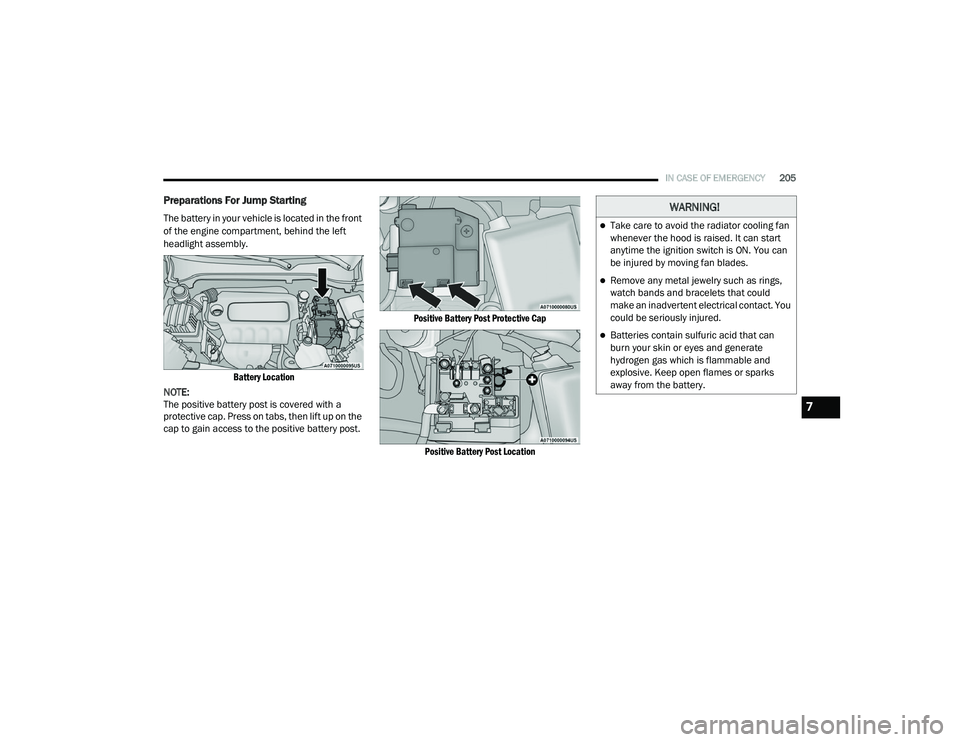

RAM PROMASTER CITY 2021  Owners Manual
IN CASE OF EMERGENCY205
Preparations For Jump Starting
The battery in your vehicle is located in the front
of the engine compartment, behind the left
headlight assembly.

Battery Location

NOTE:
Th

Page 208 of 280

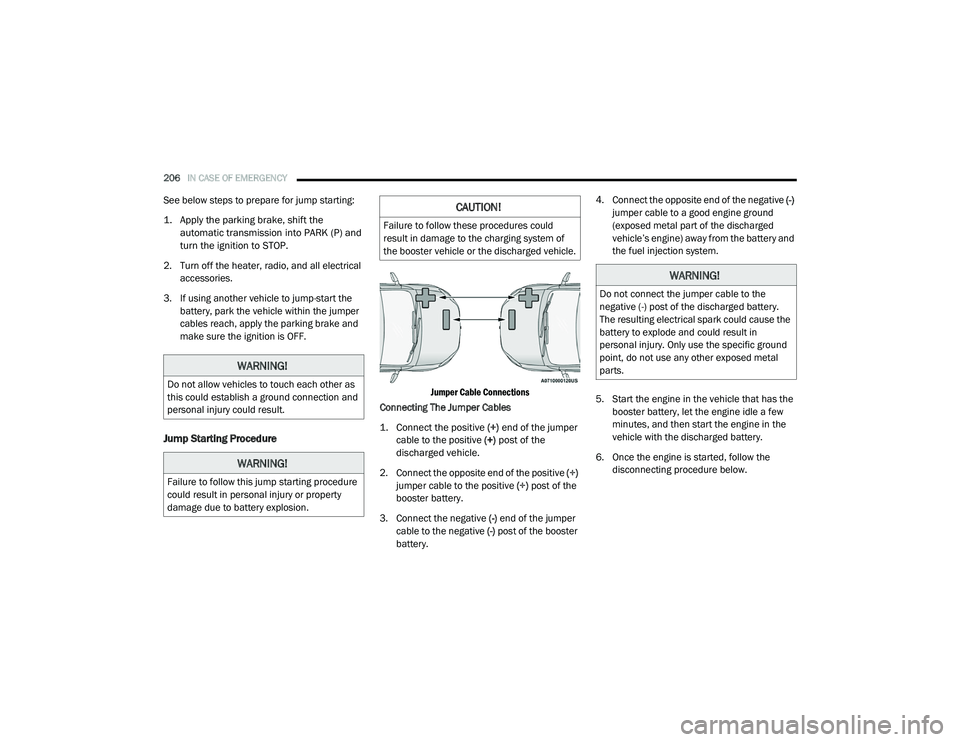

RAM PROMASTER CITY 2021  Owners Manual
206IN CASE OF EMERGENCY
See below steps to prepare for jump starting:

1. Apply the parking brake, shift the
automatic transmission into PARK (P) and
turn the ignition to STOP.

2. Turn off the h

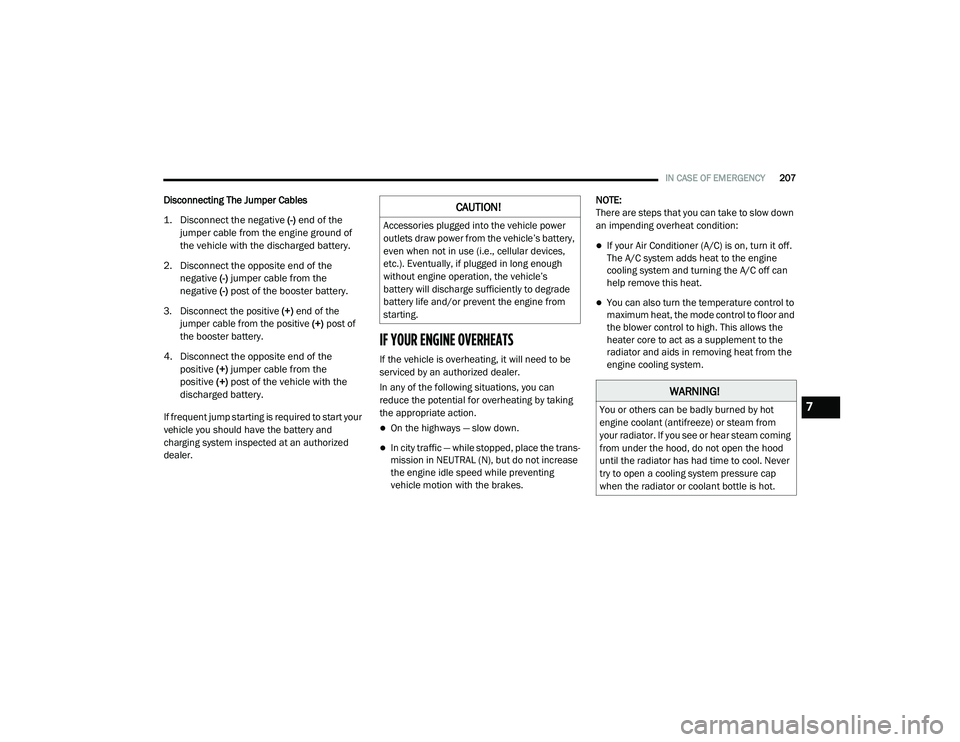

Page 209 of 280

RAM PROMASTER CITY 2021  Owners Manual
IN CASE OF EMERGENCY207
Disconnecting The Jumper Cables

1. Disconnect the negative
(-)
  end of the
jumper cable from the engine ground of
the vehicle with the discharged battery.
2. Disconnect t

Page 210 of 280

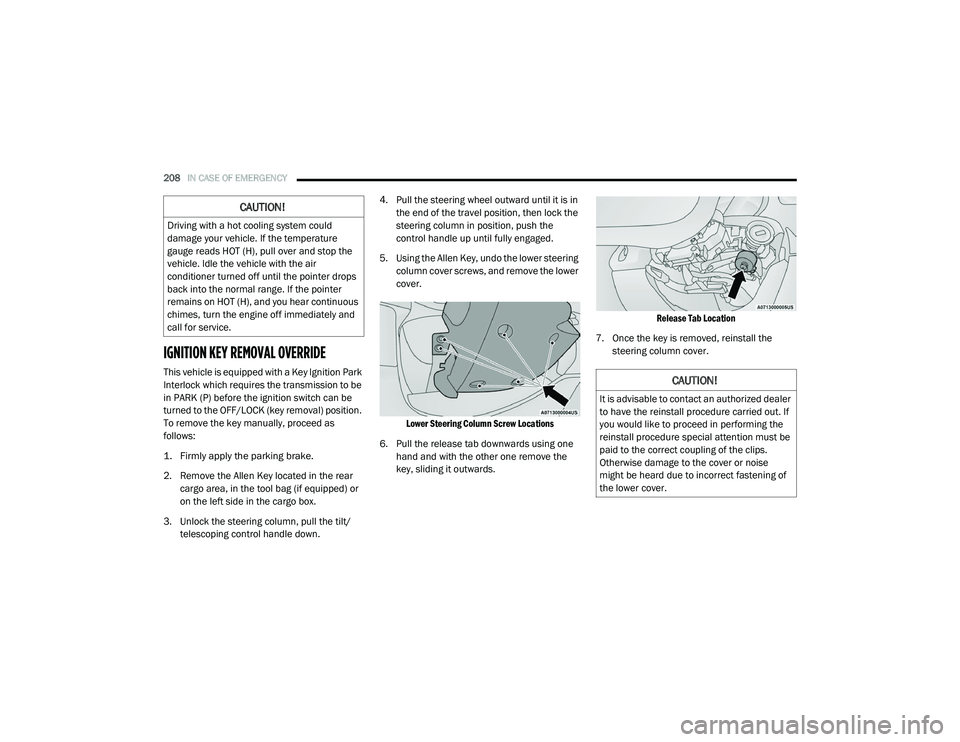

RAM PROMASTER CITY 2021  Owners Manual
208IN CASE OF EMERGENCY
IGNITION KEY REMOVAL OVERRIDE
This vehicle is equipped with a Key Ignition Park
Interlock which requires the transmission to be
in PARK (P) before the ignition switch can
