check engine RENAULT ALASKAN 2017 Workshop Manual

•
Recommended battery: CR2025 or equiva-
lent
• Do not touch the internal circuit and electric
terminals as doing so could cause
amalfunc-
tion.
• Make sure that the
%side faces the bottom
of the case.
4. Align the tips of the upper and lower parts ➀,
and then push them together until it is securely
closed ➁.
5. Operate the buttons to check its operation.
See an approved dealer or qualified workshop if you
need assistance for replacement. WARNING
• Operating the engine with the air cleaner filter
off can cause you or others to be burned. The
air cleaner filter not only cleans the intake air,
it also stops flame if the engine backfires. If
the air cleaner filter is not installed and the engine backfires, you could be burned. Never
drive with the air cleaner filter off. Be cautious
working on the engine when the air cleaner
filter is off.
• Never pour fuel into the throttle body or at-
tempt to start the engine with the air cleaner
removed. Doing so could result in serious in-
jury.
To remove the filter, release the lock pins ➀and
pull the unit upward ➁. The dry paper type filter element may be cleaned
and reused. Replace the air filter according to the
maintenance schedule shown in
aseparate mainte-
nance booklet.
When replacing the filter, wipe the inside of the air
cleaner housing and the cover with adamp cloth. SDI2452Z JVM0451XZ
AIR CLEANER FILTER
Maintenance and do-it-yourself8-15

ENGINE COMPARTMENT
CAUTION
Never use afuse of ahigher or lower amperage
rating than that specified on the fuse box cover.
This could damage the electrical system or cause
af ire.
Never attempt to use other material (wire, alu-
minium foil. etc.) in place of afuse. This could
damage the electrical system or cause afire. The location and the amperage rating of fuses are
shown on the underside of the fuse box lid.
The number of fuses may vary depending on the
features equipped to the vehicle.
If any electrical equipment does not operate, check
for an open fuse.
1. Be sure the ignition switch is in the OFF or LOCK
position.
2. Be sure the headlight switch is in the OFF posi- tion.
3. Open the engine bonnet.
4. Remove the fuse/fusible link cover by pushing the tab.
5. Locate the fuse which needs to be replaced.
6. Remove the fuse using the fuse puller located in the passenger compartment fuse box.
7. If the fuse is open j
A, replace it with anew fuse
j B. If the new fuse also opens, after installing, have
the electrical system checked, and if necessary
repaired, by an approved dealer or qualified
workshop.
Fusible links
If any electrical equipment does not operate and the
fuses are in good condition, check the fusible links.
If any of these fusible links are melted, replace only
with genuine replacement parts. NDI1692
NDI1694
SDI1753Z NDI1693
FUSES
8-18
Maintenance and do-it-yourself

Refer to the maintenance service booklet for your
vehicle for details of recommended fluids/lubricants
and capacities.
FUEL INFORMATION
Diesel engine*
M9T 2.3DCI engine:
Diesel fuel above 50 cetane and with less than 10
ppm of sulphur (EN590) must be used.
* If two types of diesel fuel are available, use
summer or winter fuel properly according to
the following temperature conditions.
• Above –7°C (20°F) ... Summer type diesel fuel.
• Below –7°C (20°F) ... Winter type diesel fuel.
CAUTION
• Do not use home heating oil, petrol or other
alternate fuels in your diesel engine. The use
of those or adding those to diesel fuel can
cause engine damage.
• Do not use summer fuel at temperatures be-
low –7°C (20°F). The cold temperatures will
cause wax to form in the fuel. As
aresult, it
may prevent the engine from running
smoothly. AUTOMATIC TRANSMISSION FLUID
(ATF)
Contact an approved dealer or qualified workshop if
checking or replacement is required.
CAUTION
• Use only ATF that is recommended in the
Maintenance Service Booklet. Do not mix with
other fluids.
• Using automatic transmission fluid other than
the ATF that is recommended in the Mainte-
nance Service Booklet may cause deteriora-
tion in driveability and automatic transmission
durability and may damage the automatic
transmission. Such damage is not covered by
the warranty.
AIR CONDITIONER SYSTEM
REFRIGERANT AND LUBRICANT
The air conditioner system of your vehicle must be
charged with the refrigerant HFC-134a (R134a) and the lubricant specified in the maintenance service
booklet for your vehicle..
CAUTION
Use of any other refrigerants or lubricants will
cause severe damage, and you may need to re-
place your vehicle’s entire air conditioner sys-
tem. The release of refrigerants into the atmosphere is
prohibited in many countries and regions. The re-
frigerant HFC-134a (R-134a) in your vehicle will not
harm the Earth’s ozone layer. However, it may con-
tribute in asmall part to the global warming effect.
RENAULT recommends that the refrigerant be ap-
propriately recovered and recycled. Contact an ap-
proved dealer or qualified workshop when servicing
the air conditioner system.
RECOMMENDED FLUIDS/
LUBRICANTS AND CAPACITIES
9-2
Technical information

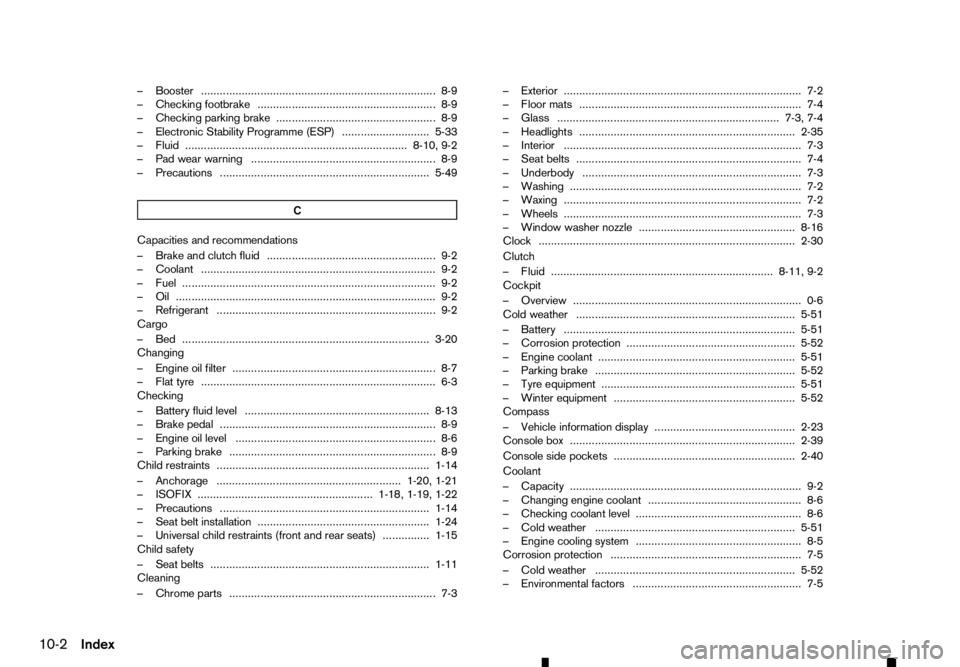

–B
ooster ........................................................................V
... 8-9
–C hecking footbrake ......................................................... 8-9
–C hecking parking brake ................................................... 8-9
–E lectronic Stability Programme (ESP) ............................ 5-33
–F luid ....................................................................... 8-10, 9-2
–P ad wear warning ........................................................... 8-9
–P recautions ................................................................... 5-49
C Capacities and recommendations
–B rake and clutch fluid ...................................................... 9-2
–C oolant ........................................................................V
... 9-2
–F uel ........................................................................V
......... 9-2
–O il ........................................................................V
........... 9-2
–R efrigerant ...................................................................... 9-2
Cargo
–B ed ........................................................................V
....... 3-20
Changing
–E ngine oil filter ................................................................. 8-7
–F lat tyre ........................................................................V
... 6-3
Checking
–B attery fluid level ........................................................... 8-13
–B rake pedal ..................................................................... 8-9
–E ngine oil level ................................................................ 8-6
–P arking brake .................................................................. 8-9
Child restraints .................................................................... 1-14
–A nchorage ........................................................... 1-20, 1-21
–I SOFIX ........................................................ 1-18, 1-19, 1-22
–P recautions ................................................................... 1-14
–S eat belt installation ....................................................... 1-24
–U niversal child restraints (front and rear seats) ............... 1-15
Child safety
–S eat belts ...................................................................... 1-11
Cleaning
–C hrome parts .................................................................. 7-3 –E
xterior ........................................................................V
.... 7-2
–F loor mats ....................................................................... 7-4
–G lass ....................................................................... 7-3, 7-4
–H eadlights ..................................................................... 2-35
–I nterior ........................................................................V
.... 7-3
–S eat belts ........................................................................V
7-4
–U nderbody ...................................................................... 7-3
–W ashing ........................................................................V
.. 7-2
–W axing ........................................................................V
.... 7-2
–W heels ........................................................................V
.... 7-3
–W indow washer nozzle .................................................. 8-16
Clock ........................................................................V
.......... 2-30
Clutch
–F luid ....................................................................... 8-11, 9-2
Cockpit
–O verview ........................................................................V
. 0-6
Cold weather ...................................................................... 5-51
–B attery ........................................................................V
.. 5-51
–C orrosion protection ...................................................... 5-52
–E ngine coolant ............................................................... 5-51
–P arking brake ................................................................ 5-52
–T yre equipment .............................................................. 5-51
–W inter equipment .......................................................... 5-52
Compass
–V ehicle information display ............................................. 2-23
Console box ........................................................................V
2-39
Console side pockets .......................................................... 2-40
Coolant
–C apacity ........................................................................V
.. 9-2
–C hanging engine coolant ................................................. 8-6
–C hecking coolant level ..................................................... 8-6
–C old weather ................................................................ 5-51
–E ngine cooling system ..................................................... 8-5
Corrosion protection ............................................................. 7-5
–C old weather ................................................................ 5-52
–E nvironmental factors ...................................................... 7-5
10-2 Index
