RENAULT ALASKAN 2017 Owners Manual
Manufacturer: RENAULT, Model Year: 2017, Model line: ALASKAN, Model: RENAULT ALASKAN 2017Pages: 340, PDF Size: 6.93 MB
Page 1 of 340
Re
nault ALAS KA N
Driver's handbook
Page 2 of 340

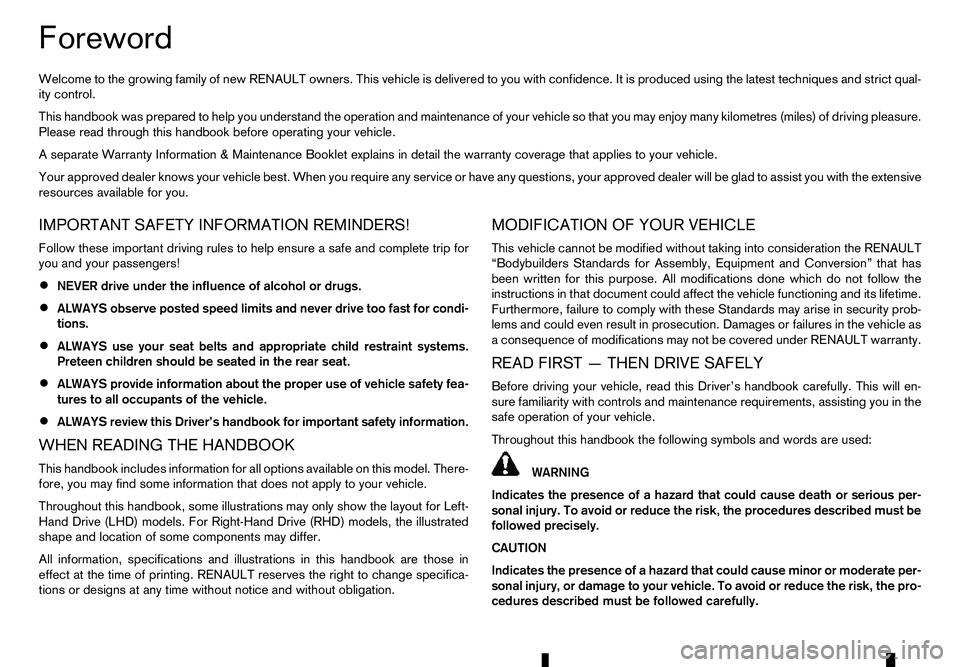

Foreword
Welcome
to the growing family of new RENAULT owners. This vehicle is delivered to you with confidence. It is produced using the latest techniques and strict qual-
ity control.
This handbook was prepared to help you understand the operation and maintenance of your vehicle so that you may enjoy many kilometres (miles) of drivin gpleasure.
Please read through this handbook before operating your vehicle.
As eparate Warranty Information &Maintenance Booklet explains in detail the warranty coverage that applies to your vehicle.
Your approved dealer knows your vehicle best. When you require any service or have any questions, your approved dealer will be glad to assist you with th eextensive
resources available for you.
IMPORTANT SAFETY INFORMATION REMINDERS!
Follow these important driving rules to help ensure asafe and complete trip for
you and your passengers!
• NEVER drive under the influence of alcohol or drugs.
• ALWAYS observe posted speed limits and never drive too fast for condi-
tions.
• ALWAYS use your seat belts and appropriate child restraint systems.
Preteen children should be seated in the rear seat.
• ALWAYS provide information about the proper use of vehicle safety fea-
tures to all occupants of the vehicle.
• ALWAYS review this Driver’s handbook for important safety information.
WHEN READING THE HANDBOOK
This handbook includes information for all options available on this model. There-
fore, you may find some information that does not apply to your vehicle.
Throughout this handbook, some illustrations may only show the layout for Left-
Hand Drive (LHD) models. For Right-Hand Drive (RHD) models, the illustrated
shape and location of some components may differ.
All information, specifications and illustrations in this handbook are those in effect at the time of printing. RENAULT reserves the right to change specifica-
tions or designs at any time without notice and without obligation. MODIFICATION OF YOUR VEHICLE
This vehicle cannot be modified without taking into consideration the RENAULT
“Bodybuilders Standards for Assembly, Equipment and Conversion” that has
been written for this purpose. All modifications done which do not follow the
instructions in that document could affect the vehicle functioning and its lifetime.
Furthermore, failure to comply with these Standards may arise in security prob-
lems and could even result in prosecution. Damages or failures in the vehicle as
ac
onsequence of modifications may not be covered under RENAULT warranty.
READ FIRST —THEN DRIVE SAFELY
Before driving your vehicle, read this Driver’s handbook carefully. This will en-
sure familiarity with controls and maintenance requirements, assisting you in the
safe operation of your vehicle.
Throughout this handbook the following symbols and words are used: WARNING
Indicates the presence of
ahazard that could cause death or serious per-
sonal injury. To avoid or reduce the risk, the procedures described must be
followed precisely.
CAUTION
Indicates the presence of ahazard that could cause minor or moderate per-
sonal injury, or damage to your vehicle. To avoid or reduce the risk, the pro-
cedures described must be followed carefully.
Page 3 of 340

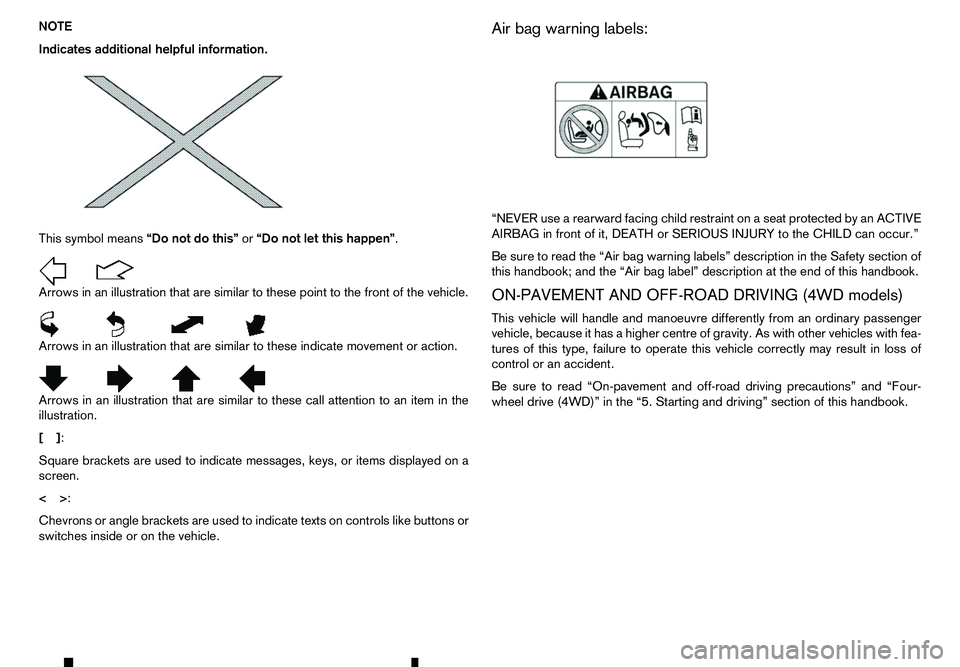

NOTE
Indicates additional helpful information.
This symbol means “Do not do this”or“Do not let this happen”.
Arrows in an illustration that are similar to these point to the front of the vehicle.
Arrows in an illustration that are similar to these indicate movement or action.
Arrows in an illustration that are similar to these call attention to an item in the
illustration.
[] :
Square brackets are used to indicate messages, keys, or items displayed on a
screen.
<> :
Chevrons or angle brackets are used to indicate texts on controls like buttons or
switches inside or on the vehicle. Air bag warning labels:
“NEVER use
arearward facing child restraint on aseat protected by an ACTIVE
AIRBAG in front of it, DEATH or SERIOUS INJURY to the CHILD can occur.”
Be sure to read the “Air bag warning labels” description in the Safety section of
this handbook; and the “Air bag label” description at the end of this handbook.
ON-PAVEMENT AND OFF-ROAD DRIVING (4WD models)
This vehicle will handle and manoeuvre differently from an ordinary passenger
vehicle, because it has ahigher centre of gravity. As with other vehicles with fea-
tures of this type, failure to operate this vehicle correctly may result in loss of
control or an accident.
Be sure to read “On-pavement and off-road driving precautions” and “Four- wheel drive (4WD)” in the “5. Starting and driving” section of this handbook.
Page 4 of 340

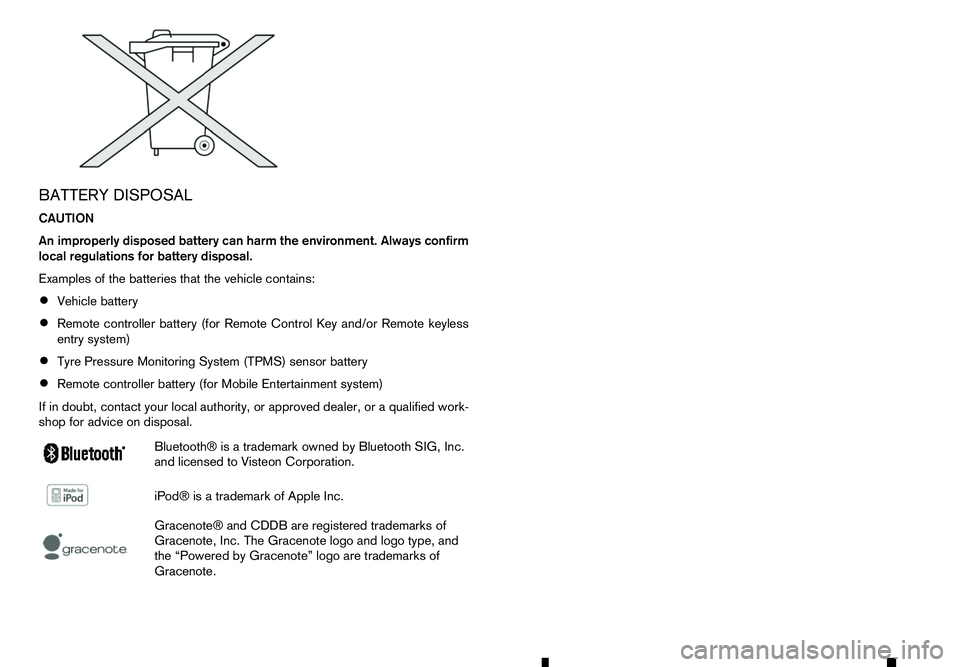

BATTERY DISPOSAL
CAUTION
An improperly disposed battery can harm the environment. Always confirm
local regulations for battery disposal.
Examples of the batteries that the vehicle contains:
• Vehicle battery
• Remote controller battery (for Remote Control Key and/or Remote keyless
entry system)
• Tyre Pressure Monitoring System (TPMS) sensor battery
• Remote controller battery (for Mobile Entertainment system)
If in doubt, contact your local authority, or approved dealer, or aqualified work-
shop for advice on disposal.
m Bluetooth®
is
at rademark owned by Bluetooth SIG, Inc.
and licensed to Visteon Corporation.
m iPod®
is
at rademark of Apple Inc.
m Gracenote®
and CDDB are registered trademarks of
Gracenote, Inc. The Gracenote logo and logo type, and
the “Powered by Gracenote” logo are trademarks of
Gracenote.
Page 5 of 340

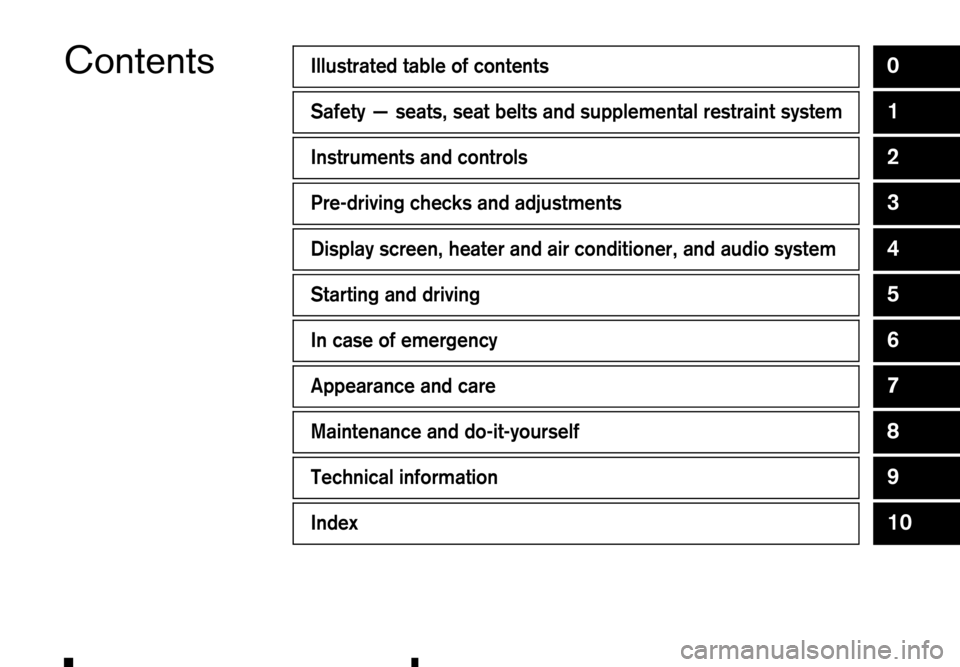

ContentsIllustrated table of contents0
Safety
—seats, seat belts and supplemental restraint system1
Instruments and controls2
Pre-driving checks and adjustments3
Display screen, heater and air conditioner, and audio system4
Starting and driving5
In case of emergency6
Appearance and care7
Maintenance and do-it-yourself8
Technical information9
Index10
Page 6 of 340
Page 7 of 340

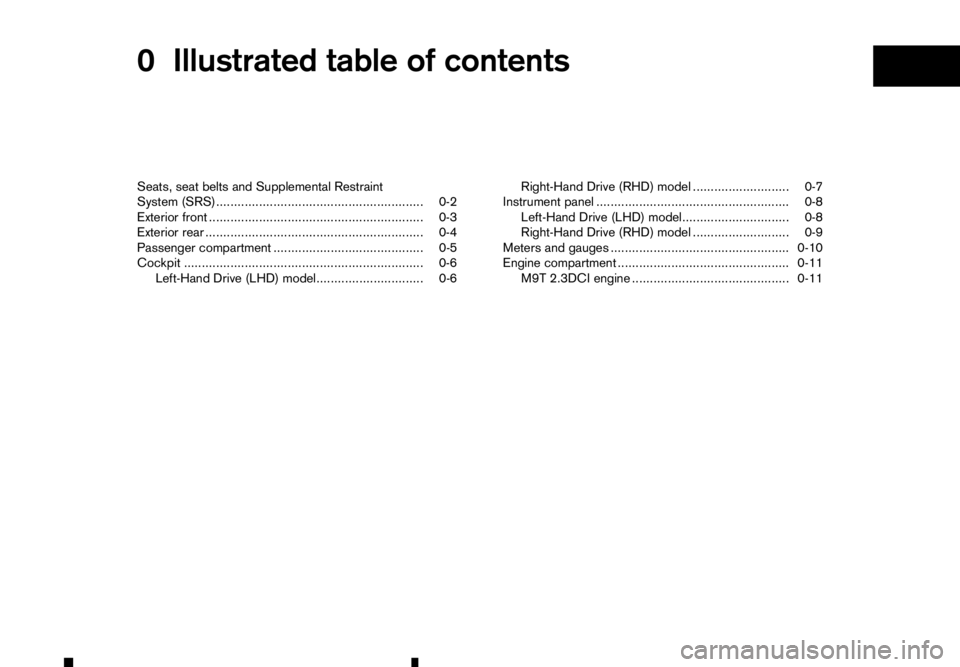

0
Illustrated table of contents
Illustrated table of contents
Seats, seat belts and Supplemental Restraint
System (SRS).......................................................... 0-2
Exterior front ............................................................ 0-3
Exterior rear ............................................................. 0-4
Passenger compartment .......................................... 0-5
Cockpit ................................................................... 0-6 Left-Hand Drive (LHD) model.............................. 0-6 Right-Hand Drive (RHD) model ........................... 0-7
Instrument panel ...................................................... 0-8 Left-Hand Drive (LHD) model.............................. 0-8
Right-Hand Drive (RHD) model ........................... 0-9
Meters and gauges .................................................. 0-10
Engine compartment ................................................ 0-11 M9T 2.3DCI engine ............................................ 0-11
Page 8 of 340
1.
Supplemental front-impact air bags* (P. 1-29)
2. Front passenger air bag switch* (P. 1-38)
3. Supplemental curtain side-impact air bags*
(P. 1-30)
4. Seat belts (P. 1-9)
5. Head restraints (P. 1-6) 6.
Child restraint anchor point* (for top tether
strap child restraint) (P. 1-21)
7. Rear seats* (P. 1-5) or Jump seat* (P. 1-6)
8. Supplemental side-impact air bags* (P. 1-30)
9. Pre-tensioner seat belt system* (P. 1-34)
10. Front seats (P. 1-2) 11.
Supplemental driver’s knee air bag* (P. 1-29)
*: where fitted NIC2797
SEATS, SEAT BELTS AND SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
0-2 Illustrated table of contents
Page 9 of 340

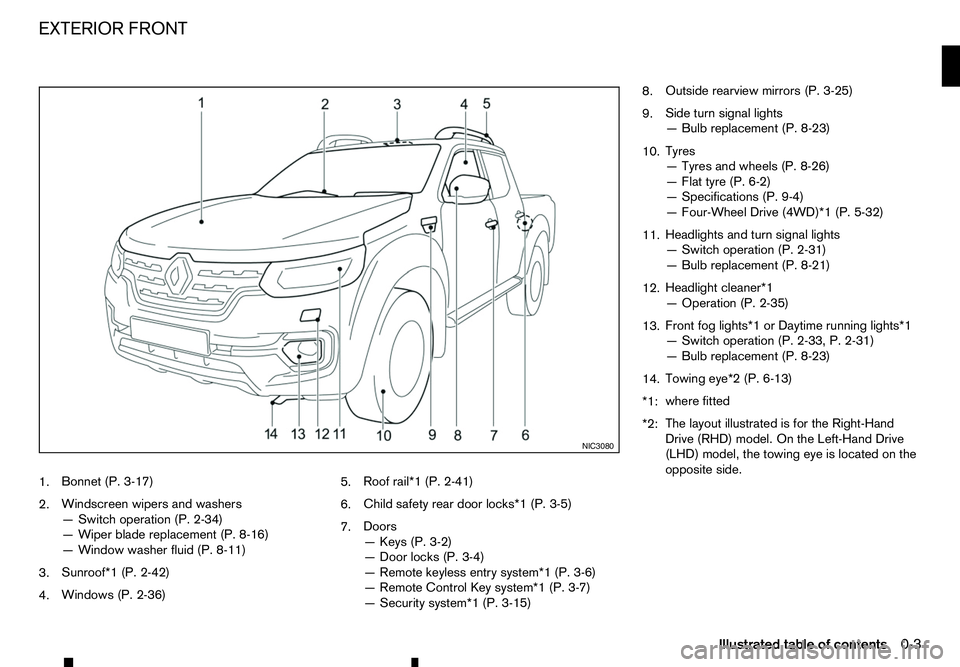

1.
Bonnet (P. 3-17)
2. Windscreen wipers and washers
—S
witch operation (P. 2-34)
—W iper blade replacement (P. 8-16)
—W indow washer fluid (P. 8-11)
3. Sunroof*1 (P. 2-42)
4. Windows (P. 2-36) 5.
Roof rail*1 (P. 2-41)
6. Child safety rear door locks*1 (P. 3-5)
7. Doors
—K
eys (P. 3-2)
—D oor locks (P. 3-4)
—R emote keyless entry system*1 (P. 3-6)
—R emote Control Key system*1 (P. 3-7)
—S ecurity system*1 (P. 3-15) 8.
Outside rearview mirrors (P. 3-25)
9. Side turn signal lights
—B
ulb replacement (P. 8-23)
10. Tyres
—T
yres and wheels (P. 8-26)
—F lat tyre (P. 6-2)
—S pecifications (P. 9-4)
—F our-Wheel Drive (4WD)*1 (P. 5-32)
11. Headlights and turn signal lights
—S
witch operation (P. 2-31)
—B ulb replacement (P. 8-21)
12. Headlight cleaner*1
—O
peration (P. 2-35)
13. Front fog lights*1 or Daytime running lights*1
—S
witch operation (P. 2-33, P. 2-31)
—B ulb replacement (P. 8-23)
14. Towing eye*2 (P. 6-13)
*1: where fitted
*2: The layout illustrated is for the Right-Hand
Drive (RHD) model. On the Left-Hand Drive
(LHD) model, the towing eye is located on the
opposite side. NIC3080
EXTERIOR FRONT
Illustrated table of contents0-3
Page 10 of 340

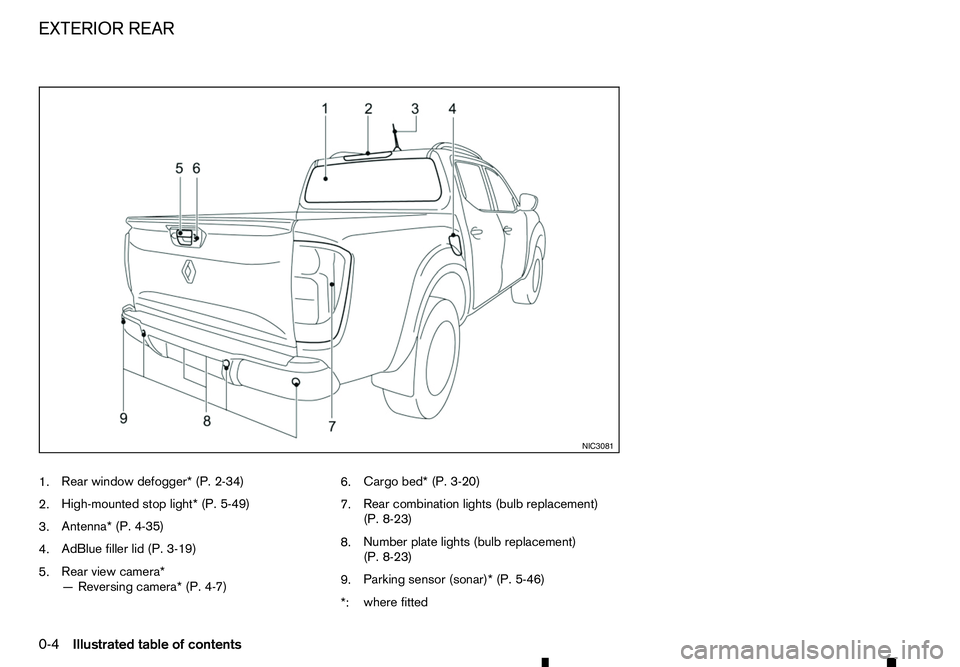

1.
Rear window defogger* (P. 2-34)
2. High-mounted stop light* (P. 5-49)
3. Antenna* (P. 4-35)
4. AdBlue filler lid (P. 3-19)
5. Rear view camera*
—R
eversing camera* (P. 4-7) 6.
Cargo bed* (P. 3-20)
7. Rear combination lights (bulb replacement)
(P. 8-23)
8. Number plate lights (bulb replacement)
(P. 8-23)
9. Parking sensor (sonar)* (P. 5-46)
*: where fitted NIC3081
EXTERIOR REAR
0-4 Illustrated table of contents
