SEAT BELTS

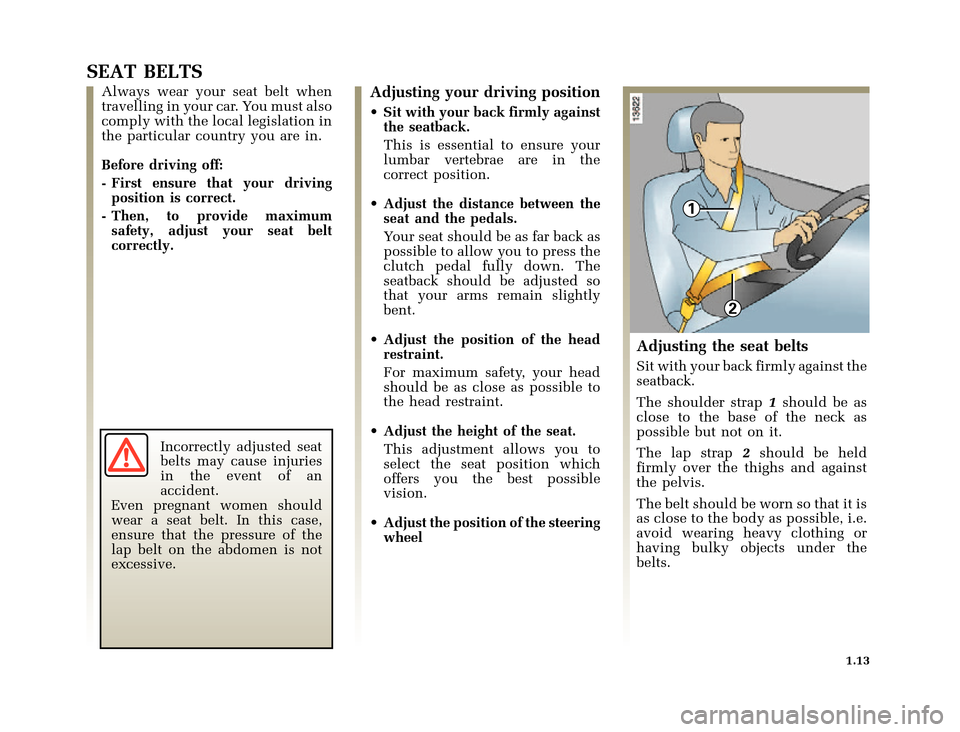

Always wear your seat belt when
travelling in your car. You must also
comply with the local legislation in
the particular country you are in.
Before driving off:
- First ensure that your driving
position is correct.
- Then, to provide maximum
safety, adjust your seat belt
correctly.
Incorrectly adjusted seat
belts may cause injuries
in the event of an
accident.
Even pregnant women should
wear a seat belt. In this case,
ensure that the pressure of the
lap belt on the abdomen is not
excessive.Adjusting your driving position
• Sit with your back firmly against
the seatback.
This is essential to ensure your
lumbar vertebrae are in the
correct position.
•Adjust the distance between the
seat and the pedals.
Your seat should be as far back as
possible to allow you to press the
clutch pedal fully down. The
seatback should be adjusted so
that your arms remain slightly
bent.
•Adjust the position of the head
restraint.
For maximum safety, your head
should be as close as possible to
the head restraint.
•Adjust the height of the seat.
This adjustment allows you to
select the seat position which
offers you the best possible
vision.
•Adjust the position of the steering
wheel
Adjusting the seat belts
Sit with your back firmly against the
seatback.
The shoulder strap1should be as
close to the base of the neck as
possible but not on it.
The lap strap2should be held
firmly over the thighs and against
the pelvis.
The belt should be worn so that it is
as close to the body as possible, i.e.
avoid wearing heavy clothing or
having bulky objects under the
belts.
Page 22 of 184
3
45
66
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page22
1.14
SEAT BELTS(continued)

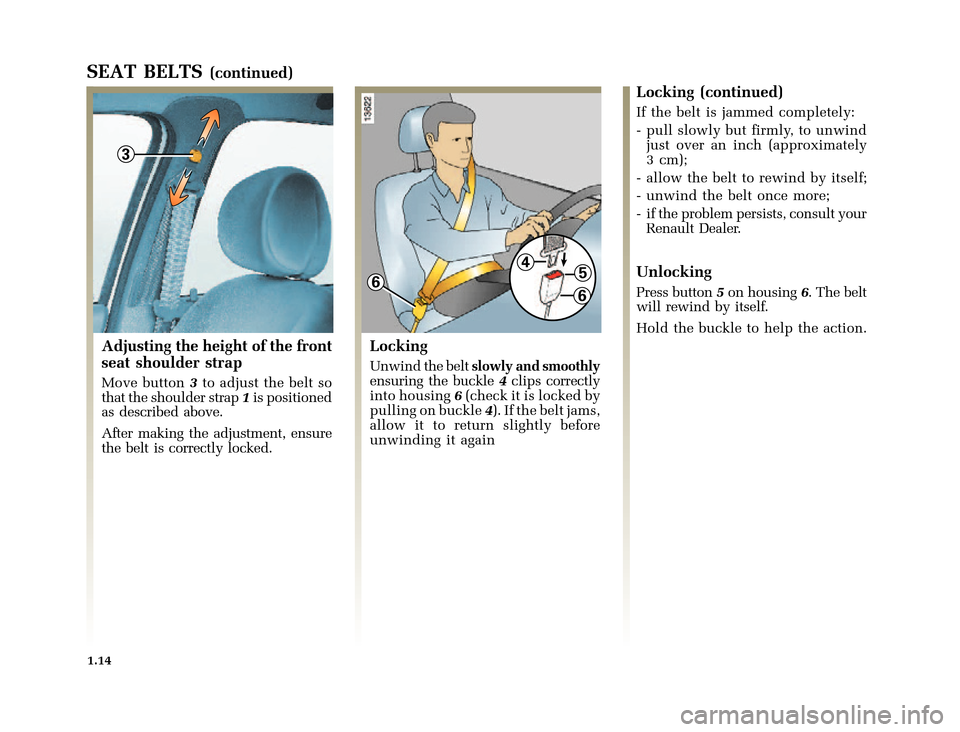

Adjusting the height of the front
seat shoulder strap
Move button3to adjust the belt so
that the shoulder strap1is positioned
as described above.
After making the adjustment, ensure
the belt is correctly locked.
Locking
Unwind the beltslowly and smoothly
ensuring the buckle4clips correctly
into housing6(check it is locked by
pulling on buckle4). If the belt jams,
allow it to return slightly before
unwinding it again
Locking (continued)
If the belt is jammed completely:
- pull slowly but firmly, to unwind
just over an inch (approximately
3cm);
- allow the belt to rewind by itself;
- unwind the belt once more;
- if the problem persists, consult your
Renault Dealer.
Unlocking
Press button5on housing6. The belt
will rewind by itself.
Hold the buckle to help the action.
Page 23 of 184
1
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page23
1.15
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELT
These are:
OFront seat belt pretensioners.
OForce limiter.
OAir bags for driver and front
passenger.
These systems are provided to act
independently or together when the
vehicle is subjected to a frontal
impact.
There are three possibilities,
depending on the force of the
impact:
- protection is provided by the belt
only;
- the pretensioner is triggered to
rectify belt position and play;
- if the air bag and force limiter are
triggered, they provide additional
protection in the event of the most
severe impact.
OSide air bags
Areprovidedtoactivateinthe
event of a severe side impact.
Front seat belt pretensioners
The system is only operational once
the ignition has been switched on.
If the vehicle is subject to a
severefrontalimpact, piston1
immediately retracts the seat belt
buckle, pulling the seat belt tight
against the body and thereby
improving its efficiency.• Following an accident,
have all the restraint
systems checked.
• No operations whatsoever are
permitted on any part of the
pretensioner system (computer,
wiring).
• To avoid incorrect triggering
of the system which may
cause damage, only qualified
personnel of the Renault
Networkmayworkonthe
pretensioner system.
• Electrical testing of the trigger
system may only be carried
out by a specially trained
technician using special
equipment.
• When the vehicle is scrapped,
contact your Renault Dealer for
disposal of the gas generator.
Page 24 of 184
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page24
1.16
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS(continued)

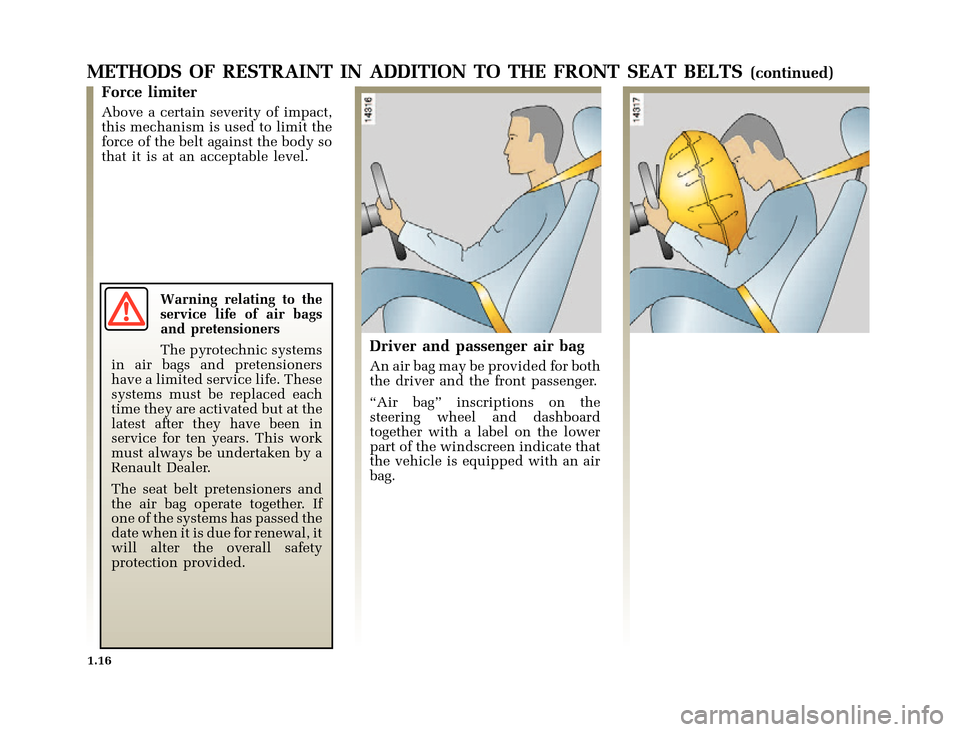

Force limiter
Above a certain severity of impact,
this mechanism is used to limit the
force of the belt against the body so
that it is at an acceptable level.
Warning relating to the
service life of air bags
and pretensioners
The pyrotechnic systems
in air bags and pretensioners
have a limited service life. These
systems must be replaced each
time they are activated but at the
latest after they have been in
service for ten years. This work
must always be undertaken by a
Renault Dealer.
The seat belt pretensioners and
the air bag operate together. If
one of the systems has passed the
date when it is due for renewal, it
will alter the overall safety
protection provided.
Driver and passenger air bag
An air bag may be provided for both
the driver and the front passenger.
“Air bag” inscriptions on the
steering wheel and dashboard
together with a label on the lower
part of the windscreen indicate that
the vehicle is equipped with an air
bag.
Page 25 of 184
1
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page25
1.17
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELT(continued)
Driver and passenger
air bag (continued)
Each air bag system consists of:
- An air bag and gas generator fitted
on the steering wheel for the
driver and in the dashboard for the
front passenger;
- A computer for both systems,
which includes the impact
detector and a monitor controlling
the electrical trigger system for the
gas generator;
- One single tell-tale light1on the
instrument panel.Operation
The system is only operational after
the ignition has been turned on
(ignition key in position“M”
ignition on).
If a severefrontalimpact occurs, the
air bag(s) inflate(s) in approximately
30 millisecond(s), cushioning the
impact of the driver’s head against
the steering wheel and the front
passenger’s head against the
dashboard. The air bag then deflates
immediately so that the passengers
are not impeded in any way when
they get out of the vehicle.
The air bag system uses the
principles of pyrotechnics. This
explains why, when the air bag
inflates, it will generate heat,
produce smoke (this does not mean
that a fire is about to start) and
make a noise upon detonation. In a
situation where an air bag is
required, it must inflate
immediately and this may cause
some minor, superficial grazing to
the skin.Operating fault
Tell-tale light1illuminates on the
instrument panel when the ignition
is turned on and then extinguishes
after a few seconds.
If it does not illuminate when the
ignition is turned on or if it flashes,
there is a fault in the system.
Consult your Renault Dealer as soon
as possible. Your protection will be
reduced until this problem is
rectified.
Page 26 of 184
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page26
1.18
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELT(continued)
All the warnings given below are designed to ensure that the air bag can inflate correctly and to prevent serious injuries
caused by items which may be dislodged when the air bag inflates.
The air bag is designed to complement the action of the seat belt. Both the air bags and seat belts are integral parts
of the same protection system. It is therefore essential to wear the seat belt at all times. If the seat belt is not worn,
it exposes the occupants to the risk of serious injury in the event of an accident. It may also increase the risk of
minor, superficial injuries occurring when the air bag is deployed, although such minor injuries are always
possible with air bags.
The air bag does not offer protection against minor and moderately serious frontal impacts, side or rear impacts or if the
vehicle turns over.
Air bags for driver and passenger
• No work or modification whatsoevermay be performed on the entire air bag system for the driver and passenger
(computer, wiring, etc.) except by qualified Renault network personnel.
• To ensure that the system is in good working order and to avoid incorrect triggering of the system which may cause
injury, only qualified Renault network personnel may work on the air bag system.
• As a safety precaution, have the air bag system checked if your vehicle has been involved in an accident, is stolen or
broken into.
• When selling or lending the vehicle, inform the user of these points and hand over this handbook with the vehicle.
• When scrapping your vehicle, contact your Renault Dealer for disposal of the gas generator(s).
Page 27 of 184
1
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page27
1.19
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELT(continued)

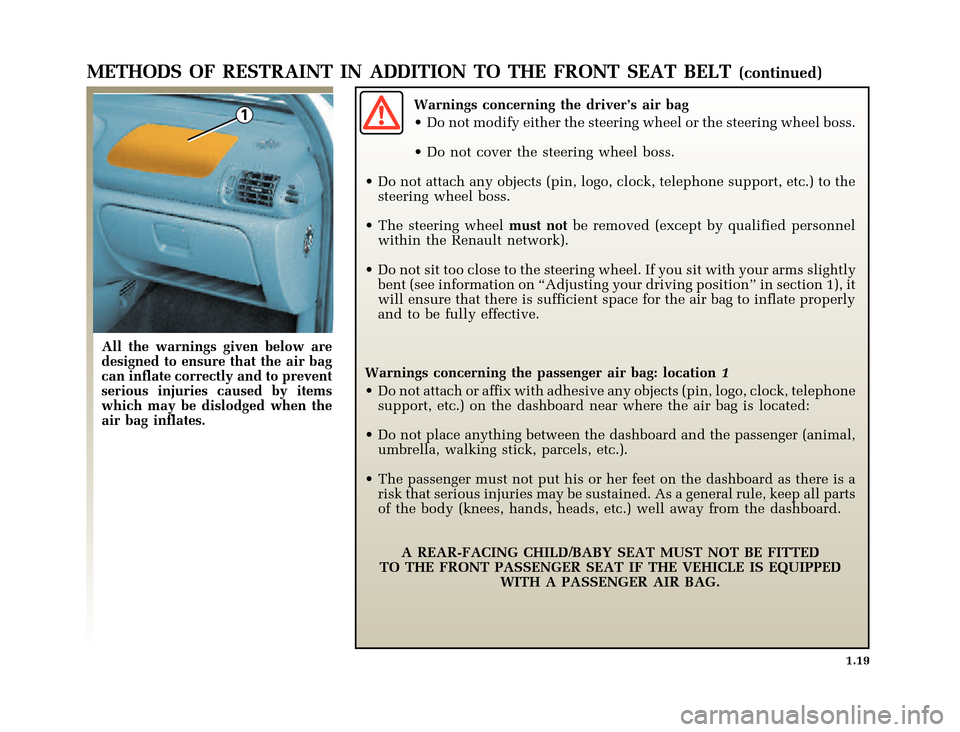

All the warnings given below are
designed to ensure that the air bag
can inflate correctly and to prevent
serious injuries caused by items
which may be dislodged when the
air bag inflates.Warnings concerning the driver’s air bag
•Do not modify either the steering wheel or the steering wheel boss.
• Do not cover the steering wheel boss.
• Do not attach any objects (pin, logo, clock, telephone support, etc.) to the
steering wheel boss.
• The steering wheelmust notbe removed (except by qualified personnel
within the Renault network).
• Do not sit too close to the steering wheel. If you sit with your arms slightly
bent (see information on “Adjusting your driving position” in section 1), it
will ensure that there is sufficient space for the air bag to inflate properly
and to be fully effective.
Warnings concerning the passenger air bag: location1
•Do not attach or affix with adhesive any objects (pin, logo, clock, telephone
support, etc.) on the dashboard near where the air bag is located:
• Do not place anything between the dashboard and the passenger (animal,
umbrella, walking stick, parcels, etc.).
• The passenger must not put his or her feet on the dashboard as there is a
risk that serious injuries may be sustained. As a general rule, keep all parts
of the body (knees, hands, heads, etc.) well away from the dashboard.
A REAR-FACING CHILD/BABY SEAT MUST NOT BE FITTED
TO THE FRONT PASSENGER SEAT IF THE VEHICLE IS EQUIPPED
WITH A PASSENGER AIR BAG.
Page 28 of 184
11
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page28
1.20
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELT(continued)

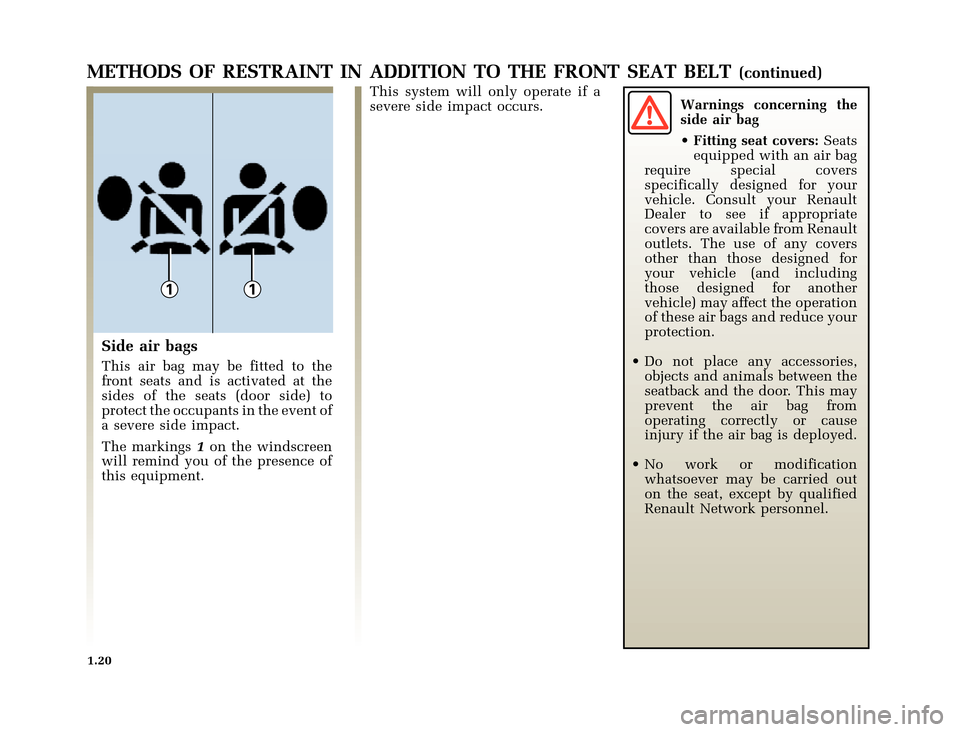

Side air bags
This air bag may be fitted to the
front seats and is activated at the
sides of the seats (door side) to
protect the occupants in the event of
a severe side impact.
The markings1on the windscreen
will remind you of the presence of
this equipment.This system will only operate if a
severe side impact occurs.Warnings concerning the
side air bag
• Fitting seat covers:Seats
equipped with an air bag
require special covers
specifically designed for your
vehicle. Consult your Renault
Dealer to see if appropriate
covers are available from Renault
outlets. The use of any covers
other than those designed for
your vehicle (and including
those designed for another
vehicle) may affect the operation
of these air bags and reduce your
protection.
• Do not place any accessories,
objects and animals between the
seatback and the door. This may
prevent the air bag from
operating correctly or cause
injury if the air bag is deployed.
• No work or modification
whatsoever may be carried out
on the seat, except by qualified
Renault Network personnel.
Page 29 of 184
3
4
2
1
2
43
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page29
1.21

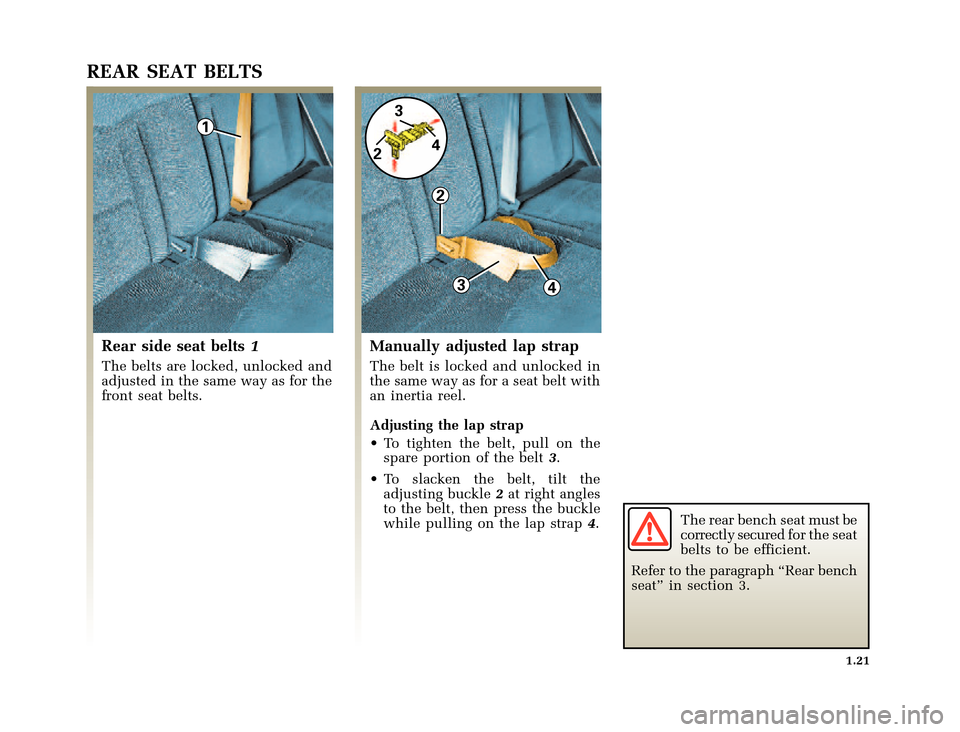

REAR SEAT BELTS
Rear side seat belts1
The belts are locked, unlocked and
adjusted in the same way as for the
front seat belts.
Manually adjusted lap strap
The belt is locked and unlocked in
the same way as for a seat belt with
an inertia reel.
Adjusting the lap strap
• To tighten the belt, pull on the
spare portion of the belt3.
• To slacken the belt, tilt the
adjusting buckle2at right angles
to the belt, then press the buckle
while pulling on the lap strap4.The rear bench seat must be
correctly secured for the seat
belts to be efficient.
Refer to the paragraph “Rear bench
seat” in section 3.
Page 30 of 184
1
3
2
5
A
B
4
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page30
1.22
REAR SEAT BELTS

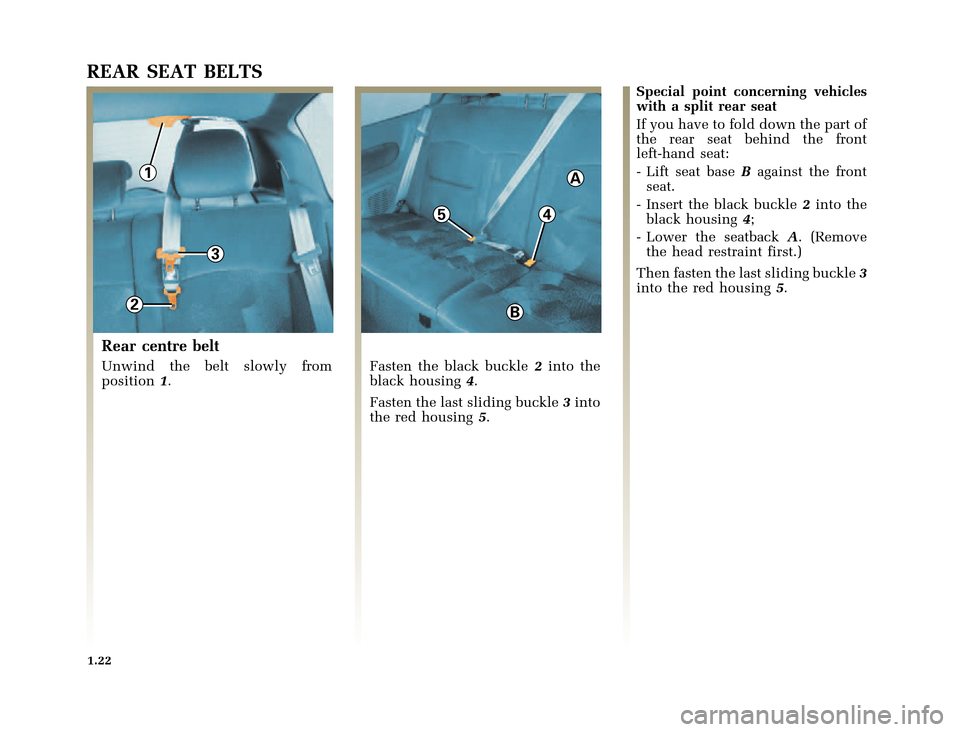

Rear centre belt
Unwind the belt slowly from
position1.Fasten the black buckle2into the
black housing4.
Fasten the last sliding buckle3into
the red housing5.Special point concerning vehicles
with a split rear seat
If you have to fold down the part of
the rear seat behind the front
left-hand seat:
-LiftseatbaseBagainst the front
seat.
- Insert the black buckle2into the
black housing4;
- Lower the seatbackA. (Remove
the head restraint first.)
Then fasten the last sliding buckle3
into the red housing5.
