DRIVER’S LAYOUT, LEFT HAND DRIVE(continued)
The equipment fitted, described below, depends on the version, option and country.
1Demister outlet for left hand
side window.
2Left hand side vent.
3Stalk for:
• direction indicators,
• external lighting,
• front fog lights,
• rear fog lights,
• horn.
4Control instruments.
5Driver’s air bag location.
6Radio remote control.
7• Stalk for windscreen and rear
screen wash / wipe.
• On-board computer
information readout control.
8Central vents.9Display:
• clock,
• clock and temperature,
• radio, clock and temperature,
or storage tray.
10Warning lights for:
• driver’s seat belt not fastened,
• door(s) opened.
11Storage tray or passenger air
bag location.
12Right hand side vent.
13Demister outlet for right hand
side window.
14Glove box.
15Storage tray.
16Radio location or storage tray.
17Heating and ventilation,
recycled air and rear screen
de-icing controls.
18Central locking switch or
blanking cover.19Cigar lighter.
20Hazard warning lights switch.
21Handbrake.
22Ashtray.
23Gear lever.
24Ignition switch.
25Horn.
26Control for adjusting steering
wheel height.
27Storage tray.
28Controls for:
• electrical adjustment of the
headlight beam height,
• dashboard lighting rheostat,
• heated seats,
or blanking covers.
29Bonnet release control.
30Fuse box.

12 3 4567 8910111213
30 29 28 27 26 25 18 17 16 15 14
24 23 22 21 20 19



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page42
1.34

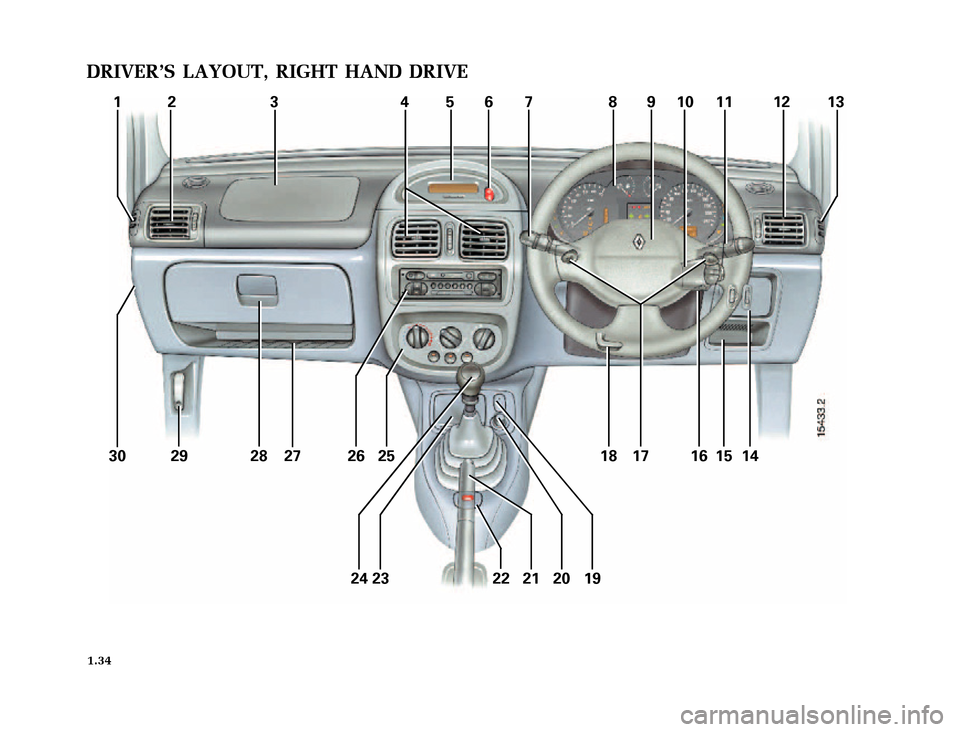

DRIVER’S LAYOUT, RIGHT HAND DRIVE



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page43
1.35
DRIVER’S LAYOUT, RIGHT HAND DRIVE(continued)
The equipment fitted, described below, depends on the version, option and country.
1Demister outlet for left hand
side window.
2Left hand side vent.
3Storage tray or passenger air
bag location.
4Central vents.
5Display:
• clock,
• clock and temperature,
• radio, clock and temperature,
or storage tray.
6Warning lights for:
• driver’s seat belt not fastened,
• door(s) open.
7Stalk for:
• direction indicators,
• external lighting,
• front fog lights,
• rear fog lights,
• horn.
8Control instruments.
9Driver’s air bag location.10Radio remote control.
11• Stalk for windscreen and rear
screen wash / wipe.
• On-board computer
information readout control.
12Right hand side vent.
13Demister outlet for right hand
side window.
14Controls for:
• electrical adjustment of the
headlight beam height,
• dashboard lighting rheostat,
• heated seats,
or storage tray.
15Storage tray.
16Ignition switch.
17Horn.
18Control for adjusting steering
wheel height.19Central locking switch or
blanking cover.
20Cigar lighter.
21Handbrake.
22Hazard warning lights switch.
23Ashtray.
24Gear lever.
25Heating and ventilation,
recycled air and rear screen
de-icing controls.
26Radio location or storage tray.
27Storage tray.
28Glove box.
29Bonnet release control.
30Fuse box.

1234 567
11 10 9 8



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page44
1.36
INSTRUMENT PANEL
If these warning lights illuminate, you must stop as soon as traffic conditions allow.
+



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page45
1.37
INSTRUMENT PANEL(continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
1Fuel gauge
2Low fuel level warning
light
It extinguishes as soon
as the engine starts.
If it illuminates or remains
illuminated, fill up with fuel as
soon as possible.
Not used
Not used
Front fog lights
indicator light
Rear fog light indicator
light2Air bag warning light
This illuminates when
the ignition is switched
on and extinguishes after a few
seconds.
If it does not illuminate when
the ignition is switched on or if
it flashes, there is a fault in the
system. Consult your Renault
Dealer as soon as possible.
Main beam headlights
indicator light
Dipped beam headlights
indicator light
3Indicator light for
left-hand direction
indicators
4Speedometer(km or miles per
hour)5Indicator light for
right-hand direction
indicators
6Coolant temperature
warning light
If it illuminates when
you are driving, stop and let the
engine idle for one or two
minutes. The temperature
should drop. If it does not, stop
the engine and check the
coolant level(having let the
engine cool down).Call for the
assistance of a Renault Dealer if
necessary.
Engine immobiliser
warning light
This has several
functions. Refer to the
information on the engine
immobiliser in section 1.
Not used

1234 567
11 10 9 8
7a



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page46

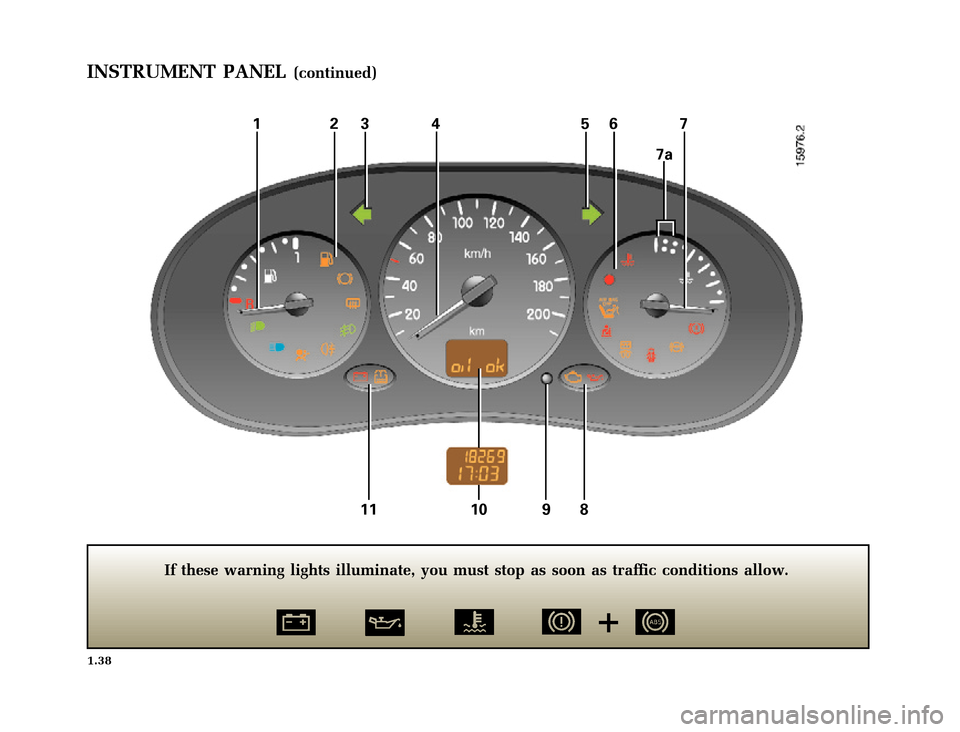

1.38
INSTRUMENT PANEL(continued)
If these warning lights illuminate, you must stop as soon as traffic conditions allow.
+



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page47
1.39
INSTRUMENT PANEL(continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
6Driver's seat belt not
fastened
Electronic fault warning
light (on petrol and
diesel versions) and
heater plugs “on”(on
diesel version).
•Electronic fault warning
light(on petrol and diesel
versions).
If this light illuminates when
you are driving, it indicates
an electrical or electronic
fault. Consult your Renault
Dealer as soon as possible.
•Preheating warning light(on
diesel version)
With the ignition key in
position M, this light should
illuminate. It indicates that
the heater plugs are switched
on. It goes out as soon as
preheating is sufficient and
the engine may be started.6“Door(s) open” warning
light
If it illuminates when
the ignition is switched on, it
indicates that a door is not
properly closed.
Anti-lock brake warning
light
This light illuminates
when the ignition is switched
on and extinguishes within 3
seconds. If it illuminates when
you are driving, it indicates an
fault in the anti-lock braking
system. Braking will then occur
normally but without the
anti-lock system.
Consult your Renault Dealer as
soon as possible.
Handbrake “on” and
brake circuit fault
warning light
If it illuminates when braking,
it indicates that the fluid level
in the circuit is low; it may be
dangerous to continue driving.
Call for the assistance of a
Renault Dealer.7Coolant temperature indicator
In normal use, the needle
should be below zone7a.
Under severe conditions the
needle may enter this area. This
is not serious unless warning
light illuminates.
8Oil pressure warning
light
It should extinguish as
soon as the engine starts; if it
illuminates when you are
driving, stop at once, switch off
the ignition
and check the oil level. If this is
normal, call for the assistance
of a Renault Dealer.

1234 567
11 10 9 8



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page48

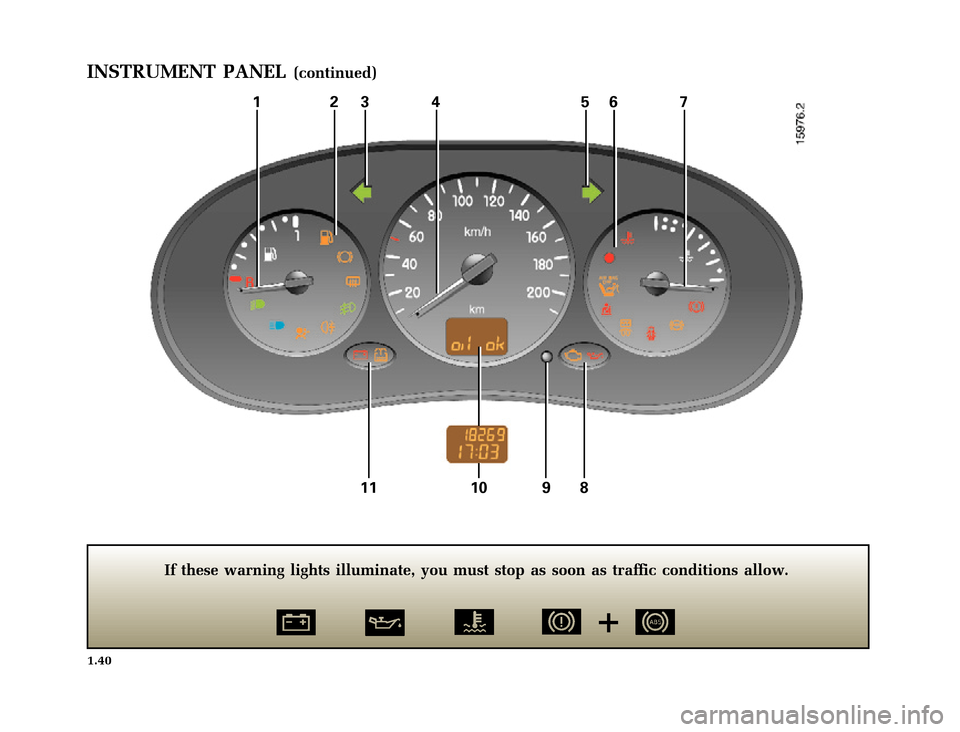

1.40
INSTRUMENT PANEL(continued)
If these warning lights illuminate, you must stop as soon as traffic conditions allow.
+



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page49
1.41
INSTRUMENT PANEL(continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
8Warning light for
monitoring exhaust gas
For vehicles equipped
with this option, the light
illuminates when the ignition
is switched on and
extinguishes within 3 seconds.
- If it is permanently lit, consult
your Renault Dealer as soon
as possible.
- If it flashes, reduce the engine
speed until the light stops
flashing. Consult your
Renault Dealer as soon as
possible.
Refer to the “Special features of
petrol version” in section 2.
9Multifunction key
Resetting the trip milometer
Press the button.
Setting the clock
Refertotheinformationonthe
clock in section 1.9Display selection keyfor total
and trip mileage
10Multifunction display
Oil level display function
The vehicle must be parked on
level ground and the engine
shouldhavebeenswitchedoff
for some time to obtain an
accurate level reading.
When ignition has been
switched on for approximately
30 seconds:
-if the level is correct,the
display will show “oil OK”
(To gain a more precise
indication of the level, press
the trip melometer reset
button or the information
scroll button on the onboard
computer for vehicles fitted
with this function. The
squares in the display
indicate the level. These
squares disappear as the oil
level drops and they are
replaced by dashes.
To move to milometer
reading, press the button
again).10Multifunction display
(continued)
-if the level is at its minimum,
theword“OK”willnot
appear on the display, the
dashes and the word “oil”
will flash.
It is vital to top up with oil as
soon as possible.
General mileage and trip
mileage counter and clock
Can be read approximately 30
seconds after the ignition is
switched on.
11Low headlight
wash/wipe fluid level
warning light
Fill up with fuel as soon as
soon as possible.
Battery charge warning
light
It should go out as soon
as the engine starts. If it
illuminates while you are
driving, it indicates that the
circuit is overcharging or
discharged. Stop and have the
circuit checked.

234a45
11 10 9 8 7
16



X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page50
1.42

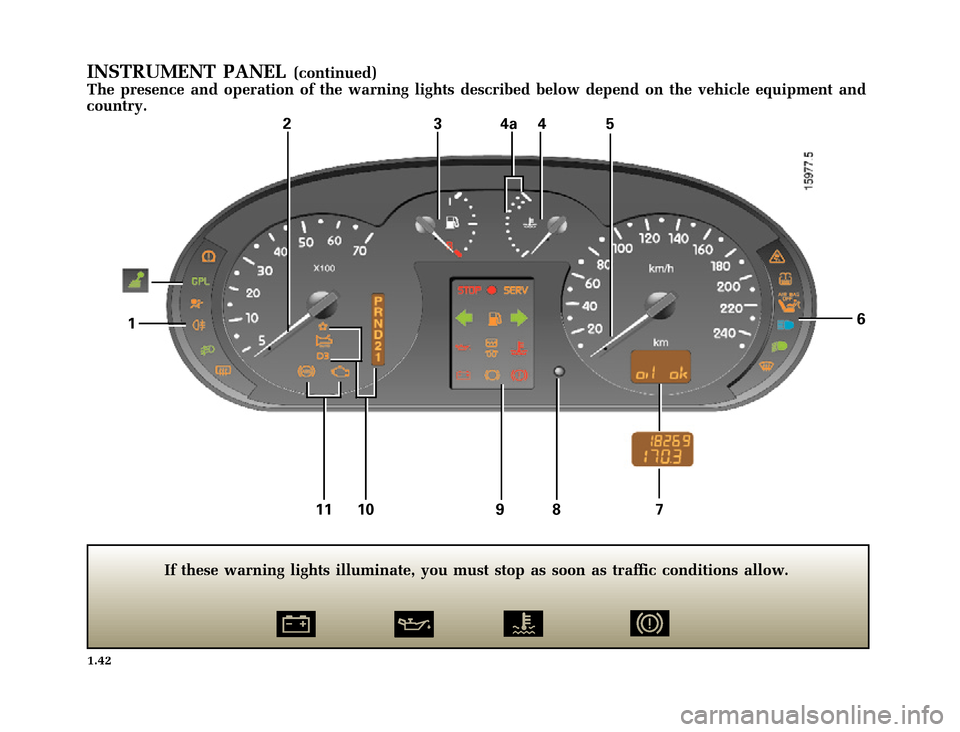

INSTRUMENT PANEL(continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
If these warning lights illuminate, you must stop as soon as traffic conditions allow.
