RENAULT CLIO 2000 X65 / 2.G Workshop Manual
Manufacturer: RENAULT, Model Year: 2000, Model line: CLIO, Model: RENAULT CLIO 2000 X65 / 2.GPages: 184, PDF Size: 8.45 MB
Page 51 of 184
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page51
1.43
INSTRUMENT PANEL(continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
1Not used
orOver-revving warning
light
Indicates that you need
to change gear.
Not used
Air bag warning light
This illuminates when
the ignition is switched
on and extinguishes after a few
seconds.
If it does not illuminate when
the ignition is turned on or if it
flashes, there is a fault in the
system. Consult your Renault
Dealer as soon as possible.
Rear fog light warning
light
Front fog lights
warning light1Not used
2Rev counter
(scale ×100)
Up to 3000 rpm (or 2500 rpm
on diesel versions),engine
speed not to be exceeded in the
intermediate gears for
economical driving
3Fuel level gauge
4Coolant temperature indicator
In normal use, the needle
should be below zone4a.
Under severe conditions the
needle may enter this area. This
is not serious unless warning
light illuminates.
5Speedometer(km or miles per
hour)6Not used
Low screen wash/wipe
fluid level warning
light
Fill up with fuel as soon as
soon as possible.
Not used
Headlight main beam
indicator light
Headlight dipped beam
indicator light
Windscreen demisting
indicator
Page 52 of 184
234a45
11 10 9 8 7
16

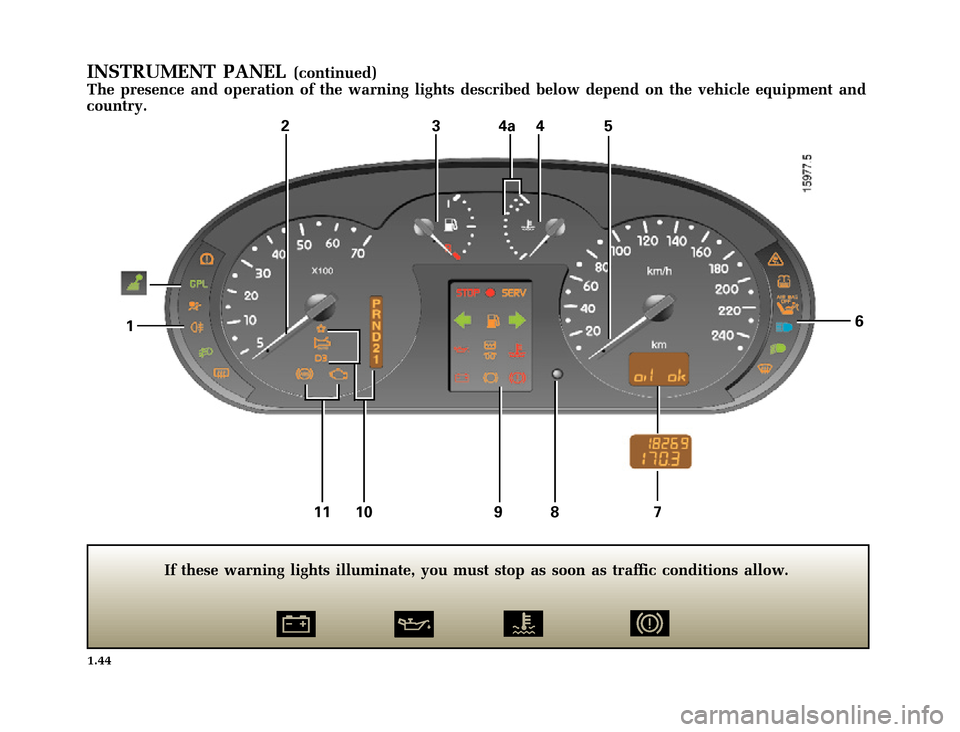

X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page52
1.44
INSTRUMENT PANEL(continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
If these warning lights illuminate, you must stop as soon as traffic conditions allow.
Page 53 of 184
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page53
1.45
INSTRUMENT PANEL(continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
7Multifunction display
• Oil level display function
The vehicle must be parked on
level ground and the engine
should have been switched off
forsometimetoobtainan
accurate level reading.
When ignition has been
switched on for approximately
30 seconds:
-if the level is correct,the
display will show “oil OK”
(Togainamoreprecise
indication of the level, press
the trip milometer reset
button or the information
scroll button on the onboard
computer for vehicles fitted
with this function. The
squares which appear on the
display indicate the level.
The number of squares
displayed reduces as the oil
level drops and they are
replaced by a dash.
To move to onboard
computer reading, press the
button again).
-if the level is at its minimum,
the word “OK” will not
appear on the display, the
dashes and the word “oil”
will flash and the SERV
warning light will illuminate.
It is vital to top up the oil as
soon as possible.7• Total mileage and trip
mileage recorder
Canbereadapproximately
30 seconds after the ignition
is switched on.
or
• On board computer display
After 30 seconds, the display
will toggle depending on the
onboard computer: see the
“onboard computer” para-
graph in section 1.
8Multifunction key
• Display selection
Press briefly to move from
the total mileage to the trip
mileage and vice versa.
•Trip mileage reset button
Once the display of the the
trip mileage is selected, press
the button and hold it down.
9STOP light
It extinguishes as soon
as the engine starts.
This illuminates together with
one of the warning lights:9Engine immobiliser
warning light
This light has several
functions.
Refer to the information on the
engine immobiliser in section 1.
SERVICE warning light
This light illuminates
when the ignition is
switched on and then
extinguishes within 3 seconds.
If it illuminates when the
vehicle is being driven, it is
advisable to stop at a Renault
Dealer soon.
It illuminates together with one
of the warning lights:
Indicator light for
left-hand direction
indicator
Page 54 of 184
234a45
11 10 9 8 7
16

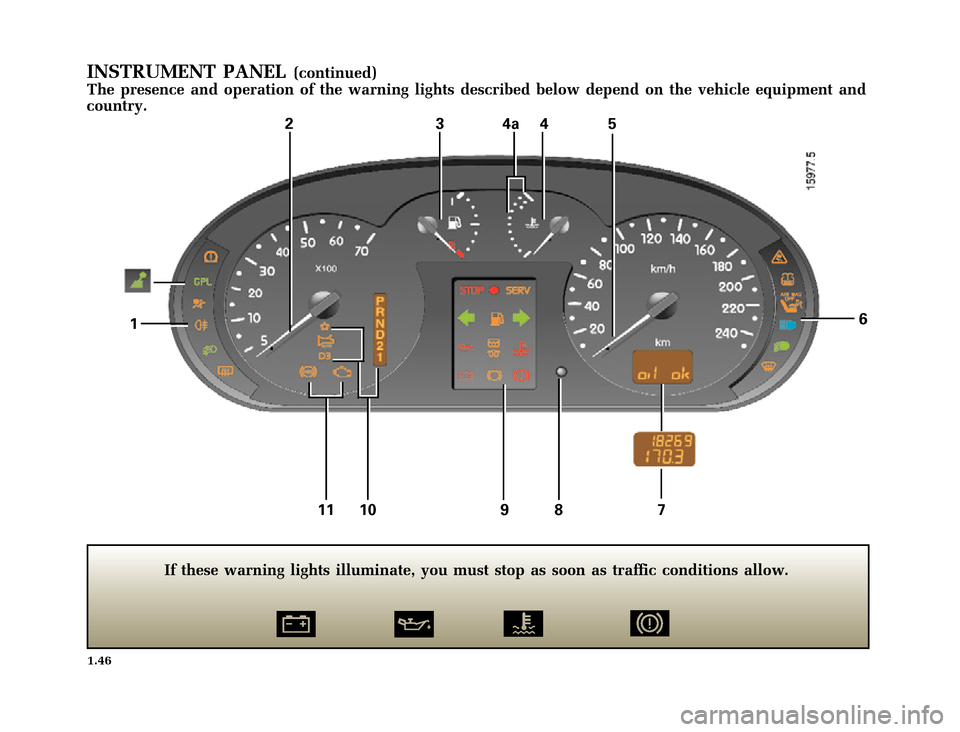

X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page54
1.46
INSTRUMENT PANEL(continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
If these warning lights illuminate, you must stop as soon as traffic conditions allow.
Page 55 of 184
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page55
1.47
INSTRUMENT PANEL(continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
9Low fuel-level warning
light
It extinguishes as soon
as the engine starts.
If it illuminates or remains
illuminated, fill up with fuel as
soon as possible.
Tell-tale light for
right-hand direction
indicators
Oil pressure warning
light
It should extinguish as
soon as the engine starts; if it
illuminates when you are
driving, stop at once, switch off
the ignition and check the oil
level. If this is normal, call for
the assistance of a Renault
Dealer.9Heater plugs “on”(on
diesel version)and
electronic incident
warning light(on petrol
and diesel versions).
• Heater plugs “on”
(on diesel version)
With the ignition key in
position M, this light should
illuminate. It indicates that
the heater plugs are switched
on. It goes out as soon as
preheating is sufficient and
the engine may be started.
•Electronic incident warning
light(on petrol and diesel
versions)
If it illuminates when you are
driving, it indicates an
electric or electronic fault.
Consult your Renault Dealer
as soon as possible.9Coolant temperature
warning light
It extinguishes as
soon as the engine starts. If it
illuminates when you are
driving, stop and let the engine
idle for a minute or two. The
temperature should drop. If it
does not, stop the engine and
check the coolant level (having
let the engine cool down). Call
for the assistance of a Renault
Dealer if necessary.
Battery charging
warning light
It should extinguish
as soon as the engine starts.
If it illuminates when you are
driving, it indicates that the
circuit is overcharging or
discharged. Stop and have the
circuit checked.
Page 56 of 184
234a45
11 10 9 8 7
16

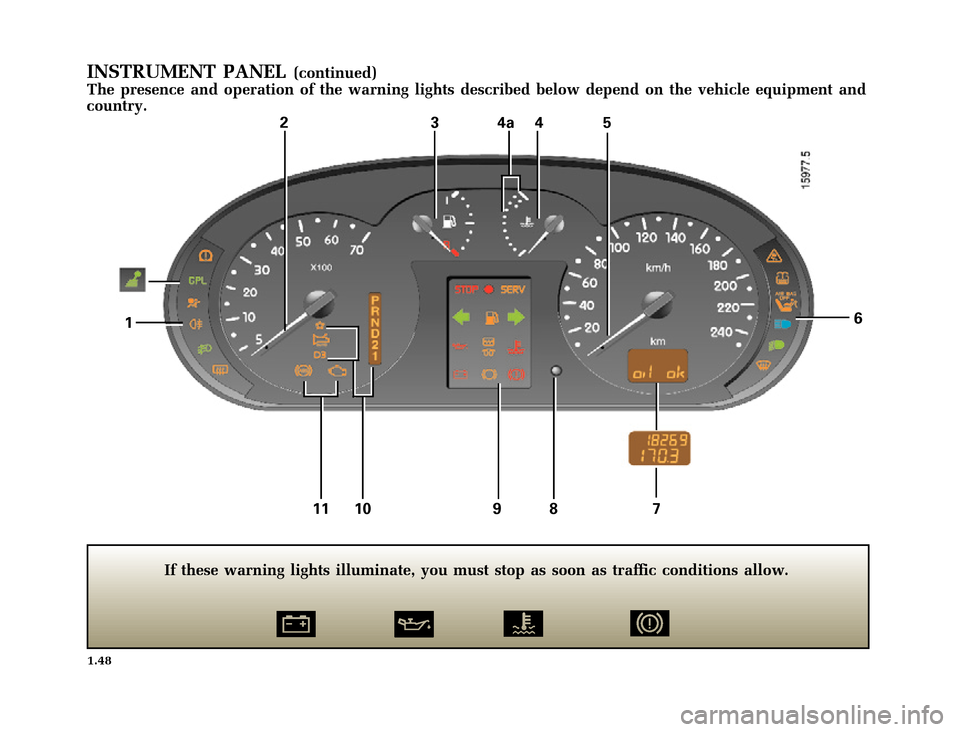

X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page56
1.48
INSTRUMENT PANEL(continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
If these warning lights illuminate, you must stop as soon as traffic conditions allow.
Page 57 of 184
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page57
1.49
INSTRUMENT PANEL(continued)
The presence and operation of the warning lights described below depend on the vehicle equipment and
country.
9Not used
Handbrake “on”
warning light and fault
sensor indicator light
on the brake circuit.
If it illuminates when the
brakes are applied, it indicates
that the fluid level in the circuit
is low. It may be dangerous to
continue driving. Call for the
assistance of a Renault Dealer.
10Lights linked to the function
and/or failure of the automatic
gearbox.
Refertotheinformationonthe
proactive automatic gearbox in
section 2.11Warning light for
monitoring exhaust gas
For vehicles equipped
with this option, the light
illuminates when the ignition
is switched on and
extinguishes within 3 seconds.
•Ifitilluminates
continuously, consult your
Renault Dealer as soon as
possible.
• If it flashes, reduce the
engine speed until the light
stops flashing. Consult your
Renault Dealer as soon as
possible.
Refer to the information on
anti-pollution, fuel economy
and driving in section 2.11Anti-lock brake
warning light
This illuminates when
the ignition is switched on and
extinguishes within 3 seconds.
If it illuminates when you are
driving, it indicates an fault in
the anti-lock braking system.
Braking will then occur
normally, without the anti-lock
system.
Consult your Renault Dealer as
soon as possible.
Page 58 of 184
12
3
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page58
1.50
ON-BOARD COMPUTER
1Display
2General reset and trip mileage
recorder reset button
To reset the trip mileage recorder,
the display must show the “trip
mileometer” function.
Automatic reset
Automatic resetting will occur
when the maximum of any of the
memories is exceeded.3Display selection button
Keep pressing button3to show the
following information in sequence:
a) total mileage recorder,
b) trip mileage recorder,
c) fuel used,
d) average consumption,
e) current consumption,
f) estimated range,
g) distance covered,
h) average speed.
Refer to the table on the next page
for examples of the displays.
Display flashing
If the display flashes, consult a
Renault Dealer.
Interpretation of certain values
displayed after resetting:
The values for average
consumption, range and average
speed become more stable and
more significant the further the
vehicle is driven after the last reset.In the first few miles after resetting,
you may notice:
• that the range increases as you
drive. This is normal as the average
consumption may reduce when:
- the vehicle is no longer
accelerating,
- the engine reaches normal
operating temperature (reset
when engine was cold),
- you drive from a built up area to
the open road.
If average consumption is
decreased, the expected range
will therefore increase.
• average consumption increases
when the vehicle is stationary and
idling.
This is normal as the computer
takes into account the fuel used
during idling.
Page 59 of 184
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page59
1.51
ON-BOARD COMPUTER(continued)
Examples of
display selections by
pressing button3Interpreting the display
a) Total mileage recorder.
b) Trip mileage recorder.
c) Fuel used(in litres or gallons) since the last reset.
d) Average consumption(in mpg or l/100 km) since the last reset.
The value is displayed after covering 400 metres taking into account the
distance covered and the fuel used since the last reset.
Page 60 of 184
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page60
1.52
ON-BOARD COMPUTER(continued)
Examples of
display selections by
pressing button3Interpreting the display
e) Current consumption(in mpg or litres/100 km)
The value is displayed after reaching a speed of 15 mph (25 km/h).
f) Estimated range with remaining fuel(in miles or km)
This function uses the average consumption since the last general reset.
The value is displayed after covering 400 metres.
g) Distance covered(in miles or km) since the last reset.
h) Average speed(in mph or km/h) since the last reset.
The value is displayed after covering 400 metres.
