RENAULT CLIO 2000 X65 / 2.G Repair Manual
Manufacturer: RENAULT, Model Year: 2000, Model line: CLIO, Model: RENAULT CLIO 2000 X65 / 2.GPages: 184, PDF Size: 8.45 MB
Page 61 of 184
1BA2C
D
E
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page61
1.53

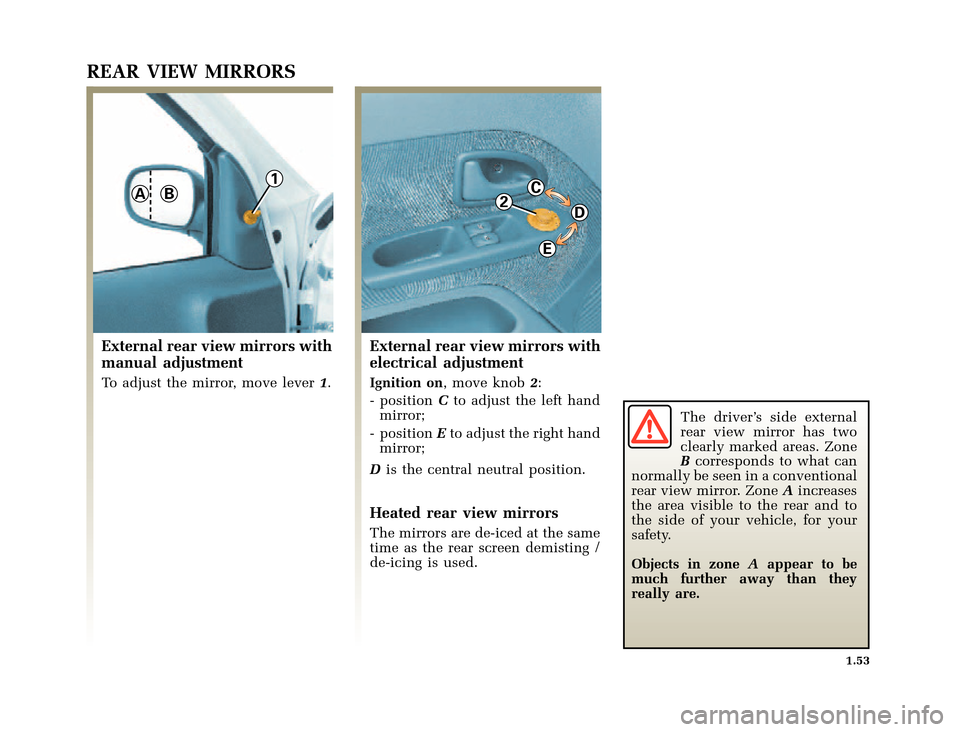

REAR VIEW MIRRORS
External rear view mirrors with
manual adjustment
To adjust the mirror, move lever1.
External rear view mirrors with
electrical adjustment
Ignition on,moveknob2:
- positionCto adjust the left hand
mirror;
- positionEto adjust the right hand
mirror;
Dis the central neutral position.
Heated rear view mirrors
The mirrors are de-iced at the same
time as the rear screen demisting /
de-icing is used.The driver’s side external
rear view mirror has two
clearly marked areas. Zone
Bcorresponds to what can
normally be seen in a conventional
rear view mirror. ZoneAincreases
the area visible to the rear and to
the side of your vehicle, for your
safety.
Objects in zoneAappear to be
much further away than they
really are.
Page 62 of 184
1
2
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page62
1.54

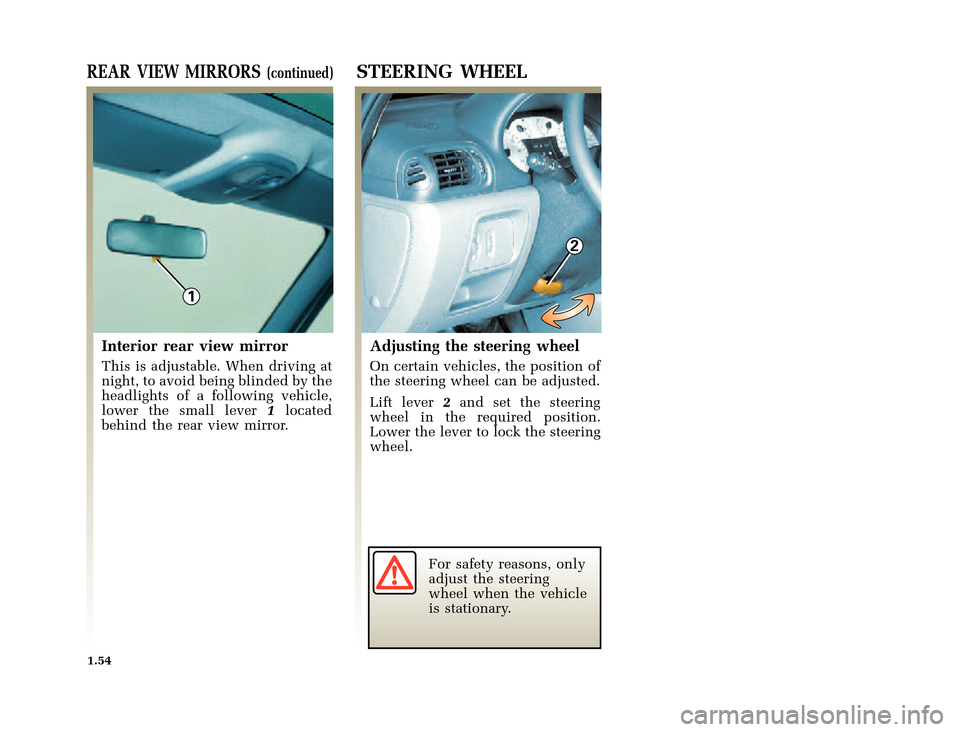

REAR VIEW MIRRORS(continued)STEERING WHEEL
Interior rear view mirror
This is adjustable. When driving at
night, to avoid being blinded by the
headlights of a following vehicle,
lower the small lever1located
behind the rear view mirror.
Adjusting the steering wheel
On certain vehicles, the position of
the steering wheel can be adjusted.
Lift lever2and set the steering
wheel in the required position.
Lower the lever to lock the steering
wheel.
For safety reasons, only
adjust the steering
wheel when the vehicle
is stationary.
Page 63 of 184
1
2
1
3
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page63
1.55

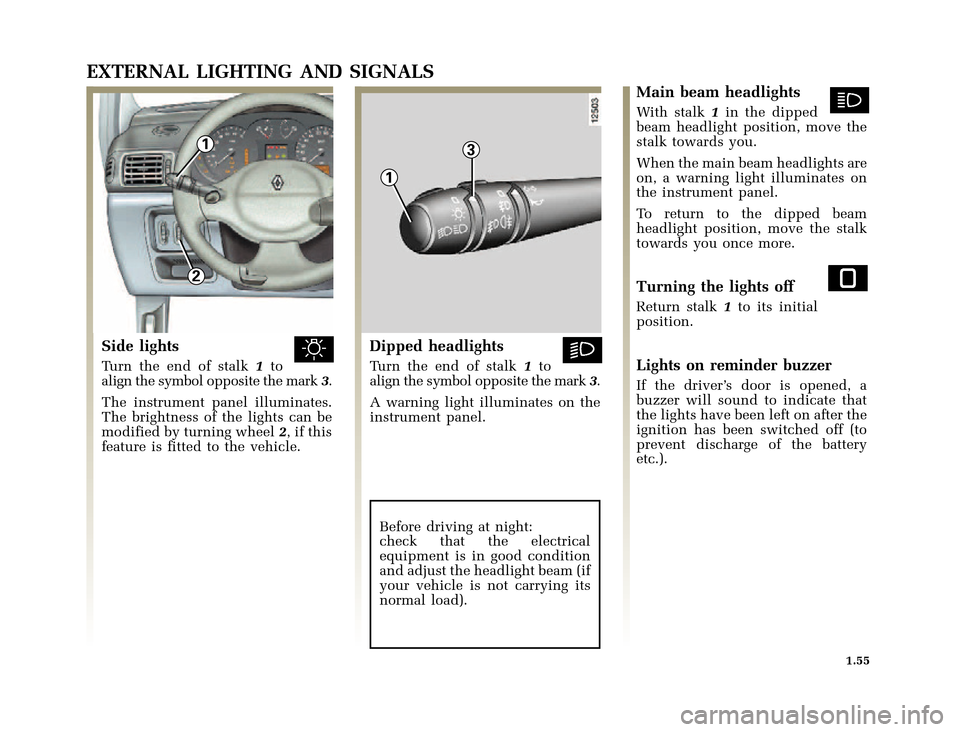

EXTERNAL LIGHTING AND SIGNALS
Side lights
Turn the end of stalk1to
align the symbol opposite the mark3.
The instrument panel illuminates.
The brightness of the lights can be
modified by turning wheel2,ifthis
feature is fitted to the vehicle.
Dipped headlights
Turn the end of stalk1to
align the symbol opposite the mark3.
A warning light illuminates on the
instrument panel.
Before driving at night:
check that the electrical
equipment is in good condition
and adjust the headlight beam (if
your vehicle is not carrying its
normal load).
Main beam headlights
With stalk1in the dipped
beam headlight position, move the
stalk towards you.
When the main beam headlights are
on, a warning light illuminates on
the instrument panel.
To return to the dipped beam
headlight position, move the stalk
towards you once more.
Turning the lights off
Return stalk1to its initial
position.
Lights on reminder buzzer
If the driver’s door is opened, a
buzzer will sound to indicate that
the lights have been left on after the
ignition has been switched off (to
prevent discharge of the battery
etc.).
Page 64 of 184
445
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page64
1.56

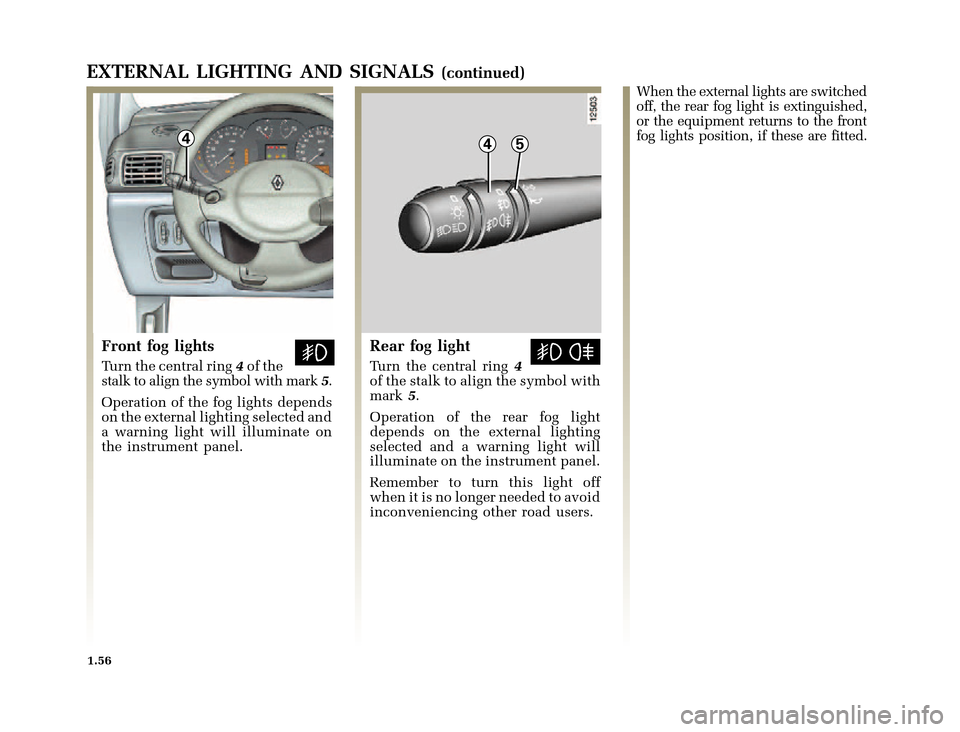

EXTERNAL LIGHTING AND SIGNALS(continued)
Front fog lights
Turn the central ring4of the
stalk to align the symbol with mark5.
Operation of the fog lights depends
on the external lighting selected and
a warning light will illuminate on
the instrument panel.
Rear fog light
Turn the central ring4
of the stalk to align the symbol with
mark5.
Operation of the rear fog light
depends on the external lighting
selected and a warning light will
illuminate on the instrument panel.
Remember to turn this light off
when it is no longer needed to avoid
inconveniencing other road users.When the external lights are switched
off, the rear fog light is extinguished,
or the equipment returns to the front
fog lights position, if these are fitted.
Page 65 of 184
A
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page65
1.57

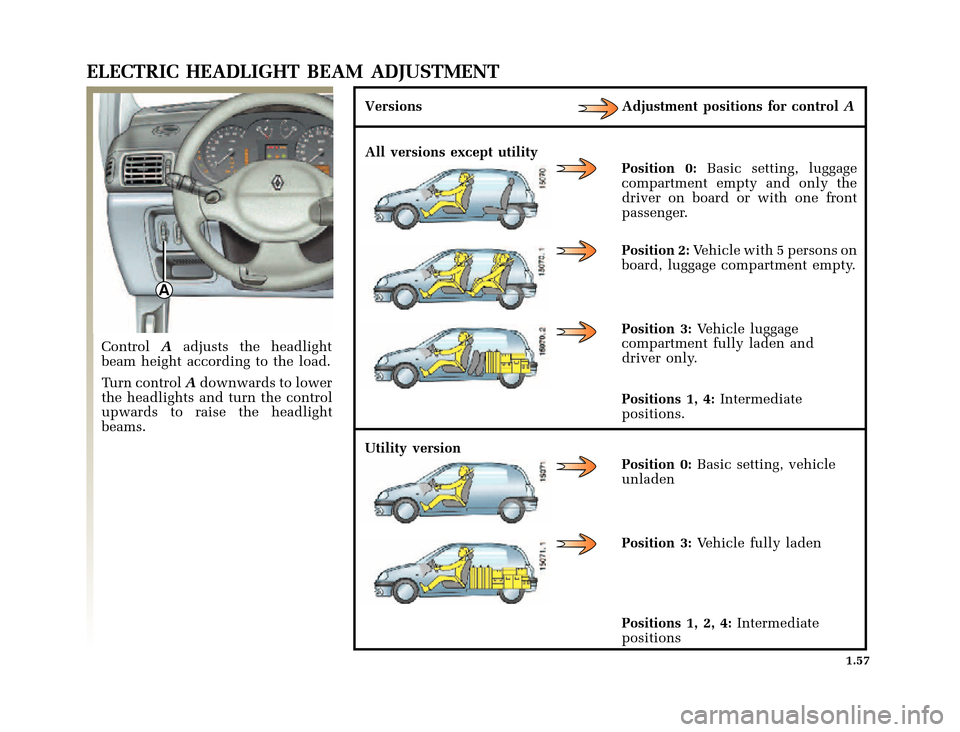

ELECTRIC HEADLIGHT BEAM ADJUSTMENT
ControlAadjusts the headlight
beam height according to the load.
Turn controlAdownwards to lower
the headlights and turn the control
upwards to raise the headlight
beams.Versions
All versions except utility
Utility versionAdjustment positions for controlA
Position 0:Basic setting, luggage
compartment empty and only the
driver on board or with one front
passenger.
Position 2:Vehicle with 5 persons on
board, luggage compartment empty.
Position 3:Vehicle luggage
compartment fully laden and
driver only.
Positions 1, 4:Intermediate
positions.
Position 0:Basic setting, vehicle
unladen
Position 3:Vehicle fully laden
Positions 1, 2, 4:Intermediate
positions
Page 66 of 184
A
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page66
1.58

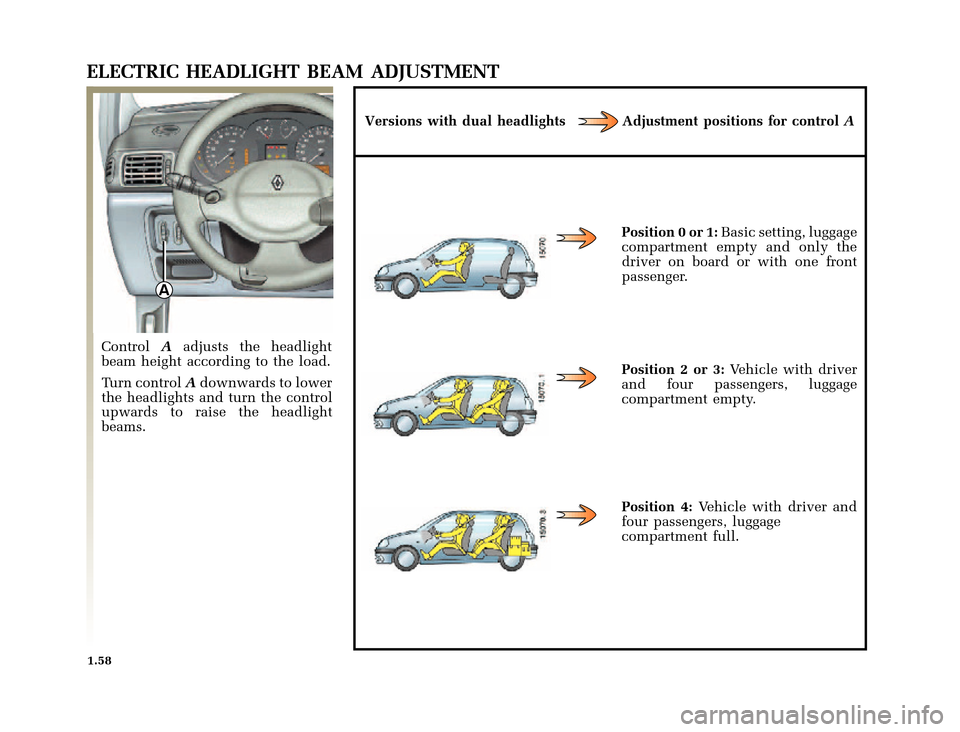

ELECTRIC HEADLIGHT BEAM ADJUSTMENT
ControlAadjusts the headlight
beam height according to the load.
Turn controlAdownwards to lower
the headlights and turn the control
upwards to raise the headlight
beams.Versions with dual headlights Adjustment positions for controlA
Position 0 or 1:Basic setting, luggage
compartment empty and only the
driver on board or with one front
passenger.
Position 2 or 3:Vehicle with driver
and four passengers, luggage
compartment empty.
Position 4:Vehicle with driver and
four passengers, luggage
compartment full.
Page 67 of 184
1
A
B
C
D
1
E
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page67
1.59
WINDSCREEN WASHERS / WIPERS
Front wiper
Ignition on, move stalk1
parallel to the steering wheel:
•APark.
•BIntermittent wipe.
Between wipes, the blades will
stop for several seconds.
Depending on version, it may
be possible to alter the time
between wipes by turning the
central ring2of stalk1.
•CContinuous slow wiping.
•DContinuous fast wiping.In freezing conditions, make sure that
the wiper blades are not stuck to the
windscreen (risk of overheating the
motor).
Keep an eye on the condition of the
blades. Change them as soon as they
become less efficient: approximately
once a year.
If you turn the engine off before
stopping the wipers (positionA)the
blades may stop anywhere on the
windscreen.
Windscreen washer,
headlight washer
Ignition on, pull stalkEtowards you.
• Headlights off
The windscreen washers will
activate.
• Headlights on
The headlight washers will also
be activated.
Page 68 of 184
1
2
1
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page68
1.60

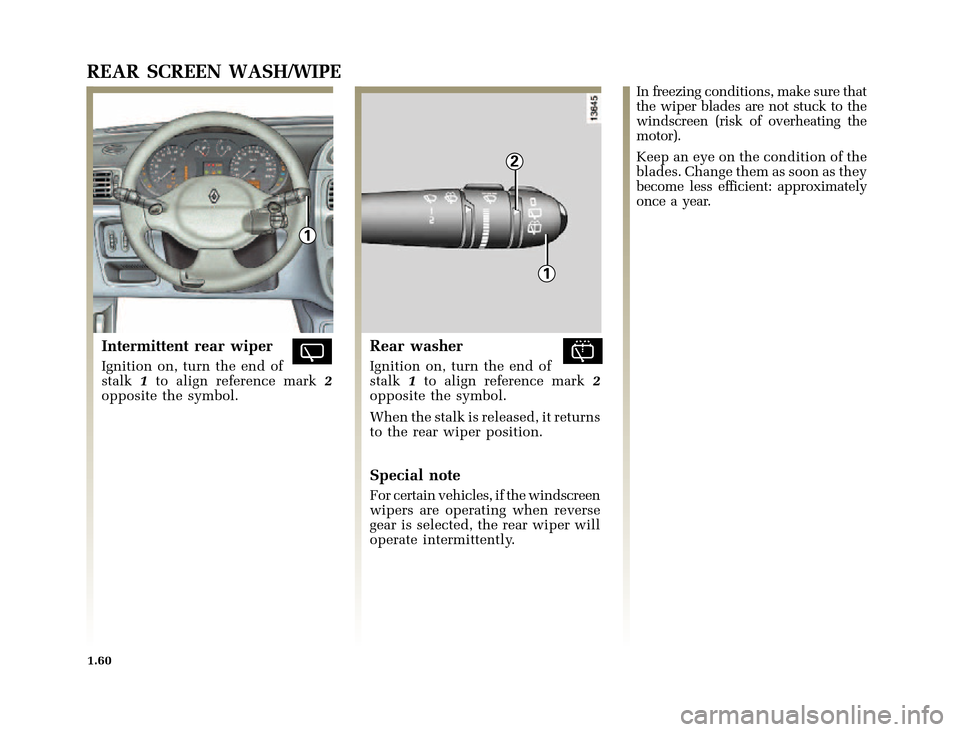

REAR SCREEN WASH/WIPE
Intermittent rear wiper
Ignition on, turn the end of
stalk1to align reference mark2
opposite the symbol.
Rear washer
Ignition on, turn the end of
stalk1to align reference mark2
opposite the symbol.
When the stalk is released, it returns
to the rear wiper position.
Special note
For certain vehicles, if the windscreen
wipers are operating when reverse
gear is selected, the rear wiper will
operate intermittently.In freezing conditions, make sure that
the wiper blades are not stuck to the
windscreen (risk of overheating the
motor).
Keep an eye on the condition of the
blades. Change them as soon as they
become less efficient: approximately
once a year.
Page 69 of 184
1
2
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page69
1.61
DE-ICING / DEMISTING
Heated rear screen
With the engine running,
press button1(the warning light
illuminates on the instrument panel).
This function ensures the de-icing
and demisting of the rear screen and
the heated external rear view mirrors
(if the vehicle is fitted with them).
Thefunctionisstopped:
- automatically after 15 minutes
operation,
- by pressing button1again (the
warning light extinguishes).
Demisting the windscreen
Move control2: to position .
To improve efficiency, close the
dashboard vents.
All the air flow is now directed to
the windscreen demisting outlets
and the front side window demisters.
Page 70 of 184
1
22
3
1
0
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T1.WIN 12/10/2000 16:22-page70
1.62

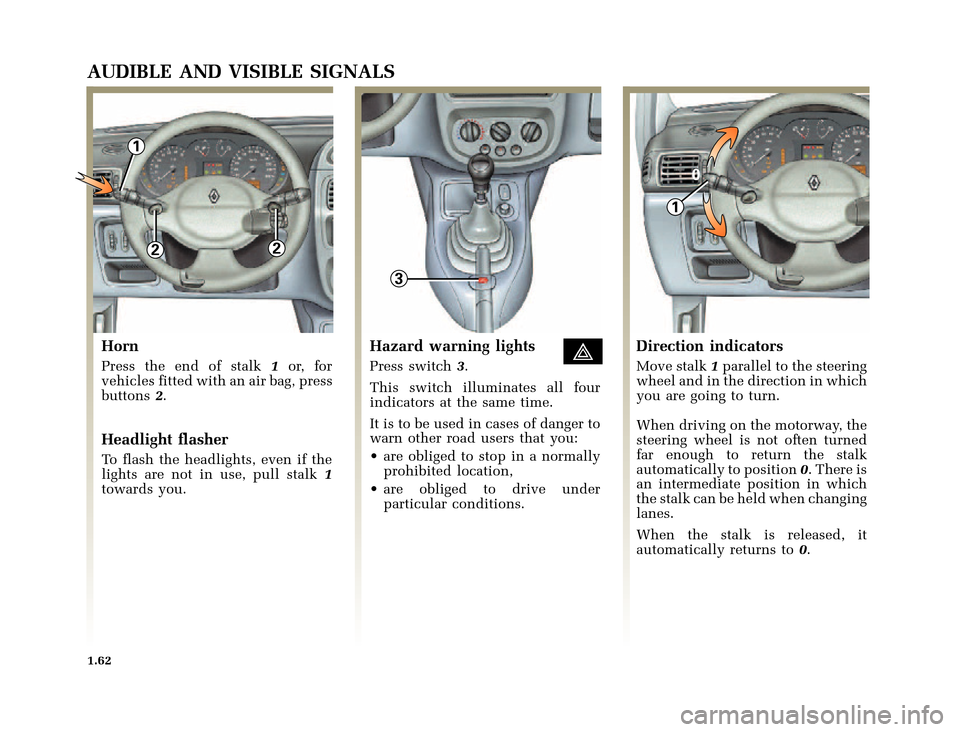

AUDIBLE AND VISIBLE SIGNALS
Horn
Press the end of stalk1or, for
vehicles fitted with an air bag, press
buttons2.
Headlight flasher
To flash the headlights, even if the
lights are not in use, pull stalk1
towards you.
Hazard warning lights
Press switch3.
This switch illuminates all four
indicators at the same time.
It is to be used in cases of danger to
warn other road users that you:
• are obliged to stop in a normally
prohibited location,
• are obliged to drive under
particular conditions.
Direction indicators
Move stalk1parallel to the steering
wheel and in the direction in which
you are going to turn.
When driving on the motorway, the
steering wheel is not often turned
far enough to return the stalk
automatically to position0. There is
an intermediate position in which
the stalk can be held when changing
lanes.
When the stalk is released, it
automatically returns to0.
