RENAULT ESPACE 2012 J81 / 4.G Owners Manual
Manufacturer: RENAULT, Model Year: 2012, Model line: ESPACE, Model: RENAULT ESPACE 2012 J81 / 4.GPages: 267, PDF Size: 8.95 MB
Page 171 of 267
JauneNoirNoir texte
3.49
ENG_UD20397_1
Fonctionnalité des sièges arrière (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_3
Check that there are no objects stored
behind trim C.
Note: Release 6 can be released as
soon as the seat has been completely
removed from the rails.
REAR SEATS: FUNCTIONS (3/4)
To remove a seat
Lower the headrest.
Move the seat back by lifting one of con-
trols 2 or 3 or by pulling on release 6.
Fold the seat into the table position
by lifting handle 4 or by pulling on re -
lease 5.
Pull release 6 fully, and move the seat
forwards, pulling it off the rails.
Use bar 7 to remove the seat from ve-
hicle.
– Do not attempt to pull a seat back
if it is not in the table position.
– When the seat is removed from
the rails, the seatback is locked
in the table position.
Do not attempt to open the seat-
back as this may damage the
seat.
– If seats are removed from the
vehicle and stored elsewhere,
make sure that they are kept in a
clean place, so as to avoid con -
tact with foreign bodies.
– The seats are not designed to be
used other than in the vehicle.
The seats are fitted with certain
mechanisms and their function
may be compromised if they are
misused or dropped.
If a seat is dropped, contact an
approved dealer.
23
47
65
C
When moving the rear
seats, ensure that nothing
obstructs the anchorage
points (passenger’s arm or
leg, a pet, gravel, cloth, toys, etc.).
Page 172 of 267
3.50
ENG_UD20397_1
Fonctionnalité des sièges arrière (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_3
REAR SEATS: FUNCTIONS (4/4)
To fit a seat
The seats can be adjusted to your pre-
ferred position on the rails.
Place the seat on the rails.
The seat automatically locks itself onto
the nearest notch when placed on the
rails.
Check that the seat is locked correctly
by moving it from left to right and then
forwards and backwards.
Note: if the seat does not lock back
onto the rails correctly, pull on release 6
again to reload the system. Accessing rear seats:
Lift control
2 , handle 3 or pull on re -
lease 6 to move the seat forward and
free up access to the rear seats.
Leaving the vehicle from the rear
seats
Pull on release 6 and push the seat to-
wards the front. The seat will go for -
ward, creating access to the door.
You can also increase the amount of
space by pulling down the seatback
using release 5.
For safety reasons, after a
seat has been fitted, check
that it is correctly locked
into place by moving it from
left to right and forwards and back-
wards. If there is still a problem,
contact an approved dealer.
For safety reasons, carry
out these operations when
the vehicle is stationary.
23
4
5
6C
When moving the rear
seats, ensure that nothing
obstructs the anchorage
points (passenger’s arm or
leg, a pet, gravel, cloth, toys, etc.).
Page 173 of 267
tailgate ................................................................... (current page)

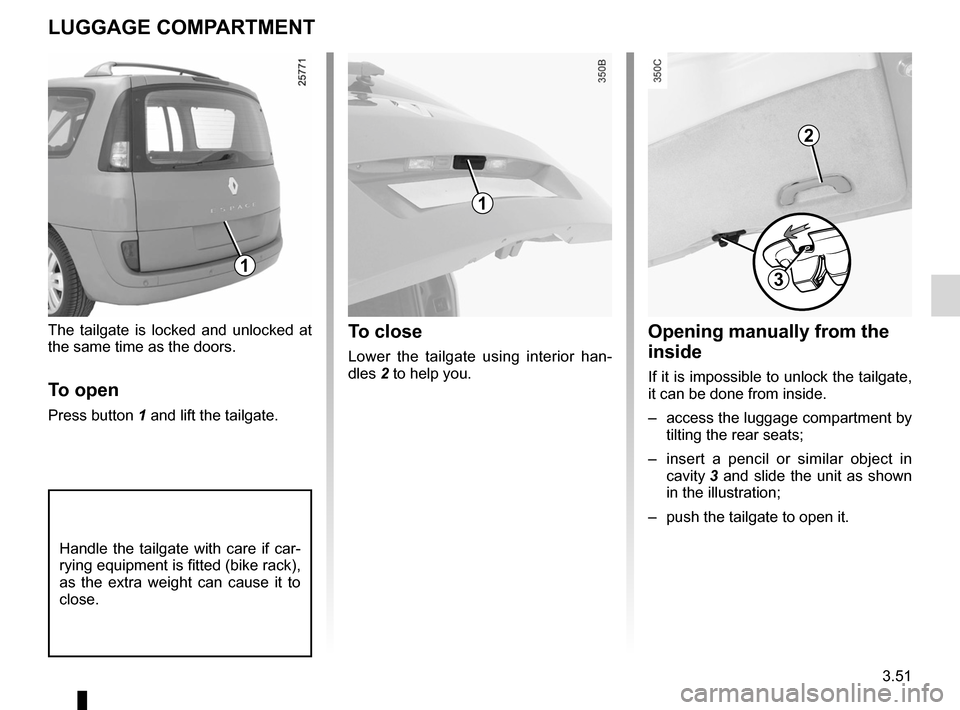

3.51
ENG_UD20398_1
Coffre à bagages (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_3
Luggage compartment
LUGGAGE COMPARTMENT
The tailgate is locked and unlocked at
the same time as the doors.
To open
Press button 1 and lift the tailgate.
To close
Lower the tailgate using interior han -
dles 2 to help you.
Opening manually from the
inside
If it is impossible to unlock the tailgate,
it can be done from inside.
– access the luggage compartment by
tilting the rear seats;
– insert a pencil or similar object in
cavity 3 and slide the unit as shown
in the illustration;
– push the tailgate to open it.
Handle the tailgate with care if car-
rying equipment is fitted (bike rack),
as the extra weight can cause it to
close.
1
1
2
17623
3
Page 174 of 267
opening rear screen..............................(up to the end of the DU)
3.52
ENG_UD1820_1
Lunette arrière ouvrante (X81 - Renault)
ENG_NU_932-3_X81ph3_Renault_3
Lunette arrière ouvrante
OPENING REAR SCREEN
Vehicle with opening rear
screen
The rear screen is locked and unlocked
at the same time as the doors.
To open
Press button 1.
Lift the rear screen by the base of
screen wiper 2. To close
Hold the base of screen wiper
2 and
fold back the rear screen until it locks
in position.
Driving with the rear screen
open may be unpleasant
for passengers as exhaust
gases may enter the pas -
senger compartment. This must
only be done over short distances
or when transporting bulky ob -
jects without having to open the
tailgate. In that case, close the other
windows and the sunroof and switch
the ventilation to medium or max-
imum power , as this will help to
prevent exhaust gas from entering
the passenger compartment.
2
1
1
Page 175 of 267
luggage compartment cover ................. (up to the end of the DU)
3.53
ENG_UD20400_1
Cache-bagages (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_3
Luggage cover
LUGGAGE COMPARTMENT COVER
Depending on the vehicle, this is either
luggage compartment cover A , or
parcel shelf B with a luggage compart-
ment cover which consists of soft sec-
tion C plus a roller.
To roll up luggage compartment
cover A
Pull handle 1 to detach pins 2 from their
mounting point.
Guide the luggage cover onto the roller. Parcel shelf B can be fitted on its own
(for example when the third row seats
are in use).
Do not place any objects,
especially heavy or hard
objects, on the parcel shelf.
These may pose a risk to
the vehicle occupants if the driver
has to brake suddenly or if the vehi-
cle is involved in an accident.
A
12
C
BB
Page 176 of 267
3.54
ENG_UD20400_1
Cache-bagages (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_3
LUGGAGE COMPARTMENT COVER (continued)
To roll up soft section C
Gently pull on the soft section to detach
pins 2 from their mounting point located
under parcel shelf B.
Guide the luggage cover onto the roller.
Removing parcel shelf B
With the soft section rolled up, gently
pull parcel shelf B to detach it from its
contact points.
Removing the luggage cover
In all cases, once the luggage compart-
ment cover has been rolled up, take
hold of one of the ends of the roller.
Move it inwards then lift it to release the
roller from its contact point. Remove
the roller.
C
B
2
B
Page 177 of 267
transporting objectsin the luggage compartment ............................ (current page)
towing rings .......................................... (up to the end of the DU)
3.55
ENG_UD21779_2
Transport d’objets dans le coffre (X81 - Renault)
ENG_NU_932-3_X81ph3_Renault_3
Always position the objects transported
so that the largest surface is against:
– The rear seatbacks for normal loads
(example A).
– The folded rear seats for heavier
loads (example B).
– The front seats, having removed the
rear seats, for the heaviest loads (ex-
ample C).
Transporting objects in the luggage compartment
TRANSPORTING OBJECTS IN THE LUGGAGE COMPARTMENT
Lashing points
Always position the heavi -
est items directly on the
floor. Use the anchorage
points located on the lug -
gage compartment floor to secure
items. The luggage should be
loaded in such a way that no items
will be thrown forward and strike the
occupants if the driver has to brake
suddenly. Fasten the rear seat belts,
even if the seats are not occupied.
B
C
A
Page 178 of 267
luggage retaining net ............................................. (current page)
transporting objects luggage net ..................................... (up to the end of the DU)
3.56
ENG_UD1823_1
Filet de séparation (X81 - Renault)
ENG_NU_932-3_X81ph3_Renault_3
Filet de séparation
LUGGAGE NET
Luggage net A is fixed to either side of
the inside of the vehicle.Upper mounting
Slide the cover upwards to access
upper mounting point 1.
Attach hook 2 of the net onto the
mounting point. Check that it is cor -
rectly hooked on.
Upper mounting
Slide tab 3 into runner 4 and then turn it
anti-clockwise. Lock it with clip 6.
Adjust strap 5 so that the net is taut.
Removing the luggage net
Proceed in the reverse order:
– loosen strap 5;
– remove tab 3;
– detach upper hook 2.
A
16
35
42
13
Page 179 of 267
roof rackroof bars .......................................... (up to the end of the DU)
roof bars ............................................... (up to the end of the DU)
3.57
ENG_UD20403_1
Barres de toit (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_3
Roof bars
ROOF BARS
Storage position
To make the vehicle as aerodynamic
as possible, roof bars 1 must be stored
right at the rear of the vehicle.
Moving the bars
On each side, pull lever 2 inwards to re-
lease it (movement A).
Slide bar 1 to the required position. On
each side, push back lever 2 to secure
the bar (movement B). Check that it is
correctly locked.
Loading
The load should be evenly distributed
and must not exceed the maximum
permissible weight per bar indicated
on each bar (refer to the information on
“Weights” in Section 6).
Ensure that any objects and/or acces -
sories being transported are properly
secured. Straps can be fed through
recess 3.
Likewise, the two bars must be suffi -
ciently spaced to prevent the load from
rocking or falling off the bars.
1
2
A
B
3
Page 180 of 267

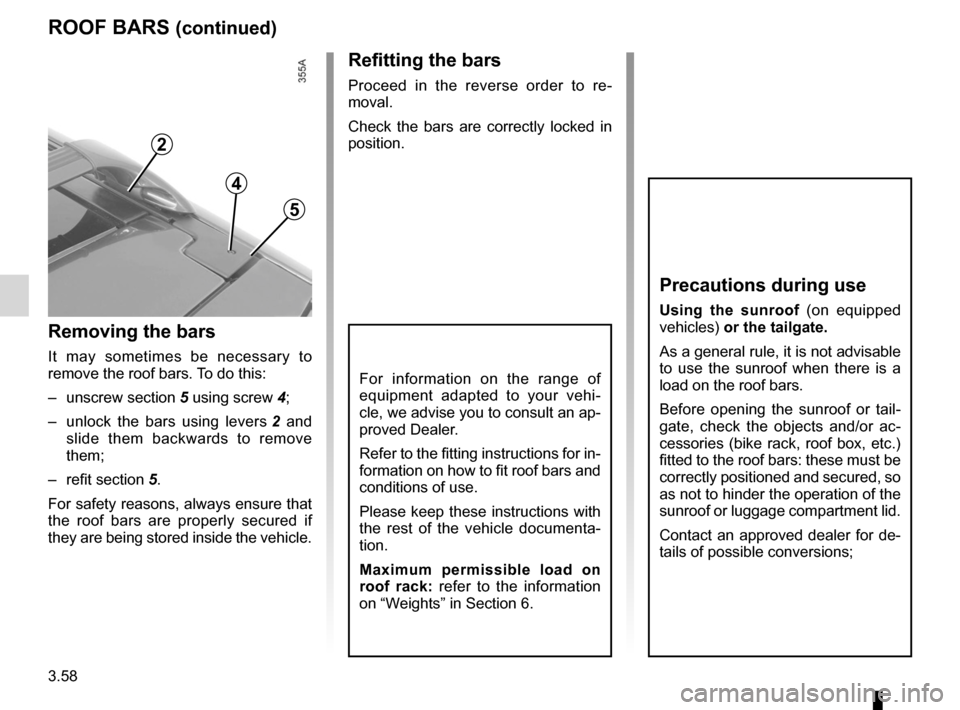

3.58
ENG_UD20403_1
Barres de toit (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_3
ROOF BARS (continued)
Removing the bars
It may sometimes be necessary to
remove the roof bars. To do this:
– unscrew section 5 using screw 4;
– unlock the bars using levers 2 and
slide them backwards to remove
them;
– refit section 5.
For safety reasons, always ensure that
the roof bars are properly secured if
they are being stored inside the vehicle.
Refitting the bars
Proceed in the reverse order to re -
moval.
Check the bars are correctly locked in
position.
Precautions during use
Using the sunroof (on equipped
vehicles) or the tailgate.
As a general rule, it is not advisable
to use the sunroof when there is a
load on the roof bars.
Before opening the sunroof or tail -
gate, check the objects and/or ac -
cessories (bike rack, roof box, etc.)
fitted to the roof bars: these must be
correctly positioned and secured, so
as not to hinder the operation of the
sunroof or luggage compartment lid.
Contact an approved dealer for de-
tails of possible conversions;
2
4
5
For information on the range of
equipment adapted to your vehi -
cle, we advise you to consult an ap-
proved Dealer.
Refer to the fitting instructions for in-
formation on how to fit roof bars and
conditions of use.
Please keep these instructions with
the rest of the vehicle documenta -
tion.
Maximum permissible load on
roof rack: refer to the information
on “Weights” in Section 6.
