RENAULT ESPACE 2012 J81 / 4.G Owner's Manual
Manufacturer: RENAULT, Model Year: 2012, Model line: ESPACE, Model: RENAULT ESPACE 2012 J81 / 4.GPages: 267, PDF Size: 8.95 MB
Page 21 of 267
headrest................................................ (up to the end of the DU)
front seats adjustment ...................................... (up to the end of the DU)
1.15
ENG_UD20328_1
Appuis-tête avant J81 (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_1
Headrests - Seats
frOnT HeadresTs
To raise the headrest
Pull the headrest upwards to the de -
sired height.
To lower the headrest
Press button 2 and guide the headrest
down to the desired height.
To adjust the angle of the
headrest
Depending on the vehicle, tilt section A
towards or away from you to the re -
quired position.
To remove the headrest
Raise the headrest to its highest po -
sition (tilt the seatback backwards if
necessary). Press button 1 and lift the
headrest to release it.
To refit the headrest
Pull out the headrest rods 3 as far as
possible by pulling from the top. Take
care to ensure they are clean and cor-
rectly aligned and, if there are any prob-
lems, check that the notches are facing
forwards.
Insert the headrest rods into the holes
(tilt the seatback backwards if neces -
sary).
Lower the headrest until it locks, press
button 1 and lower the headrest as far
as possible.
Check that each headrest rod 3 is se -
curely locked in the seatback by trying
to pull them up or push them down.
The headrest is an impor -
tant safety component:
ensure that it is in place and
in the correct position. The
distance between your head and the
headrest and the distance between
the head and section A should be
as small as possible.
2
3
a1
The three upper positions can
be manipulated without pressing
button 2. However, it is preferable to
press this button to lower the head-
rest.
Page 22 of 267
front seat adjustmentmanual controls .............................. (up to the end of the DU)
1.16
ENG_UD1743_1
Sièges avant à commandes manuelles (X81 - Renault)
ENG_NU_932-3_X81ph3_Renault_1
frOnT sea Ts WITH ManUaL cOnTrOL
To move forwards or backwards
Lift lever 1 to unlock the seat. When the
seat is in the required position, release
the lever and ensure that the seat is
locked in place.
To tilt the seatback
Lift lever 4 and tilt the seatback to the
desired position.
To adjust the lumbar support on the
driver’s seat:
Pull handle 2.To adjust the driver’s seat height:
Move lever 3 as many times as neces-
sary:
– upwards to raise the seat,
– downwards to lower the seat.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
We would advise you not
to recline the seatbacks too
far to ensure that the effec-
tiveness of the seat belts is
not reduced.
Make sure that the seatbacks are
locked in place correctly.
Nothing should be placed on the
floor (area in front of driver) as such
objects may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
1
2
34
Page 23 of 267
front seat adjustmentelectric controls ............................... (up to the end of the DU)
1.17
ENG_UD1744_1
Sièges avant à commandes électriques (X81 - Renault)
ENG_NU_932-3_X81ph3_Renault_1
frOnT sea Ts WITH eLecTrIc cOnTrOL
Switches 1 and 3 are the same shape
as the seat squab and seatback:
switch 1 is used for adjusting the seat
squab and switch 3 is used for adjust -
ing the seatback.
On equipped vehicles, button 2 is used
to store the chosen driving position. It
is possible to store a driving position
using the RENAULT Card.
The system operates:
– hands-free RENAULT card de -
tected or, depending on the vehicle,
RENAULT remote control in ‘acces-
sories’ position in the card reader;
– for vehicles with button 2 , this also
operates for about 40 minutes when
the driver’s door is opened and the
ignition is switched off.
adjusting the seat squab:
switch 1
– To move forwards
Move it forwards.
– To move backwards
Move it backwards.
– To raise
Lift the rear of the switch.
– To lower
Lower the rear of the switch.
adjusting the seatback:
switch 3
To tilt the seatback
Move the switch forward or backwards.
adjusting the lumbar support on the
driver’s seat
Pull handle 4.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
We would advise you not
to recline the seatbacks too
far to ensure that the effec-
tiveness of the seat belts is
not reduced.
Make sure that the seatbacks are
locked in place correctly.
Nothing should be placed on the
floor (area in front of driver) as such
objects may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
4
2
1
3
Page 24 of 267
storing the driver’s seat position ...........(up to the end of the DU)
1.18
ENG_UD1745_1
Mémorisation du siège conducteur (X81 - Renault)
ENG_NU_932-3_X81ph3_Renault_1
sTOrInG THe drIVer’s sea T POsITIOn
It is possible to store a driving position
using the RENAULT Card.
A driving position includes the driver’s
seat position and door mirror settings.
When a driving position is stored, the
seat and door mirror settings linked to
the RENAULT Card used are automati-
cally recalled when the doors are un -
locked and opened using the RENAULT
Card.
The system operates:
– hands-free RENAULT card de -
tected or, depending on the vehicle,
RENAULT remote control in ‘acces-
sories’ position in the card reader;
– when the driver ’s door is opened,
with the ignition off, for about 40 min-
utes.
driver’s seat memory
procedure
With the ignition on, adjust the seat
using switches 1 and 3 (see informa -
tion on “Front seats with electric con -
trol” in Section 1).
Press button 2 until you hear a beep:
the driving position is stored.
Repeat this procedure for each of the
RENAULT Cards.
recalling a stored position
With the vehicle stationary, briefly
press button 2.
note: recall of the stored position is in-
terrupted if one of the seat adjustment
buttons is pressed during recall.
When driving, it is possible to adjust
the driving position, but it is not possible
to recall a driving position.
special case
s everal hands-free cards in the ve -
hicle.
In this case:
– there is no automatic recall;
– it is possible to recall the driving po-
sition by inserting the RENAULT
card in the card reader and pressing
button 2.
2
31
Page 25 of 267
heated seats ......................................... (up to the end of the DU)
front seat adjustment electric controls ............................... (up to the end of the DU)
front seat adjustment manual controls .............................. (up to the end of the DU)
front seats adjustment ...................................... (up to the end of the DU)
armrests front ................................................. (up to the end of the DU)
1.19
ENG_UD15574_3
Accoudoirs avant/Sièges chauffants (X81 - Renault)
ENG_NU_932-3_X81ph3_Renault_1

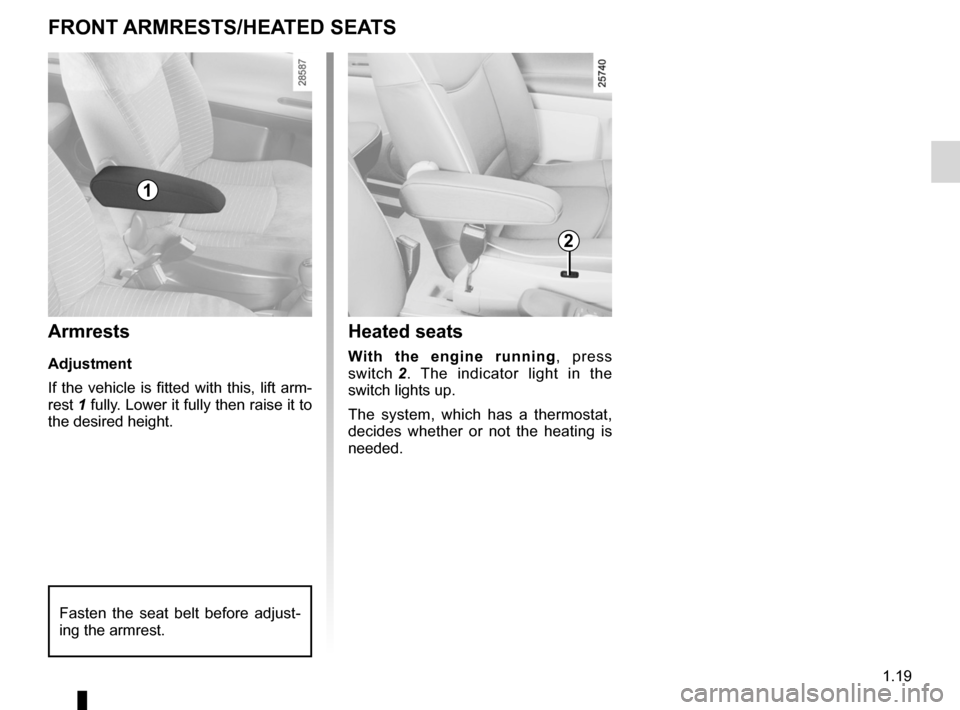

frOnT arMresTs/Hea Ted seaTs
armrests
adjustment
If the vehicle is fitted with this, lift arm-
rest 1 fully. Lower it fully then raise it to
the desired height.
Heated seats
With the engine running , press
switch 2 . The indicator light in the
switch lights up.
The system, which has a thermostat,
decides whether or not the heating is
needed.
2
1
Fasten the seat belt before adjust -
ing the armrest.
Page 26 of 267
seat belts .............................................. (up to the end of the DU)
adjusting your driving position ............................... (current page)
adjusting the seats ................................................. (current page)
1.20
ENG_UD25537_5
Ceintures de sécurité (X81 - Renault)
ENG_NU_932-3_X81ph3_Renault_1
Jaune NoirNoir texte
Seat belts
seaT BeLTs (1/3)
Always wear your seat belt when trav-
elling in your vehicle. You must also
comply with the legislation of the par -
ticular country you are in.
Before starting, first adjust your driv-
ing position, then ask all occupants
to adjust their seat belts to ensure
optimum protection.adjusting your driving
position
– s it well back in your seat (having
removed your coat or jacket etc.).
This is essential to ensure your back
is positioned correctly.
– a djust the distance between the
seat and the pedals. Your seat
should be as far back as possible
while still allowing you to depress
the clutch pedal fully. The seatback
should be adjusted so that your arms
are slightly bent when you hold the
steering wheel.
– adjust the position of your head- rest. For the maximum safety, your
head must be as close as possible to
the headrest.
The top of your head should be in
line with the top of the headrest.
– adjust the height of the seat. This adjustment allows you to select the
seat position which offers you the
best possible view.
– adjust the position of the steering wheel.
adjusting the seat belts
Sit with your back firmly against the
seatback.
Shoulder strap 1 should be as close as
possible to the base of the neck but not
on it.
Lap belt 2 should be worn flat over the
thighs and against the pelvis.
The seat belt should be worn so that
it is as close as possible to your body,
i.e.: avoid wearing heavy clothing or
keeping bulky objects under the belts,
etc.I n c o r r e c t l y a d j u s t e d o r
twisted seat belts may
cause injuries in the event
of an accident.
Use one seat belt per person,
whether child or adult.
Even pregnant women should wear
a seat belt. In this case, ensure that
the lap belt is not exerting too much
pressure on the abdomen but do not
allow any slack.
1
2
Page 27 of 267
JauneNoirNoir texte
1.21
ENG_UD25537_5
Ceintures de sécurité (X81 - Renault)
ENG_NU_932-3_X81ph3_Renault_1
sea T BeLTs (2/3)
fastening
Unwind the belt slowly and smoothly
and ensure that buckle 3 locks into
catch 5 (check that it is locked by pull -
ing on buckle 3). If the belt jams, allow
it to return slightly before attempting to
unwind it again.
If your seat belt is completely jammed,
pull slowly, but firmly, so that just over
3 cm unwinds. Allow it to return slightly
before attempting to unwind it again.
If there is still a problem, contact an ap-
proved dealer.
çf ront seat belt reminder
warning light
If this warning light on the instrument
panel or the dashboard goes out, the
front seat belts have been correctly fas-
tened.
Unfastening
Press button 4 on buckle 5 and the seat
belt will be rewound by the inertia reel.
Guide the buckle to help the operation.
1
5
34
5
adjusting the height of the
front seat belts
Press button 6 to adjust the seat belt
height so that the shoulder strap is
worn as shown previously;
Press button 6 and raise or lower the
seat belt.
Make sure that the seat belt is locked
in position correctly after you have ad-
justed it.
6
Page 28 of 267
1.22
ENG_UD25537_5
Ceintures de sécurité (X81 - Renault)
ENG_NU_932-3_X81ph3_Renault_1
sea T BeLTs (3/3)
– No modification may be made to the component parts of the originally fitted restraint system: belts, seats and their
mountings. For special operations (e.g. fitting child seats), contact \
an authorised dealer.
– Do not use devices which allow any slack in the belts (e.g. clothes pegs, clips, etc.): a seat belt which is worn too
loosely may cause injury in the event of an accident.
– Never wear the shoulder strap under your arm or behind your back.
– Never use the same belt for more than one person and never hold a baby or child on your lap with your seat belt around
them.
– The belt should never be twisted.
– Following an accident, have the seat belts checked and replaced if necessary. Always replace your seat belts as soon as
they show any signs of wear.
– When refitting the rear bench seat, take care that the seat belts are co\
rrectly positioned so that they can be used properly.
– Make sure that the buckle is inserted into the appropriate catch.
– Ensure that no objects are placed in the area around the seat belt catch as they could prevent it from being properly se-
cured.
– Make sure the seat belt catch is properly positioned (it should not be hidden away, crushed or flattened by people or ob-
jects).
The following information applies to the vehicle’s front and rear seat belts.
Page 29 of 267
additional methods of restraint ............. (up to the end of the DU)
seat belt pretensioners front seat belt ................................................... (current page)
1.23
ENG_UD20337_1
Dispositifs de retenue complémentaires à la ceinture (X81 - J81 -\
Renault)
ENG_NU_932-3_X81ph3_Renault_1
Additional methods of restraint
to the seat belt
MeTHOds Of resTraInT In addITIOn TO THe frOnT sea T BeLTs (1/4)
These are:
– buckle pretensioners,
– lap belt pretensioners in the front
seats,
– force limiters,
– air bags for driver and front pas -
senger.
These systems are designed to act in-
dependently or together when the vehi-
cle is subjected to a frontal impact.
Depending on the severity of the
impact, the system can trigger:
– seat belt locking;
– the buckle pretensioner (which en -
gages to correct seat belt slack);
– the lap pretensioner, the low volume
front air bag and the force limiter;
– the large volume front air bag.
Pretensioners
In the event of a severe frontal impact
and if the ignition is switched on, the
system may engage the following de -
pending on the force of the impact:
– piston 1 which immediately retracts
the seat belt;
– piston 2.
The pretensioners hold the seat belt
against the body and thus increase its
efficiency.
1
2
– Have the entire restraint
system checked following
an accident.
– No operation whatso -
ever is permitted on any part of
the system (pretensioners, air
bags, computers, wiring) and the
system components must not
be reused on any other vehicle,
even if identical.
– To avoid incorrect triggering of
the system which may cause
injury, only qualified personnel
from an approved dealer may
work on the pretensioner and air
bag system.
– The electric trigger system may
only be tested by a specially
trained technician using special
equipment.
– When the vehicle is scrapped,
contact an approved dealer for
disposal of the pretensioner and
air bag gas generators.
Page 30 of 267
1.24
ENG_UD20337_1
Dispositifs de retenue complémentaires à la ceinture (X81 - J81 -\
Renault)
ENG_NU_932-3_X81ph3_Renault_1
Jaune NoirNoir texte
MeTHOds Of resTraInT In addITIOn TO THe frOnT sea T BeLTs (2/4)
force limiter
Above a certain level of impact force,
this mechanism is used to limit the force
of the belt against the body so that it is
at an acceptable level.
B a
The air bag system uses
pyrotechnic principles. This
explains why, when the air
bag inflates, it will gener -
ate heat, produce smoke (this does
not mean that a fire is about to start)
and make a noise upon detonation.
In a situation where an air bag is
required, it will inflate immediately
and this may cause some minor, su-
perficial grazing to the skin or other
problems.
air bags for driver A and
front passenger B
An air bag may be provided for both the
driver and the front passenger.
An “Air bag” marking on the steering
wheel, dashboard and, depending on
the vehicle, the lower section of the
windscreen inform you of the presence
of additional means of restraint (air
bags, pretensioners, etc.) in the pas -
senger compartment. Each air bag system consists of:
–
an air bag and gas generator fitted
on the steering wheel for the driver
and in the dashboard for the front
passenger;
– a shared electronic unit which in -
cludes the impact detector and a
monitoring system which controls
the ignition module for the gas gen-
erator;
– a single
å warning light on the
instrument panel.
