JauneNoirNoir texte
1.35
ENG_UD24085_2
Sécurité enfants : installation du siège enfant (X81 - J81 - R\
enault)
ENG_NU_932-3_X81ph3_Renault_1
r Is K O f d e a T H O r
ser IOUs I n JU rY: before
fitting a rear-facing child
seat to this seat, check that
the air bag has been deactivated
(refer to the information on “Child
safety: deactivating/activating the
front passenger air bag” at the end
of the paragraph).

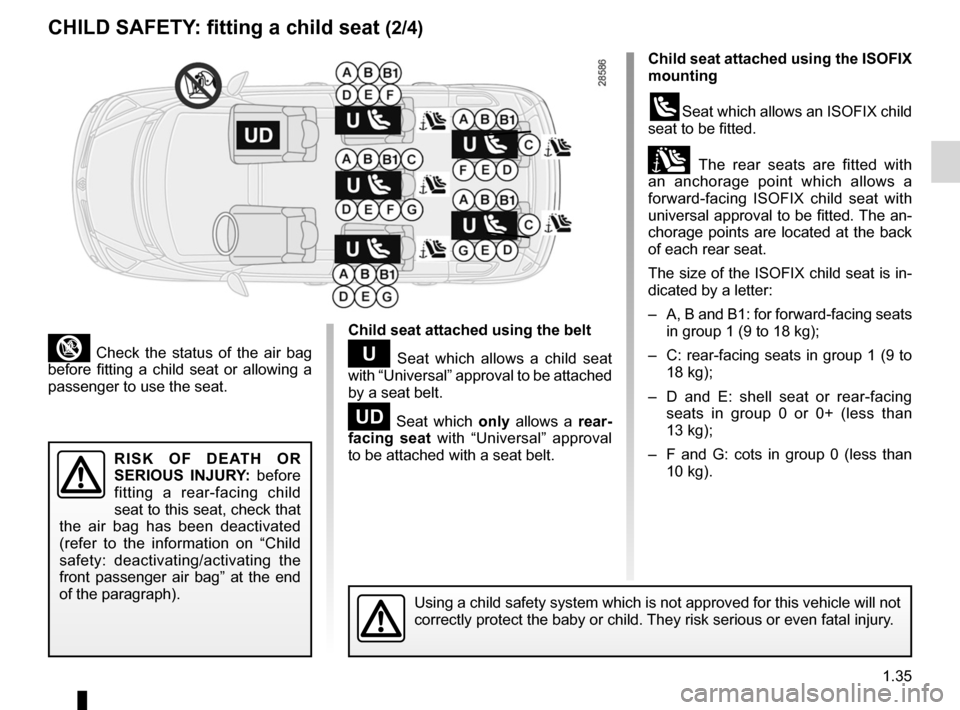

cHILd safeTY : fitting a child seat (2/4)
child seat attached using the belt
¬ Seat which allows a child seat
with “Universal” approval to be attached
by a seat belt.
− Seat which only allows a rear-
facing seat with “Universal” approval
to be attached with a seat belt.
Using a child safety system which is not approved for this vehicle will not
correctly protect the baby or child. They risk serious or even fatal injury.
³ Check the status of the air bag
before fitting a child seat or allowing a
passenger to use the seat.
child seat attached using the IsOfIX
mounting
üSeat which allows an ISOFIX child
seat to be fitted.
± The rear seats are fitted with
an anchorage point which allows a
forward-facing ISOFIX child seat with
universal approval to be fitted. The an-
chorage points are located at the back
of each rear seat.
The size of the ISOFIX child seat is in-
dicated by a letter:
– A, B and B1: for forward-facing seats
in group 1 (9 to 18 kg);
– C: rear-facing seats in group 1 (9 to
18 kg);
– D and E: shell seat or rear-facing
seats in group 0 or 0+ (less than
13 kg);
– F and G: cots in group 0 (less than
10 kg).
Page 42 of 267
1.36
ENG_UD24085_2
Sécurité enfants : installation du siège enfant (X81 - J81 - R\
enault)
ENG_NU_932-3_X81ph3_Renault_1
Jaune NoirNoir texte

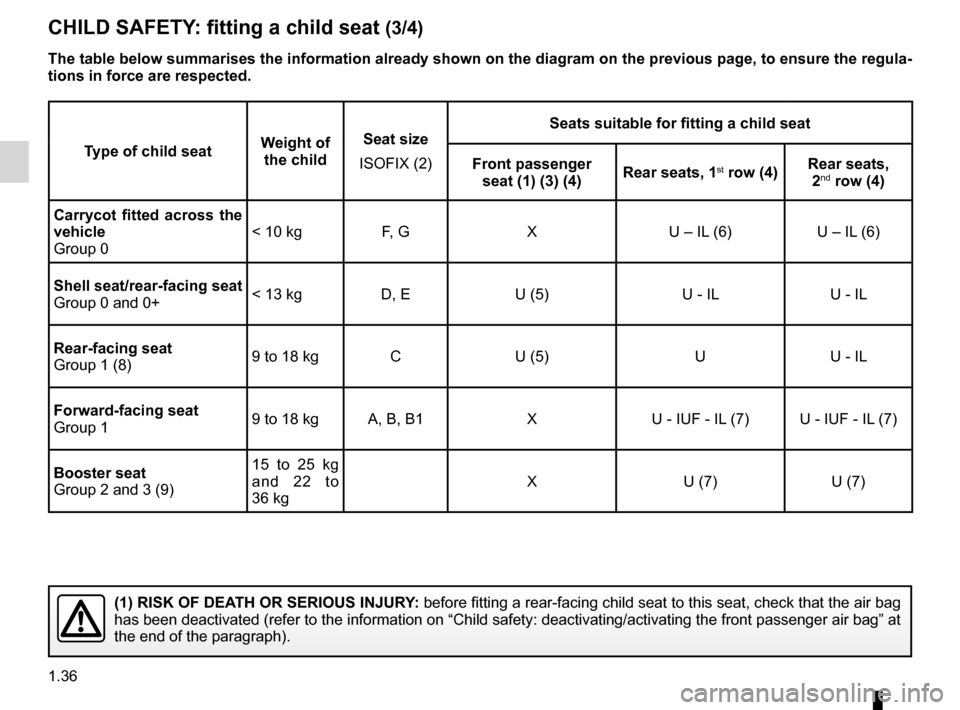

cHILd safeTY : fitting a child seat (3/4)
Type of child seat Weight of
the child seat size
ISOFIX (2) seats suitable for fitting a child seat
front passenger seat (1) (3) (4) rear seats, 1st row (4)rear seats,
2nd row (4)
carrycot fitted across the
vehicle
Group 0 < 10 kg
F, G XU – IL (6) U – IL (6)
shell seat/rear-facing seat
Group 0 and 0+ < 13 kg
D, E U (5) U - ILU - IL
rear-facing seat
Group 1 (8) 9 to 18 kg
CU (5) UU - IL
forward-facing seat
Group 1 9 to 18 kg
A, B, B1 XU - IUF - IL (7) U - IUF - IL (7)
Booster seat
Group 2 and 3 (9) 15 to 25 kg
a n d 2 2 t o
36 kg
X
U (7)U (7)
(1) rIsK Of deaTH Or serIOUs InJUr Y: before fitting a rear-facing child seat to this seat, check that the air bag
has been deactivated (refer to the information on “Child safety: deactivating/activating the front passenger air bag” at
the end of the paragraph).
The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-
tions in force are respected.
Page 43 of 267
JauneNoirNoir texte
1.37
ENG_UD24085_2
Sécurité enfants : installation du siège enfant (X81 - J81 - R\
enault)
ENG_NU_932-3_X81ph3_Renault_1
X = Seat not suitable for fitting child seats.
U = Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted.
IUf/IL = On equipped vehicles, seat which allows an approved “Universal”/“semi-universal” or “vehicle specific” child seat to be
attached using the ISOFIX system; check that it can be fitted.
(2) The size of the child seat with the ISOFIX mounting is indicated by the
ü symbol followed by a letter (a, B, B1, c, d, e, f,
G).
(3) Only a rear-facing child seat may be installed in this seat.
(4) Raise the seat to the maximum and position it as far back as possible, t\
ilting the seatback slightly (approximately 25°).
(5) Only vehicles equipped with a seat with seat base height adjustment are \
authorised for fitting child seats.
(6)
A carrycot can be installed across the vehicle and will take up two seats. Position the child with his or her feet nearest the door.
(7) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the
height of the headrest or remove it if necessary; do not push the seat in front of the child more than halfway back on its runners
and do not recline the seatback more than 25°.
(8) To install a large rear-facing ISOFIX child seat (size C) in the 2nd row, fit the seats in the centred position or use the centre seat.
(9)
A child over 10 years of age, weighing more than 36 kg or taller than 1.36 m can be strapped directly into the seat like an adult.
cHILd safeTY : fitting a child seat (4/4)
Page 44 of 267
air bagdeactivating the front passenger air bags ........ (current page)
front passenger air bag deactivation ..................... (current page)
1.38
ENG_UD20343_1
Sécurité enfants : désactivation/activation airbag passager ava\
nt (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_1
Jaune NoirNoir texte
Deactivating/activating the front passenger air bag
deactivating the front
passenger air bags
(on equipped vehicles)
You must deactivate the devices in ad-
dition to the front passenger seat belt
before fitting a child seat in the front
passenger seat.
Passenger seats with seat base
height adjustment
You must adjust the cushion to the
highest position. To deactivate the air bags: when the
vehicle is stationary
, push and turn
lock 1 to the Off position.
With the ignition on, you must check
that indicator light 2
ã is lit on the
central display and, depending on the
vehicle, that the message “Passenger
air bag deactivated” is displayed.
This light remains permanently lit to
let you know that you can fit a child
seat.

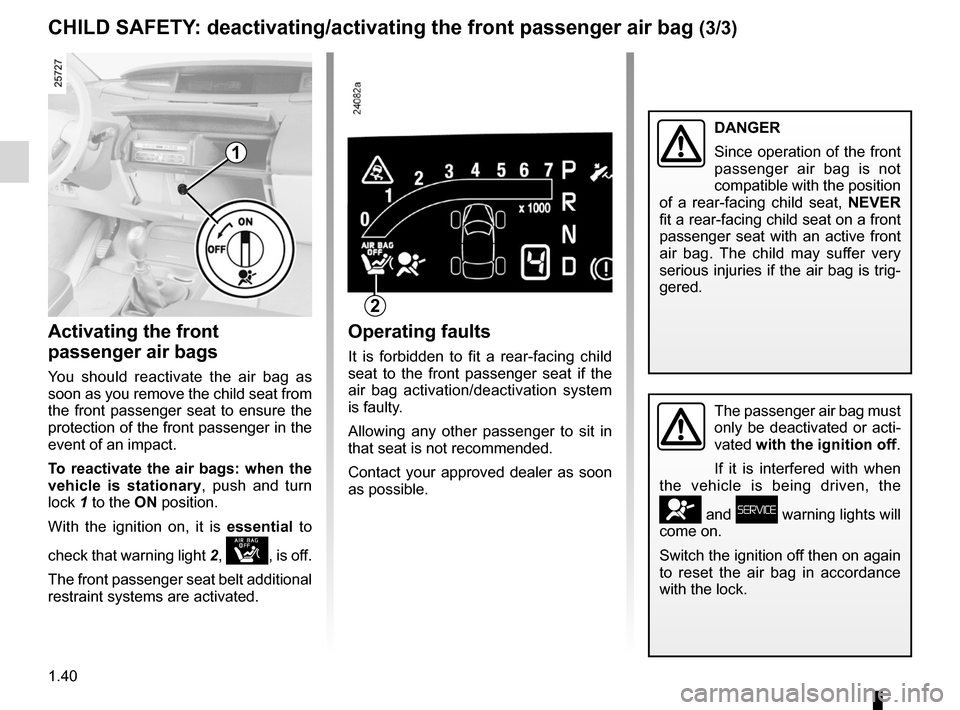

cHILd safeTY : deactivating/activating the front passenger air bag (1/3)
1
2
The passenger air bag must
only be deactivated or acti-
vated with the ignition off.
If it is interfered with when
the vehicle is being driven, the
å and ú warning lights will
come on.
Switch the ignition off then on again
to reset the air bag in accordance
with the lock.
Page 45 of 267
air bagactivating the front passenger air bags ............ (current page)
Jaune NoirNoir texte
1.39
ENG_UD20343_1
Sécurité enfants : désactivation/activation airbag passager ava\
nt (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_1
cHILd safeTY : deactivating/activating the front passenger air bag (2/3)
3
a
danGer
Since operation of the front
passenger air bag is not
compatible with the position
of a rear-facing child seat, neVer
fit a rear-facing child seat on a front
passenger seat with an active front
air bag. The child may suffer very
serious injuries if the air bag is trig-
gered.
The markings on the dashboard and
labels A on each side of passenger sun
blind 3 (example: label shown above)
remind you of these instructions.
Page 46 of 267
1.40
ENG_UD20343_1
Sécurité enfants : désactivation/activation airbag passager ava\
nt (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_1
Operating faults
It is forbidden to fit a rear-facing child
seat to the front passenger seat if the
air bag activation/deactivation system
is faulty.
Allowing any other passenger to sit in
that seat is not recommended.
Contact your approved dealer as soon
as possible.
activating the front
passenger air bags
You should reactivate the air bag as
soon as you remove the child seat from
the front passenger seat to ensure the
protection of the front passenger in the
event of an impact.
To reactivate the air bags: when the
vehicle is stationary , push and turn
lock 1 to the On position.
With the ignition on, it is essential to
check that warning light 2,
ã, is off.
The front passenger seat belt additional
restraint systems are activated.
1
2
cHILd safeTY : deactivating/activating the front passenger air bag (3/3)
The passenger air bag must
only be deactivated or acti-
vated with the ignition off.
If it is interfered with when
the vehicle is being driven, the
å and ú warning lights will
come on.
Switch the ignition off then on again
to reset the air bag in accordance
with the lock.
danGer
Since operation of the front
passenger air bag is not
compatible with the position
of a rear-facing child seat, neVer
fit a rear-facing child seat on a front
passenger seat with an active front
air bag. The child may suffer very
serious injuries if the air bag is trig-
gered.
Page 47 of 267
steering wheeladjustment ...................................... (up to the end of the DU)
1.41
ENG_UD15381_2
Volant de direction (X81 - Renault)
ENG_NU_932-3_X81ph3_Renault_1
Power-assisted steering
With the engine running, do not leave
the steering wheel at full lock while sta-
tionary as this may damage the power -
assisted steering pump.
Steering wheel

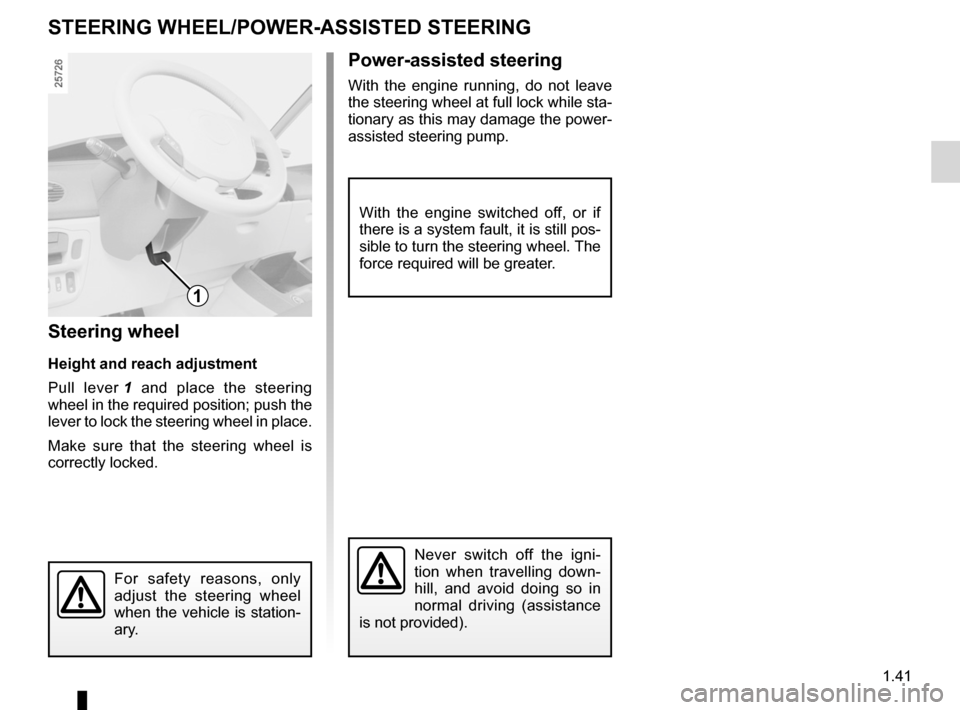

sTeerInG WHeeL/POWer-assIsTed sTeerInG
steering wheel
Height and reach adjustment
Pull lever 1 and place the steering
wheel in the required position; push the
lever to lock the steering wheel in place.
Make sure that the steering wheel is
correctly locked.
For safety reasons, only
adjust the steering wheel
when the vehicle is station-
ary.
1
Never switch off the igni -
tion when travelling down -
hill, and avoid doing so in
normal driving (assistance
is not provided).
With the engine switched off, or if
there is a system fault, it is still pos-
sible to turn the steering wheel. The
force required will be greater.
Page 48 of 267
controls ................................................. (up to the end of the DU)
driver’s position .................................... (up to the end of the DU)
dashboard ............................................. (up to the end of the DU)
1.42
ENG_UD24086_2
Poste de conduite à gauche (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_1
Jaune NoirNoir texte
Driving position
drIVer’s POsITIOn, LefT-Hand drIVe
1234789101112131415165
28272625191817
2223242120
6
Page 49 of 267
JauneNoirNoir texte
1.43
ENG_UD24086_2
Poste de conduite à gauche (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_1
drIVer’s POsITIOn, LefT-Hand drIVe (continued)
1 Electric controls for:
– windows;
– door mirrors.
2 Side air vent.
3 Heating and ventilation controls.
4 Stalk for:
– direction indicator lights;
– exterior lights;
– front fog lights;
– rear fog lights.
5 Horn.
Location for driver’s air bag.
6 Left-hand upper storage compart -
ment;
location of fuses.
7 Radio remote control.
8 Controls for:
– windscreen and rear screen
wash/wipe;
– trip computer and warning
system information readout.
9 Instrument panel.
10 Centre air vents.
11 Upper centre storage compartment
(split into one or several compart-
ments, depending on the vehicle,
integrating the audio system and
the audio connection sockets).
12 Right-hand upper storage com -
partment.
13 Passenger air bag location.
14 Air vent.
15 Heating and ventilation controls.
16 Side air vent.
17 Passenger glove box.
18 Lower centre storage compart -
ment.
19 Gear lever.
20 RENAULT card reader. 21 Multimedia equipment controls
(depending on the vehicle).
22 Cigar lighter.
23 Engine Start/Stop button.
24 Location for cup holder and/or ash-
tray.
25 Control for adjusting steering
wheel height and reach.
26 Controls for:
– electric beam height adjust -
ment;
– lighting dimmer for control in -
struments;
– Electronic Stability Program
(ESP);
– parking distance control;
– cruise control and speed limiter.
27 Assisted parking brake.
28 Bonnet release control.
The equipment fitted, described below, depends on the version, the vehicle options and the country.
Page 50 of 267
controls ................................................. (up to the end of the DU)
driver’s position .................................... (up to the end of the DU)
dashboard ............................................. (up to the end of the DU)
1.44
ENG_UD24087_2
Poste de conduite à droite (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_1
Jaune NoirNoir texte
drIVer’s POsITIOn, rIGHT-Hand drIVe
123678910111214154
282726
23242220
51316
25
21
191817
