HEADLIGHTS
Remote adjustment
80
13056S
REMOVING - REFITTING OF THE CONTROL
Remove the coin tray or the switch mounting de-
pending on version and, passing your hand inside
the dashboard, unclip the control and push it out-
wards.
CONNECTION
Refer to the Technical Note "Wiring diagrams".
REMOVING - REFITTING THE RECEIVER
Disconnect the remote adjustment receiver
connector.
Turn the receiver an eighth of a turn towards the
centre of the vehicle to release the lens unit.
Then release the ball joint of the receiver and the
lens unit parabola to remove the receiver.
SPECIAL NOTES FOR REFITTING
Remove the bulb connector protective cover at
the rear of the lens unit.
Keep the parabola towards the rear of the lens
unit by pulling on the base of the bulb and click
the ball joint into position.
Now refit the receiver to the lens unit by turning it
an eighth of a turn.
Reconnect the connector and refit the protective
bulb cover at the rear of the lens unit.
Set the remote adjustment control to "0" and ad-
just the headlight:
- bolt (G) for height adjustment,
- bolt (F) for direction adjustment.
13057R1
80-4
Page 11 of 83
REAR AND INTERIOR LIGHTS
Fuses
81
FUSE BOX (engine compartment)
12840S
Rating D7F F8Q E7J
1 30A Injection (238-279) - Injection (236)
2 30AFan assembly
(234)-Fan assembly
(234)
3 - 15A 5A - Injection (238) Injection (120)
4 15A -Engine functions
(238-250-450-927)-
5 15AFan assembly / ignition
(234-778)-Injection / ignition
(236-250-663-664)
6 70A - Preheating unit -
7 50A -Engine functions
(234-450-700)-
8 60A Dashboard (209-713) Dashboard (209-713) Dashboard (209-713)
9 60A Dashboard (104-209) Dashboard (104-209) Dashboard (104-209)
10 60A Electric windows / AC fan Electric windows Electric windows / AC fan
11 60A ABS ABS ABS
81-4
Page 14 of 83
IMMOBILISER
Coded key immobiliser system
82
• An antenna ring (C) around the ignition
switch, with an electronic unit which transmits
the key code to the decoder unit (D).
NOTE : This antenna ring is not coded.
Removal - Refitting
Remove the half cowlings from under the steering
wheel, release the antenna ring from the ignition
switch and disconnect its connector.
13067R
• A decoder unit (D) in the dashboard on the left
hand side.
This has the following functions:
- decoding of the key signal from the antenna
ring,
- management of the engine immobiliser
system by the sending of a code to the injection
computer (petrol) or coded solenoid valve
(diesel) to authorise the vehicle to be started
- operation of the red immobiliser warning light,
- locking and unlocking of the opening elements
(depending on version),
- timed illumination of the courtesy light (vehicle
fitted with a door locking remote control).
12967R1
82-3
Page 15 of 83
IMMOBILISER
Coded key immobiliser system
82
Removal - Refitting
The dashboard must be partially removed to re-
move the decoder unit.
Remove:
- the steering wheel with the wheels straight,
- the half cowlings under the steering wheel,
- the knee protector under the steering column,
- the lights and wiper controls,
- the instrument panel surround,
- the instrument panel,
- the ashtray, its mounting and the two dash-
board mounting bolts on the heating unit,
- the trim at the bottom of the dashboard on the
driver’s side,
- the two speaker grilles on the dashboard,
- the dashboard mountings.
13065R1
Move the dashboard as far back as possible, dis-
connect the decoder unit and remove the two
mounting bolts (B) using a small ratchet fitted
with a Torx 20 socket.
•A red immobiliser warning light on the instru-
ment panel used to :
- indicate activation of the engine immobiliser
system,
- signal a fault in the system for vehicles with a
coded solenoid valve (diesel) or non-
recognition of the key,
- signal entry into the door locking remote
control resynchronisation mode (depending
on equipment).
• An injection warning light (petrol vehicle)
which indicates a fault in the:
- injection,
- engine immobiliser system when the engine
is running (flashes during deceleration and
at idle speed).
82-4
Page 28 of 83
INSTRUMENT PANEL
Dashboard
REMOVAL
Disconnect the battery.
Removing the steering wheel (with AIRBAG)
83
PRB5702
12973S
Remove the two airbag cushion bolts behind the
steering wheel.
Disconnect the connectors (airbag, horn).
Remove:
- the airbag cushion,
- the steering wheel bolt (renew it on refitting,
pre-bonded bolt, tightening torque: 4.5
daN.m),
- the steering wheel after setting the wheels
straight.
Removing the steering wheel (without AIRBAG)
Remove:
- the central cushion,
- the steering wheel bolt (renew it on refitting,
pre-bonded bolt, tightening torque: 4.5
daN.m),
- the steering wheel after setting the wheels
straight.
83-1
Page 29 of 83
INSTRUMENT PANEL
Dashboard

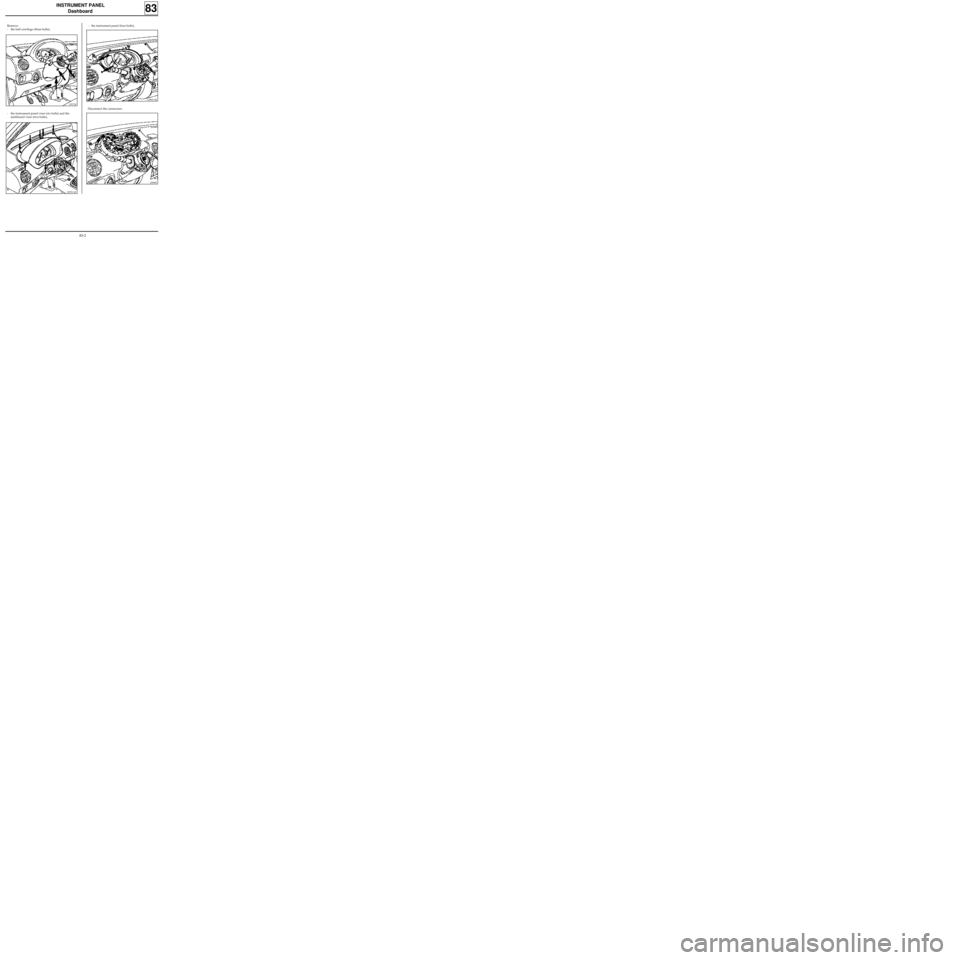

Remove:
- the half cowlings (three bolts),
83
- the instrument panel (four bolts),
- the instrument panel visor (six bolts) and the
dashboard visor (two bolts),
Disconnect the connectors.
12970-1R
12969-1R
12971R
12968S
83-2
Page 30 of 83
INSTRUMENT PANEL
Dashboard
83
Remove:
- the lower protector (four bolts),
- the lower section of the dashboard (four bolts,
two clips),
Special notes for vehicles with airbag
Before removing the assembly, the position of the
rotary switch under the steering wheel must be
noted:
- by ensuring that the wheels are straight on re-
moval so that the strip may be positioned in the
centre,
- by immobilising the rotary switch rotor using
adhesive tape.
Slacken the bolt then sharply tap the screwdriver
to release the cone.
Disconnect the connectors.
12967-1R
12966R
12971-1R
83-3
Page 31 of 83
INSTRUMENT PANEL
Dashboard
83
- the fuse boards (five bolts).
Unclip the diagnostic socket.
Remove:
- the heating control unit (two bolts),Remove:
- the steering column mountings (two bolts, two
nuts),
- the ashtray and its mounting (two bolts).
Disconnect the connectors.
12963R1
12965-1R 12963R
12965-1R1
83-4
Page 32 of 83
INSTRUMENT PANEL
Dashboard
83
- the loud speaker grilles,
- the dashboard mountings.
Gently pull the dashboard.
Release the wiring retaining clips.
Disconnect:
- the headlight remote adjustment control
connector and hazard warning light connector,
- the remaining connectors (example : decoder
unit).
Remove the dashboard.REFITTING
When refitting, it is important to ensure the va-
rious wires are correctly routed and have suffi-
cient space so that the dashboard can be correctly
centred.
SPECIAL NOTES FOR REFITTING THE STEERING
WHEEL WITH AIRBAG
Ensure the rotary switch under the steering wheel
is correctly positioned.
If there is any doubt that this switch is correctly
centred follow the method for centring described
in section 88 "driver’s airbag".
Renew the steering wheel bolt each time it is re-
moved (pre-bonded bolt) for a steering wheel
with airbag.
Observe the correct tightening torque (4.5
daN.m).
IMPORTANT
Before reconnecting the driver’s airbag cushion,
check to see if the system is operating correctly as
follows:
•check the airbag warning light on the
instrument panel is illuminated when the
ignition is on,
•connect a dummy ignition module to the
driver’s airbag connector and check that the
warning light extinguishes,
•switch the ignition off, connect the airbag
cushion in place of the dummy ignition module
and secure the cushion to the steering wheel,
•switch the ignition on. Check the warning light
illuminates for three seconds when the ignition
is switched on then extinguishes and remains
extinguished.
If the warning light does not operate exactly as
described above, refer to the fault finding section
and test the system using the XRBAG (Elé. 1288)
(see section 88).
12964R
