77 11 194 226JULY 1997Edition anglaise
"The repair methods given by the manufacturer in this document are based on the
technical specifications current when it was prepared.
The methods m

Page 2 of 208

RENAULT KANGOO 1997 KC / 1.G Engine And Peripherals Workshop Manual EXPLODED VIEW
PRF1000

Page 3 of 208

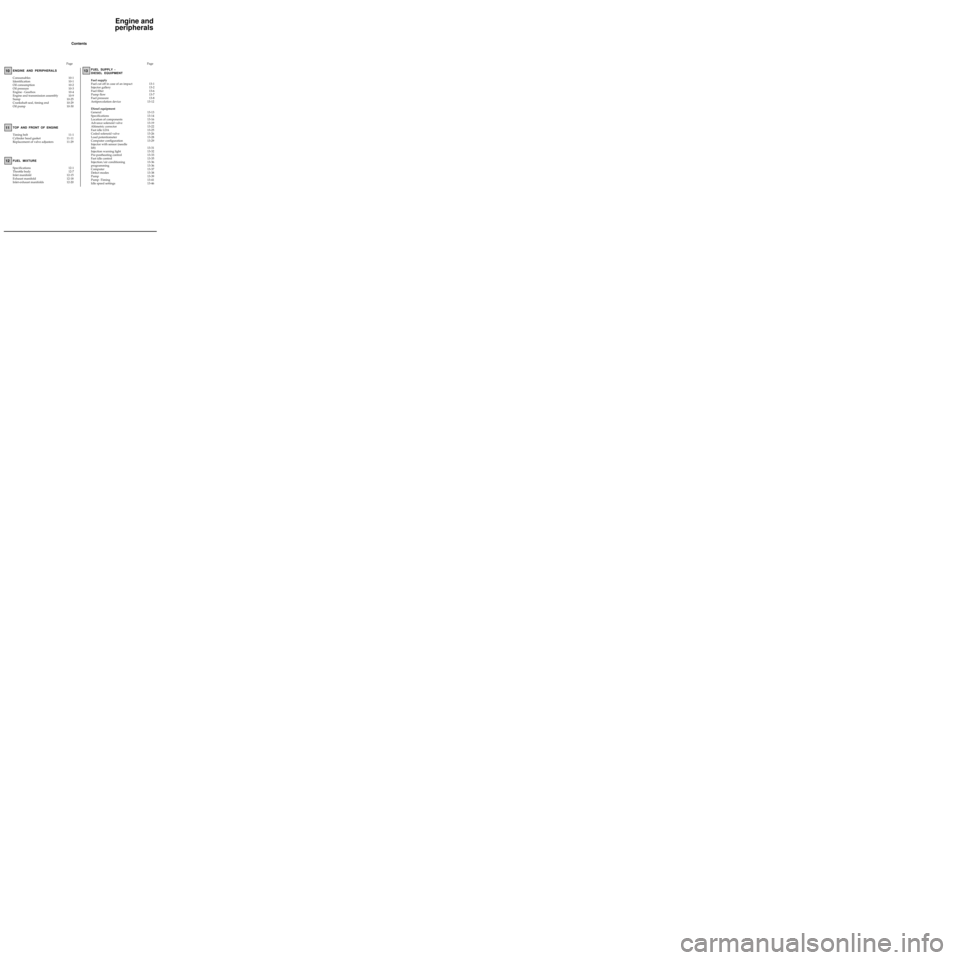

RENAULT KANGOO 1997 KC / 1.G Engine And Peripherals Workshop Manual Contents
Consumables
Identification
Oil consumption
Oil pressure
Engine - Gearbox
Engine and transmission assembly
Sump
Crankshaft seal, timing end
Oil pump10-1
10-1
10-2
10-3
10-4
10-9
10-25
10-29
10

Page 4 of 208

RENAULT KANGOO 1997 KC / 1.G Engine And Peripherals Workshop Manual Page
Cooling
Specifications
Filling and bleeding
Testing
Diagram
Water pump
Exhaust
General
Exhaust pipe assembly
Fuel tank
Tank
Sender unit
Pump and sender unit assembly
Engine suspension
Suspended e

Page 5 of 208

RENAULT KANGOO 1997 KC / 1.G Engine And Peripherals Workshop Manual ENGINE AND ENGINE PERIPHERALS
Consumables
10
Identification
Type Quantity Components
RHODORSEAL 5661Coat Driveshaft roll pin holes
Loctite FRENBLOC
Locking and sealing resinCoat Brake caliper mounting

Page 6 of 208

RENAULT KANGOO 1997 KC / 1.G Engine And Peripherals Workshop Manual ENGINE AND ENGINE PERIPHERALS
Oil consumption
10
OIL CONSUMPTION MEASUREMENT PROCEDURE
a) Filling to the maximum level
The operation must be carried out with the engine hot (one rotation of the coolin

Page 7 of 208

RENAULT KANGOO 1997 KC / 1.G Engine And Peripherals Workshop Manual 87363R1
ENGINE AND ENGINE PERIPHERALS
Oil pressure
10
SPECIAL TOOLING REQUIRED
Mot. 836 -05  Oil pressure measuring kit
EQUIPMENT REQUIRED
22 mm long socket
CHECKING
The oil pressure should be checked

Page 8 of 208

RENAULT KANGOO 1997 KC / 1.G Engine And Peripherals Workshop Manual ENGINE AND ENGINE PERIPHERALS
Engine - Gearbox
10
REMOVAL
Put the vehicle on a 2 post lift.
Disconnect:
- the battery,
- the electrical connectors from the engine
connection unit and its environment.

Page 9 of 208

RENAULT KANGOO 1997 KC / 1.G Engine And Peripherals Workshop Manual ENGINE AND ENGINE PERIPHERALS
Engine - Gearbox
Left-hand side of the vehicle
Remove:
- the brake caliper mounting bolt, then fix it to
the shock absorber spring,
- the three driveshaft gaiter mounting

Page 10 of 208

RENAULT KANGOO 1997 KC / 1.G Engine And Peripherals Workshop Manual ENGINE AND ENGINE PERIPHERALS
Engine - Gearbox
- the heater hoses on the bulkhead side (with
plastic unions),
10
Disconnect the gear control at the position of the
gearbox output lever after releasing
