RENAULT KANGOO 1997 KC / 1.G Trim And Upholstery User Guide SIDE OPENING ELEMENTS TRIM Front door trim Unclip the trim and separate the trim from the adhesive as it is removed. When the trim has been removed or replaced, apply preformed sealing mastic (Part No

Page 12 of 25

RENAULT KANGOO 1997 KC / 1.G Trim And Upholstery User Guide SIDE OPENING ELEMENTS TRIM Side door trim Remove the handle. Unclip the trim. Unclip the opening handle. 72 13102R PRB7202 REMOVING 72-2

Page 13 of 25

RENAULT KANGOO 1997 KC / 1.G Trim And Upholstery User Guide NON-SIDE OPENING ELEMENTS TRIM Lining for rear door or tailgate Remove the handle. Unclip the lining. 73 PRB7301 REMOVING 13103R 73-1

Page 14 of 25

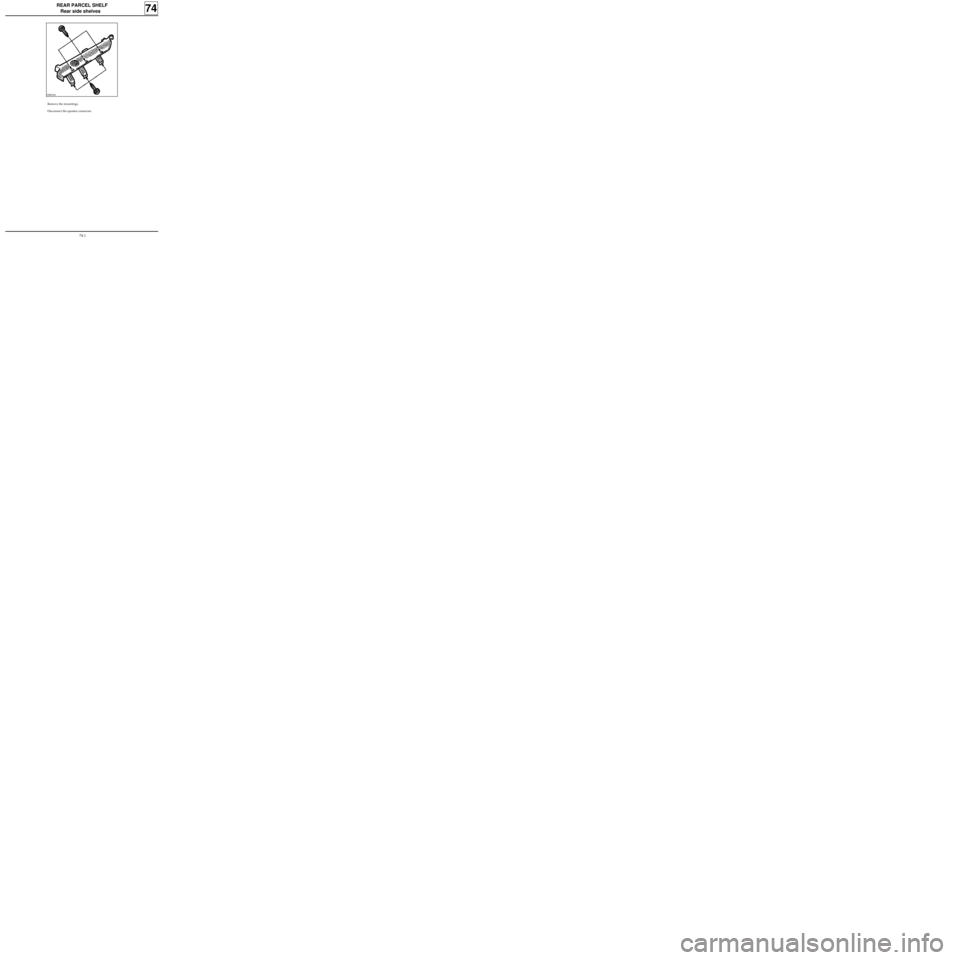

RENAULT KANGOO 1997 KC / 1.G Trim And Upholstery User Guide REAR PARCEL SHELF Rear side shelves Remove the mountings. Disconnect the speaker connector. 74 PRB7401 74-1

Page 15 of 25

RENAULT KANGOO 1997 KC / 1.G Trim And Upholstery User Guide FRONT SEAT FRAMES AND RUNNERS Complete front seat and runners Runners 75 REMOVING PRB7501 13160R Put the vehicle on a lift. Remove the mountings under the body. Disconnect the electric wiring harness.

Page 16 of 25

RENAULT KANGOO 1997 KC / 1.G Trim And Upholstery User Guide REAR SEAT FRAMES AND RUNNERS Complete rear bench seat Tilt the lever. Release the seat. 76 REMOVING PRB7601 13251R 76-1

Page 17 of 25

RENAULT KANGOO 1997 KC / 1.G Trim And Upholstery User Guide FRONT SEAT TRIM Seatback trim - the button for tilting the seatback. 77 REMOVING PRB7701 94121S 13178-1 Remove : - the seat, - the head restraint and the upper parts of the head restraint guide, 77-1

Page 18 of 25

RENAULT KANGOO 1997 KC / 1.G Trim And Upholstery User Guide FRONT SEAT TRIM Seatback trim Refit the trim and cut the "pig’s snout" clips. 77 Undo the tensioning elastic (A). 13177 13176 Unclip the rear edge of the trim (B). 13175 77-2

Page 19 of 25

RENAULT KANGOO 1997 KC / 1.G Trim And Upholstery User Guide FRONT SEAT TRIM Folding seatback trim Unclip the trim at (A), (B) and (C). 77 REMOVING 13174 Remove : - the seat, - the head restraint and the upper parts of the head restraint guide. Unclip : - the s

Page 20 of 25

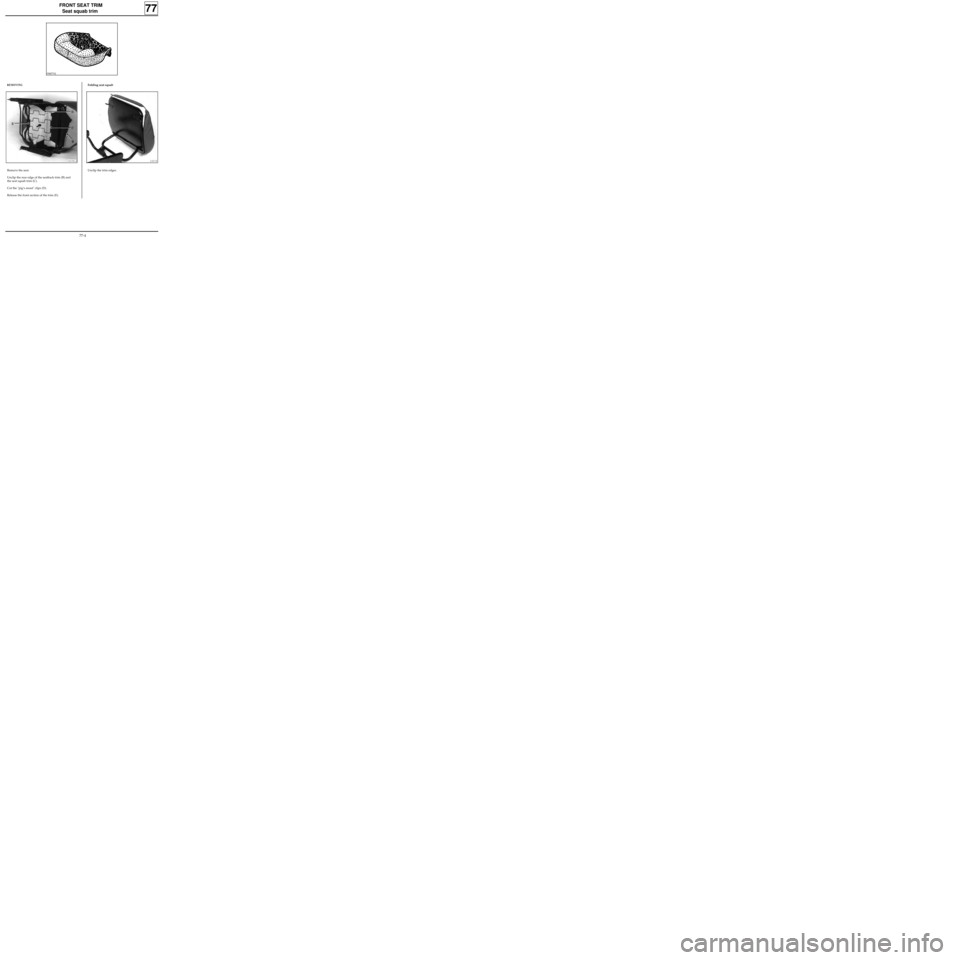

RENAULT KANGOO 1997 KC / 1.G Trim And Upholstery User Guide FRONT SEAT TRIM Seat squab trim Folding seat squab 77 REMOVING PRB7702 13176-1 Remove the seat. Unclip the rear edge of the seatback trim (B) and the seat squab trim (C). Cut the "pig’s snout" clips
