RENAULT KANGOO 2013 X61 / 2.G Access Security Service Manual

82D-41
AFTER REPAIRCarry out a complete check with the diagnostic tool.
V1 MR-376-X76-82D000$170.mif
ACCESS - SECURITY
Fault finding – Fault finding chart82D
UCH
Vdiag No.: 0F
ALP 7
CONTINUED 3
Check the battery voltage when the starter is turning and check the earth straps connecting the engine and
transmission assembly to the vehicle chassis.
Check that the starter motor has not seized or locked.
If the fault is still present, replace the starter motor (see MR 374, Mechanical, 16A, Starting - Charging, Starter:
Removal - Refitting).
C

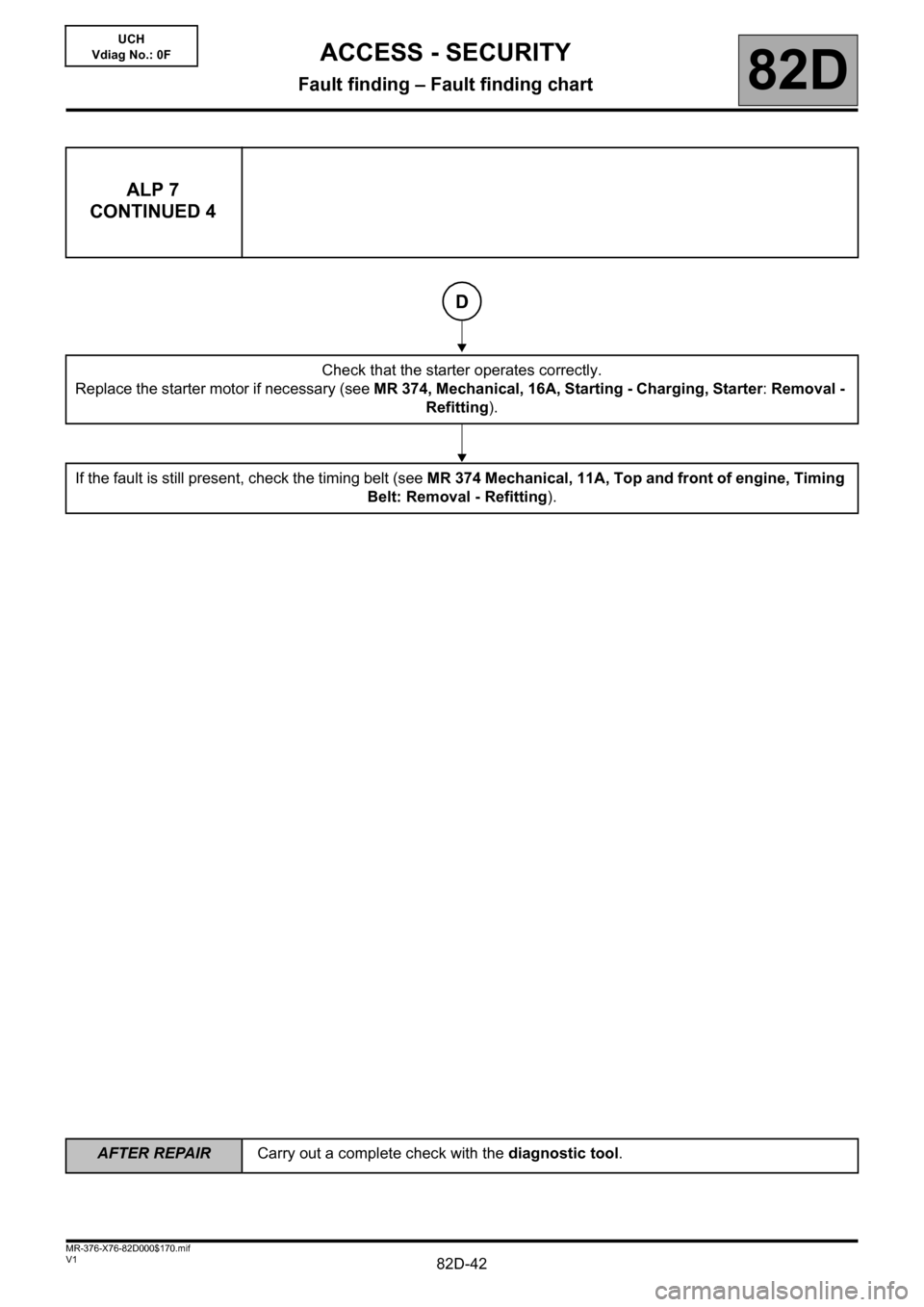

82D-42
AFTER REPAIRCarry out a complete check with the diagnostic tool.
V1 MR-376-X76-82D000$170.mif
ACCESS - SECURITY
Fault finding – Fault finding chart82D
UCH
Vdiag No.: 0F
ALP 7
CONTINUED 4
Check that the starter operates correctly.
Replace the starter motor if necessary (see MR 374, Mechanical, 16A, Starting - Charging, Starter: Removal -
Refitting).
If the fault is still present, check the timing belt (see MR 374 Mechanical, 11A, Top and front of engine, Timing
Belt: Removal - Refitting).
D

82D-43
AFTER REPAIRCarry out a complete check with the diagnostic tool.
V1 MR-376-X76-82D000$170.mif
ACCESS - SECURITY
Fault finding – Fault finding chart82D
UCH
Vdiag No.: 0F
ALP 8 No electric window operation
Switch on the + after ignition
Check the presence and condition of the fuses F19 (25 A) for the driver's electric window control, component code
132 and F20 (25 A) for the driver's electric window control for the front passenger window, component code 133
and F32 (25 A) for the passenger electric window control, component code 532 on the passenger compartment
fuse and relay box, component code 260.
Are they in good condition?
Replace the fuse(s) if the checks are not correct
(see MR 374, Mechanical, 81C, Fuses, Fuses:
List and location of components).
A
YESNO
UCH_V0F_ALP08

82D-44
AFTER REPAIRCarry out a complete check with the diagnostic tool.
V1 MR-376-X76-82D000$170.mif
ACCESS - SECURITY
Fault finding – Fault finding chart82D
UCH
Vdiag No.: 0F
ALP 8
CONTINUED 1
Check the condition and connection of the
connectors of the following components:
–132 and 203 (for the driver's electric window),
–133 and 204 (for the passenger electric
window),
–532 (for the driver's electric window control for
the front passenger window).
Are they correct?If the connector or connectors are faulty and
there is a repair procedure (see Technical Note
6015A, Electrical wiring repair, Wiring:
Precautions for repair), repair the connector,
otherwise replace the wiring.
Disconnect the connector of the electric window control and check the
operation of the motor by making a direct connection:
For the driver's electric window:
– between AP1 and 21B of component 132,
– between AP1 and 21A of component 132,
For the passenger electric window:
– between LPD and 22B of component 133,
– between LPD and 22A of component 133,
For the driver's electric window control for the front passenger
window:
– – between AP2 and 22D of component 532,
– – between AP2 and 22C of component 532,
Does the electric window motor operate in both cases?Replace the control switch of
the electric window concerned
(see MR 374 Mechanical,
87D, Electric windows -
Sunroof, Front electric
window switch: Removal –
Refitting or MR 374
Mechanical, 87D, Electric
windows - Sunroof, Rear
electric window switch:
Removal – Refitting).
A
NO
YES
YES
B
NO

82D-45
AFTER REPAIRCarry out a complete check with the diagnostic tool.
V1 MR-376-X76-82D000$170.mif
ACCESS - SECURITY
Fault finding – Fault finding chart82D
UCH
Vdiag No.: 0F
ALP 8
CONTINUED 2
Check for earth on the following connections:
For the driver's electric window:
–MK of component 132,
For the passenger electric window:
–MK of component 133,
For the driver's electric window control for the front
passenger window:
–MK of component 532.
Are the connections correct?If the connection or connections are
faulty and there is a repair procedure
(see Technical Note 6015A,
Electrical wiring repair, Wiring:
Precautions for repair), repair the
connector, otherwise replace the
wiring.
B
NO
C
YES

82D-46
AFTER REPAIRCarry out a complete check with the diagnostic tool.
V1 MR-376-X76-82D000$170.mif
ACCESS - SECURITY
Fault finding – Fault finding chart82D
UCH
Vdiag No.: 0F
ALP 8
CONTINUED 3
Check the continuity, insulation and absence of interference resistance on the following connections:
For the driver's electric window:
–AP1 between components 260 and 132,
–21A between components 203 and 132,
–21B between components 203 and 132,
For the passenger electric window:
–LPD between components 260 and 133,
–22A between components 204 and 133,
–22B between components 204 and 133,
For the driver's electric window control for the front passenger window:
–AP2 between components 260 and 532,
–22C between components133 and 532,
–22D between components133 and 532.
Are they correct?
Replace the motor of the electric window control
concerned.
If the connection or connections are faulty and
there is a repair procedure (see Technical
Note 6015A, Electrical wiring repair, Wiring:
Precautions for repair), repair the connector,
otherwise replace the wiring.
If the fault is still present, contact Techline
C
YESNO

82D-47
AFTER REPAIRCarry out a complete check with the diagnostic tool.
V1 MR-376-X76-82D000$170.mif
ACCESS - SECURITY
Fault finding – Fault finding chart82D
UCH
Vdiag No.: 0F
ALP 9 The electric door locking/unlocking control operates erratically
Check the condition and connection of the UCH connector, component code 645 and the electric door locking
control connector, component code 123.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
For locking:
Check the continuity and the insulation of the following connections:
–20A between components123 and 645,
–MK between components 123 and earth.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
A
UCH_V0F_ALP09

82D-48
AFTER REPAIRCarry out a complete check with the diagnostic tool.
V1 MR-376-X76-82D000$170.mif
ACCESS - SECURITY
Fault finding – Fault finding chart82D
UCH
Vdiag No.: 0F
ALP 9
CONTINUED
For unlocking:
Check the continuity and the insulation of the following connections:
–20B between components123 and 645,
–MK between components 123 and earth.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact Techline.
A
