display RENAULT KANGOO ZERO EMISSION 2012 X61 / 2.G Owner's Manual

JauneNoirNoir texte
2.13
ENG_UD29322_4
Régulateur-limiteur de vitesses : fonction limiteur (X61 - F61 - Renault)
ENG_NU_911-4_F61e_Renault_2
cruiSE cOntrOl, SPEED liMitEr: speed limiter function (2/3)
Exceeding the limit speed
It is possible to exceed the limit speed
at any moment. To do this: press the
accelerator pedal firmly and fully
(beyond the resistance point).
Whilst the speed is being exceeded,
the cruising speed displayed on the in-
strument panel flashes.
Then, release the accelerator: the
speed limiter function will return as
soon as you reach a speed lower than
the stored speed.
limited speed cannot be maintained
If driving up or down a steep gradient,
the system is unable to maintain the
limit speed: the stored speed will flash
on the instrument panel information dis-
play to inform you of this situation.
The speed limiter function is
in no way linked to the brak-
ing system.
Driving
When a limited speed has been stored
and this speed is not reached, driving is
similar to driving a vehicle without the
speed limiter function.
Once you have reached the stored
speed, no effort on the accelera -
tor pedal will allow you to exceed
the programmed speed except in an
emergency (refer to information on
“Exceeding the limit speed”).
2453
Varying the limit speed
The limit speed may be changed by re-
peatedly pressing:
– switch 2 (+) to increase the speed;
– switch 3 (-) to decrease the speed.

JauneNoirNoir texte
2.17
ENG_UD29323_3
Régulateur-limiteur de vitesses : fonction régulateur (X61 - F61 - Renault)
ENG_NU_911-4_F61e_Renault_2
cruiSE cOntrOl, SPEED liMitEr: cruise control function (3/4)
Exceeding the cruising speed
The cruising speed may be exceeded
at any time by depressing the accelera -
tor pedal. While it is being exceeded,
the cruising speed flashes on the in -
strument panel.
Then, release the accelerator: after a
few seconds, the vehicle will automati-
cally return to its set cruising speed.
cruising speed cannot be
maintained
When driving down a steep gradient,
the system is unable to maintain the
cruising speed: the stored speed will
flash on the instrument panel informa -
tion display to inform you of this situ -
ation.
adjusting the cruising speed
The cruising speed may be changed by
pressing the following repeatedly:
– switch 2 (+) to increase the speed,
– switch 3 (-) to decrease the speed.
The cruise control function
is in no way linked to the
braking system.
2345

3.8
ENG_UD23009_2
Chauffage, climatisation : préchambrage (X61 électrique - Renault)
ENG_NU_911-4_F61e_Renault_3
Air ConditioninG/HeA tinG: programming (2/2)
Activating the function
– With the ignition on, control 1 on
ṗ;
– switch off the ignition;
– charge your vehicle;
The function triggers on the hour pre -
ceding the hour programmed in order to
reach a comfortable temperature.
Automatically switching off the
function
– about 30 minutes after the pro -
grammed time;
– if the charging socket is discon -
nected;
– if control 1 is not in position
ṗ.
2
3
A
B
Programming the function start time
– To programme the start time, hold
button B down on stalk 3 until the
message “Settings menu” appears
on the display 2;
– scroll through the menu using but -
tons A and B until you see the
ṗ
symbol;
– hold down button B on stalk 3 - the
hours flash; –
press button A to adjust them;
– hold down button B on stalk 3 - the
minutes flash;
– press button A to adjust them;
– confirm by pressing button B on
stalk 3.
The
ṗ symbol and the programmed
time are displayed on the instrument
panel.

maintenance:interior trim ...................................... (up to the end of the DU)
interior trim maintenance ................................... (up to the end of the DU)
cleaning: inside the vehicle ............................ (up to the end of the DU)
4.11
ENG_UD22866_8
Entretien des garnitures intérieures (X35 - X45 - X65 - J77 - X81 - J81 - X85 - X91 - B91 - K91 - D91 - X83 - X61 - X77 ph2 - X95 - B95 - D95 - E95 - K95 - J95 - R95 -
ENG_NU_911-4_F61e_Renault_4
Interior trim maintenance
Glass instrument panel(e.g. instrument panel, clock, exterior
temperature display, radio display, etc.)
Use a soft cloth (or cotton wool).
If this does not clean it properly, use a
soft cloth (or cotton wool) slightly mois-
tened with soapy water and then wipe
clean with a soft damp cloth or cotton
wool.
Finally, carefully dry off with a soft dry
cloth.
Cleaning products containing alco -
hol must not be used under any cir-
cumstances.
seat belts
These must be kept clean.
Use products selected by our Technical
Department (Approved outlets) or
warm, soapy water and a sponge and
wipe with a dry cloth.
Detergents or dyes must not be used
under any circumstances.
InteRIOR tRIM MaIntenanCe (1/2)
textiles (seats, door trim, etc)
Vacuum-clean the textiles regularly.
Liquid stain
Use soapy water.
Dab lightly (never rub) with a soft cloth,
rinse and remove the excess.
solid or pasty stain
Carefully remove the excess solid or
pasty material immediately with a
spatula (working from the edges to the
centre to avoid spreading the stain).
Clean as for a liquid stain.
special instructions for sweets or
chewing gum
Put an ice cube on the stain to solidify
it, then proceed as for a solid stain.
A well-maintained vehicle will last
longer. It is therefore recommended to
maintain the interior of the vehicle regu-
larly.
A stain should always be dealt with
swiftly.
Whatever type of stain is on the trim,
use
cold (or warm) soapy water with
natural soap.
Detergents (washing-up liquid, pow -
dered products, alcohol-based prod-
ucts) should not be used.
Use a soft cloth.
Rinse and soak up the excess.
For further recommendations for
maintaining the interior, and/or for
any unsatisfactory results, please
see an authorised dealer.

JauneNoirNoir texte
5.27
ENG_UD23043_4
Fusibles (X61 - F61 - K61 - Renault)
ENG_NU_911-4_F61e_Renault_5
Fuses (2/2)
Some functions are protected by fuses
located in the engine compartment.
However, because of their reduced ac-
cessibility, you are advised to have
these fuses replaced by an approved
Dealer.symbol allocation symbolallocation
Z
Interior lighting, electric
door mirrors, rain/light sen-
sors, heating and air con -
ditioning system.
î
Radio, display, heating and
air conditioning system,
heated seat
ÌHornInstrument panel
DRear fog lights, warningëAccessories socket, cigar
lighter
Electric windowsö
Consumer cut-out (radio,
navigation system, display,
alarm)
ñHeated seatsgHeated door mirrors
fRear screen wiperHFront/rear windscreen wash-
ers
xPassenger compartment
heating systemNCentral door locking
aDaPt Location reserved for addi
-
tional equipment.
nABS
ßBrake lights
allocation of fuses (the presence of fuses DePenDs On the eQuIPment leVel
OF the VehIcle)

radio......................................................(up to the end of the DU)
multimedia equipment .......................... (up to the end of the DU)
fitting a radio ......................................... (up to the end of the DU)
fitting a radio ......................................... (up to the end of the DU)
5.33
ENG_UD21608_3
Equipement radio (X61 - F61 - Renault)
ENG_NU_911-4_F61e_Renault_5
Fitted audio equipment
To operate this equipment: please
refer to the instructions for the equip-
ment which should be kept with the
other vehicle documentation.
FIttIng a raDIO (1/2)
radio equipment
Unclip the blanking cover. The connec -
tions for the aerial, + and – supply, and
speaker wires are found behind the
cover.
The equipment described below may
or may not be fitted to the vehicle, and
its location may vary, depending on the
vehicle version:
1 offset display (time, exterior temper-
ature, radio and navigation);
2 audio connection socket;
3 radio unit;
4 radio steering column controls.
3
Bass speakers 5
t weeter speakers 4
5
4
32
1
4

7.1
FRA_UD29098_4
Index (X61 - F61 - Renault)
ENG_NU_911-4_F61e_Renault_7

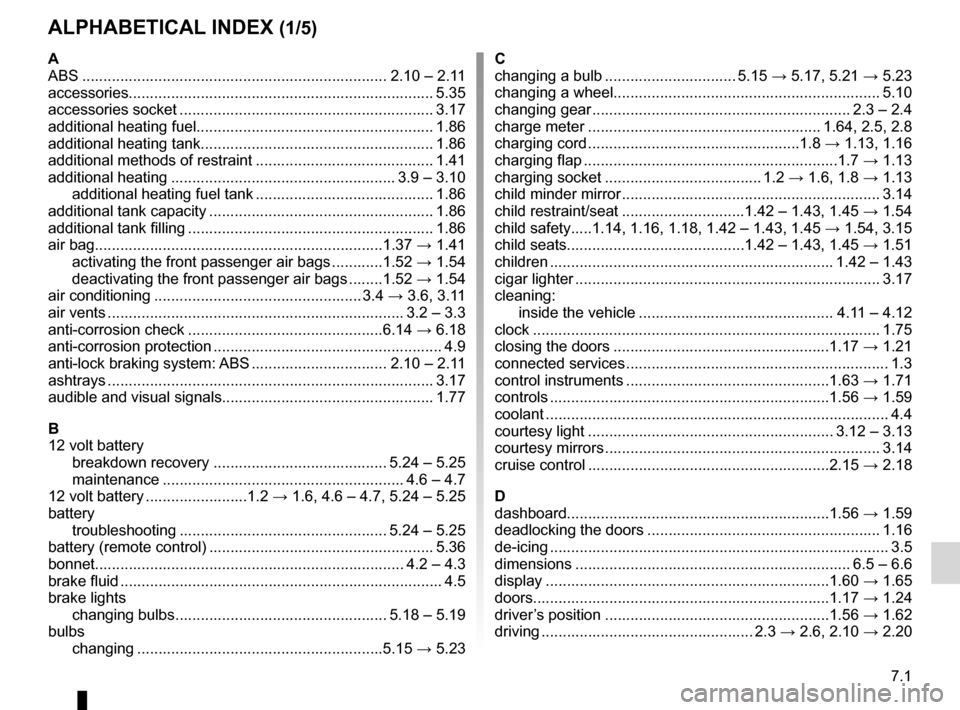

AlphAbeticAl index (1/5)
A
ABS ........................................................................ 2.10 – 2.11
accessories........................................................................ 5.35
accessories socket ............................................................ 3.17
additional heating fuel ........................................................ 1.86
additional heating tank ....................................................... 1.86
additional methods of restraint .......................................... 1.41
additional heating ..................................................... 3.9 – 3.10
additional heating fuel tank .......................................... 1.86
additional tank capacity ..................................................... 1.86
additional tank filling .......................................................... 1.86
air bag .................................................................... 1.37 → 1.41
activating the front passenger air bags ............ 1.52 → 1.54
deactivating the front passenger air bags ........ 1.52 → 1.54
air conditioning ................................................. 3.4 → 3.6, 3.11
air vents ...................................................................... 3.2 – 3.3
anti-corrosion check .............................................. 6.14 → 6.18
anti-corrosion protection ...................................................... 4.9
anti-lock braking system: ABS ................................2.10 – 2.11
ashtrays ............................................................................. 3.17
audible and visual signals .................................................. 1.77
b
12 volt battery breakdown recovery ......................................... 5.24 – 5.25
maintenance ......................................................... 4.6 – 4.7
12 volt battery ........................ 1.2 → 1.6, 4.6 – 4.7, 5.24 – 5.25
battery troubleshooting ................................................. 5.24 – 5.25
battery (remote control) ..................................................... 5.36
bonnet ......................................................................... 4.2 – 4.3
brake fluid ............................................................................ 4.5
brake lights changing bulbs .................................................. 5.18 – 5.19
bulbs changing .......................................................... 5.15 → 5.23c
changing a bulb
............................... 5.15 → 5.17, 5.21 → 5.23
changing a wheel ............................................................... 5.10
changing gear ............................................................. 2.3 – 2.4
charge meter ....................................................... 1.64, 2.5, 2.8
charging cord .................................................. 1.8 → 1.13, 1.16
charging flap ............................................................ 1.7 → 1.13
charging socket ..................................... 1.2 → 1.6, 1.8 → 1.13
child minder mirror ............................................................. 3.14
child restraint/seat ............................. 1.42 – 1.43, 1.45 → 1.54
child safety .....1.14, 1.16, 1.18, 1.42 – 1.43, 1.45 → 1.54, 3.15
child seats .......................................... 1.42 – 1.43, 1.45 → 1.51
children ................................................................... 1.42 – 1.43
cigar lighter ........................................................................ 3.17
cleaning: inside the vehicle .............................................. 4.11 – 4.12
clock .................................................................................. 1.75
closing the doors ................................................... 1.17 → 1.21
connected services .............................................................. 1.3
control instruments ................................................ 1.63 → 1.71
controls .................................................................. 1.56 → 1.59
coolant ................................................................................. 4.4
courtesy light .......................................................... 3.12 – 3.13
courtesy mirrors ................................................................. 3.14
cruise control ......................................................... 2.15 → 2.18
d
dashboard .............................................................. 1.56 → 1.59
deadlocking the doors ....................................................... 1.16
de-icing ................................................................................ 3.5
dimensions ................................................................. 6.5 – 6.6
display ................................................................... 1.60 → 1.65
doors ...................................................................... 1.17 → 1.24
driver’s position ..................................................... 1.56 → 1.62
driving .................................................. 2.3 → 2.6, 2.10 → 2.20
