Dispositifs de retenue complémentaire (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1

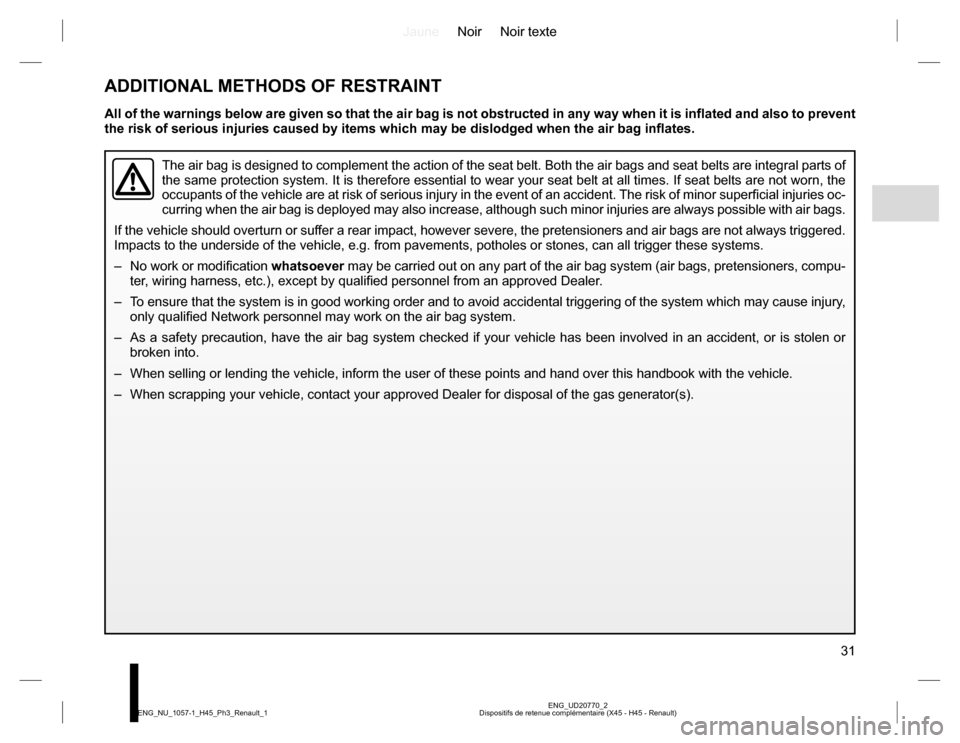

ADDITIONAL METHODS OF RESTRAINT
All of the warnings below are given so that the air bag is not obstructed in any way when it is inflated and also to prevent
the risk of serious injuries caused by items which may be dislodged when the air bag inflates.
The air bag is designed to complement the action of the seat belt. Both the air bags and seat belts are integral parts of
the same protection system. It is therefore essential to wear your seat belt at all times. If seat belts are not worn, the
occupants of the vehicle are at risk of serious injury in the event of an accident. The risk of minor superficial injuries oc-
curring when the air bag is deployed may also increase, although such minor injuries are always possible with air bags.
If the vehicle should overturn or suffer a rear impact, however severe, the pretensioners and air bags are not always triggered.
Impacts to the underside of the vehicle, e.g. from pavements, potholes or stones, can all trigger these systems.
– No work or modification whatsoever may be carried out on any part of the air bag system (air bags, pretensioners, compu-
ter, wiring harness, etc.), except by qualified personnel from an approved Dealer.
– To ensure that the system is in good working order and to avoid accidental triggering of the system which may cause injury,
only qualified Network personnel may work on the air bag system.
– As a safety precaution, have the air bag system checked if your vehicle has been involved in an accident, or is stolen or
broken into.
– When selling or lending the vehicle, inform the user of these points and hand over this handbook with the vehicle.
– When scrapping your vehicle, contact your approved Dealer for disposal of the gas generator(s).
Page 32 of 232
JauneNoir Noir texte
32
ENG_UD27170_5
S curit enfants : g n ralit s (X35 - L35 - X45 - H45 - X65 - X81 - X85 - X83 - B95 - D95 - K95 - J95 - R95 - L38 - X38 - X32 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
CHILD SAFETY: General information (1/2)
Carrying children
Children, and adults, must be correctly
seated and strapped in for all journeys.
The children being carried in your vehi-
cle are your responsibility.
A child is not a miniature adult. Children
are at risk of specific injuries as their
muscles and bones have not yet fin-
ished growing. The seat belt alone
would not provide suitable protection.
Use an approved child seat and ensure
you use it correctly.
A collision at 30 mph
(50 km/h) is the same as fall-
ing a distance of 10 metres.
Transporting a child without
a restraint is the equivalent of allow-
ing him or her to play on a fourth-
floor balcony without railings.
Never travel with a child held in your
arms. In the event of an accident,
you will not be able to keep hold of
the child, even if you yourself are
wearing a seat belt.
If your vehicle has been involved in
a road accident, replace the child
seat and have the seat belts and
ISOFIX anchorage points checked.
To prevent the doors being
opened, use the “Child
safety” device (refer to the
information on “Opening
and closing the doors” in Section 1).
Driver’s responsibility
when parking or stopping
the vehicle
Never leave an animal,
child or adult who is not self-suffi-
cient alone on your vehicle, even for
a short time.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors.
Also, in hot and/or sunny weather,
please remember that the tempera-
ture inside the passenger compart-
ment increases very quickly.
RISK OF DEATH OR SERIOUS
INJURY.
Page 33 of 232
JauneNoir Noir texte
33
ENG_UD27170_5
S curit enfants : g n ralit s (X35 - L35 - X45 - H45 - X65 - X81 - X85 - X83 - B95 - D95 - K95 - J95 - R95 - L38 - X38 - X32 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
CHILD SAFETY: General information (2/2)
Using a child seat
The level of protection offered by the
child seat depends on its ability to re-
strain your child and on its installation.
Incorrect installation compromises the
protection it offers the child in the event
of harsh braking or an impact.
Before purchasing a child seat, check
that it complies with the regulations for
the country you are in and that it can
be fitted in your vehicle. Consult an ap-
proved dealer to find out which seats
are recommended for your vehicle.
Before fitting a child seat, read the
manual and respect its instructions. If
you experience any difficulties during
installation, contact the manufacturer
of the equipment. Keep the instructions
with the seat.Set a good example by always fas-
tening your seat belt and teaching
your child:
– to strap themselves in correctly;
– to always get in and out of the car
at the kerb, away from busy traf-
fic.
Do not use a second-hand child
seat or one without an instruction
manual.
Check that there are no objects in
the vicinity of the child seat which
could impede its operation.
Never leave a child unat-
tended in the vehicle.
Check that your child is
always strapped in and that
the belt or safety harness used is
correctly set and adjusted. Avoid
wearing bulky clothing which could
cause the belts to slacken.
Never let your child put their head or
arms out of the window.
Check that the child is in the correct
position for the entire journey, espe-
cially if asleep.
Page 34 of 232
JauneNoir Noir texte
34
ENG_UD29545_4
S curit enfants : choix du si ge enfant (X35 - L35 - X45 - H45 - X65 - X77 - X81 - X85 - X91 - X76 - X83 - X61 - X77 ph2 - X95 - L38 - E33 - X33 - X38 - X62 - X10 - X98 ENG_NU_1057-1_H45_Ph3_Renault_1
CHILD SAFETY: choosing a child seat
Rear-facing child seats
A baby’s head is, proportionally, heavier
than that of an adult and its neck is very
fragile. Transport the child in this po-
sition for as long as possible (until the
age of 2 at the very least). It supports
both the head and the neck.
Choose a bucket type seat for best side
protection and change it as soon as the
child’s head is higher than the shell.Forward-facing child seats
The child’s head and abdomen need to
be protected as a priority. A forward-fac-
ing child seat which is firmly attached to
the vehicle will reduce the risk of impact
to the head. Ensure your child travels in
a forward-facing seat with a harness or
buckle for as long as their size permits.
Choose a bucket type seat for optimum
side protection.Booster cushions
From 15 kg or 4 years, the child can
travel using a booster seat, which will
enable the seat belt to be adapted
to suit his/her size and shape. The
booster seat cushion must be fitted with
guides to position the seat belt on the
child’s thighs rather than the stomach.
It is recommended that you use a seat-
back fitted with a belt strap guide which
can be adjusted in terms of height to
position the seat belt in the centre of the
shoulder. It must never rest on the neck
or on the arm.
Choose a bucket type seat for optimum
side protection.
Page 35 of 232
JauneNoir Noir texte
35
ENG_UD31414_5
S curit enfants : choix de la fixation du si ge enfant (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
CHILD SAFETY: choosing a child seat mounting (1/2)
There are two ways of attaching child
seats: via the seat belt or using the
ISOFIX system.
Attachment via the seat belt
The seat belt must be adjusted to
ensure that it is effective in the event of
harsh braking or an impact.
Ensure that the strap paths indicated
by the child seat manufacturer are re-
spected.
Always check that the seat belt is cor-
rectly fastened by pulling it up, then
pulling it out fully whilst pressing on the
child seat.
Check that the seat is correctly held by
moving it from side to side and back
to front: the seat should remain firmly
fixed.
Check that the child seat has not been
installed at an angle and that it is not
resting against a window.Attachment using the ISOFIX
system
Authorised ISOFIX child seats are ap-
proved in accordance with regulation
ECE-R44 in one of the three following
scenarios:
– universal ISOFIX 3-point forward-
facing seat;
– semi-universal ISOFIX 2-point seat;
– specific.
For the latter two, check that your child
seat can be installed by consulting the
list of compatible vehicles.
Attach the child seat with the ISOFIX
locks, if these are provided. The ISOFIX
system allows quick, easy, safe fitting.
The ISOFIX system consists of 2 rings
and, in some cases, a third ring.
Before using an ISOFIX
child seat that you pur-
chased for another vehicle,
check that its installation is
authorised. Consult the list of ve-
hicles which can be fitted with the
seat from the equipment manufac-
turer.
No modifications may be
made to the component
parts of the restraint system
(ISOFIX seat belts, seats
and their mountings) originally fitted.
The seat belt must never
be twisted or the tension
relieved. Never pass the
shoulder strap under the
arm or behind the back.
Check that the seat belt has not
been damaged by sharp edges.
If the seat belt does not operate nor-
mally, it will not protect the child.
Consult an approved dealer. Do not
use this seat until the seat belt has
been repaired.
Do not use the child seat
if it may unfasten the seat
belt restraining it: the base
of the seat must not rest on
the buckle and/or catch of the seat
belt.
Page 36 of 232
JauneNoir Noir texte
36
ENG_UD31414_5
S curit enfants : choix de la fixation du si ge enfant (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
CHILD SAFETY: choosing a child seat mounting (2/2)
The ISOFIX anchorage points have been exclusively designed for child
seats with the ISOFIX system. Never fit a different type of child seat, seat
belt or other objects to these anchorage points.
Check that nothing is obstructing the anchorage points.
If your vehicle has been involved in a road accident, have the ISOFIX anchorage
points checked and replace your child seat.
Check that the seatback
of the forward-facing child
seat is in contact with the
seatback of the vehicle
seat.
In this case, the child seat may not
always rest on the seat base of the
vehicle seat.
1
3
Fit the hook of the strap onto ring 3 and
pull the strap so that the seatback of the
child seat comes into contact with the
top of the seatback on the vehicle seat.
4
The third ring is used to attach the
upper strap on some child seats.
To access it, pass the belt on the child
seat behind the rear bench seatback,
then open flap 4. The two rings 1 are located between
the seatback and the seat base and are
identified by a marking.
To ensure your child seat can be easily
fitted and locked on rings 1, use access
guides 2 on the child seat.
2
Page 37 of 232
JauneNoir Noir texte
37
ENG_UD23487_5
Sécurité enfants : installation du siège enfant (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
CHILD SAFETY: fitting a child seat (1/3)
In the rear side seat
A carrycot can be installed across the
vehicle and will take up at least two
seats. Position the child with his or her
feet nearest the door.
Move the front seat as far forward as
possible to install a rear-facing child
seat, then move back the seat or seats
in front in accordance with the child
seat instructions.
For the safety of the child in the for-
ward-facing seat, do not move the seat
in front back past the middle of the
runner, do not tilt the seatback too far
(maximum of 25° ) and raise the seat as
much as possible.
Check that the forward-facing child seat
is resting against the back of the vehi-
cle seat and that the headrest of the ve-
hicle is not obstructing its use.
Rear centre seat
Check that the belt is suitable for se-
curing your child seat. Consult an ap-
proved Dealer.
RISK OF DEATH OR
SERIOUS INJURY: before
fitting a rear-facing child
seat to this seat, check
that the air bag has been deacti-
vated (refer to the information on
“Child safety: deactivating/activat-
ing the front passenger air bag” in
Section 1).
Some seats are not suitable for fitting
child seats. The diagram on the follow-
ing page shows you how to attach a
child seat.
The types of child seats indicated may
not be available. Before using a differ-
ent child seat, check with the manufac-
turer that it can be fitted.
Fit the child seat in a rear
seat wherever possible.
Check that when installing
the child seat in the vehicle
it is not at risk of coming loose from
its base.
If you have to remove the headrest,
check that it is correctly stored so
that it does not come loose under
harsh braking or impact.
Always attach the child seat to the
vehicle even if it is not in use so that
it does not come loose under harsh
braking or impact.
In the front seat
The laws concerning children travel-
ling in the front passenger seat differ in
every country. Consult the legislation in
force and follow the indications on the
diagram on the following page. Before
fitting a child seat in this seat (if autho-
rised):
– disconnect the air bag (refer to infor-
mation on the following pages);
– lower the seat belt as far as possible;
– move the seat back as far as possi-
ble and tilt the seatback backwards
slightly (at an angle of 25° approxi-
mately);
– on equipped vehicles, raise the seat
base as far as possible.
Do not change these settings after the
child seat is installed.
Page 38 of 232
JauneNoir Noir texte
38
ENG_UD23487_5
Sécurité enfants : installation du siège enfant (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
CHILD SAFETY: fitting a child seat (2/3)
Child seat attached using the ISOFIX
mounting
ü seat which allows an ISOFIX child
seat to be fitted.
± the rear seats are fitted with an
anchorage point which allows a for-
ward-facing ISOFIX child seat with uni-
versal approval to be fitted. The an-
chorage points are located under the
carpet in the luggage compartment,
behind the bench seat.
The size of the ISOFIX child seat is in-
dicated by a letter:
– A, B and B1: for forward-facing seats
in group 1 (9 to 18 kg);
– C: rear-facing seats in group 1 (9 to
18 kg);
– D and E: shell seat or rear-facing
seats in group 0 or 0 + (less than
13 kg);
– F and G: carrycots in group 0 (less
than 10 kg).
Child seat attached using the belt
¬ Seat which allows a standard-
ised “Universal” seat to be fitted using
a seat belt;
− Seat which only allows a rear-
facing standardised “Universal” seat to
be installed using a seat belt.
Using a child safety system
which is not approved for
this vehicle will not correctly
protect the baby or child.
They risk serious or even fatal injury.
Child seat installation
diagram
³ Check the status of the air bag
before fitting a child seat or allowing a
passenger to use the seat.
² Seat not suitable for fitting child
seats.
RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child
seat in the front passenger seat, check that the air bag has been deacti-
vated (refer to the information on “Child safety: deactivating/activating the
front passenger air bag” at the end of the paragraph).
Page 39 of 232
JauneNoir Noir texte
39
ENG_UD23487_5
Sécurité enfants : installation du siège enfant (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
CHILD SAFETY: fitting a child seat (3/3)
(5) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat in the front passenger seat, check
that the air bag has been deactivated (refer to the information on “Child safety: deactivating/activating the front pas-
senger air bag” at the end of the paragraph).
The table below summarises the information already shown on the diagram on the previous page, to ensure the regu-
lations in force are respected.
Type of child seatWeight of
the childSeat size
ISOFIXPassenger front
seat (1) (5)Rear side seats Rear centre seat
Carrycot fitted across the vehicle
Group 0< 10 kg F- G X U - IL (2) U
Shell seat/rear-facing seat
Group 0, 0+ and 1< 13 kg and
9 to 18 kgC, D, E U U - IL (3) U
Forward-facing seat
Group 19 to 18 kg A, B, B1 X U - IUF - IL (4) U
Booster seat
Group 2 and 315 to 25 kg and
22 to 36 kgX U (4) U
X = Seat not suitable for fitting child seats.
U = Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted.
IUF/IL =
On equipped vehicles, seat which allows an approved “Universal”/“semi-universal” or “vehicle specific” child seat to be
attached using the ISOFIX system; check that it can be fitted.
(1) Only a rear-facing child seat can be fitted in this seat: raise the seat to the maximum and position it as far back as possible,
tilting the seatback slightly (approximately 25°).
(2) A carrycot can be installed across the vehicle and will take up two seats. Position the child with his or her feet nearest the
door.
(3) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat or seats in front in
accordance with the child seat instructions.
(4) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the
height of the headrest or remove it if necessary, do not push the seat more than halfway back on its runners and do not re-
cline the seatback more than 25°.
Page 40 of 232
JauneNoir Noir texte
40
ENG_UD31690_8
S curit enfants : d sactivation, activation airbag passager avant (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
CHILD SAFETY: deactivating, activating the front passenger air bag (1/3)
Deactivating the front
passenger airbags
(on equipped vehicles)
You must deactivate the devices in ad-
dition to the front passenger seat belt
before fitting a child seat in the front
passenger seat.To deactivate the air bags: with the
vehicle stationary, insert the inte-
grated key into the switch 1 then push it
and turn it to the OFF position.
With the ignition on, you must check
that the indicator light is lit on the instru-
ment panel 2 or on the central display
and, depending on the vehicle, that the
message “Passenger airbag off” is dis-
played.
This light remains continuously lit to
let you know that you can fit a child
seat.
2
1
The passenger air bag must
only be deactivated or acti-
vated with the ignition off.
If it is interfered with when
the vehicle is being driven, indicator
lights
å and © will come
on.
Switch the ignition off then on again
to reset the air bag in accordance
with the lock.
DANGER
Since operation of the front
passenger air bag is not
compatible with the position
of a rear-facing child seat, NEVER
fit a rear-facing child seat on a front
passenger seat with an active front
air bag. The child may suffer very
serious injuries if the air bag is trig-
gered.
