RENAULT KOLEOS 2015 1.G Workshop Manual

JauneNoir Noir texte
51
ENG_UD31415_6
T moins lumineux (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
WARNING LIGHTS (4/4)
™Front seat belt reminder
warning light
This comes on when the engine is
started then, if the driver’s or front pas-
senger’s seat belt (if this seat is occu-
pied) is not fastened and the vehicle
has reached approximately 12 mph
(20 km/ h), it flashes and a bleep sounds
for around 120 seconds.
Note: an object placed on the passen-
ger seat base may activate the warning
light in some cases.
Driver correction devices in-
dicator light
Refer to information on “Driver correc-
tion devices” in Section 2.
ESC off warning light
Refer to information on “Driver
correction devices” in Section 2.
xAnti-lock braking warning
light
This comes on when the ignition is
switched on and goes out after a few
seconds. If it does not go out after the
ignition is switched on, or lights up
when driving, there is a fault with the
ABS. The braking system then oper-
ates as it would on a vehicle without
the ABS system: Contact an authorised
dealer as soon as possible.
}Handbrake “on” or elec-
tronic parking brake warn-
ing light
Refer to the information on the
“Handbrake” or “Electronic parking
brake” in Section 2.
uSide light tell-tale light
áHeadlight main beam tell-
tale light
kDipped beam headlight tell-
tale light
gFront fog light tell-tale light
fRear fog light tell-tale light
˜Right-hand direction indica-
tor tell-tale light
–Left-hand direction indicator
tell-tale light The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

JauneNoir Noir texte
52
ENG_UD31416_4
Tableau de bord : afficheurs et indicateurs (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
INSTRUMENT PANEL: displays and indicators (1/2)
Rev counter 1 (rpm × 1,000)
The red area indicates the engine
speed which should not be exceeded.
Speedometer 2 (kph or mph)Overspeed buzzer
Depending on the vehicle, a buzzer
sounds for approximately 10 seconds
every 40 seconds, as long as the ve-
hicle is travelling in excess of 72 mph
(120 kph).
Fuel level gauge 3
If the minimum level is reached, the
warning light
M integrated with the
indicator comes on. Fill up as soon as
possible. There is only approximately
30 miles (50 km) worth of fuel left after
the warning light first comes on.Coolant temperature indicator
In normal use, the needle 6 should be
positioned before mark 5. It may ap-
proach mark 5 under severe conditions
of use.
There is a warning only if the
® indicator and engine overheating indi-
cator 4 come on along with the mes-
sage “Engine overheating” on the in-
strument panel.
123
4
5
6

JauneNoir Noir texte
53
ENG_UD31416_4
Tableau de bord : afficheurs et indicateurs (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
INSTRUMENT PANEL: displays and indicators (2/2)
Engine oil level low warning 7
The display warns the driver if the
engine oil level is low when the ignition
is switched on. Refer to the information
on the “Engine oil level” in Section 4.
Trip computer and warning
system 7
The trip parameters and warning mes-
sages are displayed on display 7. Refer
to the section on the “Trip computer and
warning system” in the following pages.
Information display 8
Depending on the vehicle, the following
information is shown on display 8:
– the status of the doors and luggage
compartment lid;
– the tyre pressures (refer to the infor-
mation on the “Tyre pressure moni-
tor” in Section 2);
– the gear selected (on vehicles with
automatic transmissions).
7
8

JauneNoir Noir texte
54
ENG_UD31418_9
Ordinateur de bord (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1

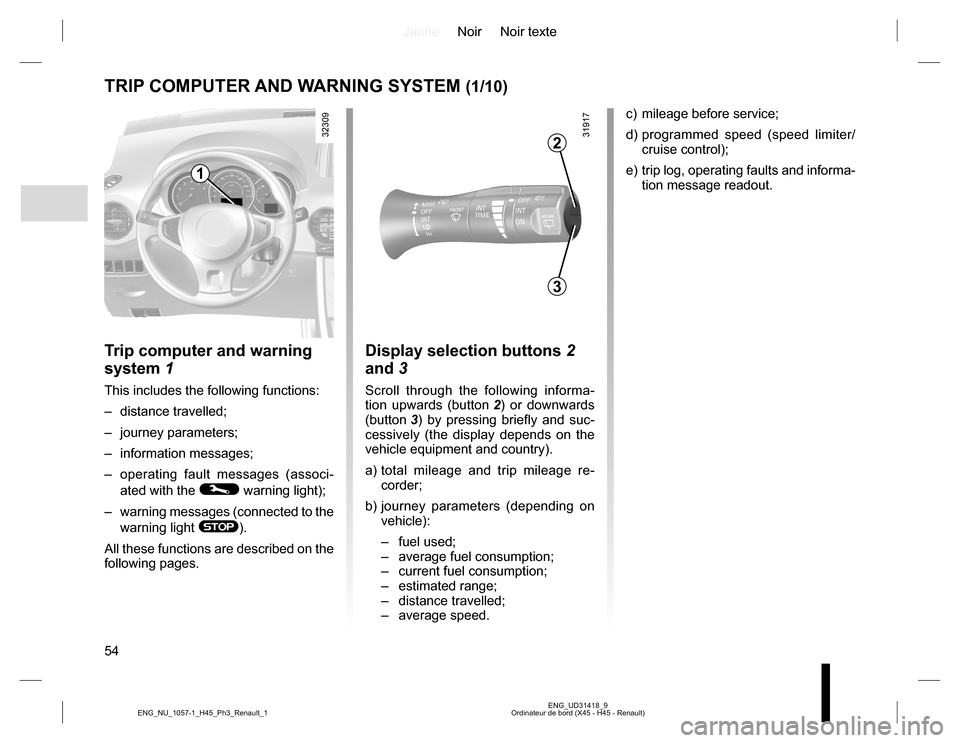

TRIP COMPUTER AND WARNING SYSTEM (1/10)
c) mileage before service;
d) programmed speed (speed limiter/
cruise control);
e) trip log, operating faults and informa-
tion message readout.
Trip computer and warning
system 1
This includes the following functions:
– distance travelled;
– journey parameters;
– information messages;
– operating fault messages (associ-
ated with the
© warning light);
– warning messages (connected to the
warning light
®).
All these functions are described on the
following pages.
Display selection buttons 2
and 3
Scroll through the following informa-
tion upwards (button 2) or downwards
(button 3) by pressing briefly and suc-
cessively (the display depends on the
vehicle equipment and country).
a) total mileage and trip mileage re-
corder;
b) journey parameters (depending on
vehicle):
– fuel used;
– average fuel consumption;
– current fuel consumption;
– estimated range;
– distance travelled;
– average speed.
3
2
1

JauneNoir Noir texte
55
ENG_UD31418_9
Ordinateur de bord (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
TRIP COMPUTER AND WARNING SYSTEM (2/10)
3
Trip mileage resetting
With “trip mileage recorder” selected on
the display, press button 2 or 3 until the
mileage recorder resets to zero.
Resetting the journey
parameters (reset button)
With one of the journey parameters se-
lected on the display, press button 2
or 3 until the display resets.
Interpreting some of the
values displayed after
resetting
The values showing average fuel con-
sumption, range and average speed
will become more stable and reliable
the further you travel after pressing the
reset button.
For the first few miles after pressing
the reset button you will notice that the
range increases as you travel. This
range takes into account the average
fuel consumption since the last time the
reset button was pressed. Therefore,
the average fuel consumption may de-
crease when:
– the vehicle is no longer accelerating;
– the engine reaches its operating
temperature (if the engine was cold
when reset button was pressed);
– when driving from an urban area
onto the open road.
Automatic resetting of the
journey parameters
Resetting occurs automatically when
the maximum value of any of the pa-
rameters is exceeded.2

JauneNoir Noir texte
56
ENG_UD31418_9
Ordinateur de bord (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1

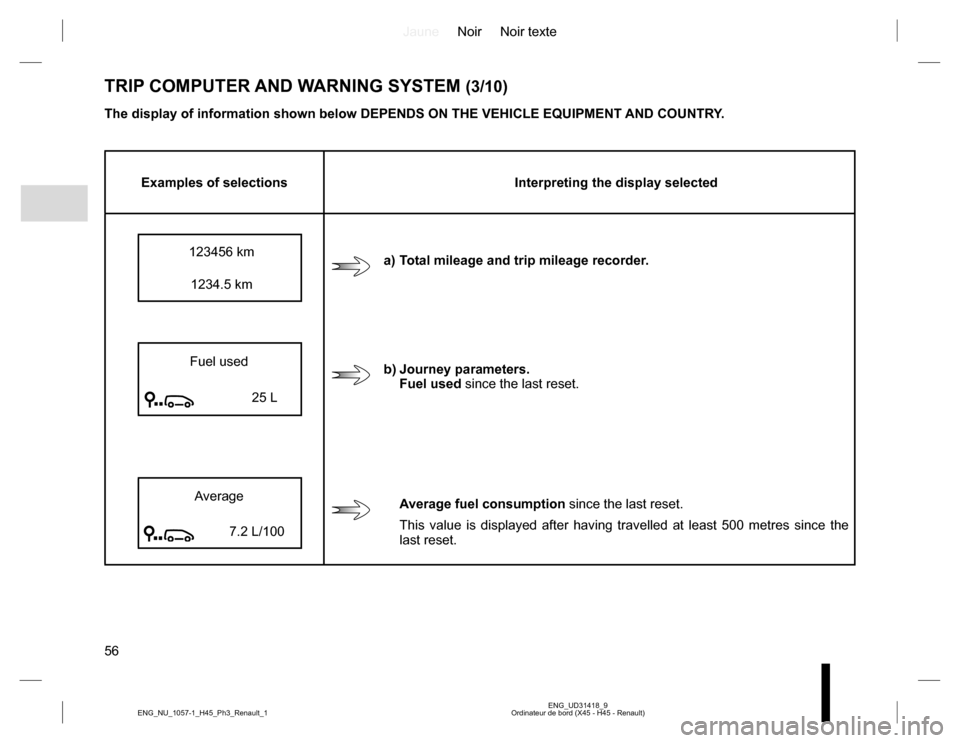

TRIP COMPUTER AND WARNING SYSTEM (3/10)
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.
Examples of selections Interpreting the display selected
a) Total mileage and trip mileage recorder. 123456 km
1234.5 km
b) Journey parameters.
Fuel used since the last reset. Fuel used
25 L
Average fuel consumption since the last reset.
This value is displayed after having travelled at least 500 metres since the
last reset. Average
7.2 L/100

JauneNoir Noir texte
57
ENG_UD31418_9
Ordinateur de bord (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1

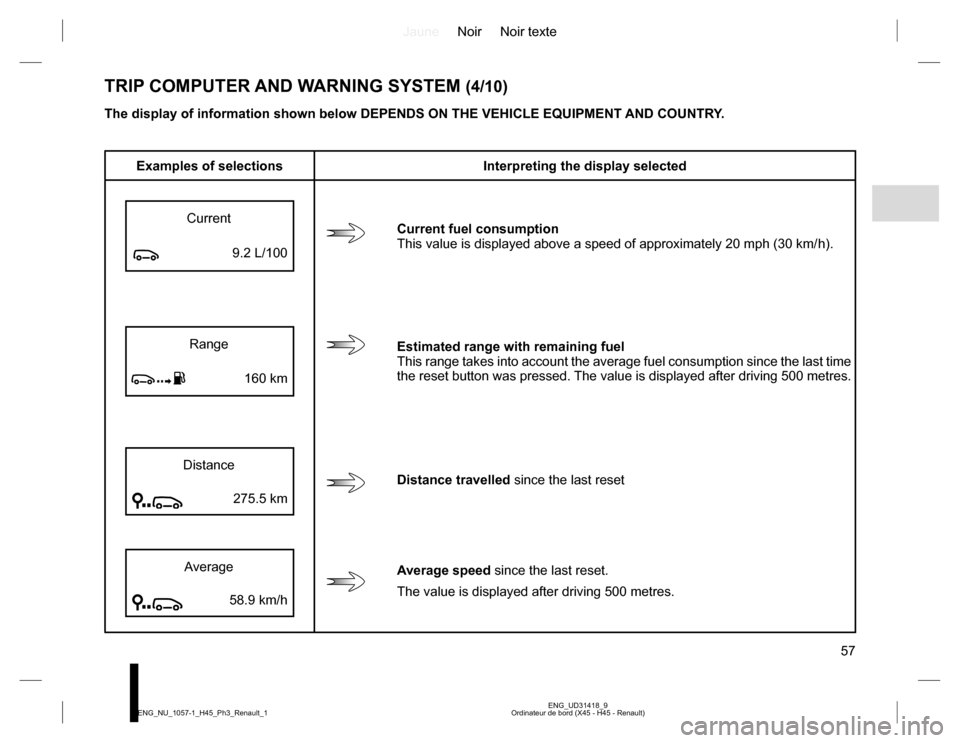

TRIP COMPUTER AND WARNING SYSTEM (4/10)
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.
Examples of selections Interpreting the display selected
Current fuel consumption
This value is displayed above a speed of approximately 20 mph (30 km/ h). Current
9.2 L/100
Estimated range with remaining fuel
This range takes into account the average fuel consumption since the last time
the reset button was pressed. The value is displayed after driving 500 metres. Range
160 km
Distance travelled since the last reset Distance
275.5 km
Average speed since the last reset.
The value is displayed after driving 500 metres. Average
58.9 km/h

JauneNoir Noir texte
58
ENG_UD31418_9
Ordinateur de bord (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
TRIP COMPUTER AND WARNING SYSTEM (5/10)
Examples of selections Interpreting the display selected
c) Mileage before service.
Distance remaining until the next service. When the distance value ap-
proaches the limit, there are several possible scenarios:
– mileage before service less than 900 miles (1,500 km): the message
“Service due in” is displayed, accompanied by the remaining mileage;
– distance equal to 0 miles or service date reached: the message
“Service due” is displayed accompanied by warning light
©.
The vehicle requires a service as soon as possible. “Service due in 1432 km”
“Service due”
Note: depending on the vehicle, the mileage before a service changes according to driving style (frequent driving at low speeds,
door-to-door journeys, extensive use at idle speed, towing, etc.). The distance remaining until the next service can therefore de-
crease more quickly in some cases than the actual distance travelled.
Resetting the display after service in accordance with the maintenance schedule
The mileage before service must only be reset after a service which complies with the recommendations in the Maintenance
Service Document. If you decide to change the oil more frequently, do not reset this data each time the oil is changed to avoid
exceeding the replacement intervals for other parts in the maintenance schedule.
To reset the distance before service, press and hold one of the display reset buttons for approximately 10 seconds until the dis-
play shows the mileage permanently. The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

JauneNoir Noir texte
59
ENG_UD31418_9
Ordinateur de bord (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1

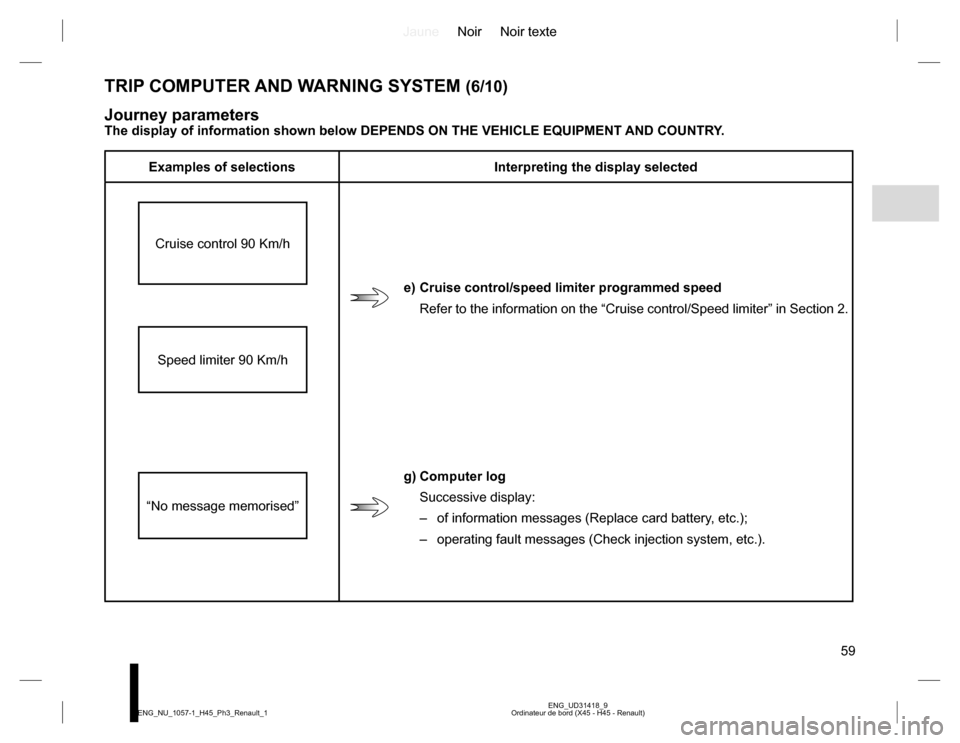

TRIP COMPUTER AND WARNING SYSTEM (6/10)
Journey parameters
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.
Examples of selections Interpreting the display selected
e) Cruise control/speed limiter programmed speed
Refer to the information on the “Cruise control/Speed limiter” in Section 2. Cruise control 90 Km/h
Speed limiter 90 Km/h
g) Computer log
Successive display:
– of information messages (Replace card battery, etc.);
– operating fault messages (Check injection system, etc.). “No message memorised”

JauneNoir Noir texte
60
ENG_UD31418_9
Ordinateur de bord (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
TRIP COMPUTER AND WARNING SYSTEM (7/10)
Information messages
These can help either in the vehicle starting phase, or give information about a selection or a driving status. Examples of
information messages are given in the following pages.
Examples of messages Interpretation of messages
“Top up oil level”Top up as soon as possible.
“Replace card battery”The card battery charge is too low (refer to the information on the “Renault card:
battery” in section 5).
“Bleed diesel filter”Indicates the presence of water in the diesel filter; contact your authorised dealer
as soon as possible.
“No keycard press and hold”To stop the engine when no card has been recognised, press and hold the engine
start/stop button.
“Press clutch + START”To start, depress the clutch pedal then press the engine start/stop button.
