Operating faultsIf the battery is too weak to ensure cor-
rect operation, you may start (insert the
RENAULT card in the card reader) and
lock/unlock the vehicle (refer to the in-
formation on “Locking/unlocking the
doors” in Section 1).
RENAULT card: battery
renault carD: battery
replacing the batteryWhen the message “Low card battery”
appears on the instrument panel, re-
place the RENAULTcard battery, press
button
1 ,
pulling on emergency key
2,
then unclip cover
3
using tab 4.
Remove the battery by pressing on one
side (movement
A )
and by lifting the
other (movement
B) then replace it, en-
suring the polarity and model, shown
on cover
3 are respected.
Do not throw away your
used batteries; give them to
an organisation responsible
for collecting and recycling
batteries.
1
2
When refitting, proceed in the reverse
order, then press one of the buttons on
the card four times, close to the vehicle:
the next time the vehicle is started, the
message will disappear.
no
te: it is not advisable to touch the
electronic circuit or contacts on the
RENAULT card when replacing the bat-
tery.
a
B
3
The batteries are available from approved Dealers, and their service life approxi-
mately two years. Check that there is no dye on the battery: risk of an incorrect
electrical contact.
4
Check that the cover is clipped shut.
Page 202 of 242
fitting a radio ......................................... (up to the end of the DU)
speakers location ........................................... (up to the end of the DU)
radio fitting a radio ................................... (up to the end of the DU)
fitting a radio ......................................... (up to the end of the DU)
5.28
ENG_UD6351_1
Prééquipement radio (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_5

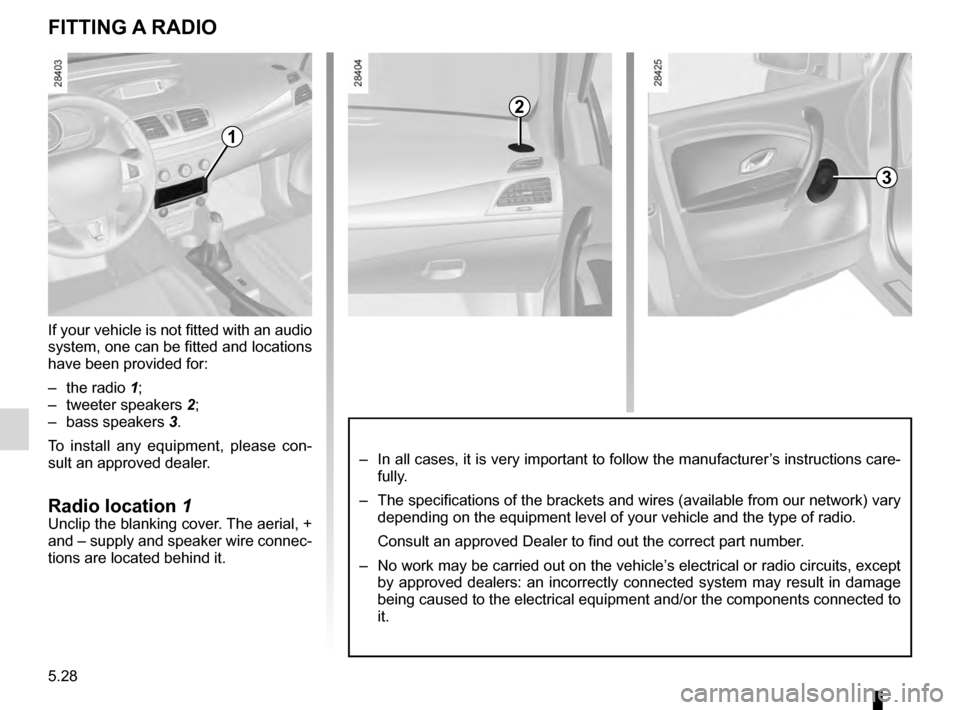

Fitting a radio
FIttIng a raDIO
If your vehicle is not fitted with an audio
system, one can be fitted and locations
have been provided for:
–
the radio
1;
–
tweeter speakers
2
;
–
bass speakers
3.
To install any equipment, please con-
sult an approved dealer.
radio location 1Unclip the blanking cover. The aerial, +
and – supply and speaker wire connec-
tions are located behind it.
– In all cases, it is very important to follow the manufacturer’s instructions care- fully.
–
The
specifications of the brackets and wires (available from our network) vary
depending on the equipment level of your vehicle and the type of radio.
Consult an approved Dealer to find out the correct part numbe
r.
–
No
work may be carried out on the vehicle’s electrical or radio circuits, except
by approved dealers: an incorrectly connected system may result in damage
being caused to the electrical equipment and/or the components connected to
it.
1
2
3
Page 203 of 242
accessories........................................... (up to the end of the DU)
5.29
ENG_UD12965_3
Accessoires (S65 - X84 - B84 - C84 - E84 - L84 - K84 - J84 - X85 - B85 \
- C85 - S85 - X91 - B91 - K91 - D91 - B65 - C65 - K85 - X95 - B95 - D95 \
- J95 - R95 - X33 - X38 -
ENG_NU_837-8_BDK95_Renault_5

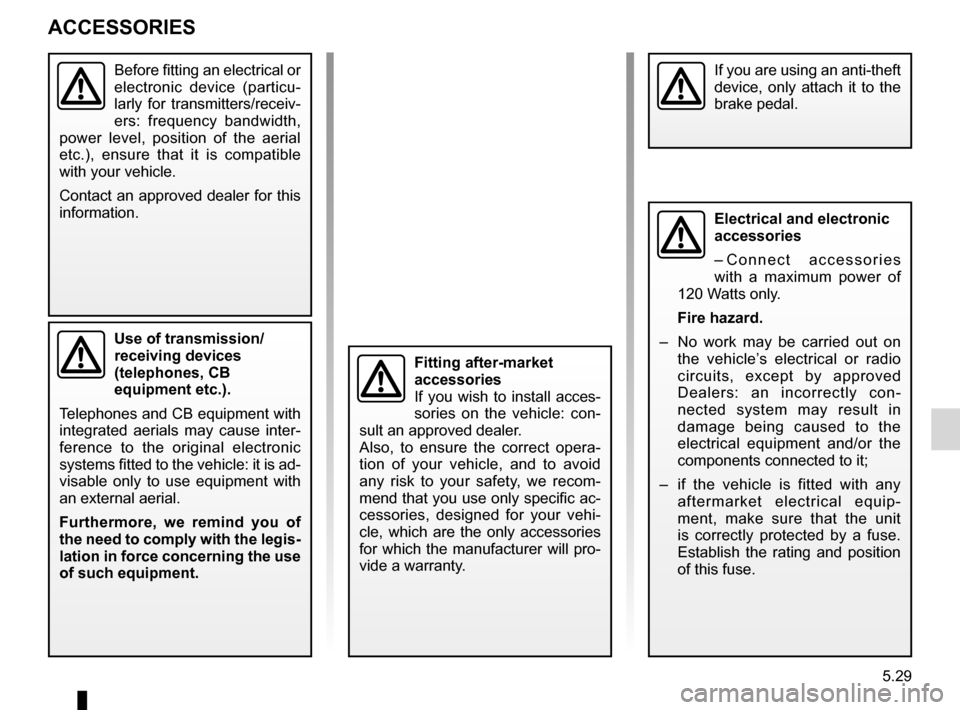

Accessories
accessOrIes
use of transmission/
receiving devices
(telephones,
c B
equipment etc.).
Telephones and CB equipment with
integrated aerials may cause inter-
ference to the original electronic
systems fitted to the vehicle: it is ad-
visable only to use equipment with
an external aerial.
Furthermore, we remind you of
the need to comply with the legis-
lation in force concerning the use
of such equipment.
electrical and electronic
accessories
–
C
o n n e c t a c c e s s o r i e s
with a maximum power of
120
Watts only.
Fire hazard.
–
N
o work may be carried out on
the vehicle’s electrical or radio
circuits, except by approved
Dealers: an incorrectly con-
nected system may result in
damage being caused to the
electrical equipment and/or the
components connected to it;
–
i
f the vehicle is fitted with any
aftermarket electrical equip -
ment, make sure that the unit
is correctly protected by a fuse.
Establish the rating and position
of this fuse.
Before fitting an electrical or
electronic device (particu-
larly for transmitters/receiv-
ers: frequency bandwidth,
power level, position of the aerial
etc.), ensure that it is compatible
with your vehicle.
Contact an approved dealer for this
information.
Fitting after-market
accessories
If you wish to install acces-
sories on the vehicle: con-
sult an approved dealer.
Also, to ensure the correct opera-
tion of your vehicle, and to avoid
any risk to your safety, we recom-
mend that you use only specific ac-
cessories, designed for your vehi-
cle, which are the only accessories
for which the manufacturer will pro-
vide a warranty.
If you are using an anti-theft
device, only attach it to the
brake pedal.
Page 204 of 242
wiper blades ......................................... (up to the end of the DU)
wipers blades ............................................. (up to the end of the DU)
5.30
ENG_UD21380_4
Balais d’essuie-vitres (X95 - B95 - D95 - L38 - X38 - X32 - B32 - Re\
nault)
ENG_NU_837-8_BDK95_Renault_5
Wipers (replacing blades)

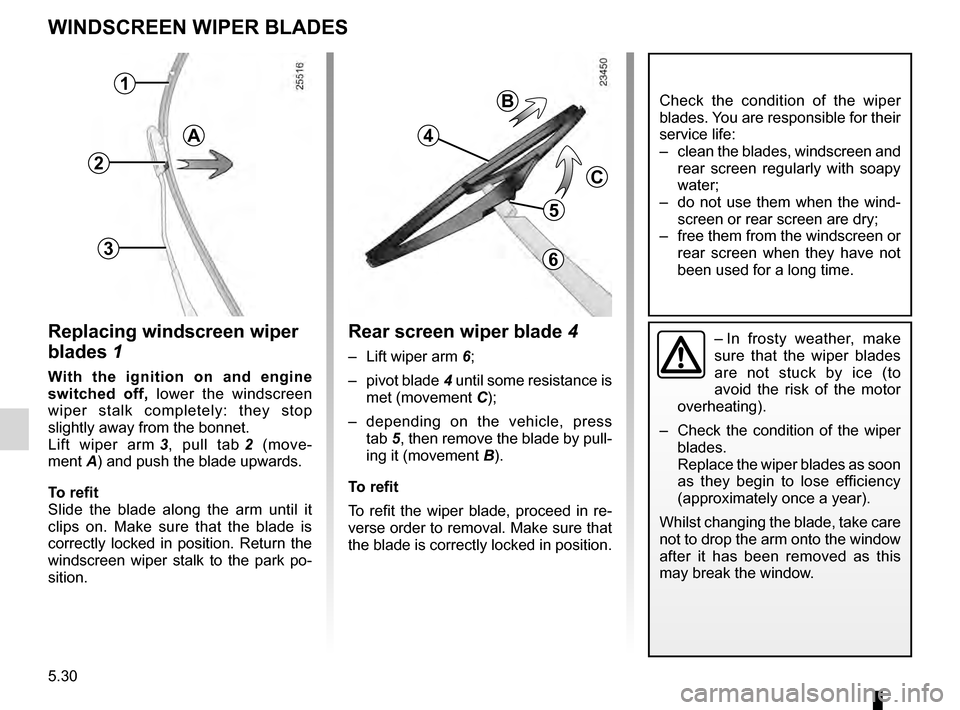

wInDscreen wIPer BlaDes
replacing windscreen wiper
blades 1
with the ignition on and engine
switched off, lower the windscreen
wiper stalk completely: they stop
slightly away from the bonnet.
Lift wiper arm
3 ,
pull tab
2
(move-
ment
A) and push the blade upwards.
to refit
S
lide the blade along the arm until it
clips on. Make sure that the blade is
correctly locked in position. Return the
windscreen wiper stalk to the park po-
sition.
1
2
3
Check the condition of the wiper
blades. You are responsible for their
service life:
–
clean
the blades, windscreen and
rear screen regularly with soapy
water;
–
do
not use them when the wind-
screen or rear screen are dry;
–
free
them from the windscreen or
rear screen when they have not
been used for a long time.
rear screen wiper blade 4
– Lift wiper arm 6;
–
pivot
blade
4
until some resistance is
met (movement
C);
–
d
epending on the vehicle, press
tab
5, then remove the blade by pull-
ing it (movement
B).
to refit
T
o refit the wiper blade, proceed in re-
verse order to removal. Make sure that
the blade is correctly locked in position.
4
5
B
c
a
6
– In frosty weather, make
sure that the wiper blades
are not stuck by ice (to
avoid the risk of the motor
overheating).
–
Check
the condition of the wiper
blades.
Replace the wiper blades as soon
as they begin to lose efficiency
(approximately once a year).
Whilst changing the blade, take care
not to drop the arm onto the window
after it has been removed as this
may break the window.
Page 205 of 242
towingbreakdown ...................................... (up to the end of the DU)
towing hitch........................................... (up to the end of the DU)
5.31
ENG_UD21558_3
Remorquage : dépannage (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_5
Towing

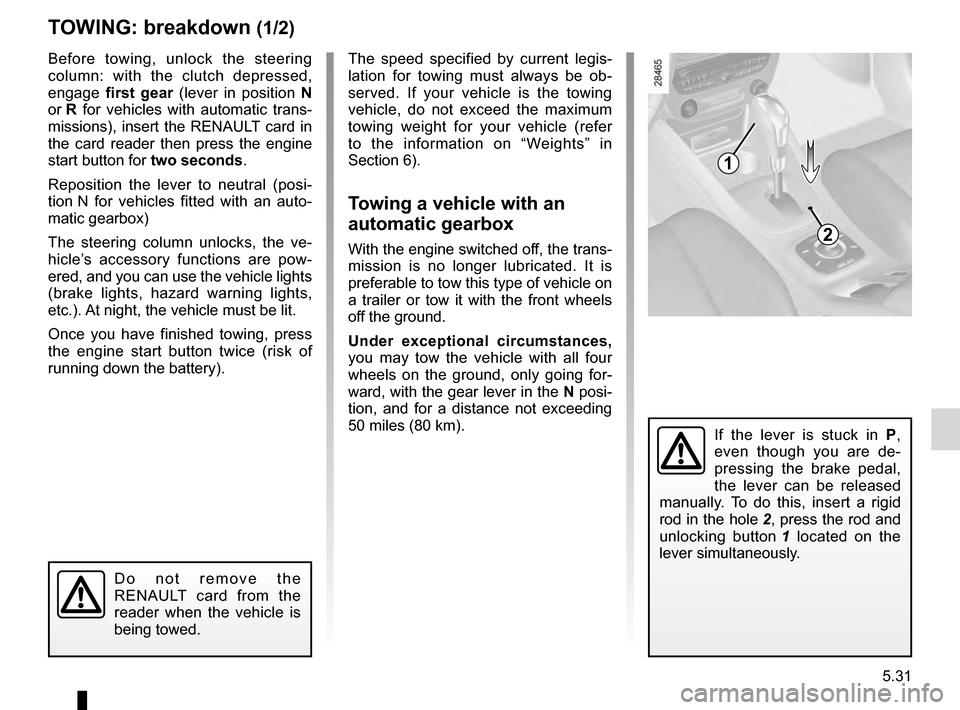

tOwIng: breakdown (1/2)
Before towing, unlock the steering
column: with the clutch depressed,
engage first gear (lever in position
n
or
r
for vehicles with automatic trans-
missions), insert the RENAULT card in
the card reader then press the engine
start button for two seconds.
Reposition the lever to neutral (posi-
tion
N
for vehicles fitted with an auto-
matic gearbox)
The steering column unlocks, the ve-
hicle’s accessory functions are pow-
ered, and you can use the vehicle lights
(brake lights, hazard warning lights,
etc.). At night, the vehicle must be lit.
Once you have finished towing, press
the engine start button twice (risk of
running down the battery). The speed specified by current legis-
lation for towing must always be ob-
served. If your vehicle is the towing
vehicle, do not exceed the maximum
towing weight for your vehicle (refer
to the information on “Weights” in
Section
6).
towing a vehicle with an
automatic gearbox
With the engine switched off, the trans-
mission is no longer lubricated. It is
preferable to tow this type of vehicle on
a trailer or tow it with the front wheels
off the ground.
un
der exceptional circumstances,
you may tow the vehicle with all four
wheels on the ground, only going for-
ward, with the gear lever in the
n
posi-
tion, and for a distance not exceeding
50 miles (80 km).
If the lever is stuck in P,
even though you are de-
pressing the brake pedal,
the lever can be released
manually. To do this, insert a rigid
rod in the hole
2, press the rod and
unlocking button
1
located on the
lever simultaneously.
1
2
D o n o t r e m o v e t h e
RENAULT card from the
reader when the vehicle is
being towed.
Page 206 of 242
5.32
ENG_UD21558_3
Remorquage : dépannage (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_5

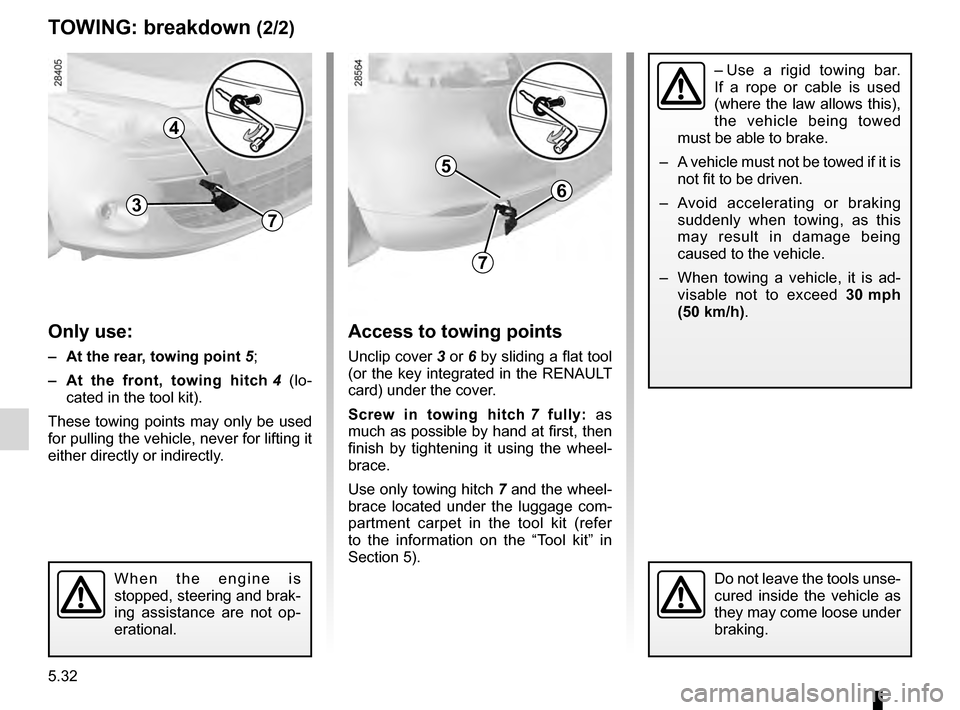

tOwIng: breakdown (2/2)
Only use:
– at the rear, towing point 5;
– a
t
the front, towing hitch
4
(lo-
cated in the tool kit).
These towing points may only be used
for pulling the vehicle, never for lifting it
either directly or indirectly.
access to towing points
Unclip cover 3 or 6 by sliding a flat tool
(or the key integrated in the RENAULT
card) under the cover.
sc
rew in towing hitch
7 f
ully: as
much as possible by hand at first, then
finish by tightening it using the wheel-
brace.
Use only towing hitch
7 and the wheel-
brace located under the luggage com-
partment carpet in the tool kit (refer
to the information on the “Tool kit” in
Section 5).
W h e n t h e e n g i n e i s
stopped, steering and brak-
ing assistance are not op-
erational.Do not leave the tools unse-
cured inside the vehicle as
they may come loose under
braking.
4
5
36
7
7
– Use a rigid towing bar.
If a rope or cable is used
(where the law allows this),
the vehicle being towed
must be able to brake.
–
A
vehicle must not be towed if it is
not fit to be driven.
–
A
void accelerating or braking
suddenly when towing, as this
may result in damage being
caused to the vehicle.
–
W
hen towing a vehicle, it is ad-
visable not to exceed 30
m
ph
(50
km/h).
Page 207 of 242
operating faults ..................................... (up to the end of the DU)
faults operating faults ............................... (up to the end of the DU)
5.33
ENG_UD17369_3
Anomalies de fonctionnement (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_5
Operating faults
OPeratIng Faul ts (1/5)
the following advice will enable you to carry out quick, temporary repairs. For safety reasons you should always contact
an approved dealer as soon as possible.
using the renault card PO ss IB le causeswhat tO DO
The RENAULT card does not lock or
unlock the doors. Card battery is flat.
Replace the battery. You can still lock/
unlock and start your vehicle (refer to the
information on “Locking/unlocking the
doors” in Section 1 and “Starting/Stopping
the engine” in Section 2).
Use of appliances operating on the
same frequency as the card (mobile
phone, etc.). Stop using the equipment or use the in-
tegrated key (refer to the information on
“Locking/unlocking the doors” in Section
1).
Vehicle located in a high electromag-
netic radiation zone.
Vehicle battery flat. Use the key integrated in the card (refer to
the information on “Locking/unlocking the
doors” in Section 1).
Page 208 of 242
5.34
ENG_UD17369_3
Anomalies de fonctionnement (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_5
Jaune NoirNoir texte

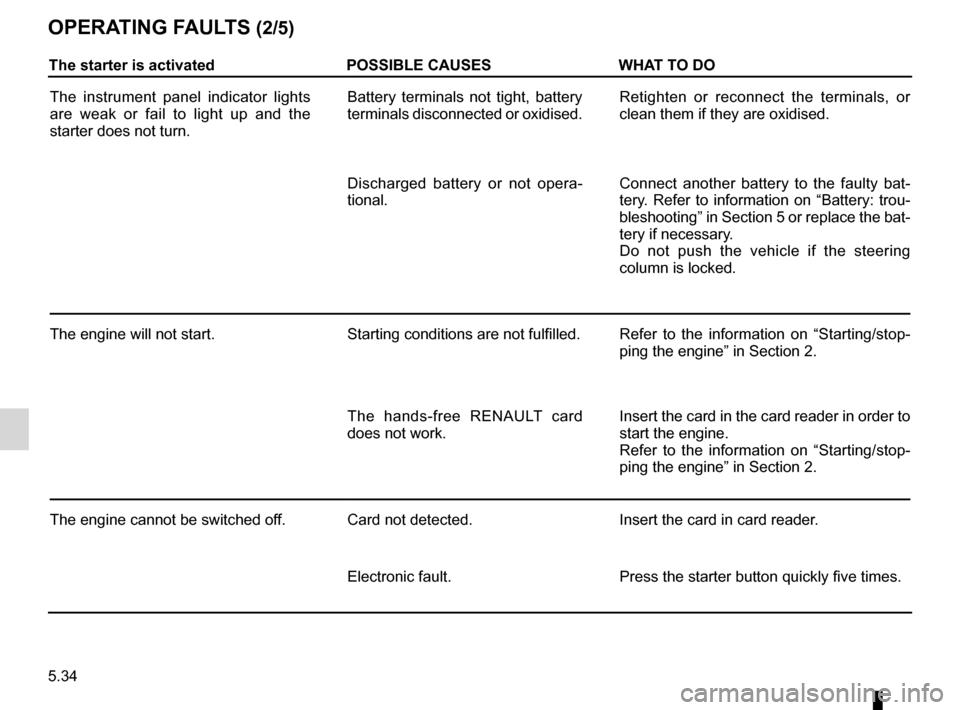

OPeratIng Faul ts (2/5)
the starter is activated PO ss IB le causeswhat tO DO
T he instrument panel indicator lights
are weak or fail to light up and the
starter does not turn. Battery terminals not tight, battery
terminals disconnected or oxidised.
Retighten or reconnect the terminals, or
clean them if they are oxidised.
Discharged battery or not opera-
tional. Connect another battery to the faulty bat-
tery. Refer to information on “Battery: trou-
bleshooting” in Section 5 or replace the bat-
tery if necessary.
Do not push the vehicle if the steering
column is locked.
The engine will not start. Starting conditions are not fulfilled. Refer to the information on “Starting/stop-
ping the engine” in Section 2.
The hands-free RENAULT card
does not work. Insert the card in the card reader in order to
start the engine.
Refer to the information on “Starting/stop-
ping the engine” in Section 2.
The engine cannot be switched off. Card not detected. Insert the card in card reader.
Electronic fault. Press the starter button quickly five times.
Page 209 of 242
JauneNoirNoir texte
5.35
ENG_UD17369_3
Anomalies de fonctionnement (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_5

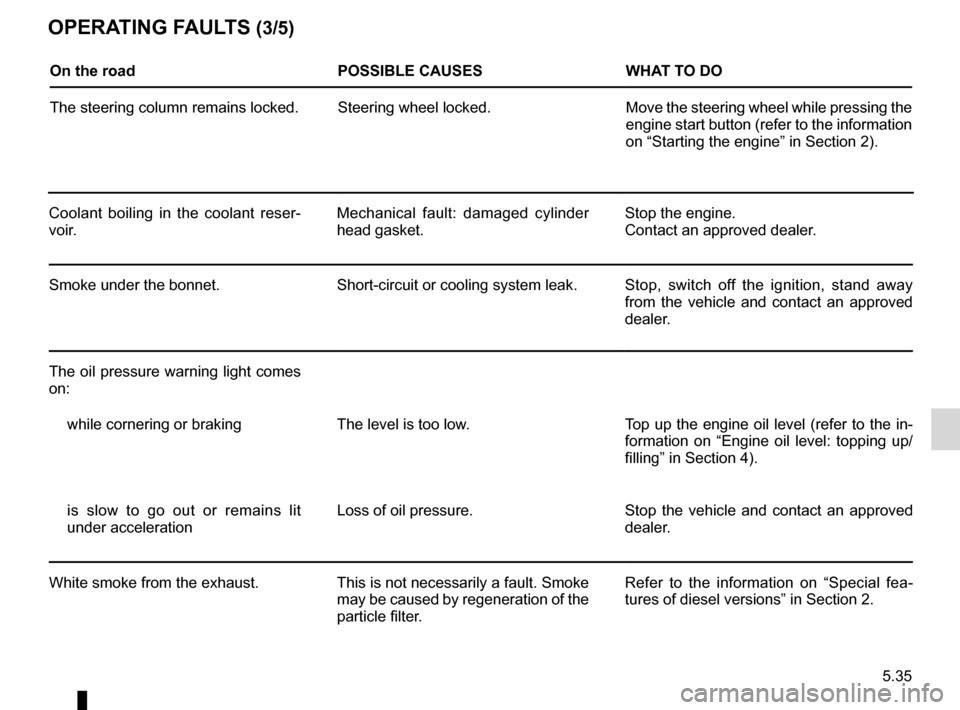

OPeratIng Faul ts (3/5)
On the road PO ss IB le causeswhat tO DO
The steering column remains locked. Steering wheel locked. Move
the steering wheel while pressing the
engine start button (refer to the information
on “Starting the engine” in Section 2).
Coolant boiling in the coolant reser-
voir. Mechanical fault: damaged cylinder
head gasket.Stop the engine.
Contact an approved dealer.
Smoke under the bonnet. Short-circuit or cooling system leak. Stop, switch off the ignition, stand away
from the vehicle and contact an approved
dealer.
The oil pressure warning light comes
on: while cornering or braking The level is too low. Top up the engine oil level (refer to the in-
formation on “Engine oil level: topping up/
filling” in Section 4).
is slow to go out or remains lit
under acceleration Loss of oil pressure.
Stop the vehicle and contact an approved
dealer.
White smoke from the exhaust. This is not necessarily a fault. Smoke
may be caused by regeneration of the
particle filter.Refer to the information on “Special fea-
tures of diesel versions” in Section 2.
Page 210 of 242
5.36
ENG_UD17369_3
Anomalies de fonctionnement (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_5
Jaune NoirNoir texte

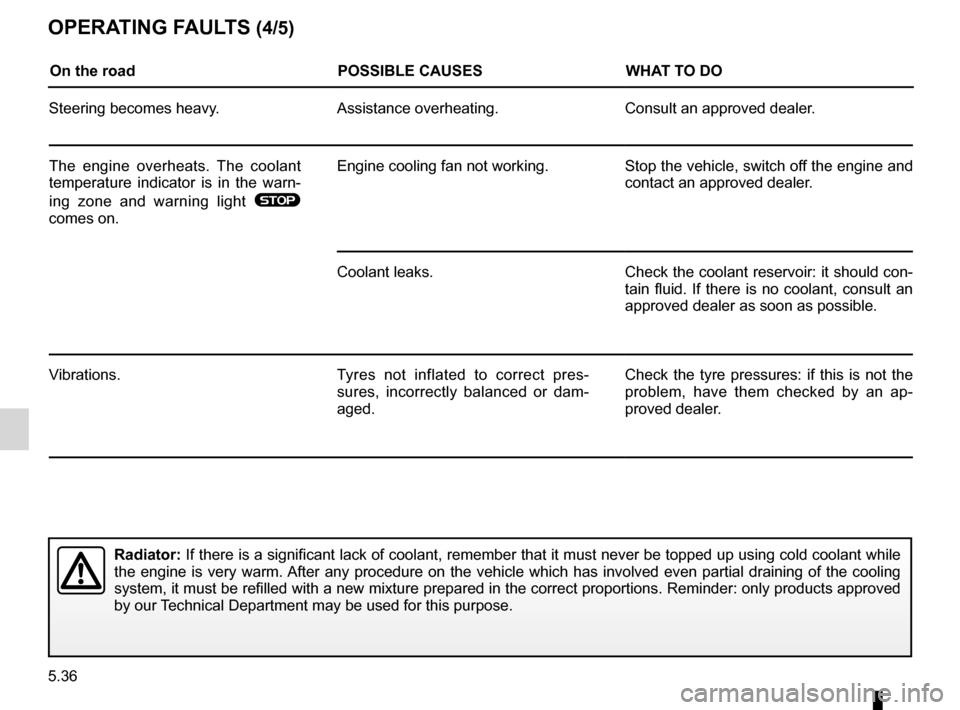

OPeratIng Faul ts (4/5)
On the road PO ss IB le causeswhat tO DO
Steering becomes heavy .Assistance overheating. Consult an approved dealer.
The engine overheats. The coolant
temperature indicator is in the warn-
ing zone and warning light
®
comes on. Engine cooling fan not working.
Stop the vehicle, switch off the engine and
contact an approved dealer.
Coolant leaks. Check the coolant reservoir: it should con-
tain fluid. If there is no coolant, consult an
approved dealer as soon as possible.
Vibrations. Tyres not inflated to correct pres-
sures, incorrectly balanced or dam-
aged.Check the tyre pressures: if this is not the
problem, have them checked by an ap-
proved dealer.
radiator:
If there is a significant lack of coolant, remember that it must never be topped up using cold coolant while
the engine is very warm. After any procedure on the vehicle which has involved even partial draining of the cooling
system, it must be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved
by our Technical Department may be used for this purpose.
