JauneNoirNoir texte
5.37
ENG_UD17369_3
Anomalies de fonctionnement (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_5
OPeratIng Faul ts (5/5)

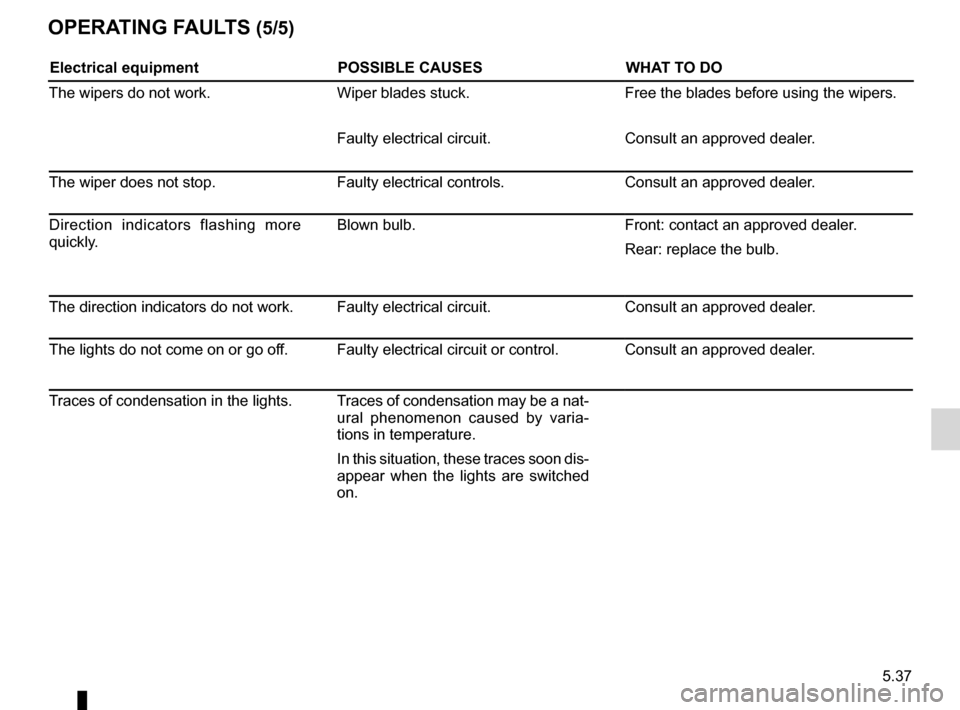

electrical equipment PO ss IB le causeswhat tO DO
The wipers do not work. Wiper blades stuck.Free the blades before using the wipers.
Faulty electrical circuit. Consult an approved dealer
.
The wiper does not stop. Faulty electrical controls.Consult an approved dealer.
Direction indicators flashing more
quickly. Blown bulb.
Front: contact an approved dealer.
Rear: replace the bulb.
The direction indicators do not work. Faulty electrical circuit. Consult an approved dealer.
The lights do not come on or go off. Faulty electrical circuit or control. Consult an approved dealer.
Traces of condensation in the lights. Traces of condensation may be a nat- ural phenomenon caused by varia-
tions in temperature.
In this situation, these traces soon dis-
appear when the lights are switched
on.
Page 212 of 242
5.38
ENG_UD9525_5
Filler NU (X06 - C06 - S06 - X35 - L35 - X44 - C44 - G44 - X45 - H45 - X65 - L65 - S65 - X73 - B73 - X74 - B74 - K74 - X77 - J77 - F77 - R77 - X81 - J81 - X84 - B84 - C84
ENG_NU_837-8_BDK95_Renault_5
Page 213 of 242
6.1
ENG_UD24010_9
Sommaire 6 (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_6
Section 6: Technical specifications
Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.2
Engine identification plates
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.3
Dimensions
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.5
Engine specifications
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.8
W
eights
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.9
T
owing weights
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.9
Replacement parts and repairs
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.10
Service sheets
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.1
1
Anti-corrosion check
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.17
Page 214 of 242
6.2
ENG_UD14568_2
Plaques d’identification véhicule (X95 - B95 - D95 - K95 - Renaul\
t)
ENG_NU_837-8_BDK95_Renault_6
Vehicle identification plates
Vehicle identification plates
6 Technical specifications of vehicle. 7
V ehicle paint reference.
8
Equipment l
evel.
9
V
ehicle type.
10
T
rim code.
1
1
A
dditional equipment specifica-
tion.
12
Fabrication
number.
13
Interior trim code.
the information shown on the ve-
hicle identification plate should be
quoted on all correspondence or
orders.
Vehicle identification plate
A 1
V
ehicle type and chassis number.
de
pending on the vehicle, this
information is also given on
marking
B.
2
M
a x i m u m p e r m i s s i b l e a l l - u p
weight.
3
T
otal train weight (vehicle fully
loaded, with trailer).
4
Maximum
permissible weight, front
axle.
5
Maximum
permissible weight, rear
axle.
a
B
a
1
2
3
4
5
678
910
12
13
11
Page 215 of 242
technical specifications ......................... (up to the end of the DU)
vehicle identification plates ................... (up to the end of the DU)
6.3
ENG_UD23979_7
Plaques d’identification moteur (X95 - B95 - D95 - E95 - K95 - Renau\
lt)
ENG_NU_837-8_BDK95_Renault_6
Engine identification plates

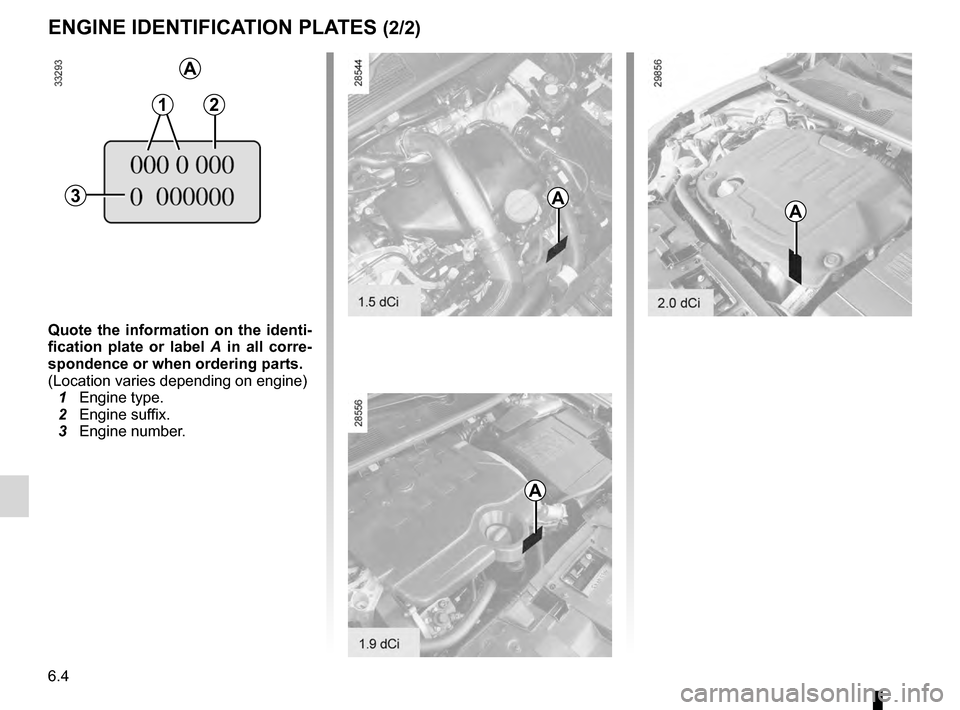

engine identification plates (1/2)
Quote the information on the identi-
fication plate or label A in all corre-
spondence or when ordering parts.
(Location varies depending on engine)
1
Engine type
.
2
Engine suf
fix.
3
Engine num
ber.
a
a
a
a
a
12
3
Page 216 of 242
6.4
ENG_UD23979_7
Plaques d’identification moteur (X95 - B95 - D95 - E95 - K95 - Renau\
lt)
ENG_NU_837-8_BDK95_Renault_6
Quote the information on the identi-
fication plate or label A in all corre-
spondence or when ordering parts.
(Location varies depending on engine)
1
Engine type
.
2
Engine suf
fix.
3
Engine num
ber.
a
a
engine identification plates (2/2)
a3
12
a
Page 217 of 242
technical specifications ......................... (up to the end of the DU)
dimensions ........................................... (up to the end of the DU)
6.5
ENG_UD14419_4
Dimensions (en mètre) (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_6
Dimensions
dimensions (in metres) (1/3)
t
hree door version
0.862 2.6400.797 1.546
4.299
1.423*
1.547
1.785
* Unladen
Page 218 of 242
6.6
ENG_UD14419_4
Dimensions (en mètre) (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_6
Jaune NoirNoir texte
dimensions (in metres) (2/3)
0.862 2.6410.792 1.546
4.292
1.471*
* Unladen
1.547
1.808
five door version
Page 219 of 242
JauneNoirNoir texte
6.7
ENG_UD14419_4
Dimensions (en mètre) (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_6
dimensions (in metres) (3/3)
sport tourer versions
0.862 2.703 0.994 1.546
4.558
1.461*
* Unladen
1.547
1.766
Page 220 of 242
6.8
ENG_UD12979_3
Caractéristiques moteurs (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_6

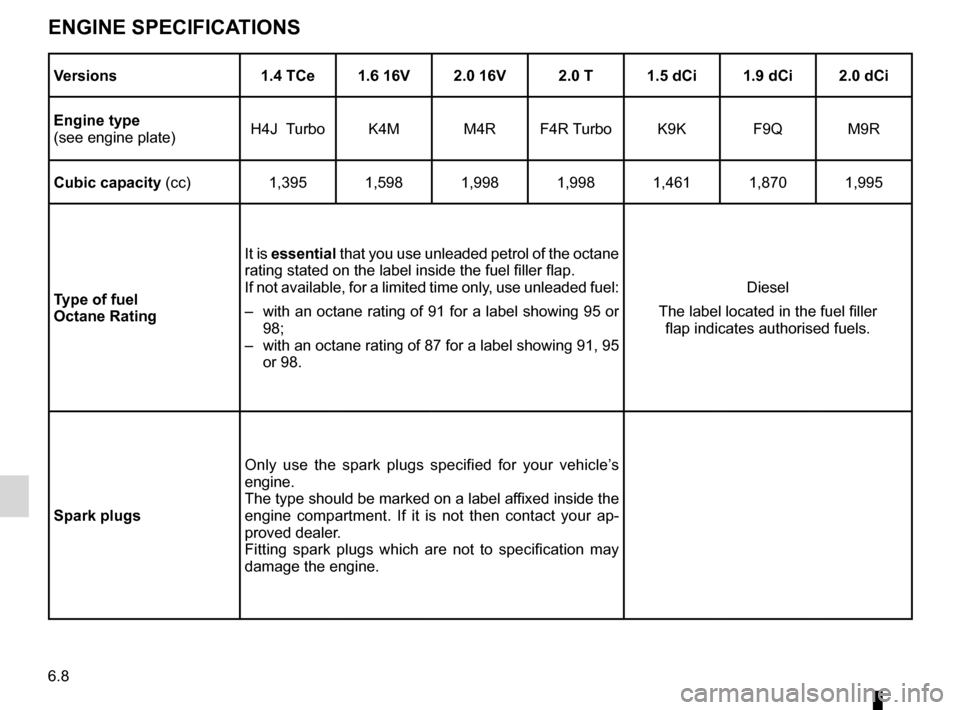

Engine specifications
Versions 1.4 tc e 1.6 16V 2.0 16V 2.0 t1.5 d c i 1.9 d c i 2.0 d c i
e
ngine type
(see engine plate) H4J Turbo K4M M4R F4R Turbo K9K F9Q M9R
c
ubic capacity (cc) 1,395 1,598 1,998 1,998 1,461 1,870 1,995
type of fuelo
ctane Rating It is
essential that you use unleaded petrol of the octane
rating stated on the label inside the fuel filler flap.
If not available, for a limited time only, use unleaded fuel:
–
with
an octane rating of 91 for a label showing 95 or
98;
–
with
an octane rating of 87 for a label showing 91, 95
or 98. Diesel
The label located in the fuel filler flap indicates authorised fuels.
s
park plugs Only use the spark plugs specified for your vehicle’s
engine.
The type should be marked on a label affixed inside the
engine compartment. If it is not then contact your ap-
proved dealer.
Fitting spark plugs which are not to specification may
damage the engine.
engine specifications
