Changement de roue (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_5
Offer up the jack 4 horizontally; the jack
h ead must be lined up with jacking
point
1 located on the underside of the
sill, closest to the wheel concerned, as
shown by arrow
2
.
Start cranking the jack up by hand to
align the base plate (which should be
pushed slightly under the vehicle).
Turn the wheelbrace until the wheel lifts
off the ground.
Changing a wheel
Switch on the hazard warn-
ing lights.
Keep the vehicle away from
traffic and on a level sur-
face where it will not slip (if neces-
sary, place a solid support under the
jack base).
Apply the parking brake and engage
a gear (first or reverse, or P for auto-
matic transmissions).
Ask all the passengers to leave the
vehicle and keep them away from
traffic.
3
1
2
4
changIng a wheel (1/2)
To prevent any risk of injury
or damage to the vehicle,
only crank the jack until the
wheel you are replacing is
a maximum of 3 centimetres off the
ground.
If the vehicle is parked on
the hard shoulder, you must
warn other road users of
your vehicle’s presence
with a warning triangle or with other
devices as per the legislation apply-
ing to the country you are in.
Vehicles equipped with a jack
and wheelbrace
If necessary, remove the wheel trim.
Use the wheelbrace
3
to slacken off the
wheel bolts. Position it so as to be able
to push from above.
If the vehicle is not equipped with a
jack or wheelbrace, you can obtain
these from your approved dealer.
Page 182 of 242
5.8
ENG_UD18916_4
Changement de roue (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_5
Undo the bolts and take off the wheel.
Fit the emergency spare wheel onto
the hub and rotate it until the mounting
holes in the wheel coincide with those
of the hub.
If bolts are supplied with the emergency
spare wheel, only use these bolts for
the emergency spare wheel. Tighten
the bolts, checking that the wheel is
correctly positioned on its hub and
lower the jack.
With the wheel on the ground, tighten
the bolts fully and have the tightness
of the bolts checked (tightening torque:
110 N.m) and the emergency spare
wheel pressure checked as soon as
possible.

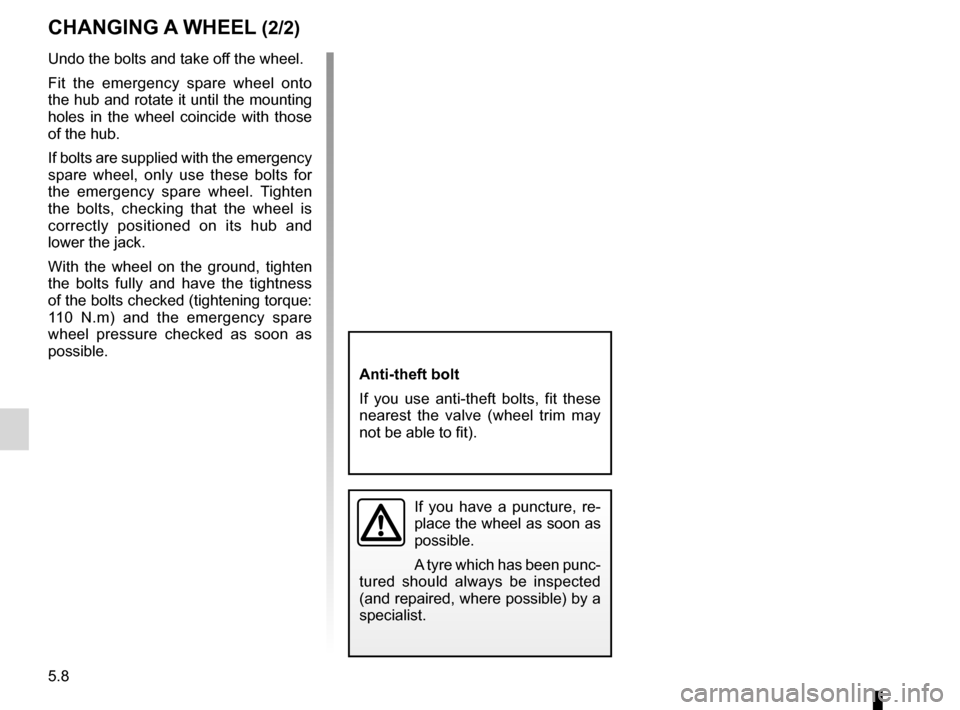

changIng a wheel (2/2)
anti-theft bolt
I f you use anti-theft bolts, fit these
nearest the valve (wheel trim may
not be able to fit).
If you have a puncture, re-
place the wheel as soon as
possible.
A tyre which has been punc-
tured should always be inspected
(and repaired, where possible) by a
specialist.
Page 183 of 242
tyres ...................................................... (up to the end of the DU)
wheels (safety) ..................................... (up to the end of the DU)
5.9
ENG_UD20171_4
Pneumatiques (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_5
Tyres (tyre and wheel safety, use in winter)

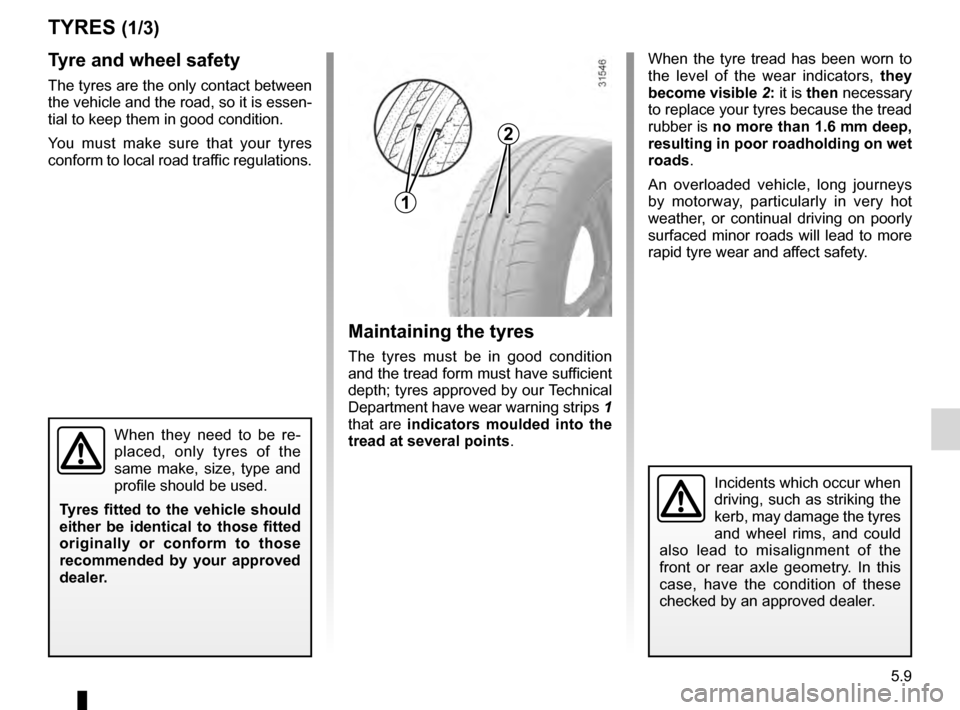

tyres (1/3)
maintaining the tyres
The tyres must be in good condition
and the tread form must have sufficient
depth; tyres approved by our Technical
Department have wear warning strips
1
that are indicators moulded into the
tread at several points.
tyre and wheel safety
The tyres are the only contact between
the vehicle and the road, so it is essen-
tial to keep them in good condition.
You must make sure that your tyres
conform to local road traffic regulations. When the tyre tread has been worn to
the level of the wear indicators,
they
become visible 2: it is then necessary
to replace your tyres because the tread
rubber is no more than 1.6 mm deep,
resulting in poor roadholding on wet
roads.
An overloaded vehicle, long journeys
by motorway, particularly in very hot
weather, or continual driving on poorly
surfaced minor roads will lead to more
rapid tyre wear and affect safety.
When they need to be re-
placed, only tyres of the
same make, size, type and
profile should be used.
tyres
fitted to the vehicle should
either be identical to those fitted
originally or conform to those
recommended by your approved
dealer.
Incidents which occur when
driving, such as striking the
kerb, may damage the tyres
and wheel rims, and could
also lead to misalignment of the
front or rear axle geometry. In this
case, have the condition of these
checked by an approved dealer.
1
2
Page 184 of 242
tyre pressure.......................................................... (current page)
5.10
ENG_UD20171_4
Pneumatiques (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_5
Jaune NoirNoir texte
tyre pressuresAdhere to the tyre pressures (including
the emergency spare wheel). The tyre
pressures should be checked at least
once a month and additionally before
any long journey (refer to the label af-
fixed to the edge of the driver’s door). Pressures should be checked when the
tyres are cold; ignore higher pressures
which may be reached in hot weather
or following a fast journey.
If tyre pressures cannot be checked
when the tyres are
cold, the normal
pressures must be increased by 0.2 to
0.3 bar (or 3 P
s I).
n
ever deflate a hot tyre.
s
pecial note
Depending on the vehicle, there may
be an adapter which needs to be posi-
tioned on the valve before air is added.Fitting new tyres
e
mergency spare wheel
Refer to the information on the
“Emergency spare wheel” and in-
structions on “Changing a wheel” in
Section 5.

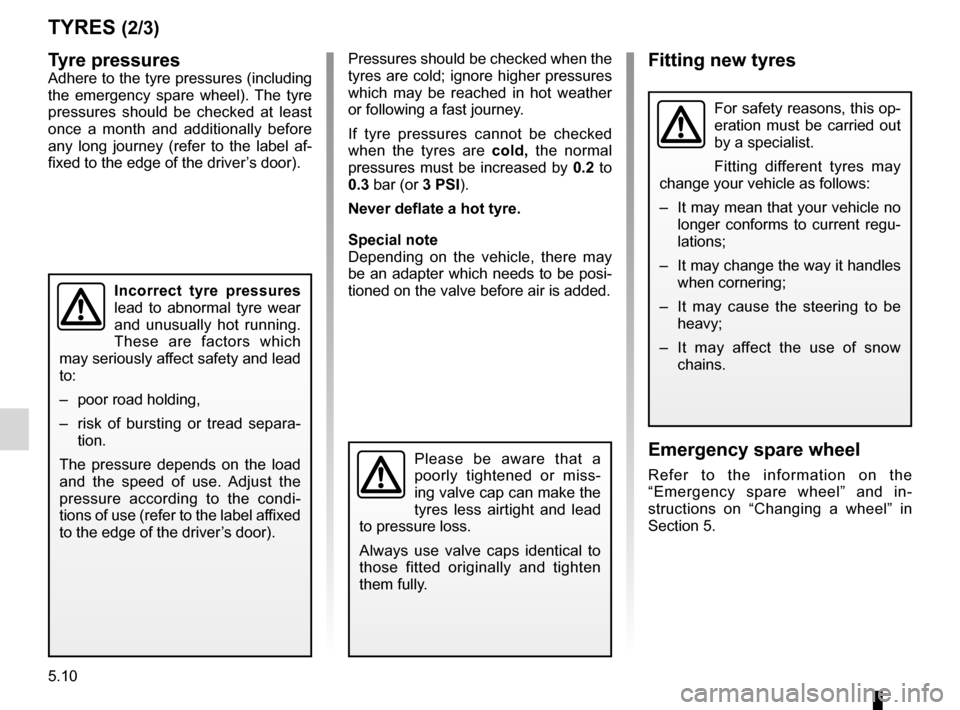

tyres (2/3)
Incorrect tyre pressures
lead to abnormal tyre wear
and unusually hot running.
These are factors which
may seriously affect safety and lead
to:
–
poor road holding,
–
r
isk of bursting or tread separa-
tion.
The pressure depends on the load
and the speed of use. Adjust the
pressure according to the condi-
tions of use (refer to the label affixed
to the edge of the driver’s door).
Please be aware that a
poorly tightened or miss-
ing valve cap can make the
tyres less airtight and lead
to pressure loss.
Always use valve caps identical to
those fitted originally and tighten
them fully.
For safety reasons, this op-
eration must be carried out
by a specialist.
Fitting different tyres may
change your vehicle as follows:
–
It
may mean that your vehicle no
longer conforms to current regu-
lations;
–
It
may change the way it handles
when cornering;
–
I
t may cause the steering to be
heavy;
–
I
t may affect the use of snow
chains.
Page 185 of 242
JauneNoirNoir texte
5.11
ENG_UD20171_4
Pneumatiques (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_5
use in winter
chains
F or safety reasons, fitting snow
chains to the rear axle is strictly for-
bidden.
c
hains cannot be fitted to tyres which
are larger than those originally fitted to
the vehicle.
s
now or w
inter tyres
W
e would recommend that these be
fitted to all four wheels to ensure that
your vehicle retains maximum adhe-
sion.
warning
: These tyres sometimes have
a specific direction of rotation and a
maximum speed index which may be
lower than the maximum speed of your
vehicle.

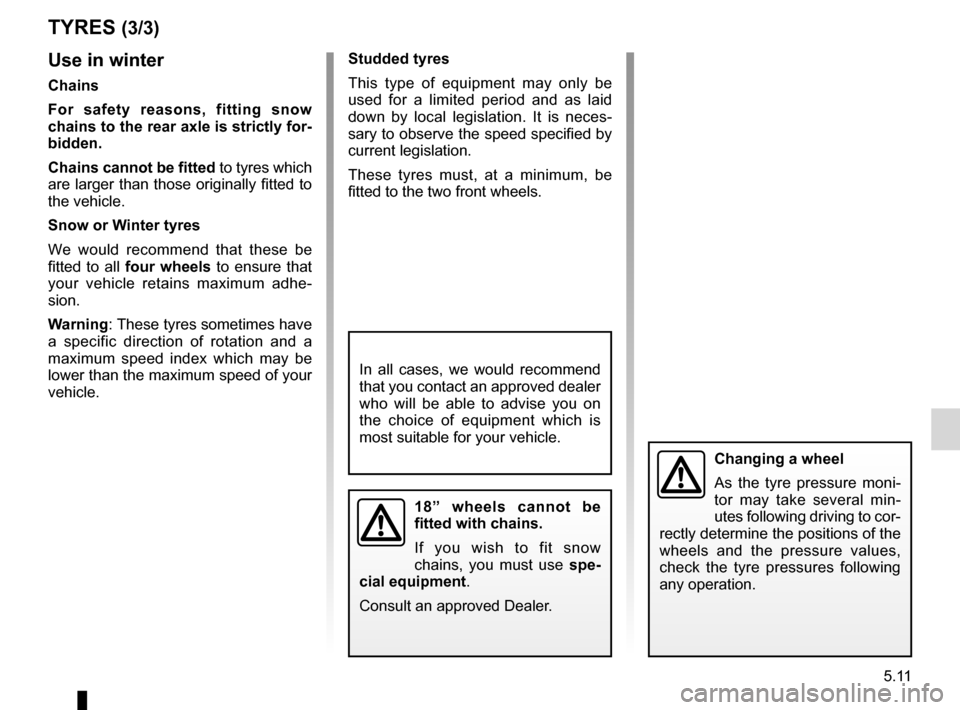

tyres (3/3)
In all cases, we would recommend
that you contact an approved dealer
who will be able to advise you on
the choice of equipment which is
most suitable for your vehicle.
changing a wheel
A s the tyre pressure moni-
tor may take several min-
utes following driving to cor-
rectly determine the positions of the
wheels and the pressure values,
check the tyre pressures following
any operation.
18” wheels cannot be
fitted with chains.
If you wish to fit snow
chains, you must use spe-
cial equipment .
Consult an approved Dealer.
studded tyres
T his type of equipment may only be
used for a limited period and as laid
down by local legislation. It is neces-
sary to observe the speed specified by
current legislation.
These tyres must, at a minimum, be
fitted to the two front wheels.
Page 186 of 242
lightsfront ................................................. (up to the end of the DU)
lights changing bulbs ................................ (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
indicators .............................................. (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
lights: dipped beam headlights .................. (up to the end of the DU)
lights: direction indicators .......................... (up to the end of the DU)
lights: main beam headlights ..................... (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
5.12
ENG_UD22105_3
Projecteurs avant : remplacement des lampes (X95 - B95 - D95 - Renault)\
ENG_NU_837-8_BDK95_Renault_5
Jaune NoirNoir texte
Headlights (changing bulbs)
heaDlIghts: changing bulbs (1/2)
After opening the bonnet, pull tool A
upwards. Remove the two screws 1
from the headlight using the tool.
Pull the headlight forwards, sliding it in
its rails up to the end stop.
After refitting the light, tighten the
screws
1
and reposition the tool cor-
rectly in its housing.
Direction indicator lightsRotate the bulb holder B to unlock it.
Bulb type: P y 21 w.
Daytime running lightRemove the cover C, unlock the bulb
holder 2 by rotating it.
Bulb type: P21
w
.
Dipped beam headlight D
halogen dipped beam headlight
U nlock the two springs D,
remove
the cover, then unclip the spring
3
to
remove the bulb
4
.
Bulb type:
h 7.
It is essential to use anti U.V. 55W
bulbs so as not to damage the plastic
on the headlights.
BcDe3245B6
Due to the danger involved
in handling high-voltage de-
vices, this type of bulb must
be replaced by an approved
dealer.
Do not touch the bulb glass. h old it
by its base.
When the bulb has been changed,
make sure you refit the cover correctly.
Discharge bulb dipped beam
headlight
Bulb type: D1
s .
a
1
Page 187 of 242
JauneNoirNoir texte
5.13
ENG_UD22105_3
Projecteurs avant : remplacement des lampes (X95 - B95 - D95 - Renault)\
ENG_NU_837-8_BDK95_Renault_5
The engine may be hot
when carrying out opera-
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
To comply with current legislation,
or as a precaution, you can obtain
an emergency kit from an approved
dealer containing a set of spare
bulbs and fuses.

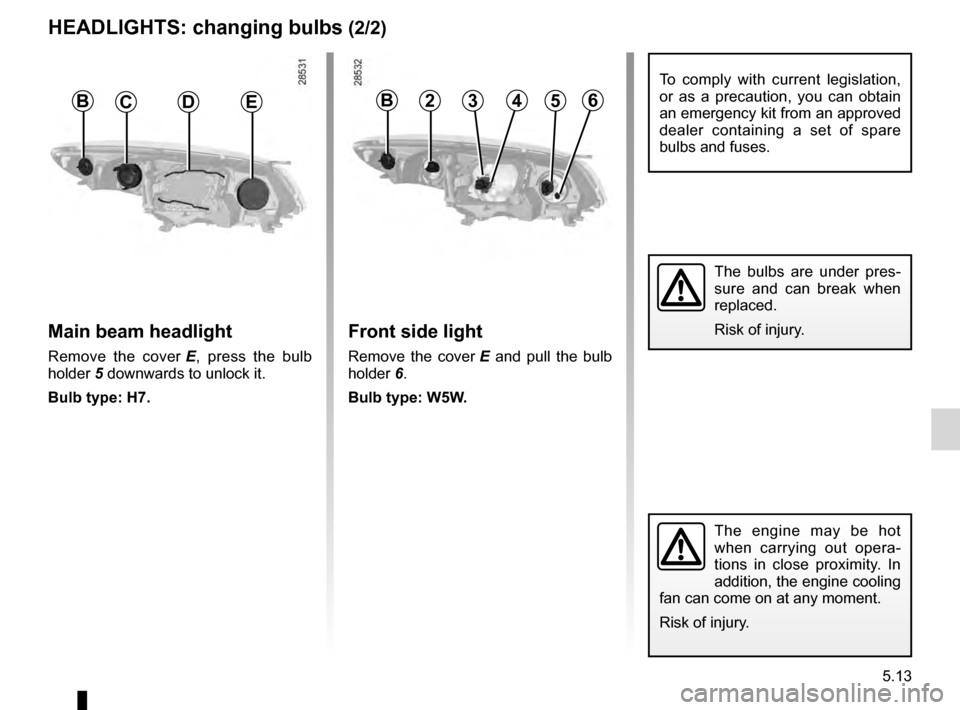

heaDlIghts: changing bulbs (2/2)
main beam headlight
Remove the cover E , press the bulb
holder 5 downwards to unlock it.
Bulb type:
h 7.
BcDe3245B6
Front side light
Remove the cover E and pull the bulb
holder 6 .
Bulb type:
w 5 w
.
Page 188 of 242
bulbschanging ......................................... (up to the end of the DU)
fog lights ............................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
lights: fog lights ......................................... (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
lights additional ........................................ (up to the end of the DU)
lights fog lights ......................................... (up to the end of the DU)
5.14
ENG_UD11884_2
Projecteurs avant Feux de brouillard avant additionnels (X95 - B95 - D9\
5 - Renault)
ENG_NU_837-8_BDK95_Renault_5

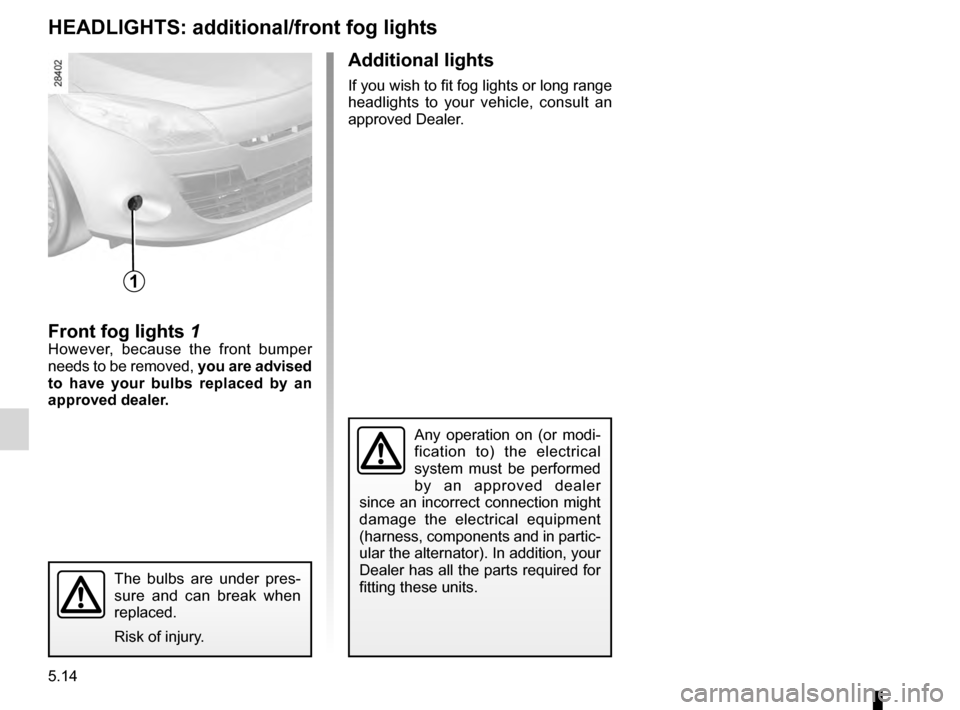

heaDlIghts: additional/front fog lights
additional lights
If you wish to fit fog lights or long range
headlights to your vehicle, consult an
approved Dealer.
Any operation on (or modi-
fication to) the electrical
system must be performed
by an approved dealer
since an incorrect connection might
damage the electrical equipment
(harness, components and in partic-
ular the alternator). In addition, your
Dealer has all the parts required for
fitting these units.
Front fog lights 1However, because the front bumper
needs to be removed, you are advised
to have your bulbs replaced by an
approved dealer.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
1
Page 189 of 242
bulbschanging ......................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
lights: direction indicators ........................................... (current page)
lights: side lights ......................................................... (current page)
lights: brake lights ...................................................... (current page)
lights: reversing lights ................................................. (current page)
lights: fog lights .......................................................... (current page)
indicators: direction indicators ........................................... (current page)
bulbs changing ......................................... (up to the end of the DU)
5.15
ENG_UD18877_3
Feux arrière et latéraux : remplacement des lampes (X95 - B95 - D\
95 - Renault)
ENG_NU_837-8_BDK95_Renault_5
Rear lights (changing bulbs)

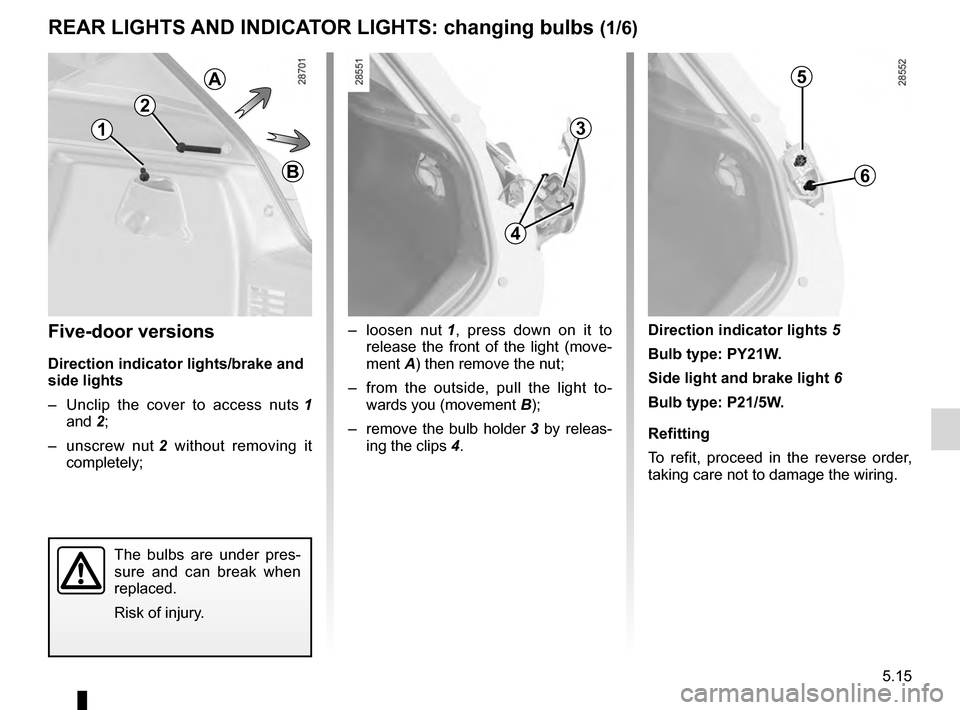

rear lIghts an D I n DI catO r l I ghts : changing bulbs (1/6)
5
– loosen nut 1, press down on it to
release the front of the light (move-
ment
A) then remove the nut;
–
f
rom the outside, pull the light to-
wards you (movement
B
);
–
remove
the bulb holder
3
by releas-
ing the clips
4
. Direction indicator lights
5
Bulb type: P y 21 w
.
s
ide light and brake light
6
Bulb type: P21/5
w
.
r
efitting
To refit, proceed in the reverse order,
taking care not to damage the wiring.Five-door versions
Direction indicator lights/brake and
side lights
–
U
nclip the cover to access nuts
1
and
2;
–
u
nscrew nut
2
without removing it
completely;
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
4
6
a
B
1
2
3
Page 190 of 242
5.16
ENG_UD18877_3
Feux arrière et latéraux : remplacement des lampes (X95 - B95 - D\
95 - Renault)
ENG_NU_837-8_BDK95_Renault_5
Jaune NoirNoir texte
rear lIghts an D I n DI catO r l I ghts : changing bulbs (2/6)

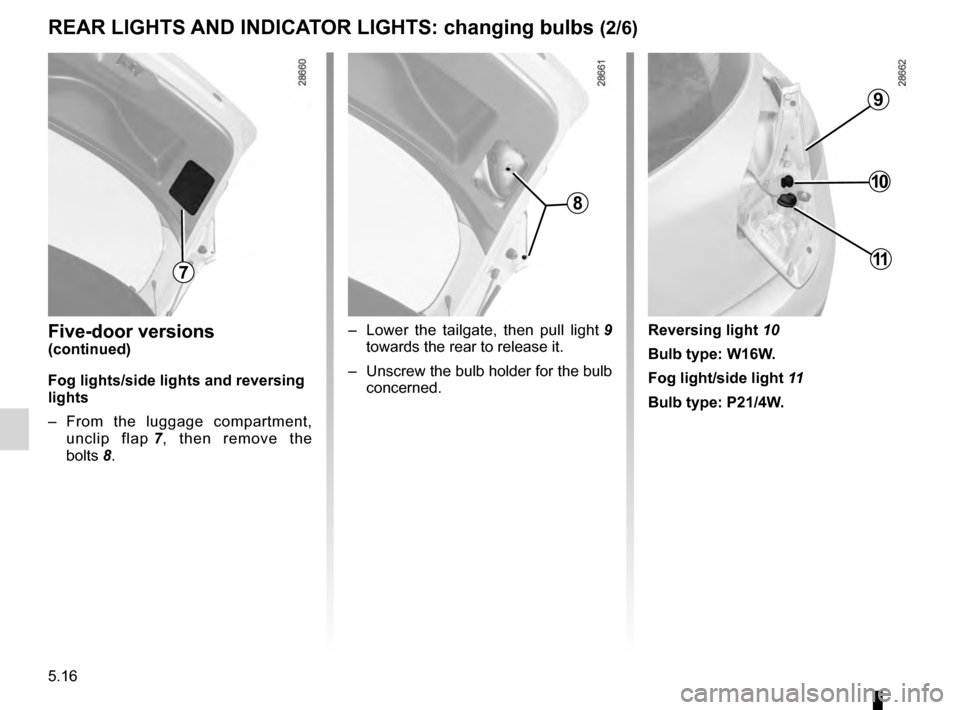

Five-door versions
(continued)
Fog lights/side lights and reversing
lights
–
F
rom the luggage compartment,
unclip flap
7 ,
then remove the
bolts
8.
– Lower the tailgate, then pull light 9
towards the rear to release it.
–
Unscrew
the bulb holder for the bulb
concerned.
7
9
10
8
11
reversing light 10
Bulb type: w 16 w
.
Fog light/side light
11
Bulb type: P21/4
w
.
