RENAULT MEGANE HATCHBACK 2016 X95 / 3.G Owners Manual

engine oil .............................................. (up to the end of the DU)
oil change ............................................. (up to the end of the DU)
engine oil level ...................................... (up to the end of the DU)
4.3
ENG_UD23617_4
Niveau huile moteur : généralités (X95 - B95 - D95 - K95 - Ren\
ault)
ENG_NU_837-8_BDK95_Renault_4
Engine oil level:
general information
engine Oil level: general information (1/2)
Minimum oil level warning on
the instrument panel
When the message “Checking control
functions” is displayed press button 3
or
4.
if

the level is below minimum: the
message “Oil level” appears on the dis-
play along with squares
1

that are re-
placed with dashes
2

when the level
goes down.
n

ote: The detailed level cannot be dis-
played if the vehicle was previously
only driven for a short time. if the level is at the minimum
The message “Top up oil level” and in-
dicator light © light up on the in-
strument panel.
i

t is vital to top up the oil as soon as
possible.
The display only warns the
driver if the oil level is at the
minimum level. It does not
inform the driver that the oil
level has exceeded the maximum
level as this can only be measured
using a dipstick.
It is normal for an engine to use oil for
lubrication and cooling of moving parts
and it is normal to top up the level be-
tween oil changes.
However, contact your approved
Dealer if more than 0.5 litres is being
consumed every 600 miles (1,000 km)
after the running in period.
Oil change frequency: check the oil
level from time to time and certainly
before any long journey to avoid the
risk of damaging your engine.
Reading the oil level
The oil level should be read with the ve-
hicle on level ground, after the engine
has been switched off for some time.
th

e dipstick must be used to read
the exact oil level and make sure
that the maximum level has not been
exceeded (risk of engine damage).
Refer to the following pages.
The instrument panel display only
alerts the driver when the oil level is at
its minimum.
3
4
Oil level
   
12

dipstick.................................................. (up to the end of the DU)
4.4
ENG_UD23617_4
Niveau huile moteur : généralités (X95 - B95 - D95 - K95 - Ren\
ault)
ENG_NU_837-8_BDK95_Renault_4
engine Oil level: general information (2/2)
Reading the level using the
dipstick
– remove the dipstick and wipe with a
clean, lint-free cloth;
–

p
ush the dipstick in as far as it will
go (for vehicles equipped with a cap-
type dipstick
C, screw the cap in as
far as it will go);
–

take out the dipstick again;
–


r
ead the level: it should never fall
below minimum mark
A

or exceed
maximum mark
B.
Once the operation has been com-
pleted, ensure that the dipstick is
pushed in as far as it will go or that
the “cap-type dipstick” is completely
screwed in.
Consult your approved Dealer at
once if you notice an abnormal or
repeated drop in any of the fluid
levels.
The engine may be hot
when carrying out opera-
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
Maximum engine oil level
exceeded.
The oil level should only be read with
the dipstick as explained above.
If the oil level exceeds the maximum
level, do not start your vehicle and
contact an approved Dealer.
Under no circumstances
should maximum filling
level
B

be exceeded: this
could damage the engine
and the catalytic converter.
In order to prevent splashback, it is
recommended that a funnel be used
when topping up/filling with oil
A
B
A
B
C

engine oil .............................................. (up to the end of the DU)
oil change ............................................. (up to the end of the DU)
engine oil level ...................................... (up to the end of the DU)
engine oil capacity ................................ (up to the end of the DU)
4.5
ENG_UD21553_5
Niveau huile moteur : appoint/remplissage (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_4
topping up/filling
engine Oil level: topping up/filling (1/2)
topping up/filling
The vehicle must be parked on level
ground and the engine should be cold
(for instance, before the engine is
started up for the first time in the day).
e

ngine oil grade
Refer to the Maintenance Service
Booklet for your vehicle. –

Unscrew cap
1;
– top up the level (as a guide, the ca-
pacity between the minimum and
maximum reading on the dipstick
2


is between 1.5 and 2 litres, depend-
ing on the engine);
–

wait
for approximately 10 minutes to
allow the oil to flow into the engine;
–

c
heck the level using the dipstick
2

(as described above).
Once the operation has been com-
pleted, ensure that the dipstick is
pushed in as far as it will go or that the
cap-type dipstick is completely screwed
in.
Do not exceed the max level and
do not forget to refit cap 1 and dip-
stick
2.
1
2
21
12
1
12

filteroil filter ............................................ (up to the end of the DU)
4.6
ENG_UD21553_5
Niveau huile moteur : appoint/remplissage (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_4

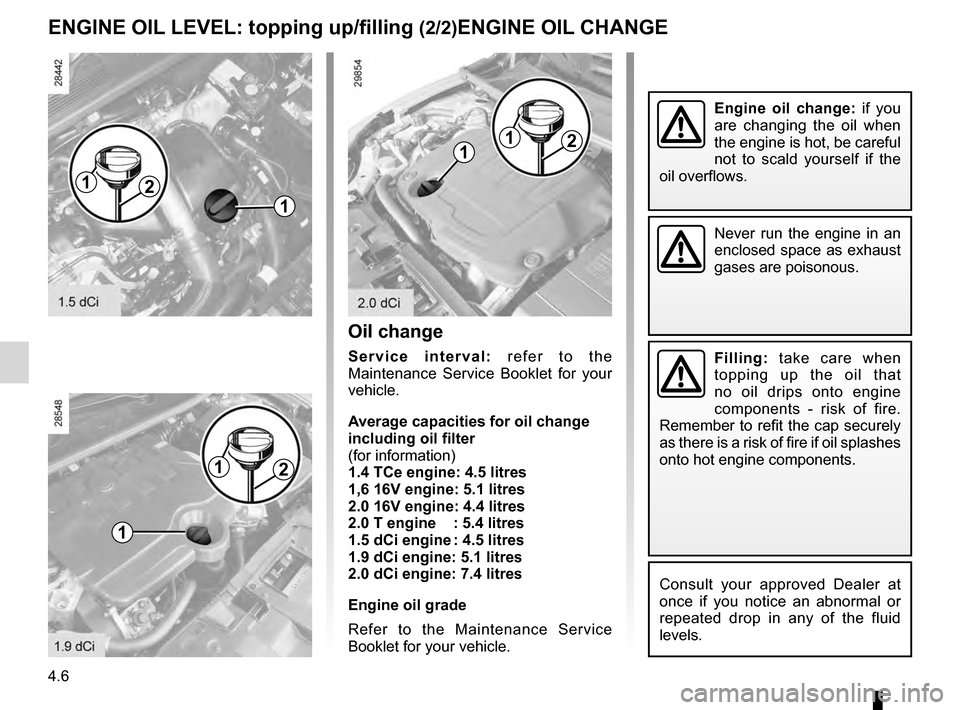

Engine oil change
engine Oil level: topping up/filling (2/2)engine Oil CHA nge
Oil change
S e r v i c e i n t e r v a l : r e f e r t o t h e
Maintenance Service Booklet for your
vehicle.
Average capacities for oil change
including oil filter
(for information)
1.4
t Ce engine: 4.5 litres
1,6 16
v engine: 5.1 litres
2.0 16
v engine: 4.4 litres
2.0
t engine : 5.4 litres
1.5 dCi engine

: 4.5 litres
1.9 dCi engine: 5.1 litres
2.0 dCi

engine: 7.4 litres
e

ngine oil grade
Refer to the Maintenance Service
Booklet for your vehicle.
engine oil change: if you
are changing the oil when
the engine is hot, be careful
not to scald yourself if the
oil overflows.
Filling: take care when
topping up the oil that
no oil drips onto engine
components - risk of fire.
Remember to refit the cap securely
as there is a risk of fire if oil splashes
onto hot engine components.
Never run the engine in an
enclosed space as exhaust
gases are poisonous.
Consult your approved Dealer at
once if you notice an abnormal or
repeated drop in any of the fluid
levels.
1
1
1
1
2
2
121

levels:coolant ............................................................. (current page)
tanks and reservoirs coolant ............................................................. (current page)
coolant ................................................................... (current page)
4.7
ENG_UD18903_5
Niveaux / filtres (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_4

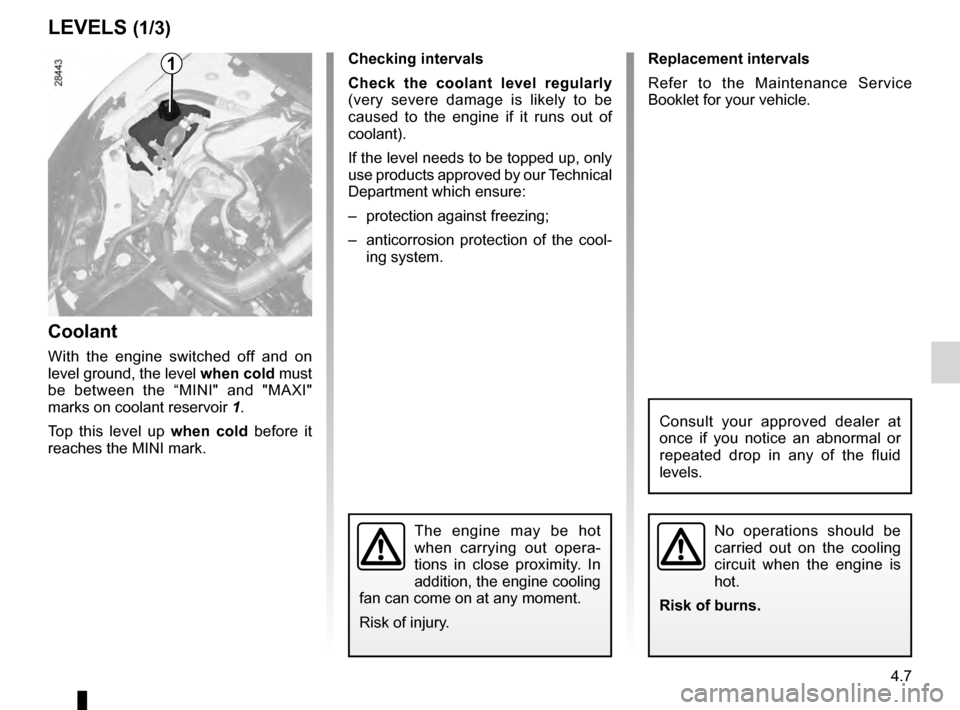

Levels:
engine coolant
levelS (1/3)
Coolant
With the engine switched off and on
level ground, the level when cold must
be between the “MINI" and "MAXI"
marks on coolant reservoir

1
.
Top this level up when cold before it
reaches the MINI mark. Checking intervals
Check the coolant level regularly
(very severe damage is likely to be
caused to the engine if it runs out of
coolant).
If the level needs to be topped up, only
use products approved by our Technical
Department which ensure:
–

protection against freezing;
–

a
nticorrosion protection of the cool-
ing system.
No operations should be
carried out on the cooling
circuit when the engine is
hot.
Risk of burns.
Consult your approved dealer at
once if you notice an abnormal or
repeated drop in any of the fluid
levels.
1Replacement intervals
Refer to the Maintenance Service
Booklet for your vehicle.
The engine may be hot
when carrying out opera-
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.

brake fluid .............................................................. (current page)
levels: brake fluid ........................................................ (current page)
tanks and reservoirs brake fluid ........................................................ (current page)
4.8
ENG_UD18903_5
Niveaux / filtres (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_4
Jaune NoirNoir texte

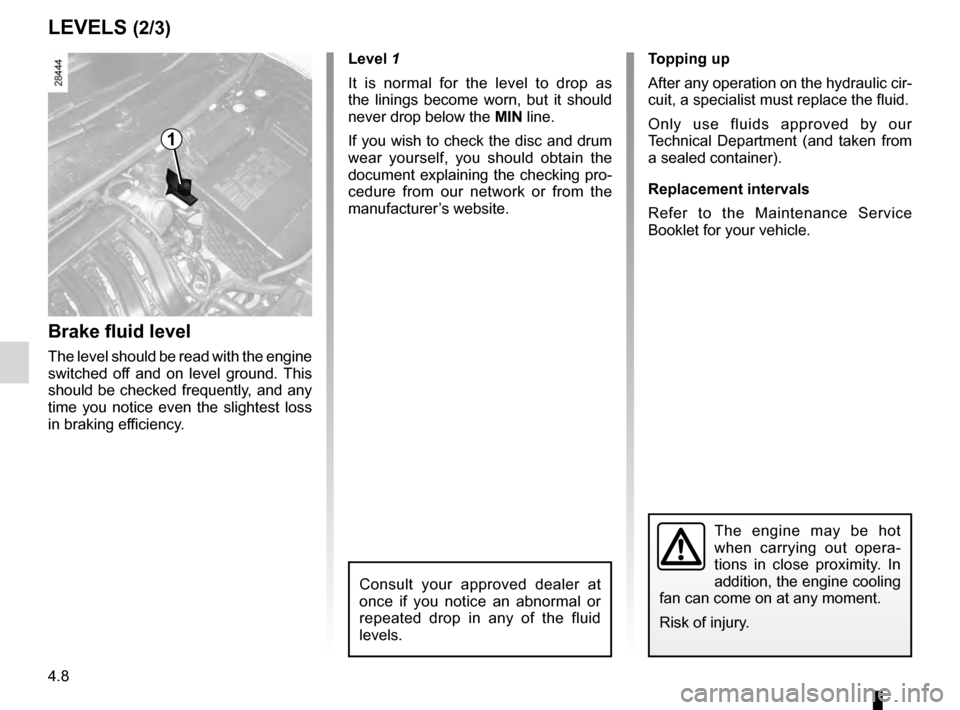

brake fluid
levelS (2/3)
Brake fluid level
The level should be read with the engine
switched off and on level ground. This
should be checked frequently, and any
time you notice even the slightest loss
in braking efficiency.
l
evel 1
It is normal for the level to drop as
the linings become worn, but it should
never drop below the M in line.
If you wish to check the disc and drum
wear yourself, you should obtain the
document explaining the checking pro-
cedure from our network or from the
manufacturer’s website.
topping up
After
any operation on the hydraulic cir-
cuit, a specialist must replace the fluid.
Only use fluids approved by our
Technical Department (and taken from
a sealed container).
Replacement intervals
Refer to the Maintenance Service
Booklet for your vehicle.
1
The engine may be hot
when carrying out opera-
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
Consult your approved dealer at
once if you notice an abnormal or
repeated drop in any of the fluid
levels.

levels:windscreen washer reservoir ........................... (current page)
windscreen washer ................................................ (current page)
filter air filter ............................................................. (current page)
filter passenger compartment filter .......................... (current page)
filter oil filter ............................................................. (current page)
filter diesel filter ........................................................ (current page)
tanks and reservoirs: windscreen washer .......................................... (current page)
Jaune NoirNoir texte
4.9
ENG_UD18903_5
Niveaux / filtres (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_4
windscreen/headlight washer reservoir
Filters
levelS (3/3)FilteRS
Windscreen/headlight washer
reservoir
topping up
W ith the engine switched off, open
cap
1 ,

fill until you can see the fluid,
then refit the cap.
l
iquid
Screen wash product (product with an-
tifreeze in winter).
Jets
Use a tool such as a needle to adjust
the height of the windscreen washer
jets.
nOte
D
epending on the vehicle, to find
out the fluid level, open cap
1

and
pull out the dipstick.
Filters
The replacement of filter elements (air
filter, passenger compartment filter,
diesel filter, etc.) is scheduled in the
maintenance operations for your vehi-
cle.
Replacement intervals for filter el-
ements: refer to the Maintenance
Service Booklet for your vehicle.
1

tyre pressure......................................... (up to the end of the DU)
tyre pressures ....................................... (up to the end of the DU)
tyres ...................................................... (up to the end of the DU)
4.10
ENG_UD6333_1
Pression de gonflage des pneumatiques (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_4
Tyre Pressure
tyRe pReSSURe
The tyre pressure is indicated on
label A
affixed to the edge of the driv-
er’s door. Open the door to read it.
B : dimension of the tyres fitted to the
vehicle.
C : tyre pressures for the front wheels
(non-motorway).
D : tyre pressures for the rear wheels
(non-motorway).
E : tyre pressures for the front wheels
(motorway). F
: tyre pressures for the rear wheels
(motorway).
G : tyre pressure for the emergency
spare wheel.
H: emergency spare wheel tyre dimen-
sion if different to the four tyres fitted to
the vehicle.
tyre safety and use of snow
chains
Refer to the information on “Tyres”
in Section 5 for the servicing con-
ditions and, depending on the ver-
sion, the use of chains.
Special note
For vehicles used fully laden
( m a x i m u m p e r m i s s i b l e a l l - u p
weight) and towing a trailer. The
maximum speed must be limited
to 60 mph (100 km/h) and the tyre
pressure increased by 0.2 bar.
Refer to the information on “Weights”
in Section 6.
CD
Fe
g
A
H
AB
When they need to be replaced, only tyres of the same make, size, type
and profile should be used.
tyres

fitted to the vehicle should either be identical to those fitted
originally or conform to those recommended by your approved
dealer.

battery................................................... (up to the end of the DU)
4.11
ENG_UD11753_3
Batterie (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_4
The battery 1 does not require any
maintenance.label A
Observe the indications on the battery:
–
2
n
aked flames and smoking forbid-
den;
–
3 eye protection required;
–
4 keep away from children;
–
5 explosive materials;
–
6 refer to the handbook;
–
7 corrosive materials.
Battery
The battery is a specific
type , please ensure it is
replaced with the same
type. Consult an approved
dealer.
Handle the battery with care
as it contains sulphuric acid,
which must not come into
contact with eyes or skin. If
it does, wash the affected area with
plenty of cold water. If necessary,
consult a doctor.
Ensure that naked flames, red hot
objects and sparks do not come into
contact with the battery as there is a
risk of explosion.
BAtte Ry
Depending on the vehicle, a system
continuously checks the battery charge
status. If the level drops, the message
“Battery low start engine” is displayed
on the instrument panel. In this case,
start the engine. Then the message
“Battery charging” appears on the in-
strument panel for the duration of the
charging time.
The charge status of your battery can
decrease especially if you use your ve-
hicle:
–

for short journeys;
–


for driving in town;
–


when the temperature drops;
–


a
fter extended use of consumers
(radio etc.) with the engine switched
off.
Replacing the battery
As this operation is complex, we advise
you to contact an approved Dealer.
1
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
start at any moment.
Risk of injury.
A234
567

maintenance:bodywork ........................................ (up to the end of the DU)
washing ................................................ (up to the end of the DU)
paintwork maintenance ................................... (up to the end of the DU)
anti-corrosion protection ....................... (up to the end of the DU)
cleaning: outside the vehicle .......................... (up to the end of the DU)
4.12
ENG_UD22865_9
Entretien de la carrosserie (X45 - H45 - J77 - X81 - X85 - B85 - C85 - \
S85 - X91 - B91 - K91 - D91 - X83 - X61 - X77 ph2 - K85 - X95 - B95 - D9\
5 - K95 - J95 - R95 - L38 -
ENG_NU_837-8_BDK95_Renault_4
Jaune NoirNoir texte

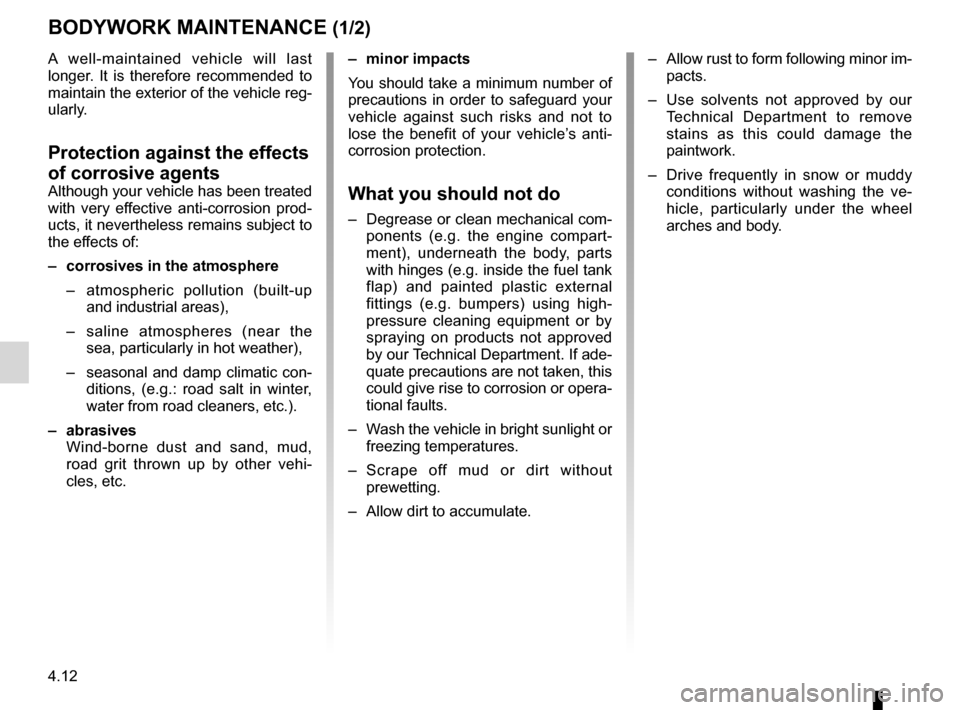

Bodywork maintenance
BODyWORk MAintenAnCe (1/2)
– Allow rust to form following minor im-
pacts.
–

U
se solvents not approved by our
Technical Department to remove
stains as this could damage the
paintwork.
–

D
rive frequently in snow or muddy
conditions without washing the ve-
hicle, particularly under the wheel
arches and body.
–
mino
r impacts
You should take a minimum number of
precautions in order to safeguard your
vehicle against such risks and not to
lose the benefit of your vehicle’s anti-
corrosion protection.
What you should not do
– Degrease or clean mechanical com-
ponents (e.g. the engine compart-
ment), underneath the body, parts
with hinges (e.g. inside the fuel tank
flap) and painted plastic external
fittings (e.g. bumpers) using high-
pressure cleaning equipment or by
spraying on products not approved
by our Technical Department. If ade-
quate precautions are not taken, this
could give rise to corrosion or opera-
tional faults.
–

W
ash the vehicle in bright sunlight or
freezing temperatures.
–

S
crape off mud or dirt without
prewetting.
–

Allow
dirt to accumulate.
A well-maintained vehicle will last
longer. It is therefore recommended to
maintain the exterior of the vehicle reg-
ularly.
protection against the effects
of corrosive agents
Although your vehicle has been treated
with very effective anti-corrosion prod-
ucts, it nevertheless remains subject to
the effects of:
–

corrosives in the atmosphere
–


a
tmospheric pollution (built-up
and industrial areas),
–

s
aline atmospheres (near the
sea, particularly in hot weather),
–

seasonal
and damp climatic con-
ditions, (e.g.: road salt in winter,
water from road cleaners, etc.).
–

abrasives
W

ind-borne dust and sand, mud,
road grit thrown up by other vehi-
cles, etc.
