Tableau de bord : afficheurs et indicateurs (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
Instrument panel in miles
(option to switch to km/h)
–

With
the ignition off, press one of the
buttons
9 or 10 at the end of stalk 2
and start button
8;
–

t
he speedometer unit indicator
flashes for approximately ten sec-
onds, then the new unit is displayed:
release button
9 or 10 when the unit
stops flashing.
To return to the previous mode, repeat
the same operation.
Note: once the battery is switched off,
the trip computer and warning system
automatically returns to the original unit
of measurement.
dIspLAYs AN d IN d I c ATOR s (2/2)
9
10
2
2
8
speedometer 7 (mph or km/h)
Overspeed buzzer
Depending
on the vehicle and country,
a buzzer sounds for approximately 10
seconds every 40 seconds, as long as
the vehicle is travelling in excess of 72
mph (120 km/h).
7

control instruments ............................... (up to the end of the DU)
indicators: instrument panel ............................. (up to the end of the DU)
trip computer and warning system........ (up to the end of the DU)
instrument panel ................................... (up to the end of the DU)
warning lights........................................ (up to the end of the DU)
instrument panel messages.................. (up to the end of the DU)
1.56
ENG_UD23628_4
Ordinateur de bord : généralités (X95 - B95 - D95 - K95 - L38 \
- X38 - X32 - B32 - Renault)
ENG_NU_837-8_BDK95_Renault_1
Jaune NoirNoir texte
trip computer
Trip computer and warning
system

1
Depending on the vehicle, this includes
the following functions:
–

distance travelled;
–


journey parameters;
–


information messages;
–


o
perating fault messages (con-
nected to the warning light
©);
–

warning

messages (connected to the
® warning light);
–

vehicle
settings customisation menu.
All these functions are described on the
following pages.
display selection keys 2
and 3
Scroll through the following informa-
tion upwards (button 2)
or downwards
(button
3 )

by pressing briefly and suc-
cessively (the display depends on the
vehicle equipment and country).
a)

t
otal mileage and trip mileage re-
corder;
b)

journey parameters:
–


fuel used;
–


average fuel consumption;
–


current fuel consumption;
–


estimated range;
–


distance travelled;
–


average speed;
1
2
3
c) mileage before service;
d)
tyre pressure monitor;
e)


vehicle
settings customisation menu;
f)

trip
log, operating faults and informa-
tion message readout.
TRIp c O mp UTER: general information (1/2)

JauneNoirNoir texte
1.57
ENG_UD23628_4
Ordinateur de bord : généralités (X95 - B95 - D95 - K95 - L38 \
- X38 - X32 - B32 - Renault)
ENG_NU_837-8_BDK95_Renault_1
Trip mileage resetting
With “trip mileage recorder” selected on
the display, press button
2 or 3 until the
mileage recorder resets to zero.
Resetting the journey
parameters (reset button)
With one of the journey parameters se-
lected on the display, press button 2
or
3 until the display resets.
Interpreting some of the
values displayed after
resetting
The values showing average fuel con-
sumption, range and average speed
will become more stable and reliable
the further you travel after pressing the
reset button.
For the first few miles after pressing
the reset key you will notice that the
range increases as you travel. This
range takes into account the average
fuel consumption since the last time the
reset button was pressed. Therefore,
the average fuel consumption may de-
crease when:
–

the vehicle stops accelerating;
–


t
he engine reaches its operating
temperature (if the engine was cold
when the reset key was pressed);
–

w
hen driving from an urban area
onto the open road.
3
2
Automatic resetting of the
journey parameters
Resetting occurs automatically when
the maximum value of any of the pa-
rameters is exceeded.
TRIp c O mp UTER: general information (2/2)

trip computer and warning system........ (up to the end of the DU)
warning lights........................................ (up to the end of the DU)
instrument panel messages.................. (up to the end of the DU)
instrument panel ................................... (up to the end of the DU)
1.58
ENG_UD23624_1
Ordinateur de bord : paramètres de voyage (X95 - B95 - D95 - K95 - R\
enault)
ENG_NU_837-8_BDK95_Renault_1
Jaune NoirNoir texte
The display of information shown below dEpENds ON THE vEHIcLE EQUIpmENT ANd cOUNTRY.
Examples of selections Interpreting the display selected
101668 KM 112. 4 KM
a) Total mileage and trip mileage recorder.
FUEL USED Fuel used
b) Journey parameters.f
uel used.
Fuel consumed since the last reset.
8.5 L
20 L
AVERAGE Average
Average fuel consumption since the last reset.
The value is displayed after having travelled at least
400
metres since the last reset.
7.2 L/100
7.2 L/100
TRIp
c O mp UTER: trip settings (1/5)

JauneNoirNoir texte
1.59
ENG_UD23624_1
Ordinateur de bord : paramètres de voyage (X95 - B95 - D95 - K95 - R\
enault)
ENG_NU_837-8_BDK95_Renault_1
TRIp c O mp UTER: trip settings (2/5)
The display of information shown below dEpENds ON THE vEHIcLE EQUIpmENT ANd cOUNTRY.
Examples of selections Interpreting the display selected
CURRENT Current
current fuel consumption.
This value is displayed above a speed of approximately 18
mph (30 km/h).
9.4 L/100
9.4 L/100
Estimated range with remaining fuel.
This range takes into account the average fuel consumption
since the last time the reset button was pressed. The value
is displayed after driving 400 metres.
RANGE
Range
541 km
541 km
distance travelled since the last reset.
DIST
ANCE
Distance
52.2 km
359 km
Average speed since the last reset.
The value is displayed after driving 400 metres.
AVERAGE
Average
89.6 km/h
89.6 km/h

1.60
ENG_UD23624_1
Ordinateur de bord : paramètres de voyage (X95 - B95 - D95 - K95 - R\
enault)
ENG_NU_837-8_BDK95_Renault_1
Jaune NoirNoir texte
TRIp c O mp UTER: trip settings (3/5)
Examples of selections Interpreting the display selected
c) m ileage before service.
Distance remaining until the next service (displayed in
miles/kilometres and months), then when the service
nears, several scenarios are possible:
–

d
istance/time remaining less than 900 miles (1,500
km) or one month: the message “Service due” is dis-
played accompanied by the nearest term (distance or
time);
–

distance
equal to 0 miles or service date reached:
the message “Service required” is displayed accom-
panied by the
© warning light.
The vehicle requires a service as soon as possible.
Service in
30000km/24 MONTHS Service due in 100km
Service due in 10 days
NB: depending on the vehicle, the mileage before service changes according to the driving style (frequent driving at low speed,
door-to-door journeys, extensive use at idle speed, towing a trailer etc). The distance remaining until the next service can there-
fore decrease more quickly in some cases than the actual distance travel\
led.
Resetting the display after the service in accordance with the maintenan\
ce schedule.
The mileage before service must only be reset after a service which complies with the recommendations in the maintenance
schedule.
If you decide to change the oil more frequently, do not reset this data each time the oil is changed to avoid exceeding the re-
placement intervals for other parts in the maintenance schedule.
s

pecial note: To reset the distance before service, press and hold one of the display reset buttons for approximately 10 sec-
onds until the display shows the mileage permanently.
The display of information shown below
d E p EN ds ON THE v EHI c LE EQUI pm ENT AN d c OUNTRY.

JauneNoirNoir texte
1.61
ENG_UD23624_1
Ordinateur de bord : paramètres de voyage (X95 - B95 - D95 - K95 - R\
enault)
ENG_NU_837-8_BDK95_Renault_1
TRIp c O mp UTER: trip settings (4/5)
The display of information shown below dEpENds ON THE vEHIcLE EQUIpmENT ANd cOUNTRY.
Examples of selections Interpreting the display selected

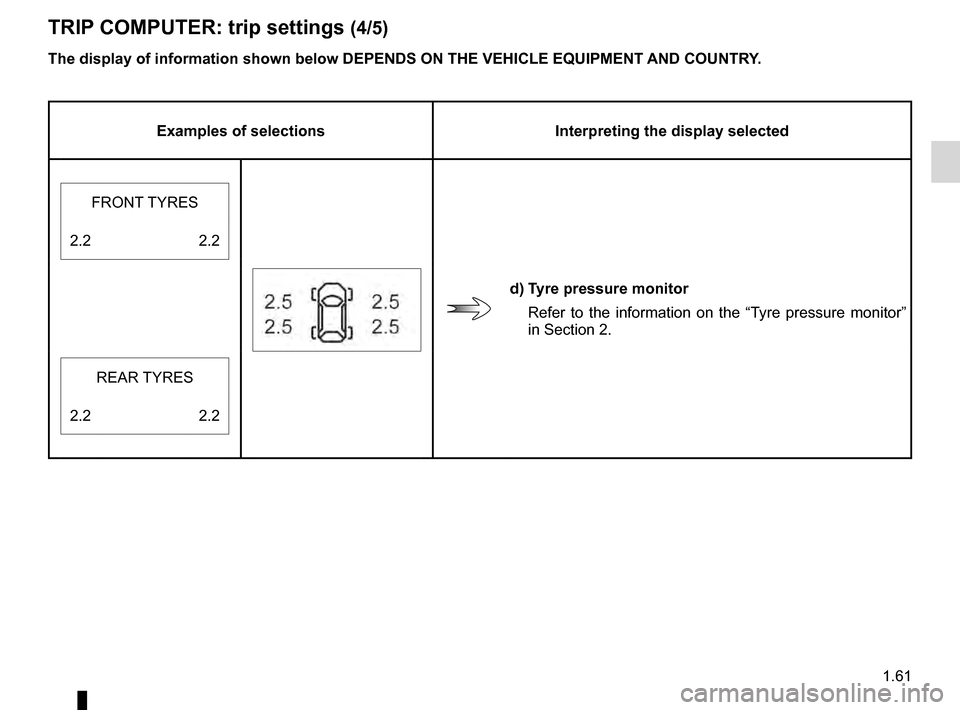

d) Tyre pressure monitor
Refer to the information on the “Tyre pressure monitor”
in Section 2.
FRONT TYRES
2.2 2.2
REAR TYRES
2.2 2.2

1.62
ENG_UD23624_1
Ordinateur de bord : paramètres de voyage (X95 - B95 - D95 - K95 - R\
enault)
ENG_NU_837-8_BDK95_Renault_1
TRIp c O mp UTER: trip settings (5/5)
Examples of selections Interpreting the display selected
e) vehicle settings customisation menu.
Enables certain vehicle functions to be set (instrument panel language, parking
distance control, etc.). Refer to the information on “Vehicle settings customisation
menu” in Section 1.
Settings menu:
press and hold
f) Trip log.
Successive display:
–

information messages (passe
nger air bag OFF etc.),
–

opera
ting fault messages (check the injection system, etc).
No message available
The display of information shown below
d E p EN ds ON THE v EHI c LE EQUI pm ENT AN d c OUNTRY.

trip computer and warning system......................... (current page)
warning lights......................................................... (current page)
instrument panel messages................................... (current page)
instrument panel .................................................... (current page)
1.63
ENG_UD23625_1
Ordinateur de bord : messages d’information (X95 - B95 - D95 - K95 -\
Renault)
ENG_NU_837-8_BDK95_Renault_1
TRIp c O mp UTER AN d WARNIN g s Y s TE m : information messages
Examples of messages Interpreting the display selected
“Battery low start engine” Indicates that the vehicle must be started to recharge the battery (eg. after the engine has been
switched off for some time whilst listening to the radio).
“
p lease remove keycard” Request to remove the RENAULT card from the reader when you leave the vehicle.
“
c hecking control functions” Displayed with the ignition on when the vehicle is running self-diagnost\
ics.
“Traction control off” Indicates that you have deactivated the ASR function.
“Turn steeringwheel +
s TART” Turn the steering wheel slightly whilst pressing the vehicle start button to unlock the steering
column.
“No message available” No warning is stored.
“
s teering wheel
not locked” Indicates that the steering column has not been locked.
“
s top vehicle” Indicates an electronic parking brake fault. Apply the electronic parking brake manually and ensure
that the vehicle is immobilised using a chock.
These can help in the vehicle starting phase, or give information about \
a selection or a driving status.
Examples of information messages are given in the following pages.

trip computer and warning system......................... (current page)
instrument panel messages................................... (current page)
warning lights......................................................... (current page)
instrument panel .................................................... (current page)
1.64
ENG_UD23626_1
Ordinateur de bord : messages d’anomalies de fonctionnement (X95 - B\
95 - D95 - K95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
TRIp c O mp UTER AN d WARNIN g s Y s TE m : operating fault messages
These appear with the © warning light and mean that you should drive very carefully to an authorised dealer as
soon as possible. If you fail to follow this recommendation, you risk da\
maging your vehicle.
They disappear when the display selection key is pressed or after several seconds and are stored in the computer log. The
©
warning light stays on. Examples of operating fault messages are given i\
n the following pages.
Examples of messages Interpreting the display selected
“
c
lean diesel filter” Indicates the presence of water in the diesel filter.
“
c
heck lighting” Indicates a fault in the directional headlights.
“
c
heck vehicle” Indicates a fault on one of the pedal sensors or in the battery management
system.
“
c
heck airbag” Indicates a fault in the restraint system in addition to the seat belts. In the event
of an accident, it is possible that they may not be triggered.
“
c
heck antipollution system” Indicates a fault in the vehicle’s particle filter system.
“
c
heck injection” Indicates an engine fault.
