air bagactivating the front passenger air bags ............ (current page)
Jaune NoirNoir texte
1.45
ENG_UD18912_4
Sécurité enfants : désactivation/activation airbag passager ava\
nt (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
cHILd sAfETY: deactivating/activating the front passenger air bag (3/3)
4
Operating faults
It is forbidden to fit a rear-facing child
seat to the front passenger seat if the
air bag activation/deactivation system
is faulty.
Allowing any other passenger to sit in
that seat is not recommended.
If warning lights
› and ¹ are
lit at the same time.
Contact your approved dealer as soon
as possible.
Activating the front
passenger air bags
You should reactivate the air bag as
soon as you remove the child seat from
the front passenger seat to ensure the
protection of the front passenger in the
event of an impact.
To reactivate the air bags: when the
vehicle is stationary , push and turn
lock
1 to the ON position.
With the ignition on, it is essential to
check that warning light
4 › is lit
on the central display, and that it goes
out after a few seconds .
1
The passenger air bag must
only be deactivated or acti-
vated with the ignition off.
If it is interfered with when
the vehicle is being driven, indicator
lights
å and © will come
on.
Switch the ignition off then on again
to reset the air bag in accordance
with the lock.

driver’s position .................................... (up to the end of the DU)
controls ................................................. (up to the end of the DU)
dashboard............................................. (up to the end of the DU)
1.46
ENG_UD6281_1
Poste de conduite direction à gauche (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
Jaune NoirNoir texte
Driving position
dRIvINg pOsITION: LEfT- HAN d d RI v E (1/2)
1234567891011
12131415
16
17
18
19
202122242523

JauneNoirNoir texte
1.47
ENG_UD6281_1
Poste de conduite direction à gauche (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
dRIvINg pOsITION: LEfT- HAN d d RI v E (2/2)
1 Side air vent.
2
Side window demister outlet.
3


Stalk for:
–


direction indicator lights,
–


exterior lights,
–


front fog lights,
–


rear fog light.
4


Instrument panel.
5


Driver
’s air bag and horn location.
6

–

S
teering column stalk for wind-
screen and rear screen wash/
wipe.
–


T

rip computer information readout
control and vehicle settings person-
alisation menu.
7

Centre air vents.
The equipment fitted, described below, dEpENds ON THE vERsION ANd cOUNTRY. 19
Gear lever
.
20

E
n g i n e s t a r t / s t o p b u t t o n a n d
RENAULT card reader.
21

Central
door locking/unlocking con-
trols and hazard warning lights
switch.
22

C
ruise control/speed limiter con-
trols.
23

Control
for adjusting steering wheel
height and reach.
24

Bonnet release.
25


Controls for:
–


e
lectric headlight beam adjust-
ment,
–

c
ontrol instruments lighting rheo-
stat,
–

activation/deactivation
of the trac-
tion control,
–

a
ctivation/deactivation of the
parking distance control system.
8

–

D
isplay of the time, tempera-
ture, radio information, navigation
system information, etc.
–

D
river and front passenger seat
belt reminder warning light and
front passenger air bag activated/
deactivated warning lights.
9

Location for passenger air bag.
10


Side window demister outlet.
1

1
Side air vent.
12


Glove box.
13


Heating and ventilation controls.
14


L
ocation for radio, navigation
system, etc.
15

Accessories socket.
16


Control
for some multimedia equip-
ment.
17

Cruise control/speed limiter control.
18


E
lectronic parking brake or manual
parking brake control.

driver’s position .................................... (up to the end of the DU)
controls ................................................. (up to the end of the DU)
dashboard............................................. (up to the end of the DU)
1.48
ENG_UD6282_1
Poste de conduite direction à droite (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
Jaune NoirNoir texte
dRIvINg pOsITION: RIgHT- HAN d d RI v E (1/2)
2378
17
11
23
610
151612
25
20
9
24
13
54
14
22
1
21
18
19
17

JauneNoirNoir texte
1.49
ENG_UD6282_1
Poste de conduite direction à droite (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
dRIvINg pOsITION: RIgHT- HAN d d RI v E (2/2)
The equipment fitted, described below, dEpENds ON THE vERsION ANd cOUNTRY.
1
Side air vent.
2


Side window demister outlet.
3


Location for passenger air bag.
4


–

D
isplay (depending on the vehi-
cle) for time, temperature, radio
information, navigation system in-
formation, etc.
–

D
river and front passenger seat
belt unfastened and passenger
air bag deactivated warning lights
5

Centre air vents.
6


Stalk for:
–


direction indicator lights,
–


exterior lights,
–


front fog lights,
–


rear fog light.
7


L
ocation for driver ’s air bag and
horn.
8

Instrument panel.
9 – Steering column stalk for wind-
screen and rear screen wash/
wipe,
–

T
rip computer information read-
out control and vehicle settings
customisation menu.
10

Side window demister outlet.
1

1
Side air vent.
12


Controls for:
–


headlight
beam height remote ad-
justment;
–

lighting
rheostat for control instru-
ments;
–

activation/deactivation
of the trac-
tion control;
–

a
ctivation/deactivation of the
parking distance control system.
13

Cruise control/speed limiter controls
14


Control
for adjusting steering wheel
height and reach. 15
Central door locking/unlocking con-
trols and hazard warning lights
switch.
16

Heating and ventilation controls.
17


Control
for some multimedia equip-
ment.
18

Cruise control/speed limiter control.
19


E
lectronic parking brake or manual
parking brake control.
20
Gear lever.
21

Accessories socket.
22


E
n g i n e s t a r t / s t o p c o n t r o l a n d
RENAULT card reader.
23

L
ocation for radio, navigation
system, etc.
24

Glove box.
25


Bonnet release.

instrument panel ................................... (up to the end of the DU)
warning lights........................................ (up to the end of the DU)
driver’s position .................................... (up to the end of the DU)
trip computer and warning system........ (up to the end of the DU)
indicators: instrument panel ............................. (up to the end of the DU)
display .................................................. (up to the end of the DU)
operating faults ..................................... (up to the end of the DU)
control instruments ............................... (up to the end of the DU)
indicators ............................................................... (current page)
lights: fog lights .......................................................... (current page)
lights: dipped beam headlights ................................... (current page)
lights: direction indicators ........................................... (current page)
lights: main beam headlights ...................................... (current page)
handbrake.............................................................. (current page)
fuel filling ................................................................. (current page)
1.50
ENG_UD23618_6
Tableau de bord : témoins lumineux (X95 - B95 - D95 - K95 - L38 - X38\
- X32 - B32 - Renault)
ENG_NU_837-8_BDK95_Renault_1
Jaune NoirNoir texte
Control instruments

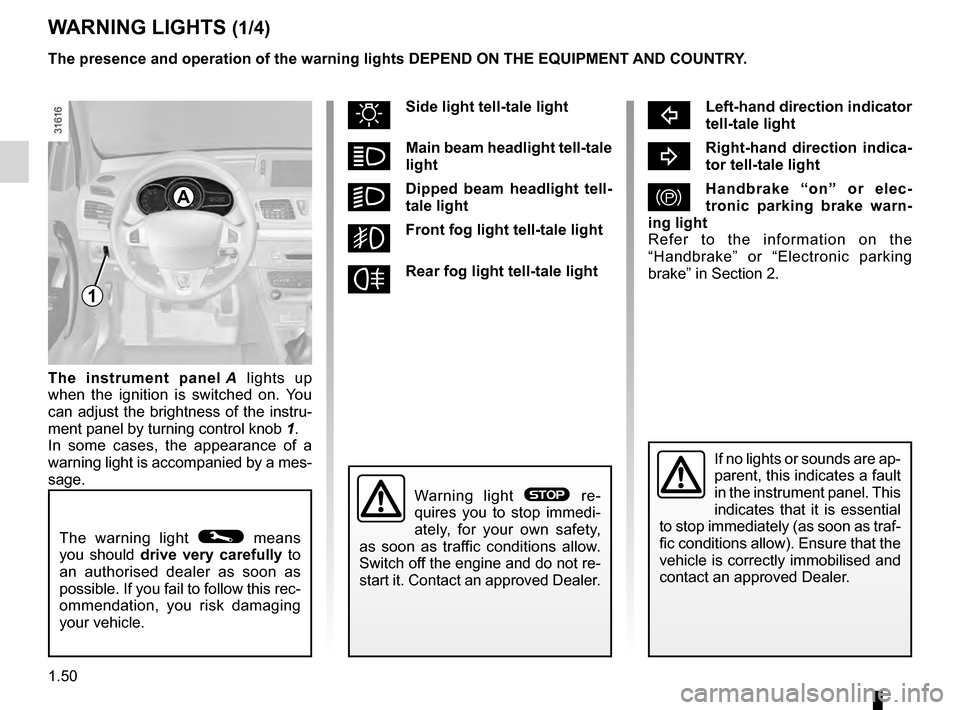

WARNINg LIgHTs (1/4)
The warning light © means
you should drive very carefully to
an authorised dealer as soon as
possible. If you fail to follow this rec-
ommendation, you risk damaging
your vehicle.
A
cLeft-hand direction indicator
tell-tale light
bRight-hand direction indica-
tor tell-tale light
}Handbrake “on” or elec-
tronic parking brake warn-
ing light
Refer to the information on the
“Handbrake” or “Electronic parking
brake” in Section 2.
uside light tell-tale light
ámain beam headlight tell-tale
light
kdipped beam headlight tell-
tale light
gfront fog light tell-tale light
fRear fog light tell-tale light
If no lights or sounds are ap-
parent, this indicates a fault
in the instrument panel. This
indicates that it is essential
to stop immediately (as soon as traf-
fic conditions allow). Ensure that the
vehicle is correctly immobilised and
contact an approved Dealer.
Warning light ® re-
quires you to stop immedi-
ately, for your own safety,
as soon as traffic conditions allow.
Switch off the engine and do not re-
start it. Contact an approved Dealer.
1
The instrument panel A lights up
when the ignition is switched on. You
can adjust the brightness of the instru-
ment panel by turning control knob

1
.
In some cases, the appearance of a
warning light is accompanied by a mes-
sage. The presence and operation of the warning lights d E p EN d ON THE EQUI pm ENT AN d c OUNTRY.

ABS ....................................................................... (current page)
air bag.................................................................... (current page)
variable power-assisted steering ........................... (current page)
filter particle filter ..................................................... (current page)
speed limiter .......................................................... (current page)
cruise control ......................................................... (current page)
Jaune NoirNoir texte
1.51
ENG_UD23618_6
Tableau de bord : témoins lumineux (X95 - B95 - D95 - K95 - L38 - X38\
- X32 - B32 - Renault)
ENG_NU_837-8_BDK95_Renault_1
WARNINg LIgHTs (2/4)
A
xAnti-lock braking warning
light
This lights up when the ignition is
switched on and goes out after a few
seconds.
If it does not go out after the ignition is
switched on, or lights up when driving,
there is a fault with the ABS. Braking
will then be as normal, without the ABS.
Contact an approved Dealer as soon as
possible.
ÄToxic fume fi lter sy stem
Warning Light
This lights up when the ignition is
switched on and goes out when the
engine is started.
–

I

f it lights up continuously, consult
your approved Dealer as soon as
possible;
–

if

it flashes, reduce the engine speed
until the light stops flashing. Contact
your approved Dealer as soon as
possible.
R e f e r t o t h e i n f o r m a t i o n o n
“Antipollution, fuel economy and driv-
ing” in Section 2.
©Warning light
This lights up when the ignition
is switched on and goes out as soon as
the engine is started. It can light up in
conjunction with other indicator lights
and/or messages on the instrument
panel.
It means you should drive very care-
fully to an authorised dealer as soon
as possible. If you fail to follow this rec-
ommendation, you risk damaging your
vehicle.
åAir bag warning light
This comes on when the igni-
tion is switched on and goes out after a
few seconds.
If it does not light up when the ignition
is switched on, or comes on when the
engine is running, there is a fault in the
system.
Contact your approved Dealer as soon
as possible.
Épreheating warning light
(diesel version)
This should come on when the igni-
tion is switched on. It indicates that the
heater plugs are in operation. This goes
out as soon as the engine starts.
Îspeed limiter and cruise
control warning light
See the information on the “Speed lim-
iter” and “Cruise control” in Section 2.
\[fuel economy indica-
tor light
This lights up to advise you to change
to a higher gear (up arrow) or lower
gear (down arrow). The presence and operation of the warning lights d E p EN d ON THE EQUI pm ENT AN d c OUNTRY.

warning buzzer ...................................................... (current page)
battery.................................................................... (current page)
seat belts ............................................................... (current page)
engine oil ............................................................... (current page)
1.52
ENG_UD23618_6
Tableau de bord : témoins lumineux (X95 - B95 - D95 - K95 - L38 - X38\
- X32 - B32 - Renault)
ENG_NU_837-8_BDK95_Renault_1
Jaune NoirNoir texte
WARNINg LIgHTs (3/4)
A
ÀOil pressure warning light
If it comes on when you are
driving accompanied by the
®
warning light and a beep, it is essential
to stop and switch off the ignition. Check
the oil level (refer to the information on
the “Engine oil level” in Section
4

). If
the level is correct, the light has come
on for another reason; contact an ap-
proved Dealer.
DBrake circuit fault warning
light
If it comes on during braking and is ac-
companied by the
® warning light
and a beep, it indicates that the fluid
level in the circuit is low or that there is
a braking system fault. Stop as soon as
traffic conditions allow and contact an
approved Dealer.
®sTOp light
This lights up when the ignition
is switched on and goes out as soon as
the engine is started. It comes on with
other warning lights and/or messages,
and is accompanied by a beep.
It requires you to stop immediately, for
your own safety, as soon as traffic con-
ditions allow. Switch off the engine and
do not restart it.
Contact an approved Dealer.
ÔEngine coolant temperature
warning light
This lights up when the ignition is
switched on and goes out when the
engine is started. If it comes on when
you are driving accompanied by the
® warning light and a beep, it is
essential to stop and switch off the ig-
nition.
Check the coolant level (refer to the in-
formation on “Levels” in Section 4). If
the level is correct, the light has come
on for another reason; consult an ap-
proved dealer.
ÚBattery charge warning light
If it comes on together with the
® warning light and a beep, it in-
dicates that the electrical circuit is over-
charged or undercharged.
The presence and operation of the warning lights
d
E
p
EN
d
ON THE EQUI
pm
ENT AN
d

c
OUNTRY.

JauneNoirNoir texte
1.53
ENG_UD23618_6
Tableau de bord : témoins lumineux (X95 - B95 - D95 - K95 - L38 - X38\
- X32 - B32 - Renault)
ENG_NU_837-8_BDK95_Renault_1
ßfront seat belt reminder
warning light
This lights up on the central display
when starting the engine then, if the
driver’s or front passenger’s seat belt
(if this seat is occupied) is not fastened
and the vehicle has reached approxi-
mately 12 mph (20 km/h), it flashes and
a bleep sounds for around 120 sec-
onds.
Note: an object placed on the passen-
ger seat base may activate the warning
light in some cases.
Rear seat belt reminder (depending
on vehicle)
the
ß warning light on the cen-
tral display lights up accompanied by a
message on the instrument panel indi-
cating the number of seat belts buck-
led for approximately 30 seconds each
time:
–

the vehicle is started;
–


a door is opened;
–


a

rear seat belt is fastened or unfas-
tened.
Check that the rear passengers are
wearing seat belts and that the number
of seat belt shown as fastened corre-
sponds to the number of rear bench
seat places occupied.
WARNINg LIgHTs (4/4)
ðHeated seats operating indi-
cator
This indicates that one of the heated
seats is in operation.
LLow fuel level warning light
This comes on when the igni-
tion is switched on and goes out after a
few seconds. If it comes on when driv-
ing accompanied by a beep, fill up with
fuel as soon as possible. There is only
approximately 30 miles (50 km) worth
of fuel left after the warning light first
comes on.
ÜNot used
ùdriving correction
device warning light
Refer to information on “Driver correc-
tion devices and aids” in Section 2.
The presence and operation of the warning lights
d
E
p
EN
d ON THE EQUI pm ENT AN d c OUNTRY.

indicators:instrument panel ............................. (up to the end of the DU)
display .................................................. (up to the end of the DU)
instrument panel ................................... (up to the end of the DU)
fuel level ................................................................ (current page)
coolant ................................................................... (current page)
control instruments ............................... (up to the end of the DU)
levels: fuel ................................................................... (current page)
levels: coolant ............................................................. (current page)
1.54
ENG_UD18928_3
Tableau de bord : afficheurs et indicateurs (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
Jaune NoirNoir texte

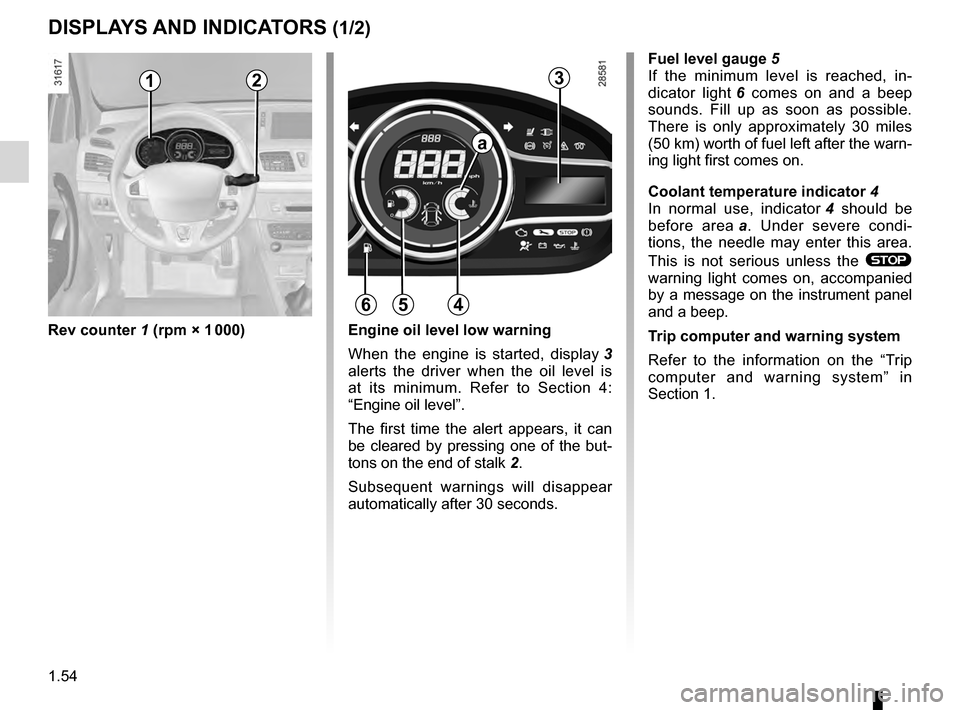

dIspLAYs AN d IN d I c ATOR s (1/2)
Rev counter 1 (rpm × 1 000)
f
uel level gauge

5
If the minimum level is reached, in-
dicator light
6
comes on and a beep
sounds. Fill up as soon as possible.
There is only approximately 30 miles
(50 km) worth of fuel left after the warn-
ing light first comes on.
c
oolant temperature indicator 4
In normal use, indicator
4
should be
before area
a .
Under severe condi-
tions, the needle may enter this area.
This is not serious unless the
®
warning light comes on, accompanied
by a message on the instrument panel
and a beep.
Trip computer and warning system
Refer to the information on the “Trip
computer and warning system” in
Section 1.
Engine oil level low warning
When the engine is started, display
3


alerts the driver when the oil level is
at its minimum. Refer to Section 4:
“Engine oil level”.
The first time the alert appears, it can
be cleared by pressing one of the but-
tons on the end of stalk
2.
Subsequent warnings will disappear
automatically after 30 seconds.
12
564
a
3
