RENAULT MEGANE HATCHBACK 2016 X95 / 3.G Owner's Manual

headrest................................................ (up to the end of the DU)
front seatsadjustment ...................................... (up to the end of the DU)
adjusting your driving position .............. (up to the end of the DU)
1.15
ENG_UD18801_8
Appuis-tête avant (B74 - K74 - X81 - J81 - X91 - B91 - K91 - D91 - X\
95 - B95 - D95 - J95 - R95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
Headrests - Seats

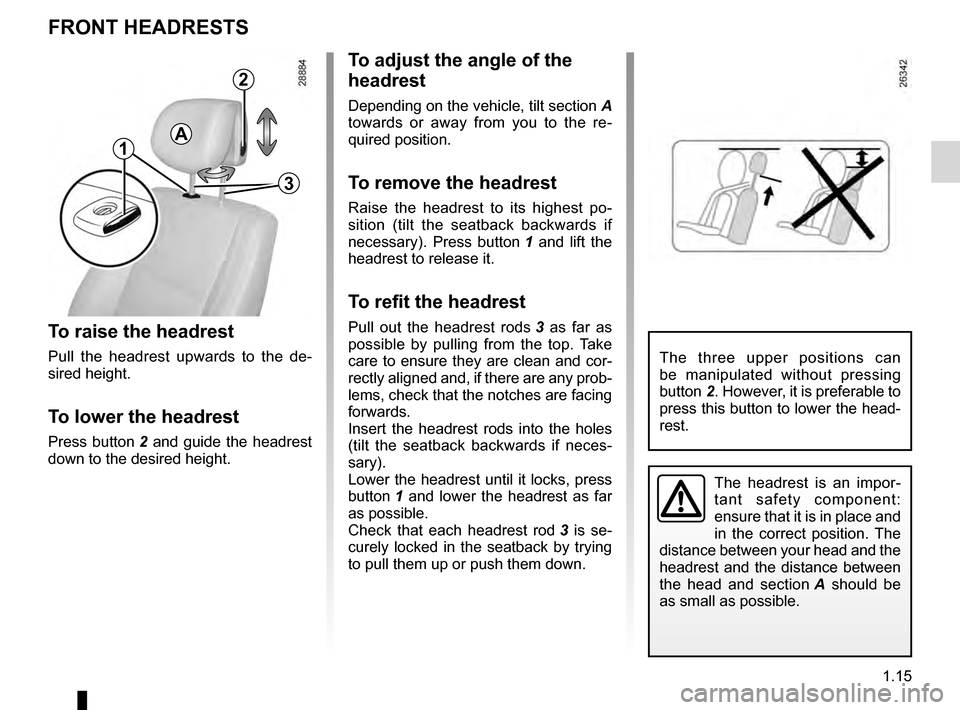

fRONT HEAdREsTs
To raise the headrest
Pull the headrest upwards to the de-
sired height.
To lower the headrest
Press button 2 and guide the headrest
down to the desired height.
To adjust the angle of the
headrest
Depending on the vehicle, tilt section A
t owards or away from you to the re-
quired position.
To remove the headrest
Raise the headrest to its highest po-
sition (tilt the seatback backwards if
necessary). Press button
1

and lift the
headrest to release it.
To refit the headrest
Pull out the headrest rods 3 as far as
possible by pulling from the top. Take
care to ensure they are clean and cor-
rectly aligned and, if there are any prob-
lems, check that the notches are facing
forwards.
Insert the headrest rods into the holes
(tilt the seatback backwards if neces-
sary).
Lower the headrest until it locks, press
button
1 and lower the headrest as far
as possible.
Check that each headrest rod
3

is se-
curely locked in the seatback by trying
to pull them up or push them down.
The headrest is an impor-
tant safety component:
ensure that it is in place and
in the correct position. The
distance between your head and the
headrest and the distance between
the head and section
A

should be
as small as possible.
2
3
A1
The three upper positions can
be manipulated without pressing
button
2. However, it is preferable to
press this button to lower the head-
rest.

headrest................................................ (up to the end of the DU)
adjusting your driving position .............. (up to the end of the DU)
1.16
ENG_UD18911_2
Appuis-tête arrière (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
REAR HEAdREsTs
position for use
Raise or lower the headrest while pull-
ing it towards the front of the vehicle.
To remove the headrest
Press tabs A of rods 1 and 2 simultane-
ously and remove the headrest.
N
ote: on the three door version, first
lower the bench seatback (refer to the
information on the “Rear seat functions”
in Section 3).
To refit the headrest
Insert the headrest rods into the
sleeves, and lower the headrest to the
first notch.
storage position
Lower the headrest as far as possi-
ble, then press tab 2 and lower it com-
pletely.
When the headrest is set at the
lowest position (position
B )

this is
for storage only: it should not be in
this position when a seat is occupied.
B
1
2
A
The headrest is a safety
component. Ensure that it is
fitted and in the correct po-
sition: the top of your head
should be in line with the top of the
headrest.

front seat adjustment ............................ (up to the end of the DU)
front seats adjustment ...................................... (up to the end of the DU)
front seats with manual controls ........................................ (current page)
1.17
ENG_UD21479_4
Sièges avant à commandes manuelles (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
Seats
fRONT sEATs WITH mANUAL c ONTROL (1/2)
To move the seat forwards or
back
Lift handle 1 to release. Release the
handle once the seat is in the correct
position and ensure that the seat is fully
locked into position.
To raise or lower the seat
base
Move lever 2 as many times as neces-
sary upwards or downwards.
To tilt the seatback
Turn control knob 3 to the required po-
sition.
Heated seats(depending on vehicle)
With the engine running, turn control

4

to either position I, II or III (depending
on the temperature required). An in-
dicator light on the instrument panel
lights up once the front seat heating
system is operating.
The system, which has a thermostat,
decides whether or not the heating is
needed, according to the position se-
lected.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
We would advise you not to recline
the seatbacks too far to ensure that
the effectiveness of the seat belts is
not reduced.
Nothing should be placed on the
floor (area in front of driver) as such
objects may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
1
2
3
4

1.18
ENG_UD21479_4
Sièges avant à commandes manuelles (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
Table function
Depending on the vehicle, the passen-
ger seatback may be folded down onto
the seat base to create a table.
Lower the headrest, move the seat
back, tilt handle

6
and completely lower
the seatback.
6
For your safety, attach any
transported objects when
the seat is in the table po-
sition.
fRONT sEATs WITH mANUAL c ONTROL (2/2)
5
To adjust the lumbar support
on the driver’s seat
Lower handle 5 to increase the support
and lift to decrease it.
When the front seat is in
table position, the front pas-
senger air bag must be dis-
abled (see information on
“Child safety: activating/deactivat-
ing the front passenger air bag” in
Section 1).
Risk of serious injury caused by
items resting on the seatback table
which may be dislodged when the
air bag is deployed.
The label (on the dashboard) and
the markings (on the windscreen)
remind you of these instructions.

front seatswith electric controls ........................................ (current page)
1.19
ENG_UD18878_3
Sièges avant à à commandes électriques (X95 - B95 - D95 - R\
enault)
ENG_NU_837-8_BDK95_Renault_1
Switch 3 is used for adjusting the seat-
back and switch 4 is used for adjusting
the seat squab.
On equipped vehicles, buttons
1

are
used to store the chosen driving posi-
tion (refer to the following page).
Adjusting the seat squab:– To move the seat forwards or back M ove switch 4
forwards or back-
wards.
–

T
o raise or lower the seat base
Move

the switch 4 upwards or down-
wards.
Adjusting the lumbar support
on the driver’s seat:
Lower handle 5 to increase the support
and lift to decrease it.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
We would advise you not
to recline the seatbacks too
far to ensure that the effec-
tiveness of the seat belts is
not reduced.
Nothing should be placed on the
floor (area in front of driver) as such
objects may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
Adjusting the seatback:To tilt the seatback , move the top of
switch 3 forwards or backwards.
Heated seats(depending on vehicle)
With the engine running, turn control 2
to either position 1, 2 or 3 (depending
on the temperature required). An in-
dicator light on the instrument panel
lights up once the front seat heating
system is operating.
The system, which has a thermostat,
decides whether or not the heating is
needed, according to the position se-
lected.
fRONT sEATs WITH ELEcTRIc cONTROL
2
4
3
15

storing the driver’s seat position ........... (up to the end of the DU)
front seat driver’s position memory ................. (up to the end of the DU)
1.20
ENG_UD18876_1
Siège avant à commande électrique avec mémorisation (B95 - \
D95 - K95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
fRONT sEATs WITH ELEcTRIc cONTROL WITH sTORAgE Of sETTINgs
It is possible to store three driving po-
sitions.
A driving position includes the settings
for the seat base and seatback of the
driver’s seat.
The system operates:
–

w
ith the “hands-free” card de-
tected or, depending on the vehicle,
RENAULT card in the card reader;
–

when the driver
’s door is opened.
storing your driving position
– Adjust the seat using switches 4
and 5 (see previous page);
–

press
one of buttons 1, 2 or 3 until a
beep is heard: the driving position is
stored;
–

t
o store other driving positions
repeat this procedure with the other
buttons.
Recalling a stored driving
position
With the vehicle stationary , briefly
press button 1, 2 or 3 depending on the
required stored driving position.
Note: recall of the stored driving po-
sition is interrupted if one of the seat
adjustment buttons is pressed during
recall.
When driving, it is not possible to
recall a driving position.
123
4
5
We would advise you not
to recline the seatbacks too
far to ensure that the effec-
tiveness of the seat belts is
not reduced.
Nothing should be placed on the
floor (area in front of driver) as such
objects may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.

access to the rear seats ........................................ (current page)
1.21
ENG_UD21771_3
Sièges avant: accès aux places arrière (X95 - B95 - D95 - Rena\
ult)
ENG_NU_837-8_BDK95_Renault_1
Electrically controlled seatsLift handle 1 and tilt the seatback com-
pletely: the seat moves forward.
T
o return the seat to its original position,
bring the seatback back up. The seat
returns to its original position.
AccEss TO REAR sEATs, THREE-dOOR vERsION
manually controlled seats
Lift handle 1 and slide the seat forward.
T o return the seat to its original position,
bring the seatback back into position.
Check that no object or
person prevents the front
seat from locking. If so,
r e m o v e a n y o b s t a c l e s
behind the front seats. Adjust the
seat to allow sufficient room in the
rear. The rear occupants/objects
should then return to the vehicle.
Repeat the above until the seat is
locked correctly.
Risk of seat moving on its runners
during vehicle acceleration or brak-
ing.
Do not move handle 1 and handle 2
or switch 4 at the same time.
1
2
Locking the seats
When a person, an object or a child
seat prevents the front seats from lock-
ing, perform the following operations:
–

a
sk all of the passengers to leave
the vehicle and remove any bulky
objects from the rear seats;
–

lock
the seat(s) in the initial position
again;
–

move
the seat(s) forwards in order to
create sufficient space;
–

ask
the passengers to get back into
the vehicle, and refit the child seat or
objects on the rear seats.
special note : if the seatback is
tilted over the rear bench seat, only
use control

3
to return it to the driv-
ing position.
Never use handle

1
as it is not de-
signed for this purpose: there is a
risk of damage to the mechanism.
1
4
3

seat belts .............................................. (up to the end of the DU)
driving position settings ........................................... (up to the end of the DU)
adjusting your driving position ............................... (current page)
front seats adjustment ...................................... (up to the end of the DU)
1.22
ENG_UD21482_6
Ceintures de sécurité (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
Jaune NoirNoir texte
Always wear your seat belt when trav-
elling in your vehicle. You must also
comply with the legislation of the par-
ticular country you are in.
Seat belts
I n c o r r e c t l y a d j u s t e d o r
twisted seat belts may
cause injuries in the event
of an accident.
Use one seat belt per person,
whether child or adult.
Even pregnant women should wear
a seat belt. In this case, ensure that
the lap belt is not exerting too much
pressure on the abdomen, but do
not allow any slack.
Before starting, first adjust your driv-
ing position, then ask all occupants
to adjust their seat belts to ensure
optimum protection.
Adjusting your driving
position
– sit well back in your seat (having
first removed your coat or jacket).
This is essential to ensure your back
is positioned correctly;
–

a
djust the distance between the
seat and the pedals. Your seat
should be as far back as possible
while still allowing you to depress
the clutch pedal fully. The seatback
should be adjusted so that your arms
are slightly bent when you hold the
steering wheel;
–

a
djust the position of your head-
rest. For maximum safety, your head
must be as close as possible to the
headrest;
–

adjust
the height of the seat. This
adjustment allows you to select the
seat position which offers you the
best possible view;
–

adjust
the position of the steering
wheel.
Adjusting the seat belts
Sit with your back firmly against the
seatback.
Shoulder strap
1 should be as close as
possible to the base of the neck but not
on it.
Lap belt
2 should be worn flat over the
thighs and against the pelvis.
The belt should be worn so that it is
as close as possible to your body, i.e.:
avoid wearing heavy clothing or keep-
ing bulky objects under the belts, etc.
sEAT BELTs (1/3)
1
2
Make sure that the rear bench seat
is locked in position correctly so that
the rear seat belts will operate effi-
ciently. Refer to the information on
the “Rear bench seat” in Section 3.

JauneNoirNoir texte
1.23
ENG_UD21482_6
Ceintures de sécurité (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
sEAT BELTs (2/3)
Adjusting the front seat belt
height
(depending on vehicle)
Press button
5

to adjust the seat belt
height so that shoulder strap
1 is worn
as shown previously:
–

to
lower the seat belt, press button 5
and lower the seat belt at the same
time;
–

to
raise the seat belt, press button 5
and raise the seat belt at the same
time.
Make sure that the seat belt is locked
in position correctly after you have ad-
justed it.
5
Locking
Unwind the belt slowly and smoothly
and ensure that buckle 3
locks into
catch
4 (check that it is locked by pull-
ing on buckle
3). If the belt jams, allow
it to return slightly before attempting to
unwind it again.
If your seat belt is completely jammed,
pull slowly, but firmly, so that just over
3 cm unwinds. Allow it to return slightly
before attempting to unwind it again.
If there is still a problem, contact an ap-
proved dealer.
1
4
3
4
ßfront seat belt reminder
warning light
This lights up on the central display
when the engine is started then, if the
driver’s or front passenger’s seat belt
(if this seat is occupied) is not fastened
and the vehicle has reached approxi-
mately 12 mph (20 km/h), it flashes and
a bleep sounds for around 2 minutes.
Note: an object placed on the passen-
ger seat base may activate the warning
light in some cases.
Rear seat belt reminder (depending
on vehicle)
the
ß warning light on the cen-
tral display lights up accompanied by a
message on the instrument panel indi-
cating the number of seat belts buck-
led for approximately 30 seconds each
time:
–

the vehicle is started;
–


a door is opened;
–


a

rear seat belt is fastened or unfas-
tened.
Check that the rear passengers are
wearing seat belts and that the number
of seat belt shown as fastened corre-
sponds to the number of rear bench
seat places occupied.

1.24
ENG_UD21482_6
Ceintures de sécurité (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
sEAT BELTs (3/3)
The following information applies to the vehicle’s front and rear seat belts.
– No modification may be made to the component parts of the restraint
system (belts and seats and their mountings) fitted originally. For spe-
cial operations (e.g. fitting child seats) contact an approved dealer.
–

D
o not use devices which allow any slack in the belts (e.g. clothes
pegs, clips, etc.): a seat belt which is worn too loosely may cause injury in the
event of an accident.
–

Never wear the shoulder strap under your arm or behind your
back.
–

Never
use the same belt for more than one person and never hold a baby or
child on your lap with your seat belt around them.
–

The belt should never be twisted.
–


Follow
ing an accident, have the seat belts checked and replaced if necessary.
Always replace your seat belts as soon as they show any signs of wear.
–

Make sure that the buckle is inserted into the appropriate catc
h.
–

Ensure
that no objects are placed in the area around the seat belt catch as
they could prevent it from being properly secured.
–

When
putting back the rear bench seat, take care that the seat belts are cor-
rectly positioned so that they can be used properly.
UnfasteningPress button 6 and the seat belt will be
r ewound by the inertia reel. Guide the
belt.
Note: when driving, if a rear seat belt
is unbuckled, the message “Rear seat
belt unbuckled” appears on the instru-
ment panel.
6
