1.35
ENG_UD16659_3
Sécurité enfants : choix de la fixation du siège enfant (D91 -\
X95 - B95 - D95 - K95 - L38 - X38 - X32 - B32 - Renault)
ENG_NU_837-8_BDK95_Renault_1
choosing a child seat mounting

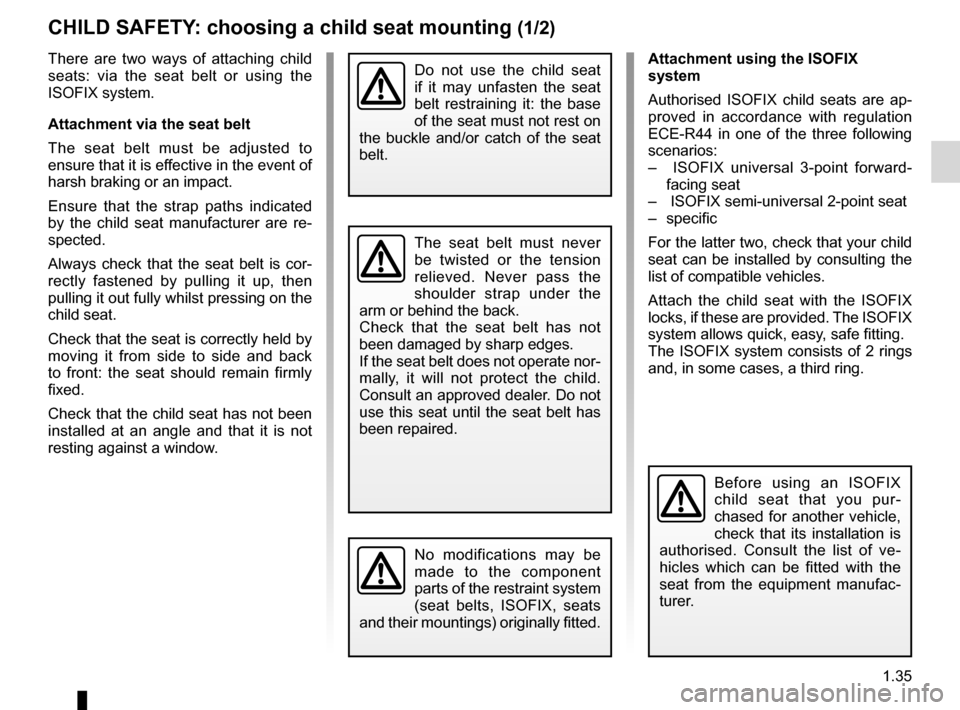

cHILd sAfETY: choosing a child seat mounting (1/2)
There are two ways of attaching child
seats: via the seat belt or using the
ISOFIX system.
Attachment via the seat belt
The seat belt must be adjusted to
ensure that it is effective in the event of
harsh braking or an impact.
Ensure that the strap paths indicated
by the child seat manufacturer are re-
spected.
Always check that the seat belt is cor-
rectly fastened by pulling it up, then
pulling it out fully whilst pressing on the
child seat.
Check that the seat is correctly held by
moving it from side to side and back
to front: the seat should remain firmly
fixed.
Check that the child seat has not been
installed at an angle and that it is not
resting against a window. Attachment using the I
s O f IX
system
Authorised ISOFIX child seats are ap-
proved in accordance with regulation
ECE-R44 in one of the three following
scenarios:
–


ISOFIX universal 3-point forward-
facing seat
–

ISOFIX semi-universal 2-point seat
–


specific
For

the latter two, check that your child
seat can be installed by consulting the
list of compatible vehicles.
Attach the child seat with the ISOFIX
locks, if these are provided. The ISOFIX
system allows quick, easy, safe fitting.
The ISOFIX system consists of 2 rings
and, in some cases, a third ring.
Before using an ISOFIX
child seat that you pur-
chased for another vehicle,
check that its installation is
authorised. Consult the list of ve-
hicles which can be fitted with the
seat from the equipment manufac-
turer.
No modifications may be
made to the component
parts of the restraint system
(seat belts, ISOFIX, seats
and their mountings) originally fitted.
The seat belt must never
be twisted or the tension
relieved. Never pass the
shoulder strap under the
arm or behind the back.
Check that the seat belt has not
been damaged by sharp edges.
If the seat belt does not operate nor-
mally, it will not protect the child.
Consult an approved dealer. Do not
use this seat until the seat belt has
been repaired.
Do not use the child seat
if it may unfasten the seat
belt restraining it: the base
of the seat must not rest on
the buckle and/or catch of the seat
belt.

1.36
ENG_UD16659_3
Sécurité enfants : choix de la fixation du siège enfant (D91 -\
X95 - B95 - D95 - K95 - L38 - X38 - X32 - B32 - Renault)
ENG_NU_837-8_BDK95_Renault_1

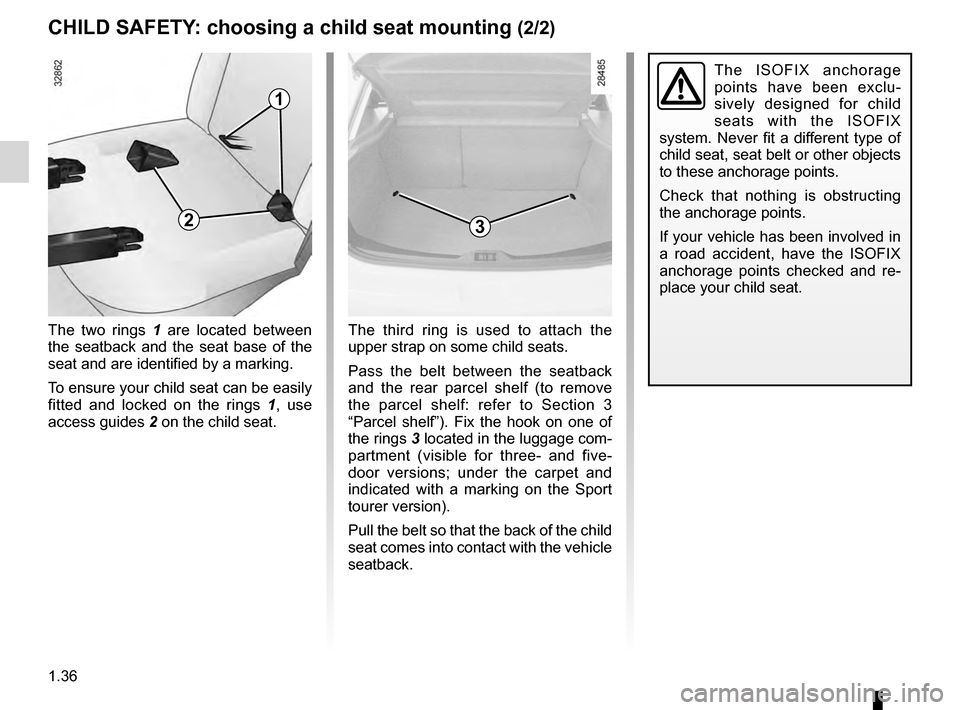

cHILd sAfETY: choosing a child seat mounting (2/2)
The ISOFIX anchorage
points have been exclu-
sively designed for child
seats with the ISOFIX
system. Never fit a different type of
child seat, seat belt or other objects
to these anchorage points.
Check that nothing is obstructing
the anchorage points.
If your vehicle has been involved in
a road accident, have the ISOFIX
anchorage points checked and re-
place your child seat.
The third ring is used to attach the
upper strap on some child seats.
Pass the belt between the seatback
and the rear parcel shelf (to remove
the parcel shelf: refer to Section 3
“Parcel shelf”). Fix the hook on one of
the rings

3
located in the luggage com-
partment (visible for three- and five-
door versions; under the carpet and
indicated with a marking on the Sport
tourer version).
Pull the belt so that the back of the child
seat comes into contact with the vehicle
seatback.
The two rings 1

are located between
the seatback and the seat base of the
seat and are identified by a marking.
To ensure your child seat can be easily
fitted and locked on the rings
1 ,

use
access guides

2

on the child seat.
3
1
2

child restraint/seat ................................ (up to the end of the DU)
child restraint/seat ................................ (up to the end of the DU)
child restraint/seat ................................ (up to the end of the DU)
child safety............................................ (up to the end of the DU)
child seats............................................. (up to the end of the DU)
transporting children ............................. (up to the end of the DU)
1.37
ENG_UD23611_7
Sécurité enfants : installation du siège enfant (X95 - B95 - D\
95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
Some seats are not suitable for fitting
child seats. The diagram on the follow-
ing page shows you how to attach a
child seat.
The types of child seats indicated may
not be available. Before using a differ-
ent child seat, check with the manufac-
turer that it can be fitted.
Fitting a child seat
cHILd sAfETY: f itting a child seat (1/6)
In the rear side seat
A carrycot can be installed across the
vehicle and will take up at least two
seats. Position the child with his or her
feet nearest the door.
Push the vehicle seat fully forwards
to install a rear-facing child seat, then
push it back as far as possible with-
out allowing it to make contact with the
child seat.
For the safety of the child in the for-
ward-facing seat, do not move the seat
in front back past the middle of the
runner, do not tilt the seatback too far
(maximum of 25°) and raise the seat as
much as possible.
Check that the forward-facing child seat
is resting against the back of the vehi-
cle seat and that the headrest of the ve-
hicle is not obstructing its use.
In the front seat
The laws concerning children travel-
ling in the front passenger seat differ in
every country. Consult the legislation in
force and follow the indications on the
diagram on the following page.
Before fitting a child seat in this seat (if
authorised):
–

lower

the seat belt as far as possible;
–

move

the seat as far back as possi-
ble;
–

g

ently tilt the seatback away from
vertical (approximately 25°);
–

on

equipped vehicles, raise the seat
base as far as possible.
Do not change these settings after the
child seat is installed.
R IsK Of dE AT H O R sE
RIOUs INJURY: before
fitting a rear-facing child
seat in this position, check
that the air bag has been deacti-
vated (refer to the information on
“Child safety: deactivating/activat-
ing the front passenger air bag” in
Section 1).
Fit the child seat in a rear
seat wherever possible.
Check that when installing
the child seat in the vehicle
it is not at risk of coming loose from
its base.
If you have to remove the headrest,
check that it is correctly stored so
that it does not come loose under
harsh braking or impact.
Always attach the child seat to the
vehicle even if it is not in use so that
it does not come loose under harsh
braking or impact.
Ensure that the child seat
or the child’s feet do not
prevent the front seat from
locking correctly. Refer to
the information on the “Front seat”
in Section 1.

1.38
ENG_UD23611_7
Sécurité enfants : installation du siège enfant (X95 - B95 - D\
95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
Jaune NoirNoir texte
² Seat not suitable for fitting child
seats.
c

hild seat attached using the belt
¬ Seat which allows a child seat
with “Universal” approval to be attached
by a seat belt.
RIsK Of d EATH OR s ERIOU s INJURY: before fitting a rear-facing child
seat in the front passenger seat, check that the air bag has been deacti-
vated (refer to the information on “Child safety: deactivating/activating the
front passenger air bag” at the end of the paragraph).
child seat attached using the I s O f IX
mounting
ü Seat which allows an ISOFIX
child seat to be fitted.
± The rear seats are fitted with
an anchorage point which allows a
forward-facing ISOFIX child seat with
universal approval to be fitted. The an-
chorage points are located in the lug-
gage compartment and are visible.
The size of the ISOFIX child seat is in-
dicated by a letter:
–

A,

B and B1: for forward-facing seats
in group 1 (9 to 18 kg);
–

C:

rear-facing seats in group 1 (9 to
18 kg);
–

D

and E: shell seat or rear-facing
seats in group 0 or 0+ (less than
13

kg);
–

F

and G: cots in group 0 (less than
10 kg).

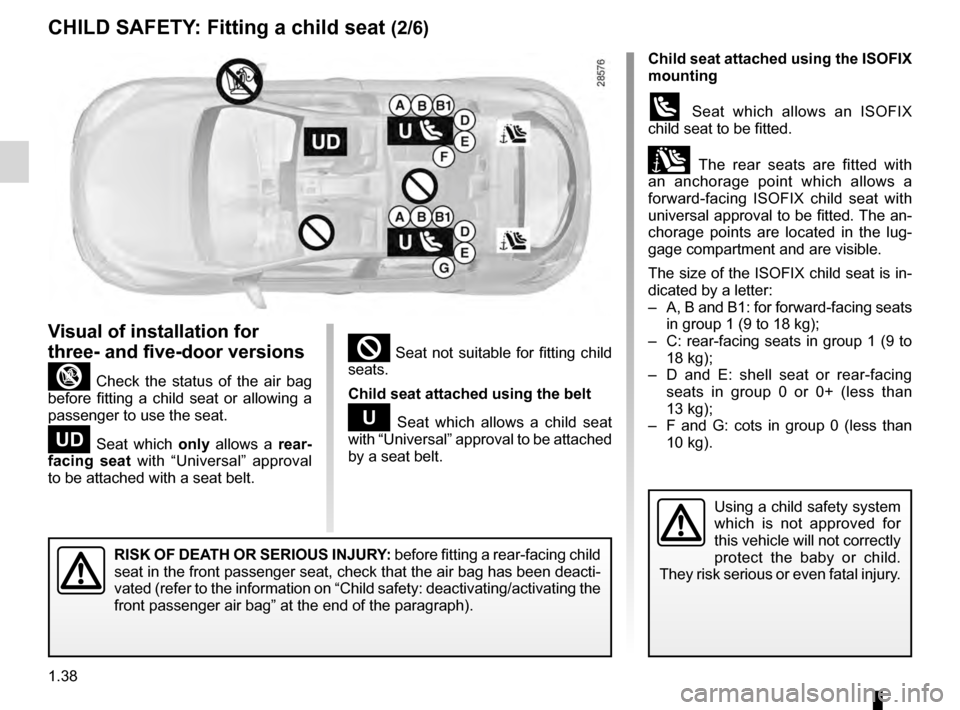

cHILd sAfETY: f itting a child seat (2/6)
Using a child safety system
which is not approved for
this vehicle will not correctly
protect the baby or child.
They risk serious or even fatal injury.
visual of installation for
three- and five-door versions
³ Check the status of the air bag
before fitting a child seat or allowing a
passenger to use the seat.
− Seat which only allows a rear-
facing seat with “Universal” approval
to be attached with a seat belt.

JauneNoirNoir texte
1.39
ENG_UD23611_7
Sécurité enfants : installation du siège enfant (X95 - B95 - D\
95 - Renault)
ENG_NU_837-8_BDK95_Renault_1

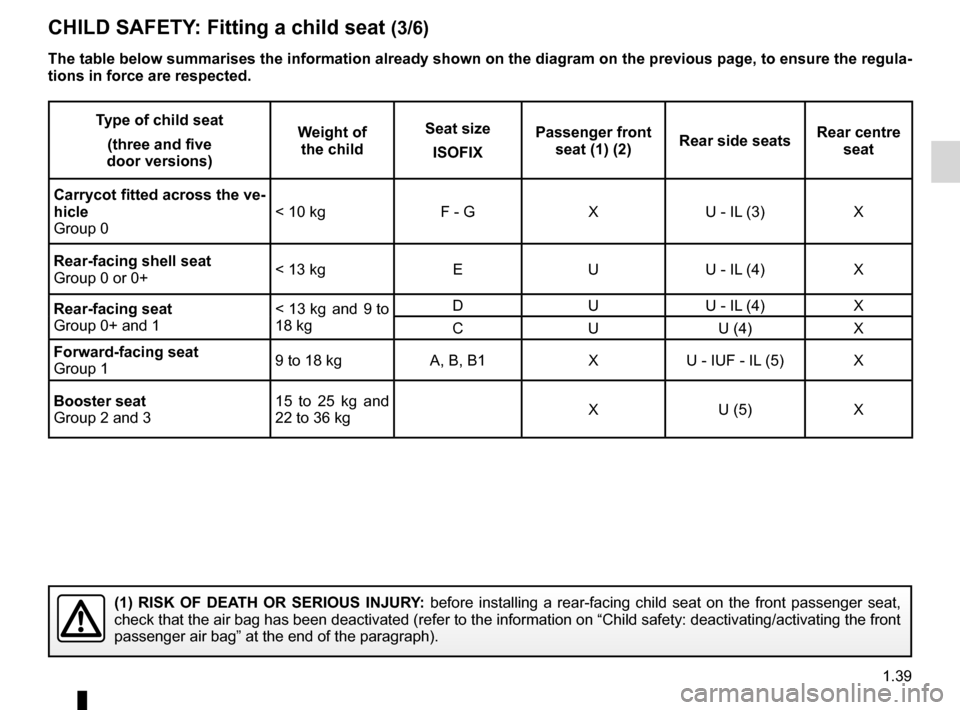

cHILd sAfETY: f itting a child seat (3/6)
Type of child seat
(three and five
door versions) Weight of
the childs eat size
I
s O f IXp assenger front
seat (1) (2) Rear side seats Rear centre
seat
c

arrycot fitted across the ve-
hicle
Group 0 < 10 kg
F - GXU - IL (3) X
Rear-facing shell seat
Group 0 or 0+ < 13 kg
EUU - IL (4) X
Rear-facing seat
Group 0+ and 1 <
1

3
k
g and 9
t
o
18 kg D
UU - IL (4) X
C UU (4) X
f

orward-facing seat
Group 1 9 to 18 kg
A, B, B1 XU - IUF - IL (5) X
Booster seat
Group 2 and 3 15 to 25 kg and
22 to 36 kg
X
U (5) X
(1) RIsK Of dEATH OR s ERIOU s INJURY: before installing a rear-facing child seat on the front passenger seat,
check that the air bag has been deactivated (refer to the information on “Child safety: deactivating/activating the front
passenger air bag” at the end of the paragraph).
The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-
tions in force are respected.

1.40
ENG_UD23611_7
Sécurité enfants : installation du siège enfant (X95 - B95 - D\
95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
Jaune NoirNoir texte
cHILd sAfETY: f itting a child seat (4/6)
X = Seat not suitable for fitting child seats.
U =
Seat which allows a child seat with “Universal” approval to be ins\
talled using a seat belt; check that it can be fitted.
IU

f /IL =

On
equipped vehicles, seat which allows an approved “Universal”/”semi-universal” or “vehicle specific” child seat to be
attached using the ISOFIX system; check that it can be fitted.
(2)

Only
a rear-facing child seat can be fitted in this seat: raise the seat to the maximum and position it as far back as possible,
tilting the seatback slightly (approximately 25°).
(3)
A

carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest
the door.
(4)

Move
the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child sea\
t.
(5)

Forward-facing
child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the
headrest, or remove it if necessary. Do not push the front seat more than halfway back on its runners and do not recline the
seatback more than 25°.

JauneNoirNoir texte
1.41
ENG_UD23611_7
Sécurité enfants : installation du siège enfant (X95 - B95 - D\
95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
² Seat not suitable for fitting child
seats.
c

hild seat attached using the belt
¬ Seat which allows a child seat
with “Universal” approval to be attached
by a seat belt.
child seat attached using the I s O f IX
mounting
ü Seat which allows an ISOFIX
child seat to be fitted.
± The rear seats are fitted with
an anchorage point which allows a
forward-facing ISOFIX child seat with
universal approval to be fitted. The an-
chorage points are located under the
luggage compartment carpet and are
indicated by a marking.
The size of the ISOFIX child seat is in-
dicated by a letter:
–

A,

B and B1: for forward-facing seats
in group 1 (9 to 18 kg);
–

C:

rear-facing seats in group 1 (9 to
18 kg);
–

D

and E: shell seat or rear-facing
seats in group 0 or 0+ (less than
13

kg);
–

F

and G: cots in group 0 (less than
10 kg).

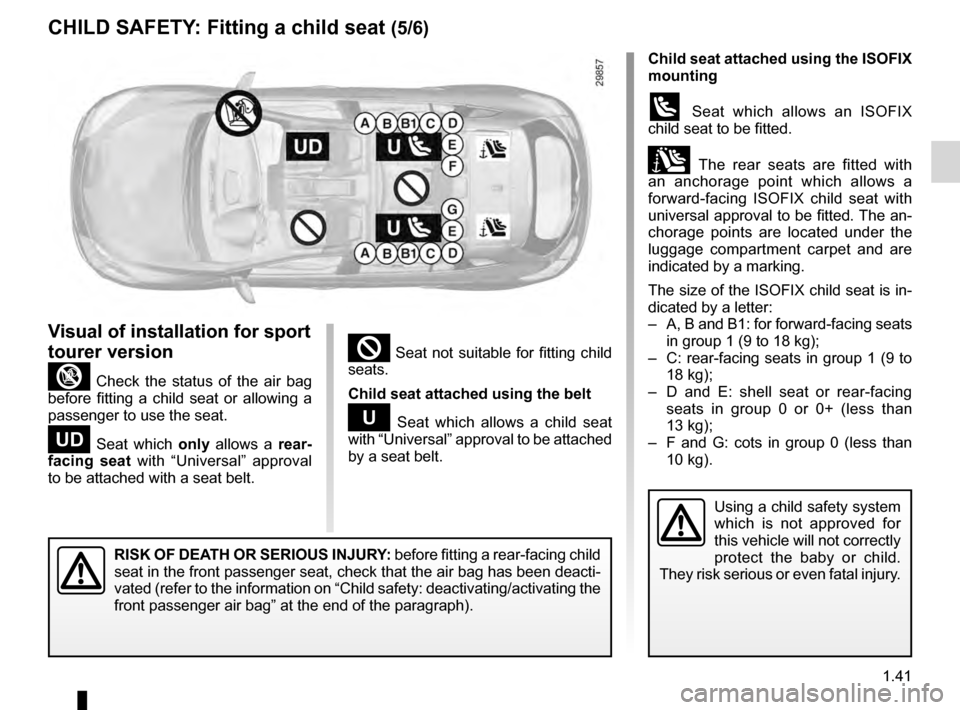

cHILd sAfETY: f itting a child seat (5/6)
Using a child safety system
which is not approved for
this vehicle will not correctly
protect the baby or child.
They risk serious or even fatal injury.
visual of installation for sport
tourer version
³ Check the status of the air bag
before fitting a child seat or allowing a
passenger to use the seat.
− Seat which only allows a rear-
facing seat with “Universal” approval
to be attached with a seat belt.
RIsK Of d EATH OR s ERIOU s INJURY: before fitting a rear-facing child
seat in the front passenger seat, check that the air bag has been deacti-
vated (refer to the information on “Child safety: deactivating/activating the
front passenger air bag” at the end of the paragraph).

1.42
ENG_UD23611_7
Sécurité enfants : installation du siège enfant (X95 - B95 - D\
95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
cHILd sAfETY: f itting a child seat (6/6)
Type of child seat
(sport tourer version) Weight of
the childs eat size
I
s O f IXf ront passenger
seat (1) (5) Rear side seats Rear centre
seat
c

arrycot fitted across the vehicle
Group 0 < 10 kg
F - GXU - IL (2) X
s

hell seat/rear-facing seat
Group 0, or 0+ and 1 <
1

3
k
g and 9
t
o
18 kg E, D, C
UU - IL (3) X
f

orward-facing seat
Group 1 9 to 18 kg
A, B, B1XU - IUF - IL (4) X
Booster seat
Group 2 and 3 15 to 25 kg and 22
to 36 kg
X
U (4)X
X =

Seat not suitable for fitting child seats.
U

=

Seat which allows a child seat with “Universal” approval to be ins\
talled using a seat belt; check that it can be fitted.
IU

f
/IL =

On
equipped vehicles, seat which allows an approved “Universal”/”semi-universal” or “vehicle specific” child seat to be
attached using the ISOFIX system; check that it can be fitted.
(1)

Only

a rear-facing child seat can be fitted in this seat: raise the seat to the maximum and position it as far back as possible,
tilting the seatback slightly (approximately 25°).
(2)
A

carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest
the door.
(3)

Move
the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child sea\
t.
(4)

Forward-facing
child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the
headrest, or remove it if necessary. Do not push the front seat more than halfway back on its runners and do not recline the
seatback more than 25°.
(5) RIsK Of d EATH OR s ERIOU s INJURY: before installing a rear-facing child seat on the front passenger seat,
check that the air bag has been deactivated (refer to the information on “Child safety: deactivating/activating the front
passenger air bag” at the end of the section).
The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-
tions in force are respected.

air bagdeactivating the front passenger air bags ........ (current page)
front passenger air bag deactivation ..................... (current page)
child restraint/seat ................................ (up to the end of the DU)
child safety............................................ (up to the end of the DU)
child restraint/seat ................................ (up to the end of the DU)
transporting children ............................. (up to the end of the DU)
1.43
ENG_UD18912_4
Sécurité enfants : désactivation/activation airbag passager ava\
nt (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
deactivating/activating the front passenger air bag
2
deactivating the front
passenger air bags
(on equipped vehicles)
You must deactivate certain devices
in addition to the front passenger seat
belt before fitting a child seat in the front
passenger seat. To deactivate the air bags: with the
vehicle stationary
, push and turn
lock 1 to the OFF position.
With the ignition on, it is essential to
check that warning light
2 ¹ is lit
on the central display and, depend-
ing on the vehicle, that the message
“Passenger airbag off” is displayed.
This light remains permanently lit to
let you know that you can fit a child
seat.
The passenger air bag must
only be deactivated or acti-
vated with the ignition off.
If it is interfered with when
the vehicle is being driven, indicator
lights
å and © will come
on.
Switch the ignition off then on again
to reset the air bag in accordance
with the lock.
cHILd sAfETY: deactivating/activating the front passenger air bag (1/3)
1dANgER
Since operation of the front
passenger air bag is not
compatible with the position
of a rear-facing child seat, NE
vE

R
fit a rear-facing child seat on a front
passenger seat with an active front
air bag. The child may suffer very
serious injuries if the air bag is trig-
gered.

1.44
ENG_UD18912_4
Sécurité enfants : désactivation/activation airbag passager ava\
nt (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
Jaune NoirNoir texte

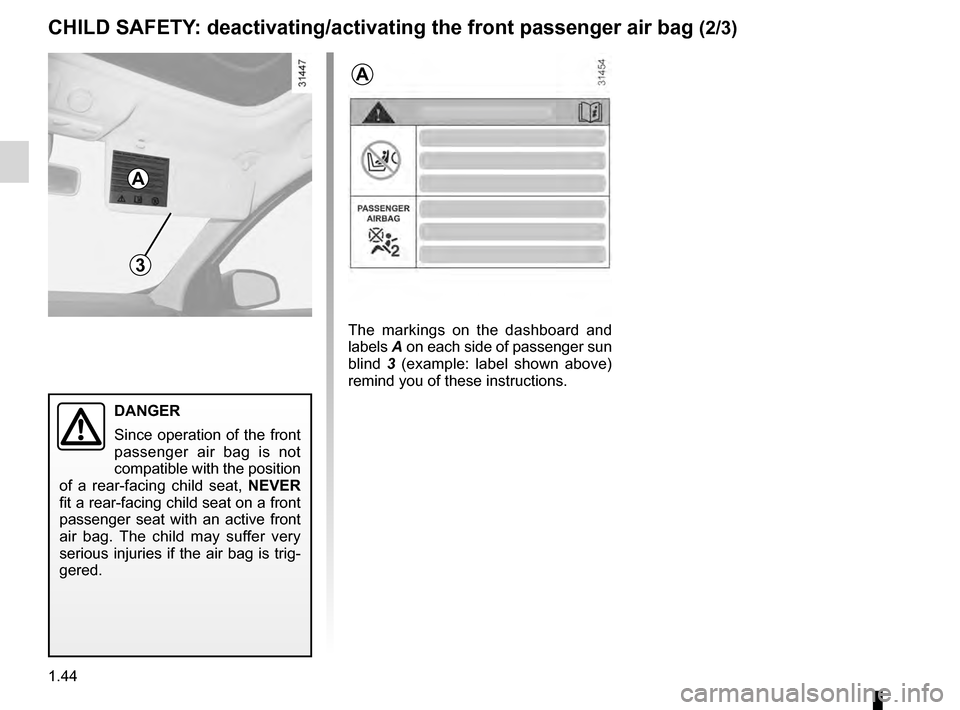

cHILd sAfETY: deactivating/activating the front passenger air bag (2/3)
3
dANgER
Since operation of the front
passenger air bag is not
compatible with the position
of a rear-facing child seat, NE
vE

R
fit a rear-facing child seat on a front
passenger seat with an active front
air bag. The child may suffer very
serious injuries if the air bag is trig-
gered.
The markings on the dashboard and
labels A on each side of passenger sun
blind
3

(example: label shown above)
remind you of these instructions.
A
A
