Page 10 of 63
83A-10
MR-372-J84-83A000$252.mif
V8
INSTRUMENT PANEL
Fault finding - Configurations and programming83A
TDB ph2 (EG/MG)
Prog Version: 04xx
Vdiag No.: 08, 0C
*Miles Per HourLC no. CF no. Configuration Note:
LC049 Type of fuelPetrol: check that the rev counter indicates
7000 rpm as the maximum value.
Diesel: check that the rev counter indicates
6000 rpm as the maximum value and that the
diesel heater plugs “on” indicator light comes
on when the ignition is switched on.
IMPORTANT
it is essential to check this, as it
determines whether the gauges are
operating correctly.
LC051 CF140 Unit of distance
LC052 CF141 Overspeed function - ArabiaWhen driving at speeds greater than
78 mph (130 km/h), the buzzer should sound.
LC054 CF143Unit of measurement for
consumptionLitres/ 100 km (default) - Europe
Miles / gallon - UK
km / l - Brazil
LC056 CF145 Tyre pressure monitorCheck for specific valves.
If the vehicle is equipped with a tyre pressure
monitor: check that the vehicle outline does
not show wheels which are absent and that
there is no “No tyre sensors” message
(message indicating the tyre pressure
monitoring frames are absent).
LC059 CF148 Automatic headlightingCheck for a brightness sensor.
Disconnect the automatic headlights, and
check that the "Auto Headlights Off" message
is displayed.

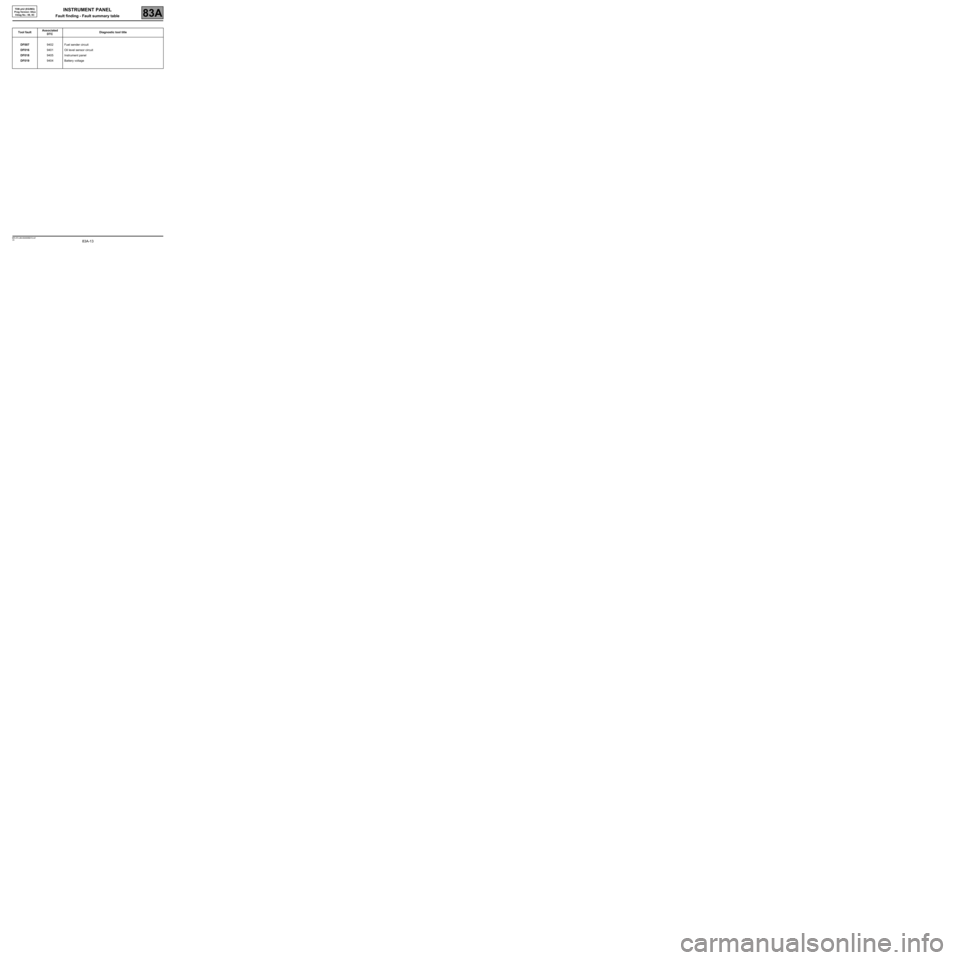

Page 13 of 63
83A-13
MR-372-J84-83A000$315.mif
V8
83A
INSTRUMENT PANEL
Fault finding - Fault summary table
Tool faultAssociated
DTCDiagnostic tool title
DF007
DF016
DF018
DF0199402
9401
9405
9404Fuel sender circuit
Oil level sensor circuit
Instrument panel
Battery voltage
TDB ph2 (EG/MG)
Prog Version: 04xx
Vdiag No.: 08, 0C
MR-372-J84-83A000$315.mif

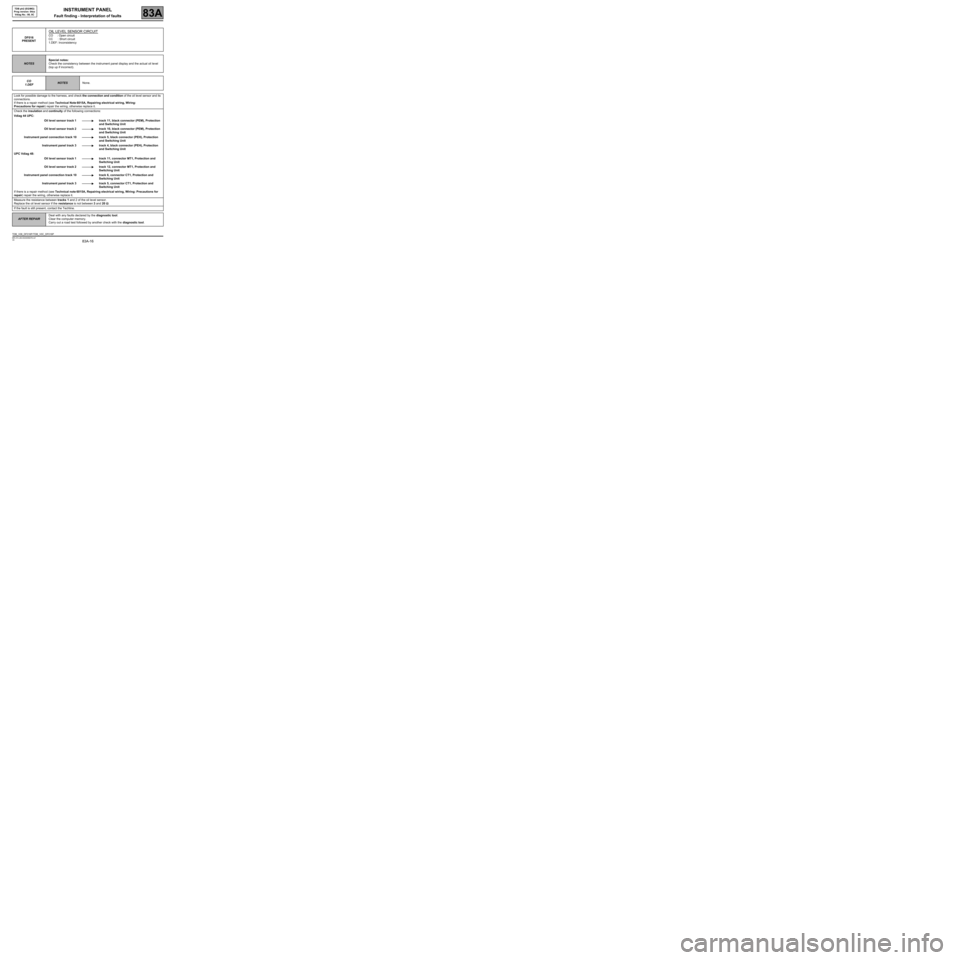

Page 16 of 63
83A-16
MR-372-J84-83A000$378.mif
V8
INSTRUMENT PANEL
Fault finding - Interpretation of faults83A
TDB ph2 (EG/MG)
Prog version: 04xx
Vdiag No.: 08, 0C
DF016
PRESENT
OIL LEVEL SENSOR CIRCUIT
CO : Open circuit
CC : Short circuit
1.DEF: Inconsistency
NOTESSpecial notes:
Check the consistency between the instrument panel display and the actual oil level
(top up if incorrect).
CO
1.DEF
NOTESNone.
Look for possible damage to the harness, and check the connection and condition of the oil level sensor and its
connections.
If there is a repair method (see Technical Note 6015A, Repairing electrical wiring, Wiring:
Precautions for repair) repair the wiring, otherwise replace it.
Check the insulation and continuity of the following connections:
Vdiag 44 UPC:
Oil level sensor track 1 track 11, black connector (PEM), Protection
and Switching Unit
Oil level sensor track 2 track 10, black connector (PEM), Protection
and Switching Unit
Instrument panel connection track 10 track 5, black connector (PEH), Protection
and Switching Unit
Instrument panel track 3 track 4, black connector (PEH), Protection
and Switching Unit
UPC Vdiag 48:
Oil level sensor track 1 track 11, connector MT1, Protection and
Switching Unit
Oil level sensor track 2 track 12, connector MT1, Protection and
Switching Unit
Instrument panel connection track 10 track 6, connector CT1, Protection and
Switching Unit
Instrument panel track 3 track 5, connector CT1, Protection and
Switching Unit
If there is a repair method (see Technical note 6015A, Repairing electrical wiring, Wiring: Precautions for
repair) repair the wiring, otherwise replace it.
Measure the resistance between tracks 1 and 2 of the oil level sensor.
Replace the oil level sensor if the resistance is not between 3 and 20 ΩΩ Ω Ω
.
If the fault is still present, contact the Techline.
AFTER REPAIRDeal with any faults declared by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
TDB_V08_DF016P /TDB_V0C_DF016P

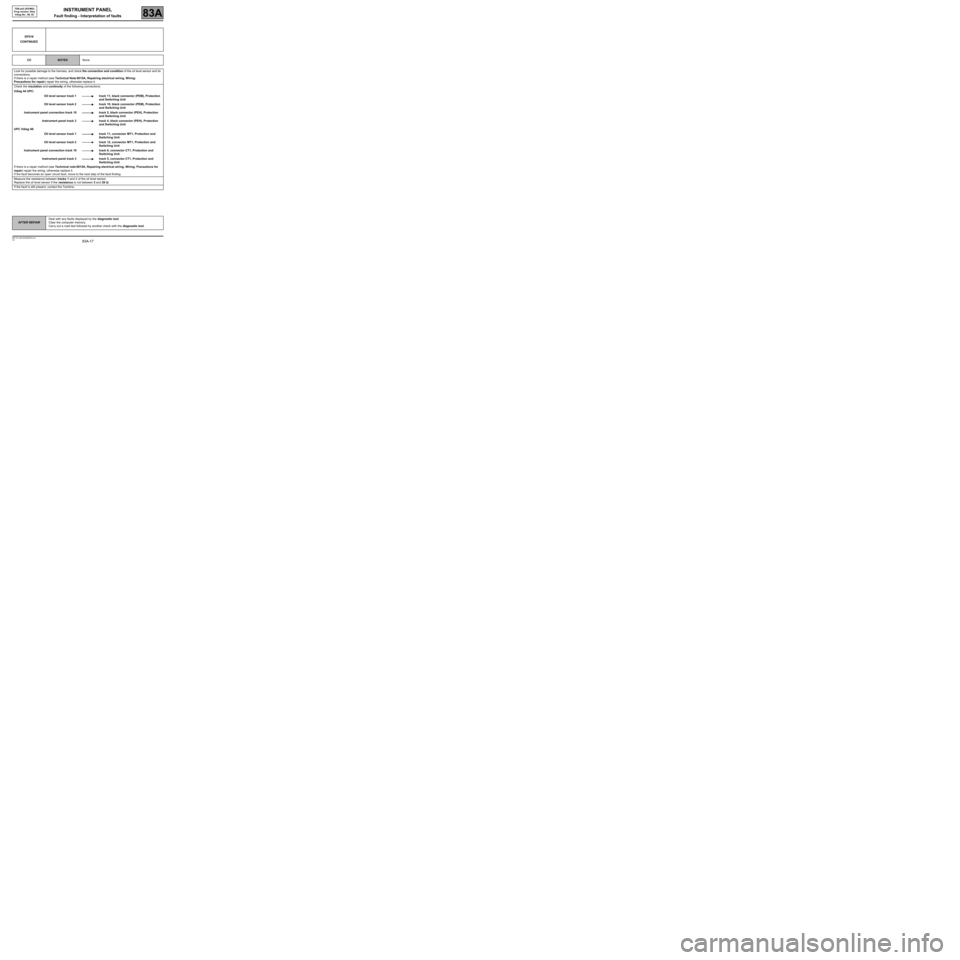

Page 17 of 63
83A-17
MR-372-J84-83A000$378.mif
V8
INSTRUMENT PANEL
Fault finding - Interpretation of faults83A
TDB ph2 (EG/MG)
Prog version: 04xx
Vdiag No.: 08, 0C
DF016
CONTINUED
CC
NOTESNone.
Look for possible damage to the harness, and check the connection and condition of the oil level sensor and its
connections.
If there is a repair method (see Technical Note 6015A, Repairing electrical wiring, Wiring:
Precautions for repair) repair the wiring, otherwise replace it.
Check the insulation and continuity of the following connections:
Vdiag 44 UPC:
Oil level sensor track 1 track 11, black connector (PEM), Protection
and Switching Unit
Oil level sensor track 2 track 10, black connector (PEM), Protection
and Switching Unit
Instrument panel connection track 10 track 5, black connector (PEH), Protection
and Switching Unit
Instrument panel track 3 track 4, black connector (PEH), Protection
and Switching Unit
UPC Vdiag 48:
Oil level sensor track 1 track 11, connector MT1, Protection and
Switching Unit
Oil level sensor track 2 track 12, connector MT1, Protection and
Switching Unit
Instrument panel connection track 10 track 6, connector CT1, Protection and
Switching Unit
Instrument panel track 3 track 5, connector CT1, Protection and
Switching Unit
If there is a repair method (see Technical note 6015A, Repairing electrical wiring, Wiring: Precautions for
repair) repair the wiring, otherwise replace it.
If the fault becomes an open circuit fault, move to the next step of the fault finding.
Measure the resistance between tracks 1 and 2 of the oil level sensor.
Replace the oil level sensor if the resistance is not between 3 and 20 ΩΩ Ω Ω
.
If the fault is still present, contact the Techline.
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.

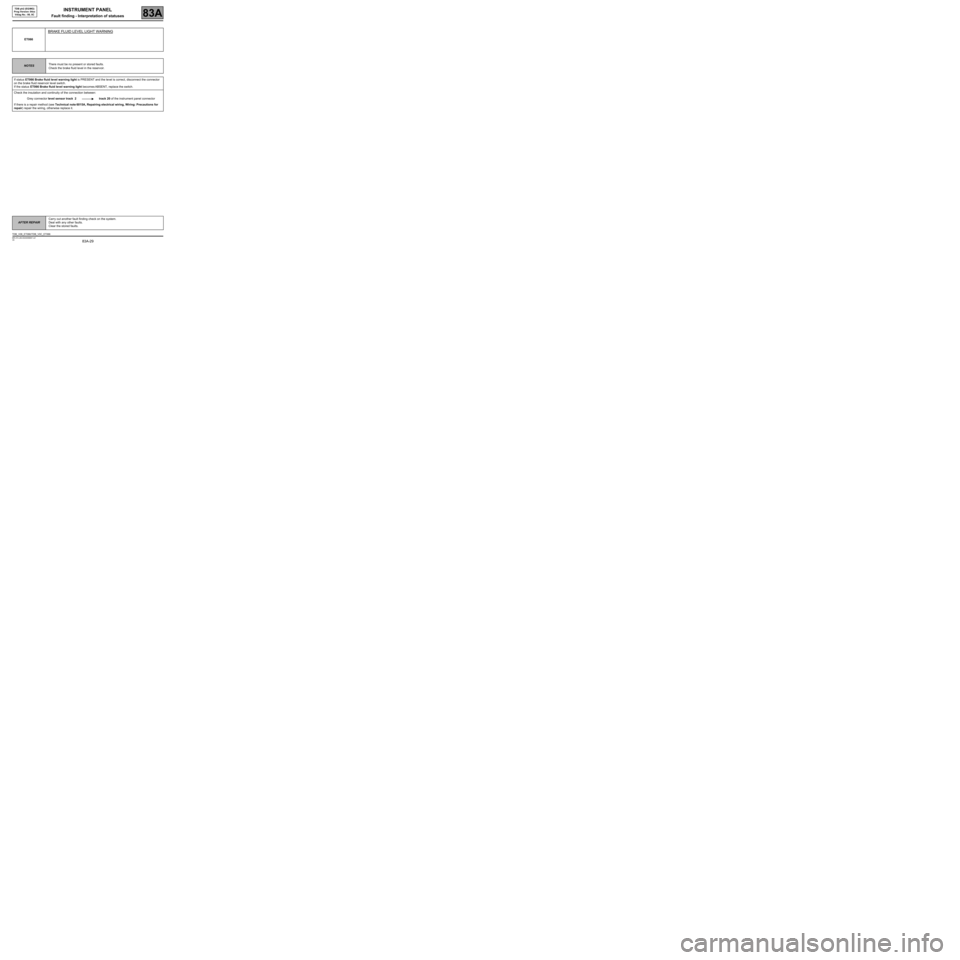

Page 29 of 63
83A-29
MR-372-J84-83A000$567.mif
V8
INSTRUMENT PANEL
Fault finding - Interpretation of statuses83A
TDB ph2 (EG/MG)
Prog Version: 04xx
Vdiag No.: 08, 0C
ET066
BRAKE FLUID LEVEL LIGHT WARNING
NOTESThere must be no present or stored faults.
Check the brake fluid level in the reservoir.
If status ET066 Brake fluid level warning light is PRESENT and the level is correct, disconnect the connector
on the brake fluid reservoir level switch.
If the status ET066 Brake fluid level warning light becomes ABSENT, replace the switch.
Check the insulation and continuity of the connection between:
Grey connector level sensor track 2 track 20 of the instrument panel connector
If there is a repair method (see Technical note 6015A, Repairing electrical wiring, Wiring: Precautions for
repair) repair the wiring, otherwise replace it.
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any other faults.
Clear the stored faults.
TDB_V08_ET066/TDB_V0C_ET066
