PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 233
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 233V9 MR-372-J84-87B000$559.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ET115
REQUEST FROM LIGHT SENSOR TO SWITCH ON HEADLIGHTS
NOTESNo faults should be present or stored.
Make sure that the vehicle is fitted with the rain and light sensor.
The status should change to ACTIVE when the sensor is hidden from the surrounding
light by placing a thumb over it or in darkness.
Make sure that the other lighting control positions are working properly.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
Check the condition and connection of the rain and light sensor connector (tabs broken, bent, oxidised).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the + 12 V APC on connection BPT of component 1415.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
If the + 12 V feed is not correct, check the insulation, continuity and the absence of interference resistance
of the following connection:
●Connection code BPT between components 645 and 1415.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the + 12 V feed is not correct for vehicles manufactured after June 2005, check the insulation, continuity and
the absence of interference resistance on the following connection:
●Connection code BPT between component 645 and fuse F5F (7.5A) (on the Protection and Switching
Unit).
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
UCH_V44_ET115/UCH_V48_ET115/UCH_V4C_ET115/
UCH_V4D_ET115/UCH_V4F_ET115/UCH_V50_ET115
Page 235 of 391
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 235
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 235V9 MR-372-J84-87B000$602.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50 PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses
ET159
ET160

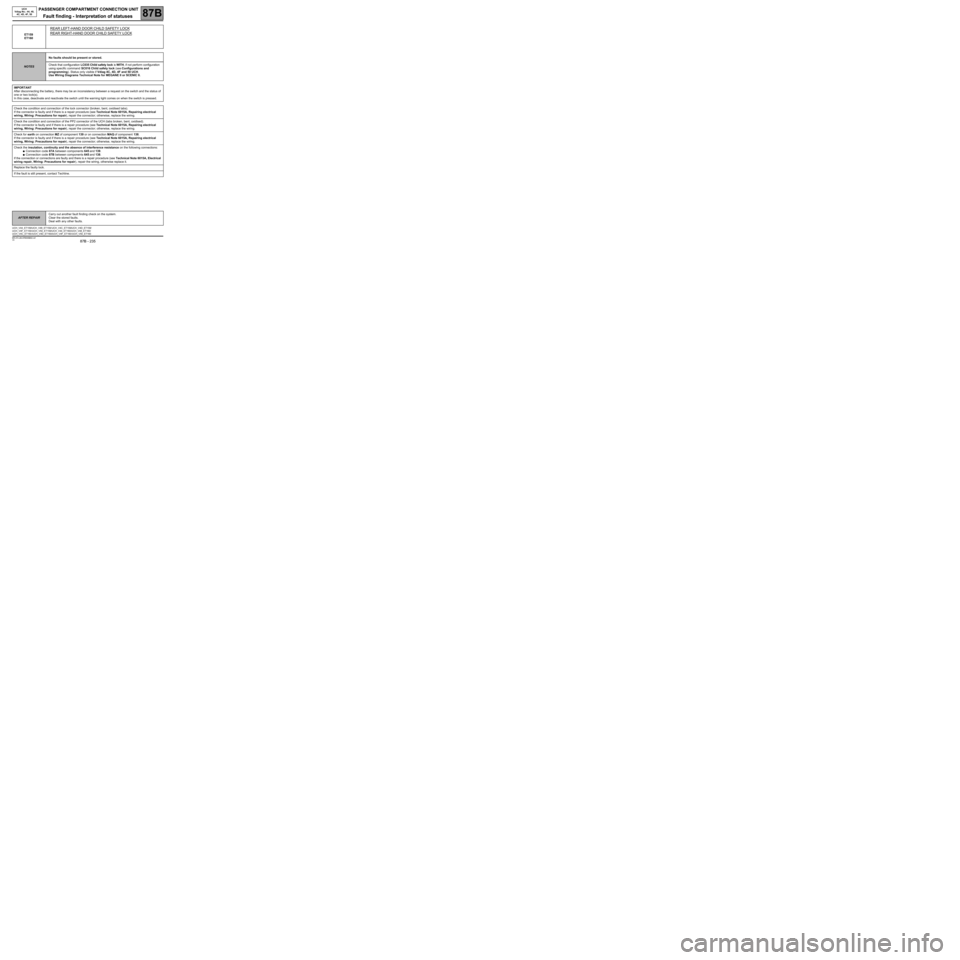

REAR LEFT-HAND DOOR CHILD SAFETY LOCK
REAR RIGHT-HAND DOOR CHILD SAFETY LOCK
NOTESNo faults should be present or stored.
Check that configuration LC035 Child safety lock is WITH, if not perform configuration
using specific command SC016 Child safety lock (see Configurations and
programming). Status only visible if Vdiag 4C, 4D, 4F and 50 UCH.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
IMPORTANT
After disconnecting the battery, there may be an inconsistency between a request on the switch and the status of
one or two lock(s).
In this case, deactivate and reactivate the switch until the warning light comes on when the switch is pressed.
Check the condition and connection of the lock connector (broken, bent, oxidised tabs).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the condition and connection of the PP2 connector of the UCH (tabs broken, bent, oxidised).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check for earth on connection MZ of component 139 or on connection MAQ of component 138.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the insulation, continuity and the absence of interference resistance on the following connections:
●Connection code 87A between components 645 and 139.
●Connection code 87B between components 645 and 138.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Replace the faulty lock.
If the fault is still present, contact Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
UCH_V44_ET159/UCH_V48_ET159/ UCH_V4C_ET159/UCH_V4D_ET159/
UCH_V4F_ET159 /UCH_V50_ET159/UCH_V44_ET160/UCH_V48_ET160/
UCH_V4C_ET160 /UCH_V4D_ET160/UCH_V4F_ET160 /UCH_V50_ET160
MR-372-J84-87B000$602.mif
Page 239 of 391
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 239
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of statuses87B
87B - 239V9 MR-372-J84-87B000$602.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ET233
CHILDPROOF LOCK SWITCH
NOTESNo faults should be present or stored.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
Check the condition and connection of the PE1 connector of the UCH (tabs broken, bent, oxidised).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the condition and connection of the child safety lock switch connector (bent, oxidised, broken tabs).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check for an earth on connection MAM of component 135.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the insulation, continuity and the absence of interference resistance on the following connection:
●Connection code 20AL between components 645 and 135.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Check the insulation between connections 20AL and MAM of component 135 (Released position).
Check the continuity between connections 20AL and MAM of component 135 (Pressed position).
Replace the switch if necessary.
If the fault is still present, contact Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
UCH_V44_ET233/UCH_V48_ET233/ UCH_V4C_ET233/
UCH_V4D_ET233 /UCH_V4F_ET233/UCH_V50_ET233
Page 242 of 391
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of parameters
87B
87B -242
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of parameters
87B
87B -242V9 MR-372-J84-87B000$688.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
PR002
EXTERNAL TEMPERATURE
NOTESUse Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
Check the temperature sensor connector (e.g.: connector incorrectly connected, pins bent, broken, oxidised, etc.).
If the connector is faulty and if there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the UCH connector (e.g.: connector incorrectly connected, pins bent, broken, oxidised, etc.).
If the connector is faulty and if there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the continuity and insulation of the following connections:
●Connection code 47C.
●Connection code 47D.
Between components 645 and 245.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Measure the sensor resistance on tracks 1 and 2.
Approximate temperature in ˚CSensor resistance in ΩΩ Ω Ω
Between 0 and 5 Between 5400 and 6200
Between 11 and 15 Between 3700 and 4400
Between 21 and 25 Between 2500 and 3000
Between 31 and 35 Between 1700 and 2100
Replace the sensor if necessary.
If the fault is still present, contact the Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
UCH_V44_PR002/UCH_V48_PR002/UCH_V4C_PR002 /
UCH_V4D_PR002/ UCH_V4F_PR002/UCH_V50_PR002
Page 248 of 391
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 248
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 248V9 MR-372-J84-87B000$774.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands
AC003
IMMOBILISER INDICATOR LIGHT
NOTESNo faults should be present or stored.
The instrument panel must be detected as present on the multiplex network.
This command is for testing whether the immobiliser warning light is working.
The command lasts 10 seconds.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
The immobiliser indicator light does not come on when the command is performed.
Check the condition and connection of the instrument panel connector.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
With the command running, check for earth on connection 88T of component 427.
If okay, replace the instrument panel.
Check the condition and connection of connector PE2 on the UCH
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the insulation and continuity of the following connection:
●Connection code 20W between components 645 and 427.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
MR-372-J84-87B000$774.mif
Page 249 of 391
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 249
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 249V9 MR-372-J84-87B000$774.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
AC004
LOCK DOORS AND BOOT
NOTESNo faults should be present or stored.
This command is for testing locking relay operation.
Note:
The driver's door circuit is shared with the fuel tank flap circuit.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
One or more doors do not lock when the command is activated.
Check the condition and connection of the PP2 connector on the UCH.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the condition and connection of the connector on the faulty lock(s).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check for earth on the following connections:
●Connection code MAM.
●Connection code 87H of component 140.
●Connection code MZ.
●Connection code 87A of component 139.
●Connection code MAN.
●Connection code 87G of component 141.
●Connection code MAQ.
●Connection code 87B of component 138.
●Connection code 20BC.
●Connection code 20BH of component 844.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If faulty: If OK:
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
Page 251 of 391
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 251
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 251V9 MR-372-J84-87B000$774.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
AC005
AC006
UNLOCK DOORS AND BOOT
DRIVER'S DOOR UNLOCKING
NOTESNo faults should be present or stored.
This command is for testing unlocking relay operation.
The driver's door circuit is shared with the fuel tank flap circuit.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
One or more doors do not unlock when the commands are activated.
Check the condition and connection of the PP2 connector on the UCH.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the condition and connection of the connector on the faulty lock(s).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check for earth on:
●Connection code MAM.
●Connection code 87H.
Of component 140.
●Connection code MZ.
●Connection code 87A.
Of component 139.
●Connection code MAN.
●Connection code 87G.
Of component 141.
●Connection code MAQ.
●Connection code 87B.
Of component 138.
●Connection code 20BC.
●Connection code 20BH.
Of component 140.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If faulty: If OK:
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
Page 253 of 391
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 253
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 253V9 MR-372-J84-87B000$774.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
AC007
REAR SCREEN WIPER
NOTESNo faults should be present or stored.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
The rear screen wiper does not operate when the command is activated.
Check the condition and connection of the rear screen wiper motor connector.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check for earth on connection MZ of component 211.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
With the command running, check for + 12 V feed on connection 36A of component 211.
If everything is correct, replace the rear screen wiper motor.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the condition and connection of connector PE3 on the UCH.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the insulation and continuity of the following connections:
●Connection code 36A.
●Connection code 36C between components 645 and 211.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
Page 254 of 391
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 254
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 254V9 MR-372-J84-87B000$774.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
AC008
FRONT FOG LIGHTS
NOTESCheck:
–the condition and connection of the front fog lights fuse,
–the condition of the bulbs.
Replace the bulbs if necessary.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
The rear screen wiper does not operate when the command is activated.
Check the condition and connection of connector PPA on the UPC (Vdiag 44) or connector AN on the UPC
(Vdiag 48 or above).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the condition and connection of the bulb connectors.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check for earth on R9 connection then check the connections of the bulb connectors.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check for + 12 V on the fog light connectors they are being controlled by command AC004.
If the + 12 V on the connectors is correct, replace the bulb(s).
Check the insulation and continuity of the following connections:
●Connection code 8F between components 176 and 1337.
●Connection code 8E between components 177 and 1337.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
Page 255 of 391
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 255
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 255V9 MR-372-J84-87B000$774.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
AC009
REAR FOG LIGHTS
NOTESNo faults should be present or stored.
This command is for testing operation of the rear fog lights.
Check the bulbs.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
Left-hand drive
Check the condition and connection of the connector for each rear light.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check for earth on connection MZ on component 173.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
With the command running, check for + 12 V feed on connection 9P of component 173.
If the + 12 V feed is correct, check the bulbs again and if the bulbs still do not work, replace the rear light.
Check the condition and connection of UCH connector PP3.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the insulation and continuity of the following connection:
●Connection code 9P between components 645 and 173.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
