PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 275
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 275V9 MR-372-J84-87B000$774.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
AC027
FOOTWELL LIGHTS
NOTESNo faults should be present or stored.
This command is for testing footwell/floor lights operation.
Check the bulbs.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
Check the condition and connection of the footwell lighting connectors.'
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check for + 12 V on connection BPT2 of components 1118, 1119, 1120, 1121.
If OK: If faulty:
Check the condition and connection of the PP3 connector on the UCH.
If the connector is faulty and if there is a repair procedure (see Technical Note
6015A, Repairing electrical wiring, Wiring: Precautions for repair), repair the
connector; otherwise, replace the wiring.
Check the insulation and continuity of the following connection:
●Connection code BPT2.
Between components 645 and 1118.
Between components 645 and 1119.
Between components 645 and 1120.
Between components 645 and 1121.
If the connection is faulty and there is a repair procedure (see Technical Note
6015A, Electrical wiring repair, Wiring: Precautions for repair), repair the
wiring, otherwise replace it.
If the fault is still present, contact Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 277
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 277V9 MR-372-J84-87B000$774.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
AC030
HEADLIGHT WASHER 1 RELAY
(ONLY IF VDIAG 44 UPC)
NOTESNo faults should be present or stored.
This command is for testing headlight washer 1 operation.
The command lasts 3 seconds.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
Check for earth on connections 39A
and 39C of component 219.
Is there an earth?Not on connection 39C.
YES
Not on connection 39A.With the command running, check for + 12 V on
connection 39A of component 219.
Is there + 12 V?NO
YES
Replace the headlight washer pump.
Check the condition and connection of the headlight washer relay 1 connector.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check for an earth on connection MAS of component 753.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the continuity and insulation of the following connection:
●Connection code 39A between components 753 and 219.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If everything is OK, replace the relay.
Run the fault finding procedure for
command AC031 Headlight washer
2 relay.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 279
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 279V9 MR-372-J84-87B000$817.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50 PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands
AC031
HEADLIGHT WASHER RELAY 2
(ONLY IF VDIAG 44 UPC)
NOTESNo faults should be present or stored.
This command is used to test the operation of headlight washer 2 or for locking the
glovebox if the vehicle is fitted with one of these functions: This command is only active
for UPC Vdiag 44 (see System operation).
The command lasts 3 seconds.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
Headlight washer 2 relay
Check for earth on connections 39A
and 39C of component 219.
Is there an earth?Not on connection 39C.
YES
Not on connection 39A.With the command running, check for + 12 V on
connection 39C of component 219.
Is there + 12 V?NO
YES
Replace the headlight washer pump.
Run the fault finding procedure for
command AC030 Headlight washer 1
relay.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
MR-372-J84-87B000$817.mif

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 283
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 283V9 MR-372-J84-87B000$817.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
AC032

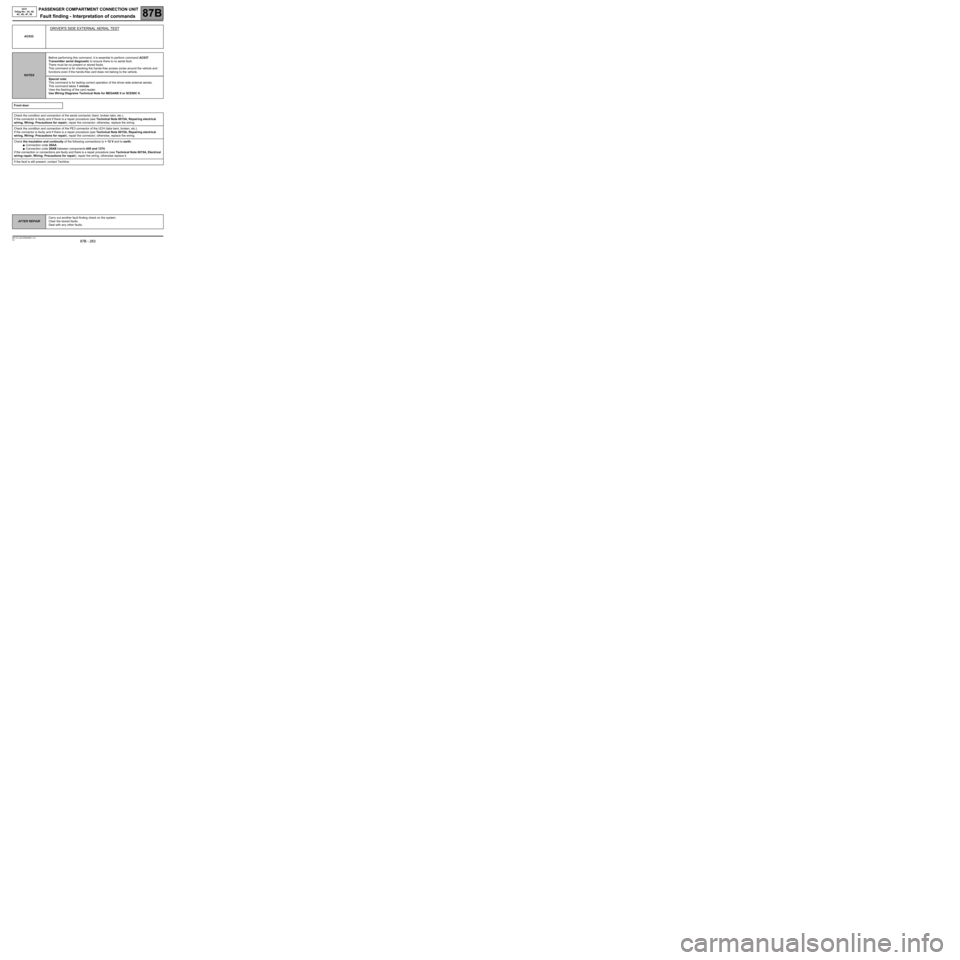

DRIVER'S SIDE EXTERNAL AERIAL TEST
NOTESBefore performing this command, it is essential to perform command AC037
Transmitter aerial diagnostic to ensure there is no aerial fault.
There must be no present or stored faults.
This command is for checking the hands-free access zones around the vehicle and
functions even if the hands-free card does not belong to the vehicle.
Special note:
This command is for testing correct operation of the driver-side external aerials.
This command takes 1 minute.
View the flashing of the card reader.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
Front door
Check the condition and connection of the aerial connector (bent, broken tabs, etc.).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the condition and connection of the PE3 connector of the UCH (tabs bent, broken, etc.).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the insulation and continuity of the following connections to + 12 V and to earth:
●Connection code 26AA.
●Connection code 26AB between components 645 and 1374.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 287
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 287V9 MR-372-J84-87B000$817.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
AC034
BOOT EXTERNAL AERIAL TEST
NOTESBefore performing this command, it is essential to perform command AC037
Transmitter aerial diagnostic to ensure there is no aerial fault.
There must be no present or stored faults.
This command is for checking the hands-free boot access zone and works even if the
hands-free card does not belong to the vehicle.
Special note:
This command is for testing correct operation of the external aerial on the boot side.
If the range exceeds 1.50 m, check that there is no short circuit to the aerial earth.
This command takes 1 minute.
View the flashing of the card reader.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
Check the condition and connection of the aerial connector (bent, broken tabs, etc.).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the condition and connection of the PE3 connector of the UCH (tabs bent, broken, etc.).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the insulation and continuity of the following connections to + 12 V and to earth:
●Connection code 26AM.
●Connection code 26AN between components 645 and 1378.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 288
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 288V9 MR-372-J84-87B000$817.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
AC036
INTERNAL AERIAL TESTING
NOTESBefore performing this command, it is essential to perform command AC037
Transmitter aerial diagnostic to ensure there is no aerial fault.
There must be no present or stored faults.
This command is for checking the hands-free access zones around the vehicle and
functions even if the hands-free card does not belong to the vehicle.
Special note:
This command is for testing correct operation of the internal aerials.
This command takes 1 minute.
View the flashing of the card reader.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
FRONT INTERNAL AERIAL
Check the condition and connection of the aerial connector (bent, broken tabs, etc.).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the condition and connection of the PE3 connector of the UCH (tabs bent, broken, etc.).
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the insulation and continuity of the following connections to + 12 V and to earth:
●Connection code 26AT.
●Connection code 26AU between components 645 and 1396.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Replace the aerial if necessary.
If the fault is still present, contact Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 291
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 291V9 MR-372-J84-87B000$817.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
AC037
TRANSMITTER AERIAL FAULT FINDING
NOTESNo faults should be present or stored.
Special note:
This command is used to run fault finding on the internal and external transmitter
aerials on open circuit or short circuit to + 12 V.
This command takes 1 minute.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
After activating the command, perform fault reading.
If one (or more) fault(s) concerning the aerials appear(s), refer to the processing of this (these) fault(s).
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 292
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of commands87B
87B - 292V9 MR-372-J84-87B000$817.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
AC076
CHILD SAFETY LOCK INDICATOR LIGHT
NOTESNo faults should be present or stored.
This command is for testing child safety lock indicator light operation.
The command lasts 7 seconds.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
The child safety lock switch light does not light up when the command is activated.
Check the condition and connection of the child safety lock switch connector.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check for + 12 V on connection BPT of component 135.
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the condition and connection of connector PE1 on the UCH
If the connector is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector; otherwise, replace the wiring.
Check the insulation and continuity of the following connection:
●Connection code 20T between components 645 and 135.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Fault Finding Chart87B
87B - 300
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Fault Finding Chart87B
87B - 300V9 MR-372-J84-87B000$903.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Fault Finding Chart
ALP1 No dialogue with the computer
NOTESCheck the condition and connection of the battery connections.
Check the condition of the power fuses on the battery's positive terminal.
Check the battery voltage.
Repair if necessary.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
Is there contact or another feed level?
NO
Perform locking/unlocking.
Did locking/
unlocking work?
NO
YESRefer to ALP 1 (see 88B, Multiplexing).
Has the fault disappeared?
YES NO
YESRefer to the section
Interpretation of faults, Multiplex
network out of service (see 88B
Multiplexing).
Contact the Techline.
AFTER REPAIRCarry out a complete check using the diagnostic tool.
UCH_V44_ALP1/UCH_V48_ALP1/ UCH_V4C_ALP1/
UCH_V4D_ALP1 /UCH_V4F_ALP1/UCH_V50_ALP1
MR-372-J84-87B000$903.mif

PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Fault Finding Chart87B
87B - 305
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Fault Finding Chart87B
87B - 305V9 MR-372-J84-87B000$903.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
ALP5No side lights
(Lights without xenon bulb)
NOTESOnly check this customer complaint after performing a complete check with the
diagnostic tool.
Use Wiring Diagrams Technical Note for MEGANE II or SCENIC II.
Check the bulbs.
Are the bulbs in good condition?
YES
Check the + 12 V supply between connections LPD
and MAS of component 226.
Check the + 12 V supply between connections LPG
and MAS of component 270.
Are the feeds correct?
NO
Check status ET081 Lighting stalk position.
Is the side lights request on side lights?
YES
Run fault finding on the Protection and Switching
Unit.
NOReplace the bulbs.
YESVerify that there is no corrosion on the
connector.
If the connector is faulty and if there is a
repair procedure (see Technical Note
6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the
connector; otherwise, replace the wiring.
NOApply interpretation of status ET081
Lighting stalk position.
AFTER REPAIRCarry out a complete check using the diagnostic tool.
UCH_V44_ALP5/UCH_V48_ALP5/ UCH_V4C_ALP5/
UCH_V4D_ALP5 /UCH_V4F_ALP5/UCH_V50_ALP5
