Page 118 of 391
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87B
87B-118
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87B
87B-118V9 MR-372-J84-87B000$387.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
KEYLESS VEHICLE FUNCTION
Sub-function: Access
RF*: Radio frequency.
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(fault reading and configuration checks).
Application condition: engine stopped, + after ignition feed present.
Sub-functionParameter or
Status
checked Action Display and Notes Fault finding
AccessPR013:Number of cards
programmed1
2
3
4None
ET010:Card frequency
(in MHz)315
433None
ET195:UCH frequency
(in MHz)315
433None
ET205:Type of UCH
RF* aerialINTERNALNone
ET066:Card detected
buttonYES
NO In the event of a fault,
consult the interpretation
of status ET066.
ET067:Card button
press
recognisedYES
NO In the event of a fault,
consult the interpretation
of status ET067.
ET054:Optical sensors
suppliedYES
NO In the event of a fault,
consult the interpretation
of status ET054.
ET055:Front driver side
optical sensorACTIVE
INACTIVE In the event of a fault,
consult the interpretation
of status ET055.
Page 119 of 391
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87B
87B-119
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87B
87B-119V9 MR-372-J84-87B000$387.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
KEYLESS VEHICLE FUNCTION
Sub-function: Access (continued 1):
*lckg: Locking
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(fault reading and configuration checks).
Application condition: engine stopped, + after ignition feed present.
Sub-functionParameter or
Status
checked Action Display and Notes Fault finding
AccessET056:Rear driver side
optical sensorACTIVE
INACTIVEIn the event of a fault,
consult the interpretation
of status ET056.
ET057:Passenger side
front/rear optical
sensorACTIVE
INACTIVEIn the event of a fault,
consult the interpretation
of status ET057.
ET058:Lckg* button on
driver's side
handles DEPRESSED
RELEASEDIn the event of a fault,
consult the interpretation
of status ET058.
ET059:Lckg* buttons on
passenger's side
handlesDEPRESSED
RELEASEDIn the event of a fault,
consult the interpretation
of status ET059.
ET060:Tailgate locking
buttonDEPRESSED
RELEASEDIn the event of a fault,
consult the interpretation
of status ET060.
ET086:Electric child
safety lockACTIVE
INACTIVESignal interpreted if
vehicle configured WITH
Child safety lock.
ET053:Driver's doorOPEN
CLOSED In the event of a fault, refer
to the interpretation of
status ET053.
ET042:Passenger doorOPEN
CLOSED In the event of a fault, refer
to the interpretation of
status ET042.
ET194:Passenger's
door or bonnetOPEN
CLOSED In the event of a fault, refer
to the interpretation of
status ET042.
ET051:Rear left-hand
doorOPEN
CLOSED In the event of a fault, refer
to the interpretation of
status ET051.
ET052:Rear right-hand
doorOPEN
CLOSED In the event of a fault, refer
to the interpretation of
status ET052.
Page 120 of 391
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87B
87B -120
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87B
87B -120V9 MR-372-J84-87B000$387.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
KEYLESS VEHICLE FUNCTION
Sub-function: Access (continued 2)
*CPE: Electric central door locking
SR.*: Sunroof
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(fault reading and configuration checks).
Application condition: engine stopped, + after ignition feed present.
Sub-functionParameter or
Status
checked Action Display and Notes Fault finding
AccessET061:Open tailgate
requestPRESENT = Tailgate
opening button pressed.
ABSENT = Button not
pressed.In the event of a fault, refer
to the interpretation of
status ET061.
ET050:Tailgate/BootOPEN
CLOSED In the event of a fault,
consult the interpretation
of status ET050.
ET062:Open rear
screen requestABSENT
PRESENTNone
ET041:Opening rear
screenOPEN
CLOSED None
ET044:CPE* buttonPRESSED
RELEASEDIn the event of a fault,
consult the interpretation
of status ET044.
ET233:Child safety lock
switchPRESSED
RELEASEDIn the event of a fault,
consult the interpretation
of status ET233.
ET230:Child safety lockACTIVE
INACTIVEIn the event of a fault,
consult the interpretation
of fault DF072.
ET160:Rear right-hand
door Child safety
lockACTIVE
INACTIVEIn the event of a fault, refer
to the interpretation of
status ET160.
ET159:Rear left-hand
door child safety
lockACTIVE
INACTIVEIn the event of a fault, refer
to the interpretation of
status ET159.
ET087:One-touch
window control/
SR.*
authorisation ACTIVE
INACTIVEIn the event of a fault, refer
to the interpretation of
status ET087.
Page 121 of 391
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87B
87B -121
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87B
87B -121V9 MR-372-J84-87B000$387.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
KEYLESS VEHICLE FUNCTION
Sub-function: Access (continued 3)
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(fault reading and configuration checks).
Application condition: engine stopped, + after ignition feed present.
Sub-
functionParameter or
Status
checked Action Display and Notes Fault finding
AccessET068:Most recently locked
byAUTOMATIC = automatic re-
locking if unlocked using the
card and the doors are not
used within 2 minutes of
unlocking.
CPE* = locking by pressing
the button on the centre
console
HANDS-FREE = locking via
door or tailgate handle switch
RAID* FUNCTION = Renault
Anti-Intruder Device.
Operates from around 3 mph
(5 km/h).
CARD = locking with the
DIAGNOSTIC card = Locking
by actuator AC004 Central
door locking
LONG CPE* = locking by
pressing and holding the
button on the centre console In the event of a fault,
refer to the
interpretation of status
ET068.
ET069:Most recently
unlocked by HANDS-FREE = optical
sensors
CPE* = electric door locking
button
CARD = with the card
FAULT FINDING = AC005
IMPACT INFO = info after
impact
AIRBAG = unlocking by the
AIRBAG computer after an
accidentIf status = Airbag,
carry out fault finding
on the Airbag
computer (see 88C,
Airbag and
pretensioners). In the
event of a fault,
consult the
interpretation of status
ET069.

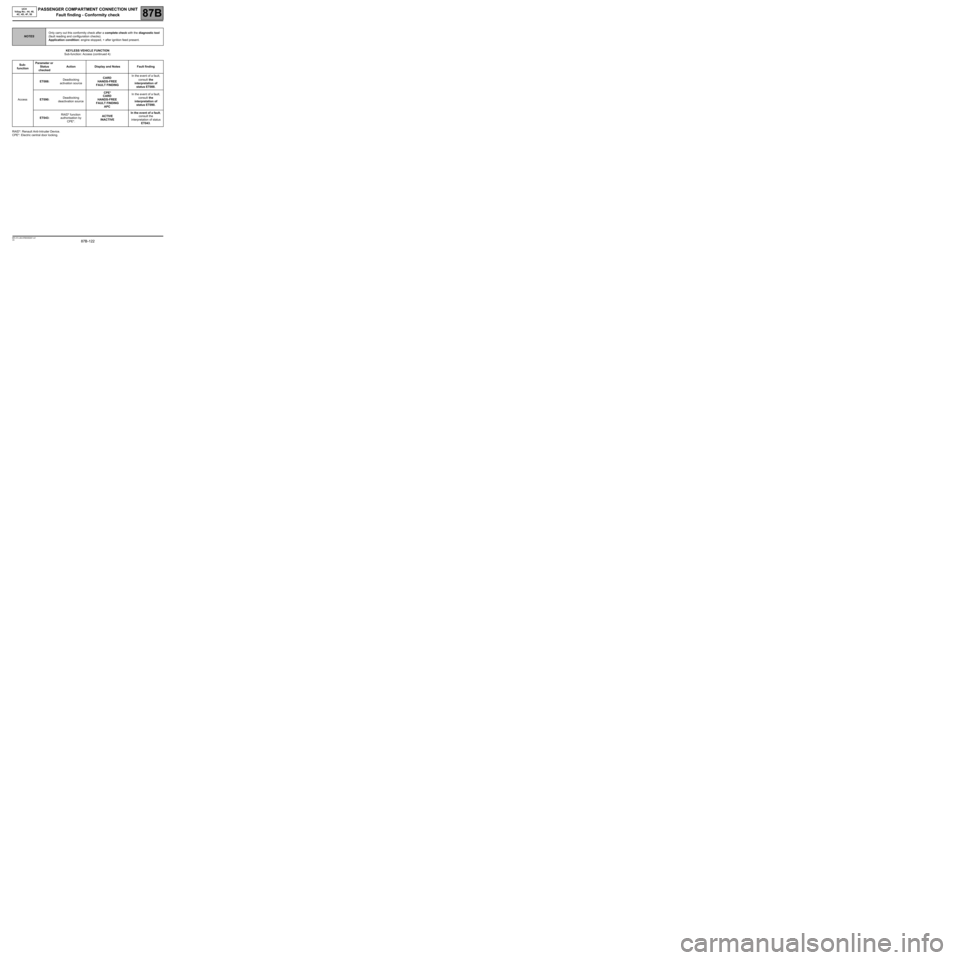

Page 122 of 391
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87B
87B -122
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87B
87B -122V9 MR-372-J84-87B000$387.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
KEYLESS VEHICLE FUNCTION
Sub-function: Access (continued 4):
RAID*: Renault Anti-Intruder Device.
CPE*: Electric central door locking.
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(fault reading and configuration checks).
Application condition: engine stopped, + after ignition feed present.
Sub-
functionParameter or
Status
checked Action Display and Notes Fault finding
AccessET088:Deadlocking
activation sourceCARD
HANDS-FREE
FAULT FINDINGIn the event of a fault,
consult the
interpretation of
status ET088.
ET090:Deadlocking
deactivation sourceCPE*
CARD
HANDS-FREE
FAULT FINDING
APC In the event of a fault,
consult the
interpretation of
status ET090.
ET043:RAID* function
authorisation by
CPE*.ACTIVE
INACTIVE In the event of a fault,
consult the
interpretation of status
ET043.
Page 123 of 391
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87B
87B -123
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87B
87B -123V9 MR-372-J84-87B000$387.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
KEYLESS VEHICLE FUNCTION
Sub-function: Protection
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(fault reading and configuration checks).
Application condition: engine stopped, + after ignition feed present.
Sub-
functionParameter or
Status
checked Action Display and Notes Fault finding
ProtectionET070:Start buttonPRESSED
RELEASED In the event of a fault,
consult the
interpretation of
status ET070.
ET008:blank UCHYES = If the UCH is blank.
NO = If the UCH is
programmed. In the event of a fault,
consult the
interpretation of
status ET008.
PR013:Number of cards
programmed1, 2, 3 or 4None
ET071:Unprogrammed
steering column lockYES
NO In the event of a fault,
consult the
interpretation of status
ET071.
ET119:UCH request to
steering column lockLOCKING UNLOCKINGNone
ET248:Steering column
lock immobiliser
codeINCORRECT
OKNone
ET073:Steering column
lock sensor signalFAULTY
UNLOCKED
UNDETERMINED
FALSELY TRIGGERED
SHORT CIRCUITIn the event of a fault,
consult the
interpretation of status
ET073.
ET072:Steering column
lockINCONSISTENCY
LOCKED
UNLOCKEDIn the event of a fault,
consult the
interpretation of status
ET072.
ET014:Control power levelNONE
ACCESSORIES FEED
TIMED
APCNone
Page 124 of 391
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87B
87B -124
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87B
87B -124V9 MR-372-J84-87B000$387.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
KEYLESS VEHICLE FUNCTION
Sub-function: Protection (continued)
RF*: Radio frequency.
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(fault reading and configuration checks).
Application condition: engine stopped, + after ignition feed present.
Sub-
functionParameter or
Status
checked Action Display and Notes Fault finding
ProtectionET250:InjectionPROGRAMMED
BLANKNone
ET229:Injection immobiliser
codeINCORRECT
OK In the event of a fault,
consult the
interpretation of status
ET229.
ET046:Engine immobiliserINACTIVE = Vehicle
unprotected, ready to start.
ACTIVE = Vehicle protected,
starting impossible. In the event of a fault,
consult the
interpretation of
status ET046.
ET075:+ Accessories feed
presentYES
NO In the event of a fault,
refer to the
interpretation of
status ET075.
Page 125 of 391
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87B
87B -125
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87B
87B -125V9 MR-372-J84-87B000$387.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
KEYLESS VEHICLE FUNCTION
Sub:function: Starting
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(fault reading and configuration checks).
Application condition: engine stopped, + after ignition feed present.
Sub-
functionParameter or
Status
checked Action Display and Notes Fault finding
StartingET070:Start buttonDEPRESSED
RELEASED In the event of a fault,
consult the
interpretation of status
ET070.
ET108:Automatic gearbox
lever positionNOT IN NEUTRAL
P
NEUTRAL, REVERSEIn the event of a fault,
consult the
interpretation of status
ET108.
ET048:Clutch pedal
positionDEPRESSED
RELEASEDIn the event of a fault,
consult the
interpretation of status
ET048.
ET047:Brake pedal positionUNDETERMINED
RELEASED
DEPRESSED
INCONSISTENCY In the event of a fault,
consult the
interpretation of status
ET047.
ET110:UCH request to
injection or
Protection and
Switching UnitENGINE OFF
INACTIVE
APC
STARTING In the event of a fault,
consult the
interpretation of status
ET110.
ET169:EngineSTOPPEDIn the event of a fault,
refer to the
interpretation of
status ET169.
