check engine RENAULT SCENIC 2009 J84 / 2.G Engine And Peripherals EDC16 Owner's Guide

DIESEL INJECTION
Fault finding – Interpretation of faults13B
13B-71V3 MR-372-J84-13B250$360.mif
EDC16
PROGRAM No.: C1
Vdiag No.: 51
DF046
PRESENT
OR
STOREDBATTERY VOLTAGE
1.DEF : Excess voltage
2.DEF : Undervoltage
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present following a road test or after attempting to start the engine.
Special notes:
Computer operating voltage: 9 V < operating voltage < 16 V.
Battery voltage that is too low can cause the level 1 fault warning light to come on
thereby causing other faults to appear.
It is then not possible to start the engine.
Use bornier Ele. 1681 or Ele. 1590 for any operation on the injection computer
connectors.
1.DEF
NOTESNone
Check the charge circuits:
–Condition of the battery.
–Condition of the alternator (full fault finding procedure).
–Carry out the necessary repairs.
2.DEF
NOTESNone
With the ignition off, measure the voltage across the battery terminals.
If the voltage is less than 11.5 V, test the battery.
If the battery is faulty, replace the battery then test the charge circuit.
With the ignition on and the with the starter motor turning, measure the voltage between the battery terminals
If the voltage drops below 9.6 V, check the tightness and condition of the battery terminals.
Repair if necessary.
If the terminals are in good condition, test the battery.
If they are faulty, replace the battery.
If the starter is cranking the engine correctly, but the fault is still present,
–Check the continuity and absence of interference resistance of the following connections:
+ 12 V Supply relay track 5track M2 connector B of the engine management
computer
track 4 of Protection and Switching Unit
grey connectortrack G1 connector A of the engine management
computer
Battery earthtracks G4, H4, H1 injection computer connector A
Repair if necessary.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16_V51_DF046

DIESEL INJECTION
Fault finding – Interpretation of faults13B
13B-72V3 MR-372-J84-13B250$360.mif
EDC16
PROGRAM No.: C1
Vdiag No.: 51
DF047
PRESENT
OR
STOREDCOMPUTER SUPPLY VOLTAGE
1.DEF : Voltage outside permitted range of values
NOTESConditions for applying the fault finding procedure to stored faults:
The fault is declared present after several starting attempts, or with the engine running.
Special notes:
Computer operating voltage: 9 V < operating voltage < 16 V.
Battery voltage that is too low can cause the level 1 fault warning light to come on
thereby causing other faults to appear.
Use bornier Ele. 1681 or Ele. 1590 for any operation on the injection computer
connectors.
Check continuity and make sure there is no interference resistance on the following connection:
injection computer black 32-track connector A, track D1 track 1 UPC black connector
Repair if necessary.
Check fuse F5D (5A) located on the UPC.
Check the condition of the injection control unit supply relay (50A) located on the relay plate in the engine
connection unit under the Protection and Switching Unit (no false contacts, or oxidation on the relay mounting
clips).
Repair if necessary.
If the fault does not recur, start the engine and wait 1 min.
Carry out a road test and check the system faults.
If there are no faults, fault finding is complete.
If the fault is still present, contact the Techline.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16_V51_DF047

DIESEL INJECTION
Fault finding – Interpretation of faults13B
13B-75V3 MR-372-J84-13B250$360.mif
EDC16
PROGRAM No.: C1
Vdiag No.: 51
DF050
PRESENT
OR
STOREDBRAKE SWITCH CIRCUIT
1.DEF : Open circuit or short circuit
2.DEF : Inconsistent signal
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after the brake pedal is depressed, or during a road test.
Special notes:
If the fault is present, the cruise control/speed limiter is deactivated.
Use bornier Ele. 1681 or Ele. 1590 for any operation on the injection computer
connectors.
WARNING
This fault may appear if the wiring harness has been damaged.
Follow the procedure described in the Wiring Check in the Introduction.
This check enables the condition and the conformity of the engine wiring harness to be checked.
1.DEF
NOTESNone
Check the brake pedal switch connections.
Check the condition and adjustment of the brake pedal switch.
Repair if necessary.
Check the conformity of the brake light switch:
Brake pedal released:continuity between tracks 3 and 4
infinite resistance between tracks 1 and 2
Brake pedal depressed:infinite resistance between tracks 3 and 4
continuity between tracks 1 and 2.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16_V51_DF050

DIESEL INJECTION
Fault finding – Interpretation of faults13B
13B-77V3 MR-372-J84-13B250$360.mif
EDC16
PROGRAM No.: C1
Vdiag No.: 51
DF051
PRESENT
OR
STOREDCRUISE CONTROL/SPEED LIMITER FUNCTION
1.DEF : Inconsistency of the signal
2.DEF : Inconsistent vehicle speed
3.DEF : Steering wheel controls
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after the engine is started or following a road test.
Special notes:
The cruise control/speed limiter function is inhibited.
Use bornier Elé. 1681 or Elé. 1590 for any operation on the injection computer
connectors.
WARNING
This fault may appear if the wiring harness has been damaged.
Follow the procedure described in the Wiring Check in the Introduction.
This check enables the condition and the conformity of the engine wiring harness to be checked.
If the fault is declared present, refer to the section of the conformity check on the Cruise control/Speed limiter,
and to the interpretation of statuses:
ET042 Cruise control/speed limiter.
ET415 Deactivation of cruise control/speed limiter.
ET703: Cruise control/speed limiter buttons
Check that by pressing the buttons the statuses change and that, with the ignition switched on, all the values are
correct.
If the fault is still present, contact the Techline.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16_V51_DF051

DIESEL INJECTION
Fault finding – Interpretation of faults13B
13B-78V3 MR-372-J84-13B250$360.mif
EDC16
PROGRAM No.: C1
Vdiag No.: 51
DF053
PRESENT
OR
STORED
RAIL PRESSURE REGULATION FUNCTION
CC.1 : Short circuit to + 12 V
CC.0 : Short circuit to earth
CO : Open circuit
1.DEF : Internal electronic fault
2.DEF : Measured pressure too low
3.DEF : Measured pressure too high
4.DEF : Insufficient pressure
5.DEF : Pressure < minimum
6.DEF : Pressure > maximum
7.DEF : Extensive pump command
8.DEF : Above maximum threshold.
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after:
–the engine is started,
–a road test,
–an actuator command AC011 Rail pressure regulator.
Special notes:
If the fault is present:
–It is not possible to start the engine.
–engine stops if already started,
–if 3.DEF is present, the level 1 warning light is lit,
–if one of the other faults is present, the level 2 warning light comes on.
Use bornier Ele. 1681 or Ele. 1590 for any operation on the injection computer
connectors.
CC.1
NOTESNone
Check the rail pressure regulator connectors.
Check the injection computer connections.
Check the low-pressure circuit: run Test 2 Low-pressure circuit check.
Check the conformity of the fuel used by applying test 10 Diesel fuel conformity check.
Check the injector return flow, run test 8 Poor injector operation.
Check the operation of the overpressure valve if fitted to the vehicle, run test 11 Incorrect operation of the
overpressure valve.
Repair if necessary.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16_V51_DF053

DIESEL INJECTION
Fault finding – Interpretation of faults13B
13B-84V3 MR-372-J84-13B250$360.mif
EDC16
PROGRAM No.: C1
Vdiag No.: 51
DF054
PRESENT
OR
STORED
TURBOCHARGING SOLENOID VALVE CONTROL CIRCUIT
CC.1 : Short circuit to + 12 V
CC.0 : Short circuit to earth
CO : Open circuit
1.DEF : Internal electronic fault
2.DEF : Inconsistent signal
3.DEF : Below minimum threshold
4.DEF : Above maximum threshold
5.DEF : Permanent high signal
NOTESConditions for applying the fault finding procedure to stored faults:
The fault is declared present after:
–the engine is started,
–a road test,
–actuator command AC004 Turbocharging solenoid valve.
Special notes:
If the fault is present:
–turbocharging is no longer authorised,
–the EGR function is inhibited,
–the vehicle performance is reduced,
–the level 1 warning light is lit,
–If CC.0 is present, the OBD warning light will come on after three consecutive driving
cycles (starting + 5 seconds + switching off the ignition and waiting for 1 minute).
Use bornier Ele. 1681 or Ele. 1590 for any operation on the injection computer
connectors.
CC.1
4.DEF
5.DEF
NOTESNone
Check the turbocharging solenoid valve connections.
Check the injection computer connections.
Repair if necessary.
Measure the resistance of the turbocharging solenoid valve between tracks 1 and 2:
If the resistance displayed is not 15.4 ± 0.7 Ω at 20˚C, replace the turbocharger solenoid valve.
Check the continuity and insulation from the + 12 V feed of the following connection:
Injection computer grey 32-track connector C,
track E1Track 1 turbocharging solenoid valve
Repair if necessary.
If the fault is still present, replace the turbocharging solenoid valve.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16_V51_DF054

DIESEL INJECTION
Fault finding – Interpretation of faults13B
13B-87V3 MR-372-J84-13B250$360.mif
EDC16
PROGRAM No.: C1
Vdiag No.: 51
DF055
PRESENT
OR
STOREDTURBOCHARGING PRESSURE REGULATION CIRCUIT
1.DEF : Pressure too low
2.DEF : Pressure too high
NOTESConditions for applying the fault finding procedure to a stored fault:
The fault is declared present after the engine is started or following a road test.
Special notes:
If the fault is present:
–turbocharging is no longer authorised,
–the EGR function is inhibited,
–the level 1 warning light is lit.
Use bornier Ele. 1681 or Ele. 1590 for any operation on the injection computer
connectors.
1.DEF
NOTESNone
Check the turbocharger pressure sensor connections.
Check the connections of the turbocharging pressure relief solenoid valve.
Check the injection computer connections.
Repair if necessary.
Check the sealing of the high pressure air circuit:
–disconnected or pierced pipes,
–pressure sensor disconnected or poorly fitted (seal present),
–intercooler pierced (to check the intercooler: with the vehicle stationary, stabilise the engine speed between
3,500 and 4,000 rpm and check that there are no leaks).
Check the conformity of the turbocharger pressure signal and apply test 9 Air line at the turbocharger, then test
5 Turbocharger control solenoid valve check and test 6 Turbocharger.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16_V51_DF055

DIESEL INJECTION
Fault finding – Interpretation of faults13B
13B-88V3 MR-372-J84-13B250$360.mif
EDC16
PROGRAM No.: C1
Vdiag No.: 51
DF055
CONTINUED 1
Check that the turbocharger and the control circuit are working:
–With the engine stopped, make sure that the control rod is in the resting position.
–Start the engine and make sure that the control rod actuates to the upper stop.
(when the engine stops, the control rod should return to the rest position).
If the control rod does not move correctly, carry out the following checks:
1Check the control vacuum pressure:
–disconnect the solenoid valve inlet hose and connect it to a pressure gauge,
–start the engine and stabilise it at idle speed,
–If the vacuum does not reach 800 mbar ± 100: check the vacuum pressure circuit from the vacuum pump,
–stop the engine, reconnect the inlet hose and proceed to step 2.
2Solenoid valve control check:
–Disconnect the solenoid valve outlet hose,
–start the engine and stabilise it at idle speed,
–place your hand on the solenoid valve and block the outlet connection with your thumb,
–if there is no detectable vibration of the solenoid valve, check that the computer output is operating correctly (see
DF054 Turbocharging solenoid valve control circuit 1.DEF).
3Solenoid valve operation check:
–Attach the pressure gauge to the solenoid valve outlet union,
–start the engine and stabilise it at idle speed,
–if the vacuum pressure does not reach 800 mbar ± 100, replace the solenoid valve.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.

DIESEL INJECTION
Fault finding – Interpretation of faults13B
13B-89V3 MR-372-J84-13B250$360.mif
EDC16
PROGRAM No.: C1
Vdiag No.: 51
DF055
CONTINUED 2
2.DEF
NOTESPriority when dealing with a number of faults:
Deal with fault DF004 Turbocharger pressure sensor
circuit first if it is present or stored.
Check the turbocharging pressure sensor connections,
Check the connections of the turbocharging solenoid valve,
Check the injection computer connections.
Repair if necessary.
Check the conformity of the turbocharging pressure signal (refer to the interpretation of parameter PR041
Turbocharging pressure).
Make sure the turbocharging pressure relief solenoid valve is not jammed open:
–With the engine switched off, disconnect the inlet and outlet hoses from the solenoid valve.
–connect a vacuum pump to the inlet union and apply a vacuum pressure.
–if the vacuum pressure is not maintained: replace the solenoid valve.
Check that the turbocharger control rod has not seized:
–with the engine stopped, make sure the turbocharger control rod is in the rest position.
–apply a vacuum pressure of 800 mbar ± 100, to the hose connected to the turbocharger control diaphragm,
–if the diaphragm is affected by the vacuum, check the movement and setting of the turbocharger control rod (see
MR 364 (MEGANE II) and 370 (SCENIC II), Mechanical, 12B, Turbocharging).
If the control rod is seized, replace the turbocharger.
If the fault is still present, apply test 9 Air line at the turbocharger, then test 5 Turbocharger control solenoid
valve check and test 6 Turbocharger.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.

DIESEL INJECTION
Fault finding – Interpretation of faults13B
13B-93V3 MR-372-J84-13B250$405.mif
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.
EDC16
PROGRAM No.: C1
Vdiag No.: 51

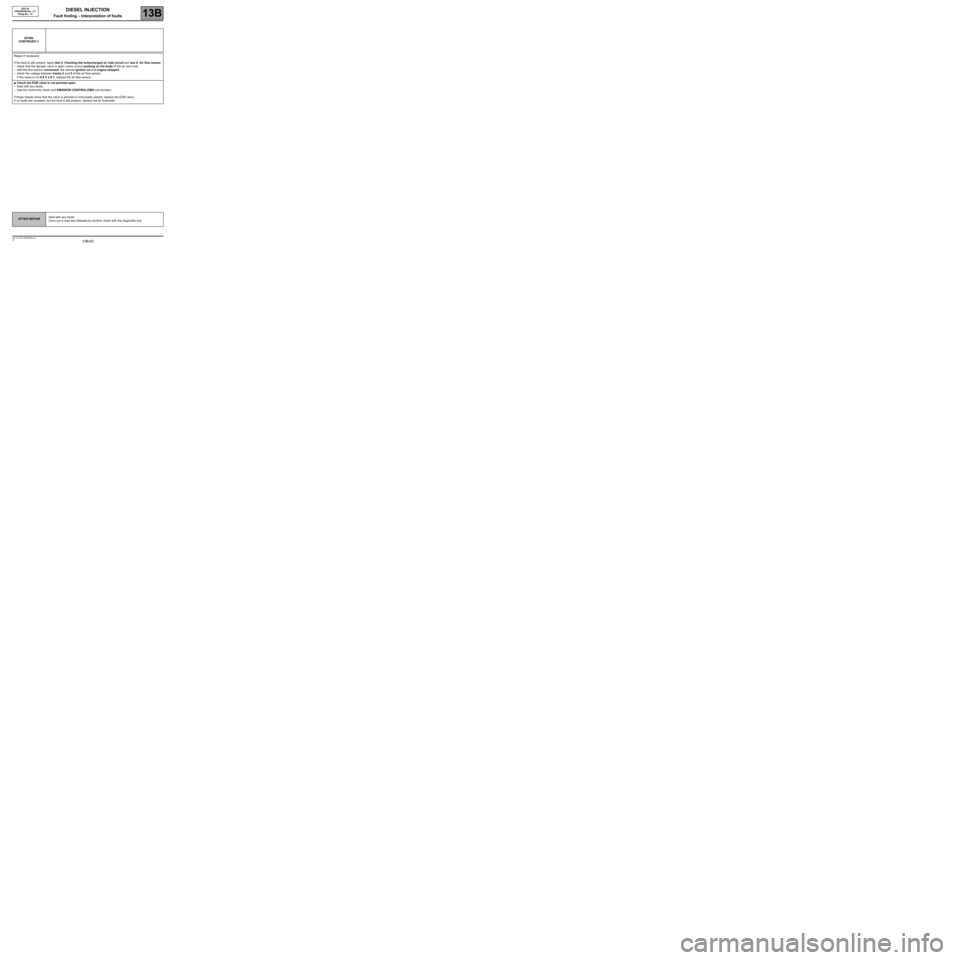

DF056
CONTINUED 3
Repair if necessary
If the fault is still present, apply test 3: Checking the turbocharged air inlet circuit and test 4: Air flow sensor,
–check that the damper valve is open (valve control pushing on the body of the air vent unit)
–with the flow sensor connected, the vehicle ignition on and engine stopped:
–check the voltage between tracks 2 and 5 of the air flow sensor:
If the value is not 0.6 V ± 0.1, replace the air flow sensor.
●Check the EGR valve is not jammed open:
–Deal with any faults.
–Use the conformity check and EMISSION CONTROL/OBD sub-function.
If these checks show that the valve is jammed or irrevocably seized, replace the EGR valve.
If no faults are revealed, but the fault is still present, replace the air flowmeter.
