13B-154
DIESEL INJECTION
Fault finding - Interpretation of statuses13B
V10 MR-372-J84-13B150$564.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4C
ET021
HIGH-SPEED FAN REQUEST
NOTESOnly perform the tests if the statuses do not correspond with the system programming
functions.
Note: Status ET021 High-speed engine fan assembly request and status ET015 High-speed engine fan 2
test change their status at the same time.
ACTIVE
The injection computer requests the activation of the high speed GMV when:
– the engine coolant temperature is above 99°C.
– the injection computer has system faults that could lead to the engine overheating.
When the high speed fan is supplied:
– status ET021 High-speed engine fan request changes to ACTIVE.
– status ET015 changes to RUNNING
In the event that the high-speed engine fan does not work, refer to the UPC fault finding note.
STOPPED
The high-speed fan assembly stops when:
– the engine coolant temperature is below 99°C;
– no fault which could cause engine overheating is present in the injection system.
IMPORTANT!WARNING
If the UPC does not detect the injection computer frames, the low speed engine
fan is supplied until the battery is completely discharged.
In the event that the low-speed engine fan assembly is defective, the high-speed
engine fan assembly will then be activated.
AFTER REPAIRCarry out a road test followed by another check with the diagnostic tool.
EDC16_V44_ET021/EDC16_V48_ET021/EDC16_V4C_ET021

13B-155
DIESEL INJECTION
Fault finding - Interpretation of statuses13B
V10 MR-372-J84-13B150$564.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4C
Note: Status ET022 Low-speed engine fan request and status ET014 Engine fan assembly check 1 change
their status at the same time.ET022
LOW-SPEED FAN REQUEST
NOTESOnly perform the tests if the statuses do not correspond with the system programming
functions.
ACTIVE
The injection computer requests the activation of the low speed GMV when:
– the engine coolant temperature is above 89°C,
– the injection computer has system faults that could lead to the engine overheating,
– the air conditioning is switched on by the driver.
When the high speed fan is supplied:
– status ET022 High-speed engine fan request changes to ACTIVE,
– status ET014 changes to RUNNING.
In the event that the low-speed engine fan does not work, refer to the UPC fault finding note.
STOPPED
The low-speed fan assembly stops when:
– the engine coolant temperature is below 89°C,
– no fault which could cause engine overheating is present in the injection system.
– the air conditioning is not switched on by the driver.
IMPORTANT!WARNING
If the UPC does not detect the injection computer frames, the low speed engine
fan is supplied until the battery is completely discharged.
In the event that the low-speed engine fan assembly is defective, the high-speed
engine fan assembly will then be activated.
AFTER REPAIRCarry out a road test followed by another check with the diagnostic tool.
EDC16_V44_ET022/EDC16_V48_ET022/EDC16_V4C_ET022

13B-156
DIESEL INJECTION
Fault finding - Interpretation of statuses13B
V10 MR-372-J84-13B150$564.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4C
ET038
ENGINE
STOPPEDStatus ET038 is stopped if the engine ignition is on but there has been no starter
operation.
STALLEDStatus ET038 is stalled when the engine has stalled. The vehicle is still under + after
ignition feed.
RUNNINGStatus ET038 is running if the engine has started.
STARTINGStatus ET038 is starter if the engine is in starting phase.
AFTER REPAIRCarry out a road test followed by another check with the diagnostic tool.
EDC16_V44_ET038/EDC16_V48_ET038/EDC16_V4C_ET038

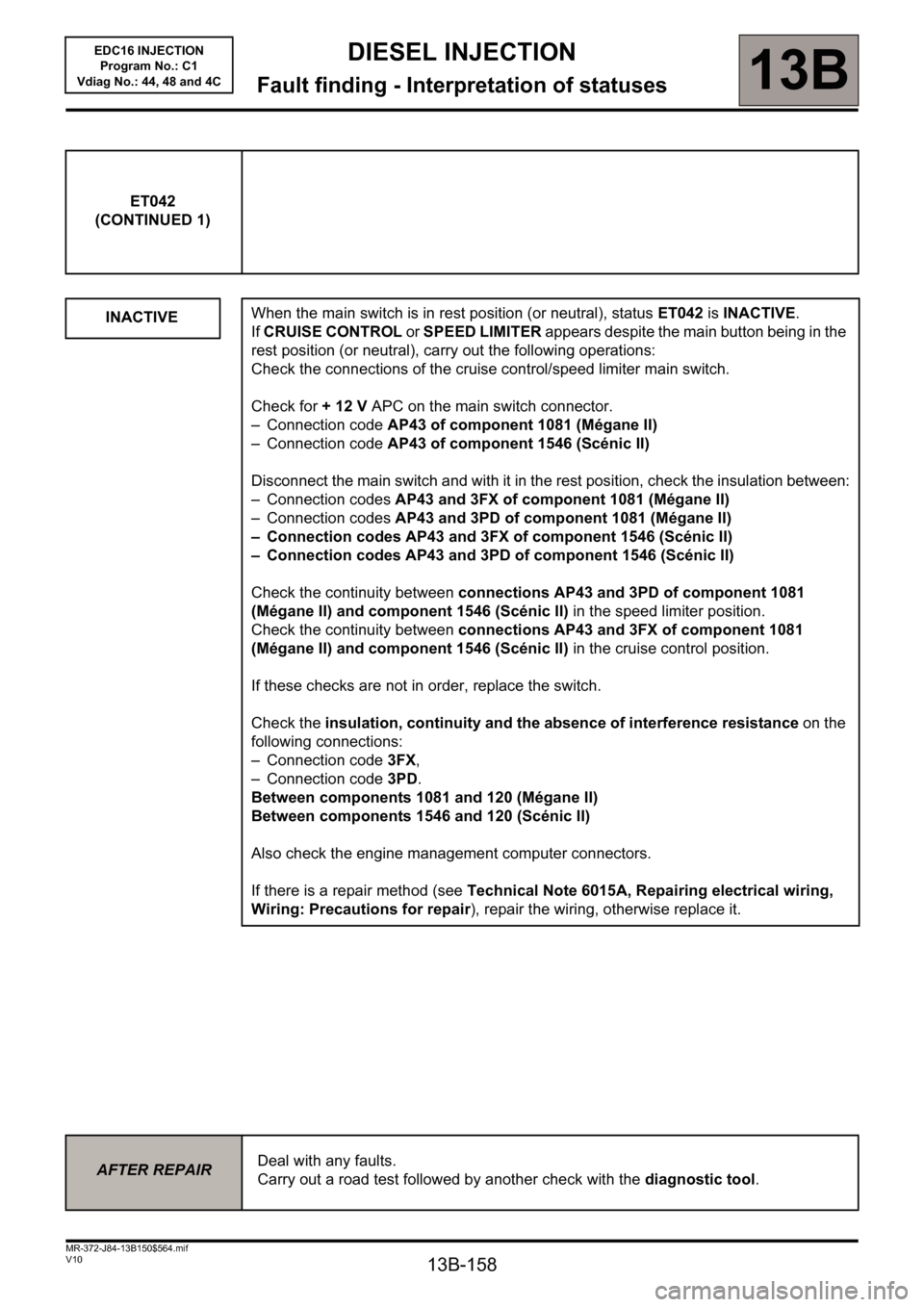

13B-158
DIESEL INJECTION
Fault finding - Interpretation of statuses13B
V10 MR-372-J84-13B150$564.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4C
ET042
(CONTINUED 1)
INACTIVE
When the main switch is in rest position (or neutral), status ET042 is INACTIVE.
If CRUISE CONTROL or SPEED LIMITER appears despite the main button being in the
rest position (or neutral), carry out the following operations:
Check the connections of the cruise control/speed limiter main switch.
Check for + 12 V APC on the main switch connector.
– Connection code AP43 of component 1081 (Mégane II)
– Connection code AP43 of component 1546 (Scénic II)
Disconnect the main switch and with it in the rest position, check the insulation between:
– Connection codes AP43 and 3FX of component 1081 (Mégane II)
– Connection codes AP43 and 3PD of component 1081 (Mégane II)
– Connection codes AP43 and 3FX of component 1546 (Scénic II)
– Connection codes AP43 and 3PD of component 1546 (Scénic II)
Check the continuity between connections AP43 and 3PD of component 1081
(Mégane II) and component 1546 (Scénic II) in the speed limiter position.
Check the continuity between connections AP43 and 3FX of component 1081
(Mégane II) and component 1546 (Scénic II) in the cruise control position.
If these checks are not in order, replace the switch.
Check the insulation, continuity and the absence of interference resistance on the
following connections:
– Connection code 3FX,
– Connection code3PD.
Between components 1081 and 120 (Mégane II)
Between components 1546 and 120 (Scénic II)
Also check the engine management computer connectors.
If there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.

13B-159
DIESEL INJECTION
Fault finding - Interpretation of statuses13B
V10 MR-372-J84-13B150$564.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4C
ET042
(CONTINUED 2)
SPEED
LIMITER
When the driver presses the main switch in the speed limiter position, status ET042
becomes SPEED LIMITER.
If CRUISE CONTROL or INACTIVE appears although the switch was depressed in the
speed limiter position, carry out the following operations:
Check the connections of the cruise control/speed limiter main switch.
Check for + 12 V after ignition on the main switch connector.
– Connection code AP43 of component 1081 (Mégane II).
– Connection code AP43 of component 1546 (Scénic II).
Disconnect the main switch and with it in the rest position, check the insulation between:
– Connection codes AP43 and 3FX of component 1081 (Mégane II).
– Connection codes AP43 and 3PD of component 1081 (Mégane II).
– Connection codes AP43 and 3FX of component 1546 (Scénic II).
– Connection codes AP43 and 3PD of component 1546 (Scénic II).
– Check the continuity between connections AP43 and 3PD of component 1081
(Mégane II) and component 1546 (Scénic II) in the speed limiter position.
– Check the continuity between connections AP43 and 3FX of component 1081
(Mégane II) and component 1546 (Scénic II) in the cruise control position.
If these checks show incorrect values, replace the main switch.
Check the insulation, continuity and the absence of interference resistance on the
following connections:
– Connection code 3FX,
– Connection code 3PD,
between components 1081 and 120 (Mégane II).
between components 1546 and 120 (Scénic II).
Also check the engine management computer connectors.
If there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
AFTER REPAIRDeal with any faults.
Carry out a road test followed by another check with the diagnostic tool.

13B-160
DIESEL INJECTION
Fault finding - Interpretation of statuses13B
V10 MR-372-J84-13B150$564.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4C
ET042
(CONTINUED 3)
CRUISE
CONTROL
When the driver presses the main cruise control button, status ET042 becomes CRUISE
CONTROL.
If SPEED LIMITER or INACTIVE appears although the driver pressed the switch in the
cruise control position, carry out the following operations:
Check the connections of the cruise control/speed limiter main switch.
Check for + 12 V APC on the main switch connector.
– Connection code AP43 of component 1081 (Mégane II).
– Connection code AP43 of component 1546 (Scénic II).
Disconnect the switch and when it is in the rest position, check the insulation between:
– Connection codes AP43 and 3FX of component 1081 (Mégane II).
– Connection codes AP43 and 3PD of component 1081 (Mégane II).
– Connection codes AP43 and 3FX of component 1546 (Scénic II).
– Connection codes AP43 and 3PD of component 1546 (Scénic II).
Check the continuity between connections AP43 and 3PD of component 1081
(Mégane II) or component 1546 (Scénic II) in the speed limiter position.
Check the continuity between connections AP43 and 3FX of component 1081
(Mégane II) or component 1546 (Scénic II) in the cruise control position.
If these checks show incorrect values, replace the main switch.
Check the insulation, continuity, and the absence of interference resistance on the
following connections:
– Connection code 3FX,
– Connection code3PD.
Between components 1081 and 120 (Mégane II).
Between components 1546 and 120 (Scénic II).
Also check the engine management computer connectors.
If there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition and carry out a road test followed by a test with the diagnostic
tool.

DIESEL INJECTION
Fault finding - Interpretation of statuses13B
13B-161V10 MR-372-J84-13B150$564.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4C
ET076
STARTING
NOTESOnly perform the tests if the statuses do not correspond with the system programming
functions.
AUTHORISED
PROHIBITED
Starting the vehicle is authorised when the UCH authorises starting.
Status ET076 changes to AUTHORISED if the vehicle cards are recognised and the
engine immobiliser is inactive.
If the card is not recognised by the UCH, starting the vehicle is prohibited.
Status ET076 is PROHIBITED and the vehicle cannot be started.
Run fault finding on the UCH (see 87B, UCH).
AFTER REPAIRCarry out a road test followed by another check with the diagnostic tool.
EDC16_V44_ET076/EDC16_V48_ET076/EDC16_V4C_ET076

DIESEL INJECTION
Fault finding - Interpretation of statuses13B
13B-162V10 MR-372-J84-13B150$564.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4C
ET077
IMPACT DETECTED
NOTESOnly perform the tests if the statuses do not correspond with the system programming
functions.
YES
NO
If the vehicle has been involved in an accident, the injection computer receives the
impact signal via the multiplex network and may switch off the ignition. Status ET077 is
at YES.
Switch off the ignition for ten seconds, then switch it back on to enable the engine to start.
Carry out a multiplex network test and deal with any faults.
Clear the injection computer faults, even if no fault is present.
In normal operating conditions, status ET077 is NO when the computer has received no
impact signal.
AFTER REPAIRCarry out a road test followed by another check with the diagnostic tool.
EDC16_V44_ET077/EDC16_V48_ET077/EDC16_V4C_ET077

DIESEL INJECTION
Fault finding - Interpretation of statuses13B
13B-164V10 MR-372-J84-13B150$564.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4C
ET104
INJECTOR CODE USE
NOTESOnly perform the tests if the statuses do not correspond with the system programming
functions.
YES
NO
Status ET104 is YES if the IMA option (individual injector correction) is activated in
the injection computer.
All the injectors have IMA codes etched on the bakelite body, but not all computers
use them.
In the case of a computer configured with the IMA option, the injector codes must be
entered into the injection computer in the following scenarios:
– when one or more injectors is replaced,
– when the injection computer is replaced,
– when the injection computer is reprogrammed.
If the injector codes are not programmed after these operations, fault DF276
Injector code programming will be present, and the engine will operate in defect
mode.
Run command SC002 Enter injector codes applying the procedure described in
the interpretation of this command.
Status ET104 is NO if the computer is not configured to interpret the IMA codes
(individual injector correction).
WARNING
A computer without the IMA option can be replaced by a computer with this option.
In this scenario status ET104 changes to YES after replacing the computer.
Fault DF276 Injector code programming will be present and the engine will operate
in defect mode.
In this case, run command SC002 Enter injector codes, applying the procedure
described in the interpretation of this command.
AFTER REPAIRCarry out a road test followed by another check with the diagnostic tool.
EDC16_V44_ET104/EDC16_V48_ET104/EDC16_V4C_ET104

13B-165
DIESEL INJECTION
Fault finding - Interpretation of statuses13B
V10 MR-372-J84-13B150$564.mif
EDC16 INJECTION
Program No.: C1
Vdiag No.: 44, 48 and 4C
ET104
CONTINUED
FAULTYStatus ET104 is FAULTY if the computer does not have IMA codes stored.
Fault DF276 Injector code programming is present and the engine operates in defect
mode.
Run command SC002 Enter injector codes applying the procedure described in the
interpretation of this command.
If at the end of the procedure status ET104 remains FAULTY, contact the Techline.
AFTER REPAIRCarry out a road test followed by another check with the diagnostic tool.
