13B-200
MR-372-J84-13B050$702.mif
V17
DIESEL INJECTION
Fault finding – Interpretation of parameters
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B
PR038
RAIL PRESSURE
PARAMETER
DEFINITIONThis parameter indicates the fuel pressure in the rail in bars.
NOTESThere must be no present or stored faults.
Perform this fault finding procedure:
– after an inconsistency appears on the Parameter screen,
– following the activation of command AC003 Fuel pressure solenoid valve,
– following a customer complaint (starting problems, poor performance, stalling, etc.).
Use CLIO III, MODUS, MEGANE II ph2, SCENIC II ph2 and KANGOO II Wiring
Diagrams Technical Notes.
Conformity check with the engine stopped and the ignition on, or the engine running and the engine
coolant temperature > 80°C
Check the insulation, continuity and the absence of interference resistance on the following connections:
–3LX between components 1032 and 120,
–3LY between components 1032 and 120,
–3LZ between components 1032 and 120.
If the connection(s) are faulty and there is a repair method (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If all these connections are correct, check for the fuel pressure sensor supply:
+ 5 V on connection code 3LX between components 1032 and 120,
Earth on connection code 3LZ between components 1032 and 120.
If the connection(s) are faulty and there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Check the low and high pressure diesel circuit sealing (visual checks, odours): on pump body, pressure release
valve, pipes, rail and injector unions, injector wells, etc.
If all the above checks are correct:
With the vehicle ignition on, and engine stopped for over 1 minute:
Display PR038; if the value is lower than 30 bar, the sensor is correct.
Otherwise replace the rail pressure sensor (see MR 392, 385, 364, 370
and 417 Mechanical, 13B, Diesel
injection, Rail pressure sensor: Removal - Refitting).
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
SID301_V44_PR038/SID304_V45_PR038/SID301_V48_PR038/SID304_V49_PR038/SID304_V4D_PR038/SID301_V4C_PR038

13B-201
MR-372-J84-13B050$702.mif
V17
DIESEL INJECTION
Fault finding – Interpretation of parameters
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B
PR040
LINEARISED RAIL PRESSURE
PARAMETER
DEFINITIONThis parameter indicates the linearised rail pressure in bar. The sensor is integrated in
the computer.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
Conformity check with engine stopped and ignition on.
PR040 = 7 bar
In the event of a fault, consult the interpretation of fault DF007 Rail pressure sensor circuit.
Conformity check with the engine running and engine coolant temperature > 80°C
PR040 = 230 bar
In the event of a fault, consult the interpretation of fault DF007 Rail pressure sensor circuit.
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
SID301_V44_PR040/SID304_V45_PR040/SID301_V48_PR040/SID304_V49_PR040/SID304_V4D_PR040/SID301_V4C_PR040

13B-202
MR-372-J84-13B050$702.mif
V17
DIESEL INJECTION
Fault finding – Interpretation of parameters
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B
PR041
TURBOCHARGING PRESSURE
PARAMETER
DEFINITIONThis parameter indicates the turbocharging pressure in mbar.
NOTESSpecial notes:
Only apply the checks if the parameter is inconsistent.
Use CLIO III, MODUS, MEGANE II ph2, SCENIC II ph2 and KANGOO II Wiring
diagrams Technical Note.
Conformity check with the engine stopped and the ignition on, or the engine running and the engine
coolant temperature > 80°C
With the vehicle ignition on and engine stopped:
– Remove the turbocharger pressure sensor.
– With the sensor connected to the harness, read the value of PR041 from the Parameter screen:
– If the value is not very close to PR035 Atmospheric pressure, maximum pressure difference between
PR035and PR041 with the engine stopped = ± 50 mbar:
Check the insulation and absence of interference resistance on the signal line and the turbocharging
pressure sensor power supply lines.
If the lines are correct, replace the turbocharging pressure sensor.
– Connect a vacuum pump or pressure pump to the turbocharger pressure sensor.
– Apply a pressure of between 0.1 and 1.3 bar (maximum pressure to be applied: 1.3 bar).
– Compare the pressure value displayed in the Parameter screen with that given by the vacuum pump:
If the difference* = ± 0.1 bar, replace the turbocharging pressure sensor.
If there is no discrepancy, the turbocharging pressure sensor is correct.
*Note:
The diagnostic tool displays the absolute pressure, the pressure gauge for the vacuum pump displays
therelative pressure: the normal difference between these two values is equal to the atmospheric pressure,
which is the value of PR035.
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
SID301_V44_PR041/SID304_V45_PR041/SID301_V48_PR041/SID304_V49_PR041/SID304_V4D_PR041/SID301_V4C_PR041

13B-203
MR-372-J84-13B050$702.mif
V17
DIESEL INJECTION
Fault finding – Interpretation of parameters
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B
PR051
EGR VALVE POSITION FEEDBACK
PARAMETER
DEFINITIONThis parameter indicates the EGR valve opening ratio.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
There must be no present or stored faults.
Perform this fault finding procedure:
– after finding an inconsistency in the parameter,
– after a customer complaint (loss of power, smoke etc.).
Use CLIO III, MODUS, MEGANE II ph2, SCENIC II ph2 and KANGOO II Wiring
Diagrams Technical Notes.
Conformity check with the engine stopped and the ignition on, or the engine running and the engine
coolant temperature > 80°C
This parameter indicates the EGR valve opening ratio.
In the event of a fault, see the interpretation of faults DF209 EGR valve position sensor circuit and DF647 EGR
valve position regulation.
Sensor electrical conformity
Check for continuity and absence of interference resistance of the following connections:
– connection code 3JM (or 3GD for Kangoo II),
– connection code3EL,
– connection code3GC,
between components 120 and 1460 or 169.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact the Techline.
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
SID301_V44_PR051/SID304_V45_PR051/SID301_V48_PR051/SID304_V49_PR051/SID304_V4D_PR051/SID301_V4C_PR051

13B-204
MR-372-J84-13B050$702.mif
V17
DIESEL INJECTION
Fault finding – Interpretation of parameters
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B
PR055
ENGINE SPEED
PARAMETER
DEFINITIONThis parameter indicates the engine's rotational speed in rpm.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
Conformity check with engine stopped and ignition on.
With the ignition on the value is 0 rpm.
In the event of a fault, refer to the interpretation of faults DF195 Camshaft sensor/engine speed consistency,
DF097 Camshaft sensor circuit and DF005 Engine speed sensor circuit.
Conformity check with the engine running and engine coolant temperature > 80°C
With the engine idling, the value is approximately 800 rpm.
In the event of a fault, refer to the interpretation of faults DF195 Camshaft sensor/engine speed consistency,
DF097 Camshaft sensor circuit and DF005 Engine speed sensor circuit.
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
SID301_V44_PR055/SID304_V45_PR055/SID301_V48_PR055/SID304_V49_PR055/SID304_V4D_PR055/SID301_V4C_PR055

13B-205
MR-372-J84-13B050$702.mif
V17
DIESEL INJECTION
Fault finding – Interpretation of parameters
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B

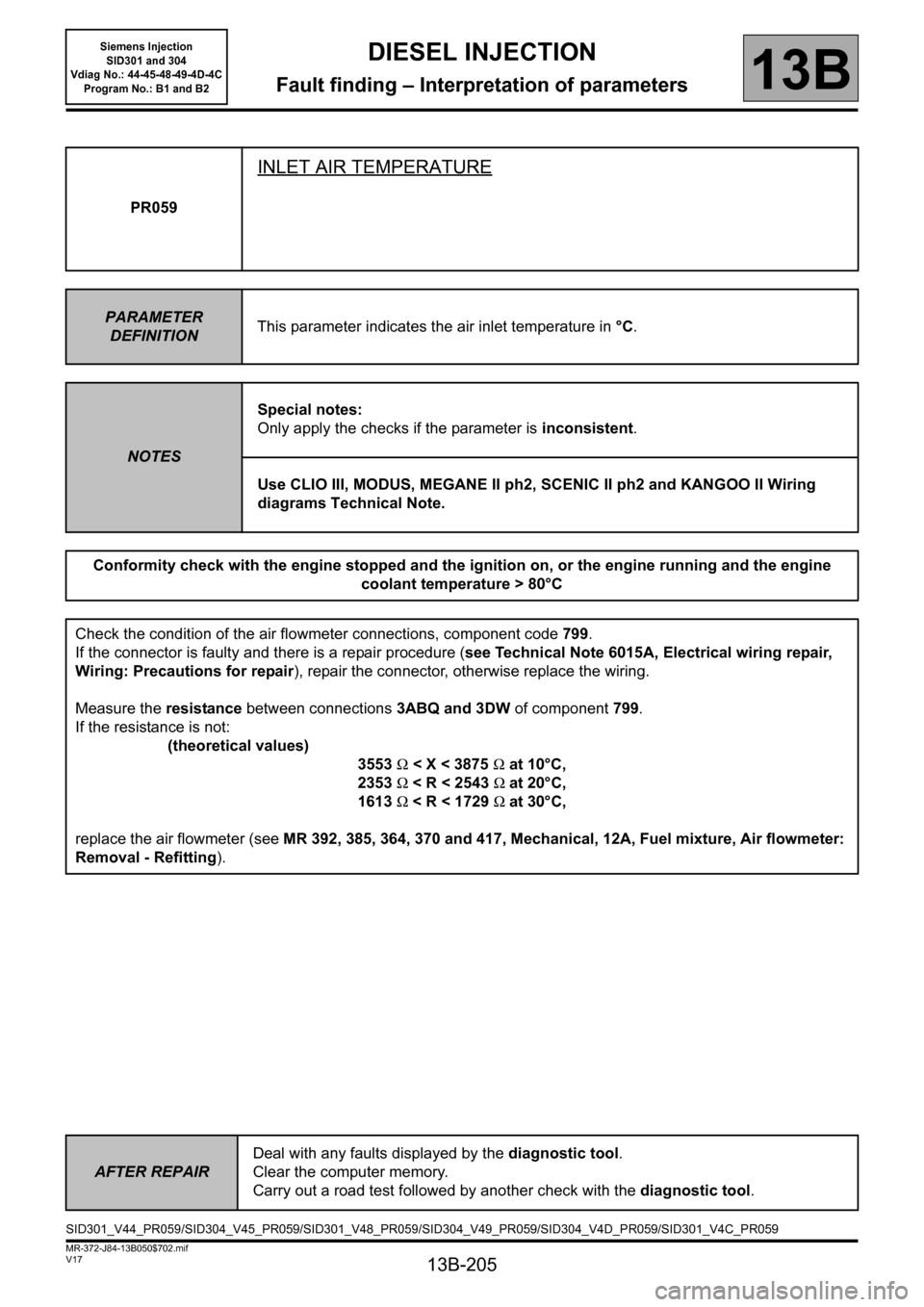

PR059
INLET AIR TEMPERATURE
PARAMETER
DEFINITIONThis parameter indicates the air inlet temperature in °C.
NOTESSpecial notes:
Only apply the checks if the parameter is inconsistent.
Use CLIO III, MODUS, MEGANE II ph2, SCENIC II ph2 and KANGOO II Wiring
diagrams Technical Note.
Conformity check with the engine stopped and the ignition on, or the engine running and the engine
coolant temperature > 80°C
Check the condition of the air flowmeter connections, component code 799.
If the connector is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Measure the resistance between connections 3ABQ and 3DW of component 799.
If the resistance is not:
(theoretical values)
3553 Ω < X < 3875 Ω at 10°C,
2353 Ω < R < 2543 Ω at 20°C,
1613 Ω < R < 1729 Ω at 30°C,
replace the air flowmeter (see MR 392, 385, 364, 370 and 417, Mechanical, 12A, Fuel mixture, Air flowmeter:
Removal - Refitting).
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
SID301_V44_PR059/SID304_V45_PR059/SID301_V48_PR059/SID304_V49_PR059/SID304_V4D_PR059/SID301_V4C_PR059

13B-206
MR-372-J84-13B050$702.mif
V17
DIESEL INJECTION
Fault finding – Interpretation of parameters
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B

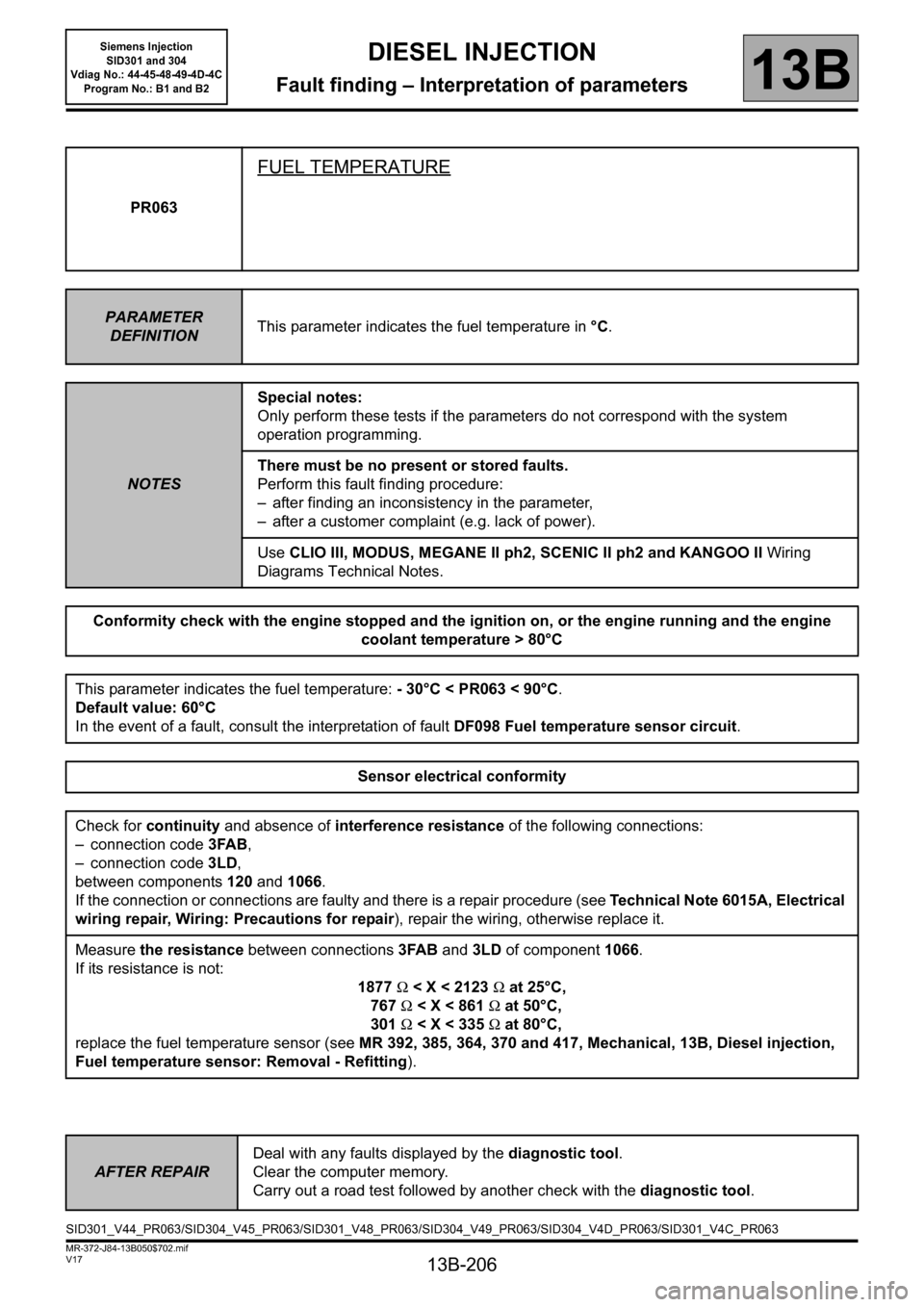

PR063
FUEL TEMPERATURE
PARAMETER
DEFINITIONThis parameter indicates the fuel temperature in °C.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
There must be no present or stored faults.
Perform this fault finding procedure:
– after finding an inconsistency in the parameter,
– after a customer complaint (e.g. lack of power).
Use CLIO III, MODUS, MEGANE II ph2, SCENIC II ph2 and KANGOO II Wiring
Diagrams Technical Notes.
Conformity check with the engine stopped and the ignition on, or the engine running and the engine
coolant temperature > 80°C
This parameter indicates the fuel temperature: - 30°C < PR063 < 90°C.
Default value: 60°C
In the event of a fault, consult the interpretation of fault DF098 Fuel temperature sensor circuit.
Sensor electrical conformity
Check for continuity and absence of interference resistance of the following connections:
– connection code 3FAB,
– connection code3LD,
between components 120 and 1066.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Measure the resistance between connections3FAB and 3LD of component1066.
If its resistance is not:
1877 Ω < X < 2123 Ω at 25°C,
767 Ω < X < 861 Ω at 50°C,
301 Ω < X < 335 Ω at 80°C,
replace the fuel temperature sensor (see MR 392, 385, 364, 370 and 417, Mechanical, 13B, Diesel injection,
Fuel temperature sensor: Removal - Refitting).
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
SID301_V44_PR063/SID304_V45_PR063/SID301_V48_PR063/SID304_V49_PR063/SID304_V4D_PR063/SID301_V4C_PR063

13B-207
MR-372-J84-13B050$702.mif
V17
DIESEL INJECTION
Fault finding – Interpretation of parameters
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B
PR064
COOLANT TEMPERATURE
PARAMETER
DEFINITIONThis parameter indicates the engine coolant temperature in °C.
NOTESSpecial notes:
Only apply the checks if the parameter is inconsistent.
Use CLIO III, MODUS, MEGANE II ph2, SCENIC II ph2 and KANGOO II Wiring
diagrams Technical Note.
Conformity check with the engine stopped and the ignition on, or the engine running and the engine
coolant temperature > 80°C
Check the condition of the coolant temperature sensor connections.
If the connector is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Measure the resistance between connections 3C and 3JK of component 244.
If the resistance of the coolant temperature sensor is not:
(theoretical values)
2140 Ω < X < 2364 Ω at 25°C,
771 Ω < X < 849 Ω at 50°C,
275 Ω < X < 291 Ω at 80°C,
replace the coolant temperature sensor (see MR 392, 385, 364, 370
and 417, Mechanical, 19A, Cooling,
Coolant temperature sensor: Removal - Refitting).
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
SID301_V44_PR064/SID304_V45_PR064/SID301_V48_PR064/SID304_V49_PR064/SID304_V4D_PR064/SID301_V4C_PR064

13B-208
MR-372-J84-13B050$702.mif
V17
DIESEL INJECTION
Fault finding – Interpretation of parameters
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B
PR071
COMPUTER SUPPLY VOLTAGE
PARAMETER
DEFINITIONThis parameter indicates the computer supply voltage in volts.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
Conformity check with the engine stopped and the ignition on, or the engine running and the engine
coolant temperature > 80°C
The voltage should be between:
9V In the event of a fault, run fault finding on the charging circuit (see Technical Note 6014A, Checking
the charging circuit or 87G, Engine compartment connection unit) and consult the interpretation of fault
DF047 Computer supply voltage.
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
SID301_V44_PR071/SID304_V45_PR071/SID301_V48_PR071/SID304_V49_PR071/SID304_V4D_PR071/SID301_V4C_PR071

13B-209
MR-372-J84-13B050$702.mif
V17
DIESEL INJECTION
Fault finding – Interpretation of parameters
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B
PR076
REFRIGERANT SENSOR VOLTAGE
PARAMETER
DEFINITIONThis parameter indicates the refrigerant fluid sensor voltage in volts.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
Conformity check with the engine stopped and the ignition on, or the engine running and the engine
coolant temperature > 80°C
0 V ≤ PR076 ≥ 5 V
Carry out fault finding on the climate control computer (see 62B, Climate control).
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
SID301_V44_PR076/SID304_V45_PR076/SID301_V48_PR076/SID304_V49_PR076/SID304_V4D_PR076/SID301_V4C_PR076
