RENAULT TWINGO 2012 2.G Service Manual

JauneNoirNoir texte
1.35
ENG_UD24497_2
Sécurité enfants : installation du siège enfant (X44 - Renault\
)
ENG_NU_952-4_X44_Renault_1
X = Seat not suitable for fitting child seats.
U = Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted.
IUF/IL = On equipped vehicles, seat which allows an approved “Universal”/“semi-universal” or “vehicle specific” child seat to be
attached using the ISOFIX system; check that it can be fitted.
(2) Before fitting a rear-facing child seat: raise the seat to the maximum and position it as far back as possible, tilting the seatback
slightly (approximately 25°).
(3) It is recommended to position the rear seat as far back as possible ensuring, if required, that the floor support of the child seat
is resting on the floor in accordance with the child seat instructions.
(4) A carrycot can be installed across the vehicle and will take up two seats. Position the child with his or her feet nearest the door.
(5) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat or seats in front as
far as they will go, although without allowing them to come into contact\
with the child seat.
(6) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the
height of the headrest or remove it if necessary; do not push the seat in front of the child more than halfway back on its runners
and do not recline the seatback more than 25°.
ChILD sAFETY : Fitting a child seat (4/4)

1.36
ENG_UD29224_6
sécurité enfants : désactivation/activation airbag (X44 - Rena\
ult)
ENG_NU_952-4_X44_Renault_1
Jaune NoirNoir texte
Deactivating/activating the front passenger airbag
Deactivating the front
passenger airbags
(on equipped vehicles)
In order to fit a child seat to the front
passenger seat when this is allowed,
you must deactivate the front passen-
ger seat additional restraint devices
(side airbags (depending on vehicle),
front airbags, etc.). To deactivate the restraint devices
supplementary to the front passen
-
ger seat belt: switch off the ignition,
press and turn lock 1 to the OFF posi-
tion. The airbag is deactivated.
With the ignition on, it is essential to
check that warning light 2 is lit on the
instrument panel.
This warning light remains lit to con-
firm that you can fit a child seat, as
the passenger air bag has been de -
activated.
1
ChILD sAFETY : deactivating/activating the front passenger airbag (1/3)
2
The passenger air bag must
only be deactivated or acti-
vated with the ignition off.
If it is interfered with when
the vehicle is being driven, indicator
lights
å and © will come
on.
Switch the ignition off then on again
to reset the air bag in accordance
with the lock.

JauneNoirNoir texte
1.37
ENG_UD29224_6
sécurité enfants : désactivation/activation airbag (X44 - Rena\
ult)
ENG_NU_952-4_X44_Renault_1
ChILD sAFETY : deactivating/activating the front passenger airbag (2/3)
DANGER
S i n c e f r o n t p a s s e n g e r
airbag triggering and the
position of a rear-facing
child seat are incompatible, NEVER
use a restraining device for rear -
facing children on a seat with an
ACTIVATED AIRBAG in front of it.
This provides a risk of DEATh or
sERIOUs INJURY to the ChILD.

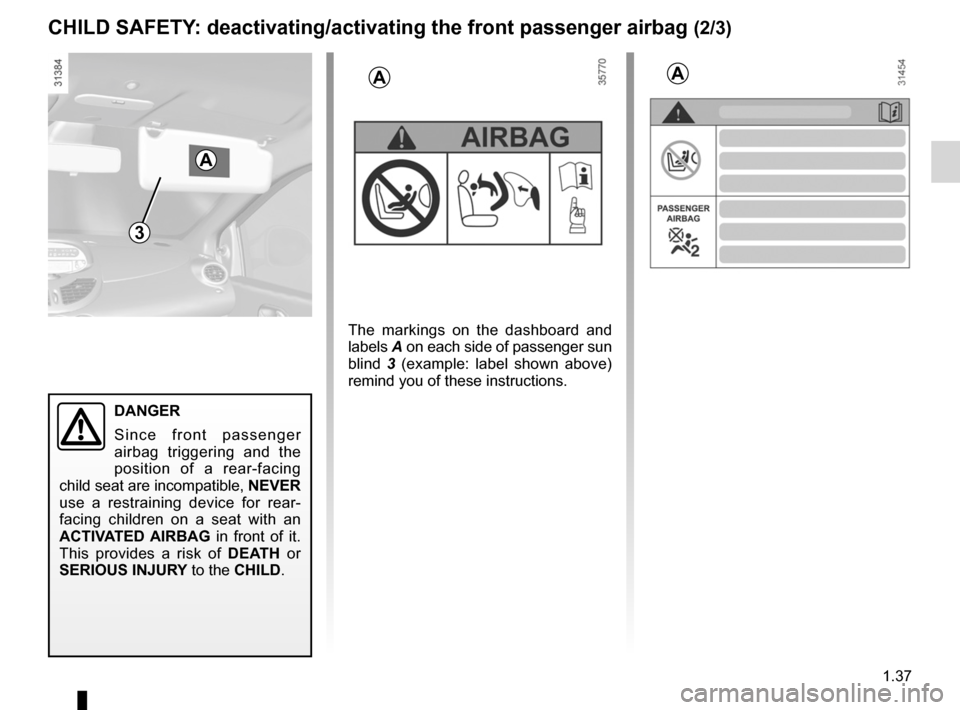

The markings on the dashboard and
labels A on each side of passenger sun
blind 3 (example: label shown above)
remind you of these instructions.
3
AA
A

1.38
ENG_UD29224_6
sécurité enfants : désactivation/activation airbag (X44 - Rena\
ult)
ENG_NU_952-4_X44_Renault_1
Activating the front
passenger air bags
You should reactivate the air bag as
soon as you remove the child seat from
the front passenger seat to ensure the
protection of the front passenger in the
event of an impact.
To reactivate the restraint devices
supplementary to the front passen -
ger seat belt: switch off the ignition,
press and turn lock 1 to the ON posi -
tion.
With the ignition on, check that the
warning light 2 goes out.
The front passenger seat belt additional
restraint systems are activated.
Operating faults
If the front passenger air bag activa -
tion/deactivation system is faulty, child
seats must NOT be fitted to the front
seat.
Allowing any other passenger to sit in
that seat is not recommended.
Contact your approved dealer as soon
as possible.
The passenger air bag must
only be deactivated or acti-
vated with the ignition off.
If it is interfered with when
the vehicle is being driven, indicator
lights
å and © will come
on.
Switch the ignition off then on again
to reset the air bag in accordance
with the lock.
2
ChILD sAFETY : deactivating/activating the front passenger airbag (3/3)
1

audible and visual signals......................................(current page)
hazard warning lights signal .................................. (current page)
lights: direction indicators ........................................... (current page)
lights: hazard warning ................................................ (current page)
hazard warning lights signal .................................. (current page)
1.39
ENG_UD24710_3
Avertisseurs sonores et lumineux (X44 - Renault)
ENG_NU_952-4_X44_Renault_1
Audible and visual signals
AUDIBLE AND VIsUAL sIGNALs
horn
Press the end of the stalk 1.
headlight flasher
Pull stalk 1 towards you to flash the
headlights.
éhazard warning lights
Press switch 2.
This switch activates all four direction
indicators and the side indicator lights
simultaneously.
Only use this function to warn other
road users if:
– you have to stop in an area where
stopping is prohibited or unexpected;
– you are obliged to drive under spe -
cial conditions. Depending on the vehicle, the hazard
warning lights may come on automati
-
cally under deliberate heavy decelera -
tion.
In this case, the hazard warning lights
may be switched off by pressing
switch 2 once.
Direction indicators
Move stalk 1 parallel to the steering
wheel and in the direction you are going
to turn it.
When driving on the motorway, the
steering wheel is not often turned
enough to return the stalk automatically
to 0 . There is an intermediate position
in which the stalk may be held when
changing lanes.
When the stalk is released, it automati-
cally returns to 0.
0
1
2

1.40
ENG_UD24711_5
Poste de conduite direction à gauche (X44 - Renault)
ENG_NU_952-4_X44_Renault_1
Jaune NoirNoir texte
Driving position
DRIVING pOsITION, LEFT-hAND DRIVE (1/2)
321
28
456789101112131415
2726252419181716
23
22
2120

JauneNoirNoir texte
1.41
ENG_UD24711_5
Poste de conduite direction à gauche (X44 - Renault)
ENG_NU_952-4_X44_Renault_1
DRIVING pOsITION, LEFT-hAND DRIVE (2/2)
1 Side window demister outlet.
2 Side air vent.
3 Stalk:
– direction indicator lights;
– exterior lights;
– front fog lights;
– rear fog lights;
– horn.
4 Driver ’s air bag location, cruise
control/speed limiter controls.
5 Rev counter.
6 Storage compartments.
7 Radio remote control.
8 – Windscreen and rear screen
wiper/washer stalk;
– Instrument panel information re-
adout control.
9 Centre air vents.
10 Instrument panel.
11 Display:
– clock and temperature;
– radio, clock and temperature or
storage compartment.
12 Windscreen demister outlet.
13 Passenger air bag location.
14 Side window demister.
15 Side air vent.
16 Glove box.
17 Hazard warning light switch and
central door locking switch.
18 Heating and ventilation controls.
19 Location for radio or storage com-
partment.
20 Accessories socket or cigar lighter
and ashtray.
21 Handbrake.
22 Gear lever.
23 Cup holder.
24 Ignition switch.
25 Control for adjusting steering
wheel height.
26 Fuse box.
27 Controls for:
– electric beam height adjust -
ment;
– lighting dimmer for control in -
struments;
– cruise control and speed limiter.
28 Bonnet release control.
The equipment fitted, described below, DEpENDs ON ThE VERsION AND COUNTRY.

1.42
ENG_UD24749_3
Poste de conduite direction à droite (X44 - Renault)
ENG_NU_952-4_X44_Renault_1
Jaune NoirNoir texte
DRIVING pOsITION, RIGhT-hAND DRIVE (1/2)
2
1516171819
20
21
22
23
26272425
345678910111213141

JauneNoirNoir texte
1.43
ENG_UD24749_3
Poste de conduite direction à droite (X44 - Renault)
ENG_NU_952-4_X44_Renault_1
DRIVING pOsITION, RIGhT-hAND DRIVE (2/2)
1 Side window demister outlet.
2 Side air vent.
3 Location for passenger air bag.
4 Windscreen demister outlet.
5 Centre air vents.
6 Instrument panel.
7 Display:
– clock and temperature;
– radio, clock and temperature or
storage compartment.
8 – Windscreen and rear screen
wiper/washer stalk;
– Instrument panel information re-
adout control.
9 Storage compartment.
10 Driver ’s air bag location, cruise
control/speed limiter controls.
11 Rev counter.
12 Stalk for:
– direction indicator lights;
– exterior lights;
– front fog lights;
– rear fog lights;
– horn.
13 Side window demister outlet.
14 Side air vent.
15 Radio remote control.
16 Ignition switch.
17 Controls for:
– electric beam height adjust -
ment;
– lighting dimmer for control in -
struments;
– cruise control and speed limiter.
18 Control for adjusting steering
wheel height.
19 Air-conditioning control. 20 Accessories socket or cigarette
lighter and ashtray.
21 Handbrake.
22 Gearstick.
23 Cup holders.
24 Location for radio or storage com-
partment.
25 Hazard warning light switch and
central door locking switch.
26 Glove box and fuse box.
27 Bonnet release control.
The equipment fitted, described below, DEpENDs ON ThE VERsION AND COUNTRY.

controls ................................................. (up to the end of the DU)
instrument panel ................................... (up to the end of the DU)
warning lights ........................................ (up to the end of the DU)
1.44
ENG_UD30823_8
Tableau de bord : témoins lumineux (X44 - Renault)
ENG_NU_952-4_X44_Renault_1
Jaune NoirNoir texte
Instrument panel
INsTRUMENT p ANEL: warning lights (1/4)
Dhandbrake on and brake cir-
cuit incident warning light
If it comes on during braking and is ac-
companied by the
û warning light
and a beep, it indicates that the fluid
level in the circuit is low or that there is
a braking system fault.
Stop as soon as traffic conditions allow
and contact an approved dealer.
UVa r i a b l e p o w e r - a s s i s t e d
steering warning light
This comes on when the ignition is
switched on and goes out after a few
seconds. If this warning light remains
on, it indicates a system fault. Stop
as soon as traffic conditions allow and
contact an approved dealer.
If no lights or sounds are ap-
parent, this indicates a fault
in the instrument panel. This
indicates that it is essential
to stop immediately (as soon as traf-
fic conditions allow). Ensure that the
vehicle is correctly immobilised and
contact an approved Dealer.
The © warning light means
you should drive very carefully to
an approved dealer as soon as pos-
sible. If you fail to follow this recom-
mendation, you risk damaging your
vehicle.
Warning light ® re -
quires you to stop immedi -
ately, for your own safety,
as soon as traffic conditions allow.
Switch off the engine and do not re-
start it. Contact an approved Dealer.
Instrument panel A
A
The presence and operation of the warning lights DEpEND ON ThE EQUIpMENT AND COUNTRY.
