RENAULT TWINGO RS 2009 2.G Electrical Equipment - Airbags And Pretensioners Owner's Manual

88C-21
MR-413-X44-88C000$539.mif
V3
88C
AIRBAGS AND PRETENSIONERS
Fault finding - Fault summary table
Tool faultAssociated
DTCDiagnostic tool title
DF0019080 Computer
DF0029042 Computer feed voltage
DF0039007 Driver's frontal airbag circuit
DF0049005 Passenger's front airbag circuit
DF0289041 Passenger airbag status warning light circuit
DF034907E Computer locked
DF0399035 Driver's side sensor circuit
DF0409036 Passenger's side sensor circuit
DF0609050 Multiplex network
DF068900C Passenger's chest front side airbag circuit
DF069900A Passenger side curtain airbag circuit
DF0709009 Driver's side curtain airbag circuit.
DF077900B Driver's front side chest airbag circuit
DF0919034 Airbag locking switch circuit
DF1659040 Airbag fault warning light circuit
DF1839012 Driver's side front buckle pretensioner circuit
DF1849013 Passenger side front buckle pretensioner circuit
DF193907C Passenger airbag locking status change.
DF194907F Computer to be replaced following impact
DF2329051 Driver's seat belt buckle sensor circuit
DF242907B Left-hand/right-hand drive configuration
DF2629050 Vehicle speed multiplex signal
DF2639050 No ABS/ESP multiplex signal
DF2649050 No instrument panel multiplex signal
MR-413-X44-88C000$539.mif
MRSZ AIRBAG
Vdiag: 04

88C-22
MR-413-X44-88C000$616.mif
V3
88C
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
DF001
PRESENT
COMPUTER
NOTESSpecial note:
To ensure that the returned computer's fault can be analysed, do not use command
RZ001 FAULT MEMORY when DF001 COMPUTER is present or stored.
Replace the airbag computer (see replacement of components).
AFTER REPAIRClear the computer fault memory. Switch off the ignition.
Carry out the check again using the diagnostic tool and, if there is no fault, unlock the
computer.
ABGMRSZ_V04_DF001P
MR-413-X44-88C000$616.mif
MRSZ AIRBAG
Vdiag: 04

88C-23
MR-413-X44-88C000$616.mif
V3
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
MRSZ AIRBAG
Vdiag: 04
88C
DF002
PRESENT
COMPUTER SUPPLY VOLTAGE
1.DEF: Supply voltage too high
2.DEF: Supply voltage too low
NOTESUse the Wiring Diagrams Technical Note, New TWINGO.
Check the condition of the airbag computer connector component code 756 (see Wiring Diagram Technical
Note, New Twingo, Component code 756 and Technical Note 6015A, Repairing electrical wiring, Wiring:
Precautions for repair).
If the connector is faulty and there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check fuse F7 15 A on the passenger compartment fuse box, component code 1016.
With the ignition on, check for + 12 V on connection AP25 of the airbag computer, component code 756:
10.5 V ± 0.1 < voltage OK < 16 V ± 0.1.
If there is a repair method (see Technical Note 6015A, Repairing electrical wiring, Wiring: Precautions for
repair), repair the wiring, otherwise replace it.
–Check the battery charge.
–Check the charge circuit (see 80A, Battery).
–Check the tightness and the condition of the battery terminals.
–Check the computer earth connection NAP.
Use the universal bornier to check the insulation and continuity of the following connections:
–Connection code AP25 between components 756 and 1016,
–Connection code NAP on component 756.
If there is a repair method (see Technical Note 6015A, Repairing electrical wiring, Wiring: Precautions for
repair), repair the wiring, otherwise replace it.
If the fault is still present, contact the Techline.
AFTER REPAIRClear the computer fault memory. Switch off the ignition.
Carry out the check again using the diagnostic tool and, if there is no fault, unlock the
computer.
ABGMRSZ_V04_DF002P

88C-24
MR-413-X44-88C000$616.mif
V3
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
MRSZ AIRBAG
Vdiag: 04
88C
DF003
PRESENT
DRIVER'S FRONT AIRBAG CIRCUIT
CO : Open circuit
CC : Short circuit
CC.0 : Short circuit to earth
CC.1 : Short circuit to 12 volts
1.DEF : Configuration
2.DEF : Short circuit between trigger lines
NOTESIf 1.DEF, check the computer configuration using configuration reading LC028
Driver's front airbag, then modify it if it is inconsistent using the configuration CF209
Driver's front airbag.
IMPORTANT
Before disconnecting the airbag connector to fit a dummy module, always lock
the trigger lines using the diagnostic tool and command VP006 "Lock
computer".
Special note:
Use dummy module (part no. Elé. 1837- 5) and dummy module (part no. Elé. 1835
yellow).
Use the W iring Diagrams Technical Note, New TWINGO.
Lock the trigger lines using command VP006 Lock computer.
Switch off the ignition.
Remove the driver's airbag, component code 899 (see MR 411, Mechanical, 88C, Airbag and pretensioners,
Driver's front airbag: Removal - Refitting).
Check the condition of the driver's front airbag connector (see Wiring Diagram Technical Note, New Twingo,
Component code 899 and Technical Note 6015A, Repairing electrical wiring, Wiring: Precautions for repair).
If the connector is faulty and there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Fit the dummy module (part no. Elé. 1835 yellow) on the driver's front airbag connector, component code 899.
Switch on the ignition again.
Read the fault in the AIRBAG / PRETENSIONER field.
If the fault has become "Stored":
Replace the driver's front airbag component code 899.
If the fault remains "Present":
Switch off the ignition.
Check the condition of the rotary switch connector, component code 689 (see Wiring Diagram Technical Note,
New Twingo, Component code 689, Technical Note 6015A, Repairing electrical wiring, Wiring: Precautions for
repair and MR 411, Mechanical, 84A, Controls-Signals, Steering column switch assembly: Removal-Refitting).
If the connector is faulty and there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Position the dummy module (part no. Elé. 1837 - 5) on the rotary switch connector component code 689.
Switch on the ignition again.
Read the fault in the AIRBAG / PRETENSIONER field.
AFTER REPAIRClear the computer fault memory using command RZ001 "Fault memory". Switch
the ignition of f and then on again.
Repeat the check using the diagnostic tool and, if there are no faults (ignore DF034
Computer locked), unlock the computer using command VP007 Unlock computer.
ABGMRSZ_V04_DF003P

88C-25
MR-413-X44-88C000$616.mif
V3
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
MRSZ AIRBAG
Vdiag: 04
88C
DF003
CONTINUED
If the fault remains "Present":
Check the condition of the airbag computer connector, component code 756 (see Wiring Diagram Technical
Note, New Twingo, Component code 756, see MR 411, Mechanical, 88C, Airbag and pretensioners, Airbag
computer: Removal - Refitting and Technical Note 6015A, Repairing electrical wiring, Wiring: Precautions
for repair).
If the connector is faulty and there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Faulty wiring between the airbag computer component code 756 and the rotary switch component code 689.
Check the insulation (+ 12 V, to earth and between the 2 lines) and the continuity of the following
connections:
–Connection code 60AM between components 756 and 689,
–Connection code 60AN between components 756 and 689.
If there is a repair method (see Technical Note 6015A, Repairing electrical wiring, Wiring: Precautions for
repair), repair the wiring, otherwise replace it.
If the fault has become "Stored":
Replace the rotary switch component code 689 (see MR 411, Mechanical, 84A, Controls - Signals, Steering
column switch assembly: Removal - Refitting).
If the fault is still present, contact the Techline.
AFTER REPAIRClear the computer fault memory using command RZ001 "Fault memory". Switch
the ignition of f and then on again.
Repeat the check using the diagnostic tool and, if there are no faults (ignore DF034
Computer locked), unlock the computer using command VP007 Unlock computer.

88C-26
MR-413-X44-88C000$616.mif
V3
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
MRSZ AIRBAG
Vdiag: 04
88C

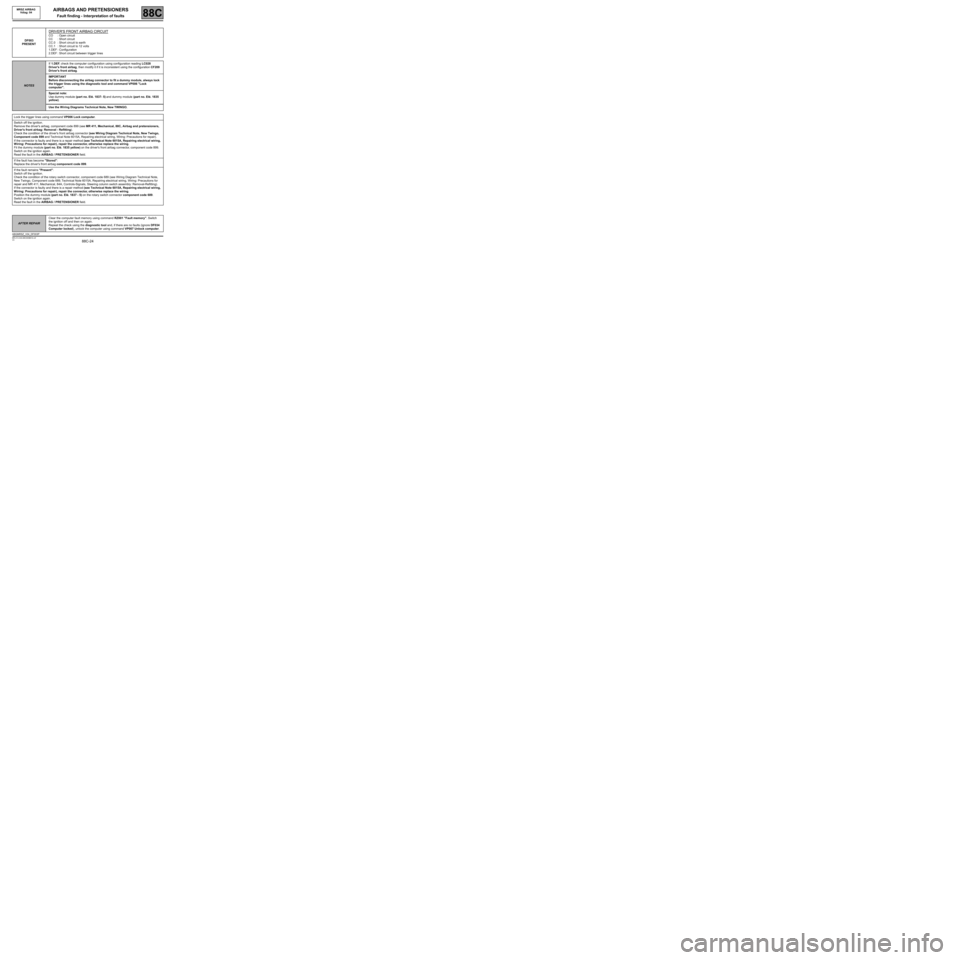

DF004
PRESENT
PASSENGER FRONT AIRBAG CIRCUIT
CO : Open circuit
CC : Short circuit
CC.0 : Short circuit to earth
CC.1 : Short circuit to 12 volts
1.DEF : Configuration
2.DEF : Short circuit between trigger lines
NOTESIf 1.DEF, check the computer configuration using the configuration reading LC027
Passenger's front airbag, then modify it if it is inconsistent using the configuration
CF210 Driver's front airbag.
IMPORTANT
Before disconnecting the airbag connector to fit a dummy module, always lock
the trigger lines using the diagnostic tool and command VP006 "Lock
computer".
Special note:
Use dummy module (Part no. Elé.1835 yellow).
Use the W iring Diagrams Technical Note, New TWINGO.
Lock the trigger lines using the command VP006 Lock computer.
Switch off the ignition.
Remove the passenger's airbag, component code 861 (see MR 411, Mechanical, 88C, Airbag and
pretensioners, Passenger's front airbag: Removal - Refitting).
Check the condition of the passenger's front airbag connector, component code 861 (see Wiring Diagram
Technical Note, New Twingo, Component code 861 and Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair).
If the connector is faulty and there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Position the dummy module (part no. Elé. 1835 yellow) on the passenger's front airbag connector component
code 861.
Switch on the ignition again.
Read the fault in the AIRBAG / PRETENSIONER field.
AFTER REPAIRClear the computer fault memory using command RZ001 Fault memory. Switch the
ignition off and then on again.
Repeat the check using the diagnostic tool and, if there are no faults (ignore DF034
Computer locked), unlock the computer using command VP007 Unlock computer.
ABGMRSZ_V04_DF004P

88C-27
MR-413-X44-88C000$616.mif
V3
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
MRSZ AIRBAG
Vdiag: 04
88C

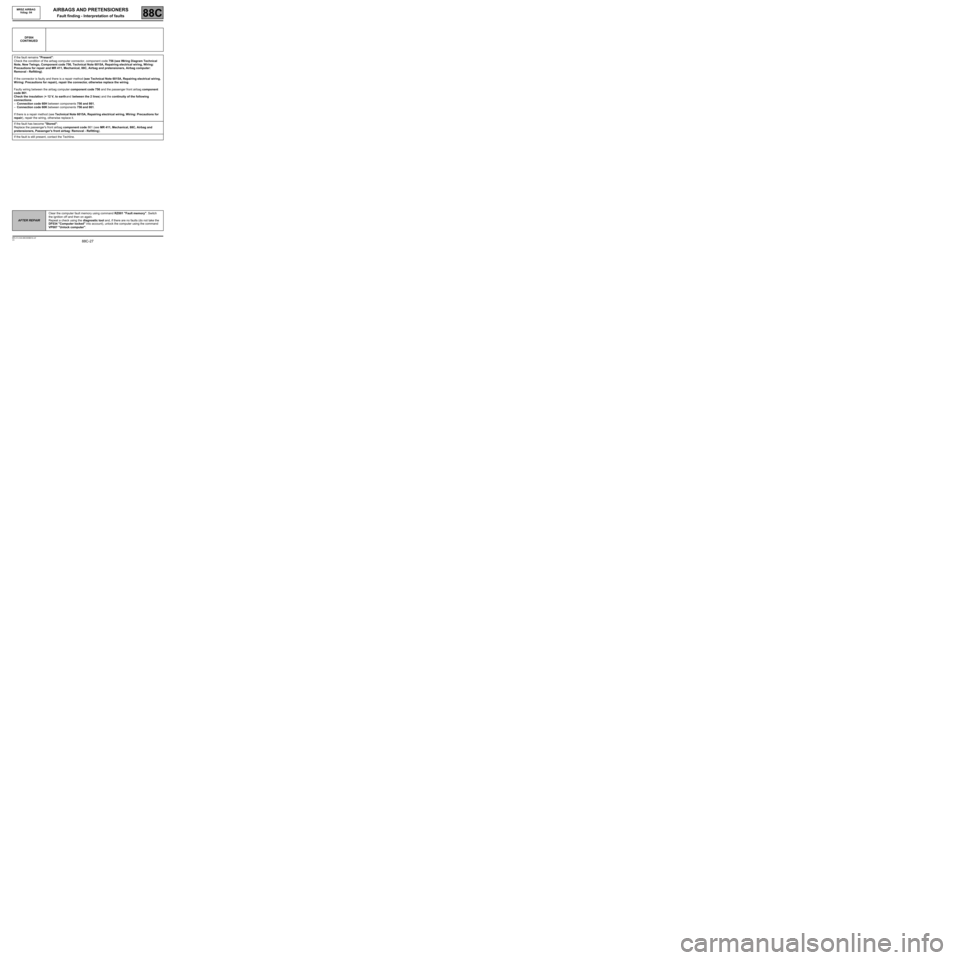

DF004
CONTINUED
If the fault remains "Present":
Check the condition of the airbag computer connector, component code 756 (see Wiring Diagram Technical
Note, New Twingo, Component code 756, Technical Note 6015A, Repairing electrical wiring, Wiring:
Precautions for repair and MR 411, Mechanical, 88C, Airbag and pretensioners, Airbag computer:
Removal - Refitting).
If the connector is faulty and there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Faulty wiring between the airbag computer component code 756 and the passenger front airbag component
code 861.
Check the insulation (+ 12 V, to earth and between the 2 lines) and the continuity of the following
connections:
–Connection code 60H between components 756 and 861,
–Connection code 60K between components 756 and 861.
If there is a repair method (see Technical Note 6015A, Repairing electrical wiring, Wiring: Precautions for
repair), repair the wiring, otherwise replace it.
If the fault has become "Stored":
Replace the passenger's front airbag component code 861 (see MR 411, Mechanical, 88C, Airbag and
pretensioners, Passenger's front airbag: Removal - Refitting).
If the fault is still present, contact the Techline.
AFTER REPAIRClear the computer fault memory using command RZ001 "Fault memory". Switch
the ignition of f and then on again.
Repeat a check using the diagnostic tool and, if there are no faults (do not take the
DF034 "Computer locked'' into account), unlock the computer using the command
VP007 ''Unlock computer''.

88C-28
MR-413-X44-88C000$616.mif
V3
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
MRSZ AIRBAG
Vdiag: 04
88C

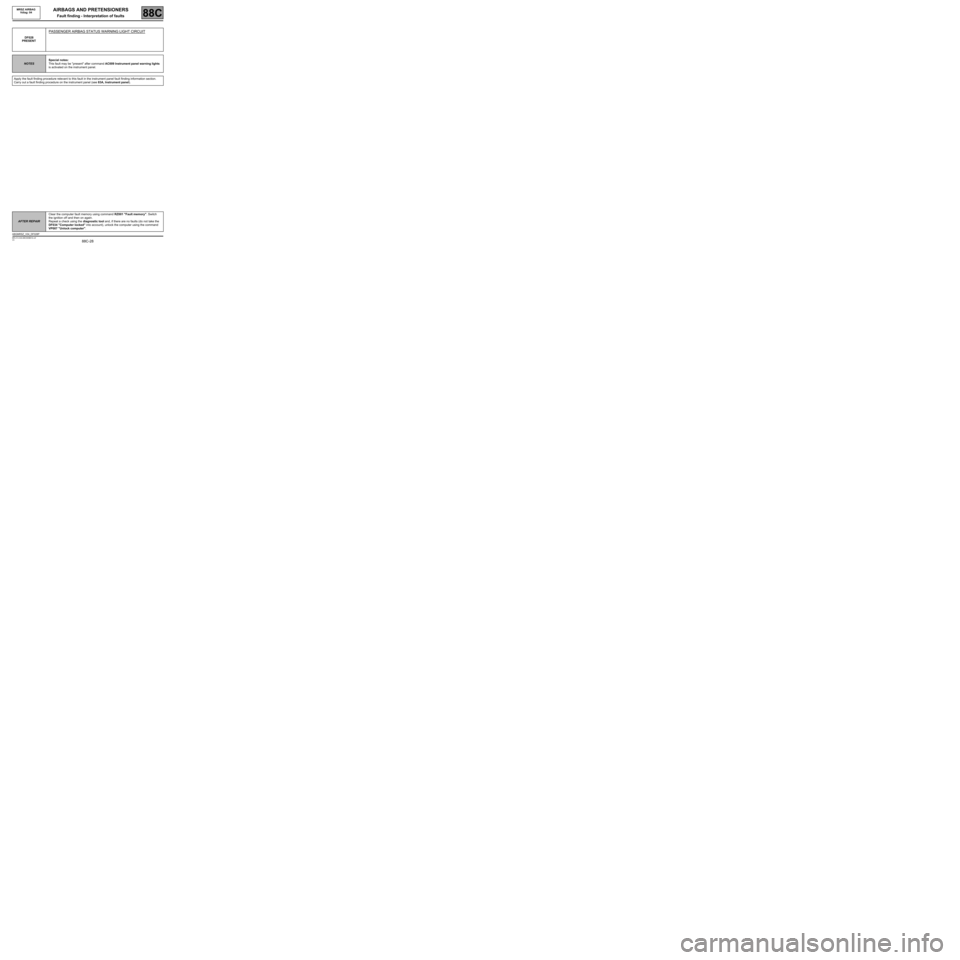

DF028
PRESENT
PASSENGER AIRBAG STATUS WARNING LIGHT CIRCUIT
NOTESSpecial notes:
This fault may be "present" after command AC009 Instrument panel warning lights
is activated on the instrument panel.
Apply the fault finding procedure relevant to this fault in the instrument panel fault finding information section.
Carry out a fault finding procedure on the instrument panel (see 83A, Instrument panel).
AFTER REPAIRClear the computer fault memory using command RZ001 "Fault memory". Switch
the ignition of f and then on again.
Repeat a check using the diagnostic tool and, if there are no faults (do not take the
DF034 "Computer locked'' into account), unlock the computer using the command
VP007 ''Unlock computer''.
ABGMRSZ_V04_DF028P

88C-29
MR-413-X44-88C000$616.mif
V3
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
MRSZ AIRBAG
Vdiag: 04
88C

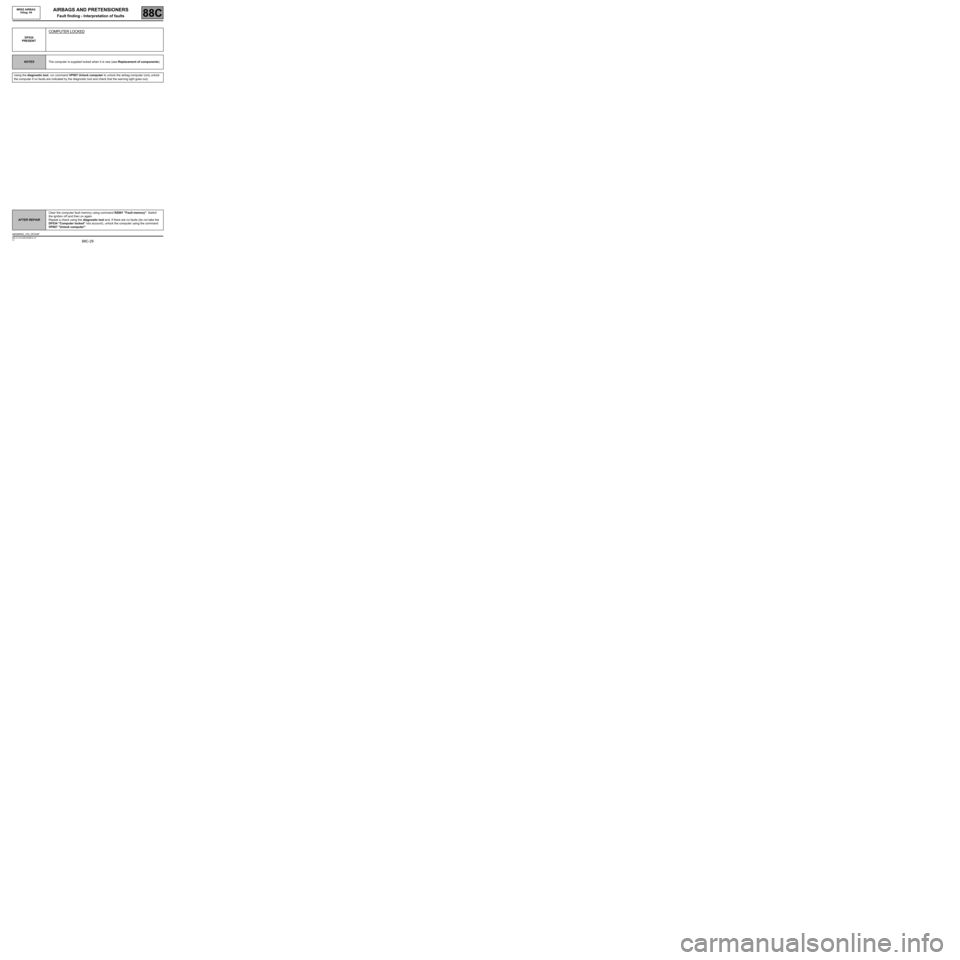

DF034
PRESENT
COMPUTER LOCKED
NOTESThe computer is supplied locked when it is new (see Replacement of components).
Using the diagnostic tool, run command VP007 Unlock computer to unlock the airbag computer (only unlock
the computer if no faults are indicated by the diagnostic tool and check that the warning light goes out).
AFTER REPAIRClear the computer fault memory using command RZ001 "Fault memory". Switch
the ignition of f and then on again.
Repeat a check using the diagnostic tool and, if there are no faults (do not take the
DF034 "Computer locked'' into account), unlock the computer using the command
VP007 ''Unlock computer''.
ABGMRSZ_V04_DF034P

88C-30
MR-413-X44-88C000$616.mif
V3
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
MRSZ AIRBAG
Vdiag: 04
88C

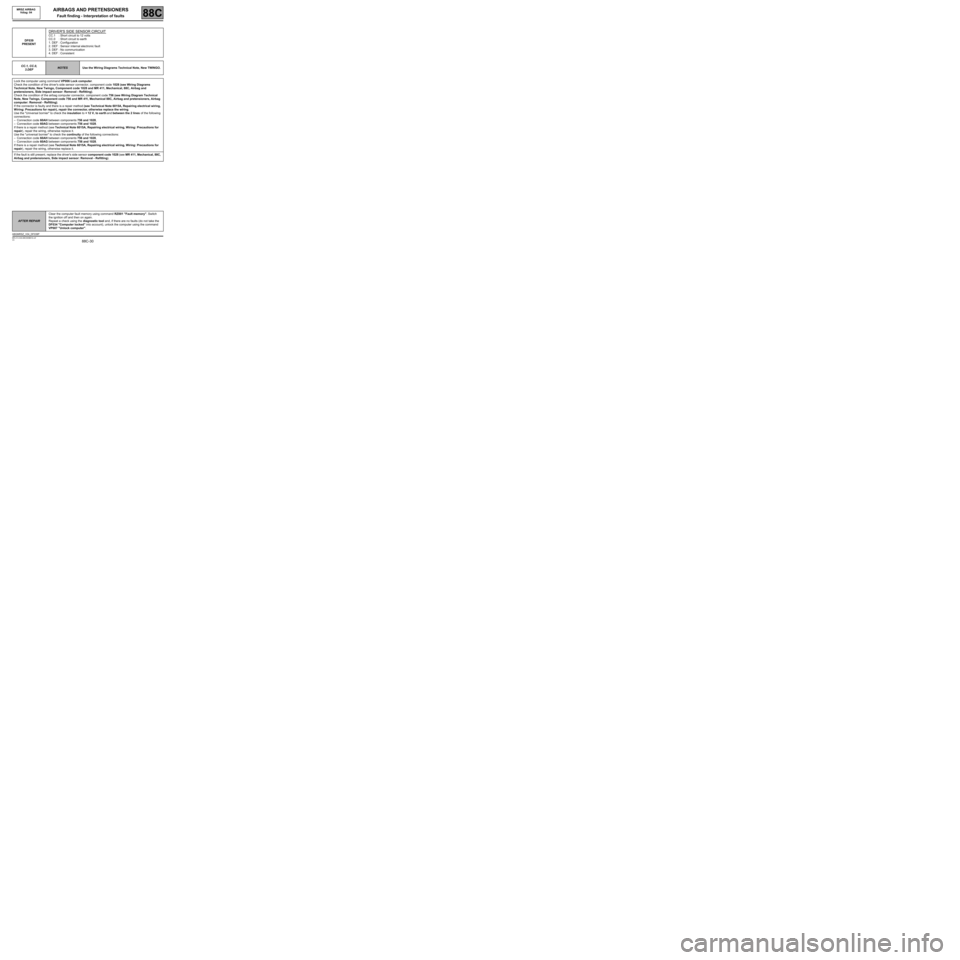

DF039
PRESENT
DRIVER'S SIDE SENSOR CIRCUIT
CC.1 : Short circuit to 12 volts
CC.0 : Short circuit to earth
1. DEF : Configuration
2. DEF : Sensor internal electronic fault
3. DEF : No communication
4. DEF : Consistent
CC.1, CC.0,
3.DEF
NOTESUse the Wiring Diagrams Technical Note, New TWINGO.
Lock the computer using command VP006 Lock computer.
Check the condition of the driver's side sensor connector, component code 1028 (see Wiring Diagrams
Technical Note, New Twingo, Component code 1028 and MR 411, Mechanical, 88C, Airbag and
pretensioners, Side impact sensor: Removal - Refitting).
Check the condition of the airbag computer connector, component code 756 (see Wiring Diagram Technical
Note, New Twingo, Component code 756 and MR 411, Mechanical 88C, Airbag and pretensioners, Airbag
computer: Removal - Refitting).
If the connector is faulty and there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Use the "Universal bornier" to check the insulation to + 12 V, to earth and between the 2 lines of the following
connections:
–Connection code 60AH between components 756 and 1028,
–Connection code 60AG between components 756 and 1028.
If there is a repair method (see Technical Note 6015A, Repairing electrical wiring, Wiring: Precautions for
repair), repair the wiring, otherwise replace it.
Use the "universal bornier" to check the continuity of the following connections:
–Connection code 60AH between components 756 and 1028,
–Connection code 60AG between components 756 and 1028.
If there is a repair method (see Technical Note 6015A, Repairing electrical wiring, Wiring: Precautions for
repair), repair the wiring, otherwise replace it.
If the fault is still present, replace the driver's side sensor component code 1028 (see MR 411, Mechanical, 88C,
Airbag and pretensioners, Side impact sensor: Removal - Refitting).
AFTER REPAIRClear the computer fault memory using command RZ001 "Fault memory". Switch
the ignition of f and then on again.
Repeat a check using the diagnostic tool and, if there are no faults (do not take the
DF034 "Computer locked'' into account), unlock the computer using the command
VP007 ''Unlock computer''.
ABGMRSZ_V04_DF039P
