RENAULT TWINGO RS 2009 2.G Electrical Equipment - Airbags And Pretensioners Service Manual 88C-41
MR-413-X44-88C000$616.mif
V3
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
MRSZ AIRBAG
Vdiag: 04
88C
DF070
PRESENT
DRIVER SIDE CURTAIN AIRBAG CIRCUIT
CO : Open circuit
CC

Page 42 of 67

RENAULT TWINGO RS 2009 2.G Electrical Equipment - Airbags And Pretensioners Service Manual 88C-42
MR-413-X44-88C000$616.mif
V3
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
MRSZ AIRBAG
Vdiag: 04
88C
DF070
CONTINUED
If the fault remains "Present":
Check the condition of

Page 43 of 67

RENAULT TWINGO RS 2009 2.G Electrical Equipment - Airbags And Pretensioners Service Manual 88C-43
MR-413-X44-88C000$616.mif
V3
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
MRSZ AIRBAG
Vdiag: 04
88C
DF077
PRESENT
DRIVERS CHEST-LEVEL FRONT SIDE AIRBAG CIRCUIT
CC : Shor

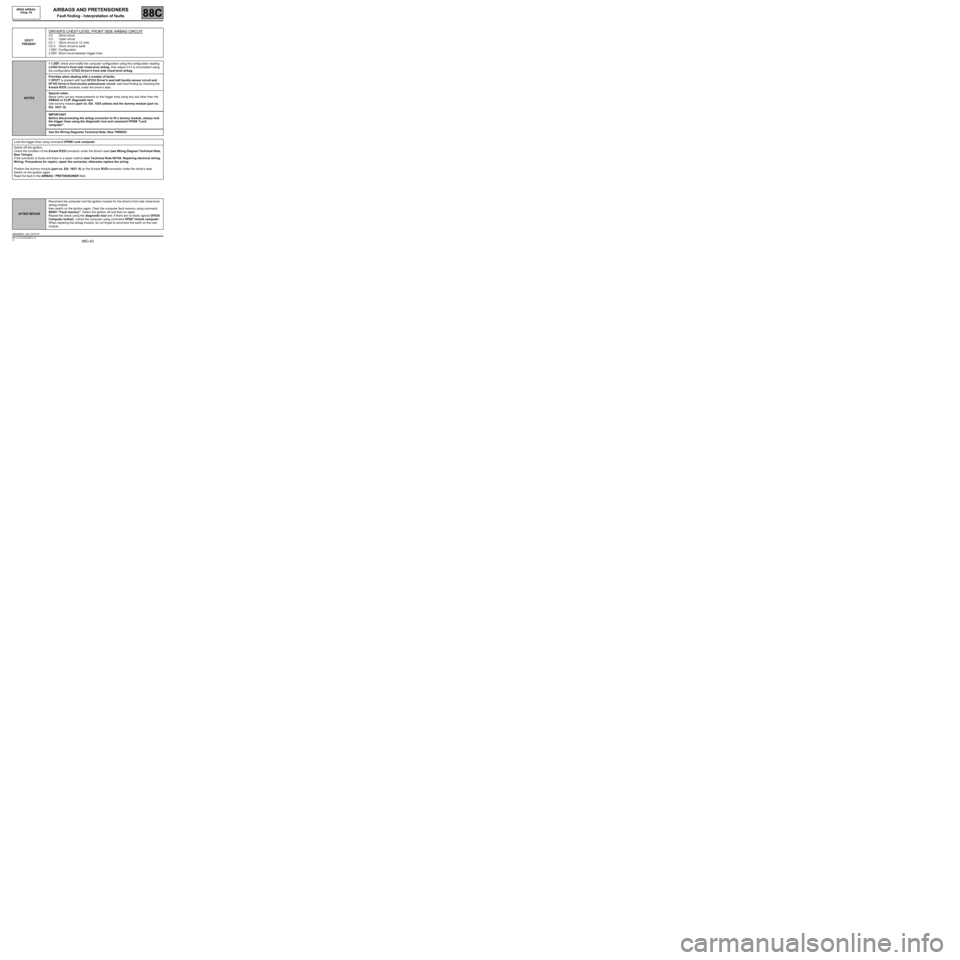

Page 44 of 67

RENAULT TWINGO RS 2009 2.G Electrical Equipment - Airbags And Pretensioners Service Manual 88C-44
MR-413-X44-88C000$616.mif
V3
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
MRSZ AIRBAG
Vdiag: 04
88C
DF077
CONTINUED
If the fault remains "Present":
Check the condition of

Page 45 of 67

RENAULT TWINGO RS 2009 2.G Electrical Equipment - Airbags And Pretensioners Service Manual 88C-45
MR-413-X44-88C000$616.mif
V3
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
MRSZ AIRBAG
Vdiag: 04
88C
DF077
CONTINUED
If the fault remains "Present":
Faulty wiring between

Page 46 of 67

RENAULT TWINGO RS 2009 2.G Electrical Equipment - Airbags And Pretensioners Service Manual 88C-46
MR-413-X44-88C000$616.mif
V3
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
MRSZ AIRBAG
Vdiag: 04
88C
DF091
PRESENT
AIRBAG LOCKING SWITCH CIRCUIT
CC.0 : Short circuit to ea

Page 47 of 67

RENAULT TWINGO RS 2009 2.G Electrical Equipment - Airbags And Pretensioners Service Manual 88C-47
MR-413-X44-88C000$616.mif
V3
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
MRSZ AIRBAG
Vdiag: 04
88C
DF165
PRESENT
AIRBAG FAULT WARNING LIGHT CIRCUIT
NOTESNone.
Apply the

Page 48 of 67

RENAULT TWINGO RS 2009 2.G Electrical Equipment - Airbags And Pretensioners Service Manual 88C-48
MR-413-X44-88C000$616.mif
V3
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
MRSZ AIRBAG
Vdiag: 04
88C
DF183
PRESENT
DRIVERS FRONT BUCKLE PRETENSIONER CIRCUIT
CC : Short ci

Page 49 of 67

RENAULT TWINGO RS 2009 2.G Electrical Equipment - Airbags And Pretensioners Service Manual 88C-49
MR-413-X44-88C000$616.mif
V3
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
MRSZ AIRBAG
Vdiag: 04
88C
DF183
CONTINUED 1
If the fault remains "Present":
Check the condition

Page 50 of 67

RENAULT TWINGO RS 2009 2.G Electrical Equipment - Airbags And Pretensioners Service Manual 88C-50
MR-413-X44-88C000$616.mif
V3
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
MRSZ AIRBAG
Vdiag: 04
88C
DF183
CONTINUED 2
If the fault remains "Present":
Faulty wiring betwee
