RENAULT TWINGO RS 2009 2.G Electrical Equipment - Airbags And Pretensioners Repair Manual
Manufacturer: RENAULT, Model Year: 2009, Model line: TWINGO RS, Model: RENAULT TWINGO RS 2009 2.GPages: 67, PDF Size: 0.3 MB
Page 51 of 67
88C-51
MR-413-X44-88C000$616.mif
V3
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
MRSZ AIRBAG
Vdiag: 04
88C
DF184
PRESENT
PASSENGER FRONT BUCKLE PRETENSIONER CIRCUIT
CC : Short circuit
CO : Open circuit
CC.1 : Short circuit to 12 volts
CC.0 : Short circuit to earth
1.DEF: Configuration
2.DEF: Short circuit between trigger lines
NOTESIf 1.DEF, check and modify the computer configuration using configuration reading
LC065 Driver's front buckle pretensioner, then modify it if it is inconsistent using
the configuration CF266 Driver's front buckle pretensioner.
Special notes:
Never carry out any measurements on the trigger lines using any tool other than the
XRBAG or CLIP diagnostic tool.
Use dummy module (part no. Elé. 1835 yellow) and the dummy module
(part no. Elé. 1837 - 6).
IMPORTANT
Before disconnecting the airbag connector to fit a dummy module, always lock
the trigger lines using the diagnostic tool and command VP006 "Lock
computer".
Use the W iring Diagrams Technical Note, New TWINGO.
Lock the trigger lines using command VP006 Lock computer.
Switch off the ignition.
Check the condition of the 8-track R334 connector under the passenger's front seat (see Wiring Diagram
Technical Note, New Twingo).
If the connector is faulty and there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Position the dummy module (part no. Elé. 1837 - 6) on the 8-track R334 connector under the passenger's
front seat.
Switch on the ignition again.
Read the fault in the AIRBAG / PRETENSIONER field.
AFTER REPAIRReconnect the computer and the locking switch, then switch on the ignition again.
Clear the computer fault memory using command RZ001 "Fault memory". Switch
the ignition of f and then on again.
Repeat the check using the diagnostic tool and, if there are no faults (ignore DF034
Computer locked), unlock the computer using command VP007 Unlock computer.
ABGMRSZ_V04_DF184P

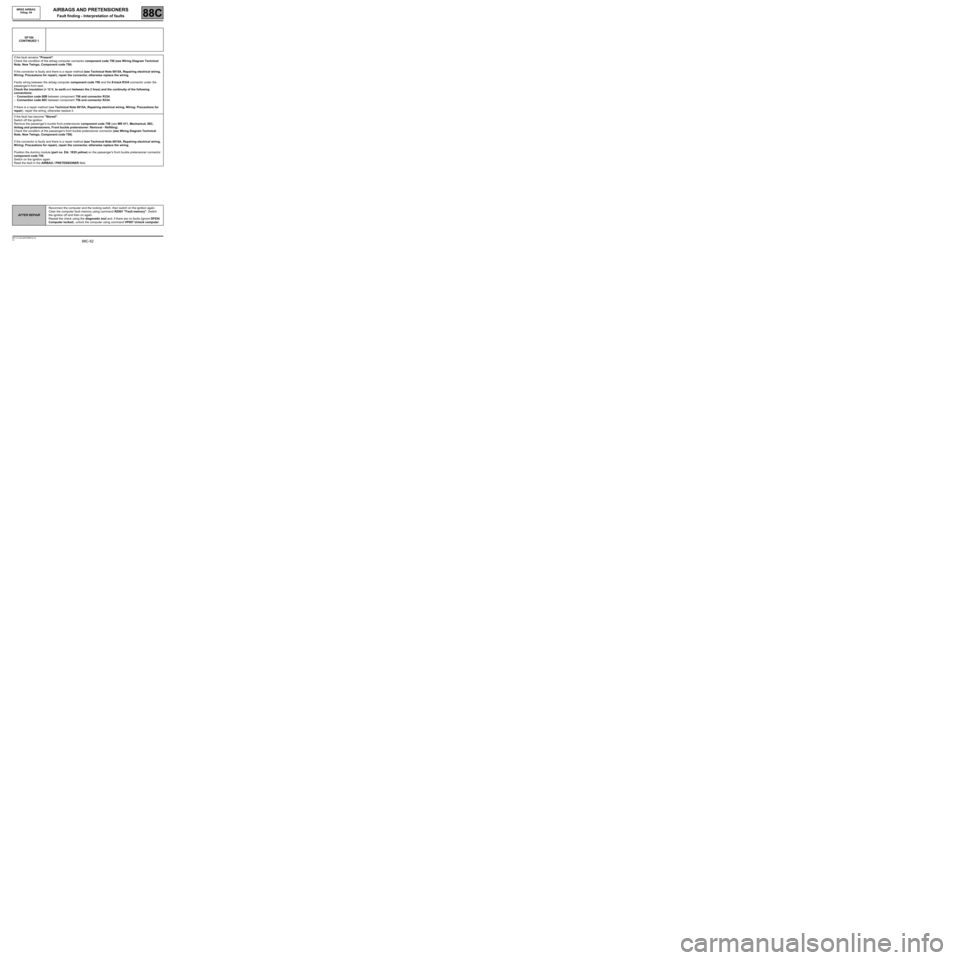

Page 52 of 67
88C-52
MR-413-X44-88C000$616.mif
V3
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
MRSZ AIRBAG
Vdiag: 04
88C
DF184
CONTINUED 1
If the fault remains "Present":
Check the condition of the airbag computer connector component code 756 (see Wiring Diagram Technical
Note, New Twingo, Component code 756).
If the connector is faulty and there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Faulty wiring between the airbag computer component code 756 and the 8-track R334 connector under the
passenger's front seat.
Check the insulation (+ 12 V, to earth and between the 2 lines) and the continuity of the following
connections:
–Connection code 60B between component 756 and connector R334,
–Connection code 60C between component 756 and connector R334.
If there is a repair method (see Technical Note 6015A, Repairing electrical wiring, Wiring: Precautions for
repair), repair the wiring, otherwise replace it.
If the fault has become "Stored":
Switch off the ignition.
Remove the passenger's buckle front pretensioner component code 758 (see MR 411, Mechanical, 88C,
Airbag and pretensioners, Front buckle pretensioner: Removal - Refitting).
Check the condition of the passenger's front buckle pretensioner connector (see Wiring Diagram Technical
Note, New Twingo, Component code 758).
If the connector is faulty and there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Position the dummy module (part no. Elé. 1835 yellow) on the passenger's front buckle pretensioner connector
component code 758.
Switch on the ignition again.
Read the fault in the AIRBAG / PRETENSIONER field.
AFTER REPAIRReconnect the computer and the locking switch, then switch on the ignition again.
Clear the computer fault memory using command RZ001 "Fault memory". Switch
the ignition of f and then on again.
Repeat the check using the diagnostic tool and, if there are no faults (ignore DF034
Computer locked), unlock the computer using command VP007 Unlock computer.

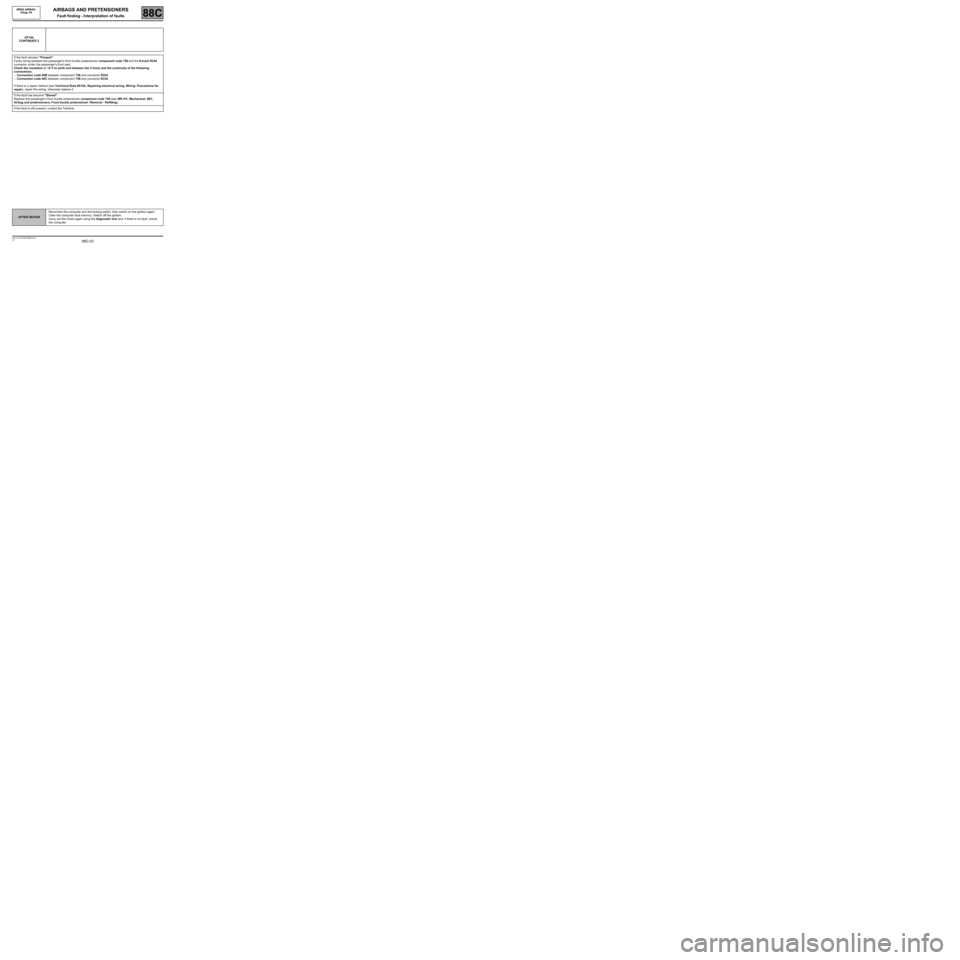

Page 53 of 67
88C-53
MR-413-X44-88C000$616.mif
V3
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
MRSZ AIRBAG
Vdiag: 04
88C
DF184
CONTINUED 2
If the fault remains "Present":
Faulty wiring between the passenger's front buckle pretensioner component code 758 and the 8-track R334
connector under the passenger's front seat.
Check the insulation (+ 12 V to earth and between the 2 lines) and the continuity of the following
connections:
–Connection code 60B between component 758 and connector R334,
–Connection code 60C between component 758 and connector R334.
If there is a repair method (see Technical Note 6015A, Repairing electrical wiring, Wiring: Precautions for
repair), repair the wiring, otherwise replace it.
If the fault has become "Stored":
Replace the passenger's front buckle pretensioner component code 758 (see MR 411, Mechanical, 88C,
Airbag and pretensioners, Front buckle pretensioner: Removal - Refitting).
If the fault is still present, contact the Techline.
AFTER REPAIRReconnect the computer and the locking switch, then switch on the ignition again.
Clear the computer fault memory. Switch off the ignition.
Carry out the check again using the diagnostic tool and, if there is no fault, unlock
the computer.

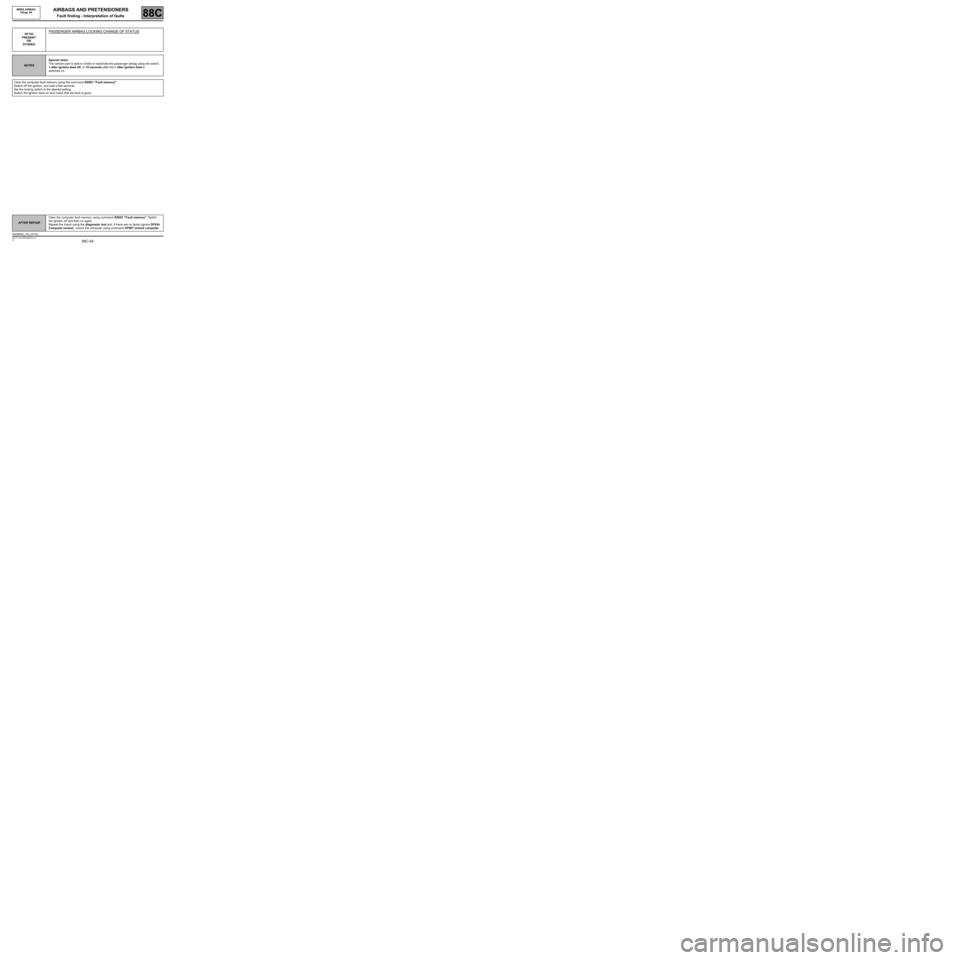

Page 54 of 67
88C-54
MR-413-X44-88C000$616.mif
V3
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
MRSZ AIRBAG
Vdiag: 04
88C
DF193
PRESENT
OR
STOREDPASSENGER AIRBAG LOCKING CHANGE OF STATUS
NOTESSpecial notes:
The vehicle user is able to inhibit or reactivate the passenger airbag using the switch,
+ after ignition feed off, or 10 seconds after the + after ignition feed is
switched on.
Clear the computer fault memory using the command RZ001 "Fault memory".
Switch off the ignition, and wait a few seconds.
Set the locking switch to the desired setting.
Switch the ignition back on and check that the fault is gone.
AFTER REPAIRClear the computer fault memory using command RZ001 "Fault memory". Switch
the ignition of f and then on again.
Repeat the check using the diagnostic tool and, if there are no faults (ignore DF034
Computer locked), unlock the computer using command VP007 Unlock computer
ABGMRSZ_V04_DF193

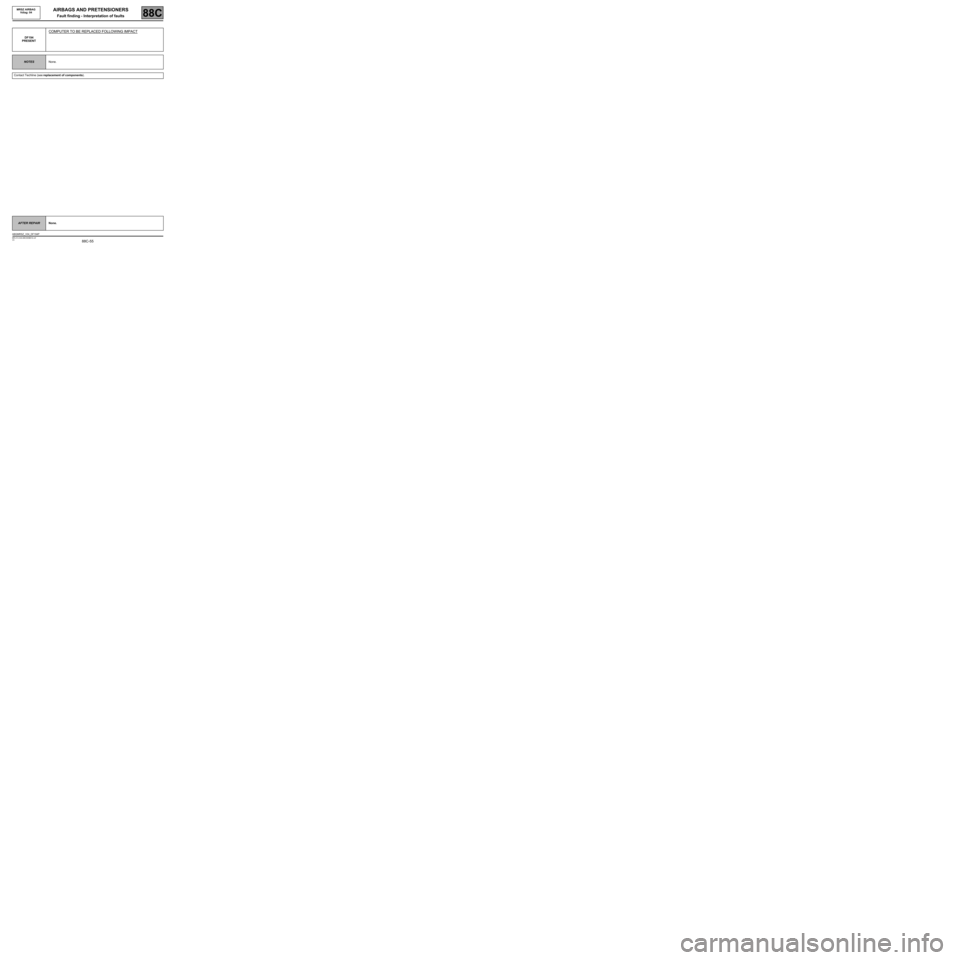

Page 55 of 67
88C-55
MR-413-X44-88C000$616.mif
V3
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
MRSZ AIRBAG
Vdiag: 04
88C
DF194
PRESENT
COMPUTER TO BE REPLACED FOLLOWING IMPACT
NOTESNone.
Contact Techline (see replacement of components).
AFTER REPAIRNone.
ABGMRSZ_V04_DF194P
Page 56 of 67
88C-56
MR-413-X44-88C000$616.mif
V3
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
MRSZ AIRBAG
Vdiag: 04
88C
DF232
PRESENT
DRIVER'S SEAT BELT BUCKLE SENSOR CIRCUIT
CC.1 : Short circuit to + 12 V
1.DEF: Short circuit
NOTESIf 1.DEF, check and modify the computer configuration using the configuration reading
LC073 Driver's seat belt buckle sensor, then adjust it if it is inconsistent using
configuration CF273 Driver's seat belt buckle sensor.
Priorities when dealing with a number of faults:
If DF232 is present with faults DF077 Driver's front side chest-level airbag circuit
and DF183 Driver's front buckle pretensioner circuit, start fault finding by checking
the 8-track R335 connector under the driver's seat.
Use the W iring Diagrams Technical Note, New TWINGO.
Check the condition of the driver's seat belt buckle sensor connector component code 333 (see Wiring Diagram
Technical Note, New Twingo, Component code 333).
Check the condition of the airbag computer connector component code 756 (see Wiring Diagram Technical
Note, New Twingo, Component code 756).
If the connector is faulty and if there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Use the "Universal bornier" to check the insulation to + 12 V, to earth and between the 2 lines of the following
connections:
–Connection code 60DU between components 756 and 333,
–Connection code 60DV between components 756 and 333.
If there is a repair method (see Technical Note 6015A, Repairing electrical wiring, Wiring: Precautions for
repair), repair the wiring, otherwise replace it.
Use the "universal bornier" to check the continuity of the following connections:
–Connection code 60DU between components 756 and 333,
–Connection code 60DV between components 756 and 333.
If there is a repair method (see Technical Note 6015A, Repairing electrical wiring, Wiring: Precautions for
repair), repair the wiring, otherwise replace it.
If the fault is still present, replace the driver's seat belt buckle sensor (see MR 411, Mechanical, 88C, Airbag and
pretensioners, Front buckle pretensioner: Removal - Refitting).
AFTER REPAIRReconnect the computer and front seat belt inertia reels, then switch on the ignition
again.
Clear the computer fault memory using command RZ001 "Fault memory". Switch
the ignition of f and then on again.
Repeat a check using the diagnostic tool and, if there are no faults (do not take the
DF034 "Computer locked'' into account), unlock the computer using the command
VP007 ''Unlock computer''.
ABGMRSZ_V04_DF232P
Page 57 of 67
88C-57
MR-413-X44-88C000$616.mif
V3
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
MRSZ AIRBAG
Vdiag: 04
88C
DF242
PRESENT
LEFT-HAND DRIVE/RIGHT-HAND DRIVE CONFIGURATION
1. DEF: Configuration
NOTESThis fault indicates that the configuration of the driving side (left or right) has not
been carried out.
Configure the vehicle's driving side (left or right) using command CF291 "LEFT-HAND DRIVE/RIGHT-HAND
DRIVE".
AFTER REPAIRNone.
ABGMRSZ_V04_DF242P
Page 58 of 67
88C-58
MR-413-X44-88C000$616.mif
V3
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
MRSZ AIRBAG
Vdiag: 04
88C
DF262
PRESENT
VEHICLE SPEED MULTIPLEX SIGNAL
1. DEF: Invalid vehicle speed
2. DEF: Vehicle speed too high
NOTESNone.
Carry out the fault finding procedure for the multiplex network.
Test the multiplex network. (see 38C, Anti-lock braking system).
AFTER REPAIRNone.
ABGMRSZ_V04_DF262P
Page 59 of 67
88C-59
MR-413-X44-88C000$616.mif
V3
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
MRSZ AIRBAG
Vdiag: 04
88C
DF263
PRESENT
NO ABS/ESP MULTIPLEX SIGNAL
1. DEF: No ABS multiplex signal
NOTESNone.
Carry out the fault finding procedure for the multiplex network.
Test the multiplex network and the ABS (see 88B, Multiplexing and 38C, Anti-lock braking system).
AFTER REPAIRNone.
ABGMRSZ_V04_DF263P
Page 60 of 67
88C-60
MR-413-X44-88C000$616.mif
V3
AIRBAGS AND PRETENSIONERS
Fault finding - Interpretation of faults
MRSZ AIRBAG
Vdiag: 04
88C
DF264
PRESENT
NO INSTRUMENT PANEL MULTIPLEX SIGNAL
1. DEF: No instrument panel multiplex signal
NOTESNone.
Carry out the fault finding procedure for the multiplex network.
Carry out a test on the multiplex network and the instrument panel (see 88B, Multiplexing and 83A, Instrument
panel).
AFTER REPAIRNone.
ABGMRSZ_V04_DF264P
