SAAB 9-3 2003 Owners Manual

191 Car care
High beam, halogenLeft-hand side
1 Lift aside the hose running along the side of the battery cover.
2 Release the two retainers (a quarter of a turn counterclockwise)
in the leading edge of the cover and remove the cover.
3 Pull up the washer fluid filler pipe.
4 Remove the air pipe from the front edge of the battery box.
Both sides
1 Remove the cover from the rear of the headlight.
2 Twist the bulb holder counterclockwise and withdraw the holder
from the reflector.
3 Change the bulb without touching the glass with your fingers.
Insert the bulb holder into the reflector and twist it clockwise until
it locks.
4 Refit the cover over the rear of the headlight.Left-hand side
5 Refit the air pipe to the front of the battery box.
6 Refit the washer fluid filler pipe.
7 Refit the battery cover.
NOTICEDo not fit bulbs with a higher rating than 55 W as this could
damage the headlight reflector. Furthermore, the car’s wiring is
not designed to cope with higher wattages.
Retainers on the battery cover Changing the high beam bulb
ProCarManuals.com

192 Car careParking lightsThe parking light bulb is located in the same
reflector as the main beam bulb.
1 Lift aside the hose running along the
side of the battery cover.
2 Remove the battery cover.
3 Remove the cover from the rear of the
headlight.
4 Withdraw the bulb holder from the lamp
unit.
5 Fit the new bulb.
6 Refit the cover over the rear of the head-
light.
7 Refit the battery cover.
Front turn signal bulbsLeft-hand side:
1 Lift aside the hose running along the
side of the battery cover.
2 Release the two retainers on the battery
cover and remove the cover.
3 Pull up the washer fluid filler pipe.
4 Remove the air pipe from the front edge
of the battery box.Both sides:
1 The bulb holder has a bayonet fitting.
Turn the bulb holder counterclockwise
and withdraw it.
2 The bulb also has a bayonet fitting.
Press in the bulb and twist it counter-
clockwise.
3 Fit the new bulb.
4 To facilitate fitting, look in through the
headlight lens when fitting the bulb.
Check that the new bulb is firmly seated.
Left-hand side:
5 Refit the washer fluid filler pipe.
6 Refit the battery cover.
ProCarManuals.com

193 Car care
Side-mounted turn signal bulbs1 Slide the lamp fitting forward so that its
rear end can be pulled out.
2 Turn the bulb holder counterclockwise
and withdraw it from the lamp fitting.
Change the bulb.
3 To fit, engage the two catches on the
rear edge of the lamp fitting with the
edge of the opening. Then press in the
front edge of the lamp fitting so that the
groove in the spring engages the plastic
edge.
Front fog lights
1 Undo one screw in the wheel housing.
Lower the air shield.
2 Remove the protective cover. Release
the two spring clips securing the bulb.
3 Unplug the connector.
4 Change the bulb. Try not to touch the
glass part of the bulb with your fingers.
The height of the beam can be adjusted
using a screwdriver inserted through the
hole in the lower grille adjacent to the lens.
WARNING
Never crawl under a car that is
supported only by a jack.
 Always use axle stands. Refer to
the information on jacks on pages 214
and 215.
ProCarManuals.com

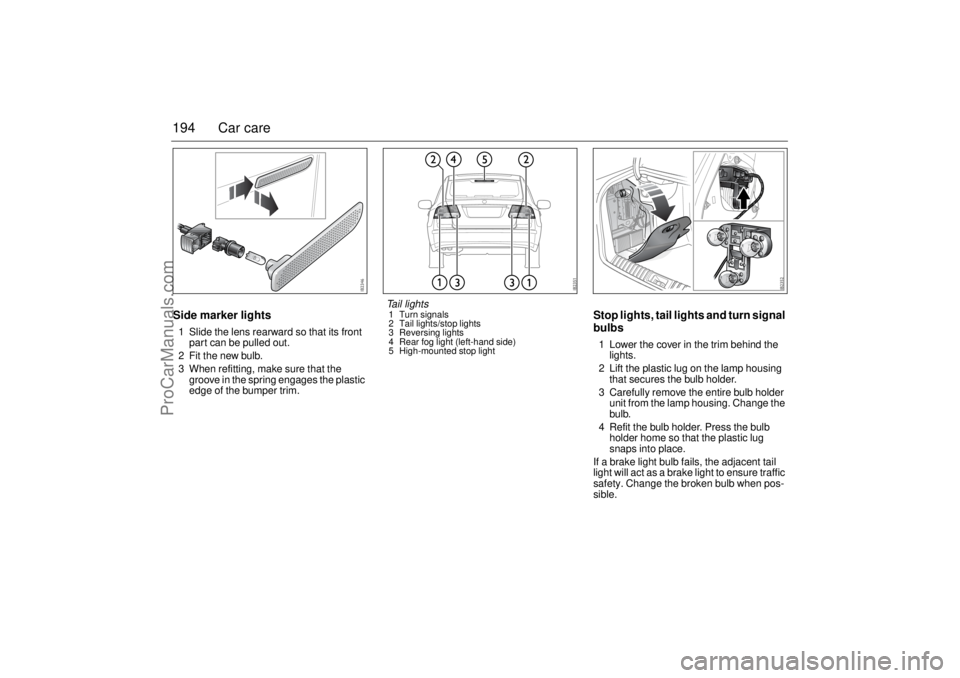

194 Car careSide marker lights1 Slide the lens rearward so that its front
part can be pulled out.
2 Fit the new bulb.
3 When refitting, make sure that the
groove in the spring engages the plastic
edge of the bumper trim.
Stop lights, tail lights and turn signal
bulbs1 Lower the cover in the trim behind the
lights.
2 Lift the plastic lug on the lamp housing
that secures the bulb holder.
3 Carefully remove the entire bulb holder
unit from the lamp housing. Change the
bulb.
4 Refit the bulb holder. Press the bulb
holder home so that the plastic lug
snaps into place.
If a brake light bulb fails, the adjacent tail
light will act as a brake light to ensure traffic
safety. Change the broken bulb when pos-
sible.
Tail lights1 Turn signals
2 Tail lights/stop lights
3 Reversing lights
4 Rear fog light (left-hand side)
5 High-mounted stop light
ProCarManuals.com

195 Car care

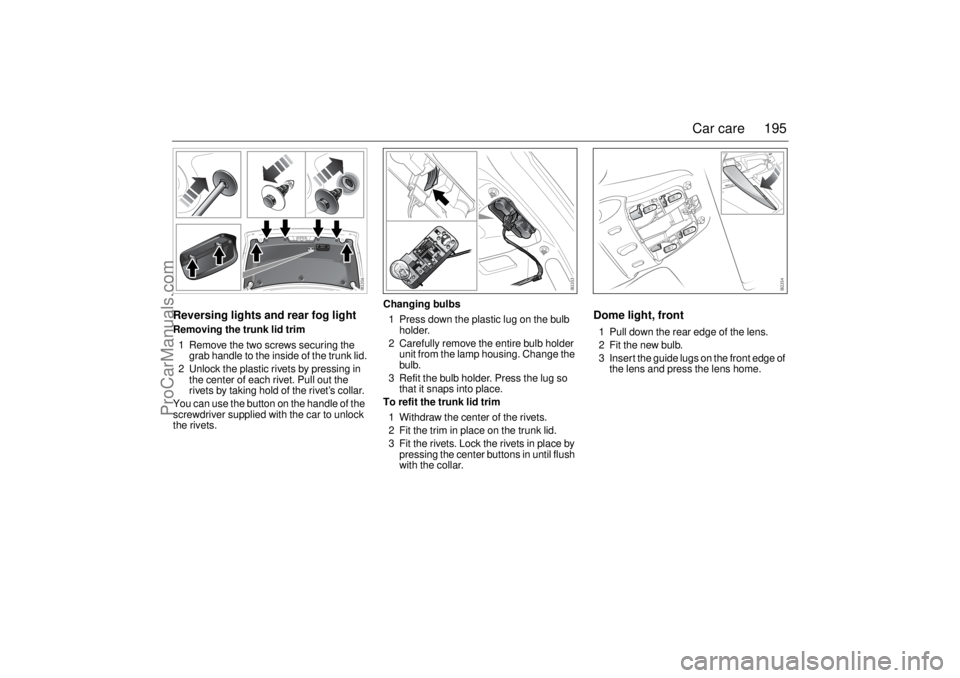

Reversing lights and rear fog lightRemoving the trunk lid trim
1 Remove the two screws securing the
grab handle to the inside of the trunk lid.
2 Unlock the plastic rivets by pressing in
the center of each rivet. Pull out the
rivets by taking hold of the rivet’s collar.
You can use the button on the handle of the
screwdriver supplied with the car to unlock
the rivets.Changing bulbs
1 Press down the plastic lug on the bulb
holder.
2 Carefully remove the entire bulb holder
unit from the lamp housing. Change the
bulb.
3 Refit the bulb holder. Press the lug so
that it snaps into place.
To refit the trunk lid trim
1 Withdraw the center of the rivets.
2 Fit the trim in place on the trunk lid.
3 Fit the rivets. Lock the rivets in place by
pressing the center buttons in until flush
with the collar.
Dome light, front1 Pull down the rear edge of the lens.
2 Fit the new bulb.
3 Insert the guide lugs on the front edge of
the lens and press the lens home.
ProCarManuals.com

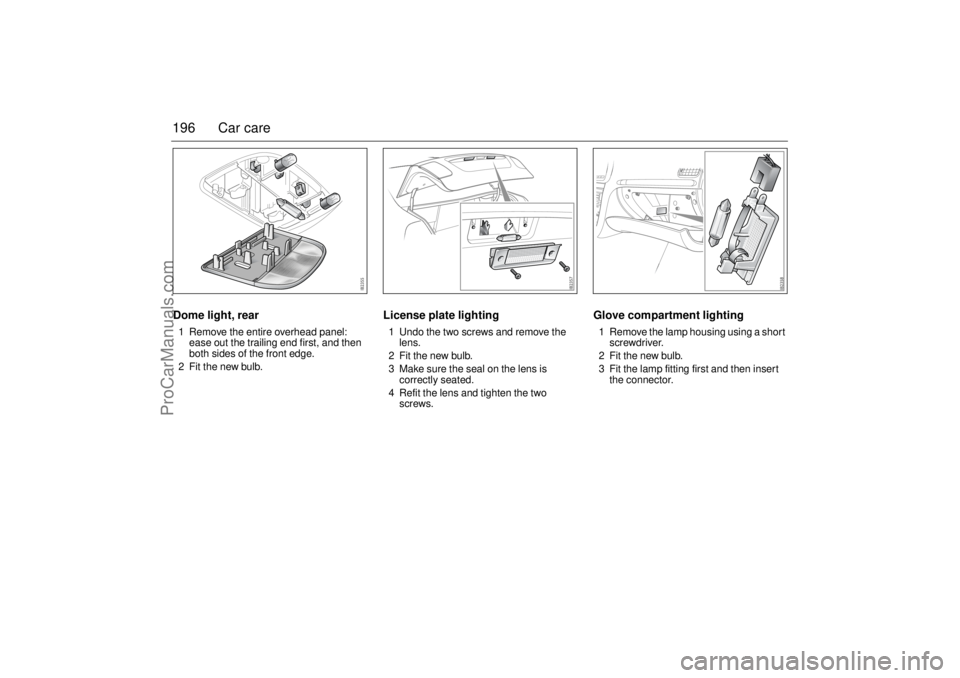

196 Car careDome light, rear1 Remove the entire overhead panel:
ease out the trailing end first, and then
both sides of the front edge.
2 Fit the new bulb.
License plate lighting1 Undo the two screws and remove the
lens.
2 Fit the new bulb.
3 Make sure the seal on the lens is
correctly seated.
4 Refit the lens and tighten the two
screws.
Glove compartment lighting1 Remove the lamp housing using a short
screwdriver.
2 Fit the new bulb.
3 Fit the lamp fitting first and then insert
the connector.
ProCarManuals.com

197 Car care
Trunk lightingThe lamp fitting is located under the parcel
shelf.
1 Remove the lamp fitting by pulling down
one end.
2 Fit the new bulb.
3 Fit the lamp fitting first and then insert
the connector.
Courtesy/floor lighting1 Release one edge of the lamp fitting
using a screwdriver.
2 Fit the new bulb.
3 Fit the lamp fitting first and then insert
the connector.
Other bulbsIf any other bulbs need changing, we rec-
ommend that you visit a Saab dealer.
ProCarManuals.com

198 Car care

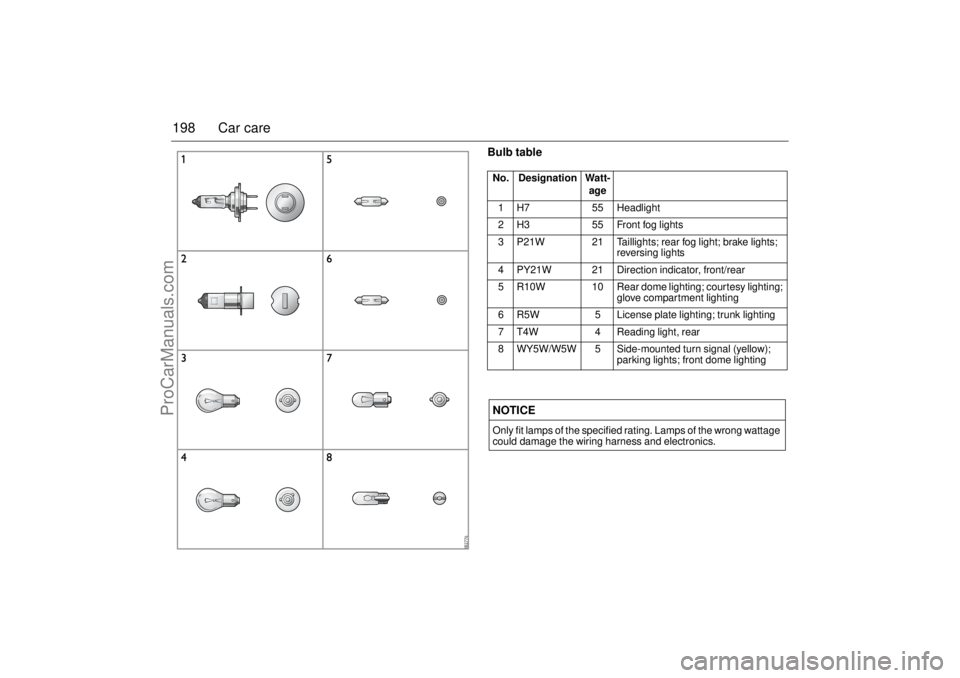

Bulb tableNo. Designation Watt-
age
1 H7 55 Headlight
2 H3 55 Front fog lights
3 P21W 21 Taillights; rear fog light; brake lights;
reversing lights
4 PY21W 21 Direction indicator, front/rear
5 R10W 10 Rear dome lighting; courtesy lighting;
glove compartment lighting
6 R5W 5 License plate lighting; trunk lighting
7 T4W 4 Reading light, rear
8 WY5W/W5W 5 Side-mounted turn signal (yellow);
parking lights; front dome lightingNOTICEOnly fit lamps of the specified rating. Lamps of the wrong wattage
could damage the wiring harness and electronics.
ProCarManuals.com

199 Car care

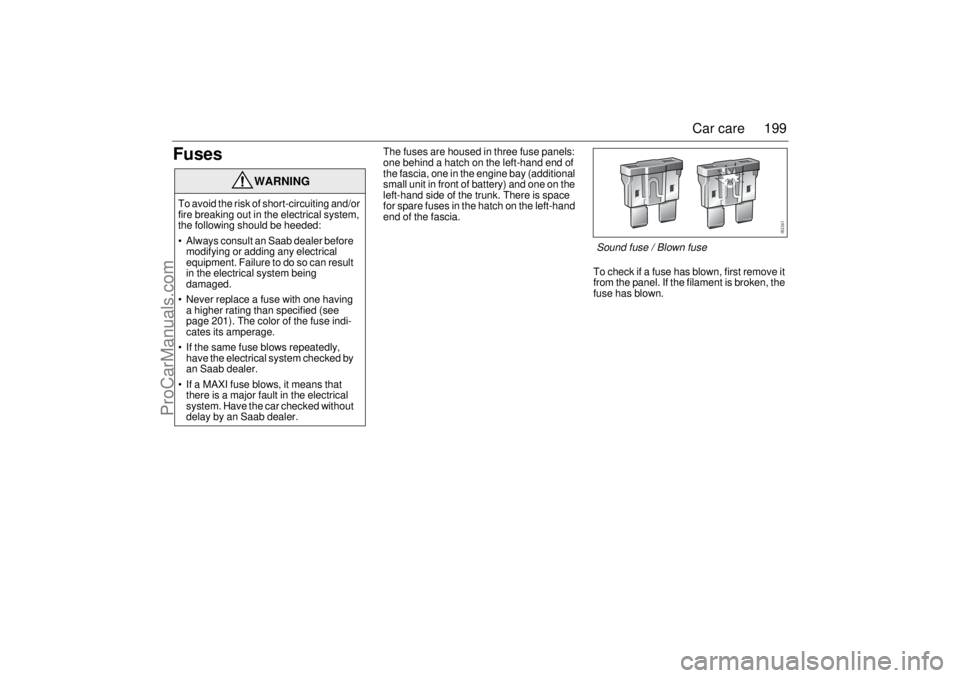

Fuses
The fuses are housed in three fuse panels:
one behind a hatch on the left-hand end of
the fascia, one in the engine bay (additional
small unit in front of battery) and one on the
left-hand side of the trunk. There is space
for spare fuses in the hatch on the left-hand
end of the fascia.
To check if a fuse has blown, first remove it
from the panel. If the filament is broken, the
fuse has blown.
WARNING
To avoid the risk of short-circuiting and/or
fire breaking out in the electrical system,
the following should be heeded:
 Always consult an Saab dealer before
modifying or adding any electrical
equipment. Failure to do so can result
in the electrical system being
damaged.
 Never replace a fuse with one having
a higher rating than specified (see
page 201). The color of the fuse indi-
cates its amperage.
 If the same fuse blows repeatedly,
have the electrical system checked by
an Saab dealer.
 If a MAXI fuse blows, it means that
there is a major fault in the electrical
system. Have the car checked without
delay by an Saab dealer.
Sound fuse / Blown fuse
ProCarManuals.com

200 Car careA special tool for removing fuses is provided
on the hatch on the left-hand end of the fas-
cia. Simply push the tool onto the fuse,
squeeze and remove the fuse.
Some fuses and relays may be fitted but not
connected to the car’s electrical system.
MAXI fusesThe car also has a number of large fuses
known as MAXI fuses. These are designed
to protect the car’s electrical system from
being damaged. Each MAXI fuse protects a
number of electrical circuits and functions
and therefore has a higher rating (amper-
age) than the standard fuses. No spare
MAXI fuses are supplied with the car.NOTICEIf a MAXI fuse blows, there is a major fault
in the electrical system. Have the car
checked at a Saab dealer.
Fuse panel in end of fascia
