SAAB 9-3 2005 Repair Manual

59 9-3 Convertible

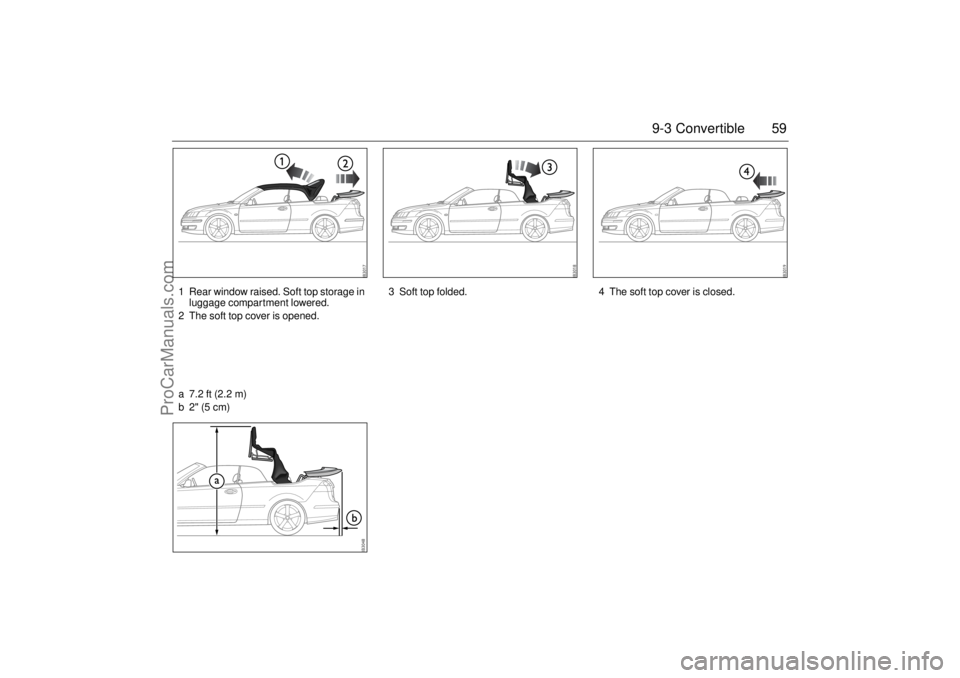

3 Soft top folded. 4 The soft top cover is closed. 1 Rear window raised. Soft top storage in
luggage compartment lowered.
2 The soft top cover is opened.
a 7.2 ft (2.2 m)
b2" (5cm)
ProCarManuals.com

60 9-3 ConvertibleRaisingThe following conditions must be fulfilled for
raising the soft top:
 Vehicle speed must not exceed
20 mph (30 km/h).
 Battery voltage must exceed 10 V.
 The trunk lid must be locked.
1 Star t the engine and let it idle. Clearance
for soft top operation: height, min. 7.2 ft
(2.2 m); behind car, min. 2" (5 cm).
2 Press and hold the soft top button until
the soft top is fully raised and the soft top
cover closed. Completed raising is indi-
cated by a chime. If there is a malfunc-
tion a text message will be shown on the
SID. Refer to page 65.
Do not press any of the buttons on the
same section of the instrument panel as
the soft top switch while raising the soft
top. This will cause the soft top to stop
and then sink after about 20 seconds.
All side windows are opened slightly to pro-
tect the seals when the soft top is raised.
Check that the hooks in the soft top hold it securely to the upper edge of the wind-
shield.
If you hold the button pressed up after the
chime, all the windows will be closed after a
short delay.
Raising
ProCarManuals.com

61 9-3 Convertible

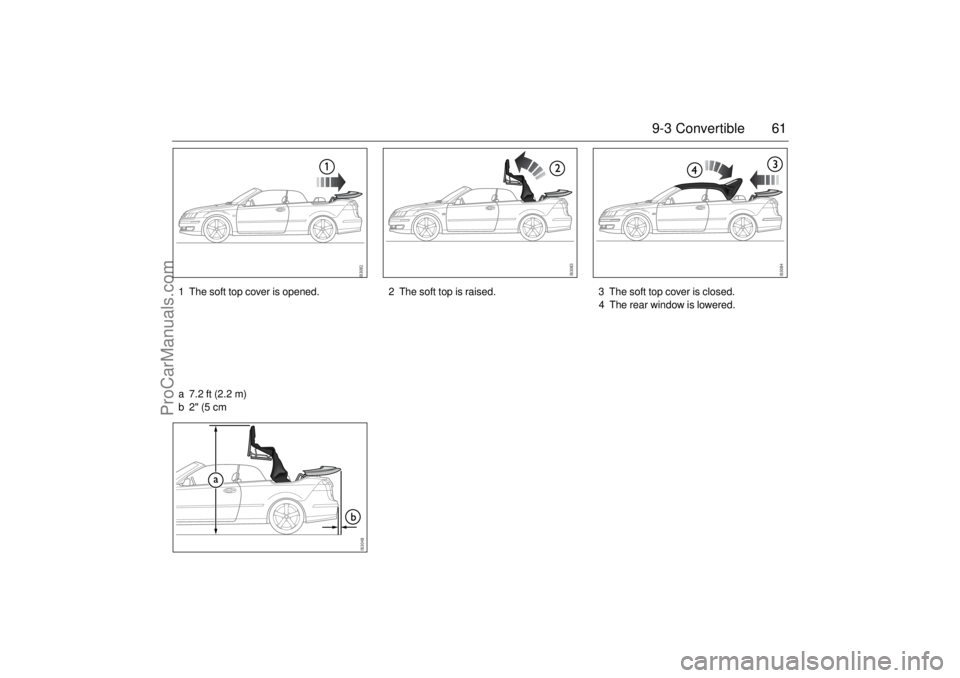

1 The soft top cover is opened. 2 The soft top is raised. 3 The soft top cover is closed.
4 The rear window is lowered.
a 7.2 ft (2.2 m)
b2" (5cm
ProCarManuals.com

62 9-3 ConvertibleRaising the soft top
manuallyIf the soft top has been folded mechanically
there will be a delay of 20 seconds before it
is possible to raise it manually (the pressure
must be released from the hydraulic sys-
tem).
If the car is without electrical power, the
trunk must be unlocked manually. Refer to
page 73.1 Find the lug wrench, Allen key and
screwdriver located under the luggage
compartment floor.
2 Remove the two covers from the side
trim in the trunk, one from either side.
If there are two of you, it is easiest if you
stand on either side of the car and perform
steps 3-6 and 9-10 together.
3 Unlock the soft top cover by pressing
forward the two wire catches, one on the
left and one on right-hand side.
WARNING
Only raise the soft top manually in an
emergency (e.g. due to an electrical
fault).
Do not touch the soft top button on the
instrument panel while closing the soft top
manually. This could cause personal
injury and damage the soft top mecha-
nism.
Do not fold the soft top having closed it
manually. This can damage the soft top
mechanism.
Tools under luggage compartment floor Wire catch for unlocking soft top cover
ProCarManuals.com

63 9-3 Convertible
4 Close the trunk lid fully as otherwise it
will obstruct the soft top cover.
5 Open the soft top cover, upward and
backward.
6 Tip forward the front seat backrests.7 Before raising the soft top, the two
catches in the leading edge of the soft
top must be opened. Stand in the rear
seat and pry off the cover with the screw-
driver. Using the tool, turn clockwise to
open the catches.
Stand in the rear seat and raise the soft
top. Pull it towards the windshield. This
operation requires 7.2 ft (2.2 m) of verti-
cal clearance.
WARNING
 Do not touch the hinges and struts of
the soft top during raising.
 Keep your hands clear of the front
windshield rail.
 Pinch hazard may cause personal
injury.
Soft top cover opened Manual closing started Soft top pulled towards windshield
ProCarManuals.com

64 9-3 Convertible8 Sit in one of the front seats and lock the
soft top to the windshield rail. Use the lug
wrench and the Allen key. Turn roughly
1/4 turn counterclockwise. Check that
the soft top is properly locked in place by
pressing up the front edge. The soft top
must not move upward.9 Lift up the rear window fully and hold it
there. Close the soft top cover. It is not
possible to lock the soft top cover after
manual raising.
10 Press down the rear edge of the soft top
as far as possible towards the soft top
cover.11 Now lock the rear window to the soft top
cover. Sit in the rear seat and insert the
tool (the same tool as used to lock the
soft top to the windshield rail) into the
hexagonal hole in the soft top mecha-
nism. Turn roughly 1/4 turn, counter-
clockwise on the right had side of the
soft top and clockwise on the left-hand
side. Look at the soft top cover when
locking the rear window. The rear
window must make a tight seal against
the soft top cover.
The soft top system must be checked and
rectified without delay at a Saab dealer.
NOTICETo avoid damaging the paintwork on the
soft top cover and the trunk lid, take care
when closing the soft top cover.Closing the soft top cover
Rear window locked to soft top cover
Soft top locked to windshield rail
ProCarManuals.com

65 9-3 Convertible
Cause Suitable action
Soft top front not locked.
Try again.Failure of the soft top to lock automatically to
the windshield. Move the car so that it is standing level if on
a steep slope.
 Press the soft top button to fold the soft top
slightly. Fold the soft top again.
Soft top power pack
overheated.
Allow to cool.This message appears if the soft top is operated
continuously for more than 3 minutes.Wait 6 minutes to allow the hydraulic pump to
cool down.
Open trunk.
Move goods away from
top storage area.Move the object hindering soft top operation.
Soft top may be
damaged if operated
at low temperature.Displayed if the soft top is folded at temperatures
below 23°F (–5°C).
Only manual
operation possible.
Contact Saab dealer.
Soft top cover not locked.
Try again.
SID warnings and messagesThe following messages associated with the soft top system and can be displayed on the SID together with a chime:
ProCarManuals.com

66 9-3 Convertible
Battery low. The voltage of the car battery is too low to allow
soft top operation.
Soft top obstructed.
Clear obstacles and
try again.
Open/close soft top
completely to open trunk.Complete soft top operation.
Open/close soft top
completely before drivingComplete soft top operation.
Close trunk. Close the trunk lid.
Driver seat unlocked. The backrest is not locked. Raise the backrest fully to locked position, see
page 67.
Passenger front seat
unlocked.The backrest is not locked. Raise the backrest fully to locked position, see
page 67.
ProCarManuals.com

67 9-3 Convertible
"Easy entry"To facilitate getting in and out of the rear
seat, the front seats can be slid forward.
Manually adjusted passenger seats
1 Raise the handle by the head restraint
on the seat.
2 Tip the backrest and slide the seat
forward.
Repositioning:
1 Tip back the backrest.
2 Slide the seat back to the desired
position.
Make sure the backrest and seat are prop-
erly locked in position.Electrically adjustable front seats
1 Raise the handle by the head restraint
on the seat.
2 Tip the backrest forward.
3 The seat now moves to its foremost
position.
Repositioning:
1 Tip the backrest back to its normal
position.
2 Raise and hold the handle until the seat
has returned to its previous position.
WARNING
Always check that the backrest locks
properly when returned to normal
position.
 Check that the fore-and-aft position of
the seat is properly locked. The back-
rest and the entire belt-in seat must be
locked in position; otherwise the occu-
pant of the seat is at risk of injury
during braking or in the event of a
crash, especially if a rear-facing child
seat is fitted behind the backrest.
"Easy entry" function. Illustration shows an electrically adjustable seat (option)
ProCarManuals.com

68 9-3 ConvertibleHead restraintsThe front seats are equipped with Saab
Active Head Restraints (SAHRs). These are
designed to reduce the risk of neck injury if
the car is hit from behind.
The SAHR is a mechanical system, actu-
ated by body weight. The mechanism is built
into the top of the backrest, where it is con-
nected to the head restraint.
In the event of a rear-end crash, the body is
forced back against the backrest. This, in
turn, causes the mechanism to press the
head restraint forward and upward, thus lim-
iting the backward movement of the head.The front and rear head restraints can be
raised and lowered to a number of positions.
 Raising: grasp the head restraint on both
sides and pull it straight up.
 Lowering: Press the head restraint for-
ward and downward.
The rear head restraints can be fully low-
ered to improve rearward vision when the
rear seats are unoccupied.
WARNING
 Adjust the head restraint so that the
head is optimally supported and the
center of the head restraint is at ear
height, thus reducing the likelihood of
neck injury in a crash.
 Raise the head restraints in the seats
that are occupied.
Rear head restraint Front head restraint
